Page 5833 of 6000

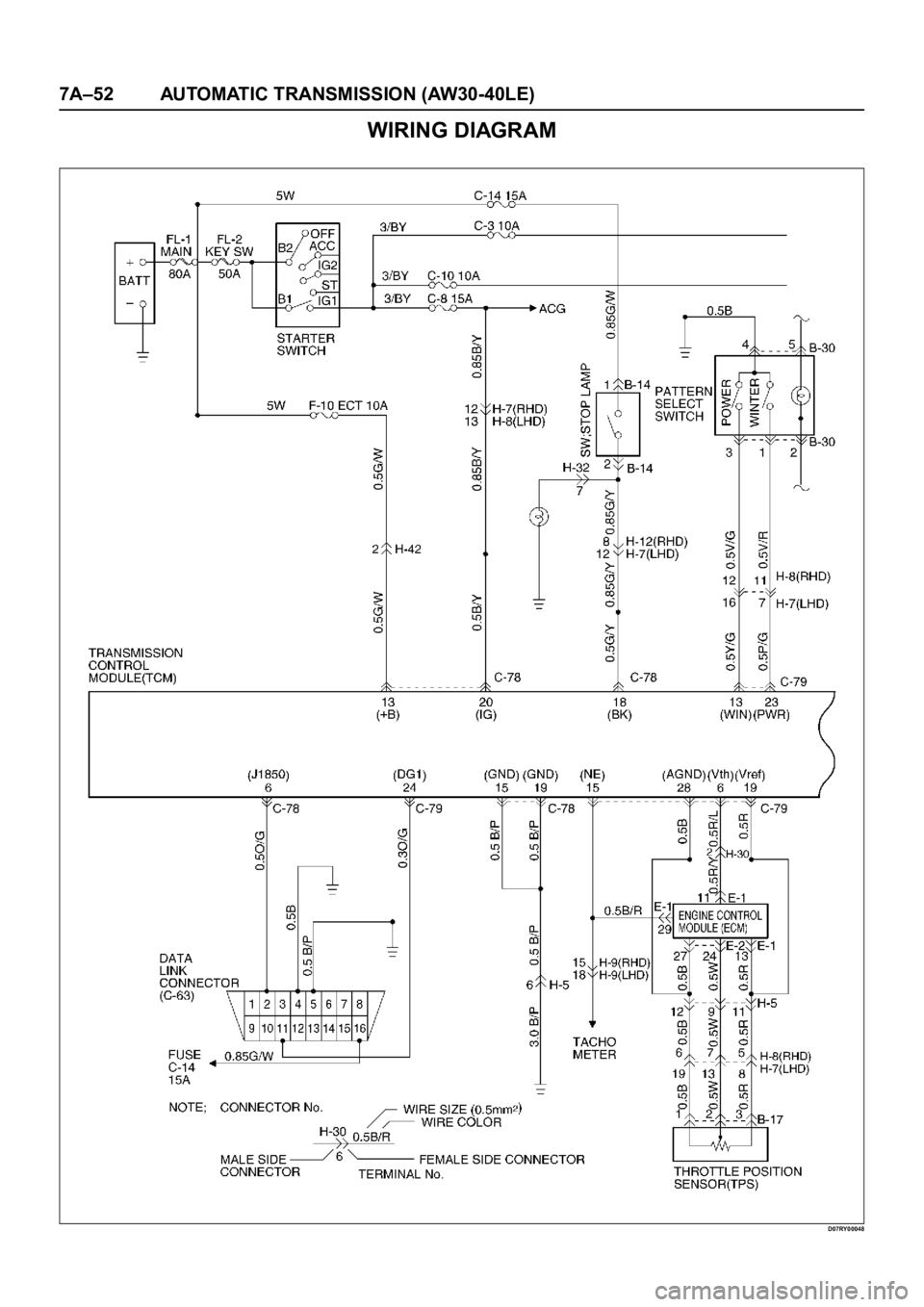

OPEL FRONTERA 1998 Workshop Manual 7A–52 AUTOMATIC TRANSMISSION (AW30-40LE) WIRING DIAGRAM D07RY00048

Page 5834 of 6000

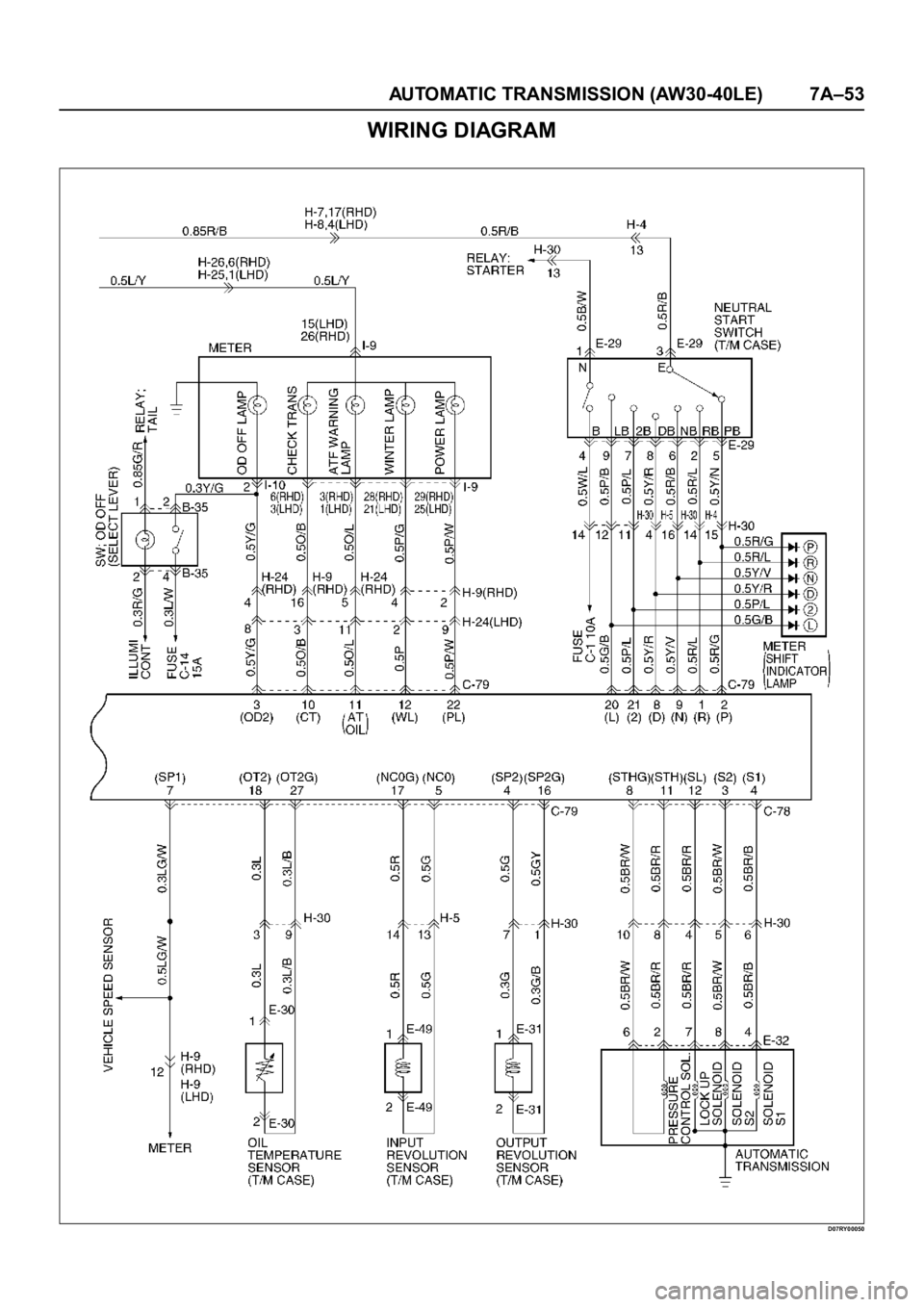

OPEL FRONTERA 1998 Workshop Manual AUTOMATIC TRANSMISSION (AW30-40LE) 7A–53 WIRING DIAGRAM D07RY00050

Page 5835 of 6000

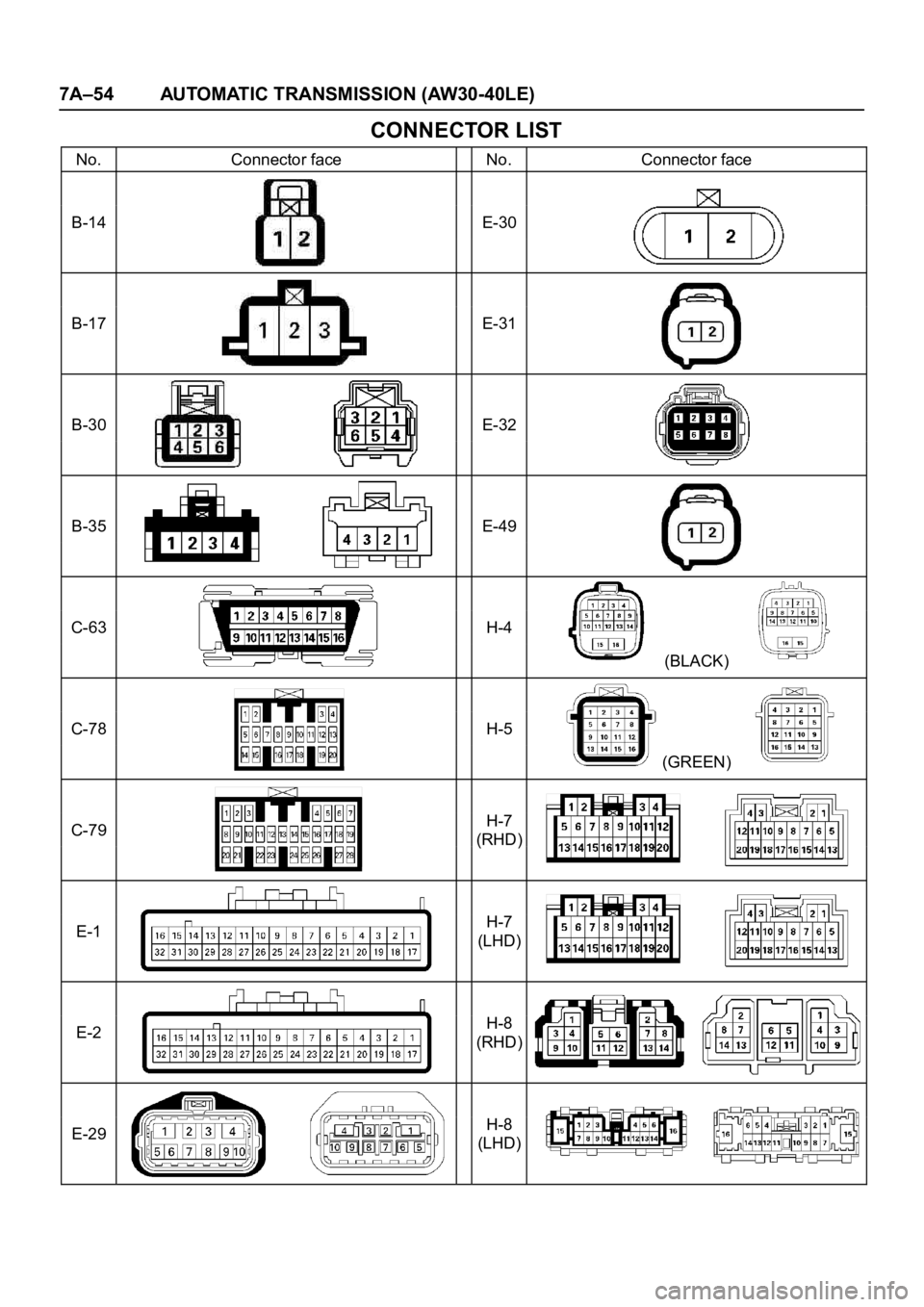

OPEL FRONTERA 1998 Workshop Manual 7A–54 AUTOMATIC TRANSMISSION (AW30-40LE) CONNECTOR LIST No. Connector face No. Connector face B-14 E-30 B-17 E-31 B-30 E-32 B-35 E-49 C-63 H-4 (BLACK) C-78 H-5 (GREEN) C-79H-7 (RHD) E-1H-7 (LHD) E-2

Page 5836 of 6000

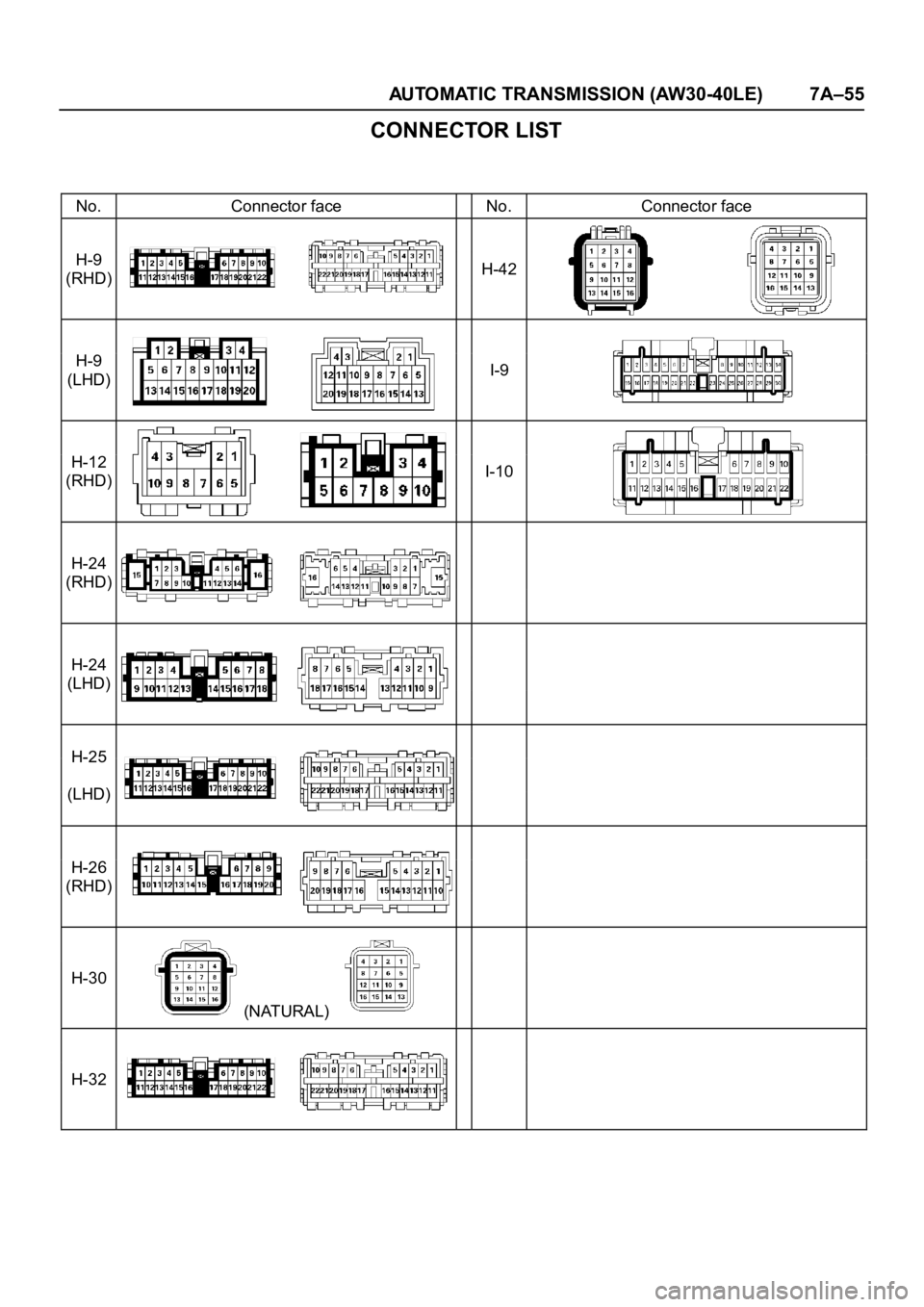

OPEL FRONTERA 1998 Workshop Manual AUTOMATIC TRANSMISSION (AW30-40LE) 7A–55 CONNECTOR LIST No. Connector face No. Connector face H-42H-9 (RHD) I-9H-9 (LHD) I-10H-12 (RHD) H-24 (RHD) H-24 (LHD) H-25 (LHD) H-26 (RHD) H-30 (NATURAL) H-3

Page 5837 of 6000

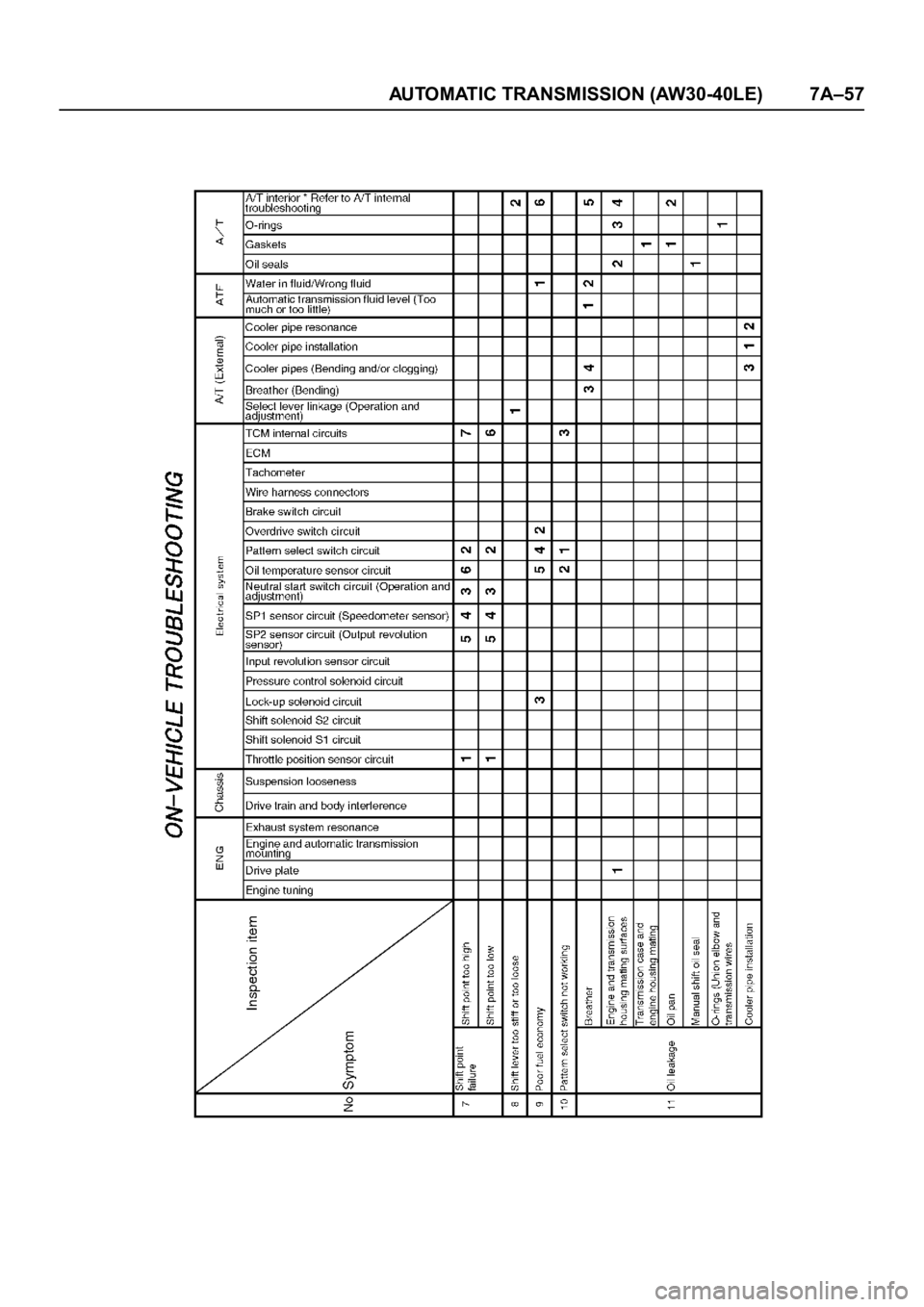

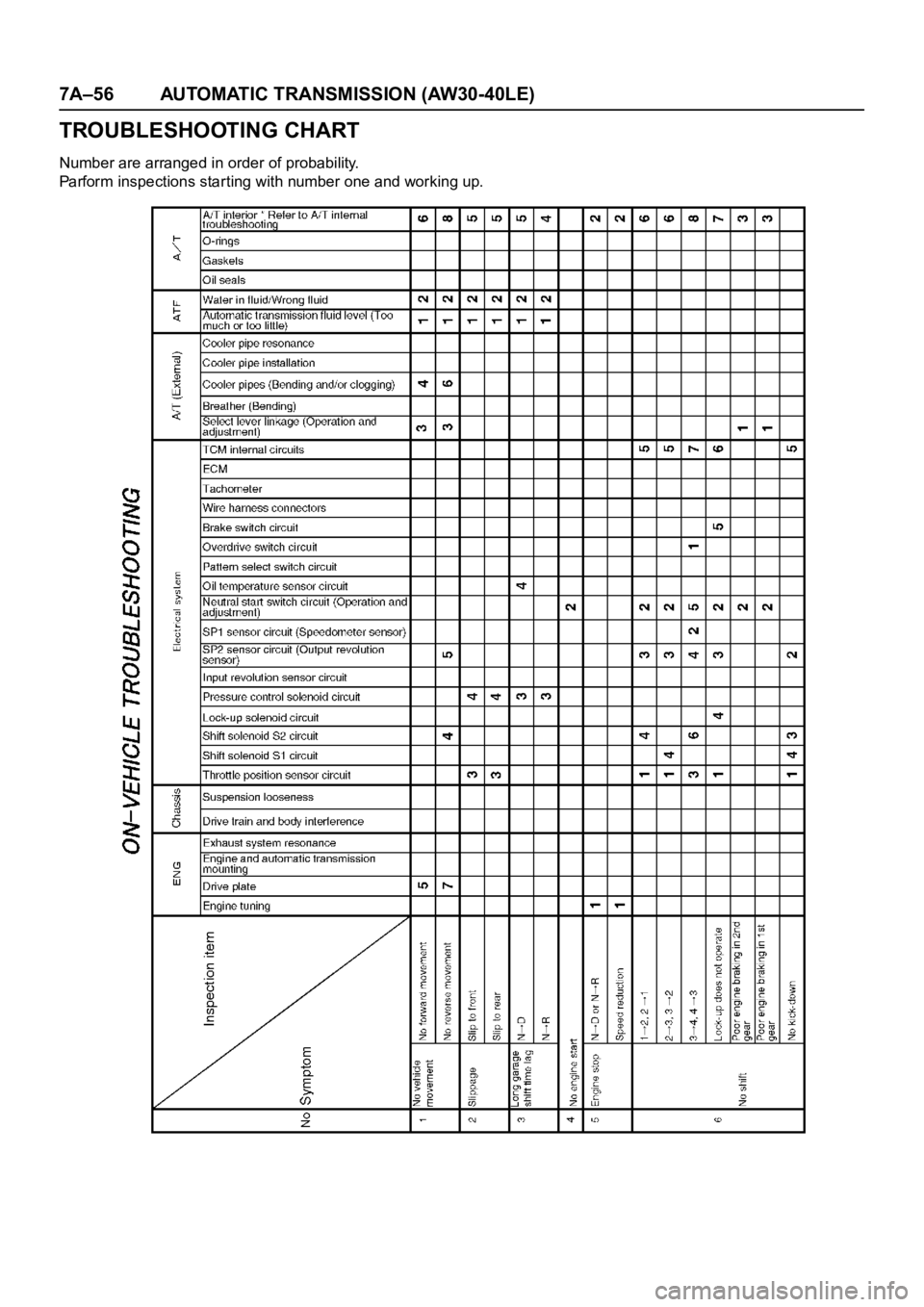

OPEL FRONTERA 1998 Workshop Manual 7A–56 AUTOMATIC TRANSMISSION (AW30-40LE) TROUBLESHOOTING CHART Number are arranged in order of probability. Parform inspections starting with number one and working up.

Page 5838 of 6000

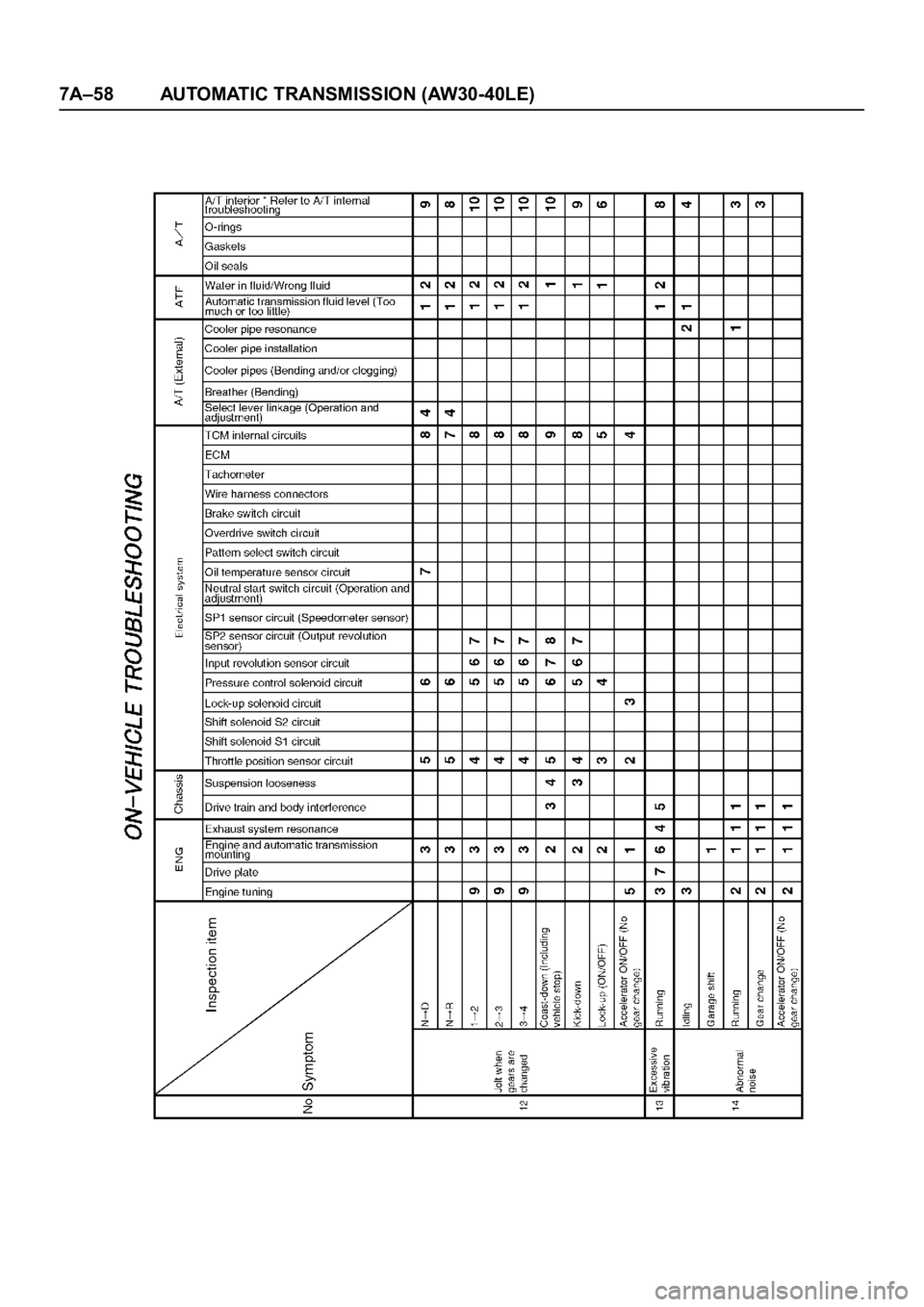

OPEL FRONTERA 1998 Workshop Manual AUTOMATIC TRANSMISSION (AW30-40LE) 7A–57

Page 5839 of 6000

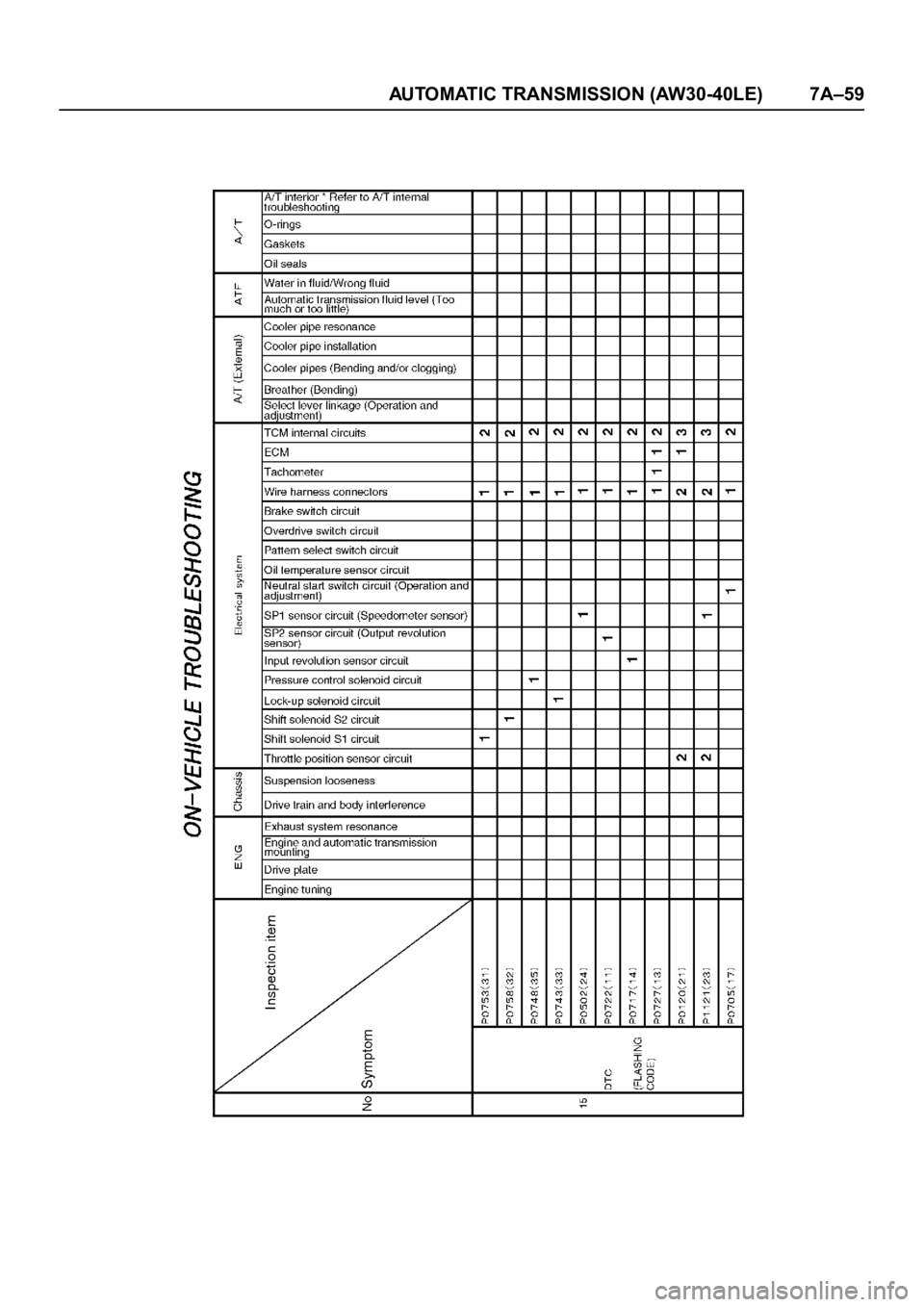

OPEL FRONTERA 1998 Workshop Manual 7A–58 AUTOMATIC TRANSMISSION (AW30-40LE)

Page 5840 of 6000

OPEL FRONTERA 1998 Workshop Manual AUTOMATIC TRANSMISSION (AW30-40LE) 7A–59
