Page 617 of 6000

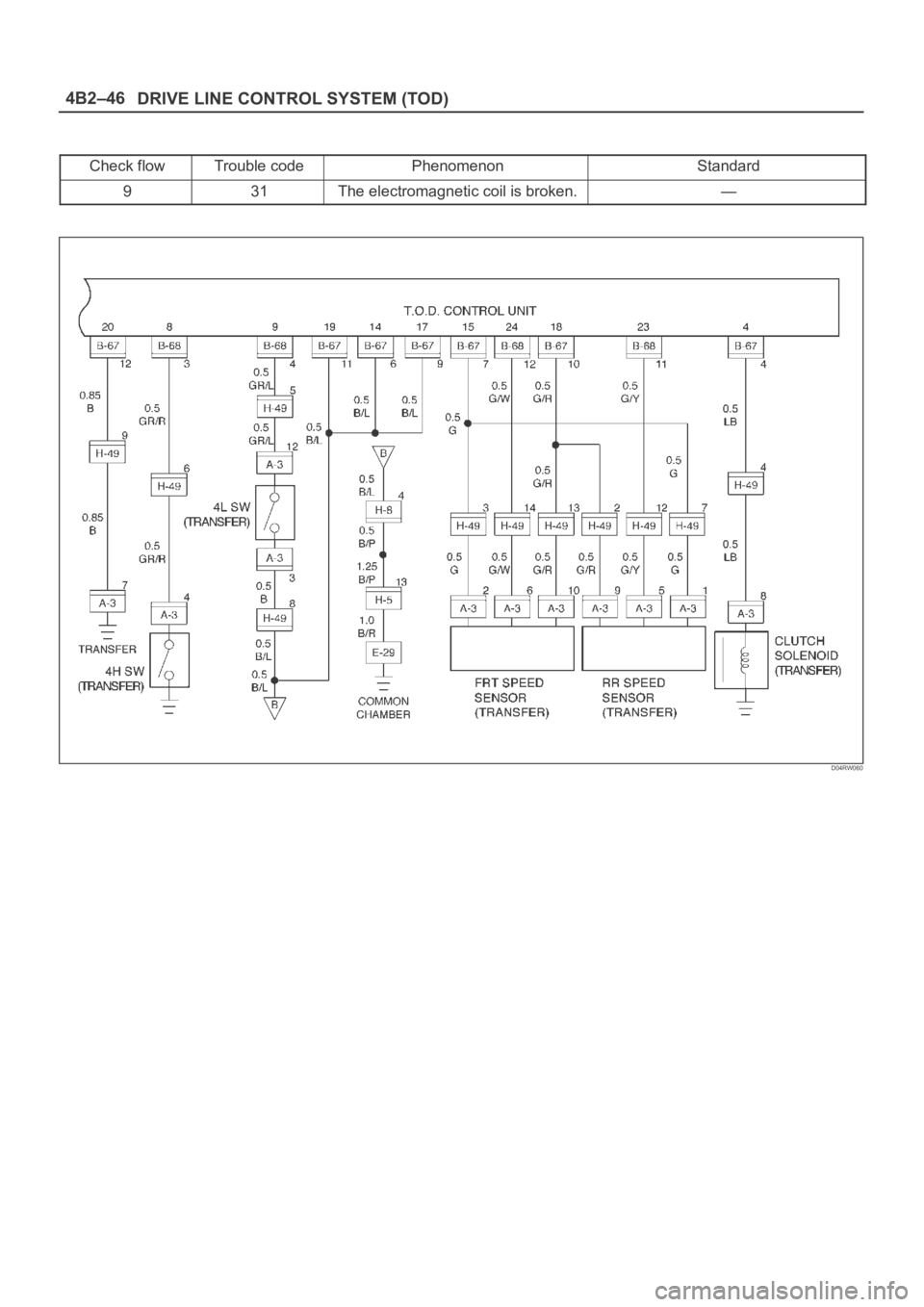

DRIVE LINE CONTROL SYSTEM (TOD) 4B2–46
Check flowTrouble codePhenomenonStandard
931The electromagnetic coil is broken.—
D04RW060
Page 618 of 6000

4B2–47 DRIVE LINE CONTROL SYSTEM (TOD)
StepActionYe sNo
11. Turn off the starter switch.
2. Disconnect the ECU connector from ECU.
Is the continuity established between terminals (B–67)4 and
(B–67)12?
Go to Step 2Go to Step 4
21. Connect the ECU connector.
2. Start the engine.
3. Set the TOD mode.
Does the voltage between terminals 4 and 20 indicate at least
0.4V?
Go to Step 3
The ECU has
failed. Replace
the ECU.
Go to Step 5
3Is the battery voltage always observed between terminals 4 and
20?
The harness is
short–circuited on
the battery.
Repair the circuit.
Go to Step 5
The phenomenon
is not
reproduced.
Refer to
“Troubles
intermittently
observed”.
Go to Step 5
41. Disconnect the M–27 connector.
Is the continuity established between transfer connector
terminals (A–3)8 and (A–3)7?
The harness is
broken. Repair
the circuit.
Go to Step 5
Replace the
transfer
electromagnetic
coil (solenoid
clutch).
Go to Step 5
51. Check that all the parts are mounted.
2. Clear the trouble code.
Is this step complete?
Repeat the
“Diagnosis Flow”.
Return to Step 5
Page 619 of 6000
DRIVE LINE CONTROL SYSTEM (TOD) 4B2–48
Check flowTrouble codePhenomenonStandard
1026The electromagnetic coil GND is
short-circuited.Resistance: 1.0 to 5.0 ohm (at ordi-
nary temperature)
D04RW060
Page 620 of 6000
4B2–49 DRIVE LINE CONTROL SYSTEM (TOD)
StepActionYe sNo
11. Turn off the starter switch.
2. Disconnect the ECU connector from ECU.
Does the resistance between terminals (B–67)4 and (B–67)12?
indicate 1.0 to 5.0 ohm?
Go to Step 2Go to Step 3
21. Connect the ECU connector.
2. Start the engine.
3. Set the TOD mode.
When the throttle is operated between full close and full open
positions, does the voltage between terminals 4 and 20 indicate a t
least 0.1 to 1.0 V?The phenomenon
is not
reproduced.
Refer to
“Troubles
intermittently
observed”.
Go to Step 4
The ECU has
failed. Replace
the ECU.
Go to Step 4
3Does the resistance between transfer connector terminals (A–3)8
and (A–3)7 indicate 1.0 to 5.0ohm?
The harness is
broken. Repair
the circuit.
Go to Step 4
Replace the
transfer
electromagnetic
coil.
Go to Step 4
41. Check that all the parts are mounted.
2. Clear the trouble code.
Is this step complete?
Repeat the
“Diagnosis Flow”.
Return to Step 4
Page 621 of 6000
DRIVE LINE CONTROL SYSTEM (TOD) 4B2–50
Check flowTrouble codePhenomenonStandard
1128The shift on the fly system (front
hub) works incorrectly.—
NOTE: The shift on the fly system is not changed
between 2WD and 4WD modes normally.CAUTION: If code 32 or 33 is also observed, remove
the trouble associated with code 32 or 33 first.
D04RW058
Page 622 of 6000

4B2–51 DRIVE LINE CONTROL SYSTEM (TOD)
StepActionYe sNo
11. Turn on the starter switch.
2. Set the transfer to the 2H mode.
Is the battery voltage observed between terminals 5 and 19?
Go to Step 2Go to Step 5
2Is the battery voltage observed between terminals 10 and 19?Go to Step 3Go to Step 6
31. Set the transfer to the high (TOD) mode.
Does the voltage between terminals 5 and 19 indicate 0V?
Go to Step 4
The ECU has
failed. Replace
the ECU.
Go to Step 7
4Does the voltage between terminals 10 and 19 indicate 0V?The phenomenon
is not
reproduced.
Refer to
“Troubles
intermittently
observed”.
Go to Step 7
The shift on the
fly system is
failed (refer to
Section 4C “Front
Axle” of Chassis
Repair Manual).
Go to Step 7
5Does the TOD indicator show the 2H mode?
The ECU has
failed. Replace
the ECU.
Go to Step 7
See “Trouble
Diagnosis
Depending on
The Status of
TOD Indicator”.
Go to Step 7
6Set the transfer to the high (TOD) mode.
Does the voltage between terminals 5 and 19 indicate 0V?The shift on the
fly system has
failed (refer to
Section 4C “Front
Axle” of Chassis
Repair Manual).
Go to Step 7
The ECU has
failed. Replace
the ECU.
Go to Step 7
71. Check that all the parts are mounted.
2. Clear the trouble code.
Is this step complete?
Repeat the
“Diagnosis Flow”.
Return to Step 7
Page 623 of 6000
DRIVE LINE CONTROL SYSTEM (TOD) 4B2–52
Check flowTrouble codePhenomenonStandard
1232The on/off signal (ADC) line of the
shift on the fly system (front hub) is
broken, or the line is short-circuited
to the battery.
—
NOTE: The on/off signal line of the shift on the fly system
is broken, or the line is short–circuited to the battery.
D04RW058
Page 624 of 6000
4B2–53 DRIVE LINE CONTROL SYSTEM (TOD)
StepActionYe sNo
11. Turn off the starter switch.
2. Disconnect the ECU connector from ECU.
Is the continuity established between terminals (B–67)5 and
(B–67)11?
Go to Step 2
The harness is
broken. Repair
the circuit.
Go to Step 3
2Does the voltage between terminals 5 and 19 indicate 0V?
Go to Step 3
The battery is
short-circuited.
Repair the circuit.
Go to Step 4
31. Turn off the starter switch.
2. Connect ECU connector.
3. Turn on the starter switch.
4. Set the transfer to the 2H mode.
Is the battery voltage observed between terminals 5 and 19?The phenomenon
is not reproduced
Refer to
“Troubles
intermittently
observed”.
Go to Step 4
The ECU has
failed. Replace
the ECU.
Go to Step 4
41. Check that all the parts are mounted.
2. Clear the trouble code.
Is this step complete?
Repeat the
“Diagnosis Flow”.
Return to Step 4
