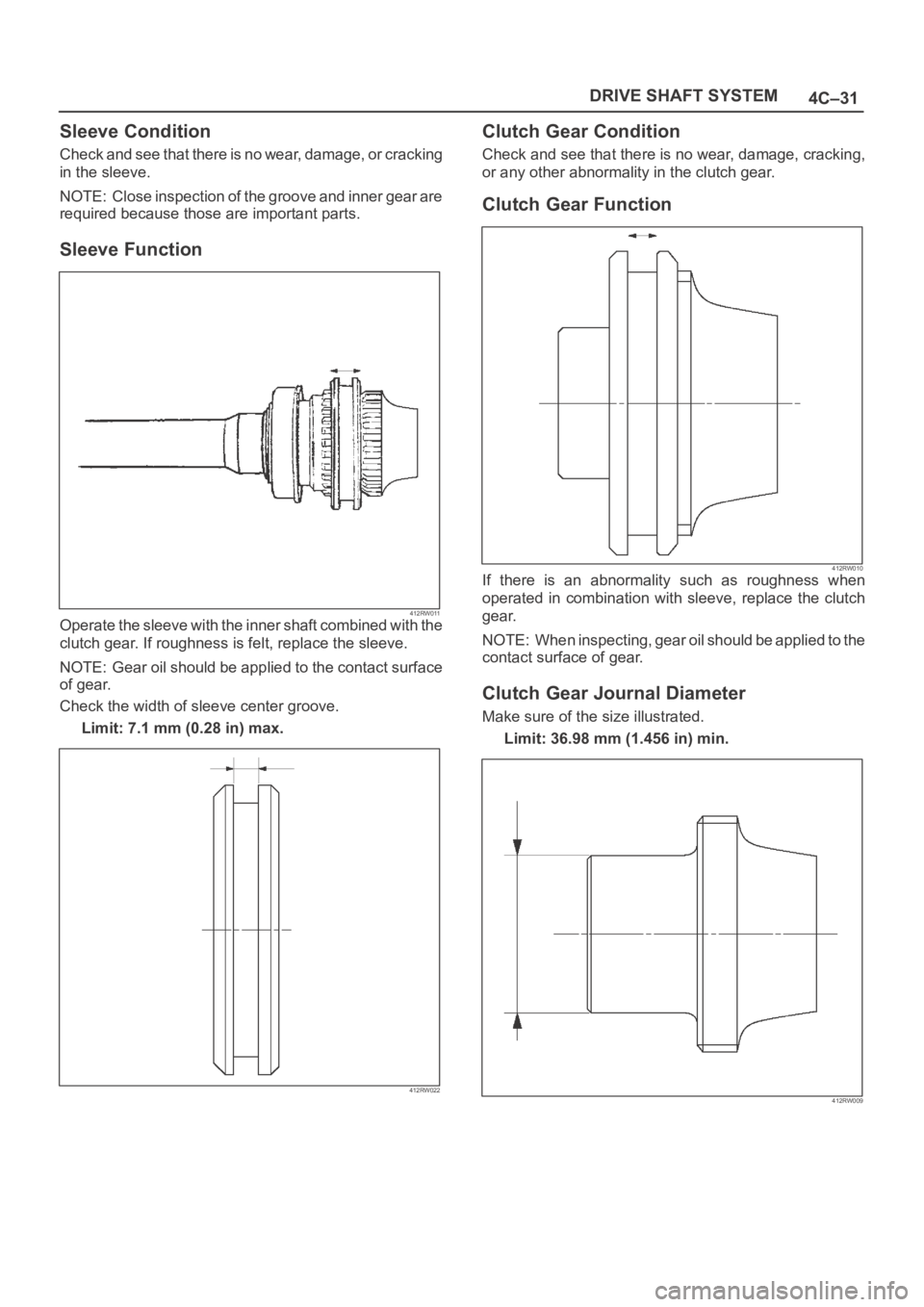

Page 697 of 6000
4C–31 DRIVE SHAFT SYSTEM
Sleeve Condition
Check and see that there is no wear, damage, or cracking
in the sleeve.
NOTE: Close inspection of the groove and inner gear are
required because those are important parts.
Sleeve Function
412RW011Operate the sleeve with the inner shaft combined with the
clutch gear. If roughness is felt, replace the sleeve.
NOTE: Gear oil should be applied to the contact surface
of gear.
Check the width of sleeve center groove.
Limit: 7.1 mm (0.28 in) max.
412RW022
Clutch Gear Condition
Check and see that there is no wear, damage, cracking,
or any other abnormality in the clutch gear.
Clutch Gear Function
412RW010If there is an abnormality such as roughness when
operated in combination with sleeve, replace the clutch
gear.
NOTE: When inspecting, gear oil should be applied to the
contact surface of gear.
Clutch Gear Journal Diameter
Make sure of the size illustrated.
Limit: 36.98 mm (1.456 in) min.
412RW009
Page 698 of 6000
4C–32
DRIVE SHAFT SYSTEM
Actuator
Check and see that there is no damage, cracking, or other
abnormality.
Functional Check
412RW021
412RW013
412RW007Disconnect the shift position switch and make sure of
function with a vacuum of –400 mmHg applied to Ports A
and B, in accordance with the table below.
State
Port APort BFunction
C–400 mmHgA/PE
DA/P–400 mmHgF
If there is an abnormality, replace the actuator as an
assembly.
NOTE:
1. If the actuator works under –400mmHg or less, there
is no functional problem.
2. Be careful not to permit the entry of water or dust into
the ports of the actuator.
Dimensional Check
Measure illustrated sizes 1, 2, and 3.
Limit
1=64.3 mm (2.53 in) max.
2=6.7 mm (0.26 in) min.
3=6.7 mm (0.26 in) min.
Page 699 of 6000
4C–33 DRIVE SHAFT SYSTEM
412RS037
Reassembly
1. Install the new oil seal which has been immersed in
differential gear oil, by using an oil seal installer
5–8840–2407–0 and grip 5–8840–0007–0.
412RS043
2. Force a new needle bearing into inner shaft by using a
installer 5–8840–2408–0 and grip 5–8840–0007–0.
412RS051
3. Place a new snap ring(internal) in inner shaft.
Force a new inner shaft bearing into the inner shaft by
using a installer 5–8840–2197–0 and press.
412RS044
4. Install snap ring(external).
NOTE: Be careful not to damage the inner shaft.
5. Clean the housing contact surface of the front axle
case and insert inner shaft assembly into the front
axle case.
Page 700 of 6000

4C–34
DRIVE SHAFT SYSTEM
NOTE: Be careful not to damage seal.
6. Install snap ring (internal) in the groove of front axle
case.
NOTE: Be sure to install the snap ring properly.
412RW017
7. Apply differential gear oil to clutch gear, then install
clutch gear.
8. Apply differential gear oil to sleeve, then install
sleeve.
9. Clean contact surface with the front axle and actuator
mounting surface. Apply liquid gasket to the contact
surface on the front axle case, then install in the
housing.
412RW023
10. Tighten bolts to specified torque.
Torque: 116Nꞏm (11.8 kgꞏm/85 lb ft)11. Clean the actuator contact surface with the housing
then Install and tighten shift position switch to
specified torque.
Torque: 39Nꞏm (4.0 kgꞏm/29 lb ft)
12. Apply liquid gasket to the contact surface on the
actuator side.
412RW012
13. Align shift arm with the groove of sleeve and install the
actuator.
14. Tighten bolts to specified torque.
Torque: 13Nꞏm (1.3 kgꞏm/113 lb in)
15. Install front axle drive shaft and mounting bracket.
Tighten fitting bolts to specified torque.
Torque: 116Nꞏm (11.8 kgꞏm/85 lb ft)
16. Pour specified amount of differential gear oil to filler
plug.
Front Differential
Oil Capacity: 1.4lit (1.23 Imp qt/1.48 US qt)
Actuator Housing
Oil Capacity: 0.12lit (0.10 Imp qt/0.13 US qt)
17. Install filler plug through gasket and tighten to
specified torque.
To r q u e : 7 8 N ꞏm ( 5 8 l b f t )
Page 701 of 6000
4C–35 DRIVE SHAFT SYSTEM
Main Data and Specifications
General Specifications
Front drive axle oil capacity1.4 liter (1.23 Imp qt/1.48 US qt)(Differential)
0.12 liter (0.10 Imp qt/0.13 US qt)(Actuator Housing:Shift on the fly)
Type of lubricantGL–5 (Multi grade type) Refer to chart in General Information
Axle shaft typeConstant velocity joint(Birfield joint type and double offset joint)
Torque Specifications
E04RW020
Page 702 of 6000
4C–36
DRIVE SHAFT SYSTEM
Special Tools
ILLUSTRATIONTOOL NO.
TOOL NAME
5–8840–2309–0
(J–39378)
Remover and Installer;
Front Axle mount
bushing
5–8840–2197–0
(J–37452)
Remover and Installer;
Inner shaft bearing
5–8840–0027–0 (J–
26941)
Remover;Bearing needle
5–8840–0084–0
(J–2619–01)
Hammer; Sliding
5–8840–2407–0
(J–41693)
Installer; Oil seal
5–8840–2408–0
(J–41694)
Installer; Bearing needle
ILLUSTRATIONTOOL NO.
TOOL NAME
5–8840–0007–0
(J–8092)
Grip
Page 703 of 6000
4C–37 DRIVE SHAFT SYSTEM
Front Propeller Shaft
General Description
Since the propeller shaft is balanced carefully, welding or
any other modifications are not permitted.Alignment marks should be applied to each propeller
shaft before removal.
401RW002
Page 704 of 6000
4C–38
DRIVE SHAFT SYSTEM
Front Propeller Shaft and Associated Parts
401RW058
Legend
(1) Bolt, Nut and Washer (Front Axle Side)
(2) Front Propeller Shaft
(3) Bolt, Nut and Washer (Transfer Side)(4) Front Propeller Shaft (with TOD)
(5) Coupling
(6) LJ Constant Velocity Joint
(7) BJ Constant Velocity Joint
Removal
1. Jack up the vehicle and support it on the chassis
stands.
2. Gear shift lever should be placed in neutral position
and parking brake released.
3. Remove the exhaust and transfer protectors.
NOTE: Apply alignment marks on the flange at the front
propeller shaft both front and rear side.
401RS020
