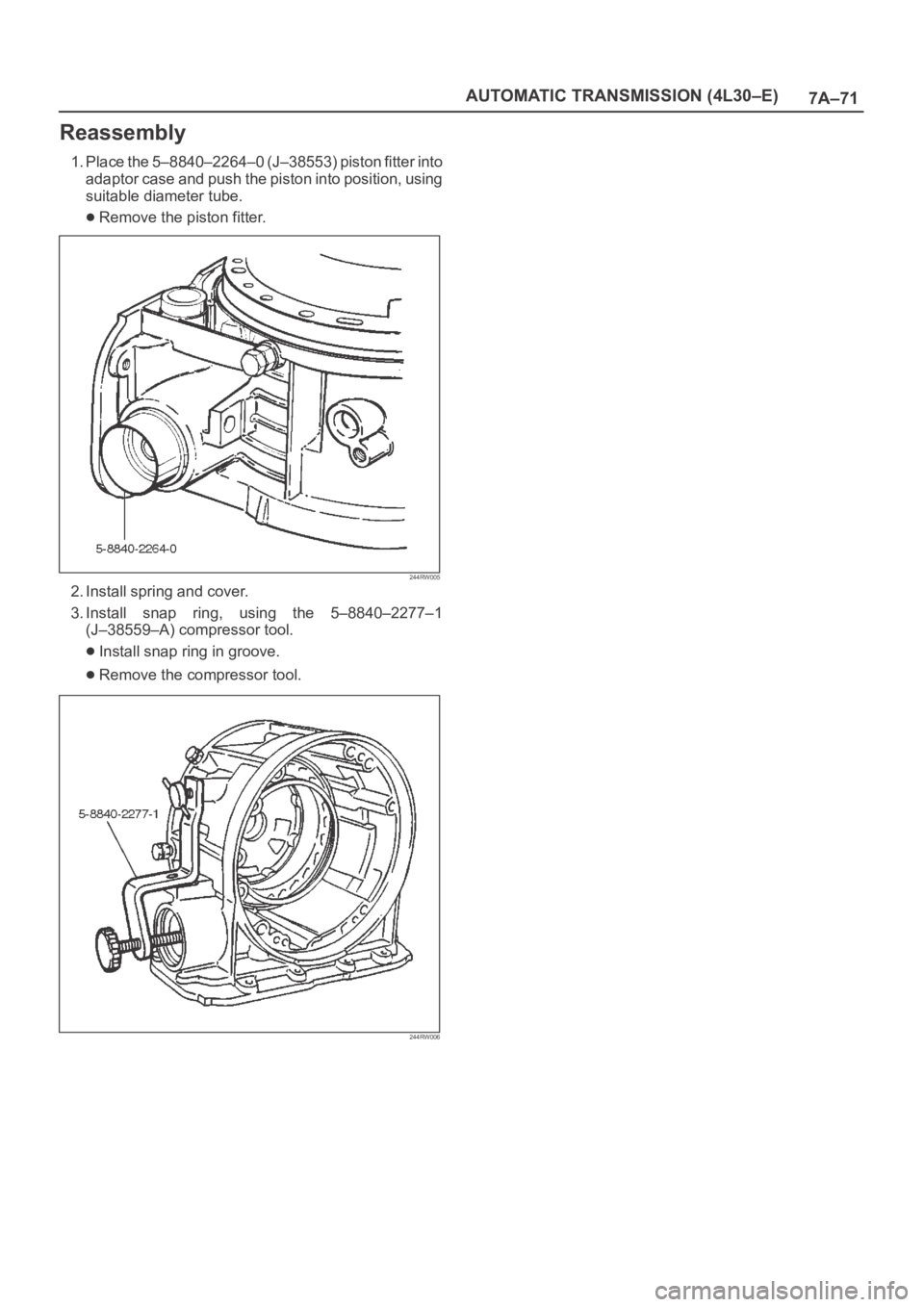

OPEL FRONTERA 1998 Workshop Manual 7A–71 AUTOMATIC TRANSMISSION (4L30–E) Reassembly 1. Place the 5–8840–2264–0 (J–38553) piston fitter into adaptor case and push the piston into position, using suitable diameter tube. Remov

Page 2226 of 6000

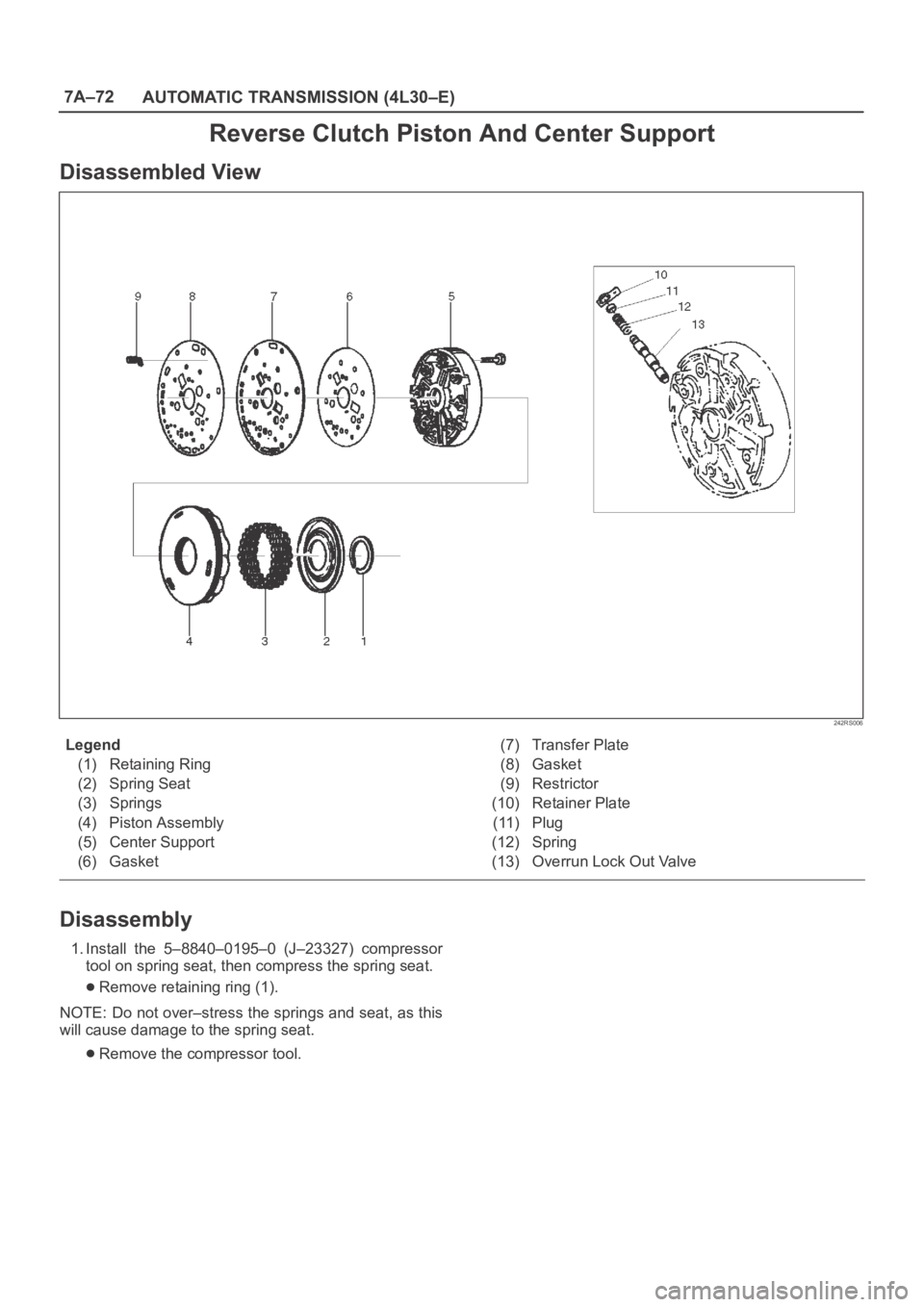

OPEL FRONTERA 1998 Workshop Manual 7A–72 AUTOMATIC TRANSMISSION (4L30–E) Reverse Clutch Piston And Center Support Disassembled View 242RS006 Legend (1) Retaining Ring (2) Spring Seat (3) Springs (4) Piston Assembly (5) Center Suppo

Page 2227 of 6000

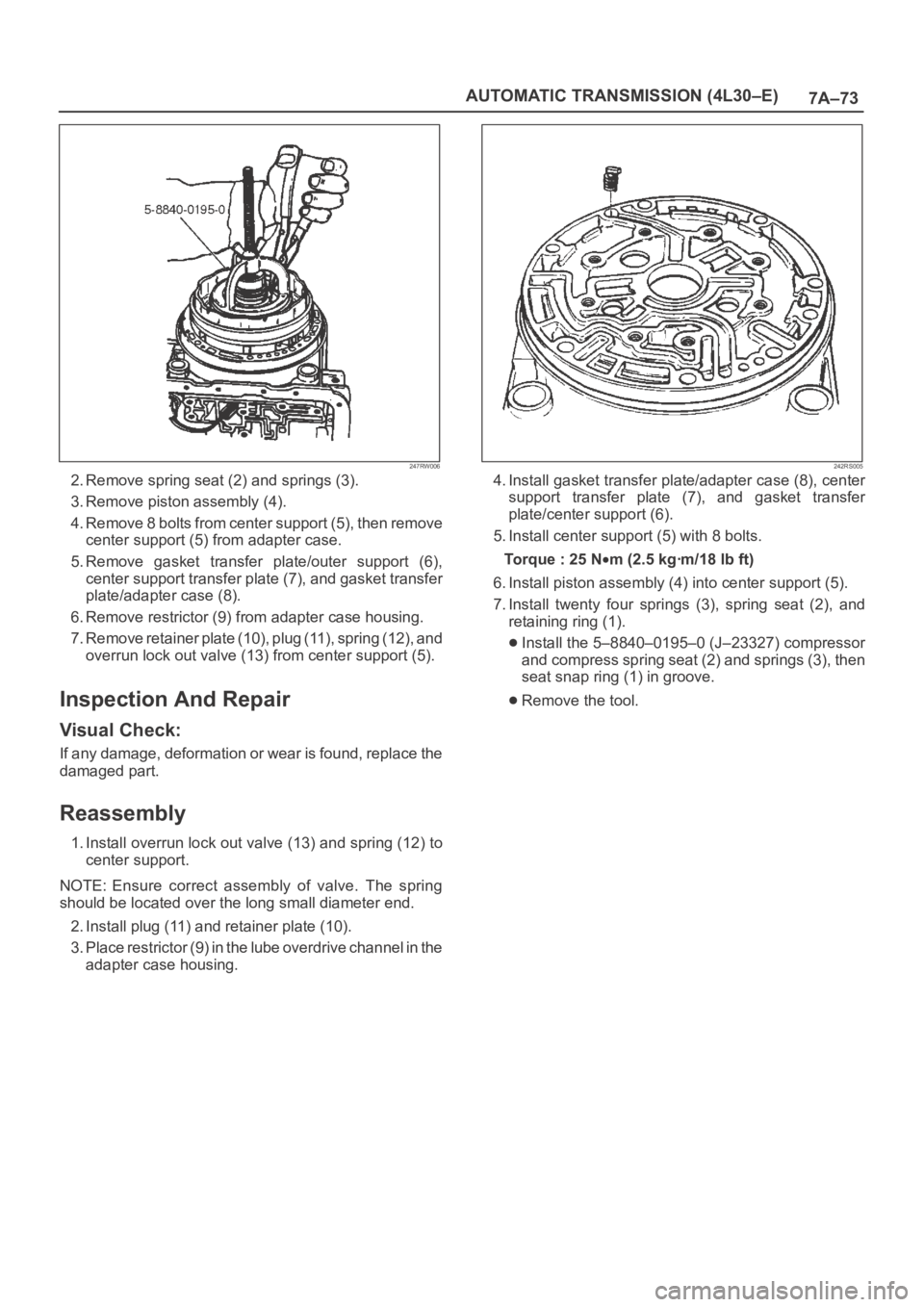

OPEL FRONTERA 1998 Workshop Manual 7A–73 AUTOMATIC TRANSMISSION (4L30–E) 247RW006 2. Remove spring seat (2) and springs (3). 3. Remove piston assembly (4). 4. Remove 8 bolts from center support (5), then remove center support (5)

Page 2228 of 6000

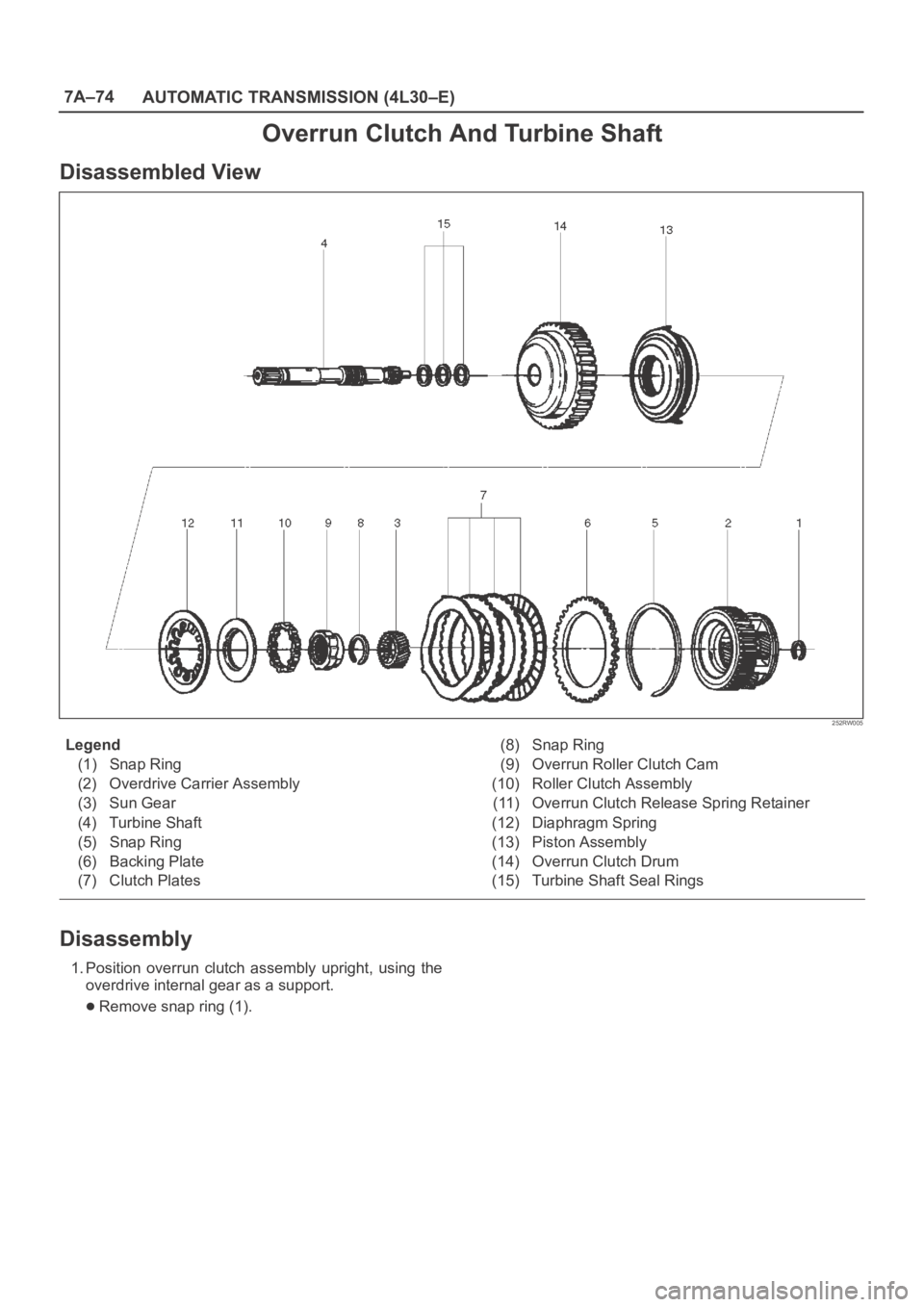

OPEL FRONTERA 1998 Workshop Manual 7A–74 AUTOMATIC TRANSMISSION (4L30–E) Overrun Clutch And Turbine Shaft Disassembled View 252RW005 Legend (1) Snap Ring (2) Overdrive Carrier Assembly (3) Sun Gear (4) Turbine Shaft (5) Snap Ring (

Page 2229 of 6000

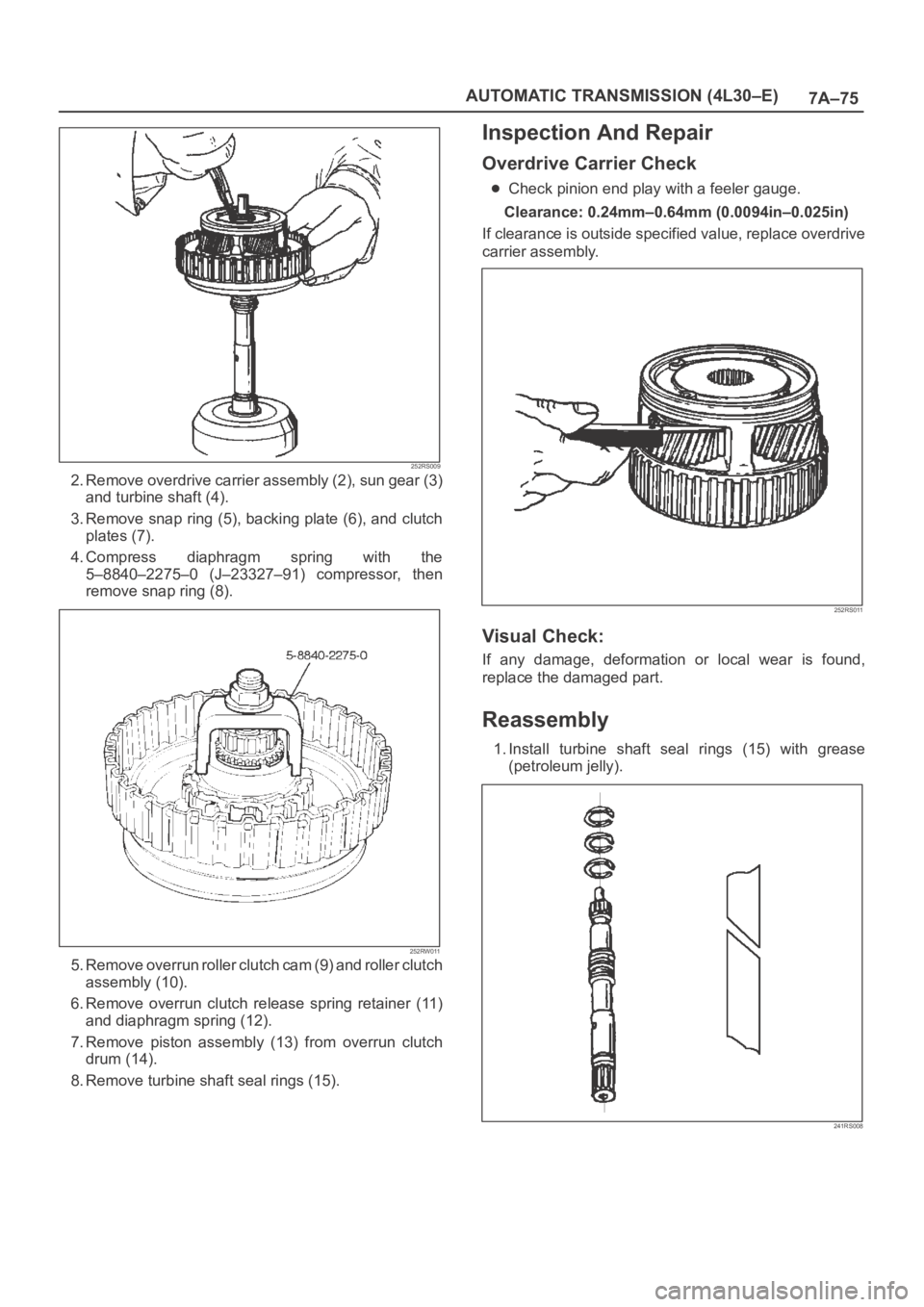

OPEL FRONTERA 1998 Workshop Manual 7A–75 AUTOMATIC TRANSMISSION (4L30–E) 252RS009 2. Remove overdrive carrier assembly (2), sun gear (3) and turbine shaft (4). 3. Remove snap ring (5), backing plate (6), and clutch plates (7). 4.

Page 2230 of 6000

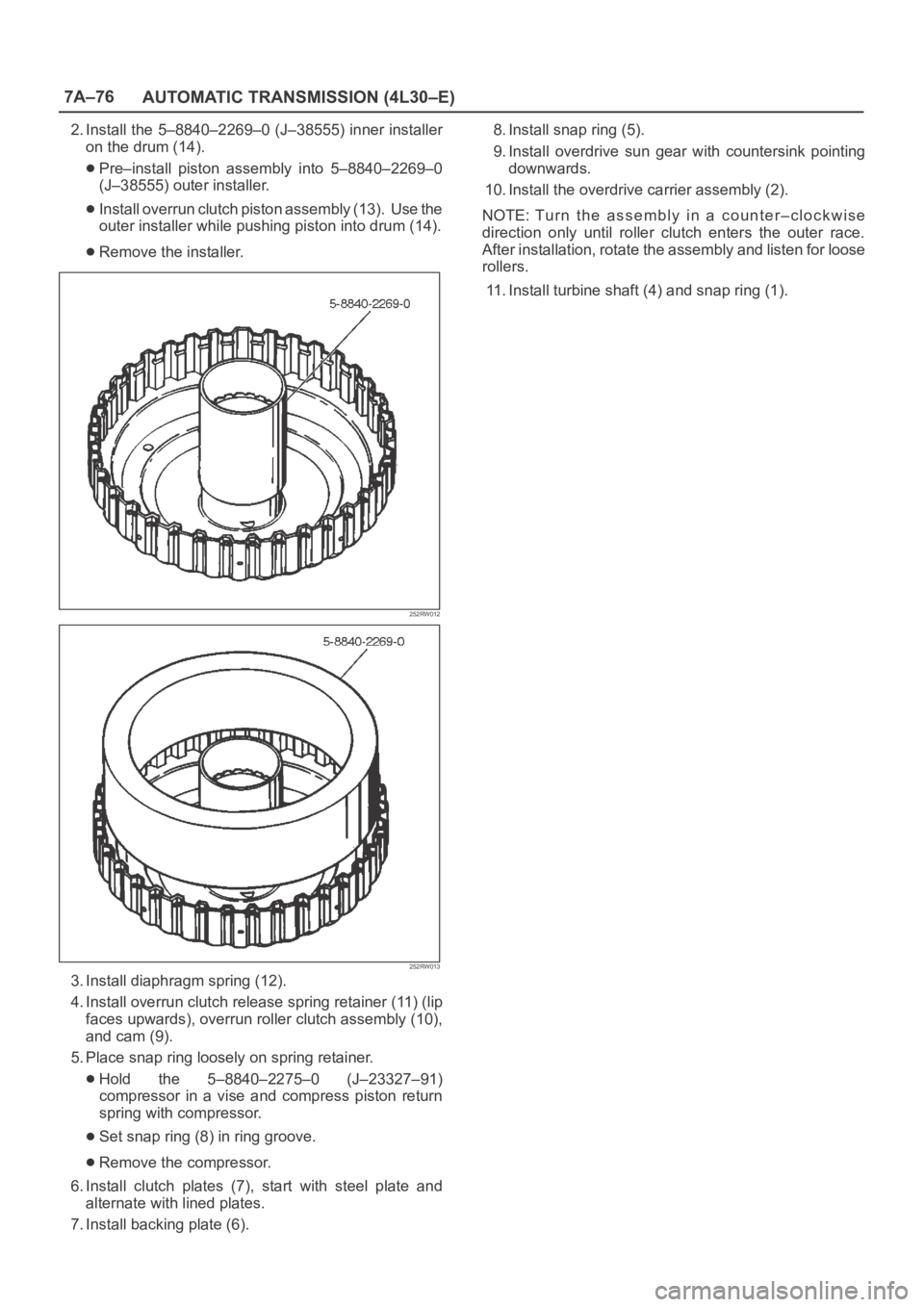

OPEL FRONTERA 1998 Workshop Manual 7A–76 AUTOMATIC TRANSMISSION (4L30–E) 2. Install the 5–8840–2269–0 (J–38555) inner installer on the drum (14). Pre–install piston assembly into 5–8840–2269–0 (J–38555) outer

Page 2231 of 6000

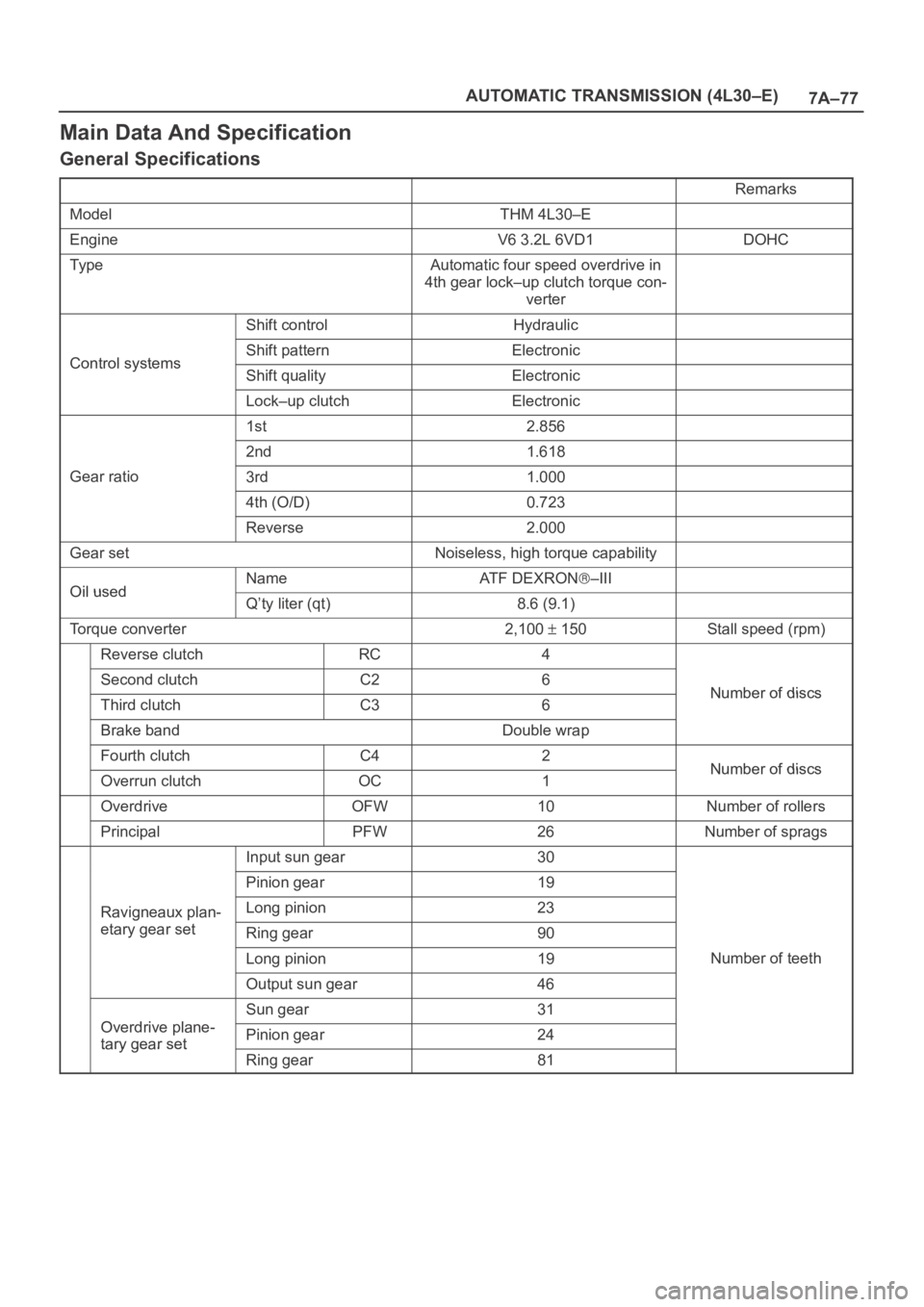

OPEL FRONTERA 1998 Workshop Manual 7A–77 AUTOMATIC TRANSMISSION (4L30–E) Main Data And Specification General Specifications Remarks ModelTHM 4L30–E EngineV6 3.2L 6VD1DOHC Ty p eAutomatic four speed overdrive in 4th gear lock–up

Page 2232 of 6000

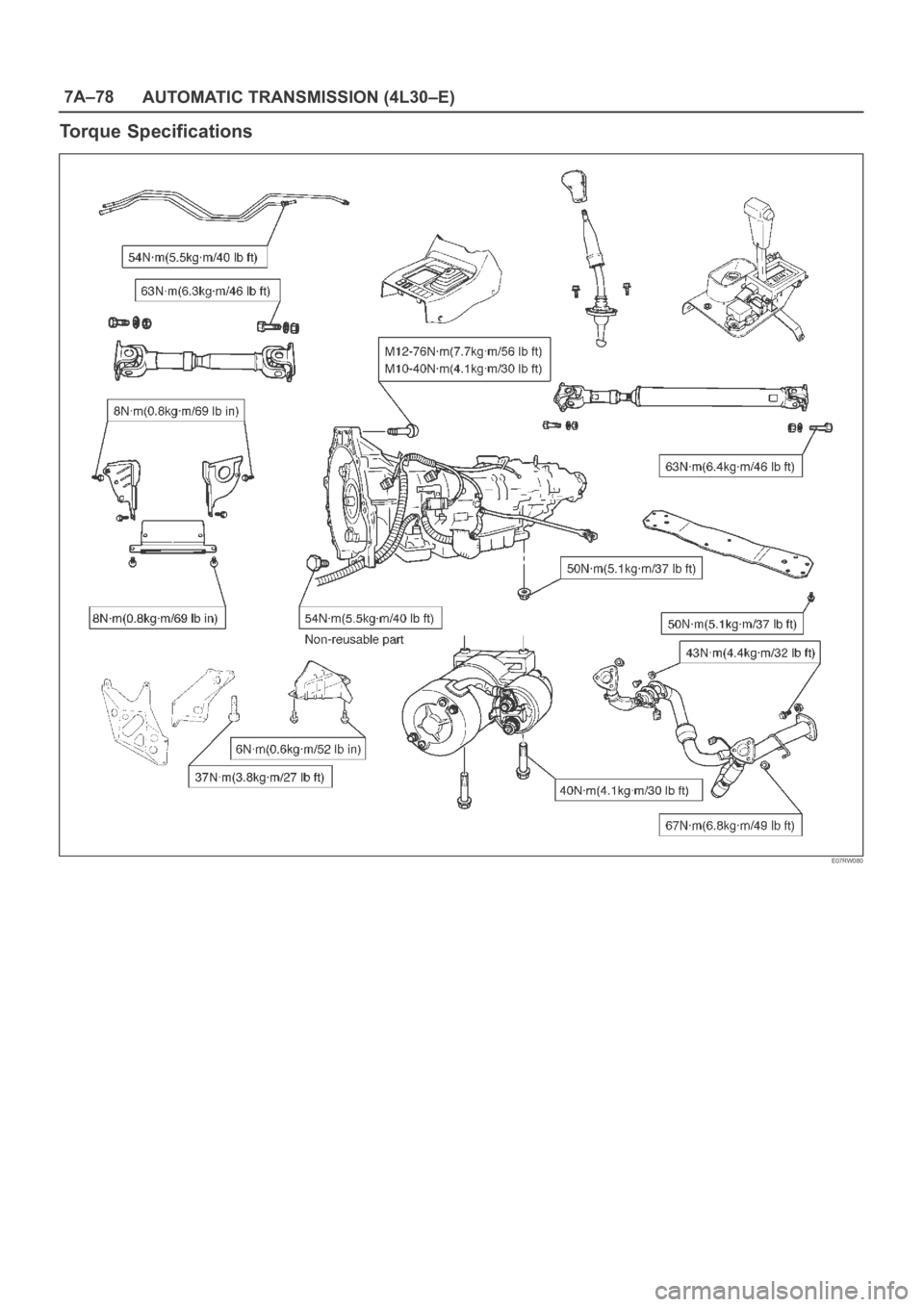

OPEL FRONTERA 1998 Workshop Manual 7A–78 AUTOMATIC TRANSMISSION (4L30–E) Torque Specifications E07RW080
