OPEL FRONTERA 1998 Workshop Manual 6E–20 ENGINE DRIVEABILITY AND EMISSIONS PCM Pinout Table, 32-Way White Connector – Row “C” (For EC) TS23345 PINPIN FunctionWire ColorIGN ONENG RUNRefer To C1Injector Cylinder #4GRN/REDB+B+Gene

Page 1138 of 6000

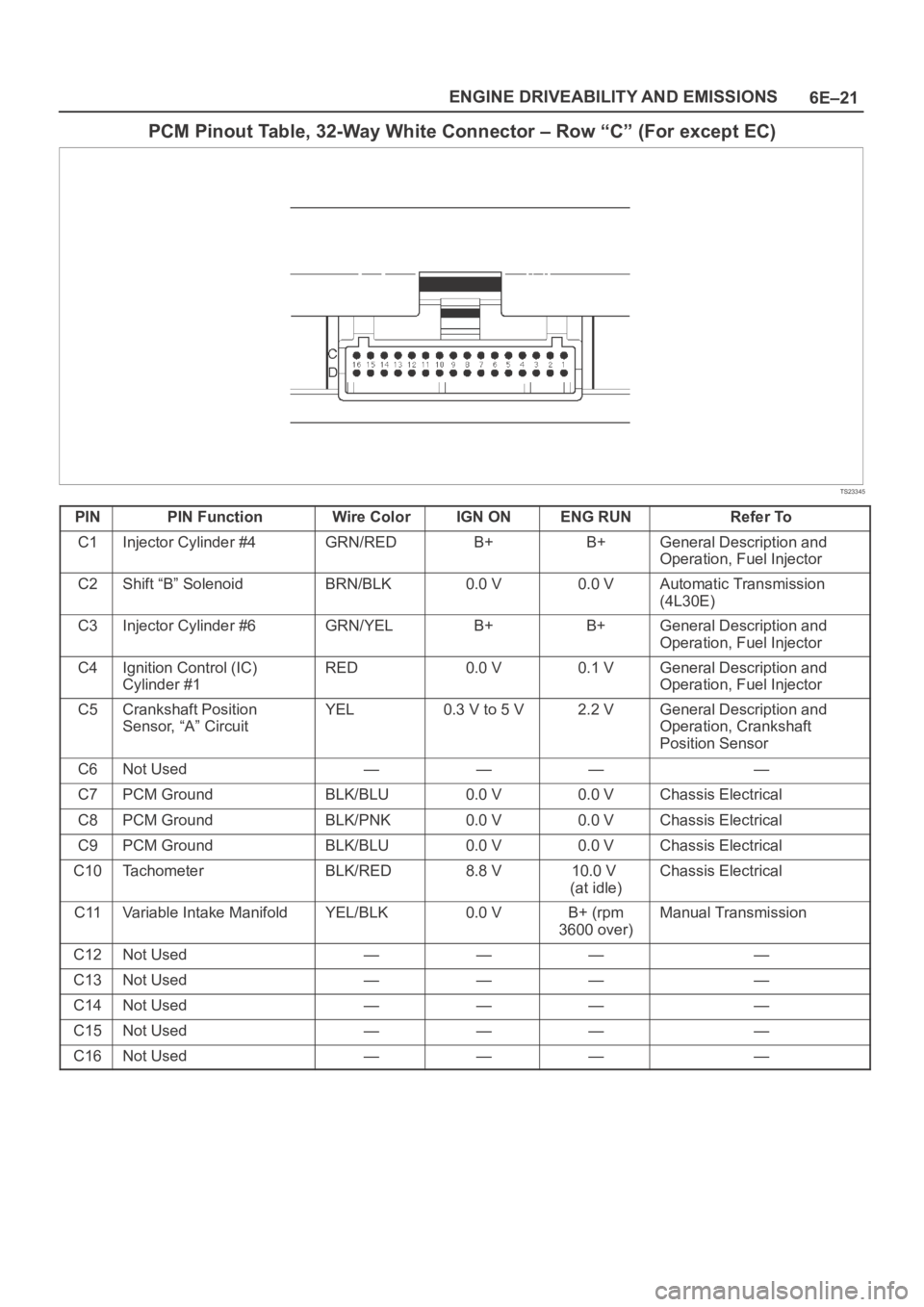

OPEL FRONTERA 1998 Workshop Manual 6E–21 ENGINE DRIVEABILITY AND EMISSIONS PCM Pinout Table, 32-Way White Connector – Row “C” (For except EC) TS23345 PINPIN FunctionWire ColorIGN ONENG RUNRefer To C1Injector Cylinder #4GRN/REDB

Page 1139 of 6000

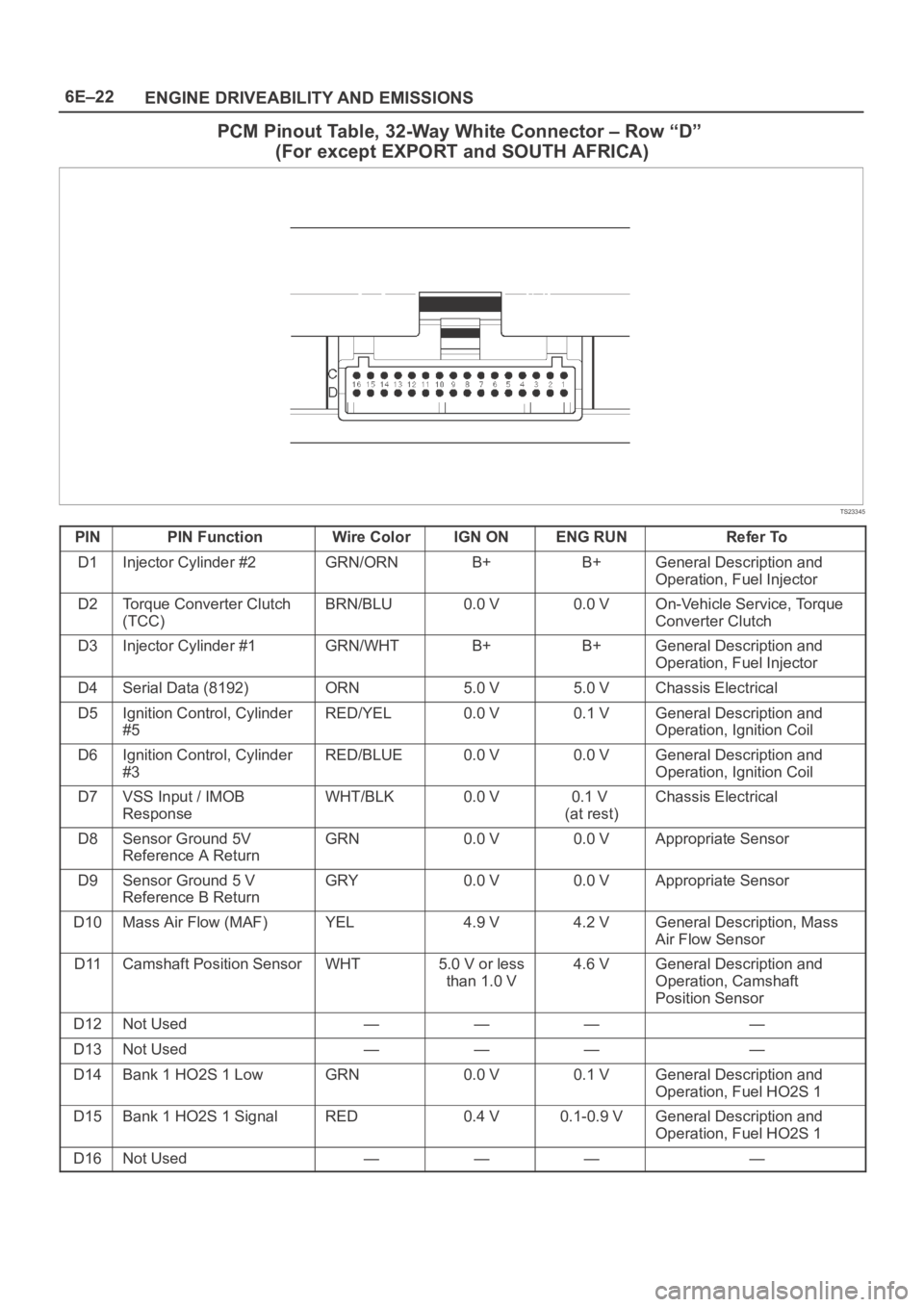

OPEL FRONTERA 1998 Workshop Manual 6E–22 ENGINE DRIVEABILITY AND EMISSIONS PCM Pinout Table, 32-Way White Connector – Row “D” (For except EXPORT and SOUTH AFRICA) TS23345 PINPIN FunctionWire ColorIGN ONENG RUNRefer To D1Inject

Page 1140 of 6000

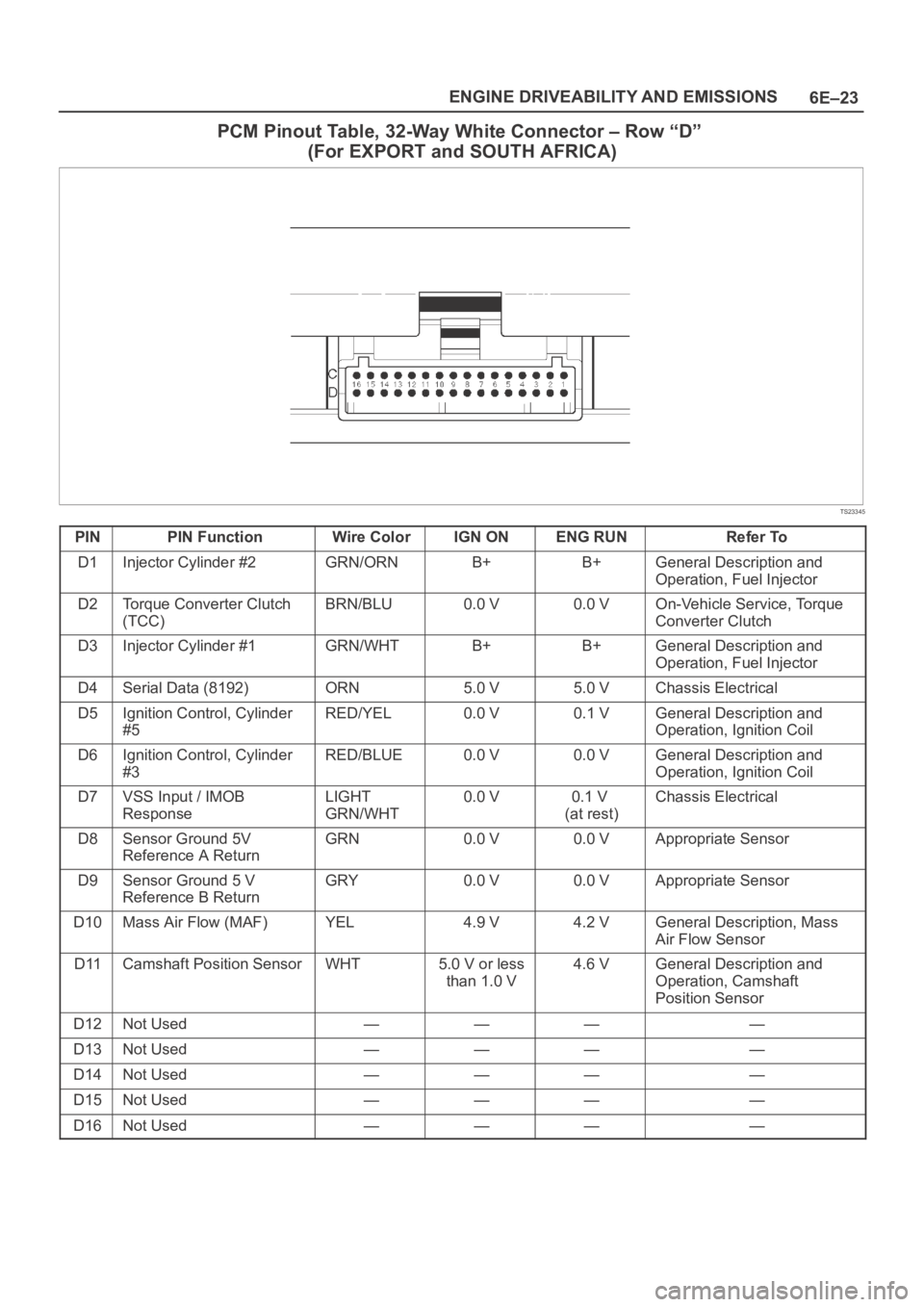

OPEL FRONTERA 1998 Workshop Manual 6E–23 ENGINE DRIVEABILITY AND EMISSIONS PCM Pinout Table, 32-Way White Connector – Row “D” (For EXPORT and SOUTH AFRICA) TS23345 PINPIN FunctionWire ColorIGN ONENG RUNRefer To D1Injector Cyli

Page 1141 of 6000

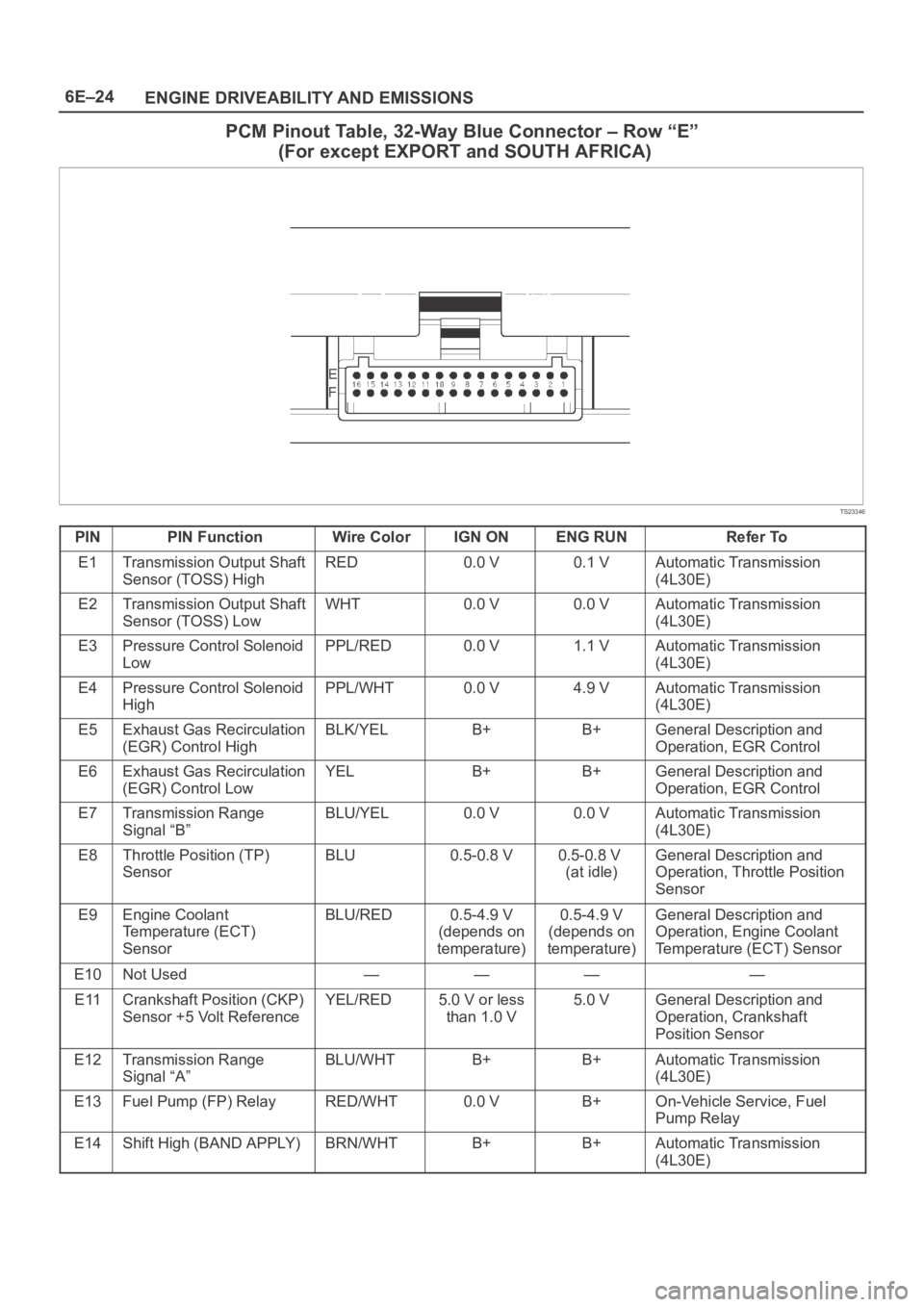

OPEL FRONTERA 1998 Workshop Manual 6E–24 ENGINE DRIVEABILITY AND EMISSIONS PCM Pinout Table, 32-Way Blue Connector – Row “E” (For except EXPORT and SOUTH AFRICA) TS23346 PINPIN FunctionWire ColorIGN ONENG RUNRefer To E1Transmi

Page 1142 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–25 ENGINE DRIVEABILITY AND EMISSIONS PINRefer To ENG RUN IGN ON Wire Color PIN Function E15A/C RequestGRN/ORN0.0 V0.0 VElectric Cooling Fans E16Ignition Feed (1 of 2 F16)RED/BLUB+B+—

Page 1143 of 6000

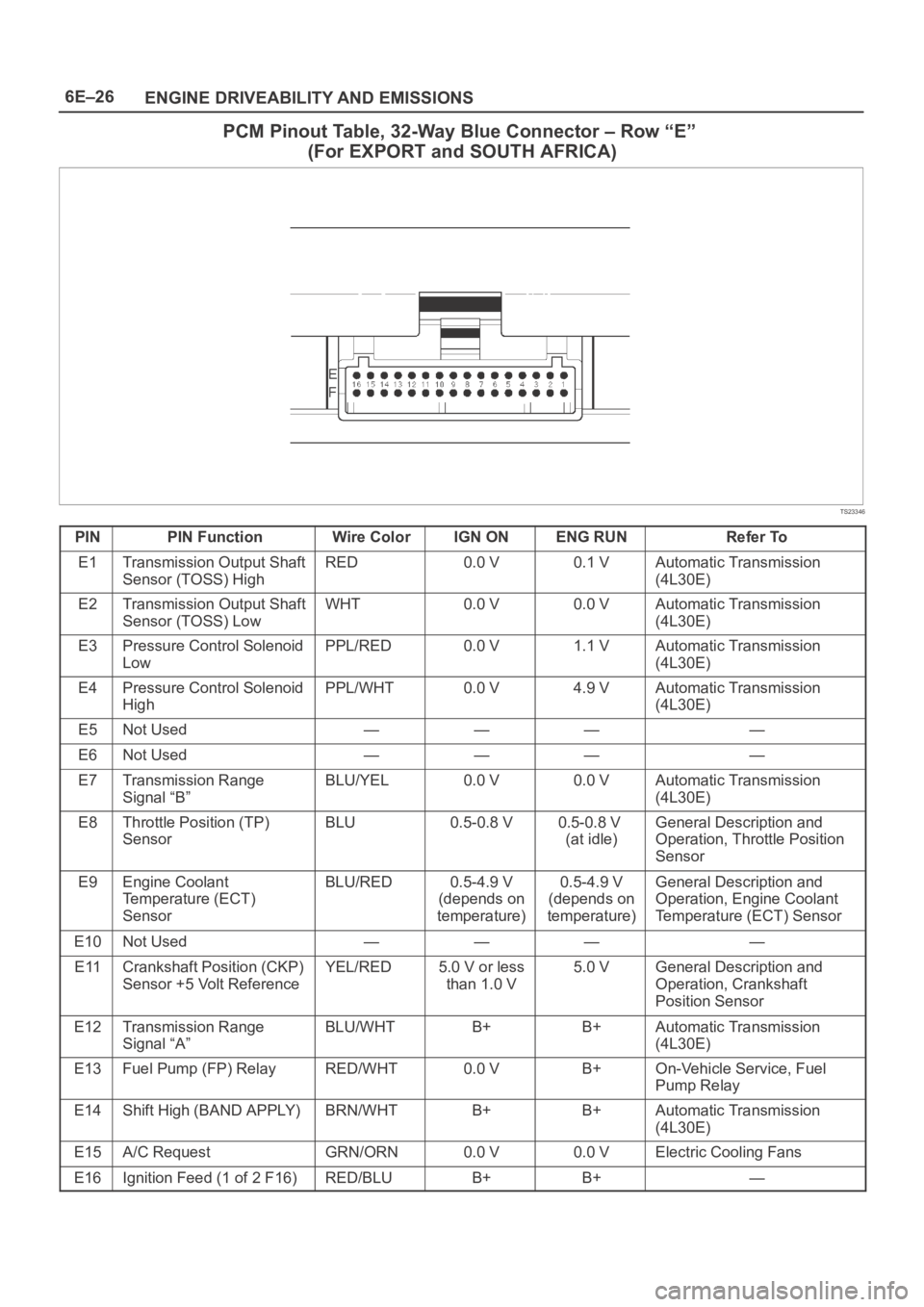

OPEL FRONTERA 1998 Workshop Manual 6E–26 ENGINE DRIVEABILITY AND EMISSIONS PCM Pinout Table, 32-Way Blue Connector – Row “E” (For EXPORT and SOUTH AFRICA) TS23346 PINPIN FunctionWire ColorIGN ONENG RUNRefer To E1Transmission O

Page 1144 of 6000

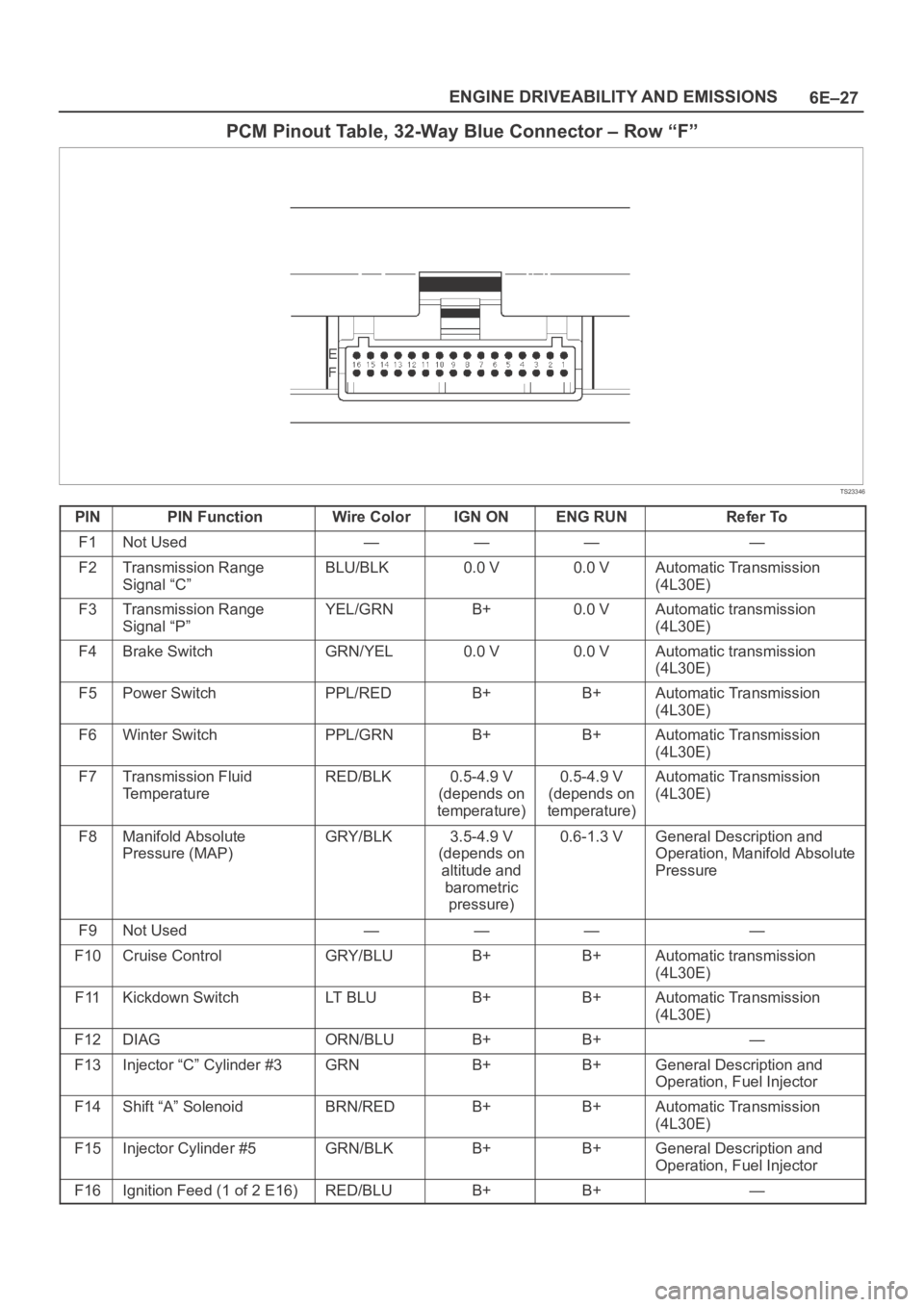

OPEL FRONTERA 1998 Workshop Manual 6E–27 ENGINE DRIVEABILITY AND EMISSIONS PCM Pinout Table, 32-Way Blue Connector – Row “F” TS23346 PINPIN FunctionWire ColorIGN ONENG RUNRefer To F1Not Used———— F2Transmission Range Sig
