Page 3409 of 6000

OPEL FRONTERA 1998 Workshop Manual 8J–30EXTERIOR/INTERIOR TRIM 620RW006

Page 3410 of 6000

OPEL FRONTERA 1998 Workshop Manual EXTERIOR/INTERIOR TRIM8J–31 Mud Flaps (With Wheel Opening Extension) Mud Flaps (With Wheel Opening Extension) and Associated Parts 620RW003 Legend (1) Front Bumper Assembly (2) Front Bumper Slider(3

Page 3411 of 6000

OPEL FRONTERA 1998 Workshop Manual 8J–32EXTERIOR/INTERIOR TRIM Ventilation Assembly Ventilation Assembly and Associated Parts 641RS001 Legend (1) Outlet Valve Assembly (2) Ventilation Assembly Removal 1. Remove the ventilation assemb

Page 3412 of 6000

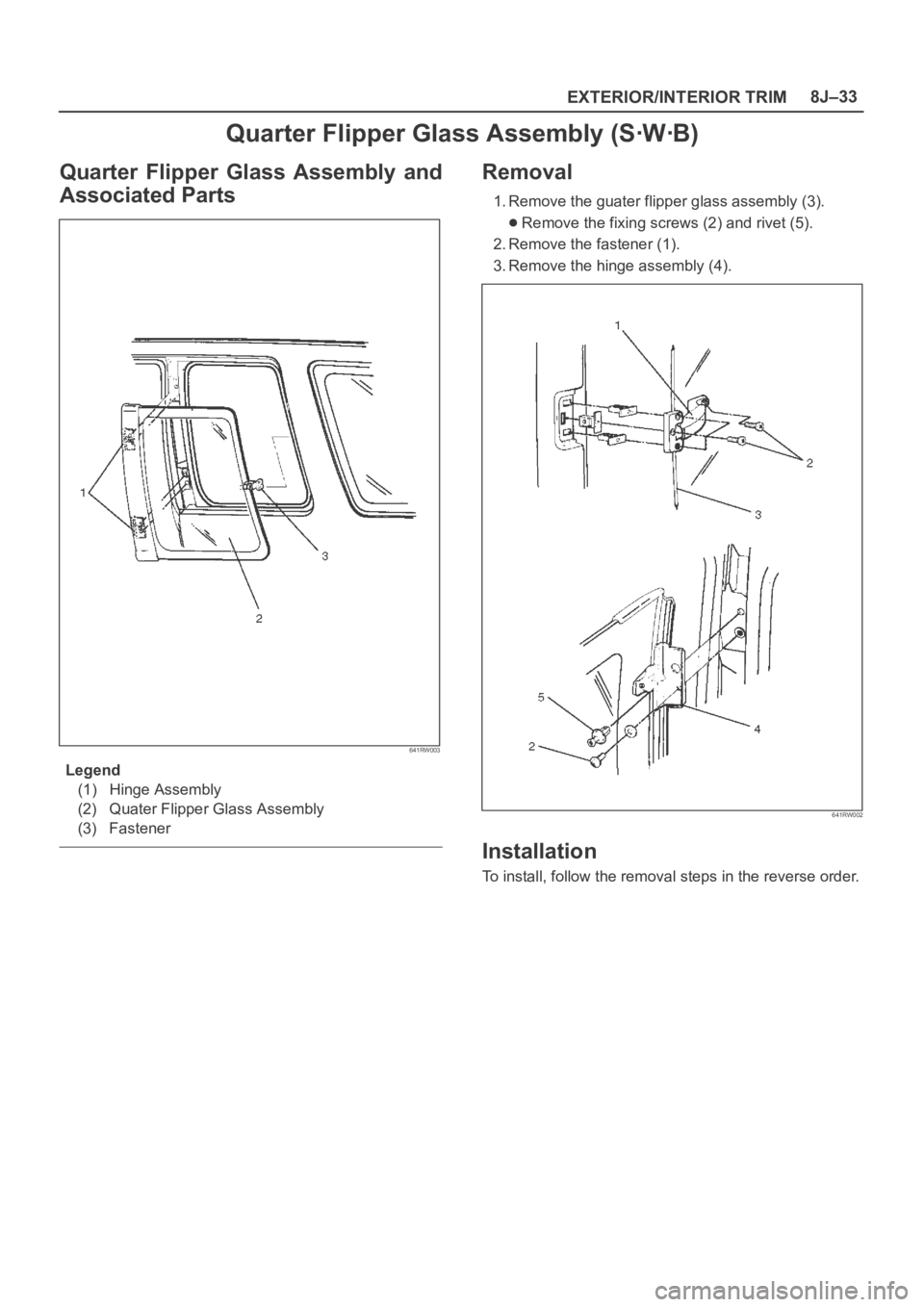

OPEL FRONTERA 1998 Workshop Manual EXTERIOR/INTERIOR TRIM8J–33 Quarter Flipper Glass Assembly (SꞏWꞏB) Quarter Flipper Glass Assembly and Associated Parts 641RW003 Legend (1) Hinge Assembly (2) Quater Flipper Glass Assembly (3

Page 3413 of 6000

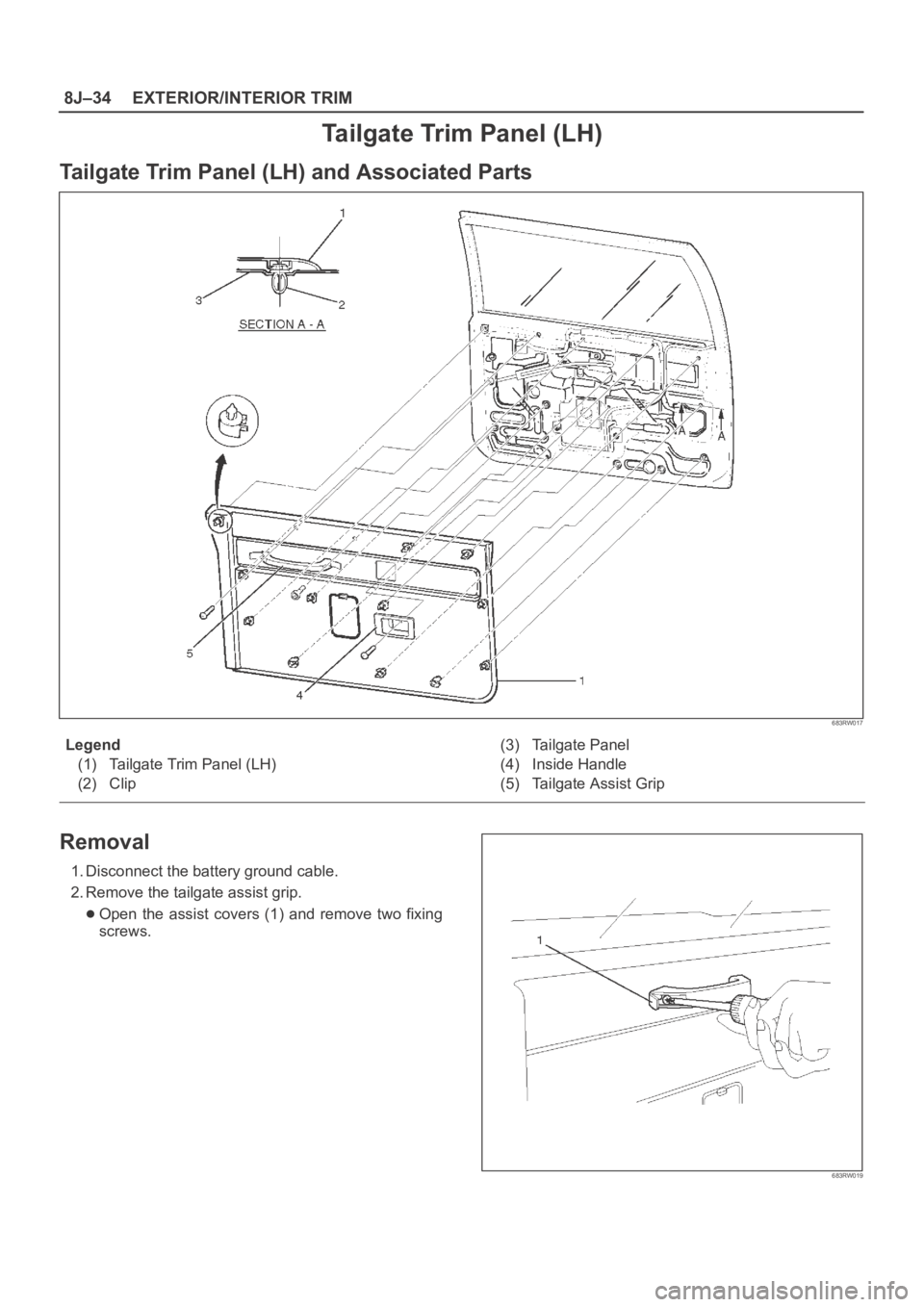

OPEL FRONTERA 1998 Workshop Manual 8J–34EXTERIOR/INTERIOR TRIM Tailgate Trim Panel (LH) Tailgate Trim Panel (LH) and Associated Parts 683RW017 Legend (1) Tailgate Trim Panel (LH) (2) Clip(3) Tailgate Panel (4) Inside Handle (5) Tailg

Page 3414 of 6000

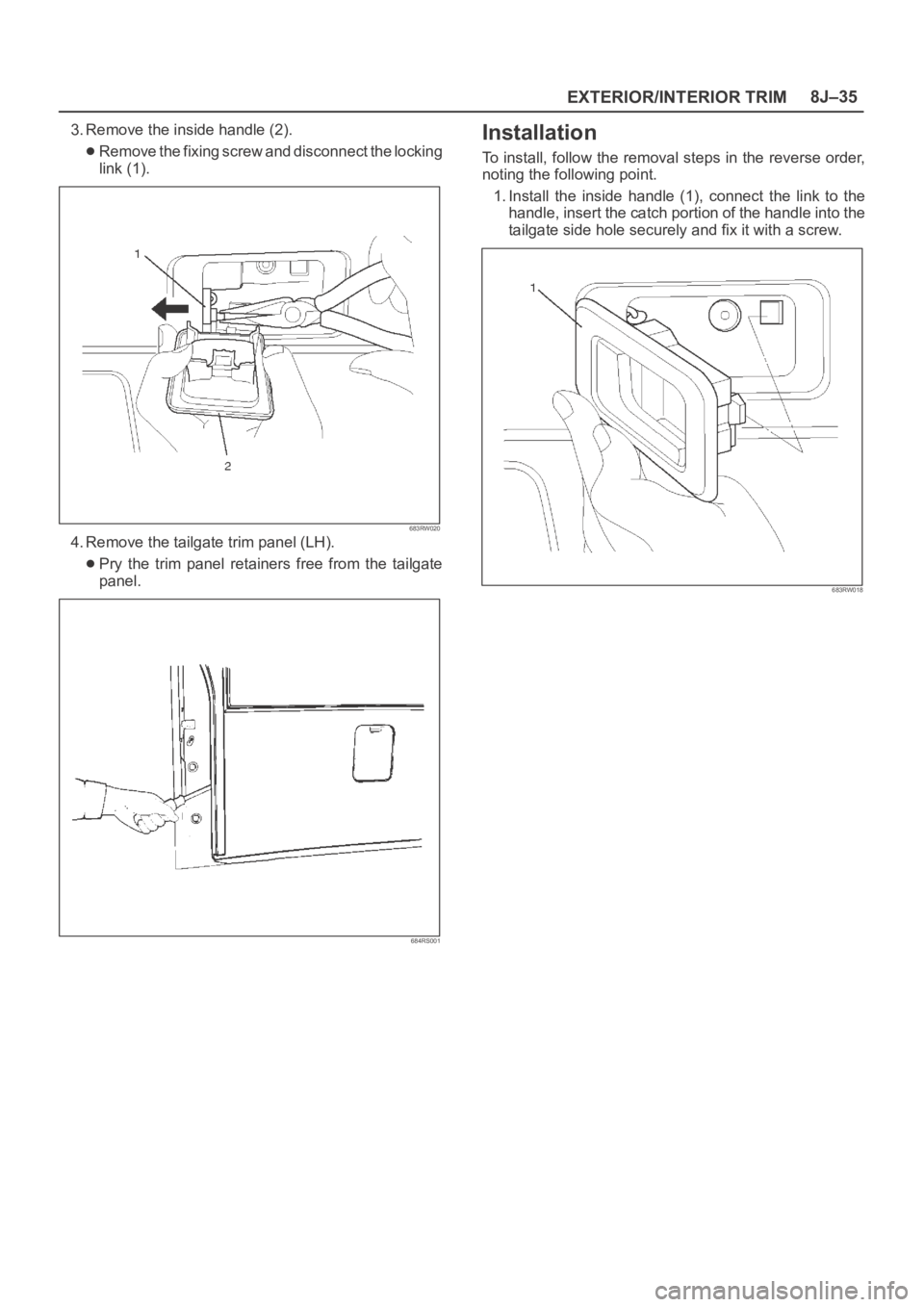

OPEL FRONTERA 1998 Workshop Manual EXTERIOR/INTERIOR TRIM8J–35 3. Remove the inside handle (2). R e m o v e t h e f i x i n g s c r e w a n d d i s c o n n e c t t h e l o c k i n g link (1). 683RW020 4. Remove the tailgate tr

Page 3415 of 6000

OPEL FRONTERA 1998 Workshop Manual 8J–36EXTERIOR/INTERIOR TRIM Tailgate Trim Panel (RH) Parts Location 684RS002 Legend (1) Tailgate Trim Panel Removal 1. Disconnect the battery ground cable. 2. Remove the tailgate trim panel (RH). Pr

Page 3416 of 6000

OPEL FRONTERA 1998 Workshop Manual EXTERIOR/INTERIOR TRIM8J–37 Luggage Floor Box Luggage Floor Box and Associated Parts 643RS006 Legend (1) Rear Seat (2) Floor Carpet (3) Luggage Floor Box (4) Luggage Floor Box Cover Remove 1. Fo
