Page 785 of 6000
4D2–18
TRANSFER CASE (TOD)
Sprocket and Mechanical Lock
Disassembled View
266RW008
Legend
(1) Strainer
(2) Hose
(3) Oil Pump Assembly
(4) Thrust Washer
(5) Mechanical Lock Hub
(6) Lock-up Sleeve(7) Lock-up Fork
(8) Chain
(9) Lower Drive Sprocket
(10) Front Tone Wheel
(11) Drive Sprocket
(12) Sprocket Spacer
Disassembly
1. Remove the sprocket spacer.
2. Remove the front tone wheel.
Page 786 of 6000

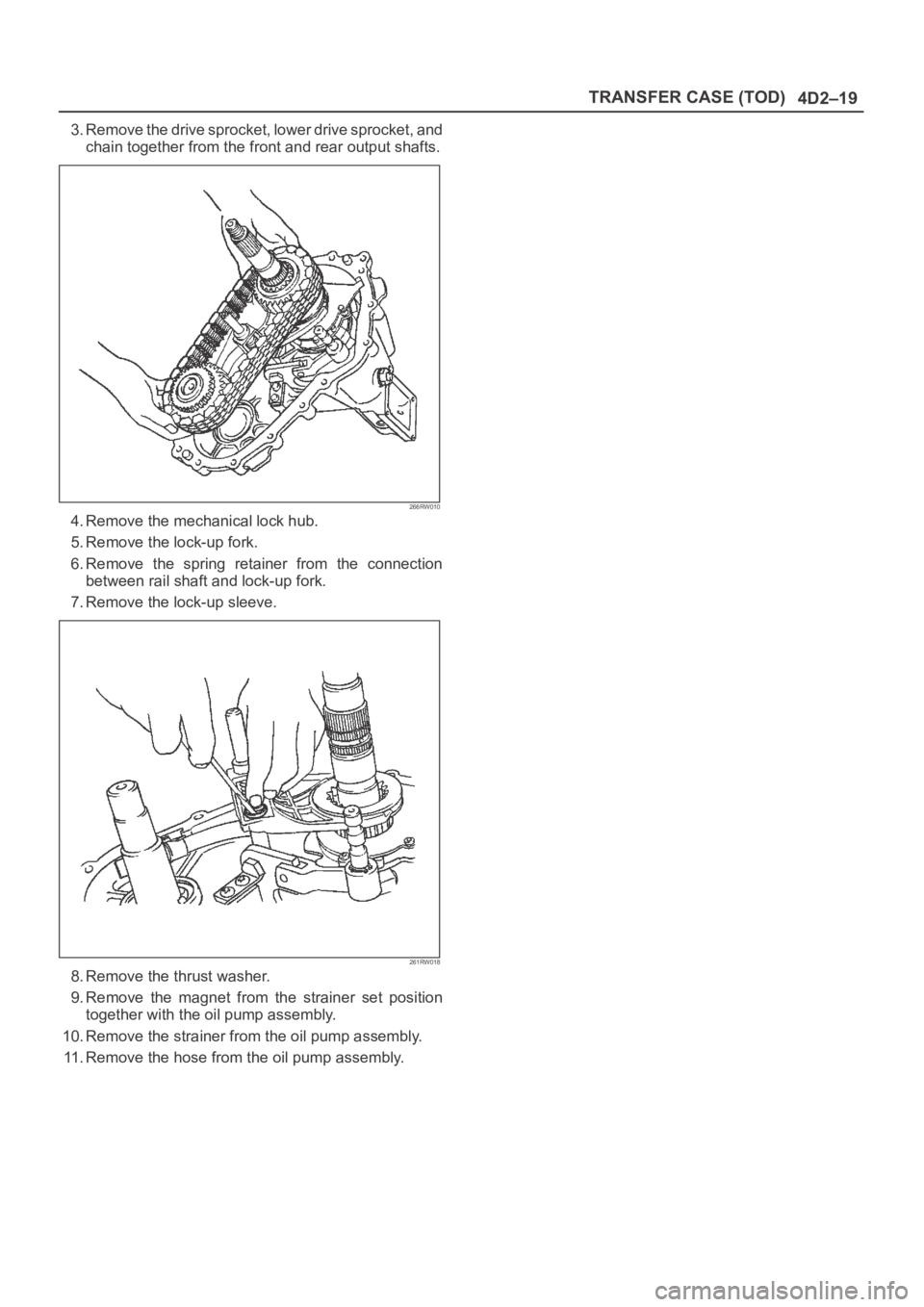

4D2–19 TRANSFER CASE (TOD)
3. Remove the drive sprocket, lower drive sprocket, and
chain together from the front and rear output shafts.
266RW010
4. Remove the mechanical lock hub.
5. Remove the lock-up fork.
6. Remove the spring retainer from the connection
between rail shaft and lock-up fork.
7. Remove the lock-up sleeve.
261RW018
8. Remove the thrust washer.
9. Remove the magnet from the strainer set position
together with the oil pump assembly.
10. Remove the strainer from the oil pump assembly.
11. Remove the hose from the oil pump assembly.
Page 787 of 6000
4D2–20
TRANSFER CASE (TOD)
Output Shafts and Shift Control Shaft
Disassembled View
261RW010–1
Legend
(1) Transfer Case Assembly
(2) Detent Spring
(3) Front Output Shaft
(4) Reduction Hub
(5) Output Shaft
(6) Reduction Fork Assembly
(7) Lock-up Shaft
(8) Spring Pin
(9) Reduction Fork(10) Cam Assembly
(11) Snap Ring
(12) Washer
(13) Cam
(14) Cam Pilot Block
(15) Shifter Shaft Assembly
(16) Shifter Lever Shaft
(17) Snap Ring
(18) Reduction Lever Assembly
(19) Snap Ring
Page 788 of 6000
4D2–21 TRANSFER CASE (TOD)
Disassembly
1. Remove the output shaft.
266RW011
2. Remove the detent spring.
3. Remove the cam pilot block bolts.
4. Remove the shifter shaft assembly and cam
assembly.
261RW019
5. Remove the spring pin that fixes the reduction fork to
the lock-up shaft.
261RW020
6. Remove the reduction fork.
7. Remove the lock-up shaft.
8. Using snap ring pliers, remove the snap ring from cam
pilot block.
261RW029
9. Remove the washer.
10. Remove the cam.
11. Remove the cam pilot block.
Page 789 of 6000
4D2–22
TRANSFER CASE (TOD)
12. Using snap ring pliers, remove the snap ring from
shifter lever shaft.
261RW021
13. Remove the reduction lever assembly.
14. Remove the snap ring.
15. Remove the shifter lever shaft.
16. Remove the front output shaft.
266RW012
17. Remove the transfer case assembly.
Page 790 of 6000
4D2–23 TRANSFER CASE (TOD)
Transfer Case
Disassembled View
265RW015
Legend
(1) Transfer Case
(2) Ball Bearing
(3) Ring Gear
(4) Snap Ring
(5) Input Shaft and Carrier Assembly
(6) Snap Ring(7) Ball Bearing
(8) Snap Ring
(9) Thrust Plate
(10) Carrier Assembly
(11) Snap Ring
(12) Circular Hub
(13) Input Shaft
Page 791 of 6000
4D2–24
TRANSFER CASE (TOD)
Disassembly
1. Remove the ball bearing (for front output shaft).
2. Expand the snap ring through the opening in the
planetary gear assembly.
261RW040
3. While expanding the snap ring, remove the input
shaft, ball bearing, carrier assembly, and thrust plate
from the transfer case.
261RW037
4. Remove the snap ring from the transfer case.
261RW036
5. Using snap ring pliers, remove the snap ring before
the ball bearing.
265RW009
Page 792 of 6000
4D2–25 TRANSFER CASE (TOD)
6. Using the bearing remover 5-8840-0015-0
(J-22912-01), remove the ball bearing from the input
shaft.
265RW014
7. Remove the thrust plate.
8. Remove the carrier assembly.
9. Remove the snap ring from the carrier assembly.
265RW006
10. Remove the circular hub.
11. Remove the snap ring before the ring gear.
261RW025
12. Using the replacer 5-8840-2413-0 (J-42806), remove
the ring gear.
NOTE: Removing the ring gear needs a high-load press.
This means the transfer case may be damaged. To
remove and replace the ring gear, it is recommended that
the transfer case assembly should be replaced.
261RW050
