Page 3433 of 6000
SEAT BELT SYSTEM 9A–13
Rear Center Seat Belt Buckle Assembly
Rear Center Seat Belt Buckle Assembly and Associated Parts
2
2
1
4
3
3
760RW026
Legend
(1) Long Wheel Base
(2) Rear Seat Belt Buckle Assembly(3) Seat Lock Cover
(4) Short Wheel Base
Removal
1. Remove the catch portions(2) & (3) of the seat lock
assembly(4) from the cover, and then remove the seat
lock cover(1).
2. Remove the rear seat buckle assembly.
Installation
1. Fix the rear seat belt buckle assembly(1) to the
rotation stopper and tighten the anchor bolt to the
specified torque.
Torque: 39 Nꞏm (4.0 kgꞏm/29 lb ft)
2. Install the seat lock cover.
1
2 4
3
760RW016
1
760RW013
Page 3434 of 6000
9A–14 SEAT BELT SYSTEM
Third Seat Belt Buckle and Lock Assembly
Third Seat Belt Buckle and Lock
Assembly and Associated PartsRemoval
1. Disconnect the battery ground cable.
2. Remove seat lock cover.
3. Remove third seat belt buckle assembly.
4. Remove third seat lock assembly.
Installation
To install, follow the removal steps in the reverse order,
noting the following point.
1. Tighten the lock assembly fixing bolts to the specified
torque.
Torque: 39 Nꞏm (4.0 kgꞏm/29 lb ft)
2. Tighten the buckle assembly fixing bolt to the
specified torque.
Torque: 39 Nꞏm (4.0 kgꞏm/29 lb ft)1
4
3
2
755RW042
Legend
(1) Third Seat Belt Buckle Assembly
(2) Third Seat Lock Assembly
(3) Third Seat
(4) Seat Lock Cover
Page 3435 of 6000
SEAT BELT SYSTEM 9A–15
Rear Seat Lock Assembly
Removal
1. Remove the seat lock cover(3).
2. Remove the rear seat belt buckle assembly(1).
3. Remove the rear seat lock assembly(2).
Installation
To install, follow the removal steps in the reverse order,
noting the following point.
1. Tighten the seat lock fixing bolts to the specified
torque.
Torque: 42 Nꞏm (4.3 kgꞏm/31 lb ft)
L.W.B
1
2
S.W.B
1
2
3
3
755RW040
Rear Seat Lock Assembly
(Bench Type)
Removal
1. Remove the seat lock cover(3).
2. Remove the rear seat belt/buckle assembly(1).
3. Disconnect the link connecting the lock assemblies on
the both sides, and then remove the rear seat lock
assembly(2).
Installation
To install, follow the removal steps in the reverse order,
noting the following point.
1. Tighten the seat lock fixing bolts to the specified
torque.
Torque: 42 Nꞏm (4.3 kgꞏm/31 lb ft)
1
2
3
760RW003
Page 3436 of 6000
9A–16 SEAT BELT SYSTEM
Rear Seat Strikers
Removal
1. Fold the rear seat assembly to the front direction.
2. Remove the luggage floor box(1) (LꞏWꞏB).
Remove the striker cover(3) (SꞏWꞏB).
3. Remove the rear seat striker(2).
Installation
To install, follow the removal steps in the reverse order,
noting the following point.
1. Tighten the striker fixing bolts to the specified torque.
Torque: 40 Nꞏm (4.1 kgꞏm/30 lb ft)
L.W.B
1
2
S.W.B
3
2
755RW045
Removal
1. Disconnect the battery ground cable.
2. Remove the striker cover (1).
3. Remove the third seat striker (2).
Installation
To install, follow the removal steps in the reverse order,
noting the following point.
1. Tighten the striker fixing nuts to the specified torque.
Torque: 39 Nꞏm (4.0 kgꞏm/29 lb ft)
Third Seat Striker
1
2
755RW041
Page 3437 of 6000
SEAT BELT SYSTEM 9A–17
Front Seat Belt Anchor Bolts
Rear Seat Belt Anchor Bolts
Front Seat Buckle Anchor Bolt
Rear Seat Buckle Anchor Bolt
Rear Seat Lock Fixing Bolts
Third Seat Belt Anchor Bolts
Third Seat Lock Fixing Bolts
Third Seat Buckle Anchor Bolt
Third Seat Striker Fixing Nuts
Rear Seat Striker Fixing Bolts
Main Data and Specifications
Torque Specifications
A p p l i c a t i o n N ꞏm k g ꞏm L b F t
39
39
39
39
42
39
39
39
39
404.0
4.0
4.0
4.0
4.3
4.0
4.0
4.0
4.0
4.129
29
29
29
31
29
29
29
29
30
Page 3438 of 6000

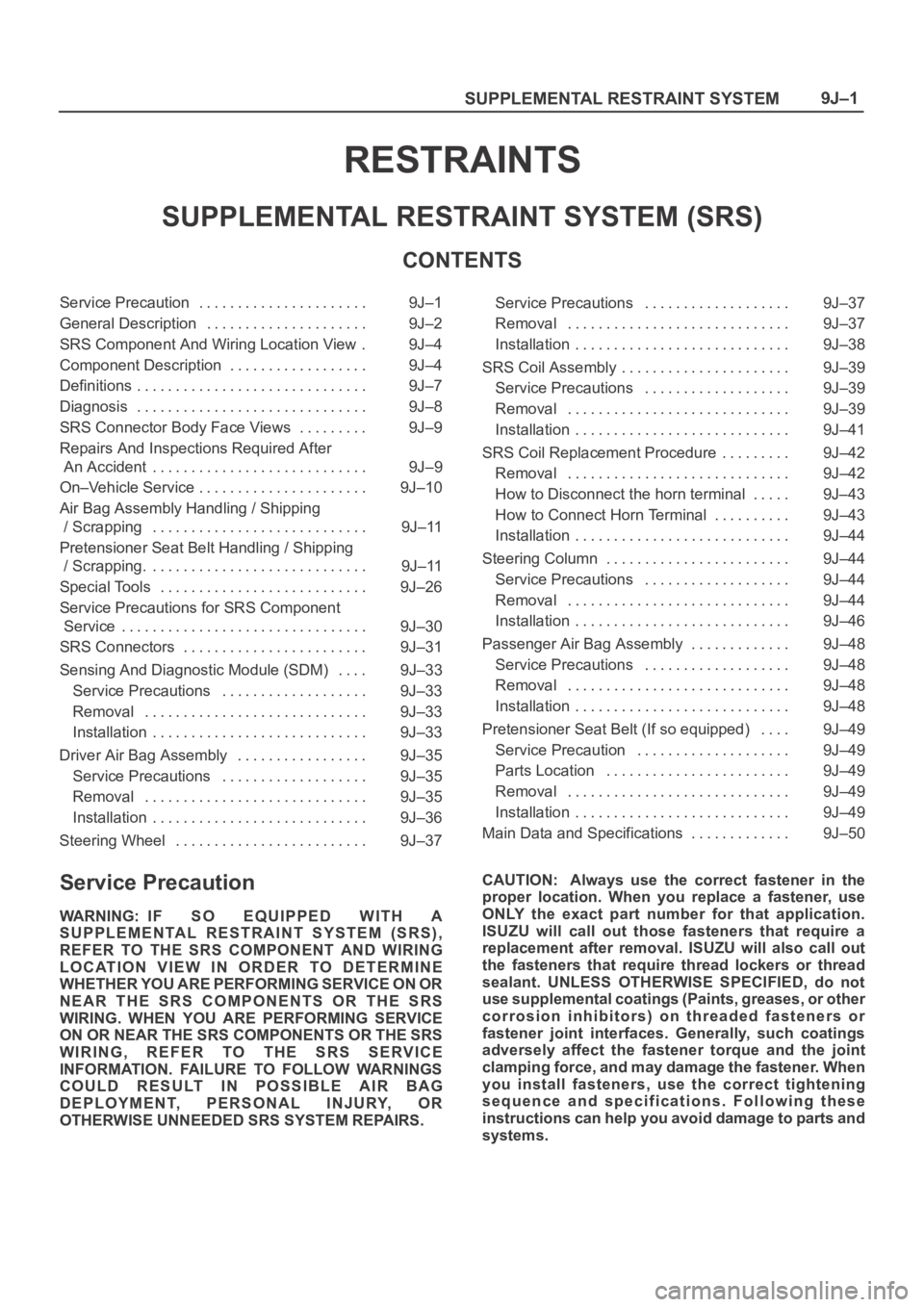

SUPPLEMENTAL RESTRAINT SYSTEM9J–1
RESTRAINTS
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
CONTENTS
Service Precaution 9J–1. . . . . . . . . . . . . . . . . . . . . .
General Description 9J–2. . . . . . . . . . . . . . . . . . . . .
SRS Component And Wiring Location View 9J–4.
Component Description 9J–4. . . . . . . . . . . . . . . . . .
Definitions 9J–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnosis 9J–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS Connector Body Face Views 9J–9. . . . . . . . .
Repairs And Inspections Required After
An Accident 9J–9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
On–Vehicle Service 9J–10. . . . . . . . . . . . . . . . . . . . . .
Air Bag Assembly Handling / Shipping
/ Scrapping 9J–11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pretensioner Seat Belt Handling / Shipping
/ Scrapping. 9J–11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Special Tools 9J–26. . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Precautions for SRS Component
Service 9J–30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS Connectors 9J–31. . . . . . . . . . . . . . . . . . . . . . . .
Sensing And Diagnostic Module (SDM) 9J–33. . . .
Service Precautions 9J–33. . . . . . . . . . . . . . . . . . .
Removal 9J–33. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 9J–33. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driver Air Bag Assembly 9J–35. . . . . . . . . . . . . . . . .
Service Precautions 9J–35. . . . . . . . . . . . . . . . . . .
Removal 9J–35. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 9J–36. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering Wheel 9J–37. . . . . . . . . . . . . . . . . . . . . . . . . Service Precautions 9J–37. . . . . . . . . . . . . . . . . . .
Removal 9J–37. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 9J–38. . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS Coil Assembly 9J–39. . . . . . . . . . . . . . . . . . . . . .
Service Precautions 9J–39. . . . . . . . . . . . . . . . . . .
Removal 9J–39. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 9J–41. . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS Coil Replacement Procedure 9J–42. . . . . . . . .
Removal 9J–42. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to Disconnect the horn terminal 9J–43. . . . .
How to Connect Horn Terminal 9J–43. . . . . . . . . .
Installation 9J–44. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering Column 9J–44. . . . . . . . . . . . . . . . . . . . . . . .
Service Precautions 9J–44. . . . . . . . . . . . . . . . . . .
Removal 9J–44. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 9J–46. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passenger Air Bag Assembly 9J–48. . . . . . . . . . . . .
Service Precautions 9J–48. . . . . . . . . . . . . . . . . . .
Removal 9J–48. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 9J–48. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pretensioner Seat Belt (If so equipped) 9J–49. . . .
Service Precaution 9J–49. . . . . . . . . . . . . . . . . . . .
Parts Location 9J–49. . . . . . . . . . . . . . . . . . . . . . . .
Removal 9J–49. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 9J–49. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 9J–50. . . . . . . . . . . . .
Service Precaution
WARNING: IF SO EQUIPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
Page 3439 of 6000

SUPPLEMENTAL RESTRAINT SYSTEM 9J–2

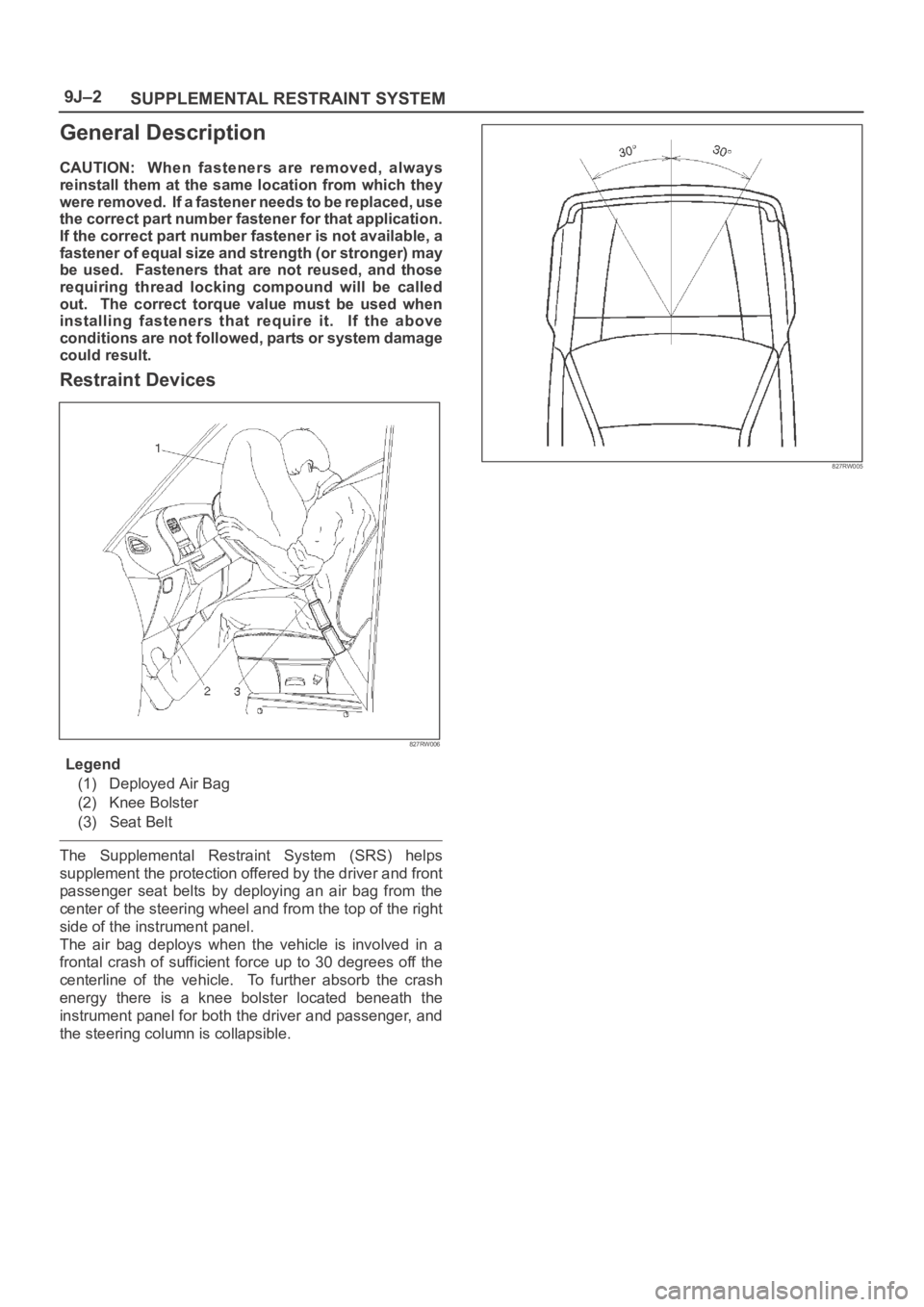

General Description
CAUTION: When fasteners are removed, always
reinstall them at the same location from which they
were removed. If a fastener needs to be replaced, use
the correct part number fastener for that application.
If the correct part number fastener is not available, a
fastener of equal size and strength (or stronger) may
be used. Fasteners that are not reused, and those
requiring thread locking compound will be called
out. The correct torque value must be used when
installing fasteners that require it. If the above
conditions are not followed, parts or system damage
could result.
Restraint Devices
827RW006
Legend
(1) Deployed Air Bag
(2) Knee Bolster
(3) Seat Belt
The Supplemental Restraint System (SRS) helps
supplement the protection offered by the driver and front
passenger seat belts by deploying an air bag from the
center of the steering wheel and from the top of the right
side of the instrument panel.
The air bag deploys when the vehicle is involved in a
frontal crash of sufficient force up to 30 degrees off the
centerline of the vehicle. To further absorb the crash
energy there is a knee bolster located beneath the
instrument panel for both the driver and passenger, and
the steering column is collapsible.
827RW005
Page 3440 of 6000

SUPPLEMENTAL RESTRAINT SYSTEM9J–3

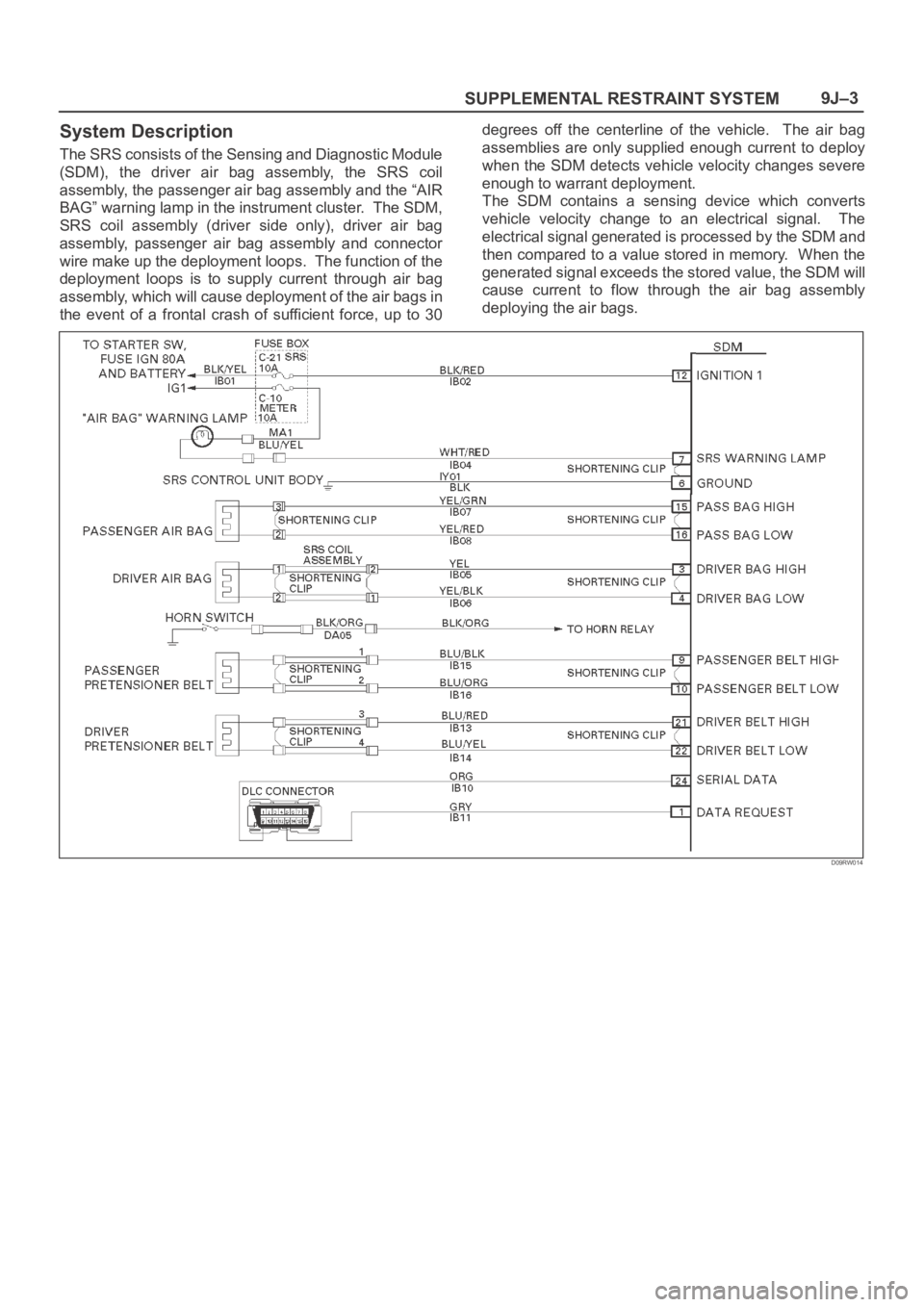

System Description
The SRS consists of the Sensing and Diagnostic Module
(SDM), the driver air bag assembly, the SRS coil
assembly, the passenger air bag assembly and the “AIR
BAG” warning lamp in the instrument cluster. The SDM,
SRS coil assembly (driver side only), driver air bag
assembly, passenger air bag assembly and connector
wire make up the deployment loops. The function of the
deployment loops is to supply current through air bag
assembly, which will cause deployment of the air bags in
the event of a frontal crash of sufficient force, up to 30degrees off the centerline of the vehicle. The air bag
assemblies are only supplied enough current to deploy
when the SDM detects vehicle velocity changes severe
enough to warrant deployment.
The SDM contains a sensing device which converts
vehicle velocity change to an electrical signal. The
electrical signal generated is processed by the SDM and
then compared to a value stored in memory. When the
generated signal exceeds the stored value, the SDM will
cause current to flow through the air bag assembly
deploying the air bags.
D09RW014
