Page 3209 of 6000

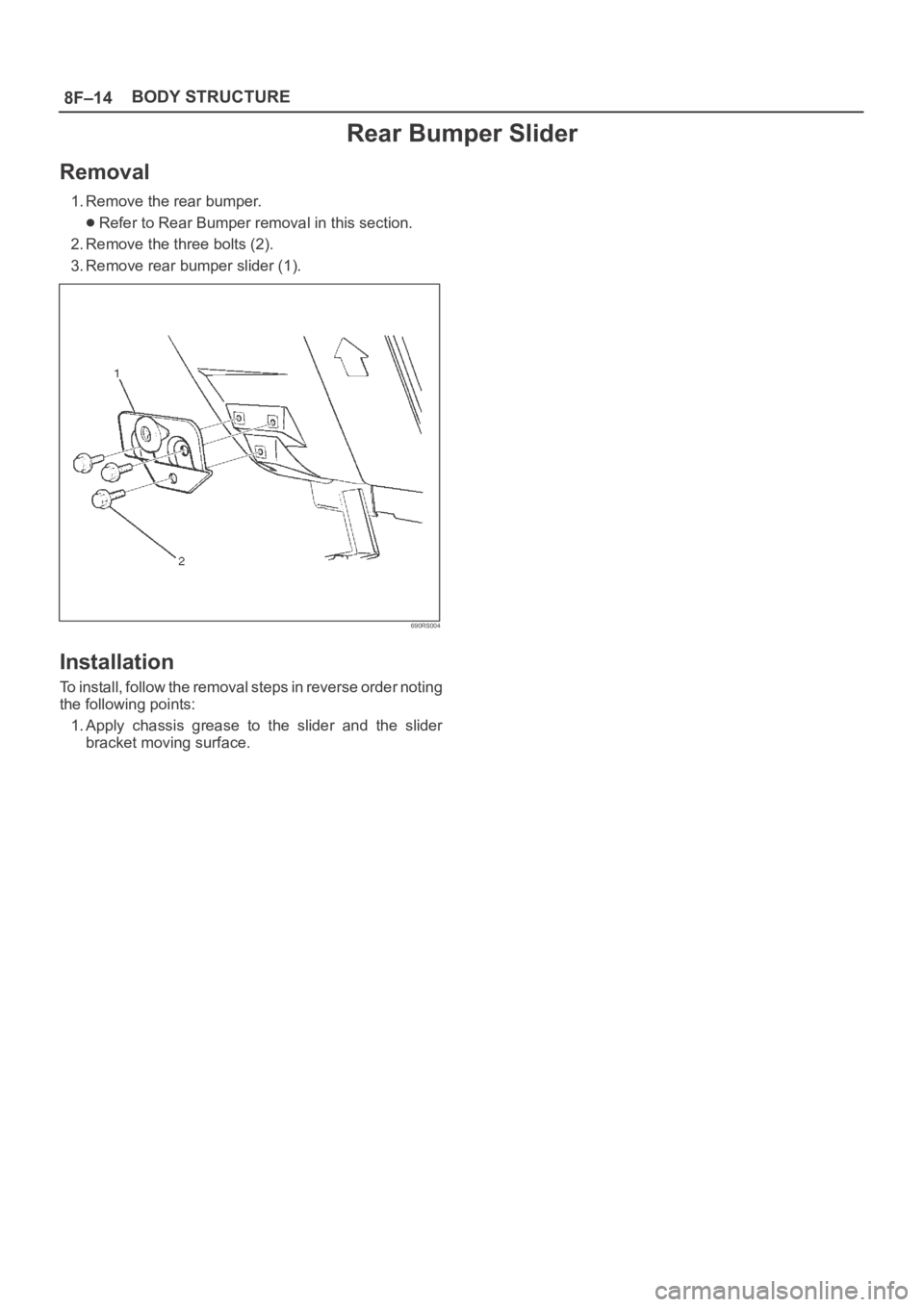

OPEL FRONTERA 1998 Workshop Manual 8F–14BODY STRUCTURE Rear Bumper Slider Removal 1. Remove the rear bumper. Refer to Rear Bumper removal in this section. 2. Remove the three bolts (2). 3. Remove rear bumper slider (1). 690RS004 Inst

Page 3210 of 6000

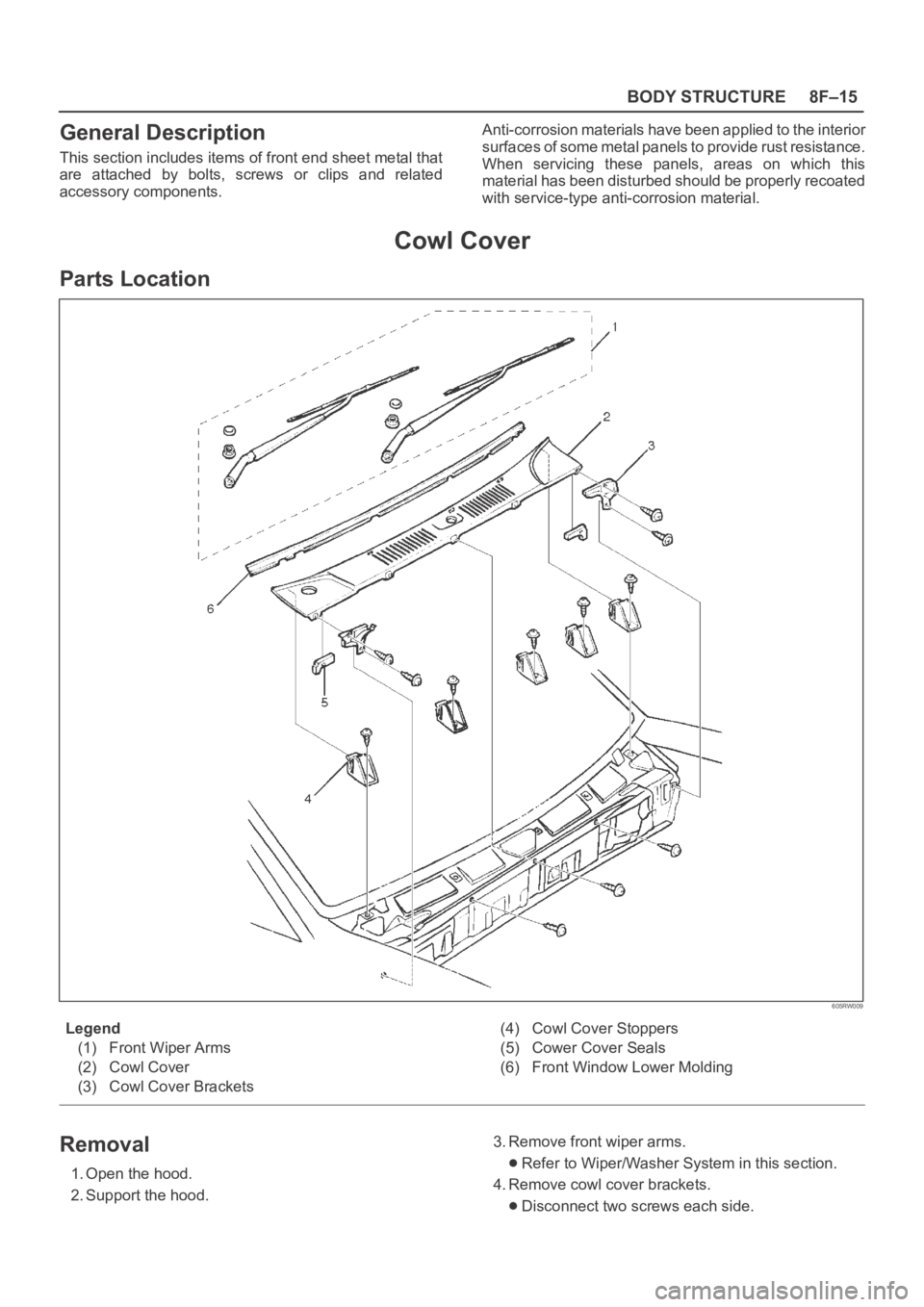

OPEL FRONTERA 1998 Workshop Manual 8F–15 BODY STRUCTURE General Description This section includes items of front end sheet metal that are attached by bolts, screws or clips and related accessory components.Anti-corrosion mate

Page 3211 of 6000

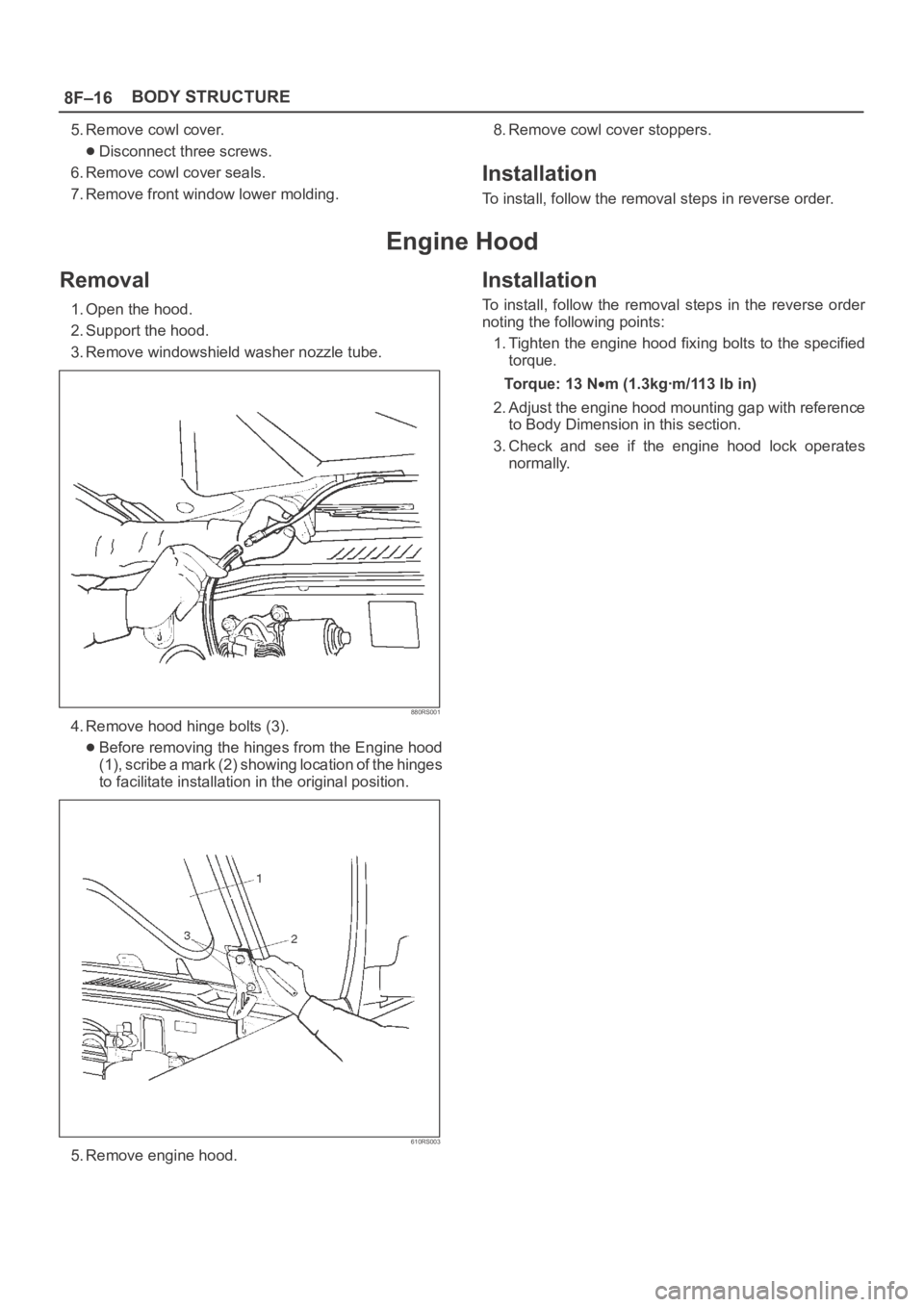

OPEL FRONTERA 1998 Workshop Manual 8F–16BODY STRUCTURE 5. Remove cowl cover. Disconnect three screws. 6. Remove cowl cover seals. 7. Remove front window lower molding.8. Remove cowl cover stoppers. Installation To install, follow the

Page 3212 of 6000

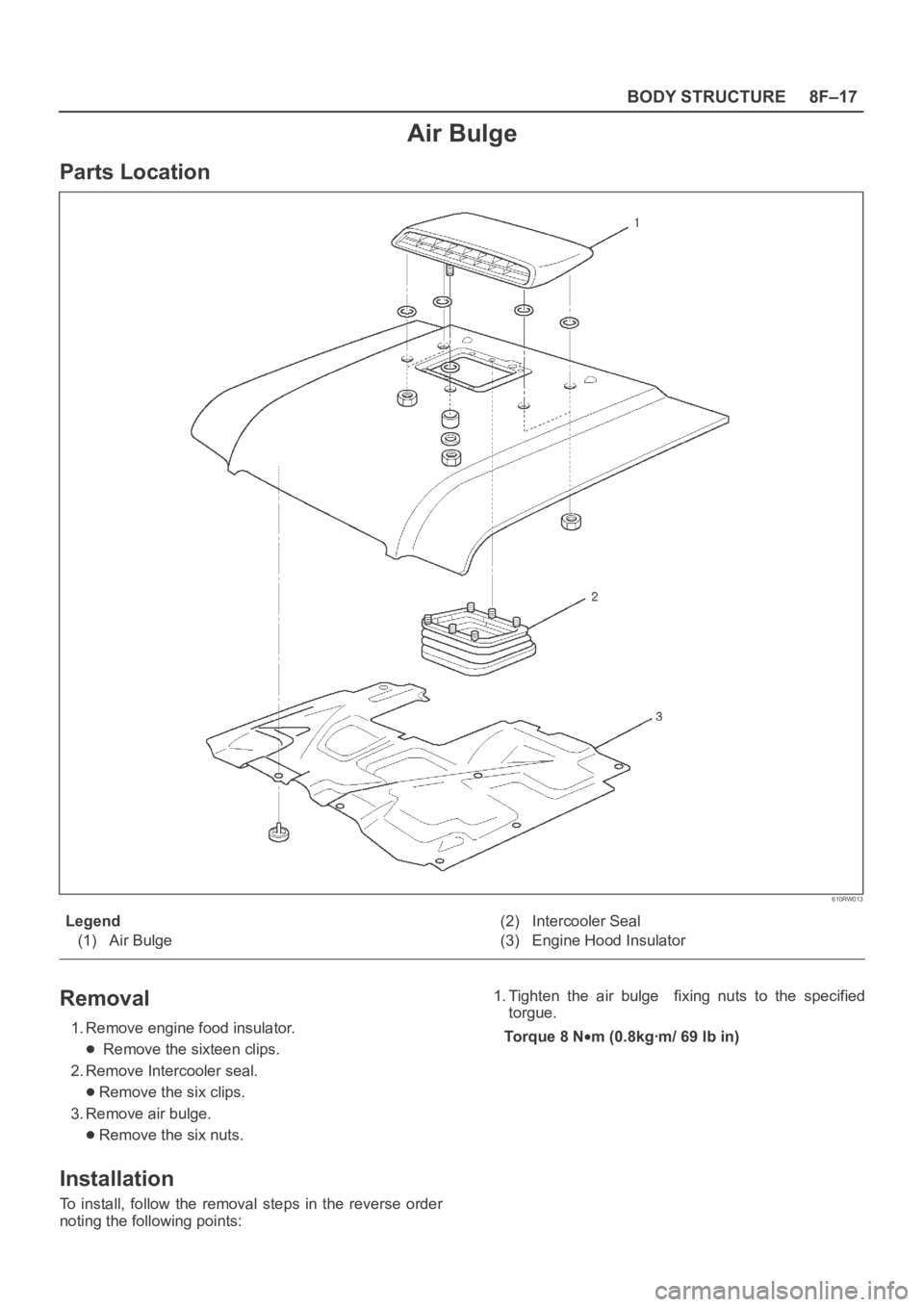

OPEL FRONTERA 1998 Workshop Manual 8F–17 BODY STRUCTURE Air Bulge Parts Location 610RW013 Legend (1) Air Bulge(2) Intercooler Seal (3) Engine Hood Insulator Removal 1. Remove engine food insulator. Remove the sixteen clips. 2. Remov

Page 3213 of 6000

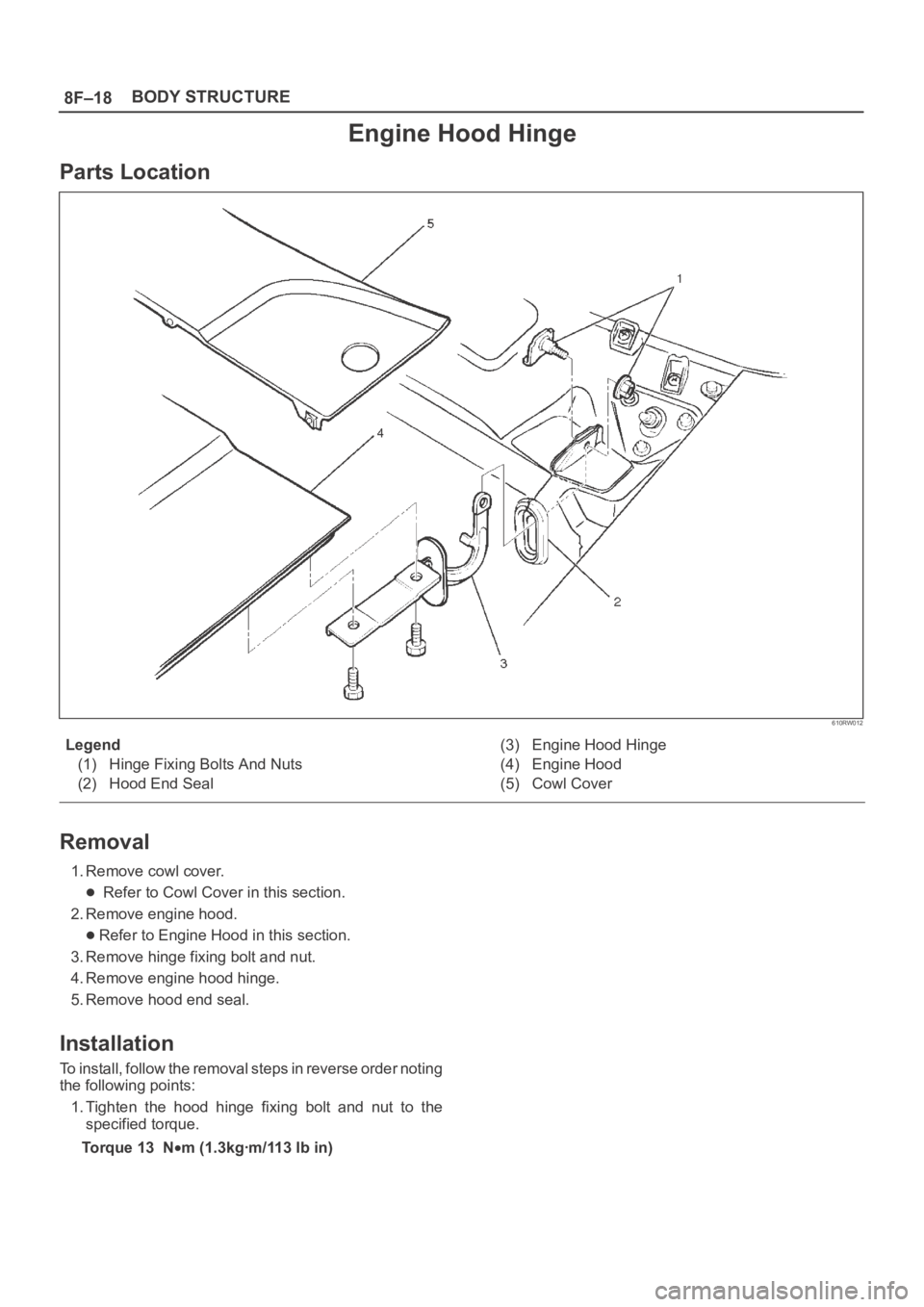

OPEL FRONTERA 1998 Workshop Manual 8F–18BODY STRUCTURE Engine Hood Hinge Parts Location 610RW012 Legend (1) Hinge Fixing Bolts And Nuts (2) Hood End Seal(3) Engine Hood Hinge (4) Engine Hood (5) Cowl Cover Removal 1. Remove cowl cove

Page 3214 of 6000

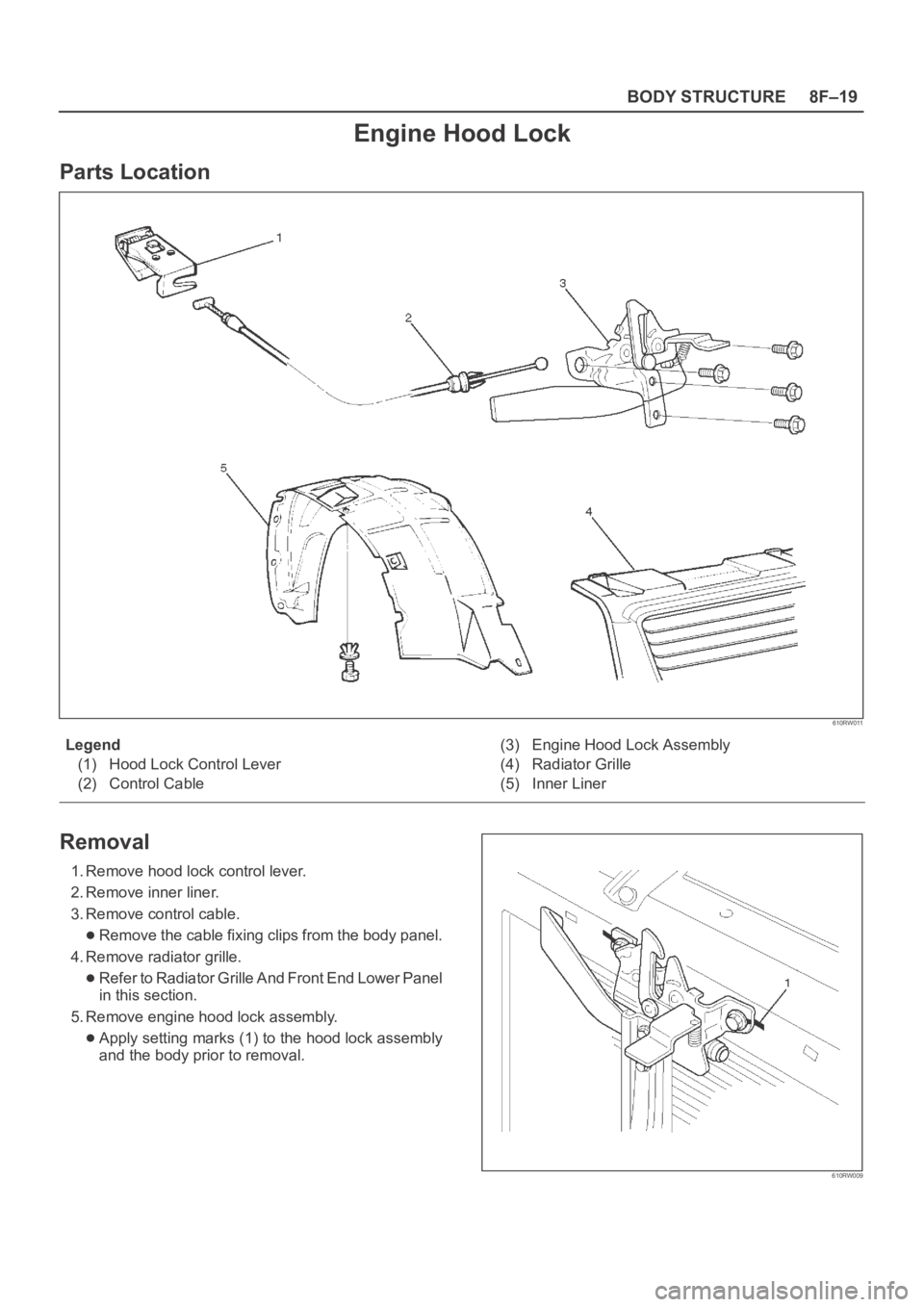

OPEL FRONTERA 1998 Workshop Manual 8F–19 BODY STRUCTURE Engine Hood Lock Parts Location 610RW011 Legend (1) Hood Lock Control Lever (2) Control Cable(3) Engine Hood Lock Assembly (4) Radiator Grille (5) Inner Liner Removal 1. Remove

Page 3215 of 6000

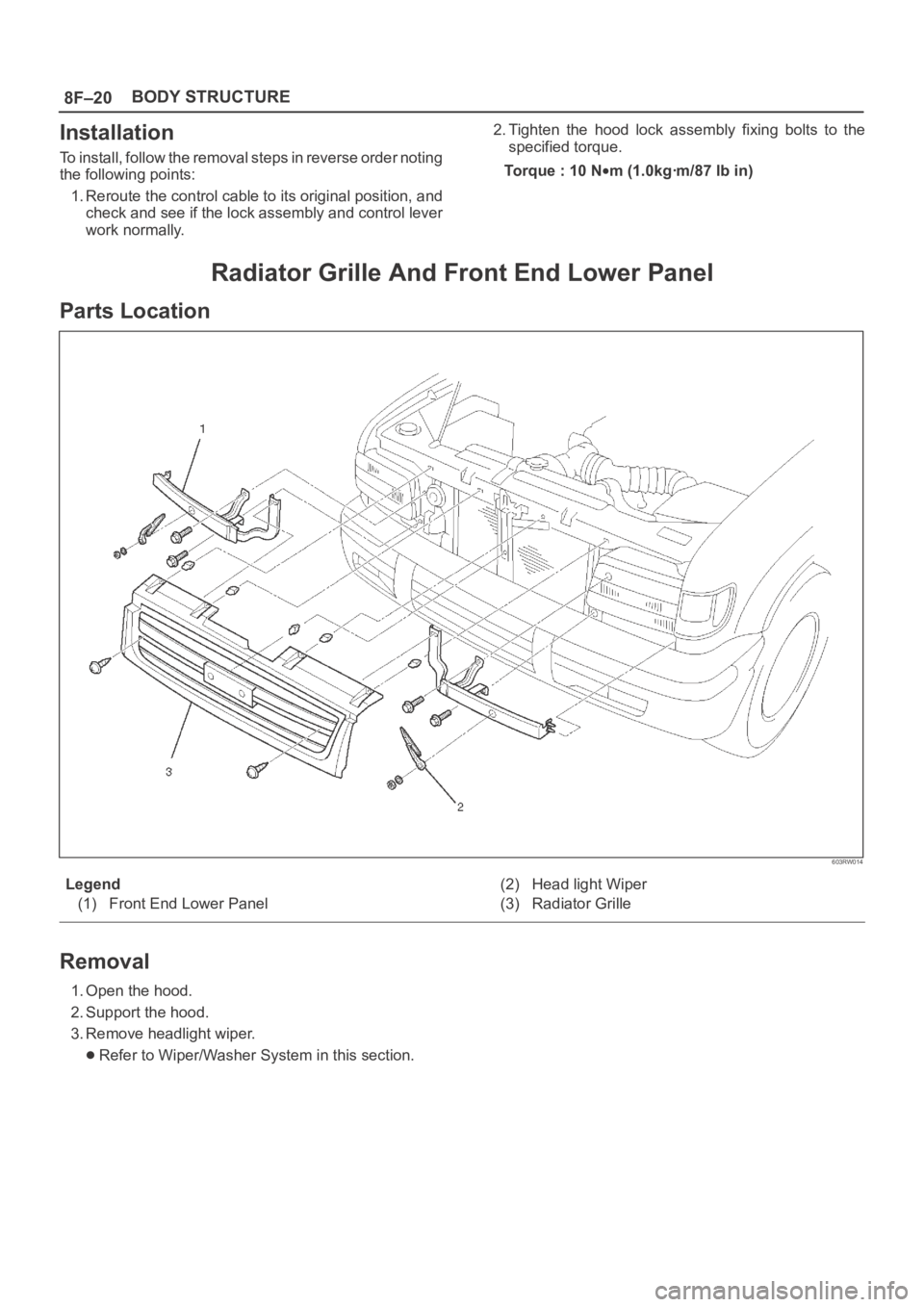

OPEL FRONTERA 1998 Workshop Manual 8F–20BODY STRUCTURE Installation To install, follow the removal steps in reverse order noting the following points: 1. Reroute the control cable to its original position, and check and see if the lo

Page 3216 of 6000

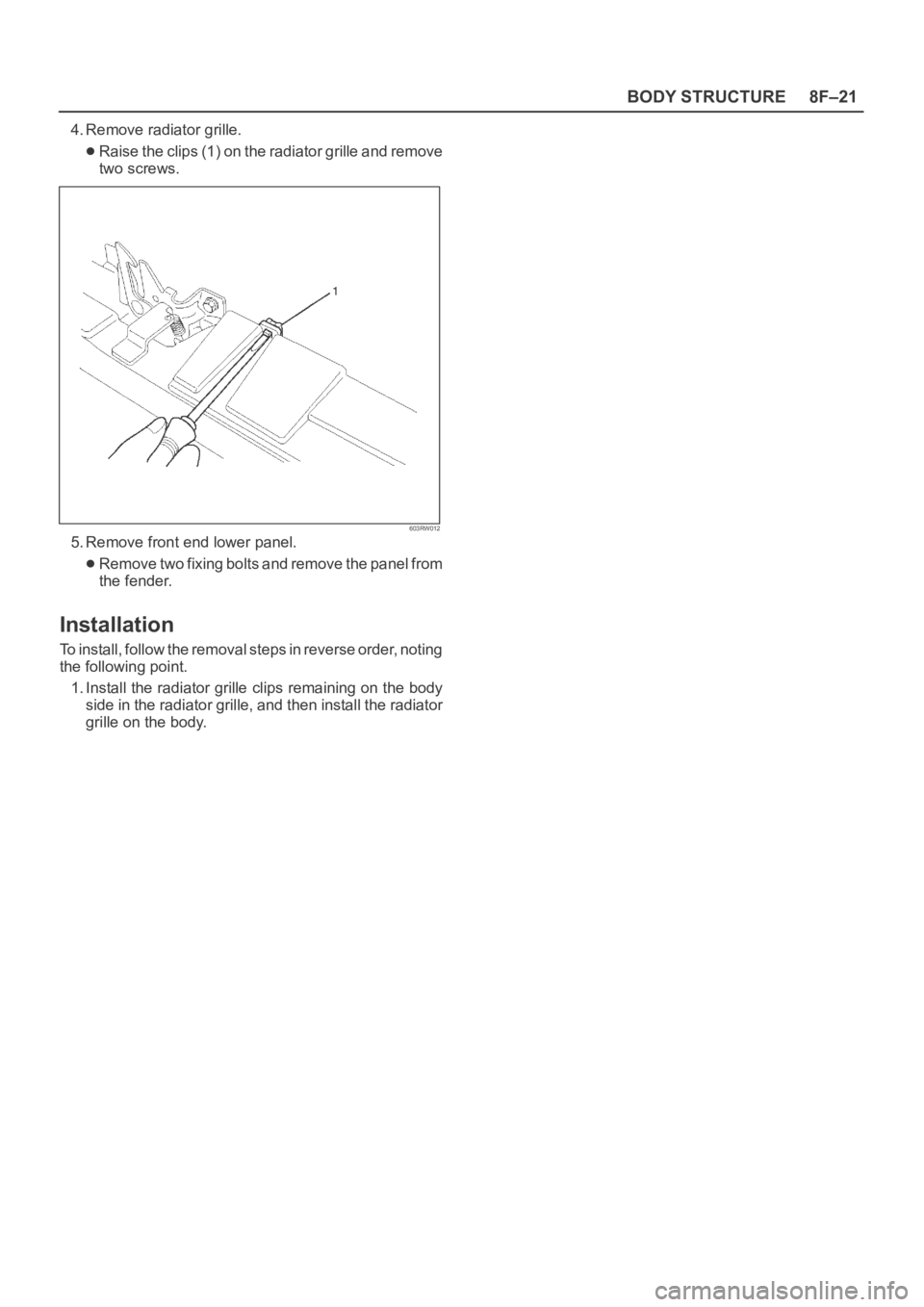

OPEL FRONTERA 1998 Workshop Manual 8F–21 BODY STRUCTURE 4. Remove radiator grille. Raise the clips (1) on the radiator grille and remove two screws. 603RW012 5. Remove front end lower panel. Remove two fixing bolts and remove the pan
