Page 5441 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–12 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS ECM Wiring Diagram (5 of 6) 060RW123

Page 5442 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–13 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS ECM Wiring Diagram (6 of 6) 060RW124

Page 5443 of 6000

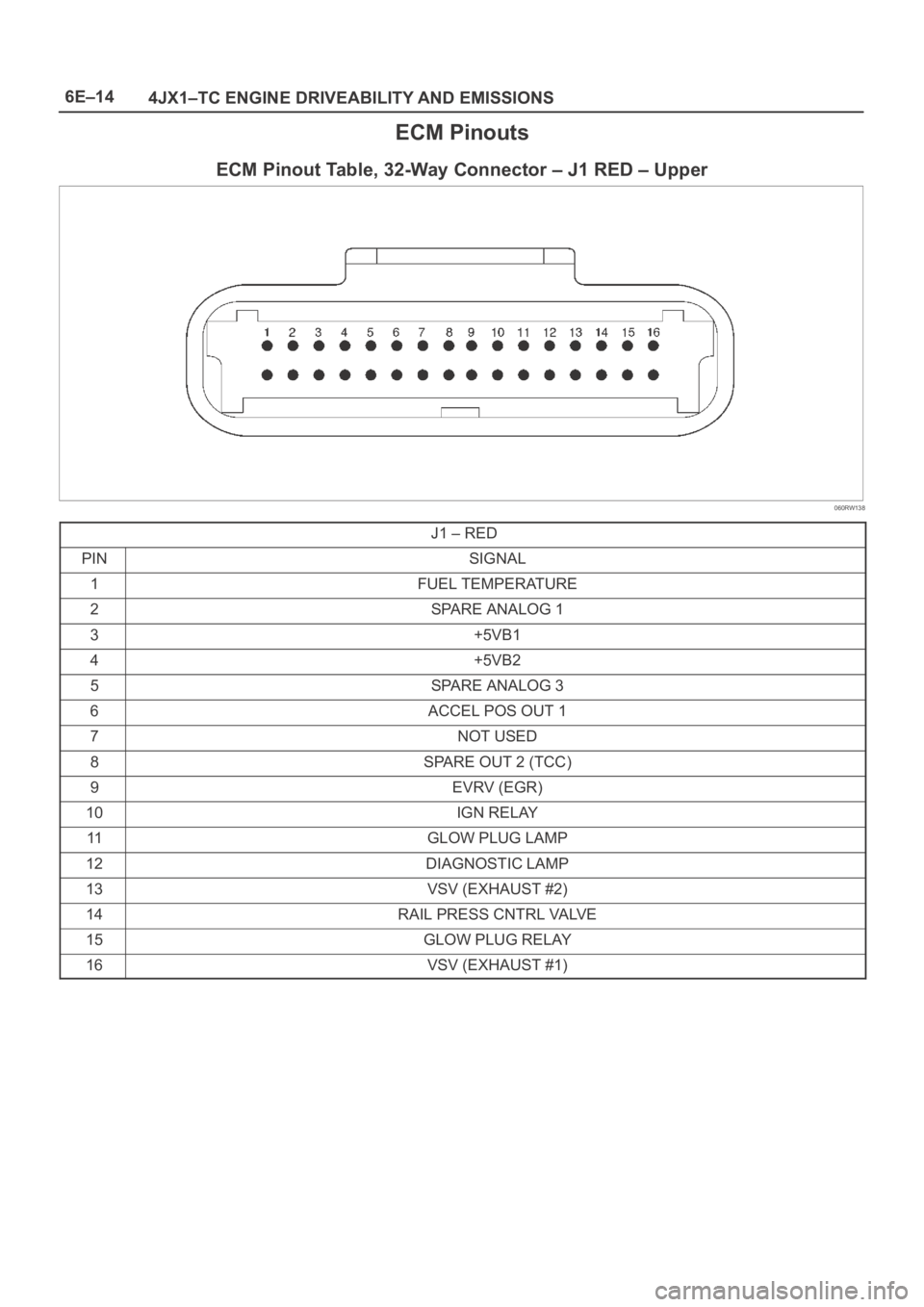

OPEL FRONTERA 1998 Workshop Manual 6E–14 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS ECM Pinouts ECM Pinout Table, 32-Way Connector – J1 RED – Upper 060RW138 J1 – RED PINSIGNAL 1FUEL TEMPERATURE 2SPARE ANALOG 1 3+5VB1 4+5VB2 5S

Page 5444 of 6000

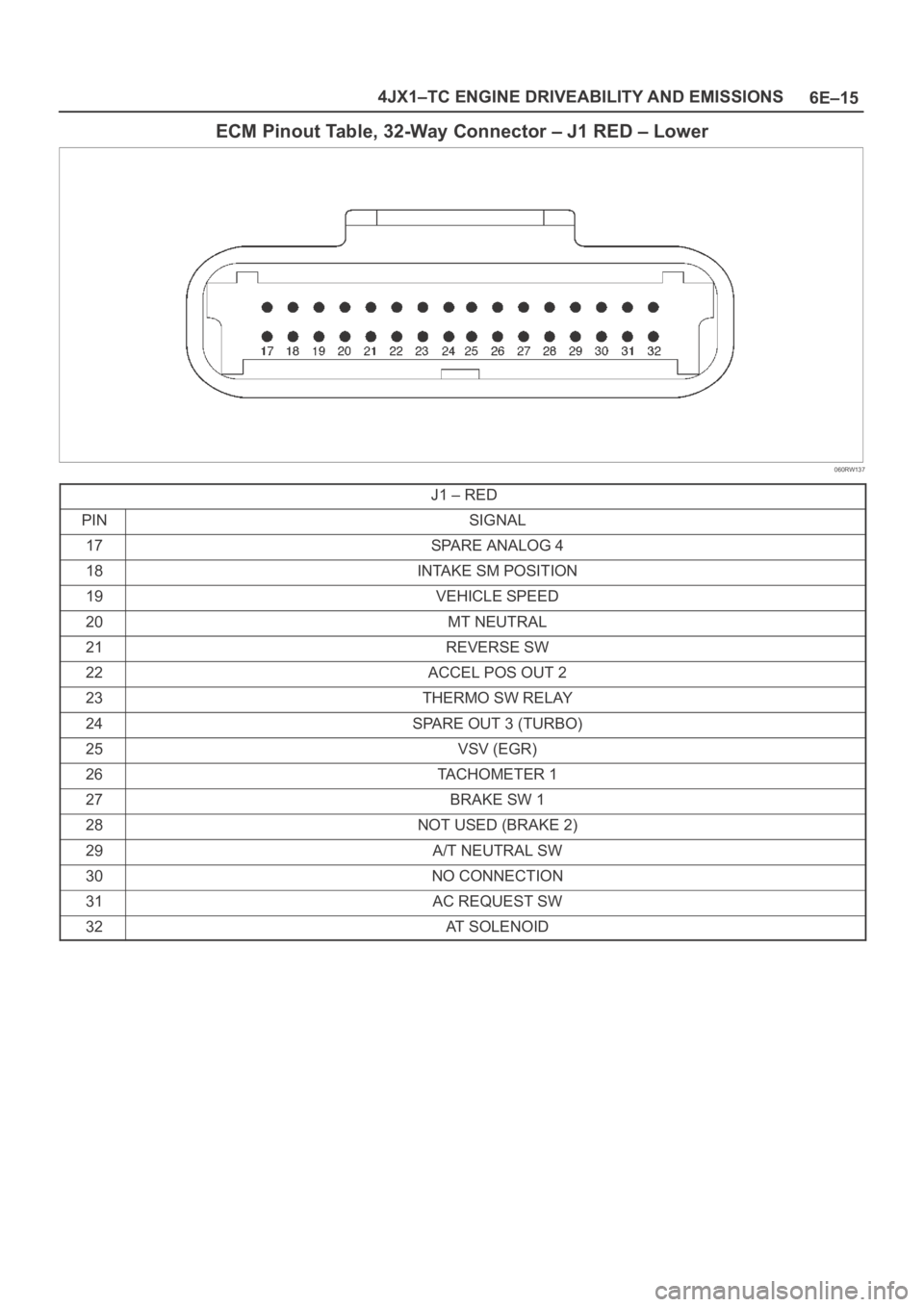

OPEL FRONTERA 1998 Workshop Manual 6E–15 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS ECM Pinout Table, 32-Way Connector – J1 RED – Lower 060RW137 J1 – RED PINSIGNAL 17SPARE ANALOG 4 18INTAKE SM POSITION 19VEHICLE SPEED 20MT NEU

Page 5445 of 6000

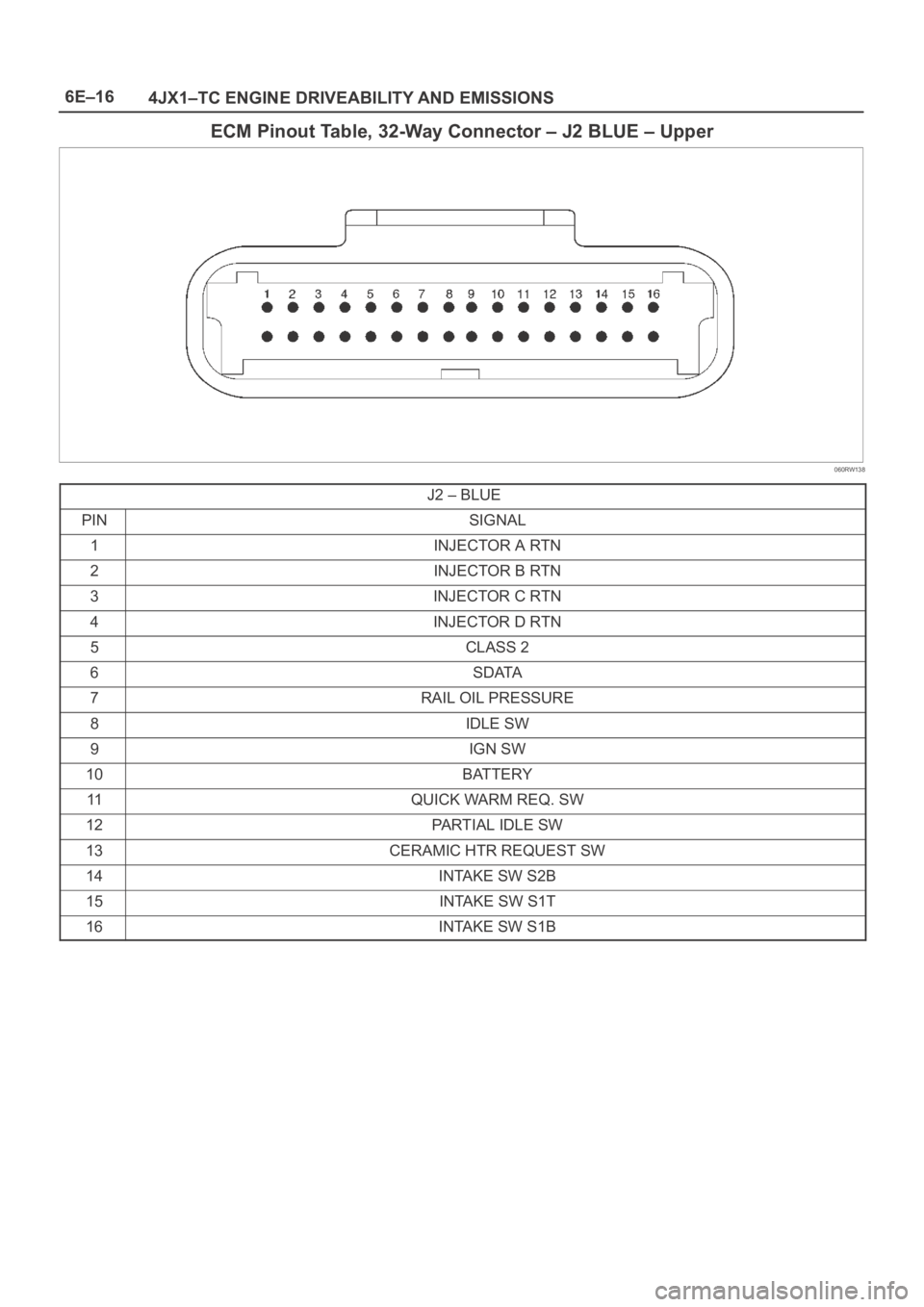

OPEL FRONTERA 1998 Workshop Manual 6E–16 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS ECM Pinout Table, 32-Way Connector – J2 BLUE – Upper 060RW138 J2 – BLUE PINSIGNAL 1INJECTOR A RTN 2INJECTOR B RTN 3INJECTOR C RTN 4INJECTOR D

Page 5446 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–17 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS ECM Pinout Table, 32-Way Connector – J2 BLUE – Lower 060RW137 J2 – BLUE PINSIGNAL 17COOLANT TEMP OUT 18OIL TEMPERATURE 19TDC/CAM 20SPARE ANALO

Page 5447 of 6000

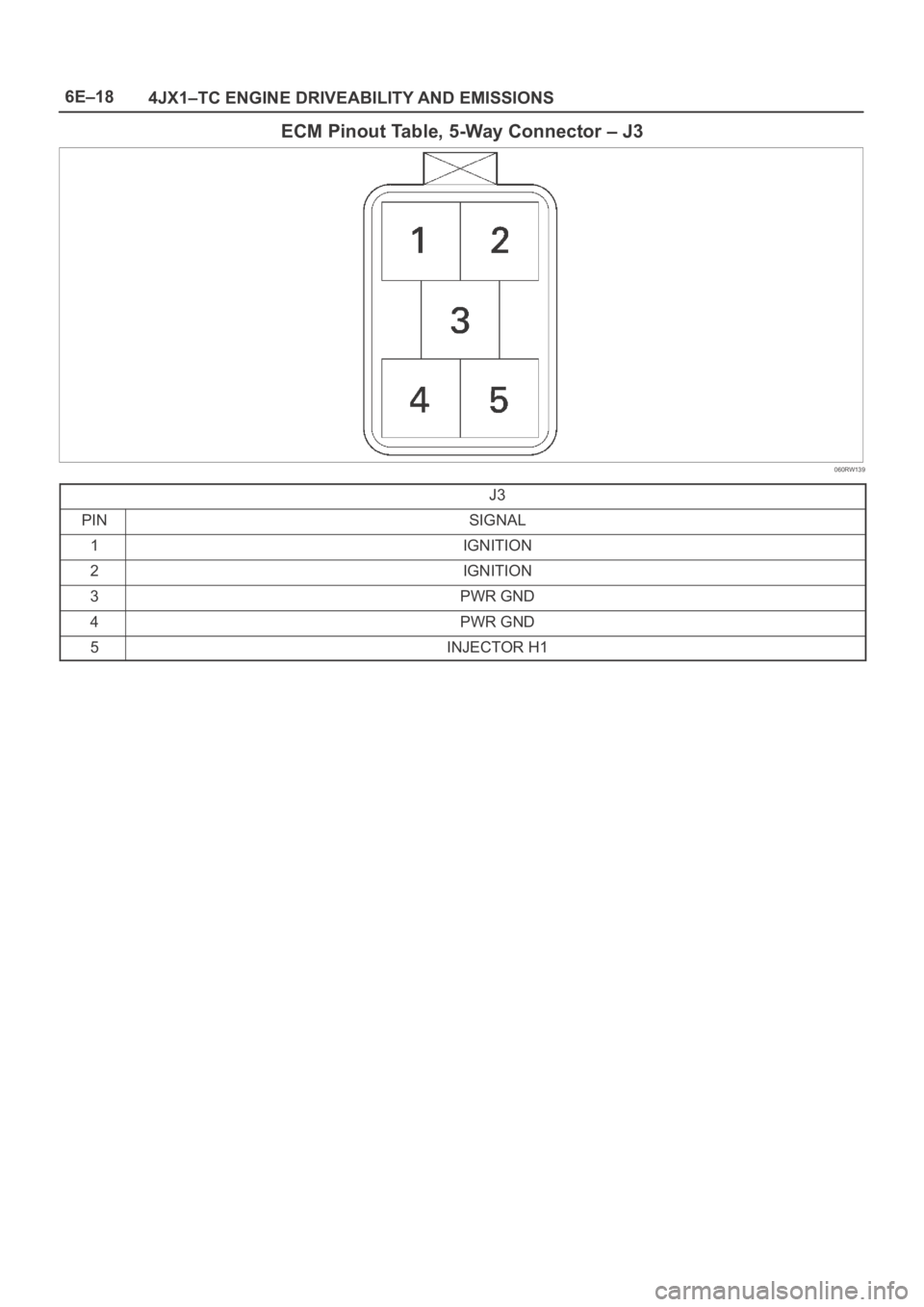

OPEL FRONTERA 1998 Workshop Manual 6E–18 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS ECM Pinout Table, 5-Way Connector – J3 060RW139 J3 PINSIGNAL 1IGNITION 2IGNITION 3PWR GND 4PWR GND 5INJECTOR H1

Page 5448 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–19 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS Component Locator Engine Component Locator Table F06RW051 NumberNameLocation 1AP (Accelerator Pedal Position) SensorAP Bracket 2CKP (Crankshaft Posi
