Page 2033 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–140 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P0475 (Flash DTC 71) EXH #1 VSV Circuit 060RW135 Circuit Description EXH. #1, #2 VSV Circuit receives current throug

Page 2034 of 6000

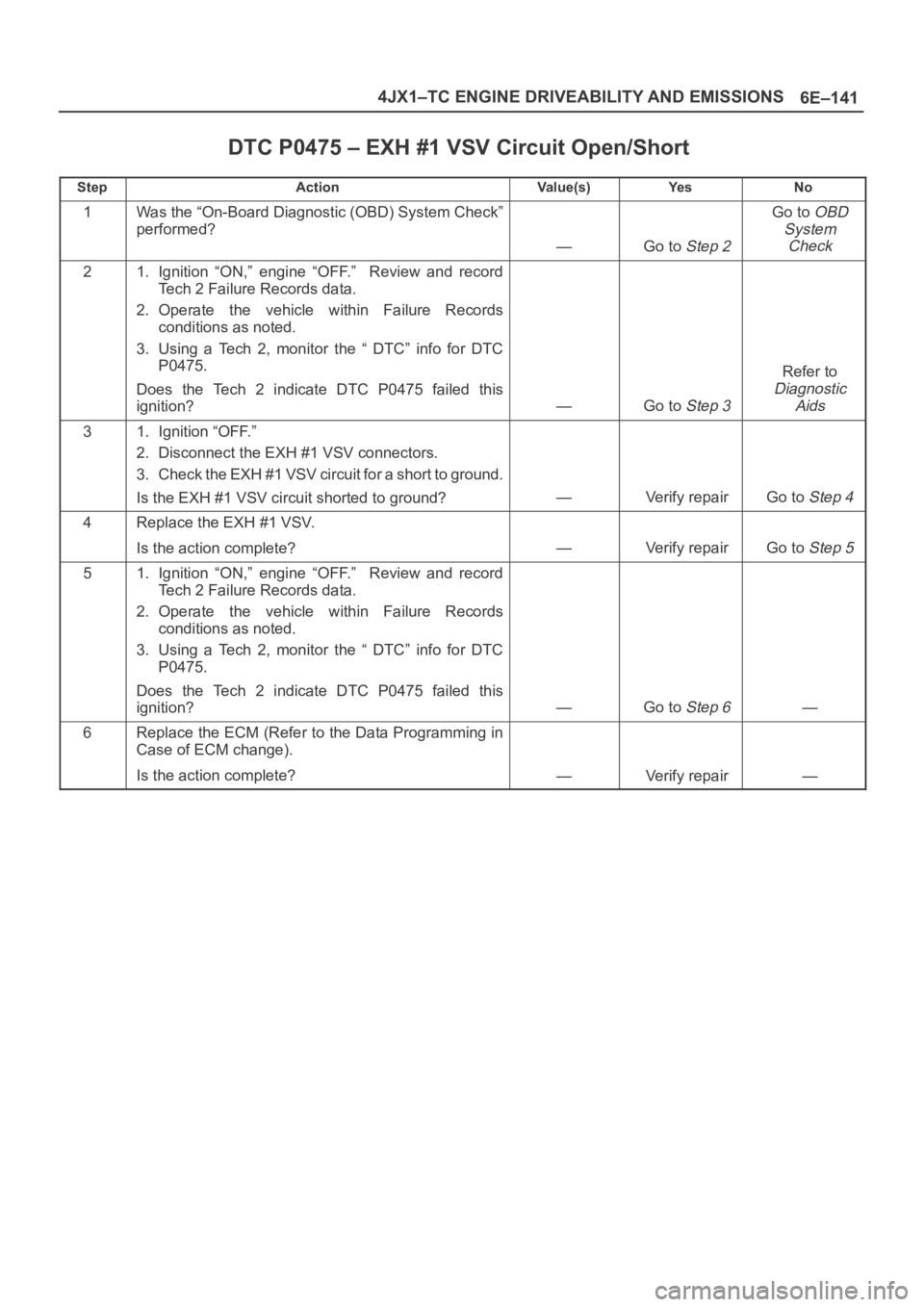

OPEL FRONTERA 1998 Workshop Manual 6E–141 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS DTC P0475 – EXH #1 VSV Circuit Open/Short StepActionVa l u e ( s )Ye sNo 1Was the “On-Board Diagnostic (OBD) System Check” performed? —Go t

Page 2035 of 6000

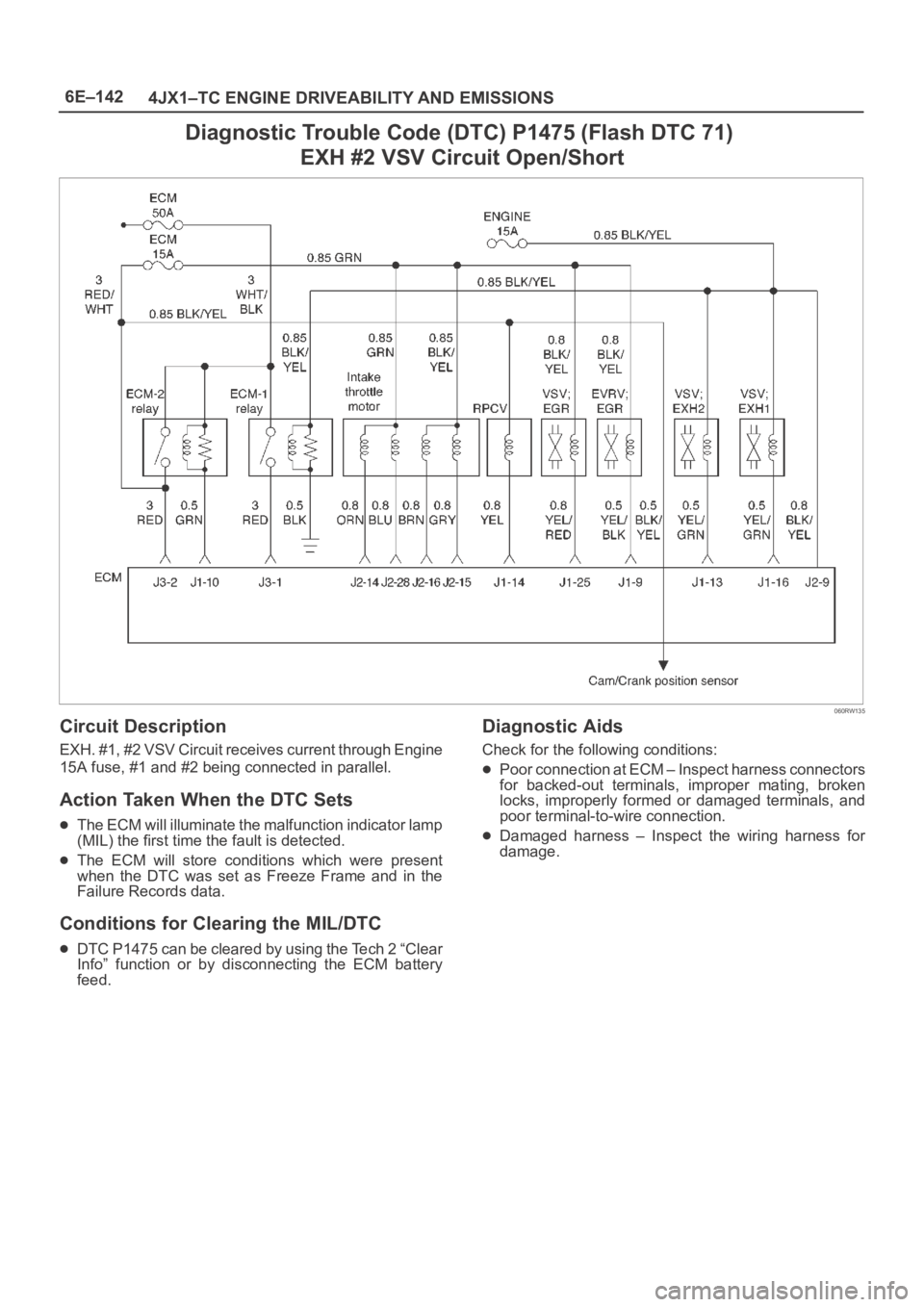

OPEL FRONTERA 1998 Workshop Manual 6E–142 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P1475 (Flash DTC 71) EXH #2 VSV Circuit Open/Short 060RW135 Circuit Description EXH. #1, #2 VSV Circuit receives cur

Page 2036 of 6000

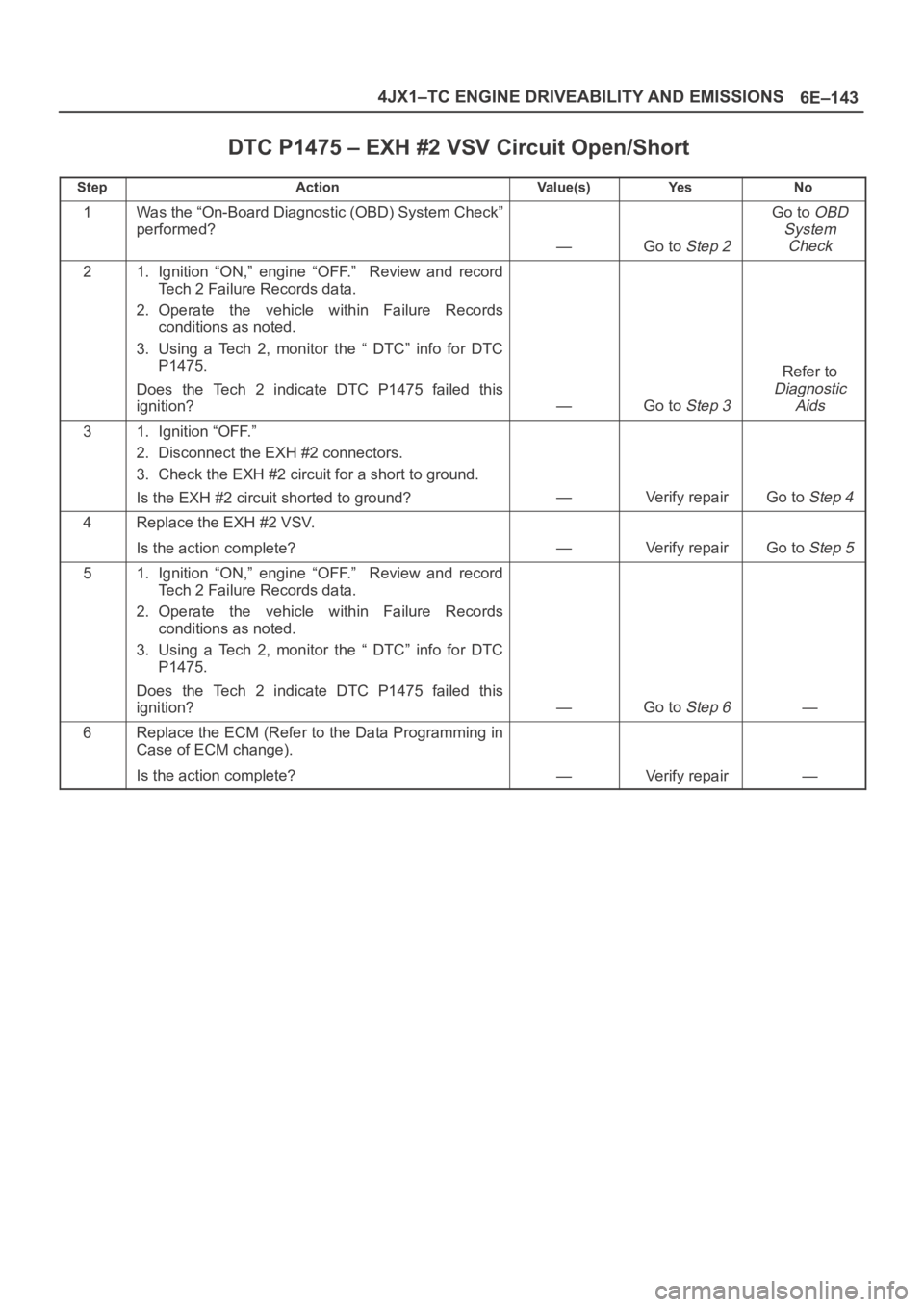

OPEL FRONTERA 1998 Workshop Manual 6E–143 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS DTC P1475 – EXH #2 VSV Circuit Open/Short StepActionVa l u e ( s )Ye sNo 1Was the “On-Board Diagnostic (OBD) System Check” performed? —Go t

Page 2037 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–144 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P1485 (Flash DTC 74) ITP (Intake Thorottle Position) Sensor Low Voltage 060RW134 Circuit Description The intake thro

Page 2038 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–145 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS DTC P1485 –ITP Sensor Low Voltage StepNo Ye s Va l u e ( s ) Action 31. Ignition “ON,” engine “OFF.” 2. Review and record Tech 2 Failure

Page 2039 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–146 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P1486 (Flash DTC 74) ITP (Intake Throttle Position) Sensor High Voltage 060RW134 Circuit Description The intake thro

Page 2040 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–147 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS DTC P1486 – ITP Sensor High Voltage StepActionVa l u e ( s )Ye sNo 1Was the “On-Board Diagnostic (OBD) System Check” performed? —Go to Step
