OPEL FRONTERA 1998 Workshop Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2–86
StepNo Ye s Action
13Check that all the parts are mounted.
Is this step complete?Repeat the
“Diagnosis Flow”.
Return to Step 13

Page 4170 of 6000

OPEL FRONTERA 1998 Workshop Manual 4B2–87 DRIVE LINE CONTROL SYSTEM (TOD)

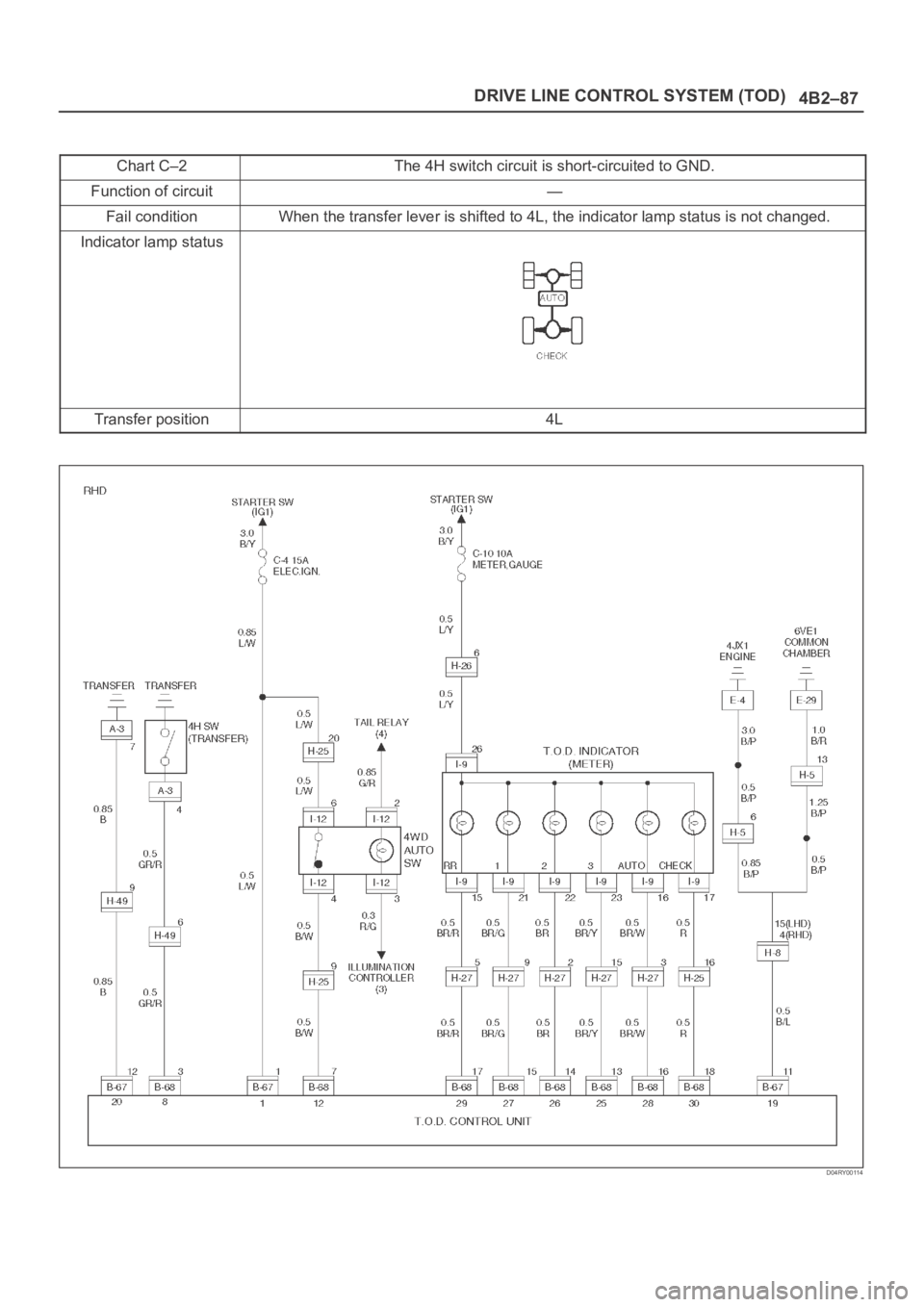

Chart C–2The 4H switch circuit is short-circuited to GND.
Function of circuit—
Fail conditionWhen the transfer lever is shifted to 4L, the indicator lamp s

Page 4171 of 6000

OPEL FRONTERA 1998 Workshop Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2–88
D04RY00115

Page 4172 of 6000

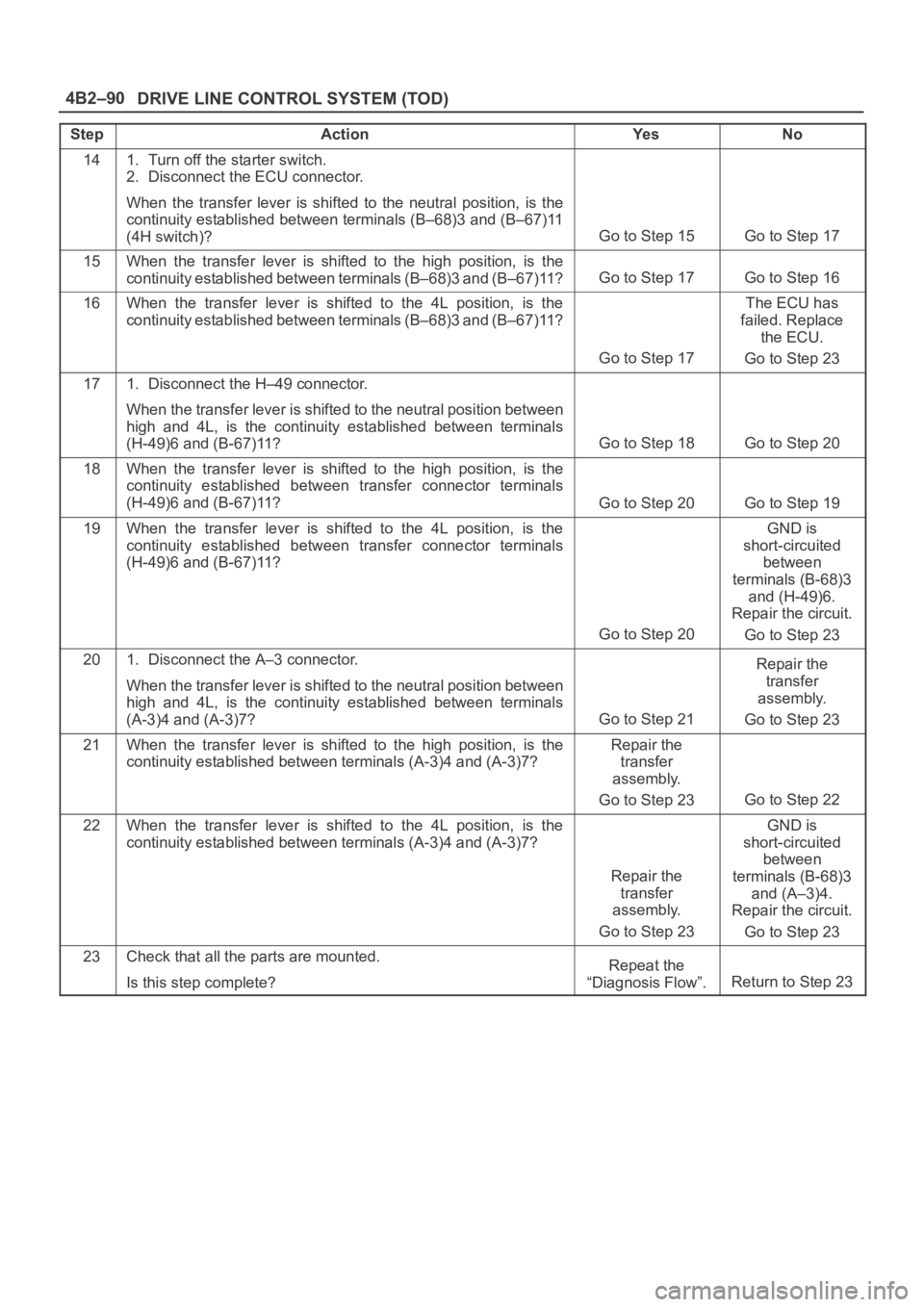

OPEL FRONTERA 1998 Workshop Manual 4B2–89 DRIVE LINE CONTROL SYSTEM (TOD)
StepActionYe sNo
1When the transfer lever is shifted to the High position, is 5V
observed between terminals 8 and 19 (4H switch)?
Go to Step 2Go to

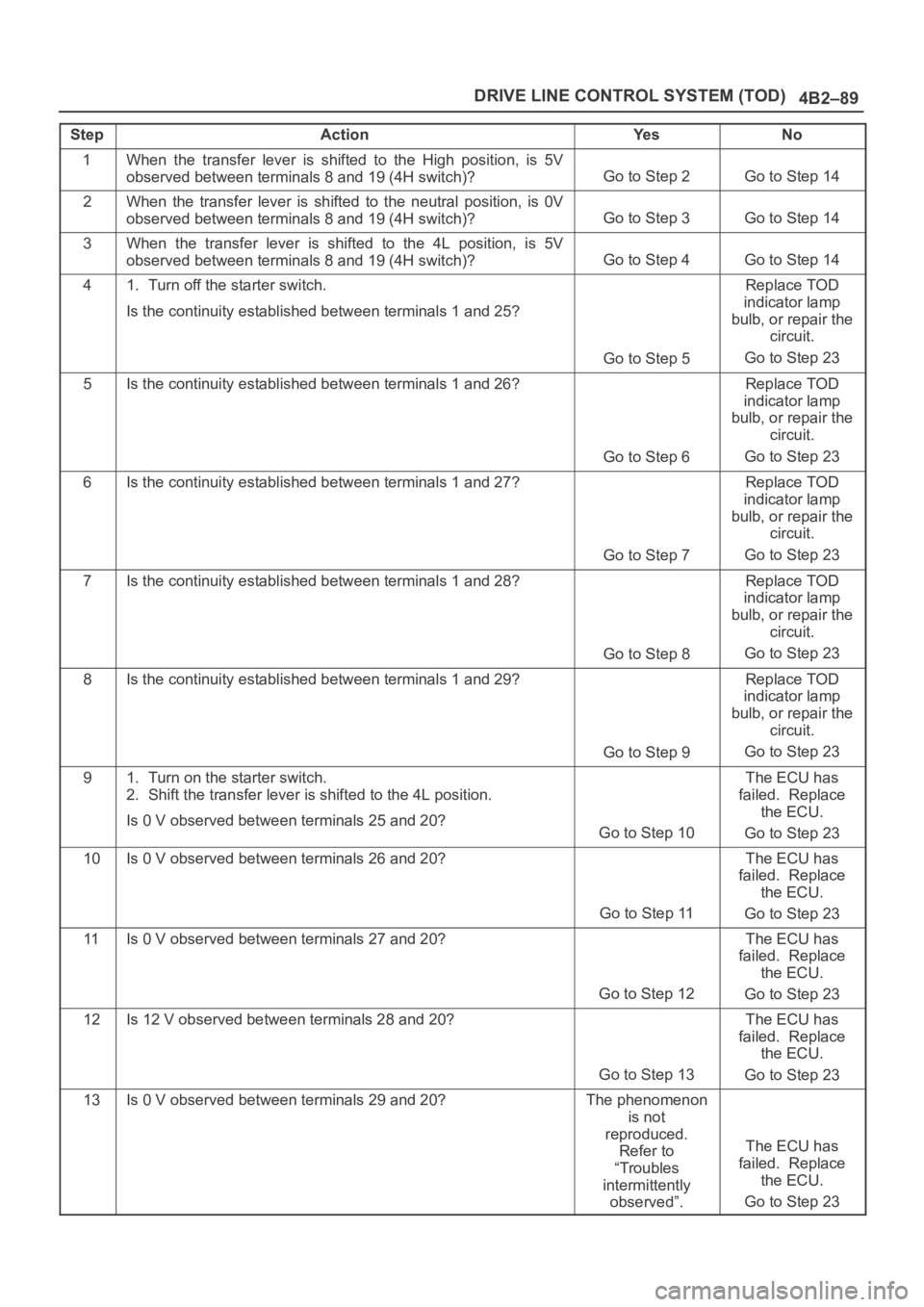

Page 4173 of 6000

OPEL FRONTERA 1998 Workshop Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2–90
StepNo Ye s Action
141. Turn off the starter switch.
2. Disconnect the ECU connector.
When the transfer lever is shifted to the neutral position, is

DRIVE LINE CONTROL SYSTEM (TOD) 4B2–90
StepNo Ye s Action
141. Turn off the starter switch.
2. Disconnect the ECU connector.
When the transfer lever is shifted to the neutral position, is the
continuity established between terminals (B–68)3 and (B–67)11
(4H switch)?
Go to Step 15Go to Step 17
15When the transfer lever is shifted to the high position, is the
continuity established between terminals (B–68)3 and (B–67)11?
Go to Step 17Go to Step 16
16When the transfer lever is shifted to the 4L position, is the
continuity established between terminals (B–68)3 and (B–67)11?
Go to Step 17
The ECU has
failed. Replace
the ECU.
Go to Step 23
171. Disconnect the H–49 connector.
When the transfer lever is shifted to the neutral position between
high and 4L, is the continuity established between terminals
(H-49)6 and (B-67)11?
Go to Step 18Go to Step 20
18When the transfer lever is shifted to the high position, is the
continuity established between transfer connector terminals
(H-49)6 and (B-67)11?
Go to Step 20Go to Step 19
19When the transfer lever is shifted to the 4L position, is the
continuity established between transfer connector terminals
(H-49)6 and (B-67)11?
Go to Step 20
GND is
short-circuited
between
terminals (B-68)3
and (H-49)6.
Repair the circuit.
Go to Step 23
201. Disconnect the A–3 connector.
When the transfer lever is shifted to the neutral position between
high and 4L, is the continuity established between terminals
(A-3)4 and (A-3)7?
Go to Step 21
Repair the
transfer
assembly.
Go to Step 23
21When the transfer lever is shifted to the high position, is the
continuity established between terminals (A-3)4 and (A-3)7?Repair the
transfer
assembly.
Go to Step 23
Go to Step 22
22When the transfer lever is shifted to the 4L position, is the
continuity established between terminals (A-3)4 and (A-3)7?
Repair the
transfer
assembly.
Go to Step 23
GND is
short-circuited
between
terminals (B-68)3
and (A–3)4.
Repair the circuit.
Go to Step 23
23Check that all the parts are mounted.
Is this step complete?Repeat the
“Diagnosis Flow”.
Return to Step 23

Page 4174 of 6000

OPEL FRONTERA 1998 Workshop Manual 4B2–91 DRIVE LINE CONTROL SYSTEM (TOD)

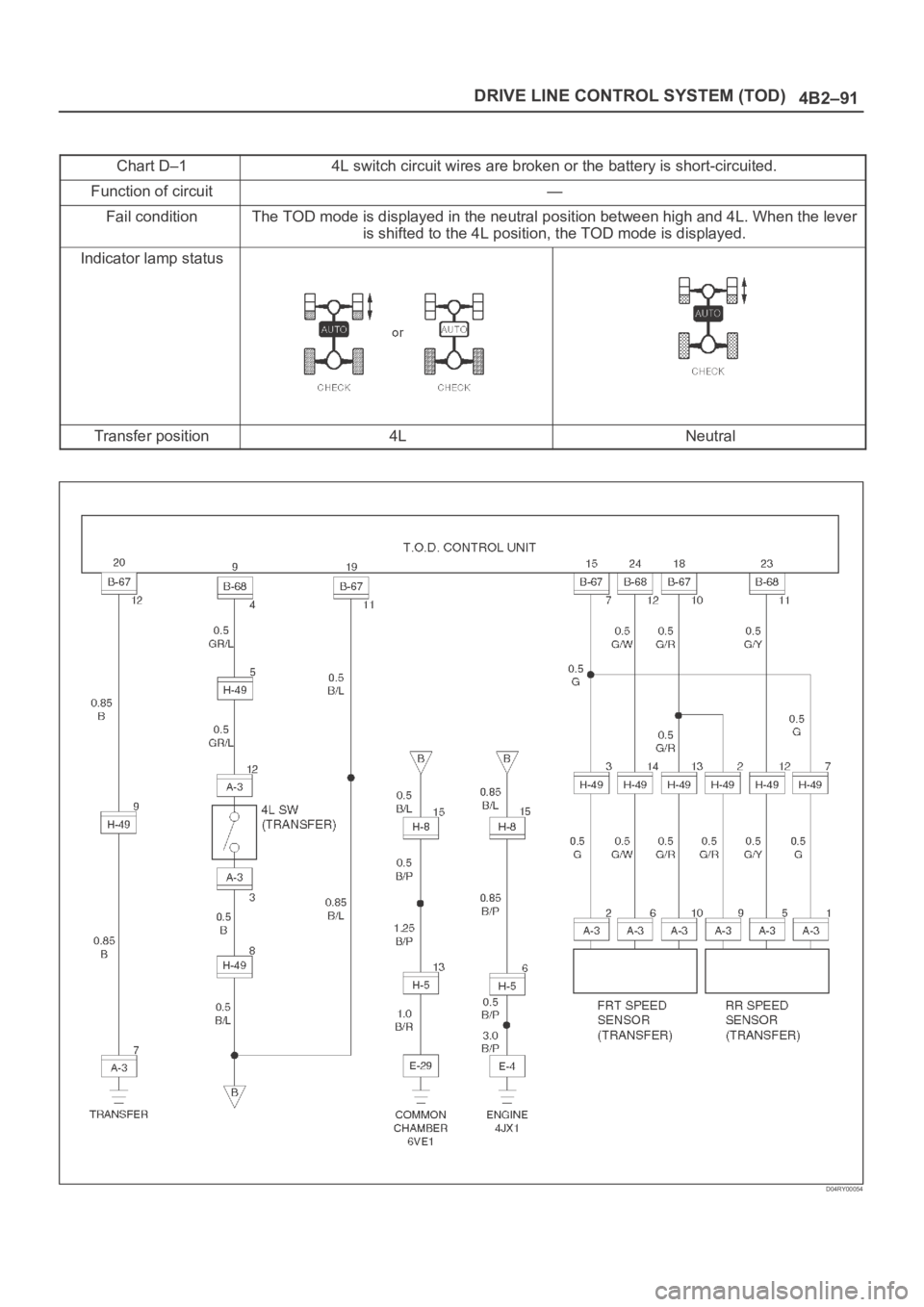

Chart D–14L switch circuit wires are broken or the battery is short-circuited.
Function of circuit—
Fail conditionThe TOD mode is displayed in the neutral

Page 4175 of 6000

OPEL FRONTERA 1998 Workshop Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2–92
StepActionYe sNo
1Turn on the starter switch.
When the transfer lever is shifted to the high position, is 5V
observed between terminals 9 and 19 (4L

DRIVE LINE CONTROL SYSTEM (TOD) 4B2–92
StepActionYe sNo
1Turn on the starter switch.
When the transfer lever is shifted to the high position, is 5V
observed between terminals 9 and 19 (4L switch)?
Go to Step 2Go to Step 4
2When the transfer lever is shifted to the neutral position, is 0V
observed between terminals 9 and 19 (4L switch)?
Go to Step 3Go to Step 4
3When the transfer lever is shifted to the 4L position, is 0V
observed between terminals 9 and 19 (4L switch)?The ECU has
failed. Replace
the ECU.
Go to Step 13
Go to Step 4
41. Turn off the starter switch.
2. Disconnect the ECU connector.
3. Turn on the starter switch.
When the transfer lever is shifted to the high position, is 12V
observed between terminals (B–68)4 and (B–67)11?
Go to Step 5Go to Step 7
5When the transfer lever is shifted to the neutral position, is 0V
observed between terminals (B–68)4 and (B–67)11?
Go to Step 6Go to Step 7
6When the transfer lever is shifted to the 4L position, is 0V
observed between terminals (B–68)4 and (B–67)11?The 4L switch
circuit is
short-circuited on
battery between
ECU and
transfer.Repair
the circuit.
Go to Step 13
Go to Step 7
7Turn off the starter switch.
When the transfer lever is shifted to the high position, is the
continuity established between terminals (B–68)4 and (B–67)11?
Go to Step 12Go to Step 8
8When the transfer lever is shifted to the neutral position between
high and 4L, is the continuity established between terminals
(B–68)4 and (B–67)11?
Go to Step 9Go to Step 10
9When the transfer lever is shifted to the 4L position, is the
continuity established between terminals (B–68)4 and (B–67)11?The phenomenon
is not
reproduced.
Refer to
“Troubles
intermittently
observed”.
Go to Step 11
101. Disconnect the A–3 connector.
When the transfer lever is shifted to the neutral position between
high and 4L, is the continuity established between transfer
connector terminals (A–3)12 and GND?Wires are broken
between transfer
connector
(A–3)12 and
connector
(B-68)4.Repair
the circuit.
Go to Step 13
Repair the
transfer
assembly.
Go to Step 13
11When the transfer lever is shifted to the 4L position, is the
continuity established between transfer connector terminals
(A–3)12 and GND?Wires are broken
between transfer
connector
(A–3)12 and
connector
(B-68)4.Repair
the circuit.
Go to Step 13
Repair the
transfer
assembly.
Go to Step 13

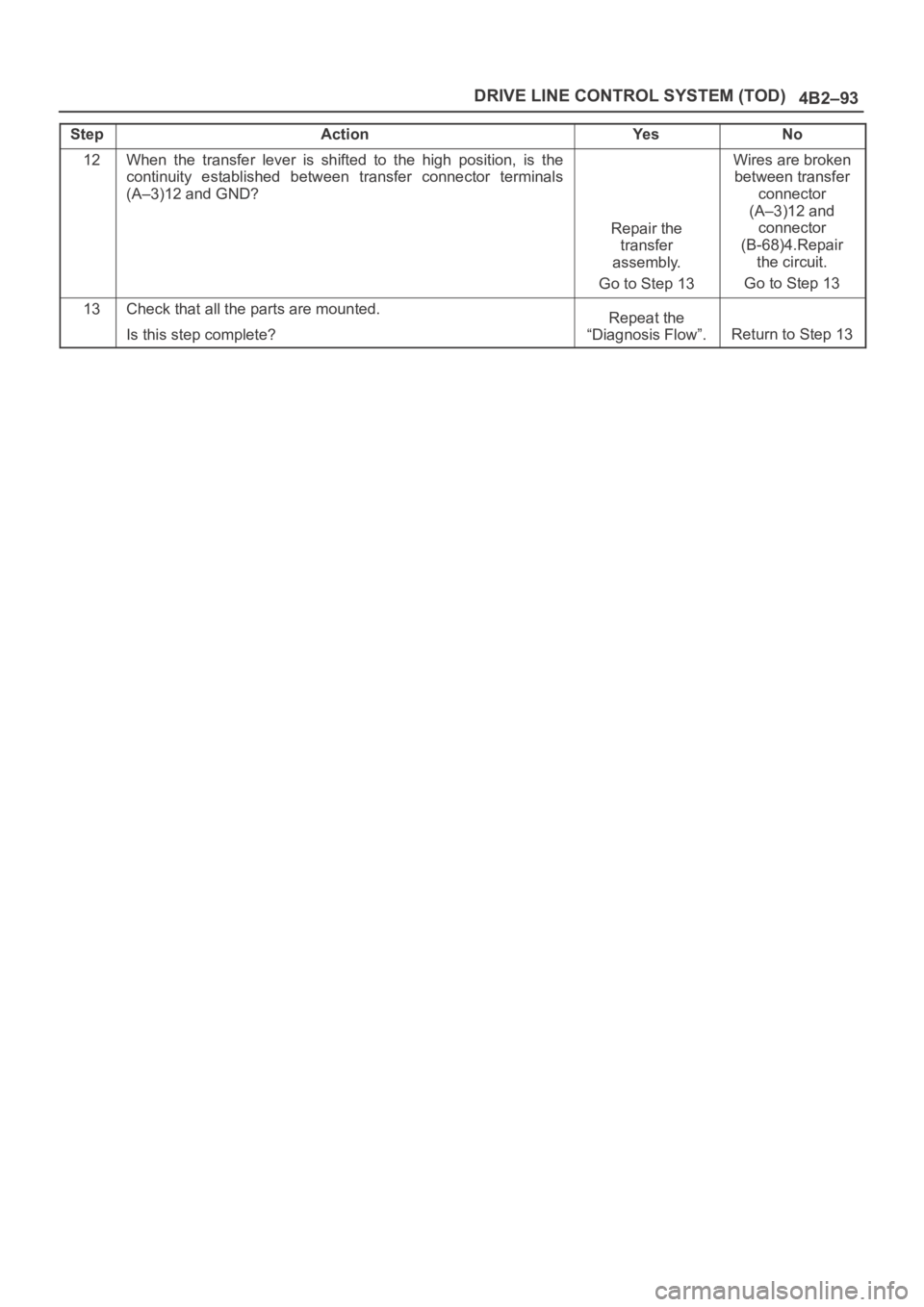

Page 4176 of 6000

OPEL FRONTERA 1998 Workshop Manual 4B2–93 DRIVE LINE CONTROL SYSTEM (TOD)
StepNo Ye s Action
12When the transfer lever is shifted to the high position, is the
continuity established between transfer connector terminal
