Page 4249 of 6000

OPEL FRONTERA 1998 Workshop Manual 4C–43 DRIVE SHAFT SYSTEM Play in Universal Joint Limit: Less than 0.1 mm (0.004 in) 401RS010 Constant Velocity Joint NOTE: LJ and BJ constant velocity joints are unremovable types. Check the

Page 4250 of 6000

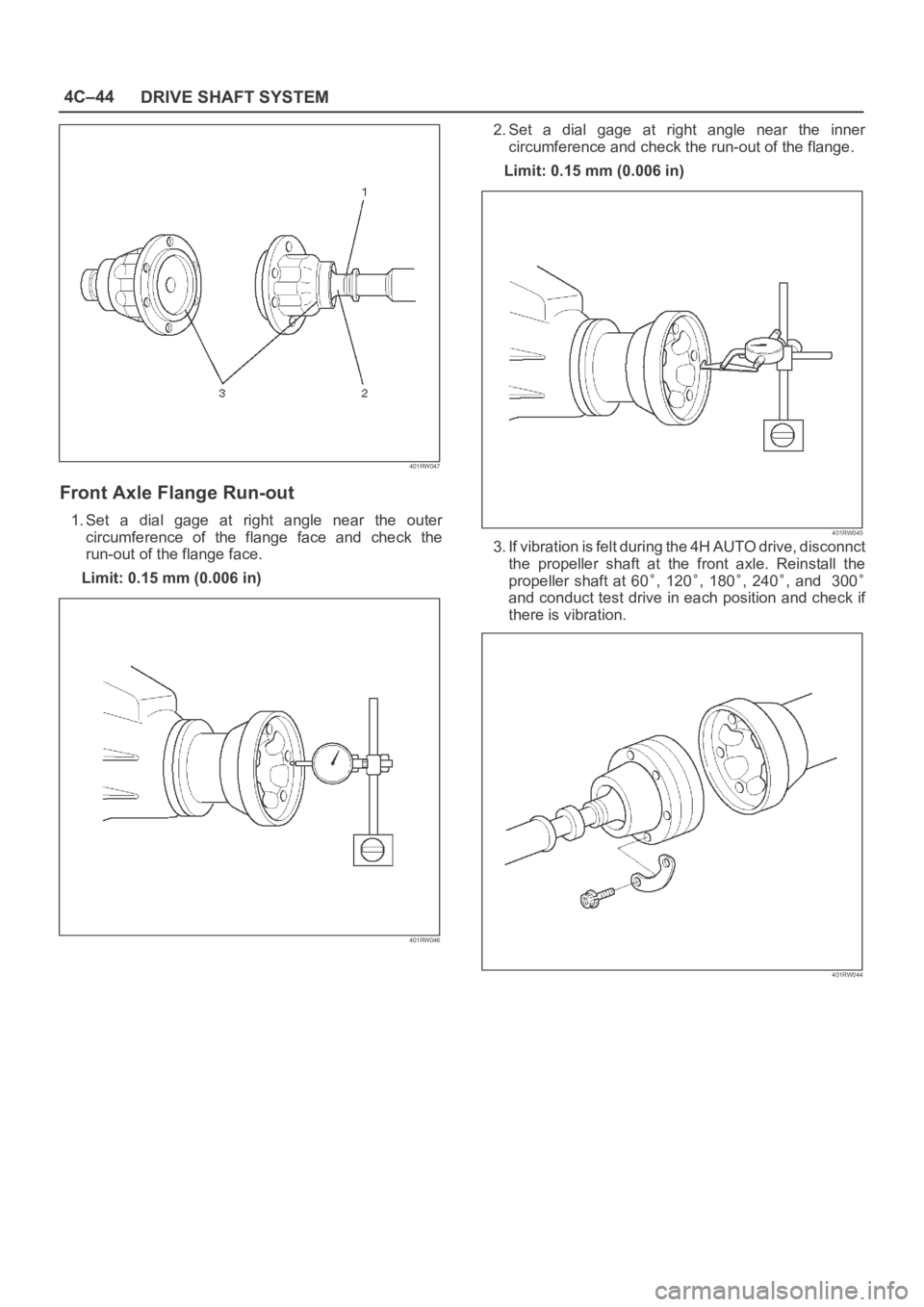

OPEL FRONTERA 1998 Workshop Manual 4C–44 DRIVE SHAFT SYSTEM 401RW047 Front Axle Flange Run-out 1. Set a dial gage at right angle near the outer circumference of the flange face and check the run-out of the flange face

Page 4251 of 6000

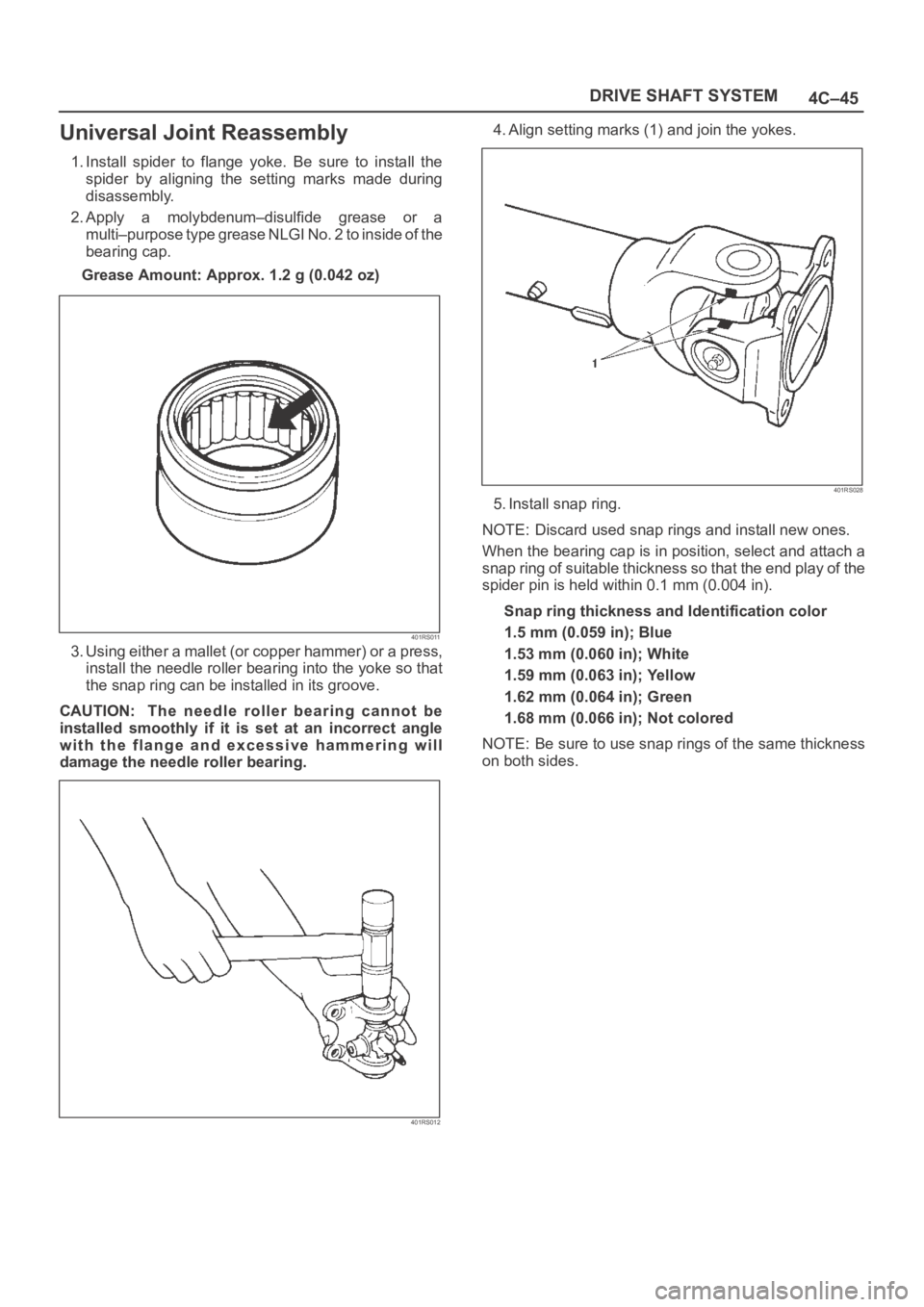

OPEL FRONTERA 1998 Workshop Manual 4C–45 DRIVE SHAFT SYSTEM Universal Joint Reassembly 1. Install spider to flange yoke. Be sure to install the spider by aligning the setting marks made during disassembly. 2. Apply a

Page 4252 of 6000

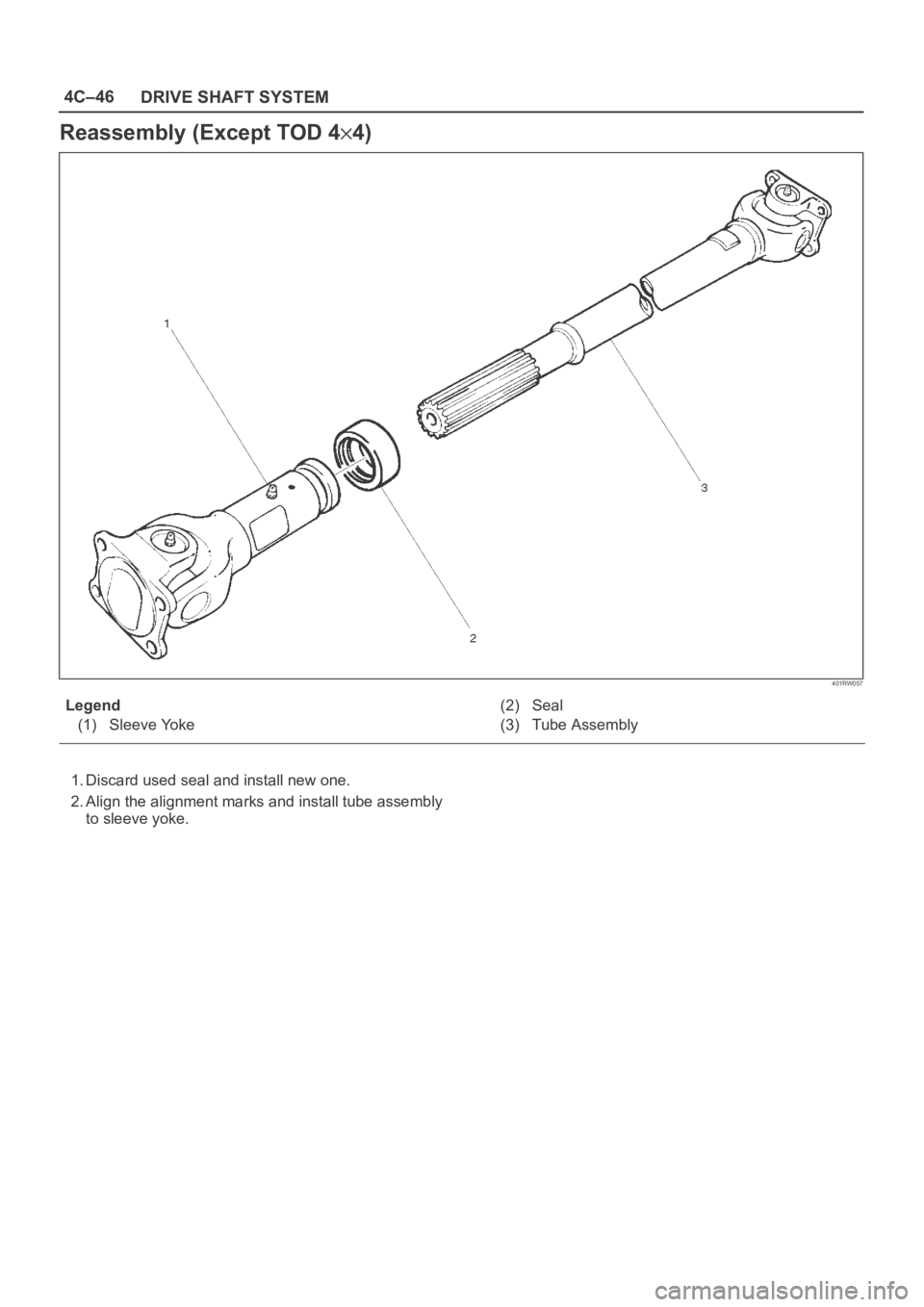

OPEL FRONTERA 1998 Workshop Manual 4C–46 DRIVE SHAFT SYSTEM Reassembly (Except TOD 44) 401RW057 Legend (1) Sleeve Yoke(2) Seal (3) Tube Assembly 1. Discard used seal and install new one. 2. Align the alignment marks and install tube

Page 4253 of 6000

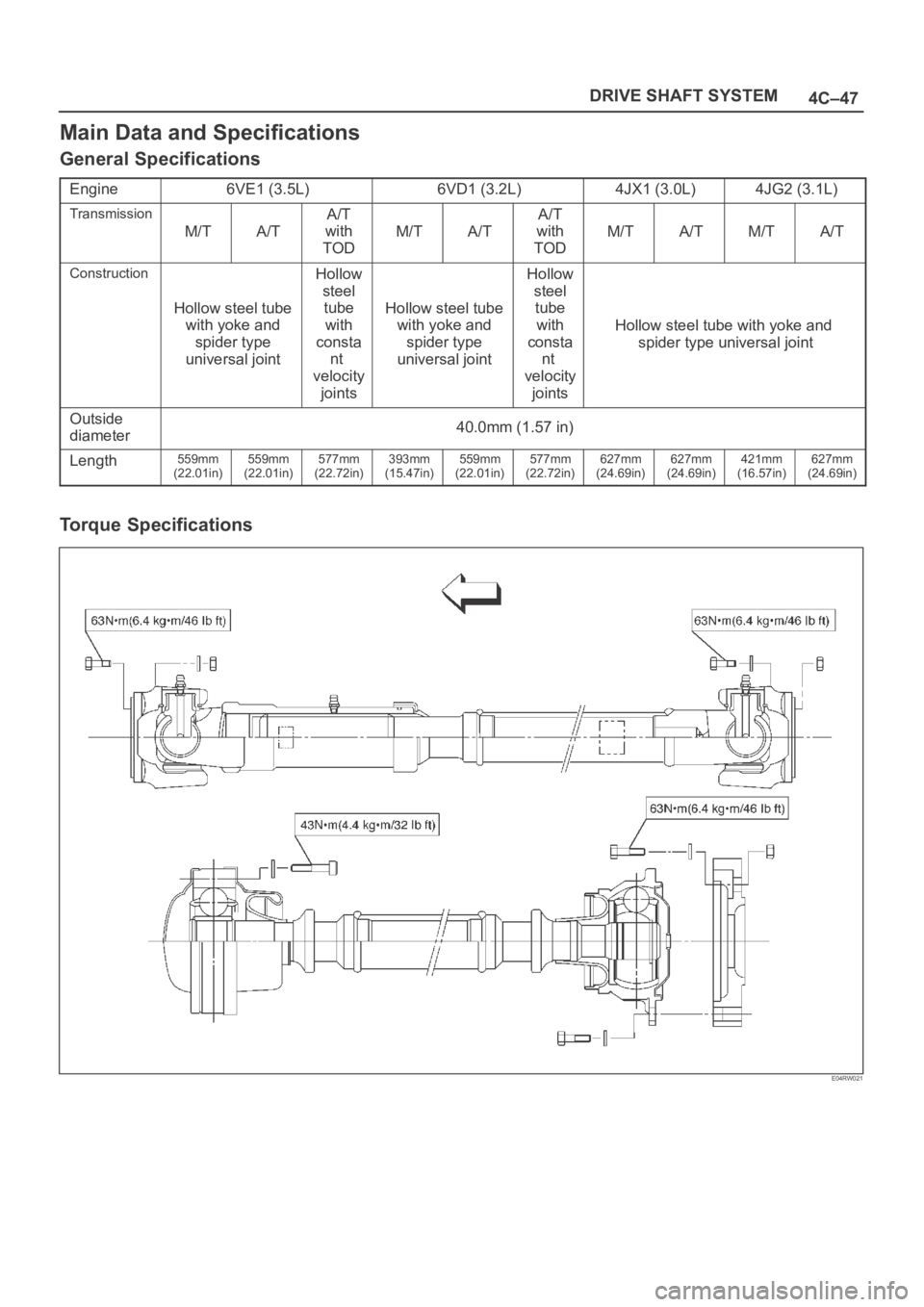

OPEL FRONTERA 1998 Workshop Manual 4C–47 DRIVE SHAFT SYSTEM Main Data and Specifications General Specifications Engine6VE1 (3.5L)6VD1 (3.2L)4JX1 (3.0L)4JG2 (3.1L) Transmission M/TA/T A/T with TOD M/TA/T A/T with TOD M/TA/TM/TA/T Cons

Page 4254 of 6000

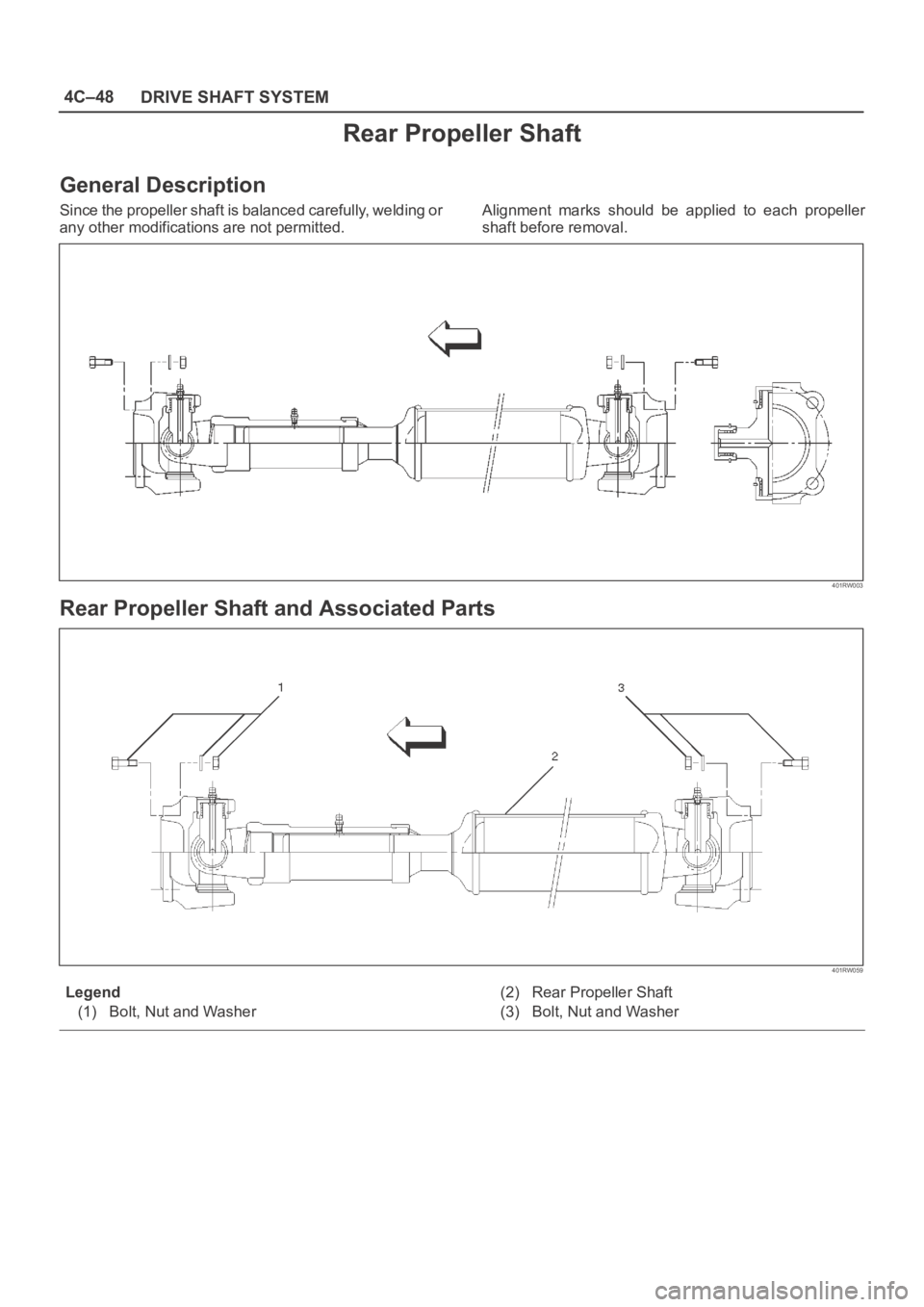

OPEL FRONTERA 1998 Workshop Manual 4C–48 DRIVE SHAFT SYSTEM Rear Propeller Shaft General Description Since the propeller shaft is balanced carefully, welding or any other modifications are not permitted.Alignment marks should be

Page 4255 of 6000

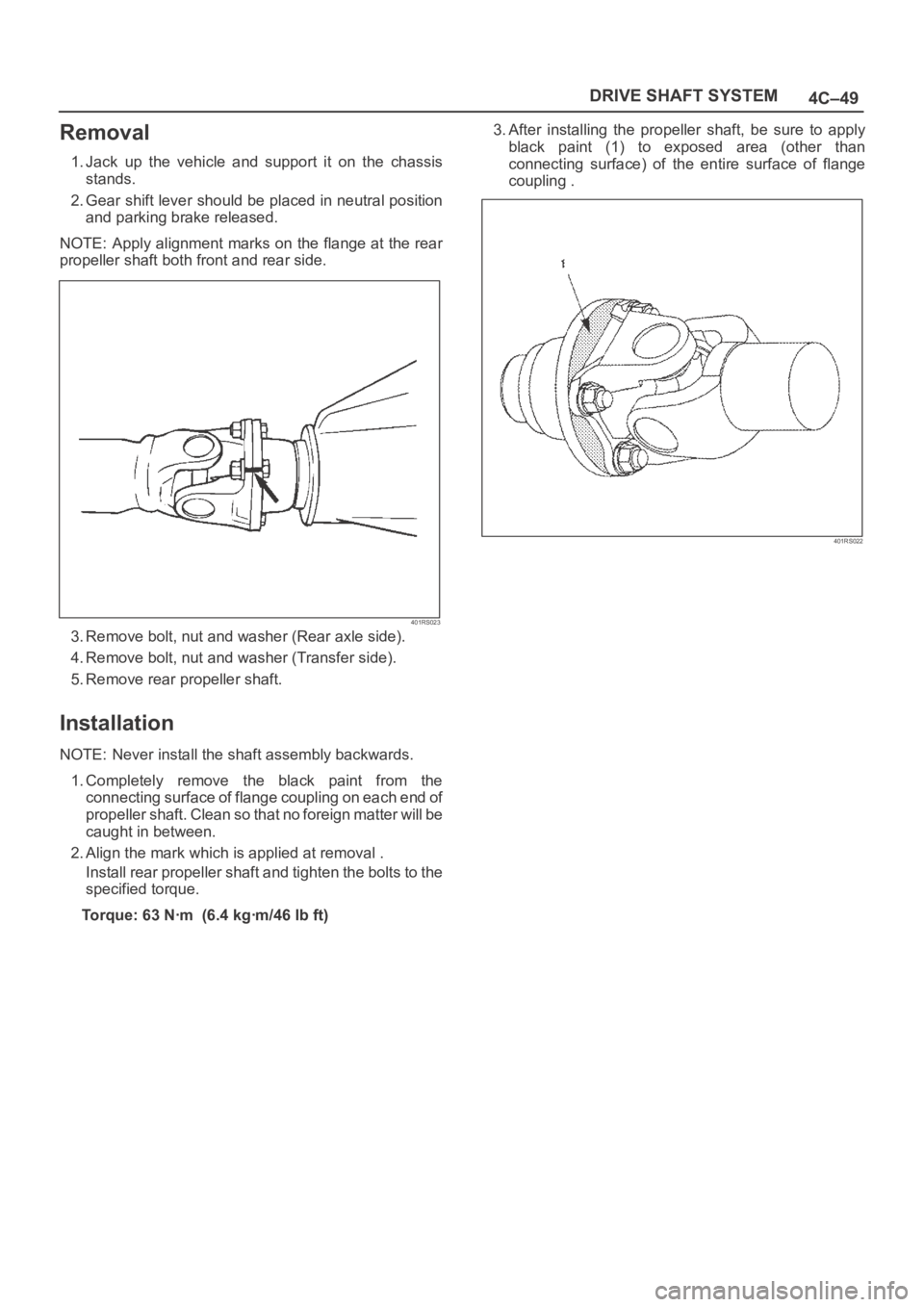

OPEL FRONTERA 1998 Workshop Manual 4C–49 DRIVE SHAFT SYSTEM Removal 1. Jack up the vehicle and support it on the chassis stands. 2. Gear shift lever should be placed in neutral position and parking brake released. NOTE: Appl

Page 4256 of 6000

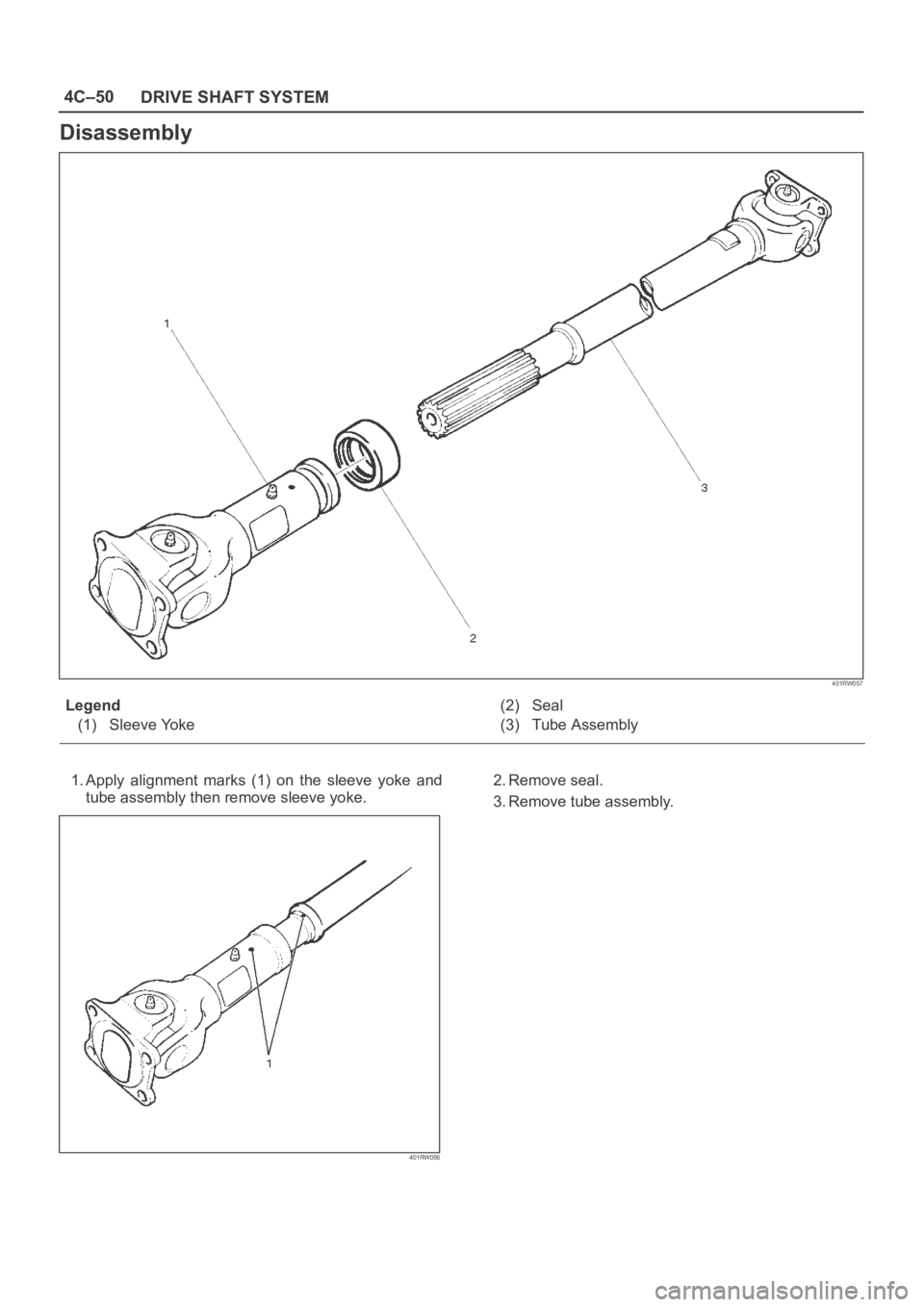

OPEL FRONTERA 1998 Workshop Manual 4C–50 DRIVE SHAFT SYSTEM Disassembly 401RW057 Legend (1) Sleeve Yoke(2) Seal (3) Tube Assembly 1. Apply alignment marks (1) on the sleeve yoke and tube assembly then remove sleeve yoke. 401R
