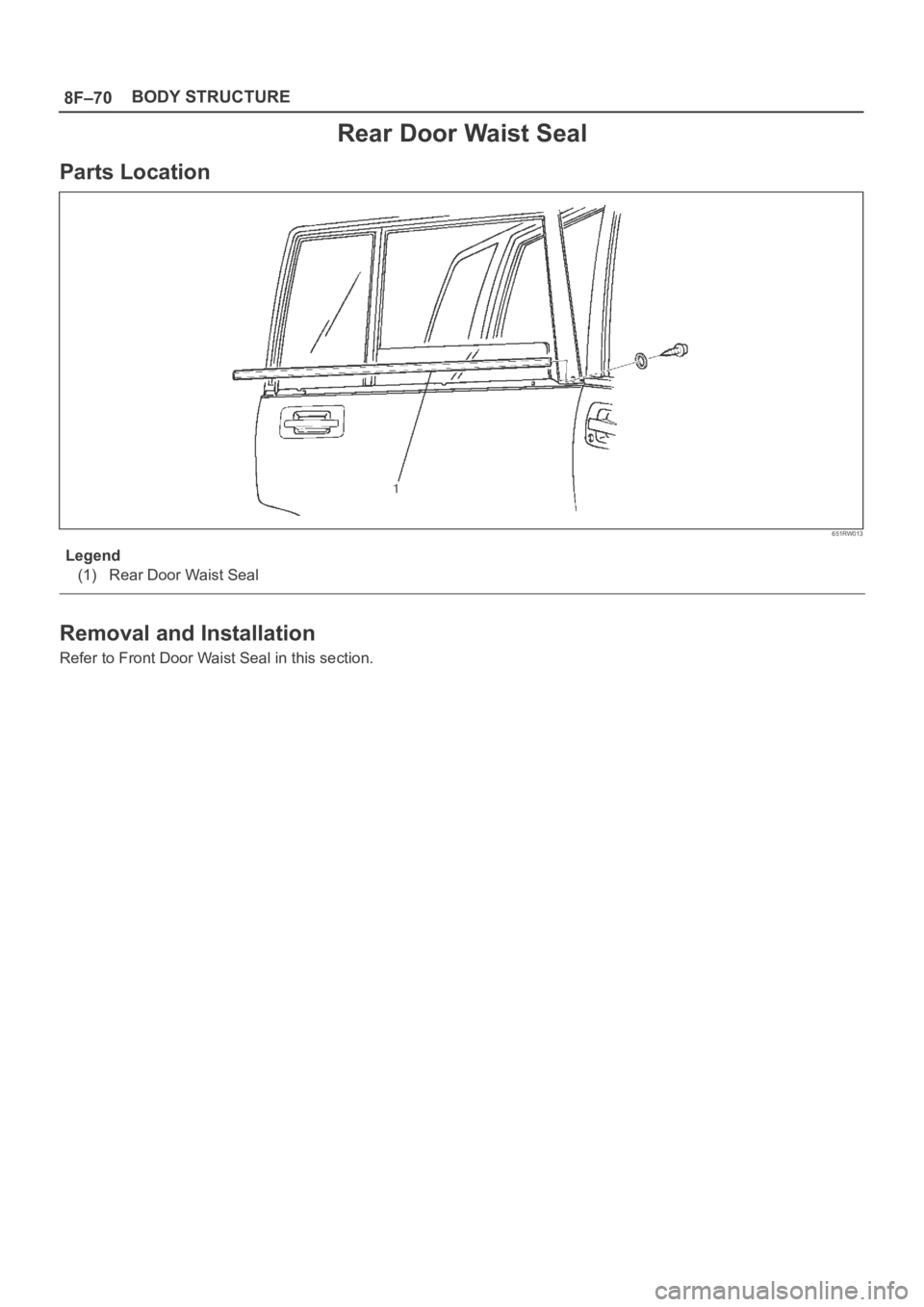

OPEL FRONTERA 1998 Workshop Manual 8F–70BODY STRUCTURE Rear Door Waist Seal Parts Location 651RW013 Legend (1) Rear Door Waist Seal Removal and Installation Refer to Front Door Waist Seal in this section.

Page 3266 of 6000

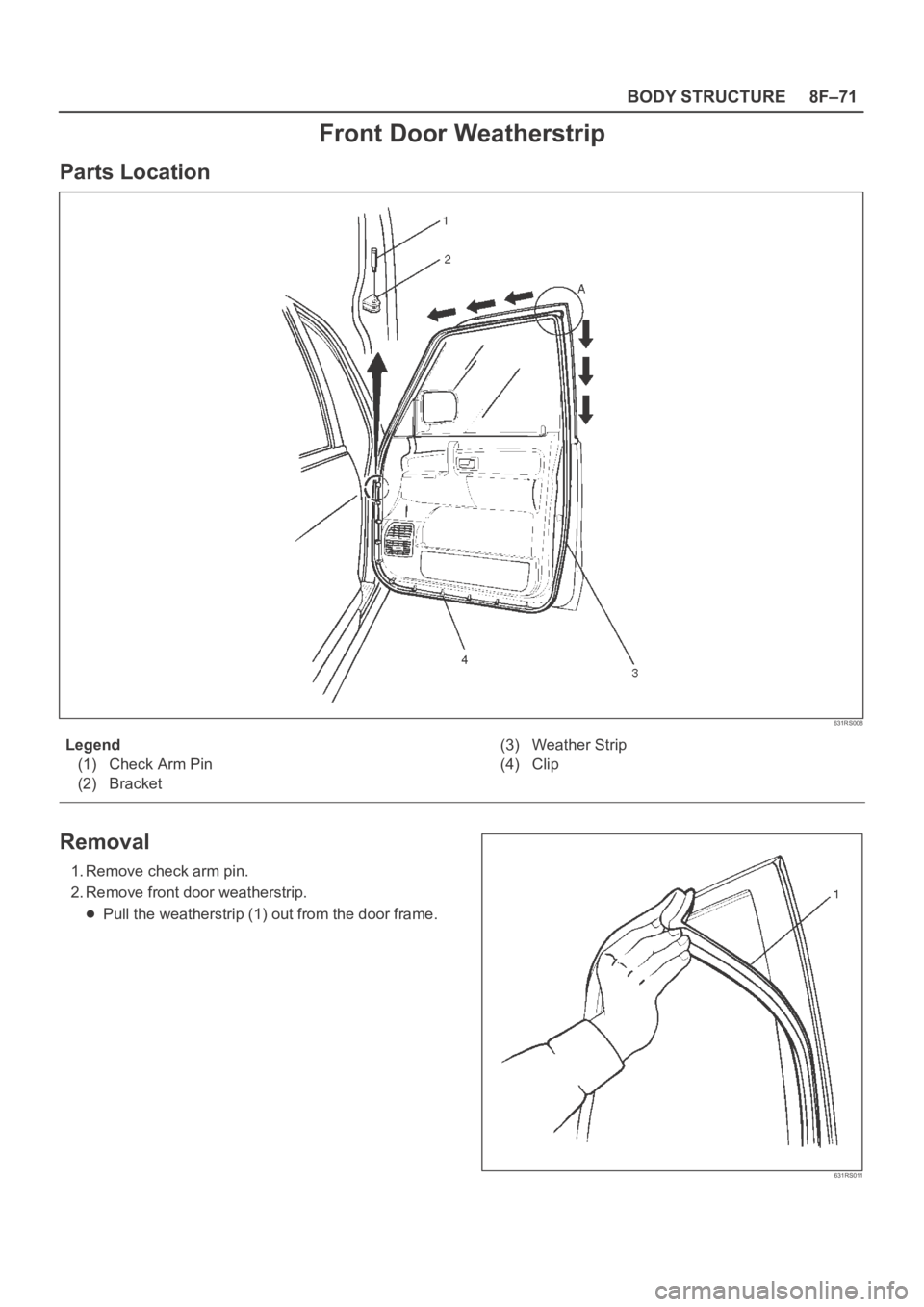

OPEL FRONTERA 1998 Workshop Manual 8F–71 BODY STRUCTURE Front Door Weatherstrip Parts Location 631RS008 Legend (1) Check Arm Pin (2) Bracket(3) Weather Strip (4) Clip Removal 1. Remove check arm pin. 2. Remove front door weatherstrip

Page 3267 of 6000

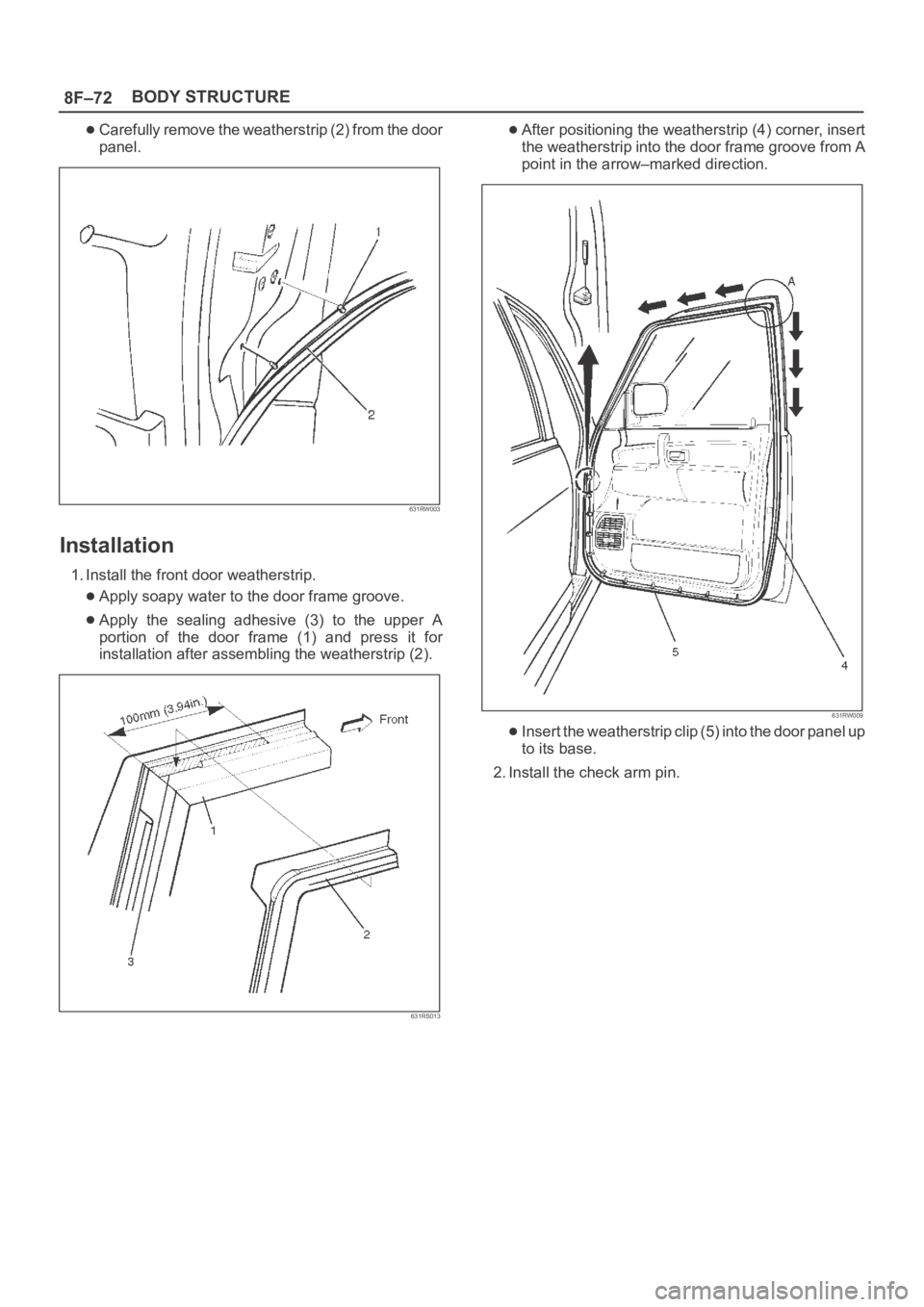

OPEL FRONTERA 1998 Workshop Manual 8F–72BODY STRUCTURE Carefully remove the weatherstrip (2) from the door panel. 631RW003 Installation 1. Install the front door weatherstrip. Apply soapy water to the door frame groove. Apply the s

Page 3268 of 6000

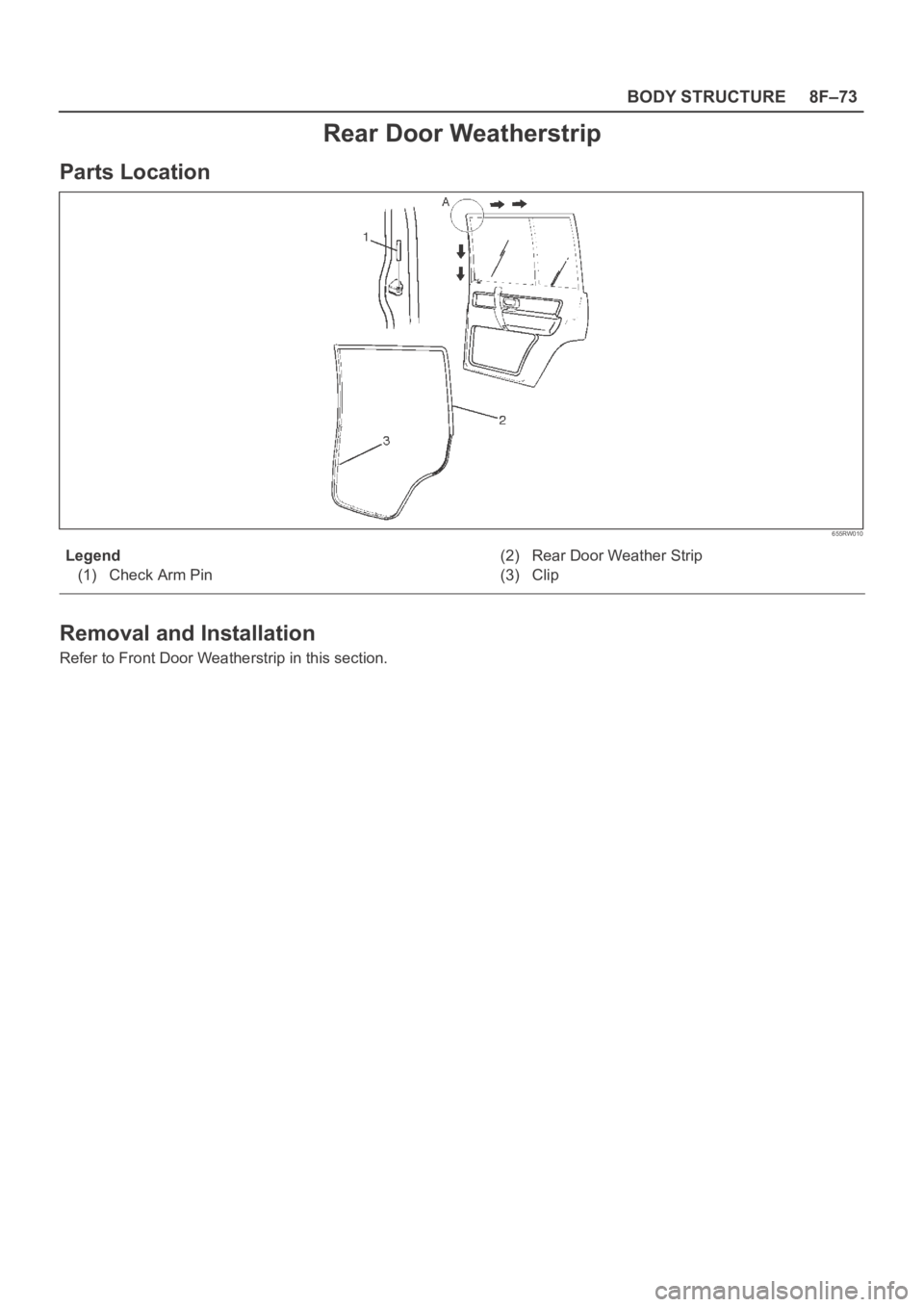

OPEL FRONTERA 1998 Workshop Manual 8F–73 BODY STRUCTURE Rear Door Weatherstrip Parts Location 655RW010 Legend (1) Check Arm Pin(2) Rear Door Weather Strip (3) Clip Removal and Installation Refer to Front Door Weatherstrip in this sec

Page 3269 of 6000

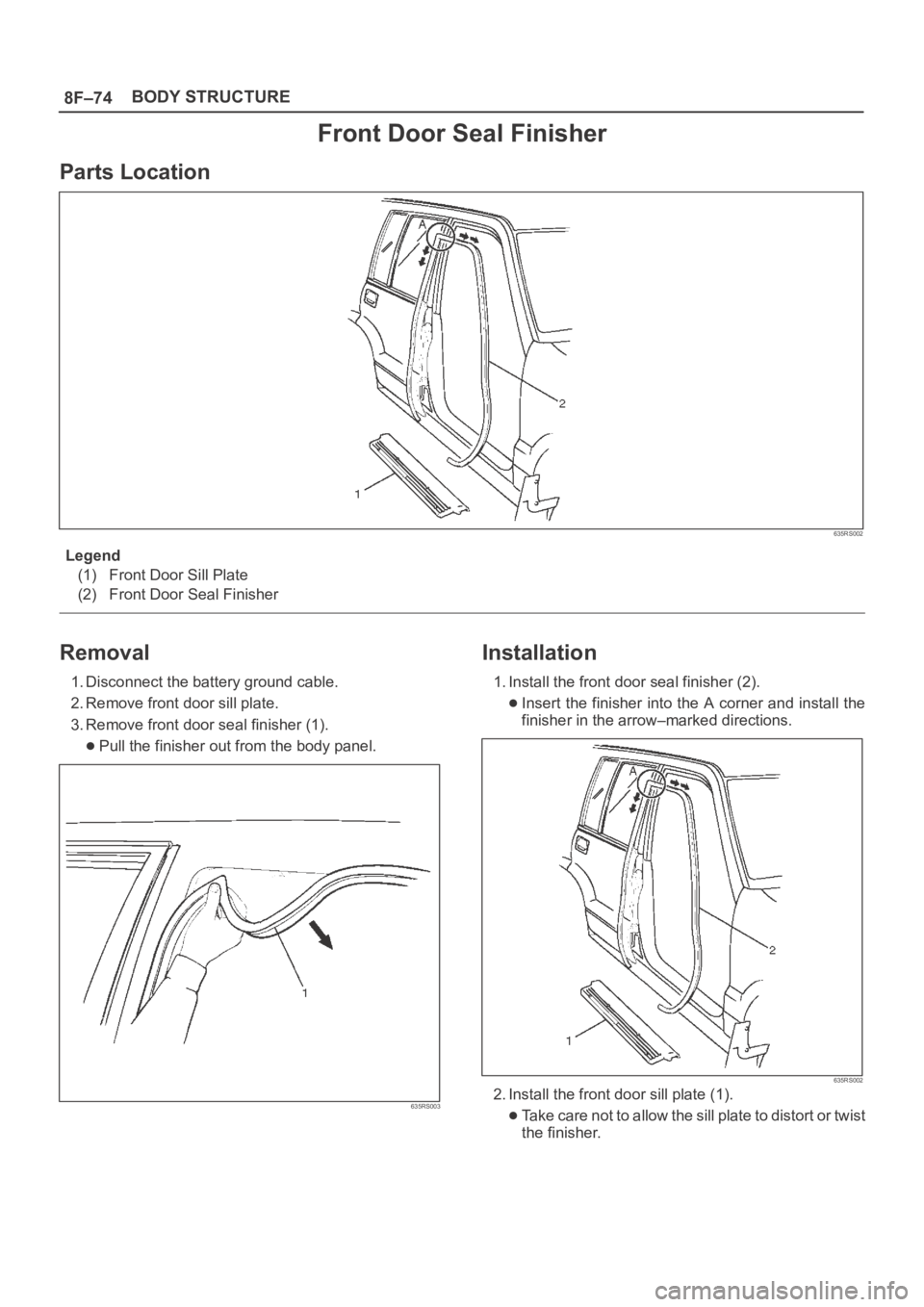

OPEL FRONTERA 1998 Workshop Manual 8F–74BODY STRUCTURE Front Door Seal Finisher Parts Location 635RS002 Legend (1) Front Door Sill Plate (2) Front Door Seal Finisher Removal 1. Disconnect the battery ground cable. 2. Remove front doo

Page 3270 of 6000

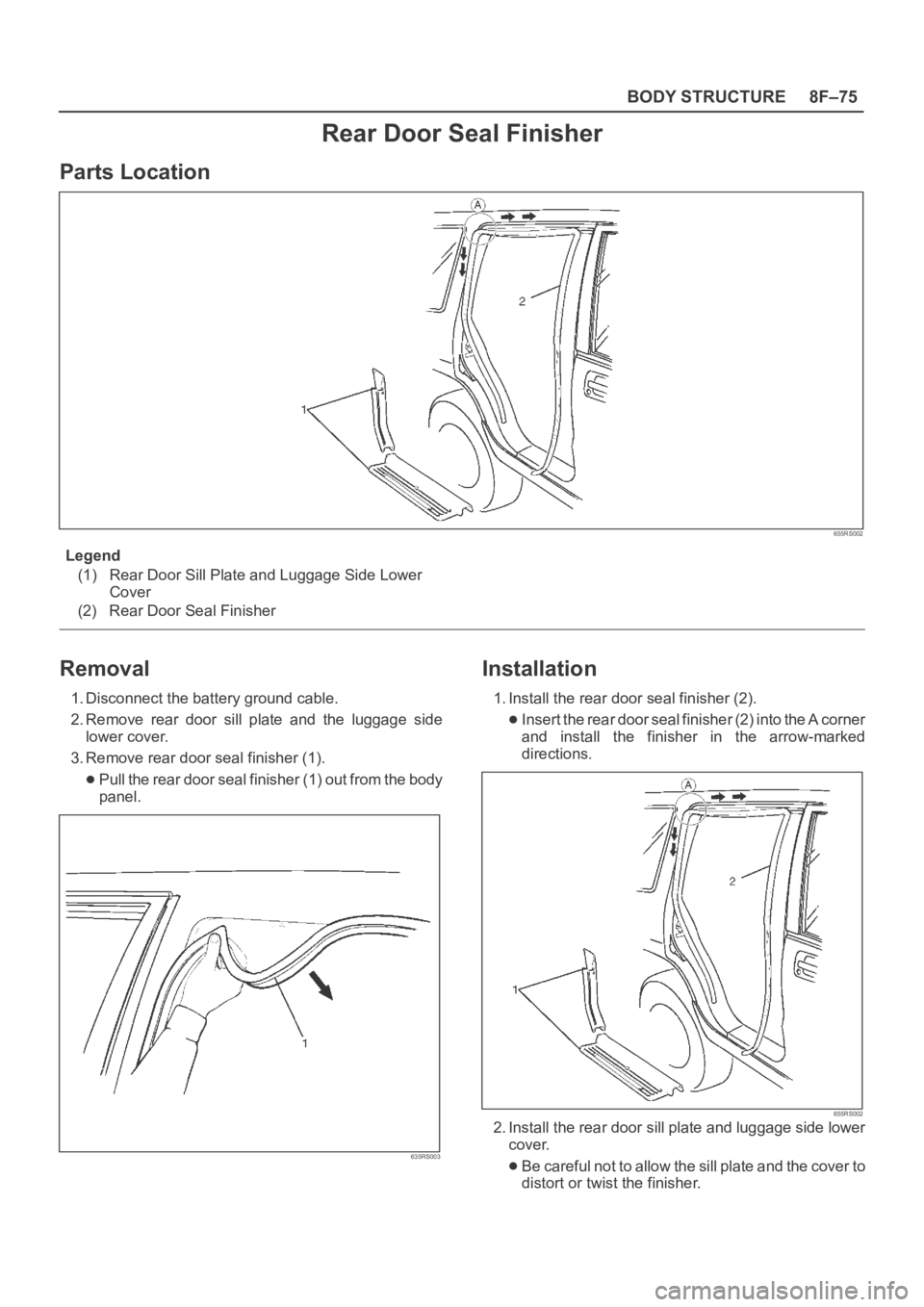

OPEL FRONTERA 1998 Workshop Manual 8F–75 BODY STRUCTURE Rear Door Seal Finisher Parts Location 655RS002 Legend (1) Rear Door Sill Plate and Luggage Side Lower Cover (2) Rear Door Seal Finisher Removal 1. Disconnect the battery ground

Page 3271 of 6000

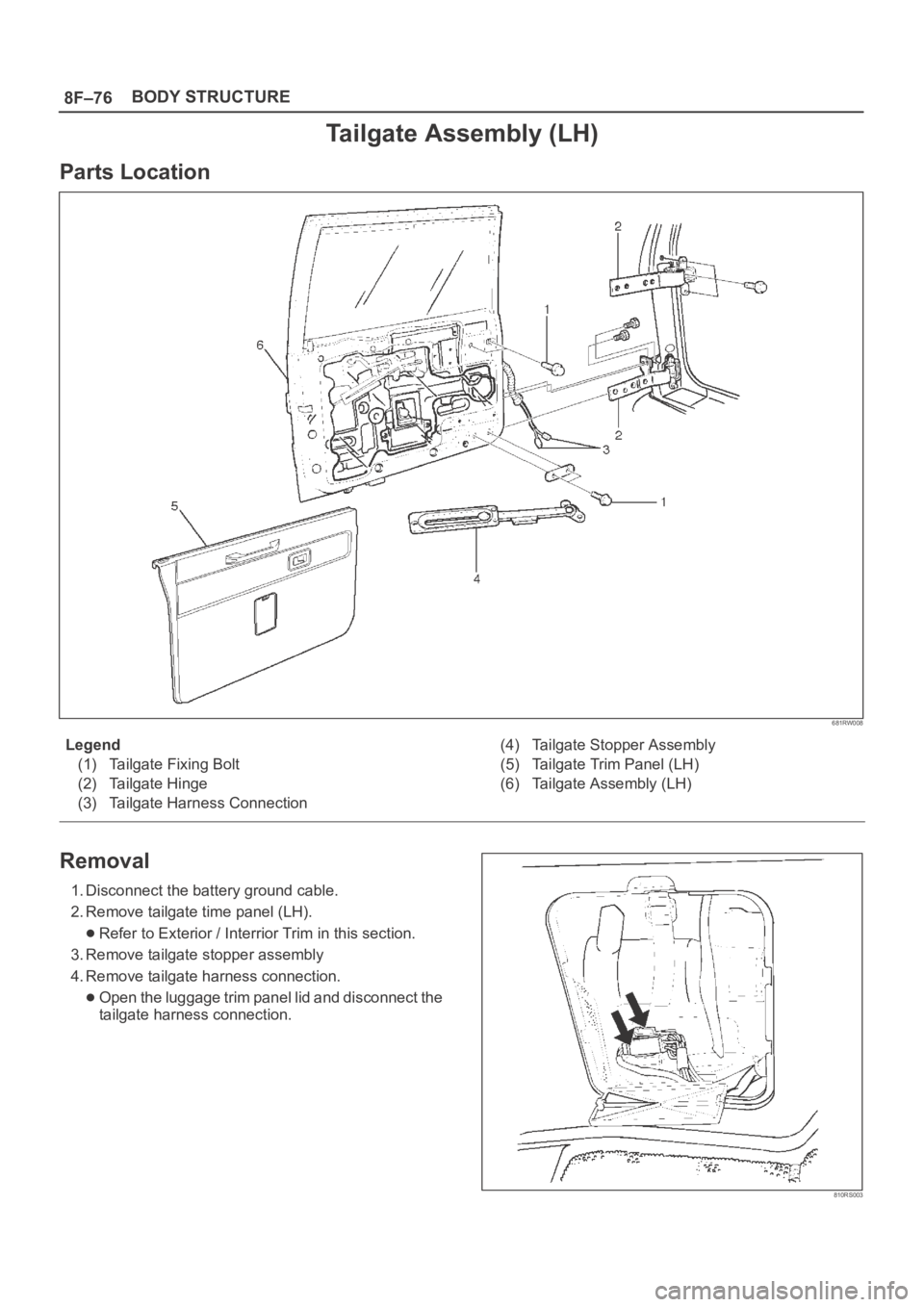

OPEL FRONTERA 1998 Workshop Manual 8F–76BODY STRUCTURE Tailgate Assembly (LH) Parts Location 681RW008 Legend (1) Tailgate Fixing Bolt (2) Tailgate Hinge (3) Tailgate Harness Connection(4) Tailgate Stopper Assembly (5) Tailgate Trim P

Page 3272 of 6000

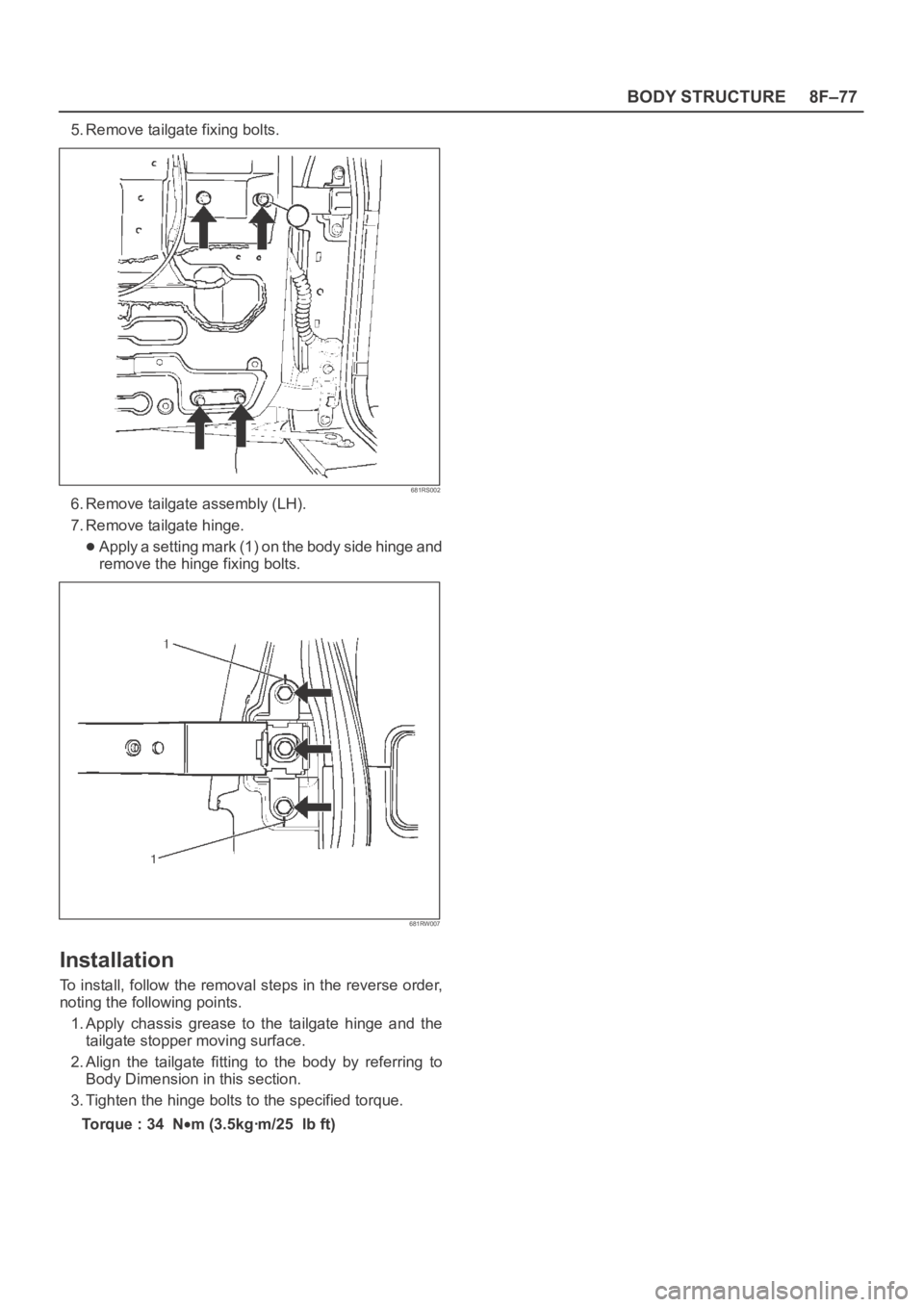

OPEL FRONTERA 1998 Workshop Manual 8F–77 BODY STRUCTURE 5. Remove tailgate fixing bolts. 681RS002 6. Remove tailgate assembly (LH). 7. Remove tailgate hinge. Apply a setting mark (1) on the body side hinge and remove the hinge fixing
