Page 3353 of 6000

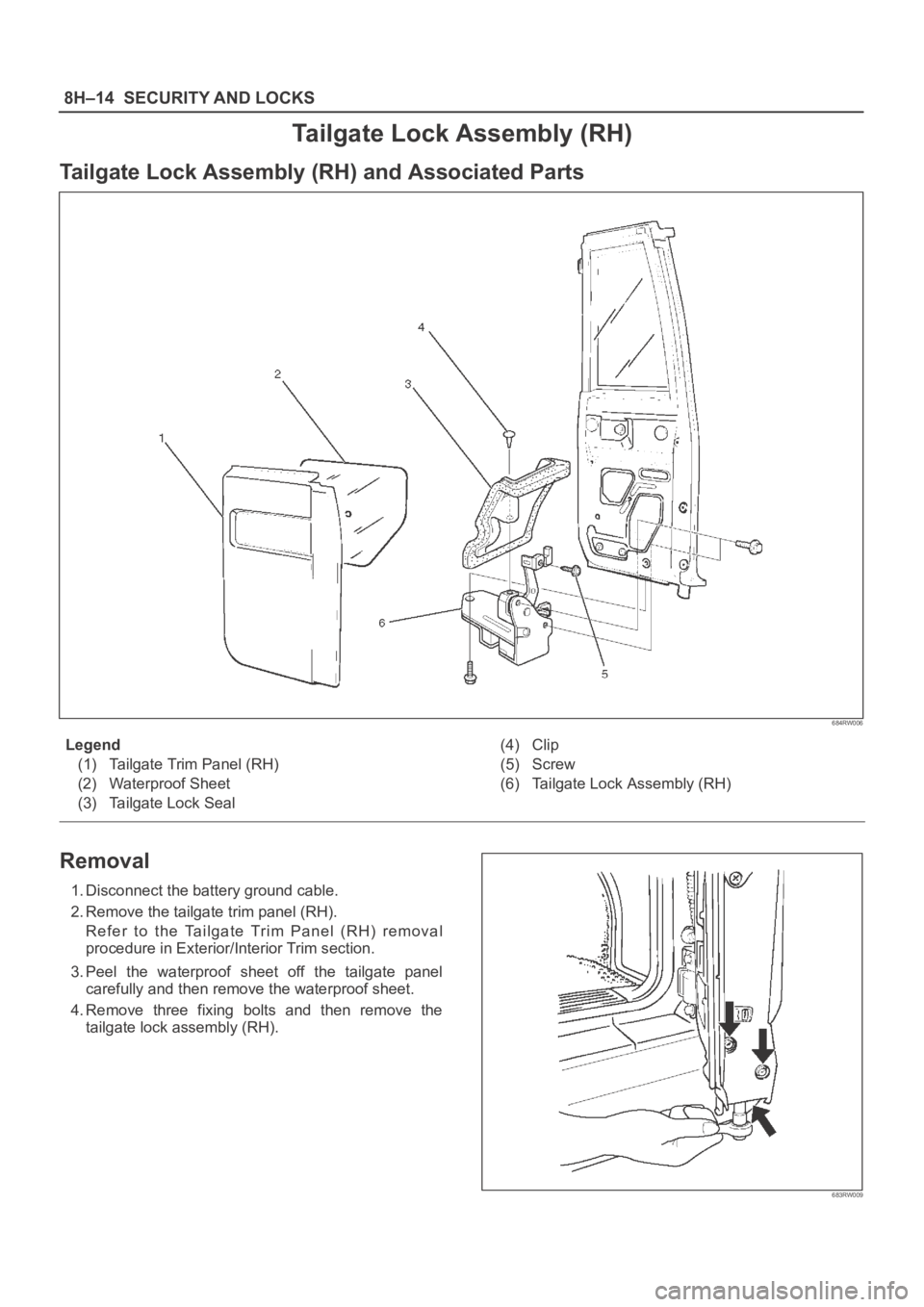

OPEL FRONTERA 1998 Workshop Manual 8H–14SECURITY AND LOCKS Tailgate Lock Assembly (RH) Tailgate Lock Assembly (RH) and Associated Parts 684RW006 Legend (1) Tailgate Trim Panel (RH) (2) Waterproof Sheet (3) Tailgate Lock Seal(4) Clip

Page 3354 of 6000

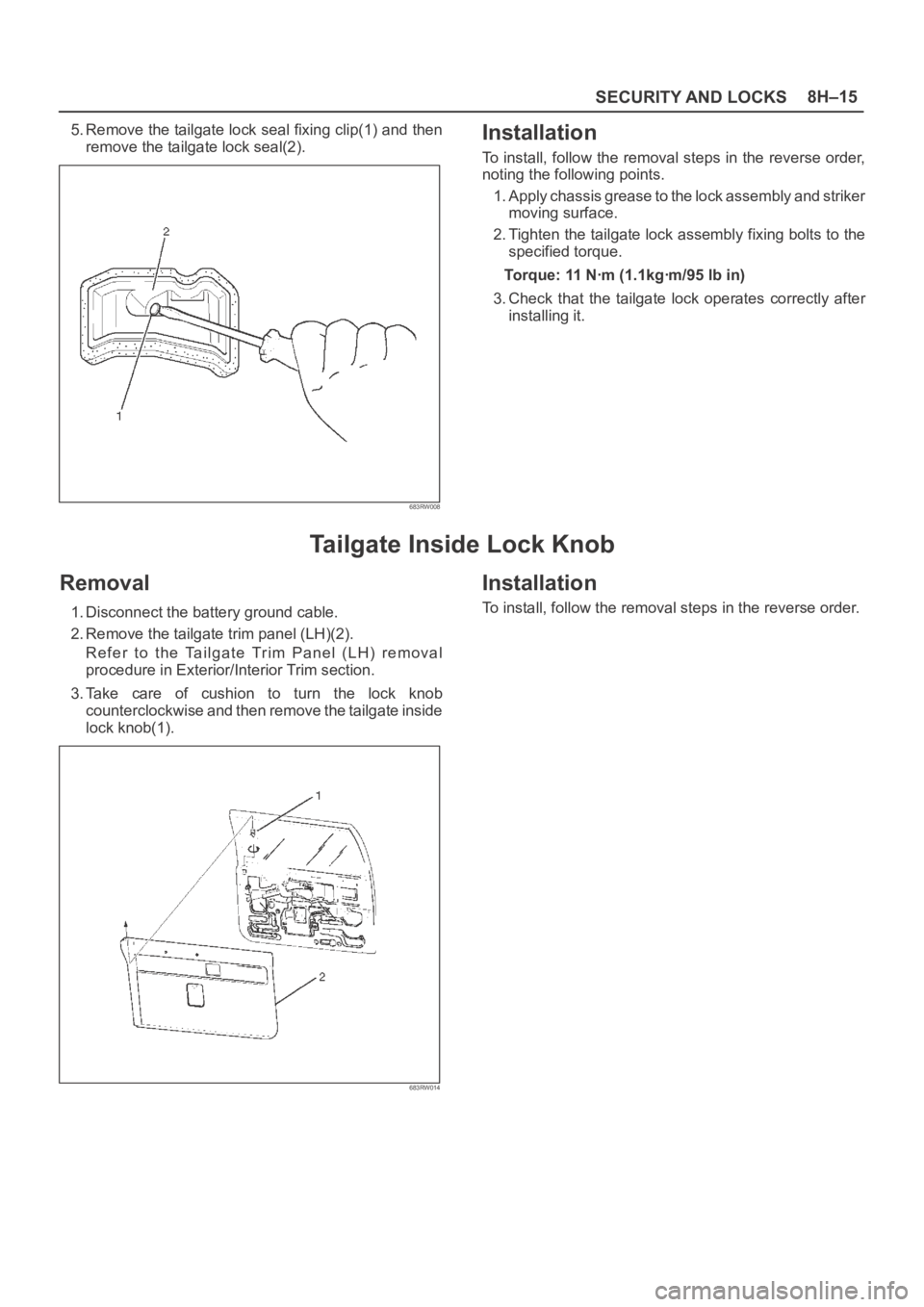

OPEL FRONTERA 1998 Workshop Manual SECURITY AND LOCKS8H–15 5. Remove the tailgate lock seal fixing clip(1) and then remove the tailgate lock seal(2). 683RW008 Installation To install, follow the removal steps in the reverse order, no

Page 3355 of 6000

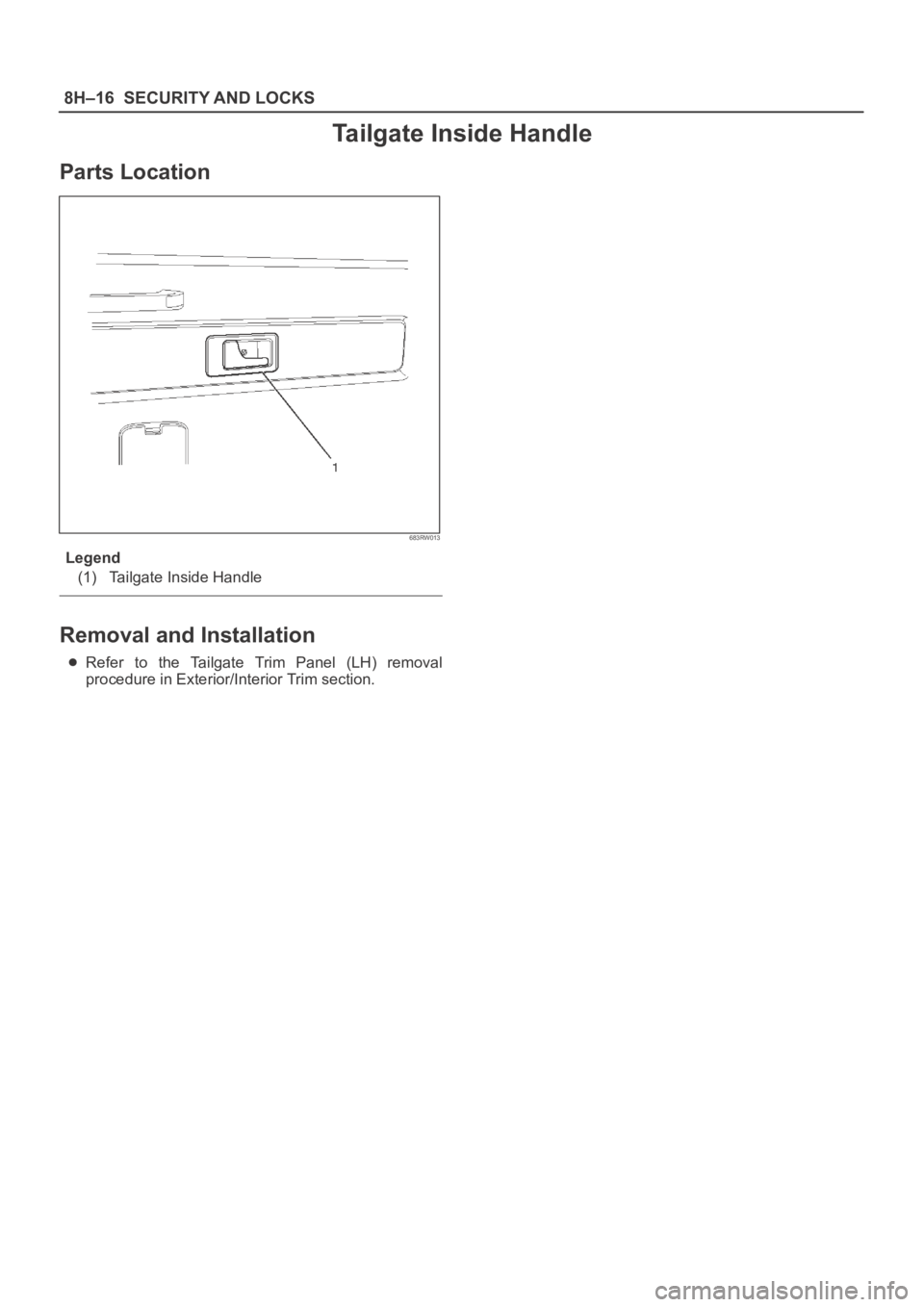

OPEL FRONTERA 1998 Workshop Manual 8H–16SECURITY AND LOCKS Tailgate Inside Handle Parts Location 683RW013 Legend (1) Tailgate Inside Handle Removal and Installation Refer to the Tailgate Trim Panel (LH) removal procedure in Ex

Page 3356 of 6000

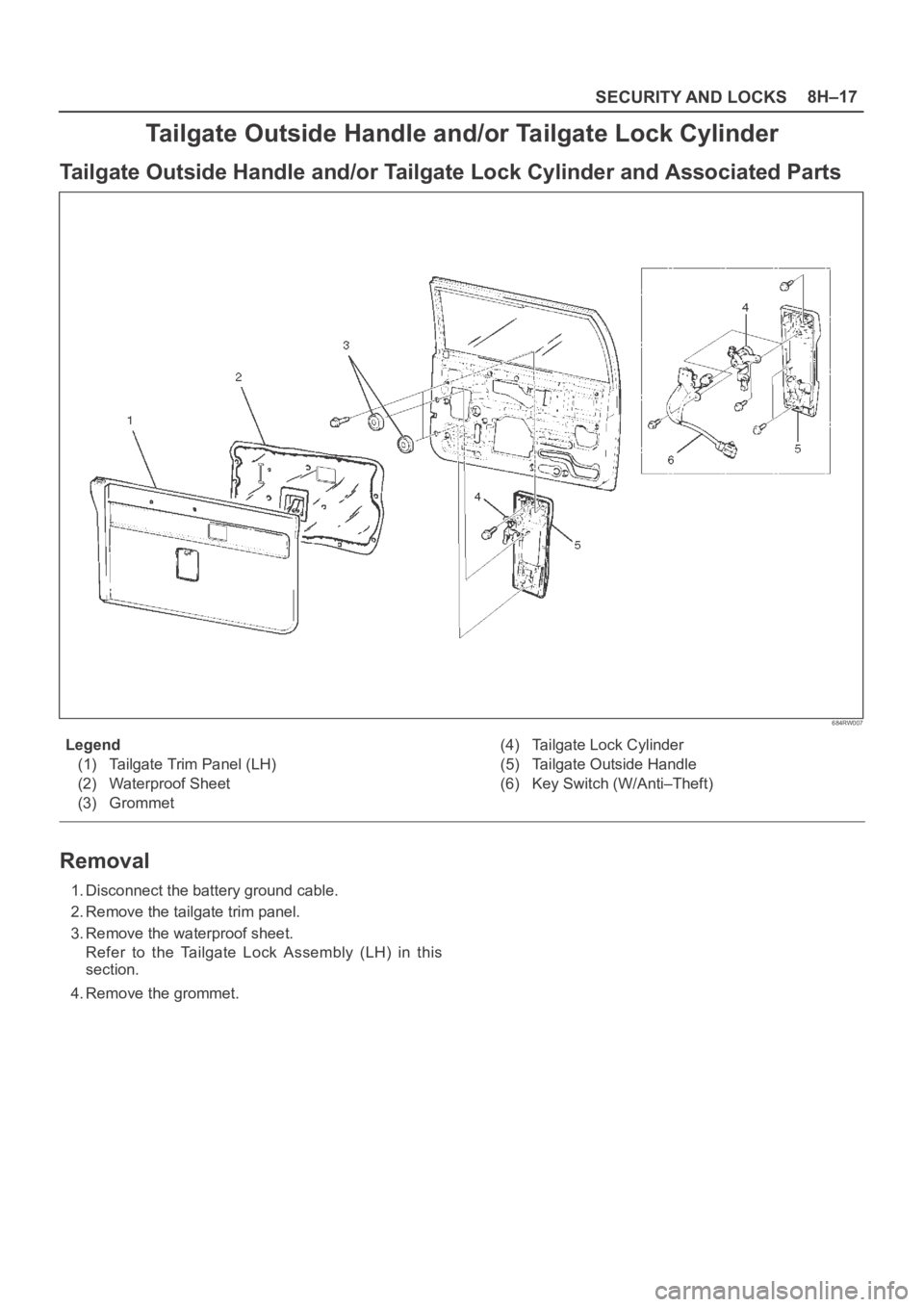

OPEL FRONTERA 1998 Workshop Manual SECURITY AND LOCKS8H–17 Tailgate Outside Handle and/or Tailgate Lock Cylinder Tailgate Outside Handle and/or Tailgate Lock Cylinder and Associated Parts 684RW007 Legend (1) Tailgate Trim Panel (LH)

Page 3357 of 6000

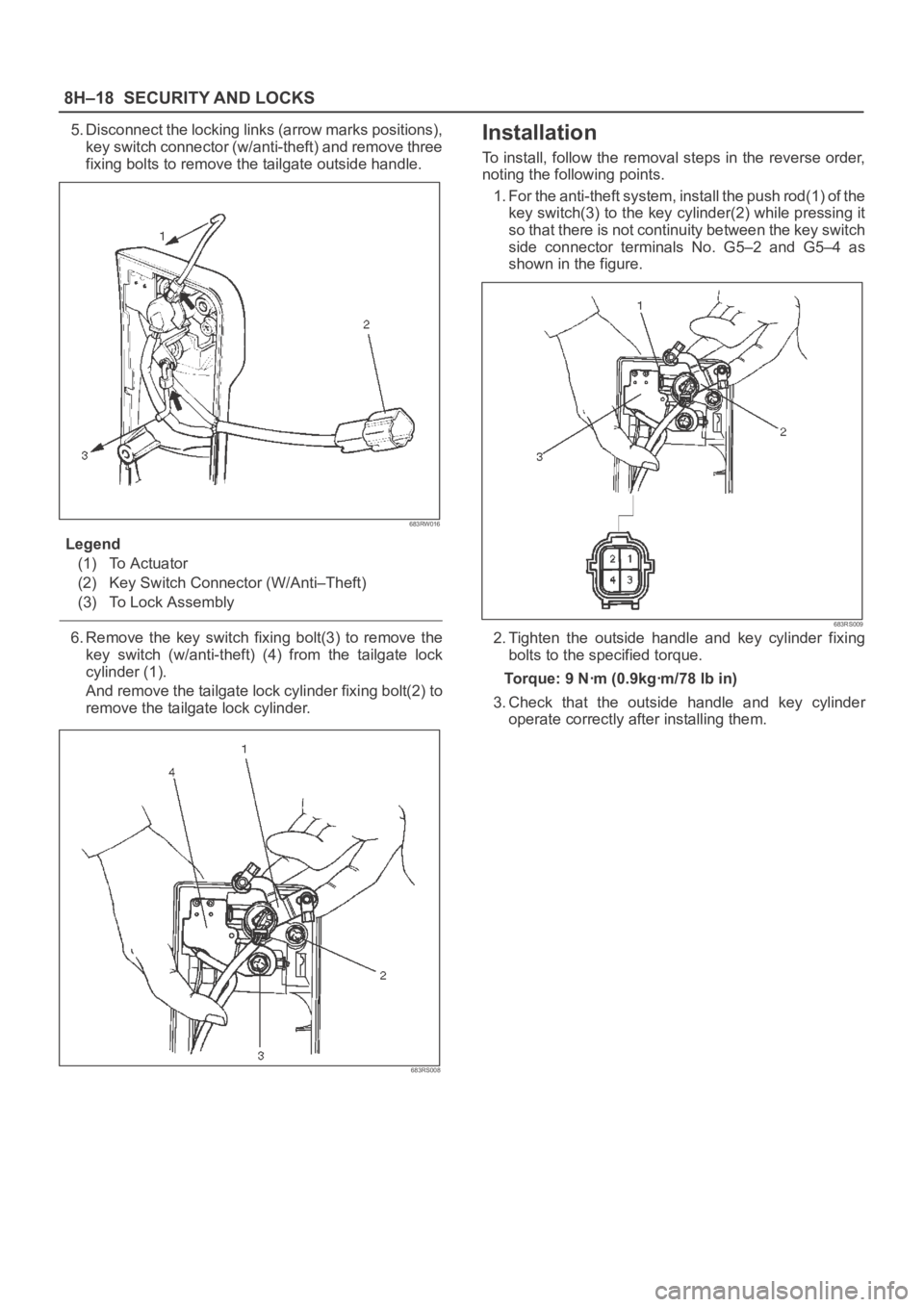

OPEL FRONTERA 1998 Workshop Manual 8H–18SECURITY AND LOCKS 5. Disconnect the locking links (arrow marks positions), key switch connector (w/anti-theft) and remove three fixing bolts to remove the tailgate outside handle. 683RW016 Leg

Page 3358 of 6000

OPEL FRONTERA 1998 Workshop Manual SECURITY AND LOCKS8H–19 Key Key Coding 730RW001 Legend (1) Key(Actual Size) (2) Key Code Tag(3) Position (4) Level One key is used for the ignition, door, and tailgate lock cylinders. The

Page 3359 of 6000

OPEL FRONTERA 1998 Workshop Manual 8H–20SECURITY AND LOCKS Power Door Lock System General Description The circuit consists of the door lock (& power window) switch, door lock actuator for the front and rear door, ta

Page 3360 of 6000

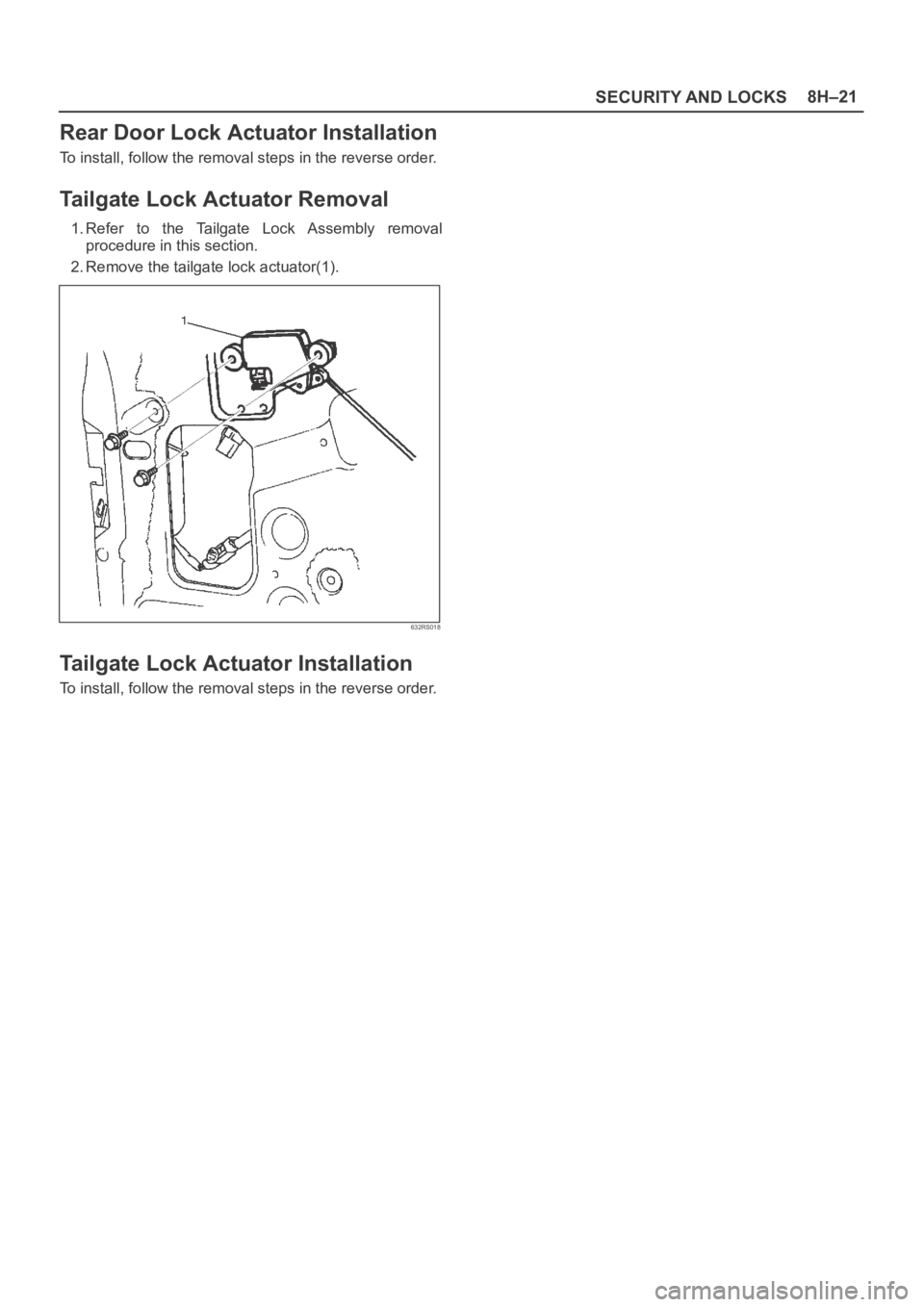

OPEL FRONTERA 1998 Workshop Manual SECURITY AND LOCKS8H–21 Rear Door Lock Actuator Installation To install, follow the removal steps in the reverse order. Tailgate Lock Actuator Removal 1. Refer to the Tailgate Lock Assembly re
