Page 2385 of 6000

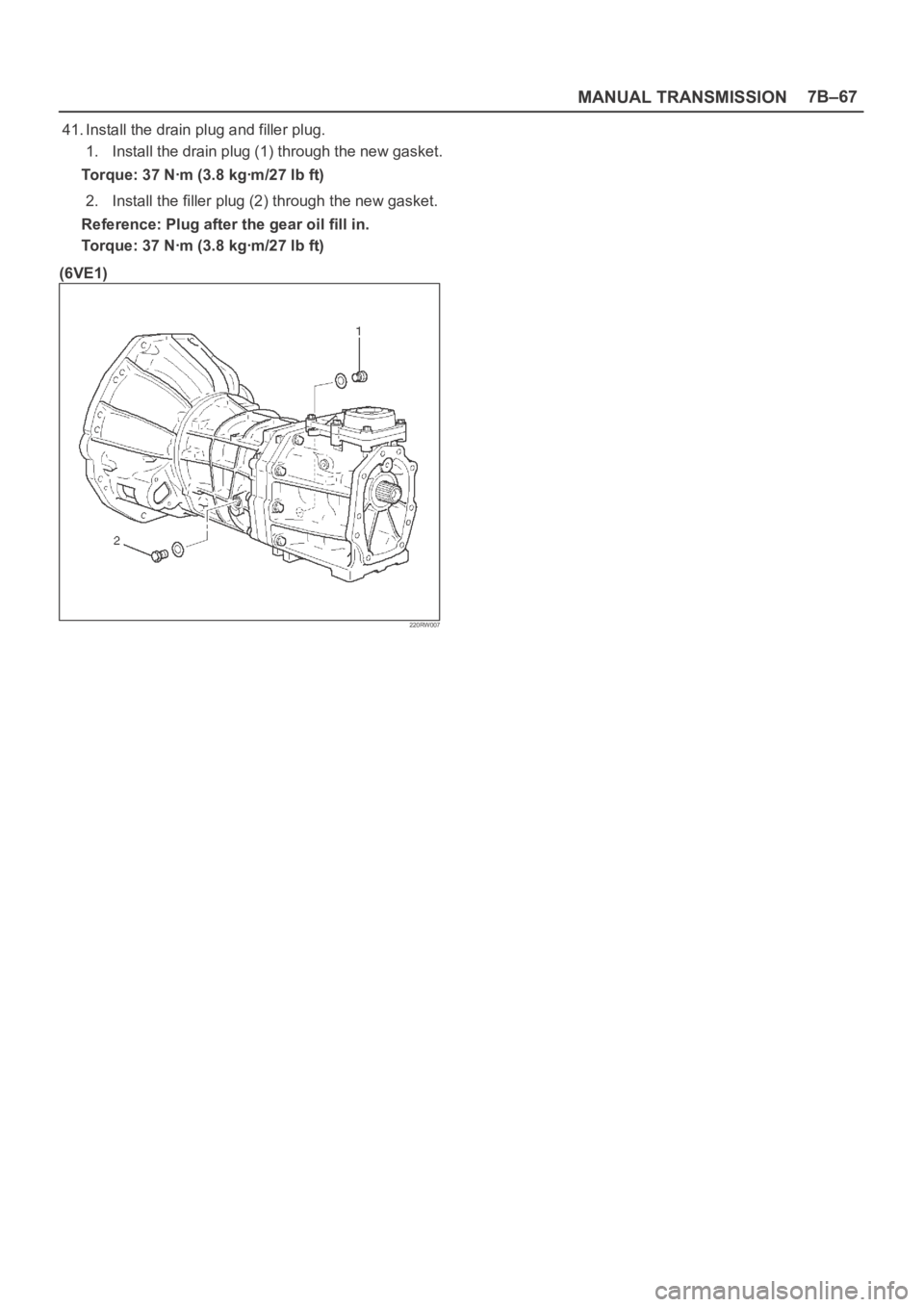

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–67 41. Install the drain plug and filler plug. 1. Install the drain plug (1) through the new gasket. Torque: 37 Nꞏm (3.8 kgꞏm/27 lb ft) 2. Install the filler plug (2) throu

Page 2386 of 6000

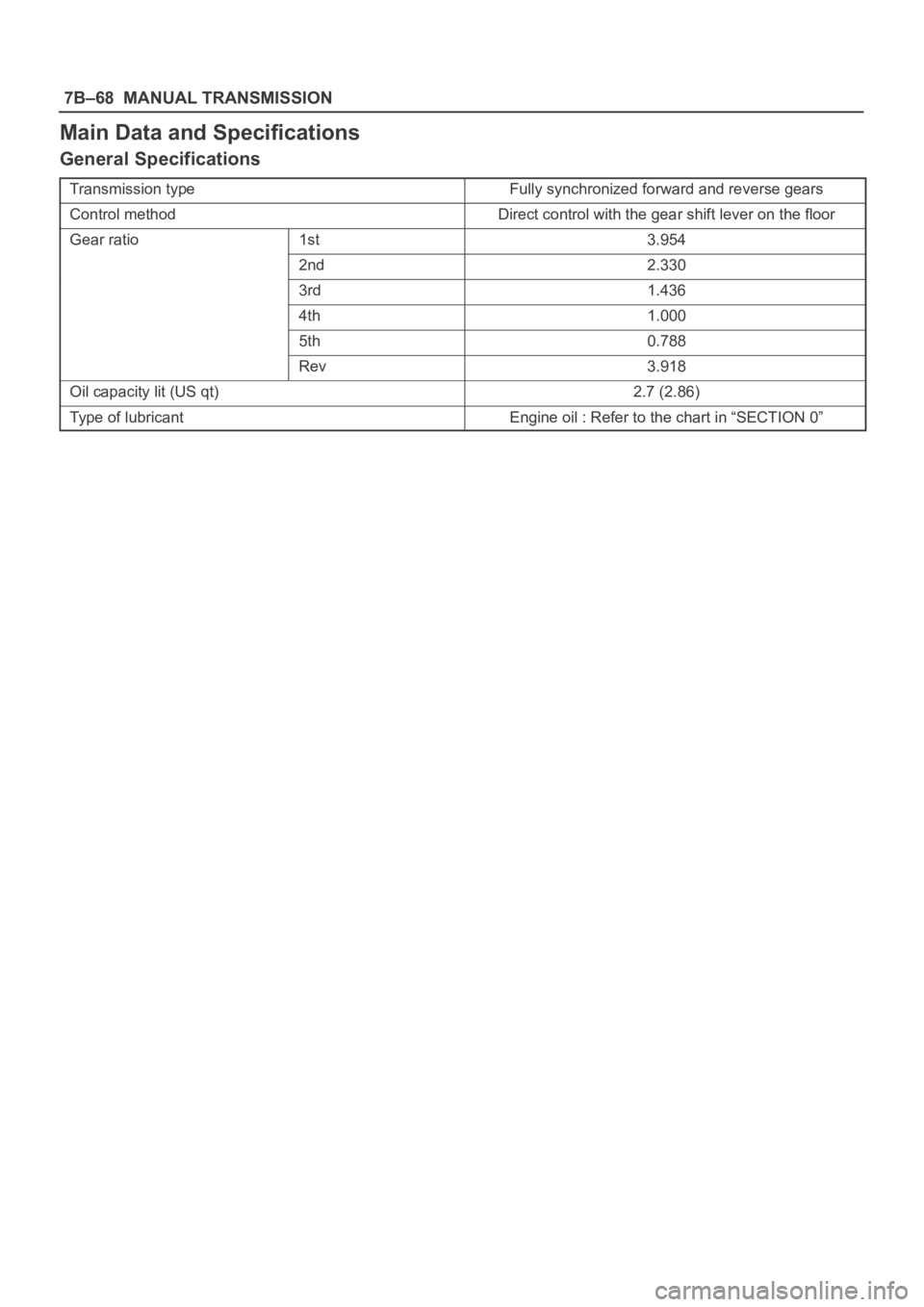

OPEL FRONTERA 1998 Workshop Manual 7B–68MANUAL TRANSMISSION Main Data and Specifications General Specifications Transmission typeFully synchronized forward and reverse gears Control methodDirect control with the gear shift lever on t

Page 2387 of 6000

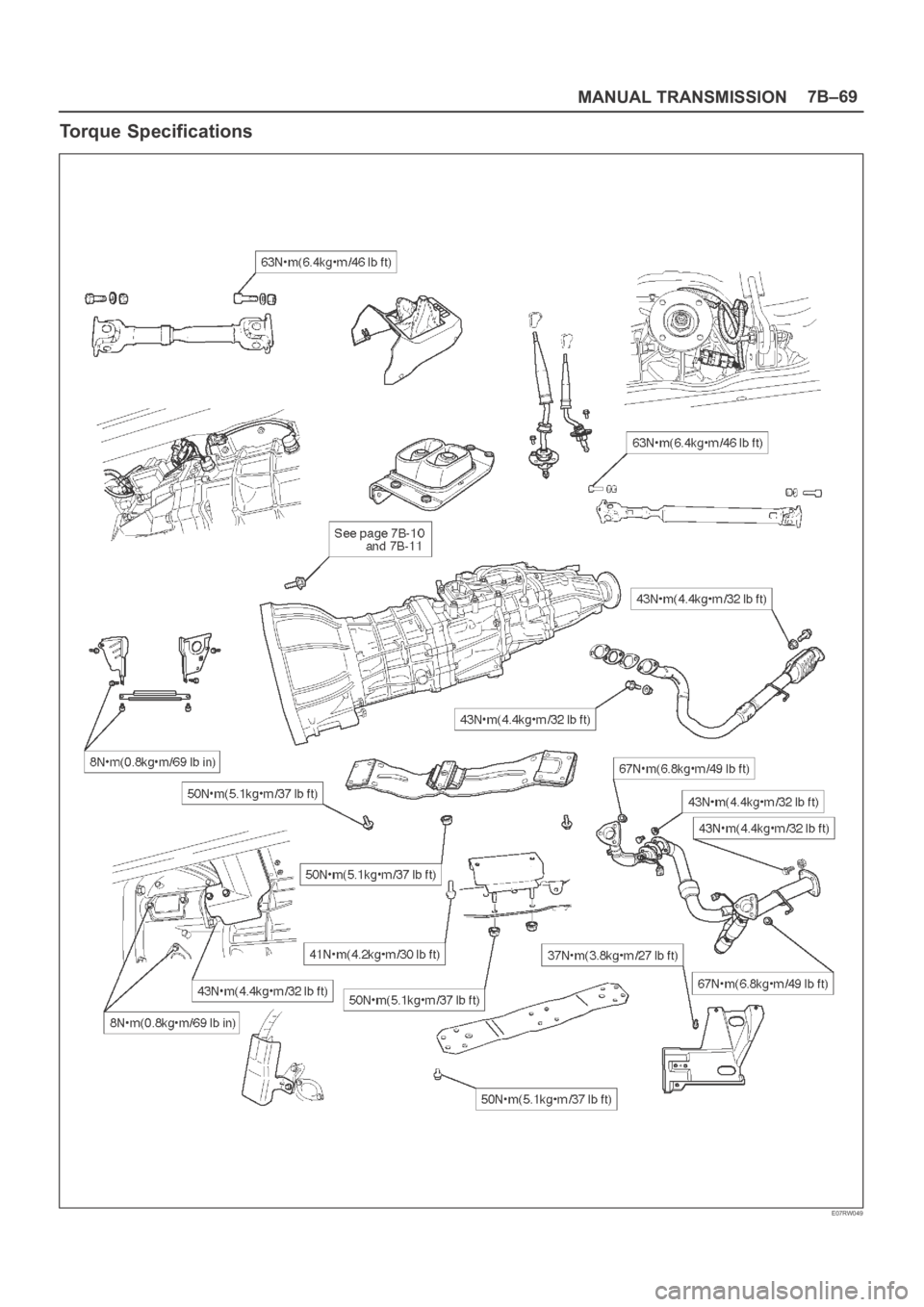

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–69 Torque Specifications E07RW049

Page 2388 of 6000

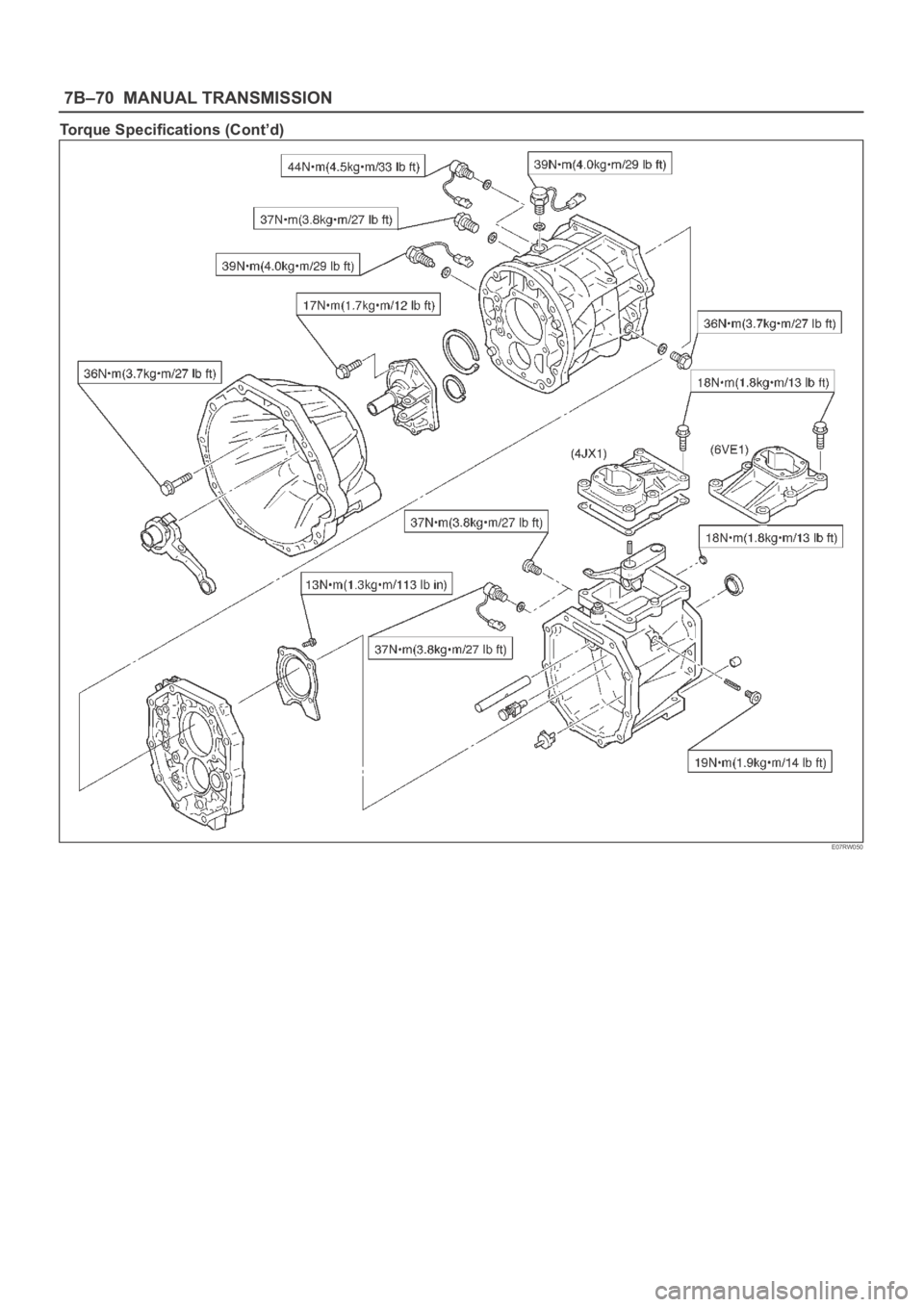

OPEL FRONTERA 1998 Workshop Manual 7B–70MANUAL TRANSMISSION Torque Specifications (Cont’d) E07RW050

Page 2389 of 6000

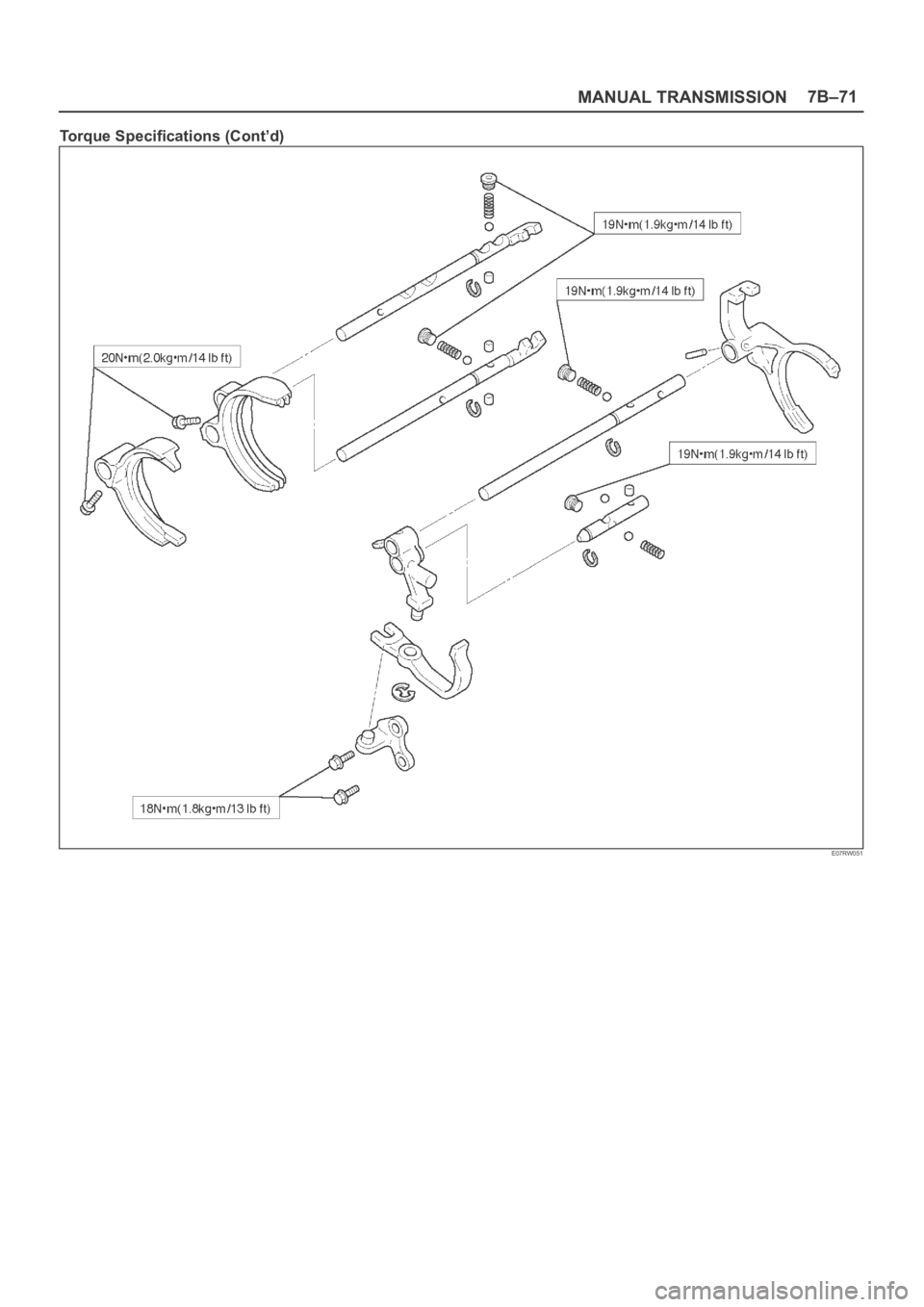

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–71 Torque Specifications (Cont’d) E07RW051

Page 2390 of 6000

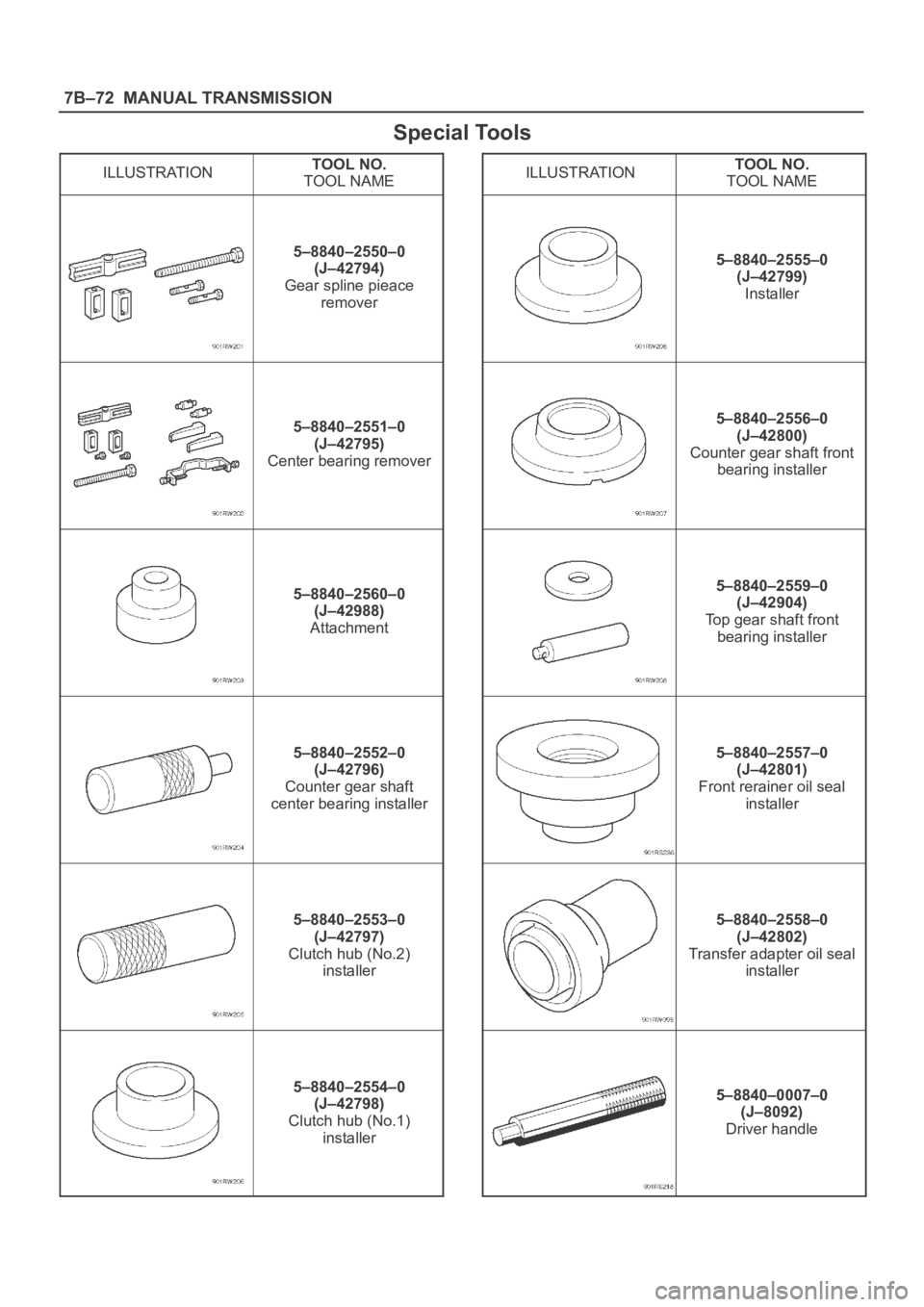

OPEL FRONTERA 1998 Workshop Manual 7B–72MANUAL TRANSMISSION Special Tools ILLUSTRATIONTOOL NO. TOOL NAME 5–8840–2550–0 (J–42794) Gear spline pieace remover 5–8840–2551–0 (J–42795) Center bearing remover 5–8840–256

Page 2391 of 6000

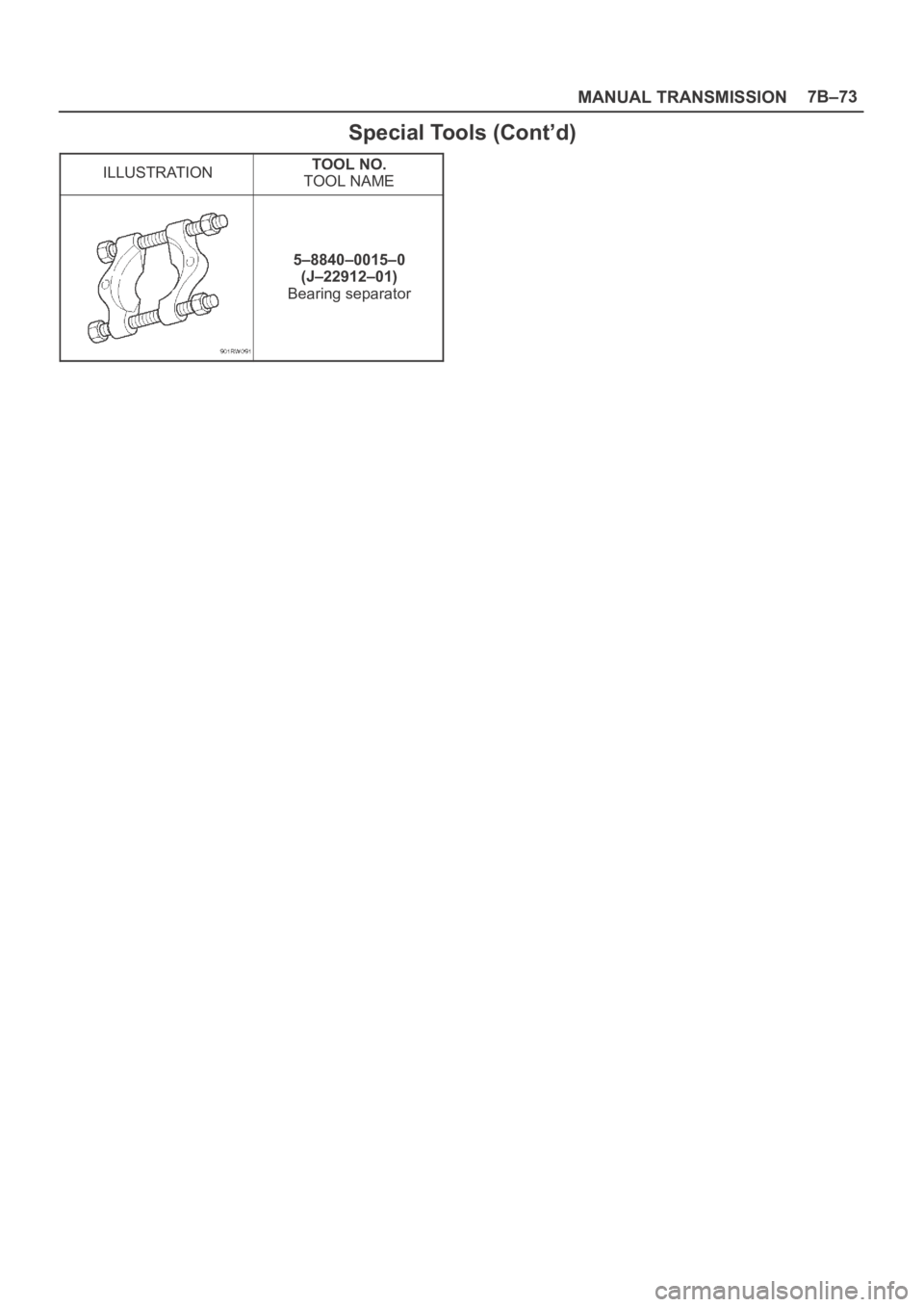

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–73 Special Tools (Cont’d) ILLUSTRATIONTOOL NO. TOOL NAME 5–8840–0015–0 (J–22912–01) Bearing separator

Page 2392 of 6000

OPEL FRONTERA 1998 Workshop Manual
