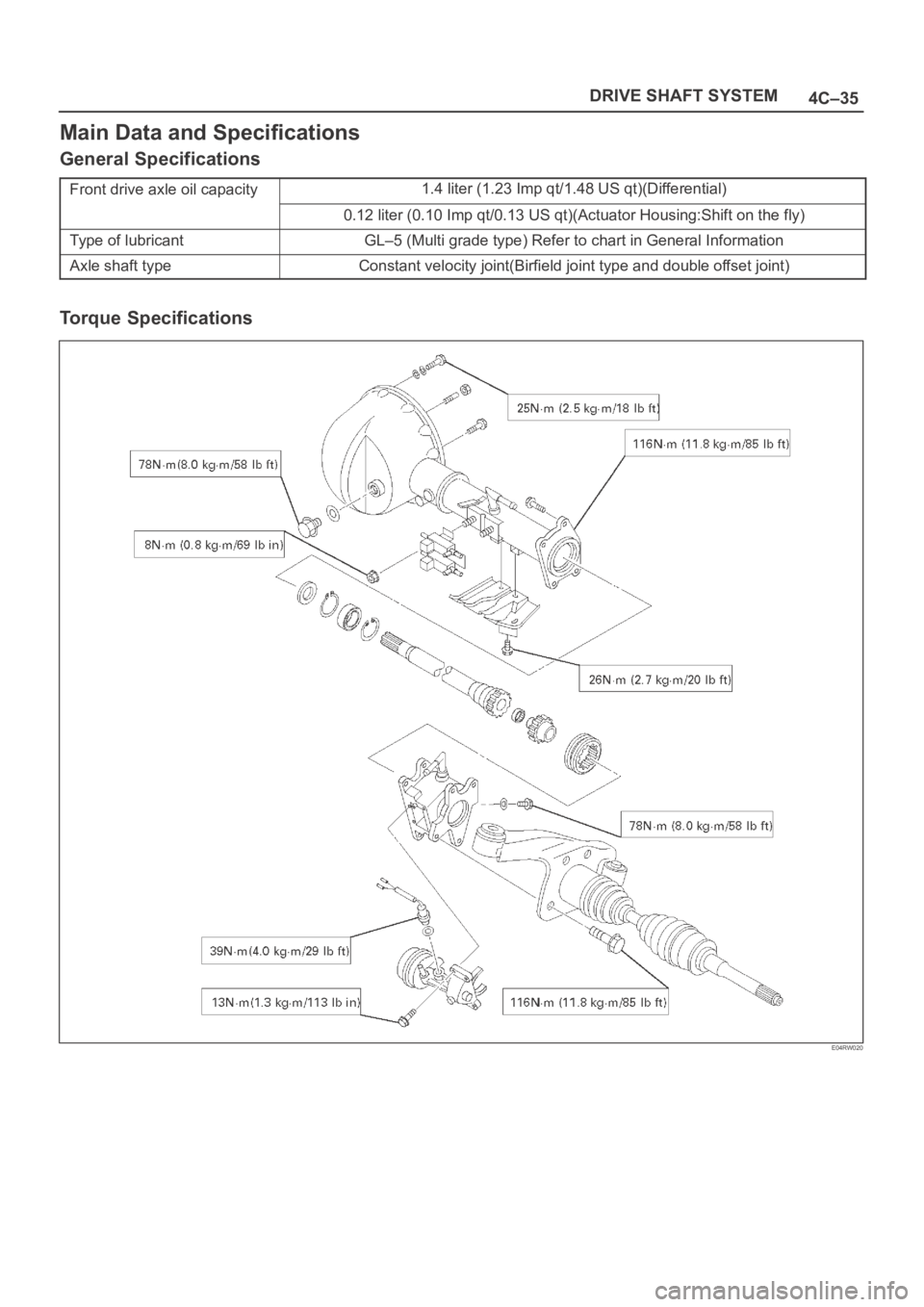

OPEL FRONTERA 1998 Workshop Manual 4C–35 DRIVE SHAFT SYSTEM Main Data and Specifications General Specifications Front drive axle oil capacity1.4 liter (1.23 Imp qt/1.48 US qt)(Differential) 0.12 liter (0.10 Imp qt/0.13 US qt)(Actuato

Page 4242 of 6000

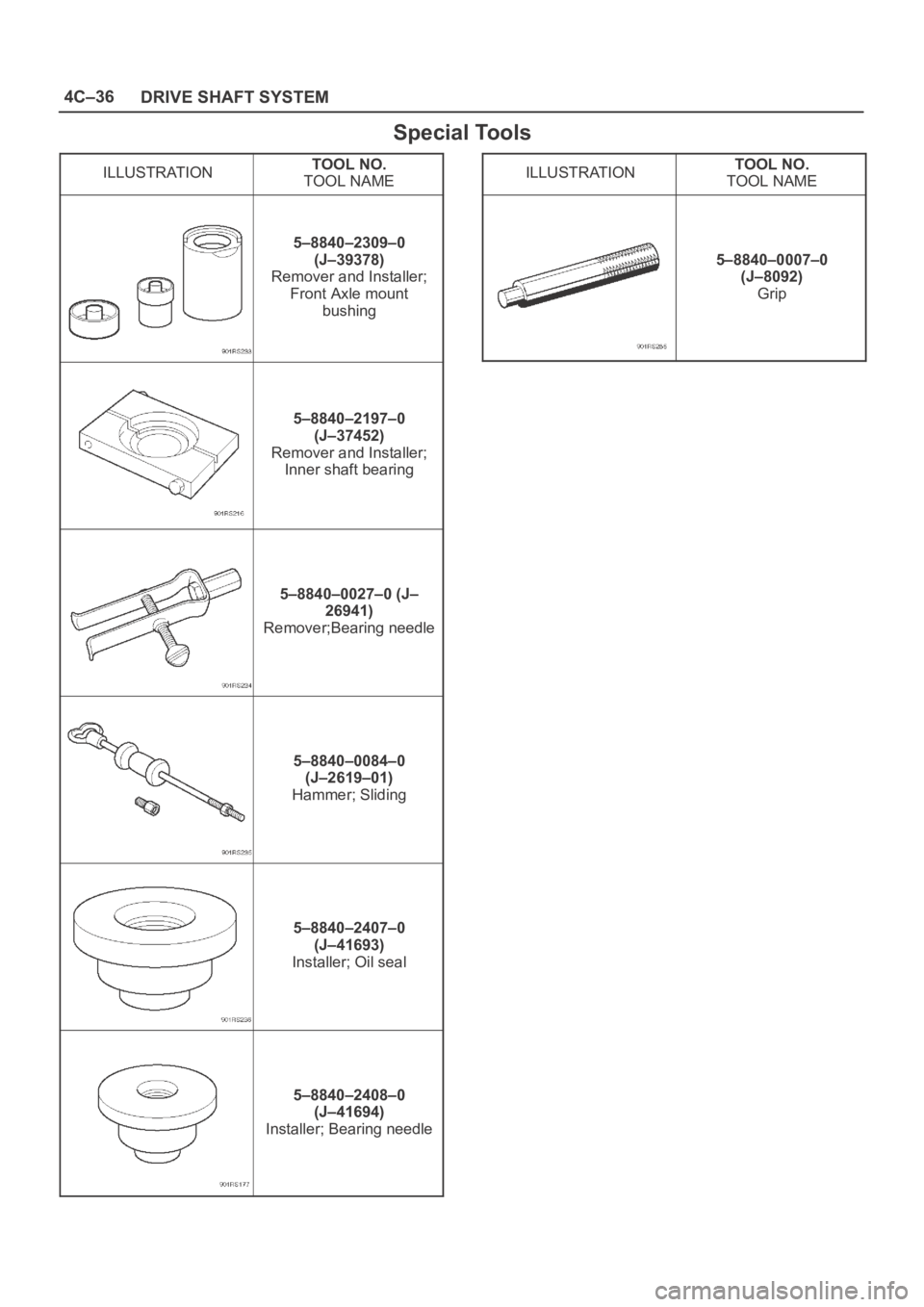

OPEL FRONTERA 1998 Workshop Manual 4C–36 DRIVE SHAFT SYSTEM Special Tools ILLUSTRATIONTOOL NO. TOOL NAME 5–8840–2309–0 (J–39378) Remover and Installer; Front Axle mount bushing 5–8840–2197–0 (J–37452) Remover and Inst

Page 4243 of 6000

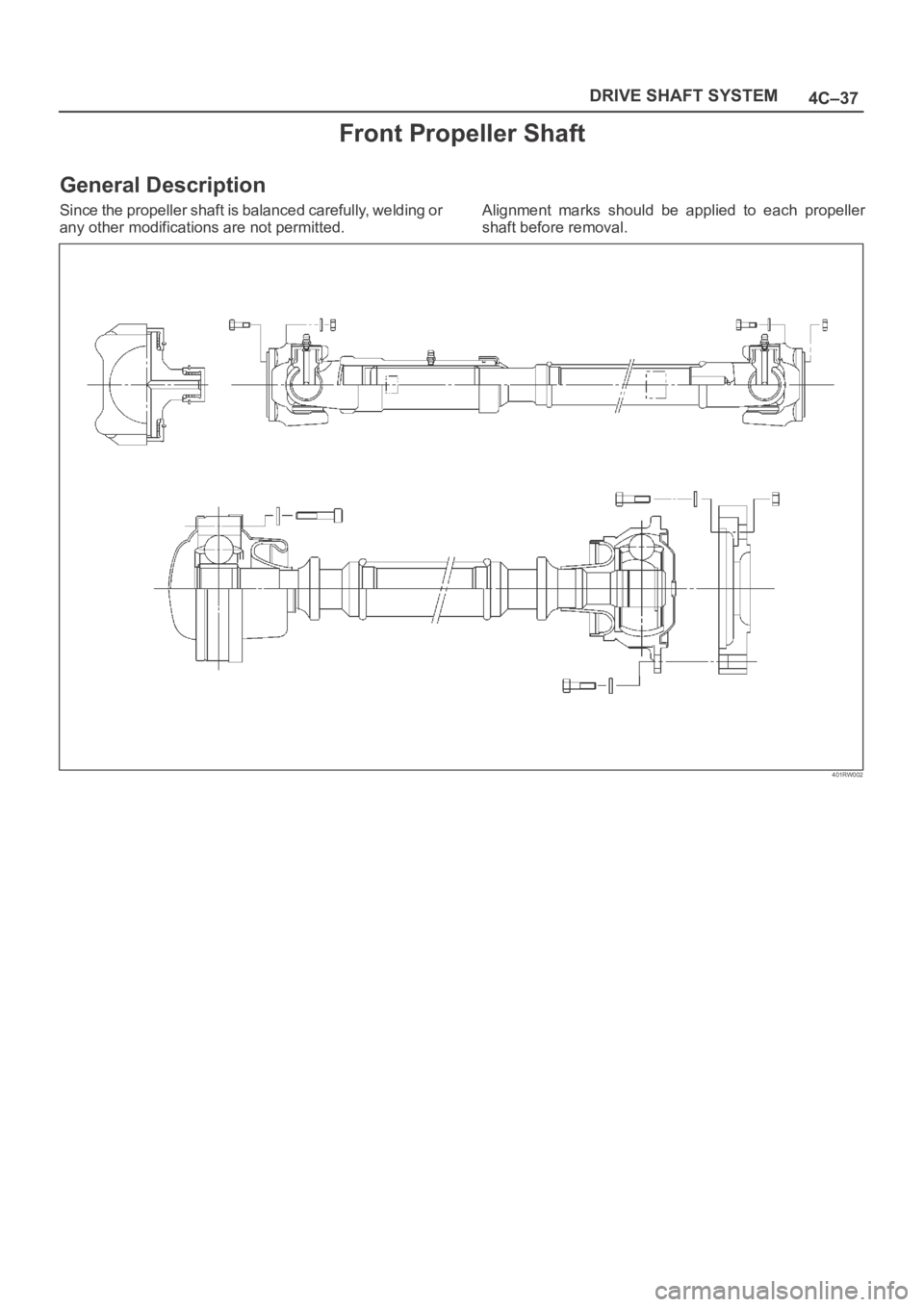

OPEL FRONTERA 1998 Workshop Manual 4C–37 DRIVE SHAFT SYSTEM Front Propeller Shaft General Description Since the propeller shaft is balanced carefully, welding or any other modifications are not permitted.Alignment marks should be

Page 4244 of 6000

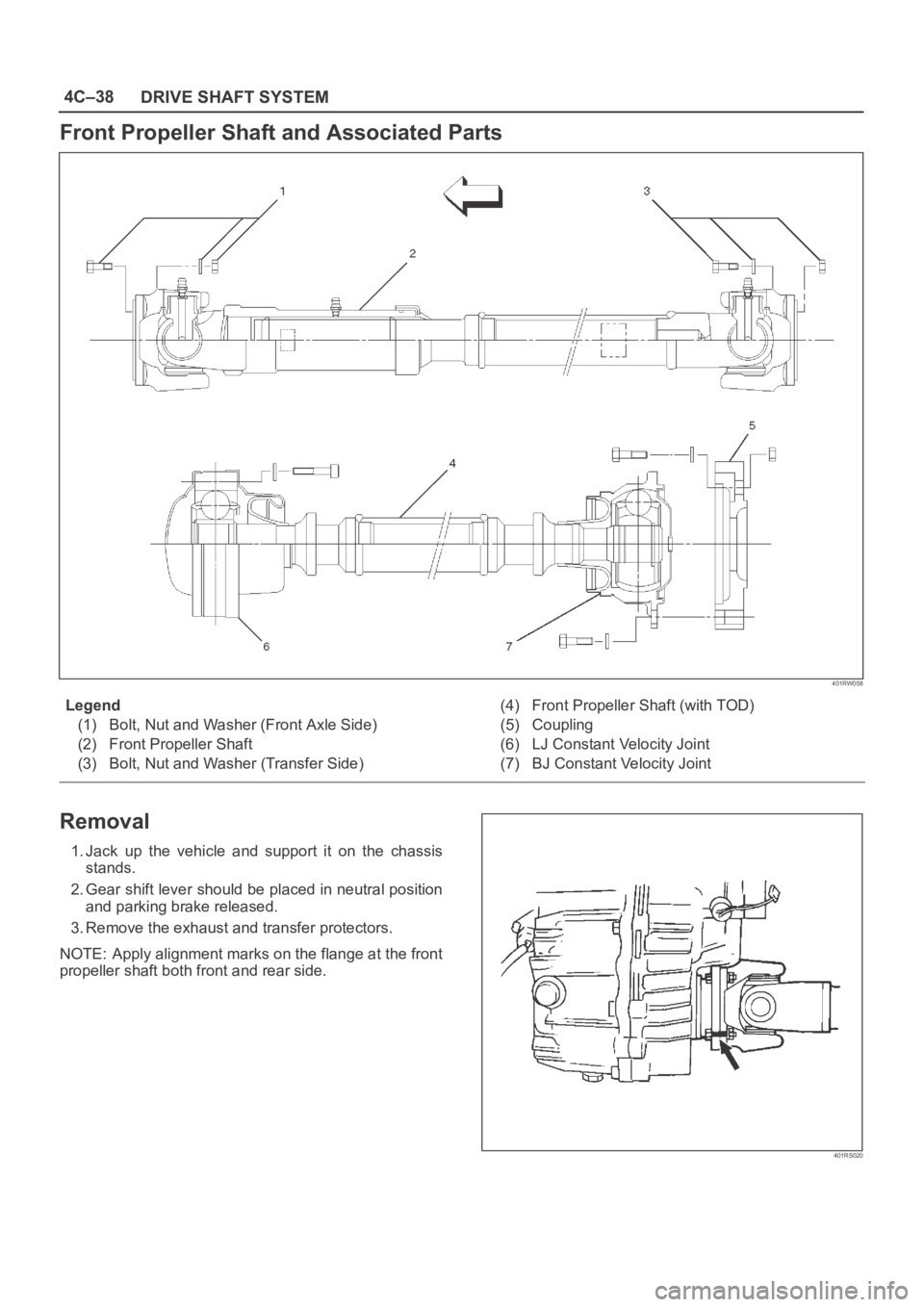

OPEL FRONTERA 1998 Workshop Manual 4C–38 DRIVE SHAFT SYSTEM Front Propeller Shaft and Associated Parts 401RW058 Legend (1) Bolt, Nut and Washer (Front Axle Side) (2) Front Propeller Shaft (3) Bolt, Nut and Washer (Transfer Side)(4) F

Page 4245 of 6000

OPEL FRONTERA 1998 Workshop Manual 4C–39 DRIVE SHAFT SYSTEM 401RW053 401RW052 4. Remove bolt, nut and washer (Front axle side). 5. Remove bolt, nut and washer (Transfer side). 6. Remove front propeller shaft. NOTE: If equipped with t

Page 4246 of 6000

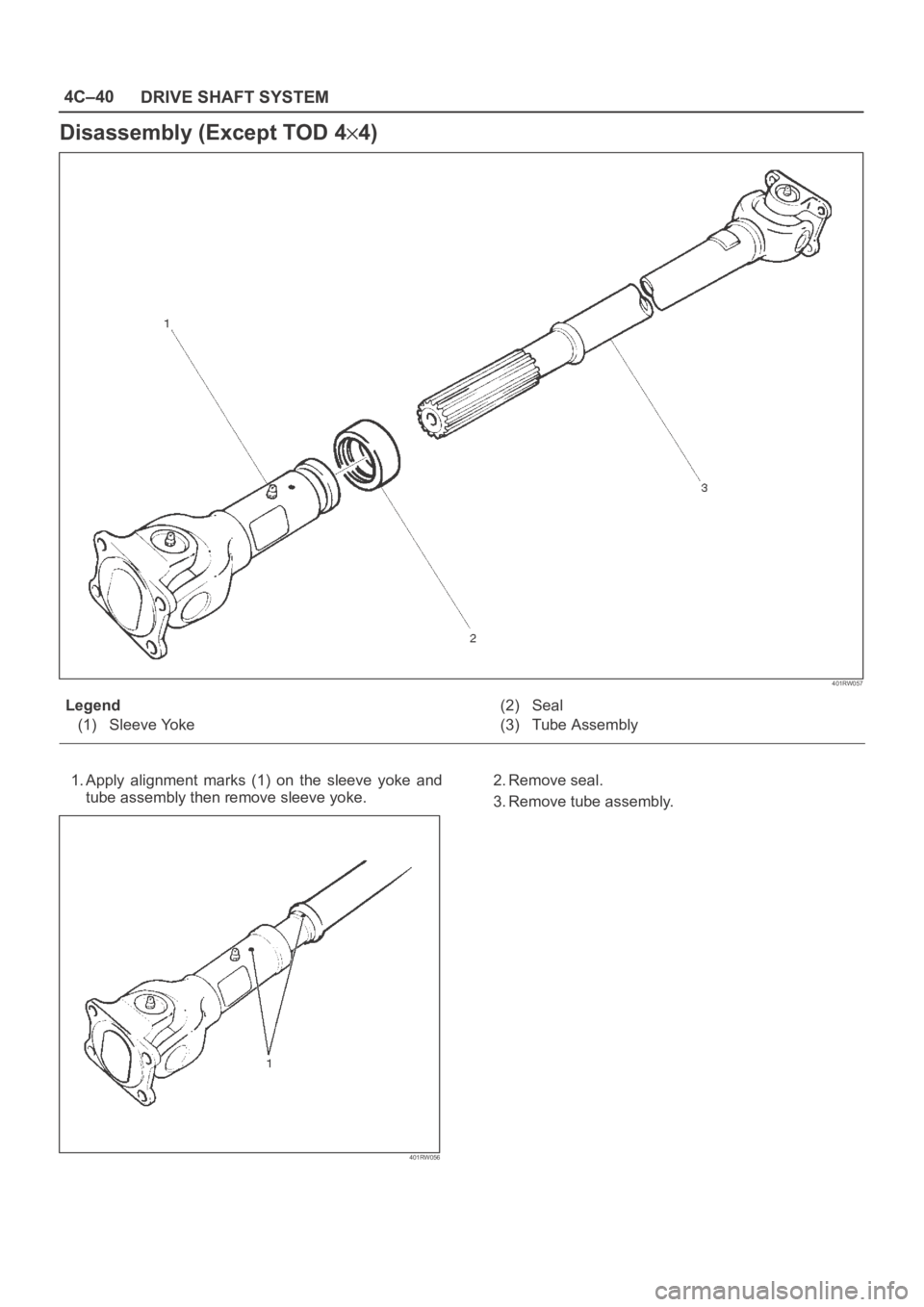

OPEL FRONTERA 1998 Workshop Manual 4C–40 DRIVE SHAFT SYSTEM Disassembly (Except TOD 44) 401RW057 Legend (1) Sleeve Yoke(2) Seal (3) Tube Assembly 1. Apply alignment marks (1) on the sleeve yoke and tube assembly then remove s

Page 4247 of 6000

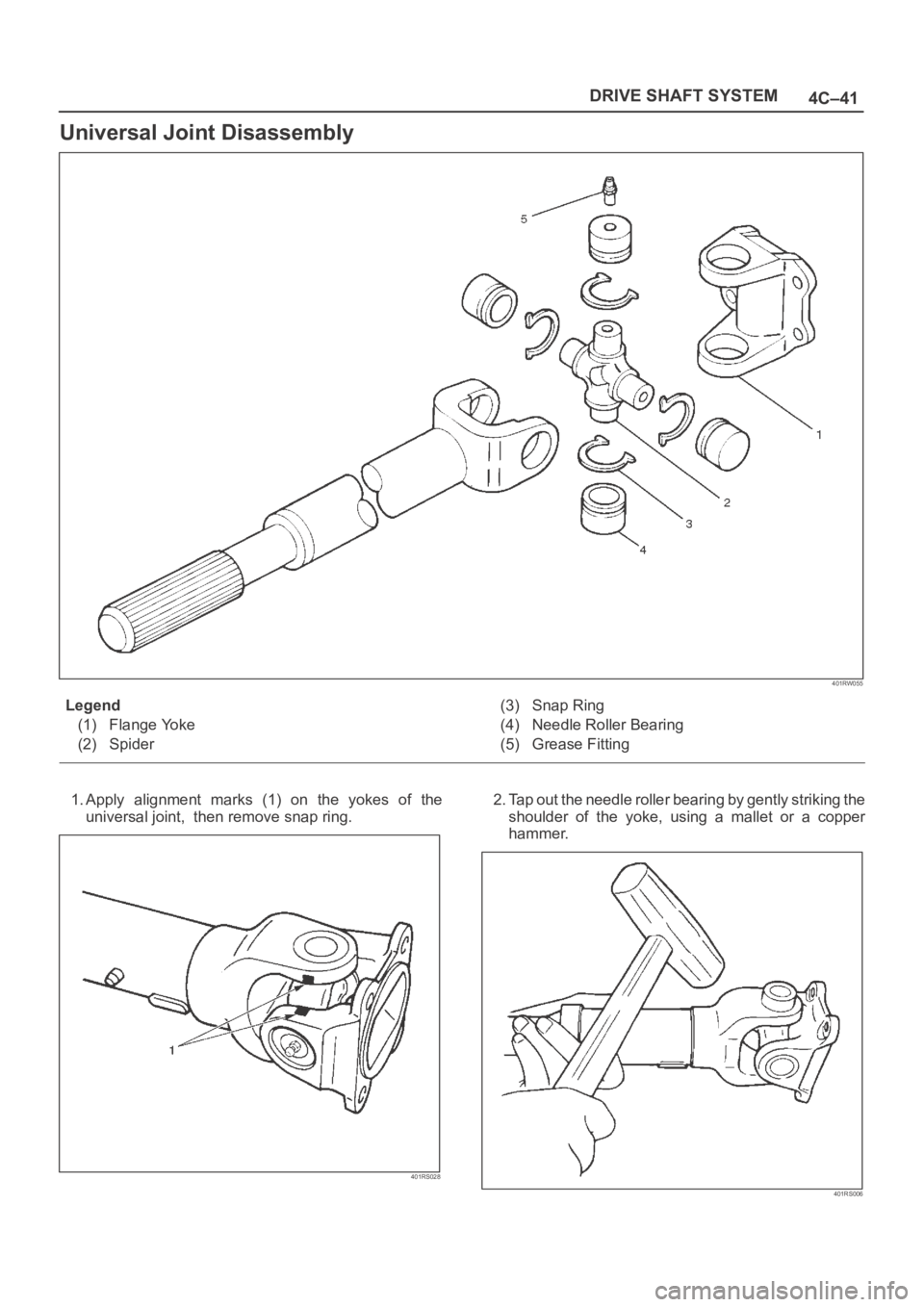

OPEL FRONTERA 1998 Workshop Manual 4C–41 DRIVE SHAFT SYSTEM Universal Joint Disassembly 401RW055 Legend (1) Flange Yoke (2) Spider(3) Snap Ring (4) Needle Roller Bearing (5) Grease Fitting 1. Apply alignment marks (1) on the yo

Page 4248 of 6000

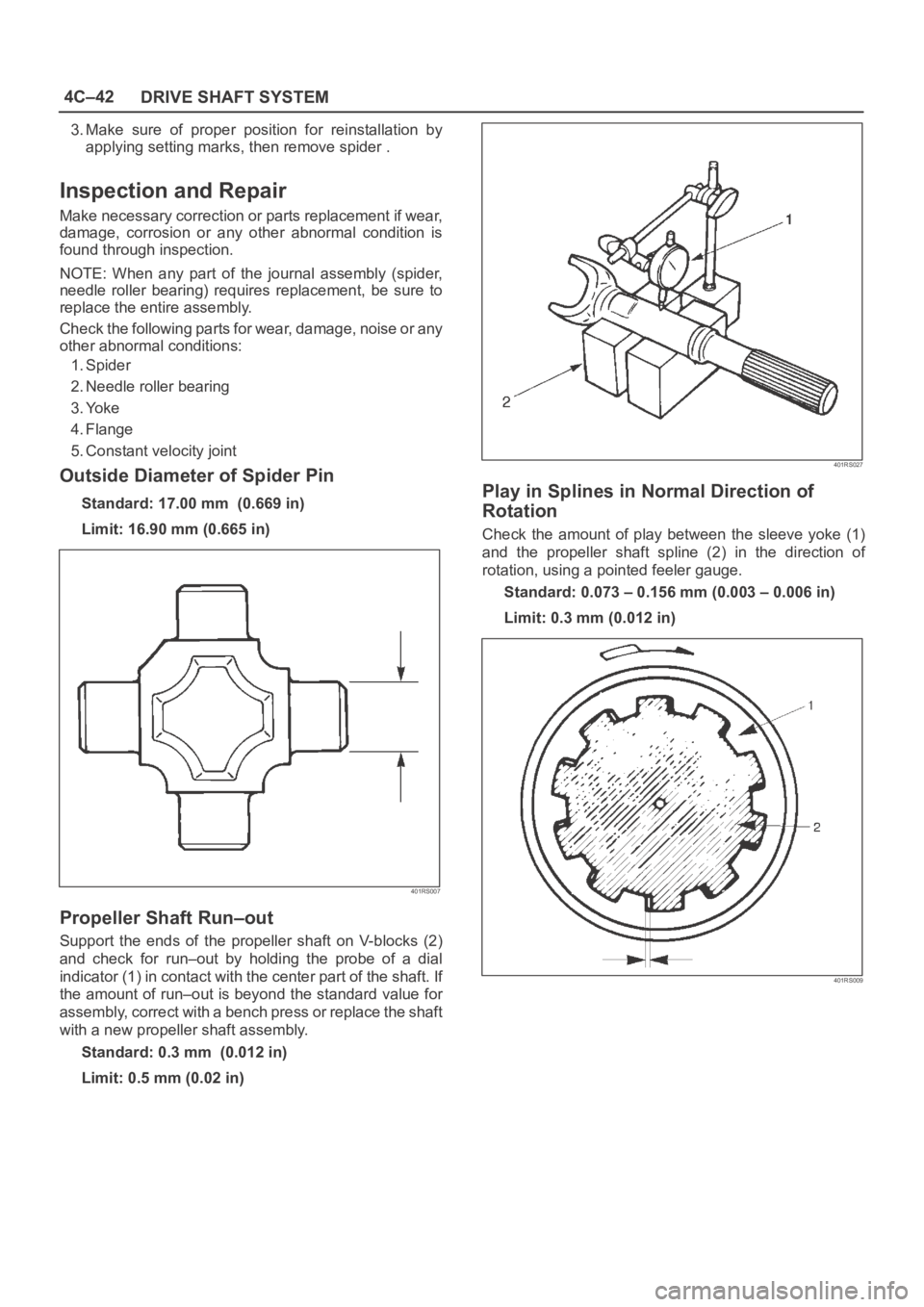

OPEL FRONTERA 1998 Workshop Manual 4C–42 DRIVE SHAFT SYSTEM 3. Make sure of proper position for reinstallation by applying setting marks, then remove spider . Inspection and Repair Make necessary correction or parts replacemen
