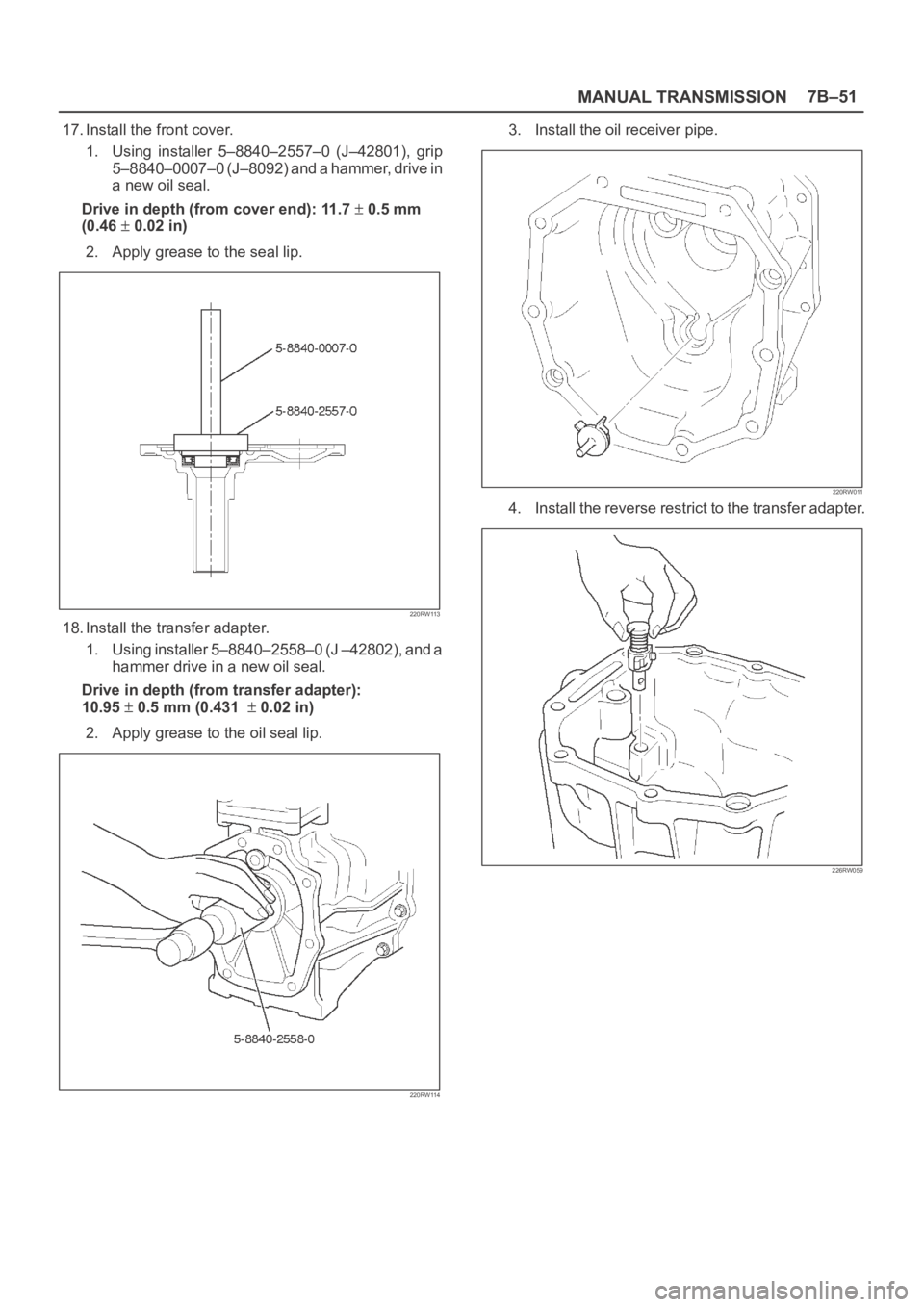

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–51 17. Install the front cover. 1. Using installer 5–8840–2557–0 (J–42801), grip 5–8840–0007–0 (J–8092) and a hammer, drive in a new oil seal. Drive in dept

Page 2370 of 6000

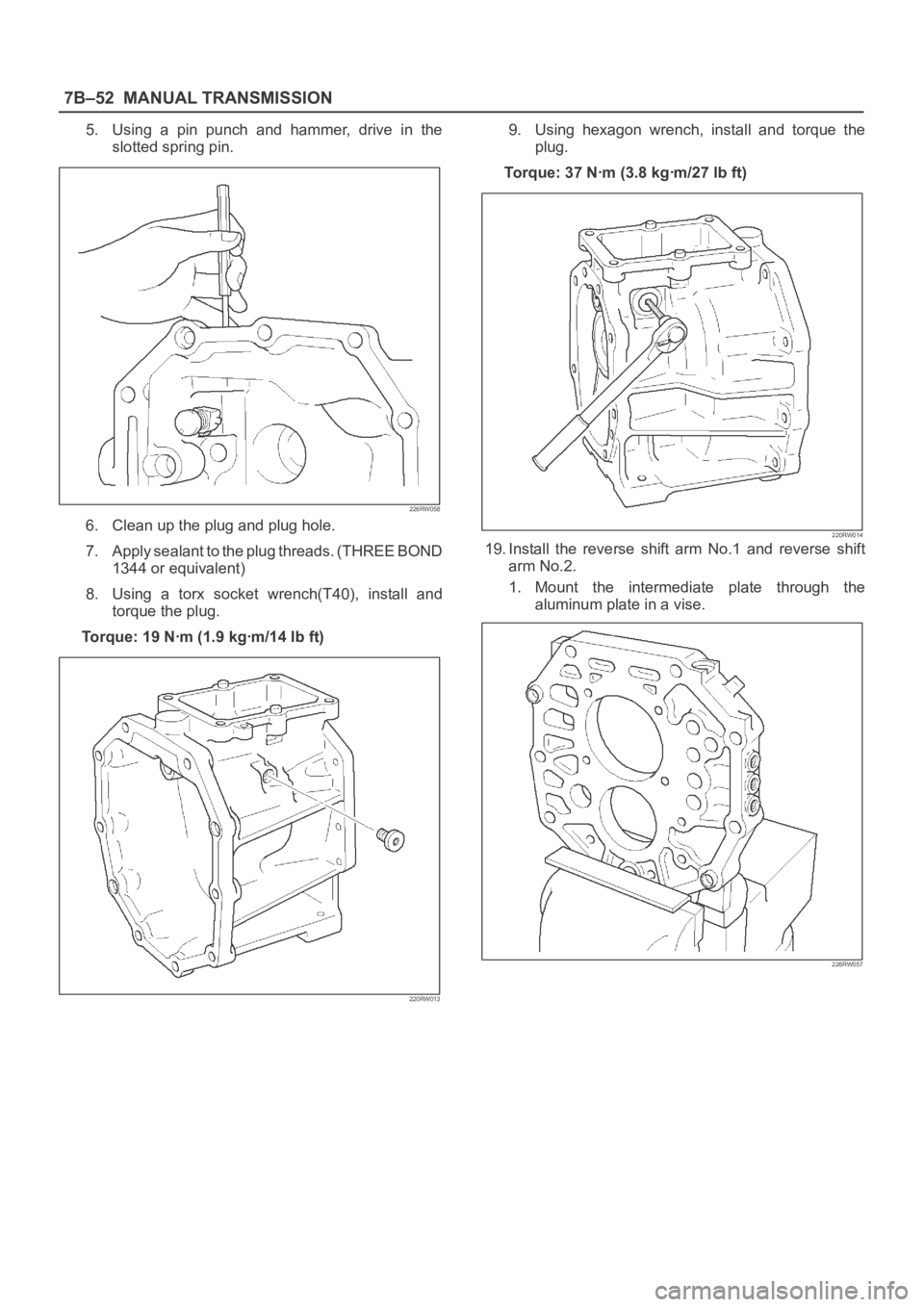

OPEL FRONTERA 1998 Workshop Manual 7B–52MANUAL TRANSMISSION 5. Using a pin punch and hammer, drive in the slotted spring pin. 226RW058 6. Clean up the plug and plug hole. 7. Apply sealant to the plug threads. (THREE BOND 1344

Page 2371 of 6000

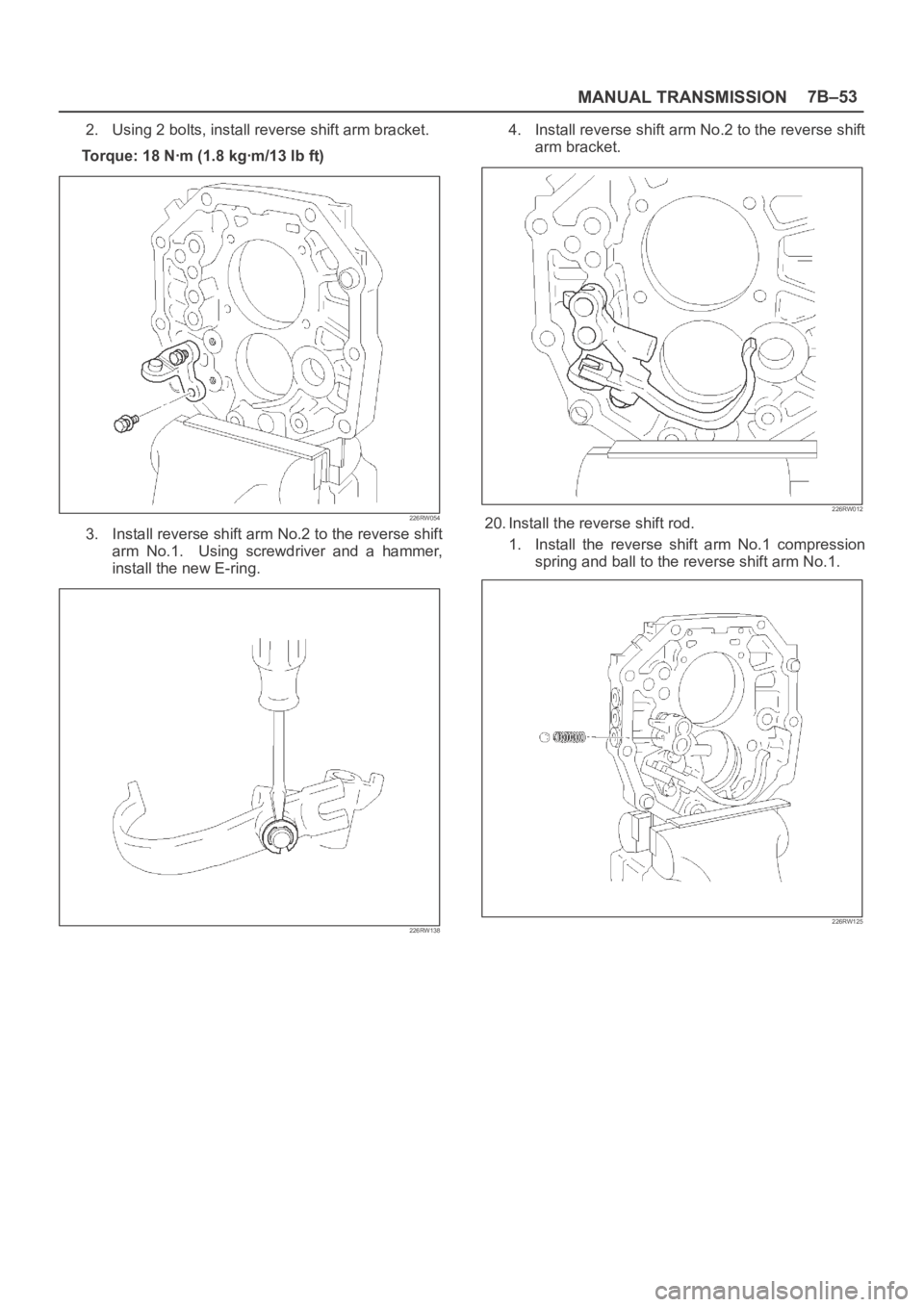

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–53 2. Using 2 bolts, install reverse shift arm bracket. Torque: 18 Nꞏm (1.8 kgꞏm/13 lb ft) 226RW054 3. Install reverse shift arm No.2 to the reverse shift arm No.1. Usi

Page 2372 of 6000

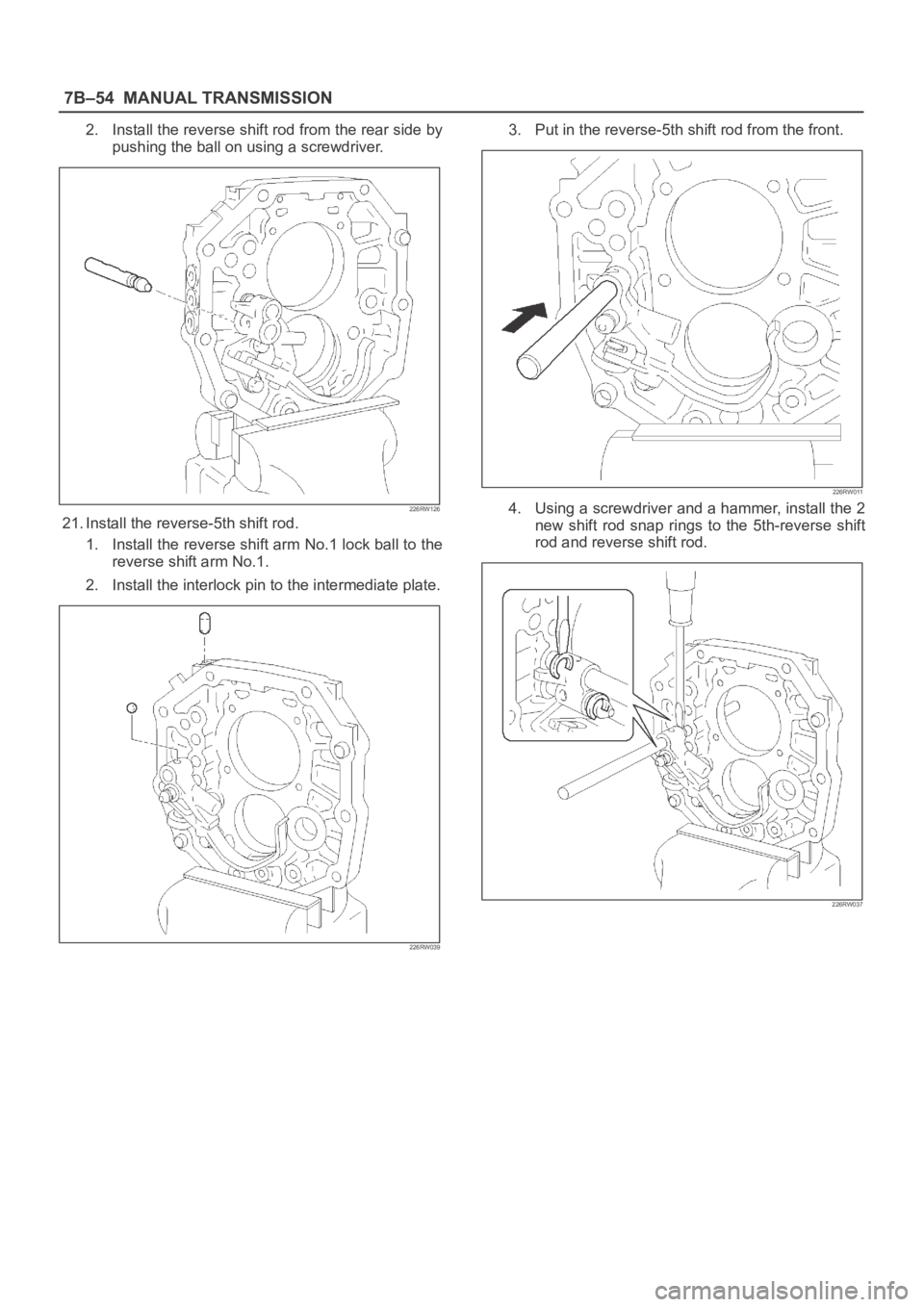

OPEL FRONTERA 1998 Workshop Manual 7B–54MANUAL TRANSMISSION 2. Install the reverse shift rod from the rear side by pushing the ball on using a screwdriver. 226RW126 21. Install the reverse-5th shift rod. 1. Install the reverse shift

Page 2373 of 6000

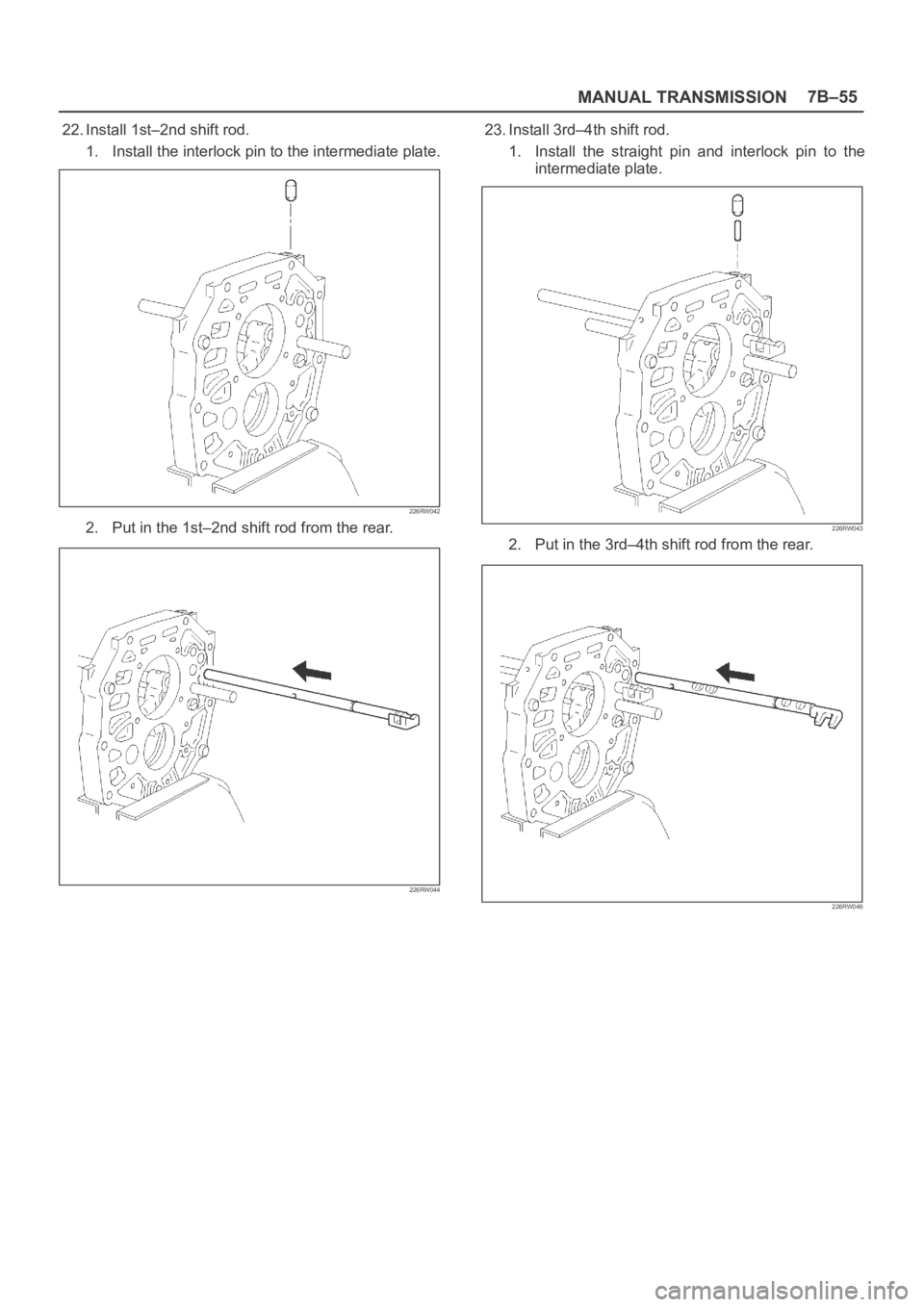

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–55 22. Install 1st–2nd shift rod. 1. Install the interlock pin to the intermediate plate. 226RW042 2. Put in the 1st–2nd shift rod from the rear. 226RW044 23. Install 3rd

Page 2374 of 6000

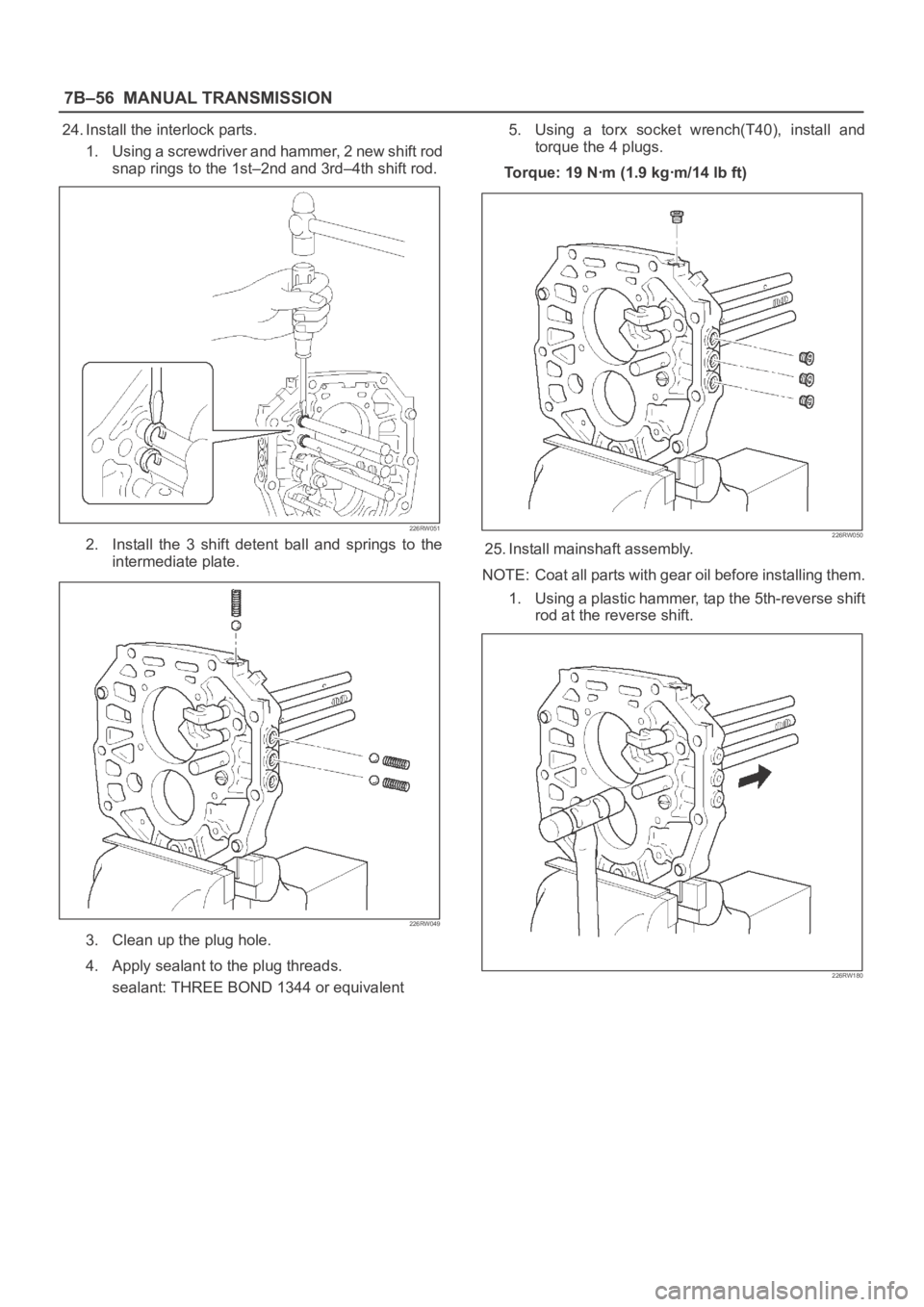

OPEL FRONTERA 1998 Workshop Manual 7B–56MANUAL TRANSMISSION 24. Install the interlock parts. 1. Using a screwdriver and hammer, 2 new shift rod snap rings to the 1st–2nd and 3rd–4th shift rod. 226RW051 2. Install the 3 shift

Page 2375 of 6000

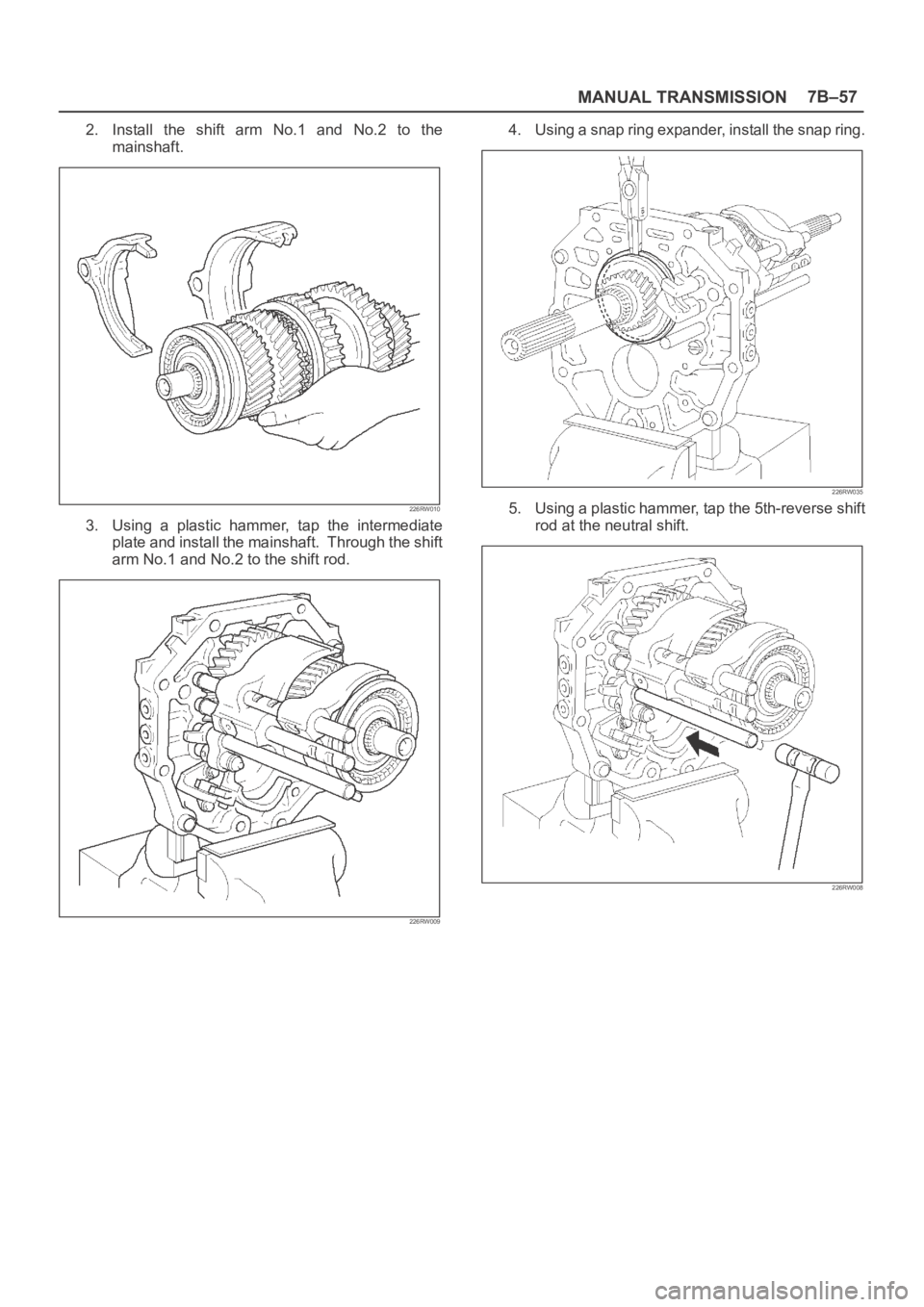

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–57 2. Install the shift arm No.1 and No.2 to the mainshaft. 226RW010 3. Using a plastic hammer, tap the intermediate plate and install the mainshaft. Through the

Page 2376 of 6000

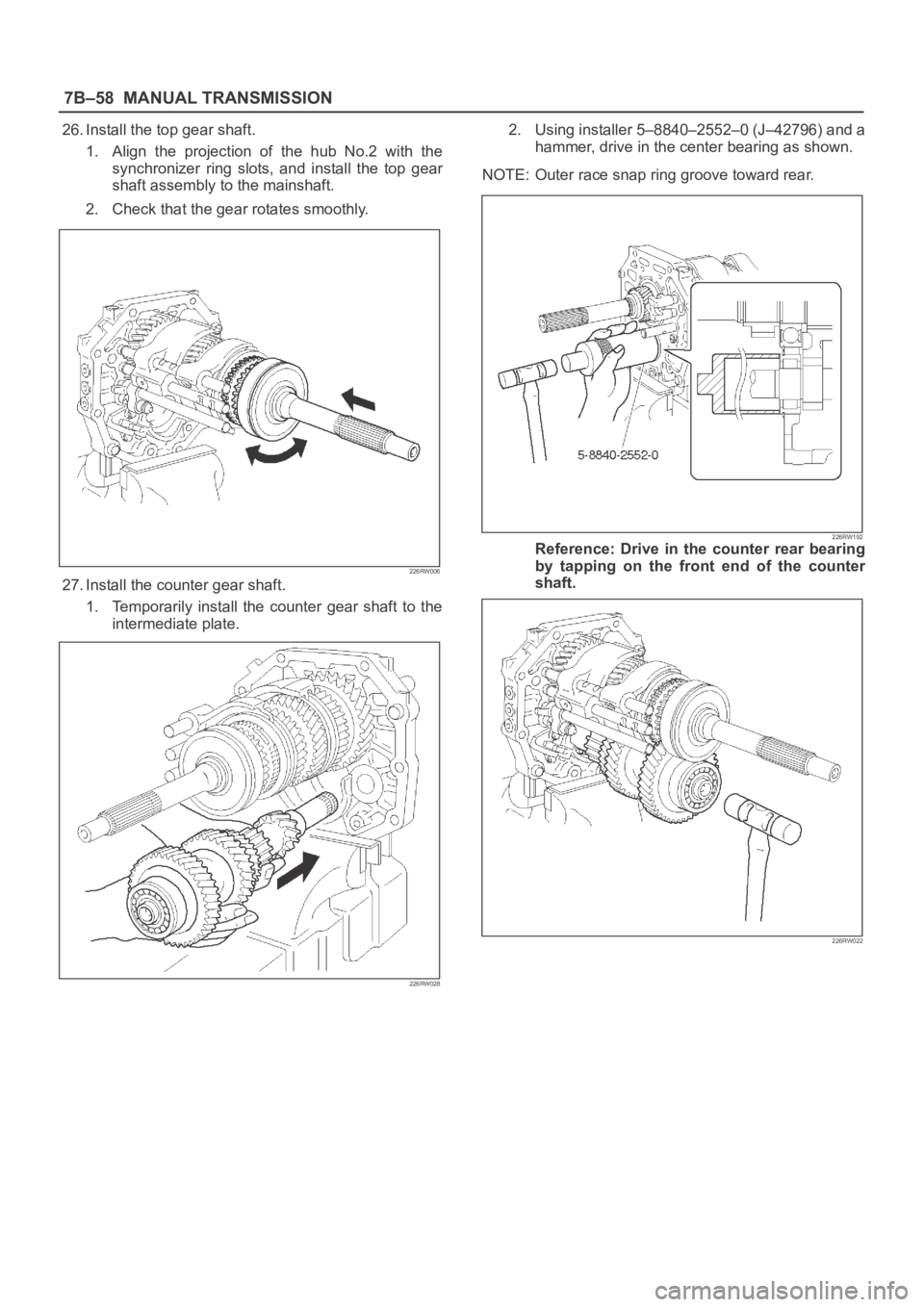

OPEL FRONTERA 1998 Workshop Manual 7B–58MANUAL TRANSMISSION 26. Install the top gear shaft. 1. Align the projection of the hub No.2 with the synchronizer ring slots, and install the top gear shaft assembly to the mains
