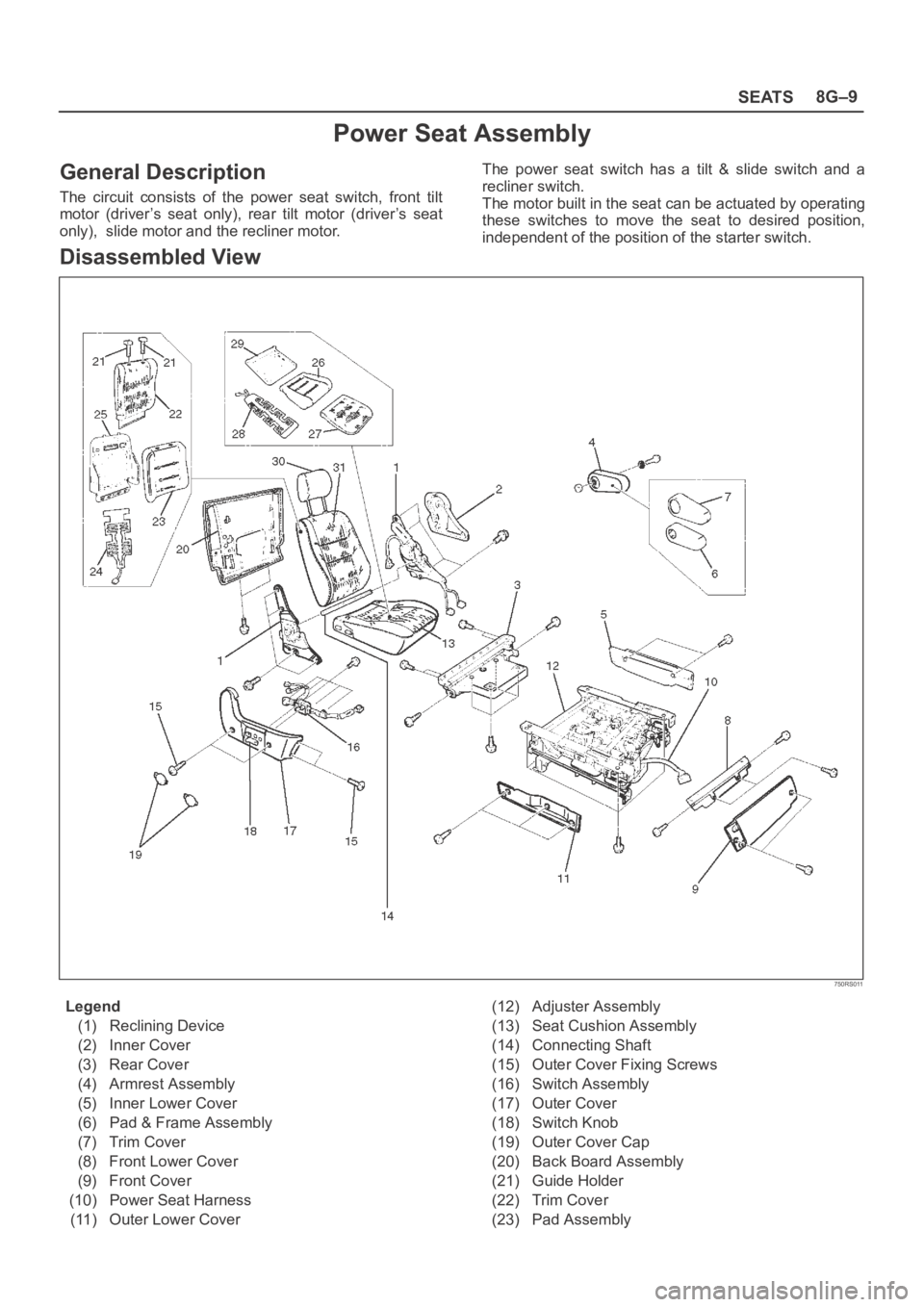

OPEL FRONTERA 1998 Workshop Manual SEATS8G–9 Power Seat Assembly General Description The circuit consists of the power seat switch, front tilt motor (driver’s seat only), rear tilt motor (driver’s seat only), sli

Page 3322 of 6000

OPEL FRONTERA 1998 Workshop Manual 8G–10SEATS (24) Seat Heater (25) Frame Assembly (26) Pad Assembly (27) Trim Cover(28) Seat Heater (29) Frame Assembly (30) Head Rest (31) Seat Back Assembly Disassembly 1. Disconnect the battery gro

Page 3323 of 6000

OPEL FRONTERA 1998 Workshop Manual SEATS8G–11 15. Remove the back board assembly(4). Remove the board fixing screws. Pull the back board downward and remove the board from the seat back frame(5). 750RW008 16. Remove the reclin

Page 3324 of 6000

OPEL FRONTERA 1998 Workshop Manual 8G–12SEATS Remove the power seat harness from the adjuster assembly. 26. Remove the seat cushion assembly. 27. Remove the trim cover. Remove the trim cover hog rings from the backside of the seat cu

Page 3325 of 6000

OPEL FRONTERA 1998 Workshop Manual SEATS8G–13 Front Tilt Motor / Rear Tilt Motor / Slide Motor / Recliner Motor Parts Location 750RS027 Legend (1) Tilt Motor (2) Slide Motor (3) Tilt Motor 750RS028 Legend (4) Recliner Motor Removal a

Page 3326 of 6000

OPEL FRONTERA 1998 Workshop Manual 8G–14SEATS Seat Heater System General Description The circuit consists of the starter switch, seat heater switch and the heat unit. The seat heater is provided in driver’s and fron

Page 3327 of 6000

OPEL FRONTERA 1998 Workshop Manual SEATS8G–15 Rear Seat Assembly Rear Seat Assembly and Associated Parts 755RW031 Legend (1) Fixing Bolts(2) Rear Seat Assembly (3) Mounting Bracket Cover Removal 1. Unlock the rear seat(1) lock to rem

Page 3328 of 6000

OPEL FRONTERA 1998 Workshop Manual 8G–16SEATS Disassembled View (Split Type) 755RW056 Legend (1) Free Hinge Cover (2) Back Board (3) Seat Back Assembly (4) Armrest Assembly (5) Bush (6) Armrest Set Bracket (7) Clip (8) Armrest Board
