Page 3369 of 6000

OPEL FRONTERA 1998 Workshop Manual 8I–2SUN ROOF/CONVERTIBLE TOP Sun Roof Glass Sun Roof Glass and Associated Parts 665RS002 Legend (1) Sun Roof Weatherstrip (2) Sun Roof Glass(3) Decoration Cover (4) Sun Roof Shim Removal 1. Open the

Page 3370 of 6000

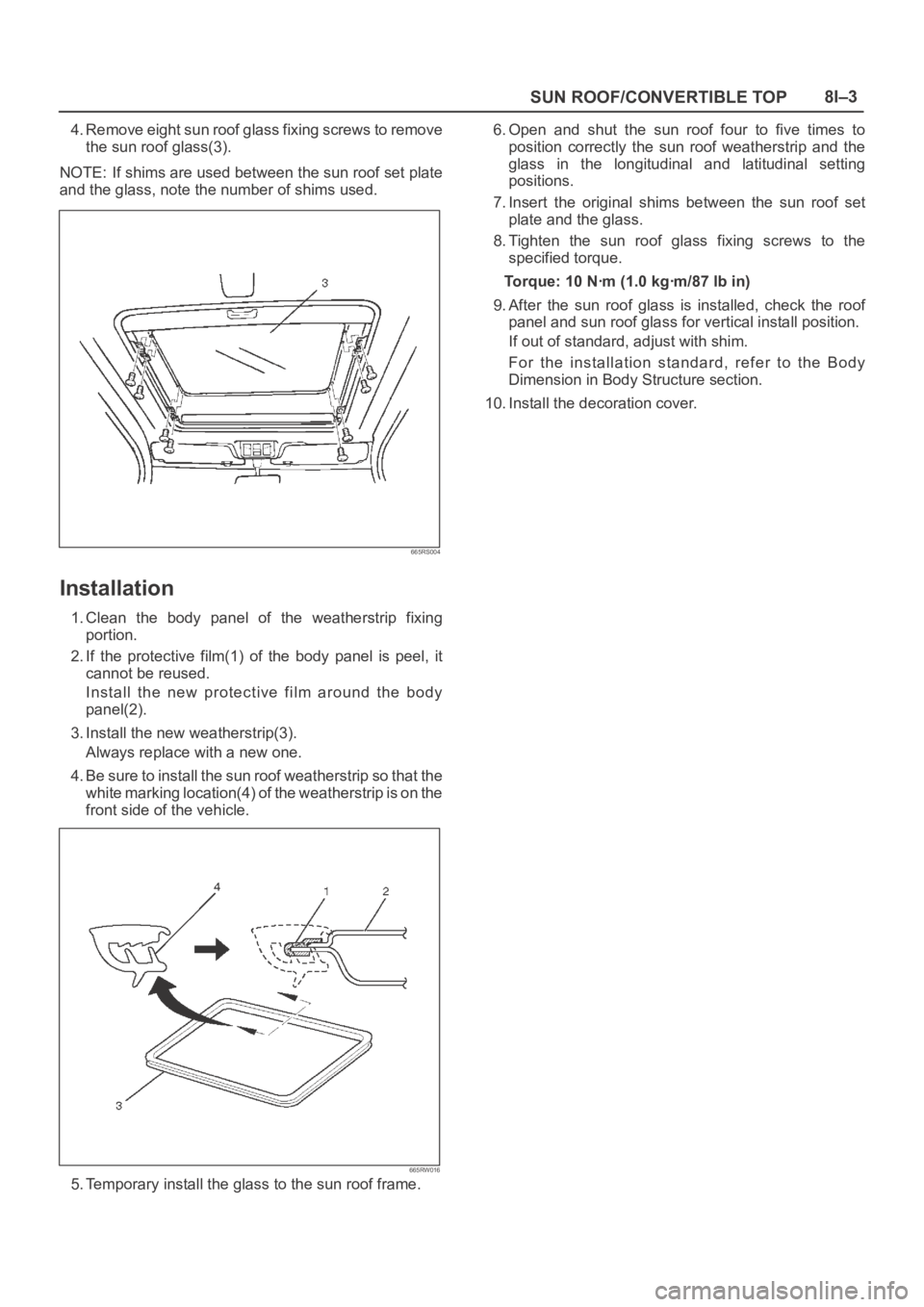

OPEL FRONTERA 1998 Workshop Manual SUN ROOF/CONVERTIBLE TOP8I–3 4. Remove eight sun roof glass fixing screws to remove the sun roof glass(3). NOTE: If shims are used between the sun roof set plate and the glass, note the number of sh

Page 3371 of 6000

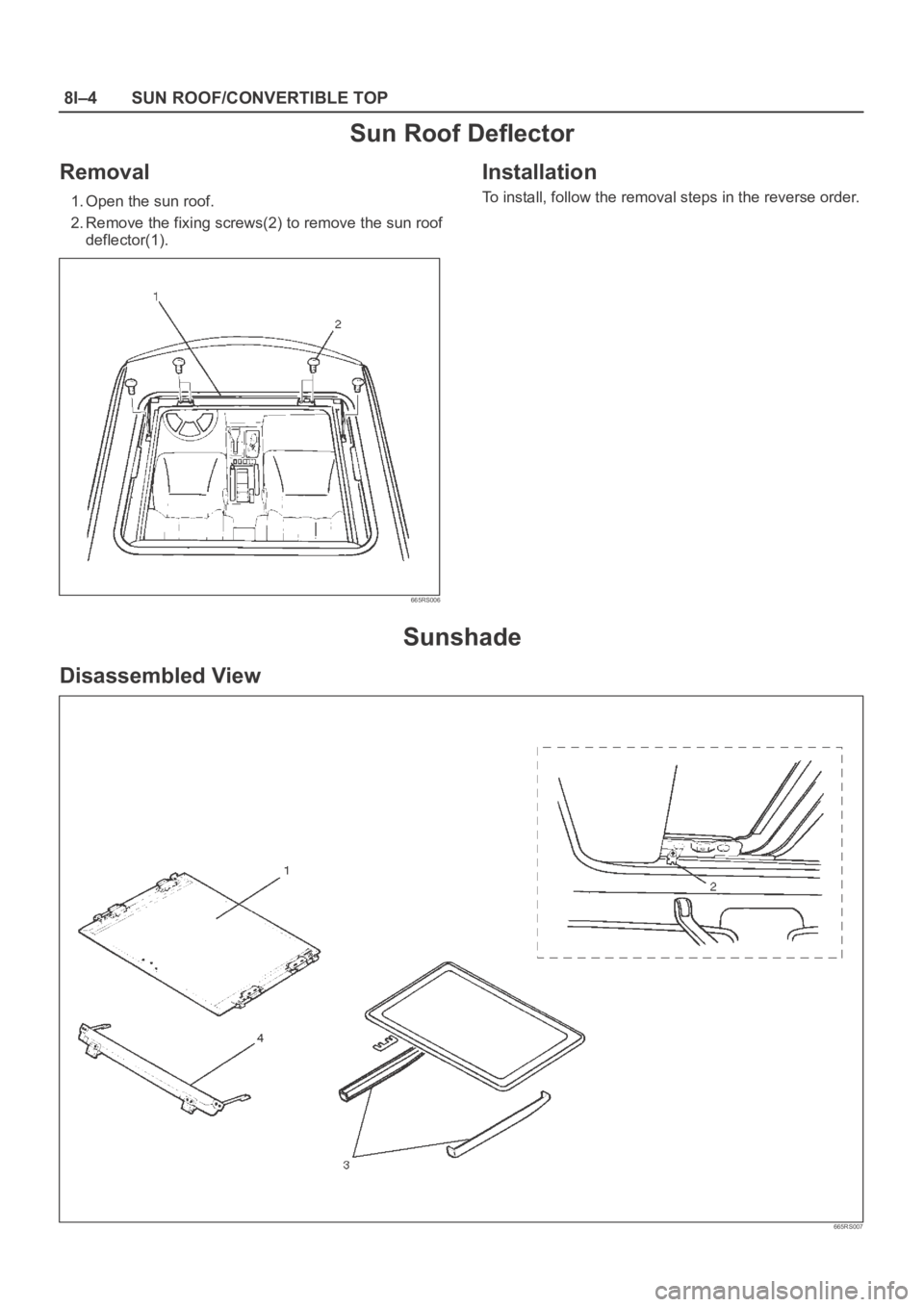

OPEL FRONTERA 1998 Workshop Manual 8I–4SUN ROOF/CONVERTIBLE TOP Sun Roof Deflector Removal 1. Open the sun roof. 2. Remove the fixing screws(2) to remove the sun roof deflector(1). 665RS006 Installation To install, follow the removal

Page 3372 of 6000

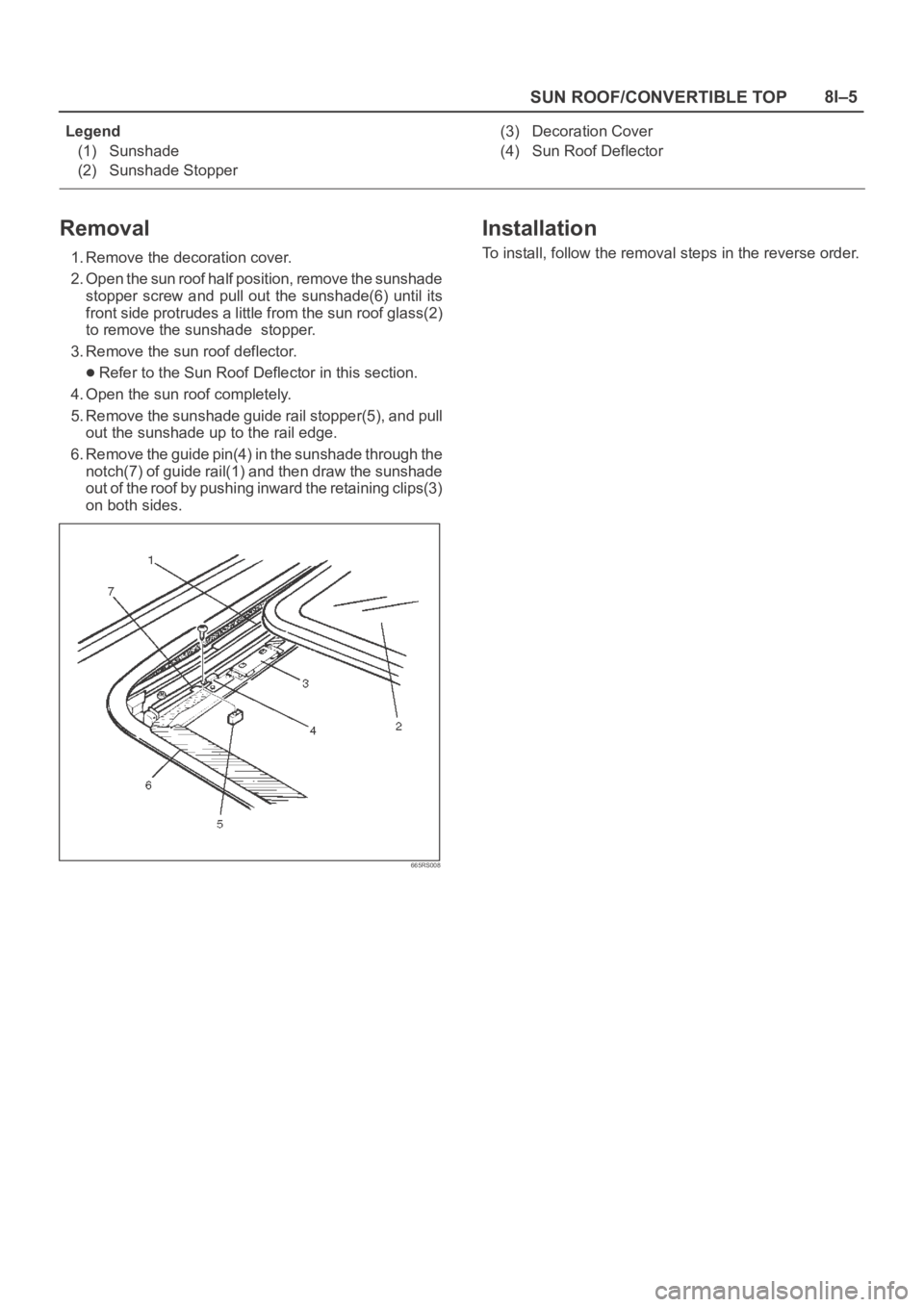

OPEL FRONTERA 1998 Workshop Manual SUN ROOF/CONVERTIBLE TOP8I–5 Legend (1) Sunshade (2) Sunshade Stopper(3) Decoration Cover (4) Sun Roof Deflector Removal 1. Remove the decoration cover. 2. Open the sun roof half position, remove th

Page 3373 of 6000

OPEL FRONTERA 1998 Workshop Manual 8I–6SUN ROOF/CONVERTIBLE TOP Sun Roof Frame Complete Assembly Sun Roof Frame Complete Assembly and Associated Parts 665RS009 Legend (1) Sun Roof Drain Hose (2) Sun Roof Frame Complete Assembly(3) He

Page 3374 of 6000

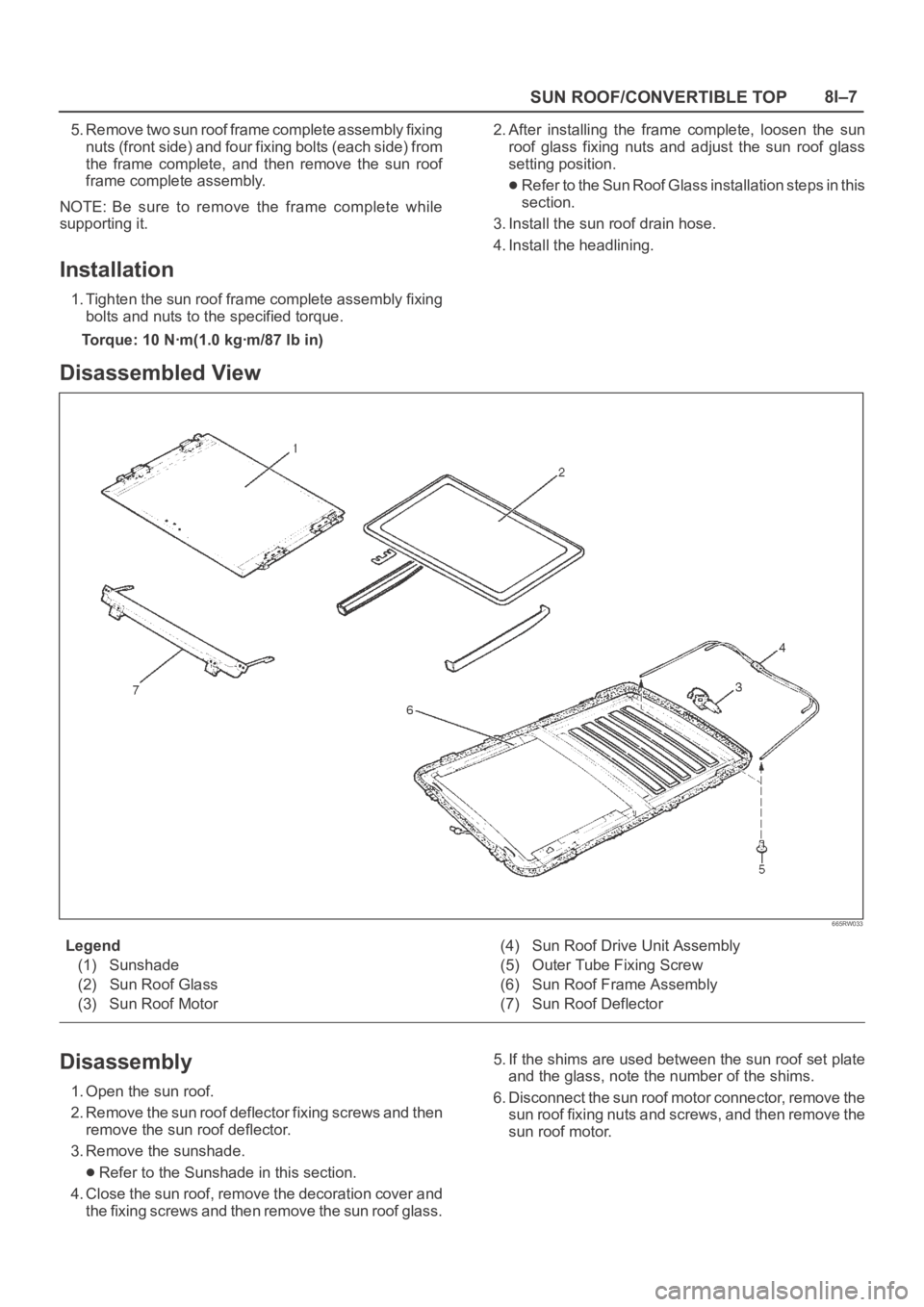

OPEL FRONTERA 1998 Workshop Manual SUN ROOF/CONVERTIBLE TOP8I–7 5. Remove two sun roof frame complete assembly fixing nuts (front side) and four fixing bolts (each side) from the frame complete, and then remove the sun roof f

Page 3375 of 6000

OPEL FRONTERA 1998 Workshop Manual 8I–8SUN ROOF/CONVERTIBLE TOP 7. Remove the cable outer tube(2) fixing screws. 8. Remove the cable outer tube fixing clamps(1) and guide rail fixing nuts(5). 9. Prying the guide rail a little

Page 3376 of 6000

OPEL FRONTERA 1998 Workshop Manual SUN ROOF/CONVERTIBLE TOP8I–9 Sun Roof Drain Hose (Front Side) Sun Roof Drain Hose (Front Side) and Associated Parts 665RW017 Legend (1) Clip (2) Sun Roof Drain Hose (3) Grommet(4) Instrument Panel A
