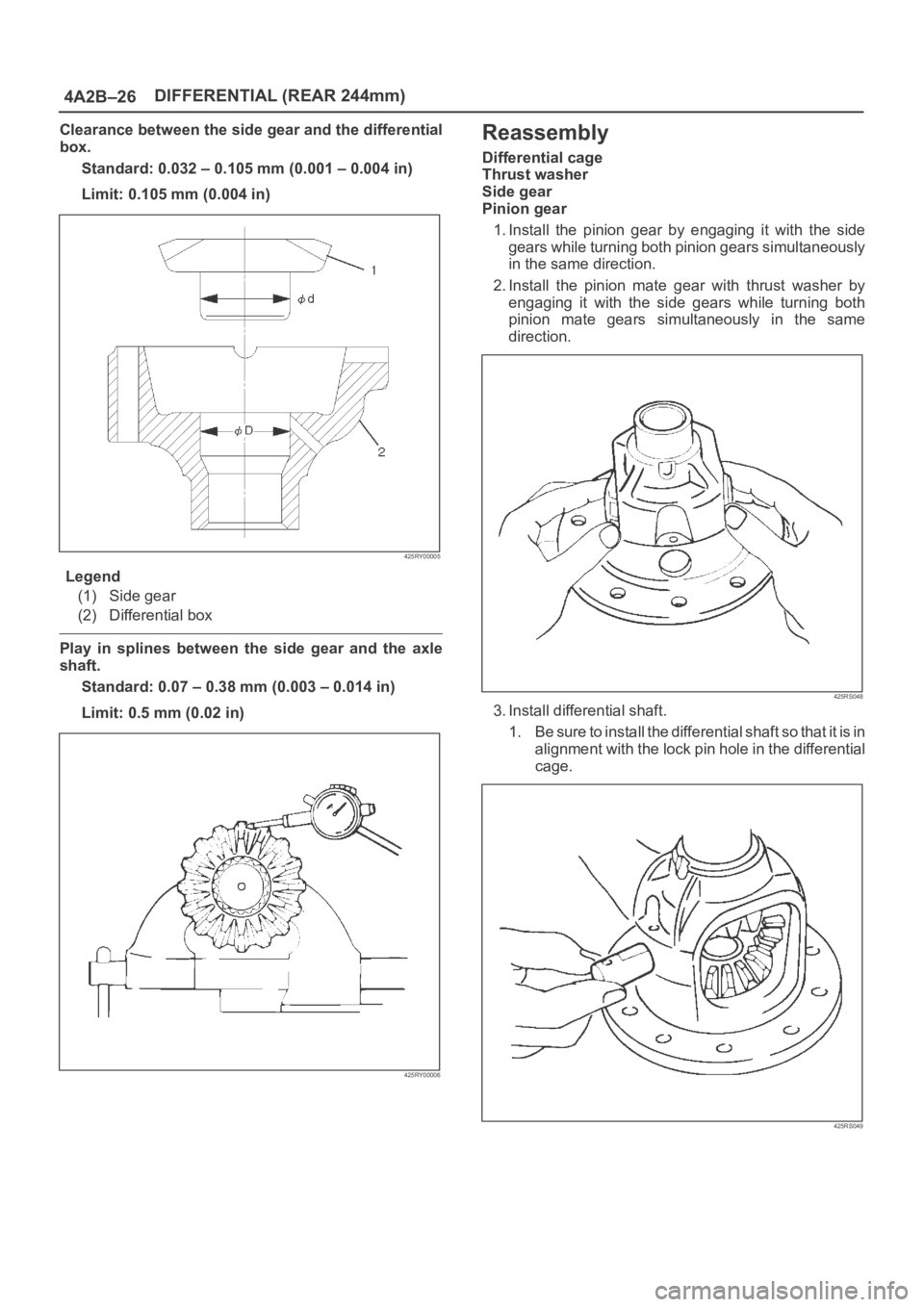

OPEL FRONTERA 1998 Workshop Manual 4A2B–26DIFFERENTIAL (REAR 244mm) Clearance between the side gear and the differential box. Standard: 0.032 – 0.105 mm (0.001 – 0.004 in) Limit: 0.105 mm (0.004 in) 425RY00005 Legend (1) Side gea

Page 4034 of 6000

OPEL FRONTERA 1998 Workshop Manual DIFFERENTIAL (REAR 244mm) 4A2B–27 2. Adjust the backlash between the side gear and the pinion gear. Backlash: 0.15 – 0.20 mm (0.006 – 0.008 in) Thickness of thrust washers available mm 0.

Page 4035 of 6000

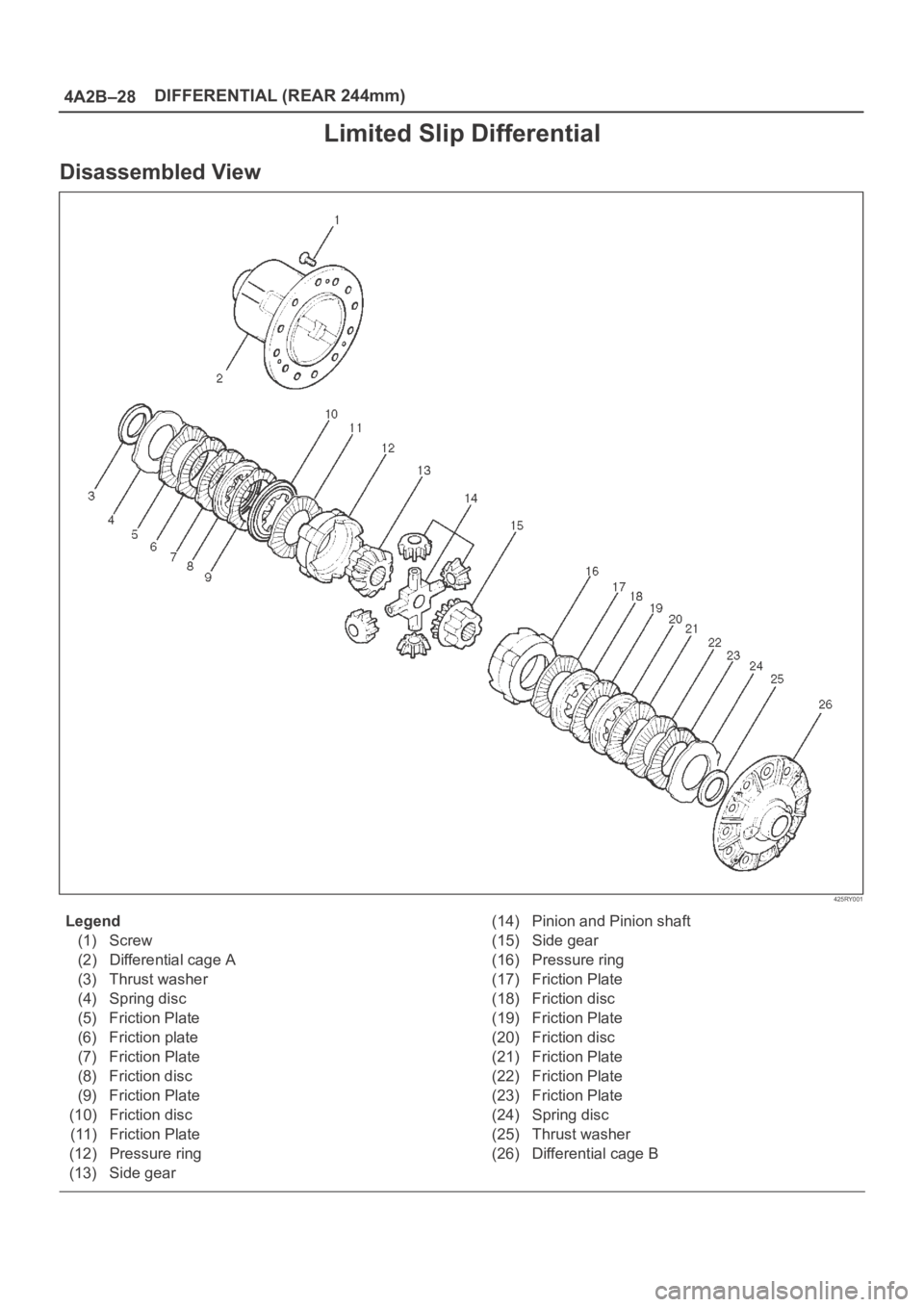

OPEL FRONTERA 1998 Workshop Manual 4A2B–28DIFFERENTIAL (REAR 244mm) Limited Slip Differential Disassembled View 425RY001 Legend (1) Screw (2) Differential cage A (3) Thrust washer (4) Spring disc (5) Friction Plate (6) Friction plate

Page 4036 of 6000

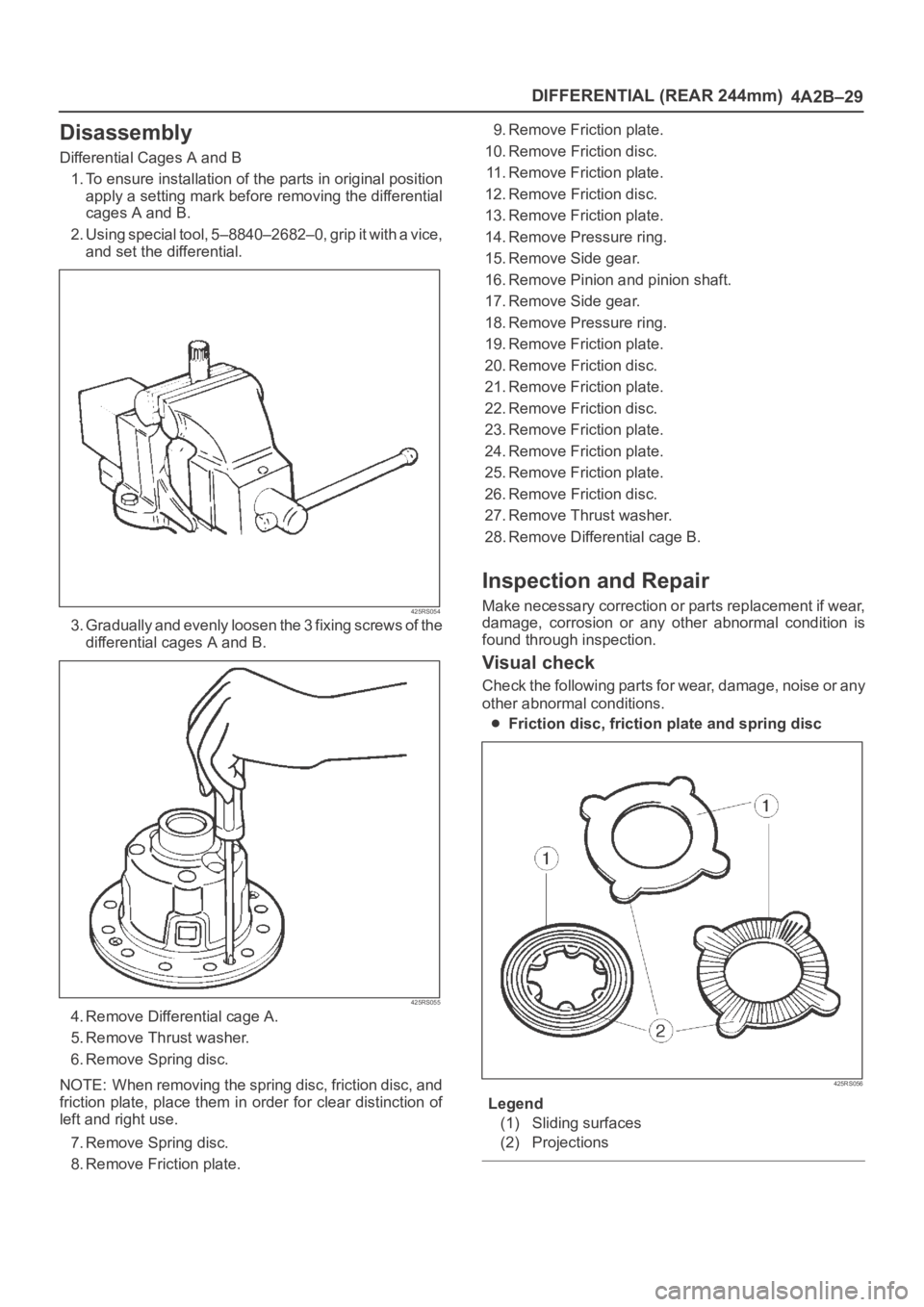

OPEL FRONTERA 1998 Workshop Manual DIFFERENTIAL (REAR 244mm) 4A2B–29 Disassembly Differential Cages A and B 1. To ensure installation of the parts in original position apply a setting mark before removing the differential cages A and

Page 4037 of 6000

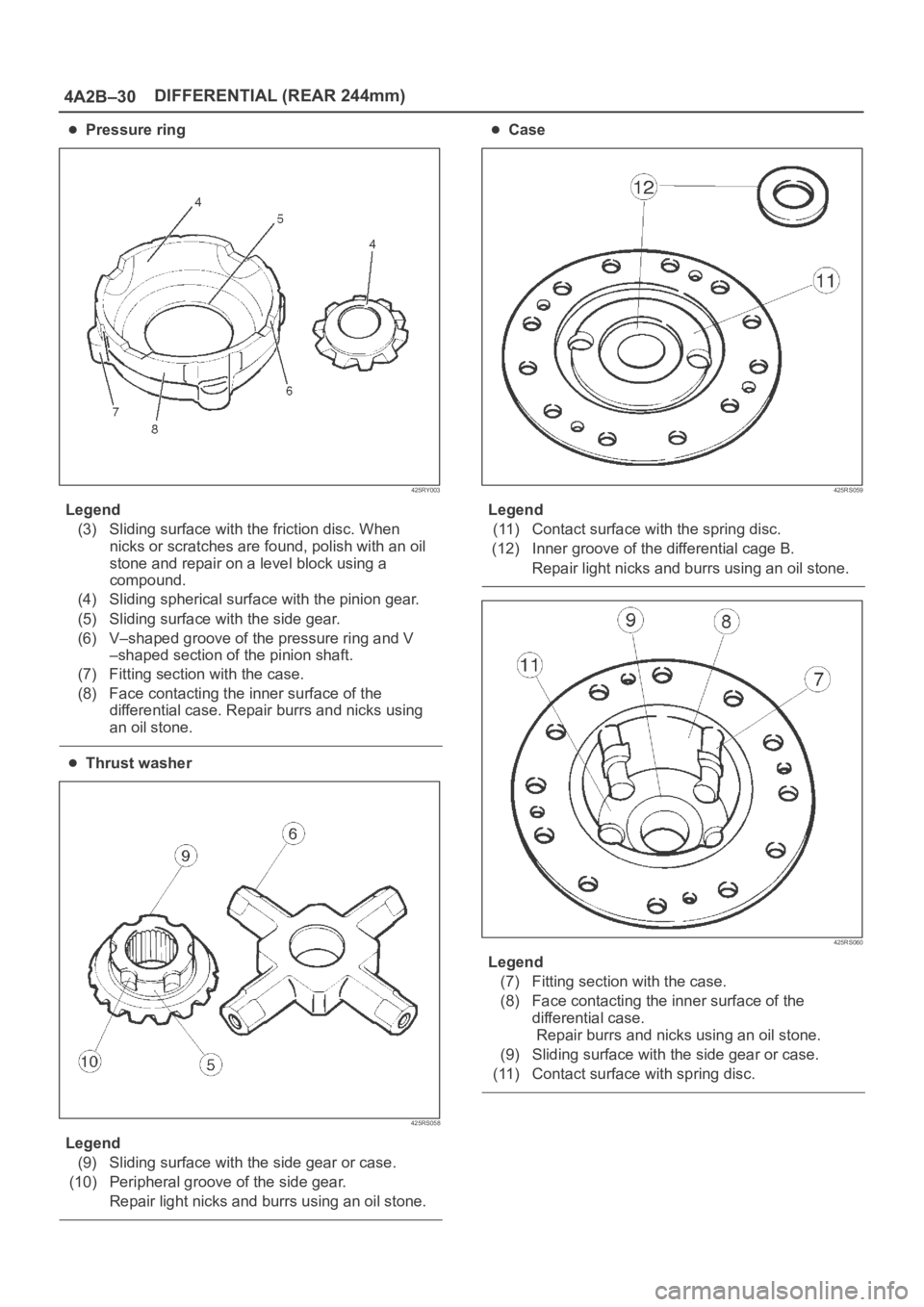

OPEL FRONTERA 1998 Workshop Manual 4A2B–30DIFFERENTIAL (REAR 244mm) Pressure ring 425RY003 Legend (3) Sliding surface with the friction disc. When nicks or scratches are found, polish with an oil stone and repair on a level block usi

Page 4038 of 6000

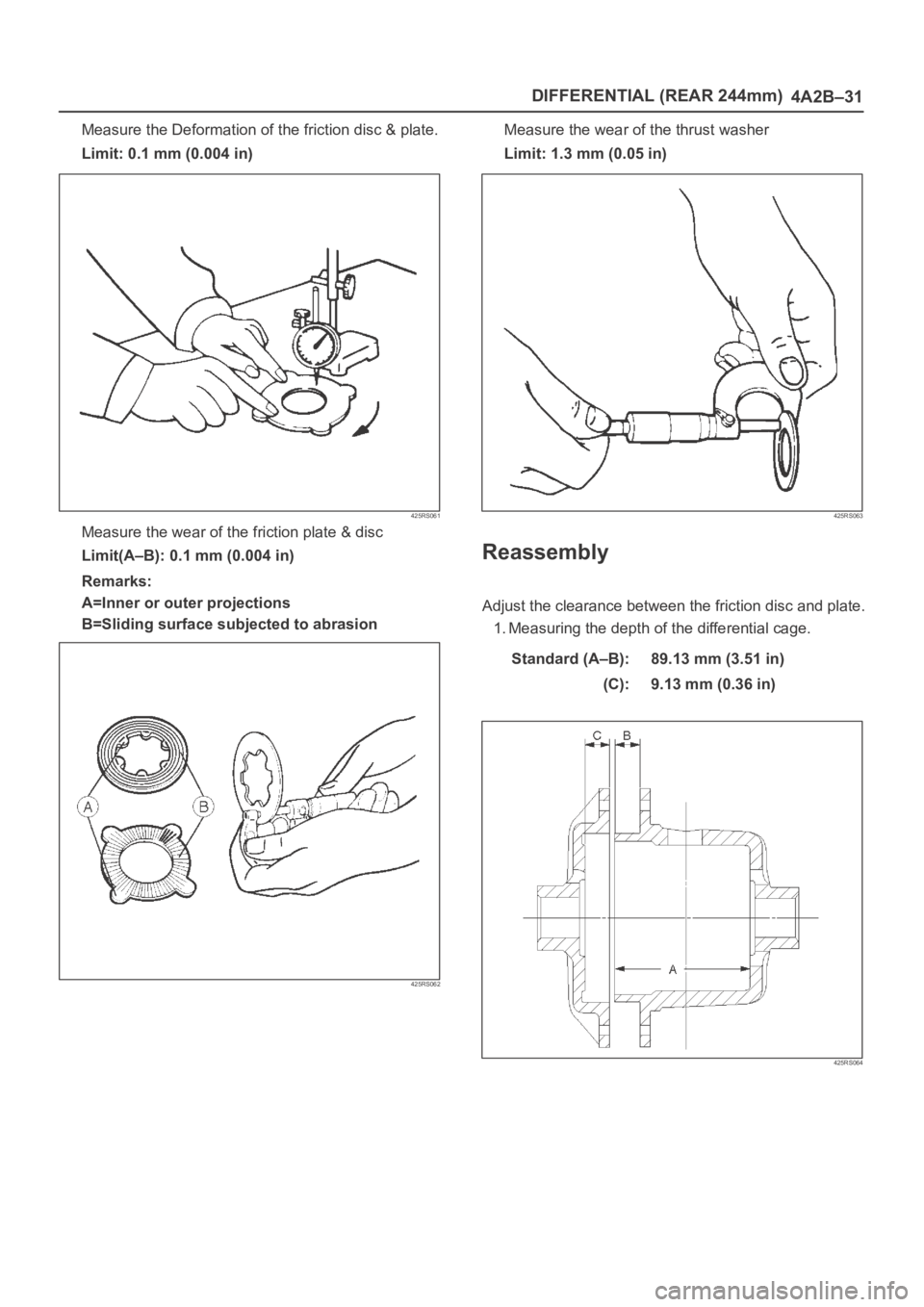

OPEL FRONTERA 1998 Workshop Manual DIFFERENTIAL (REAR 244mm) 4A2B–31 Measure the Deformation of the friction disc & plate. Limit: 0.1 mm (0.004 in) 425RS061 Measure the wear of the friction plate & disc Limit(A–B): 0.1 mm (0.004 in

Page 4039 of 6000

OPEL FRONTERA 1998 Workshop Manual 4A2B–32DIFFERENTIAL (REAR 244mm) 2. Measuring the overall length of the pressurering, friction disc and friction plate. Mount the pinion shaft in the pressurering and then install the friction

Page 4040 of 6000

OPEL FRONTERA 1998 Workshop Manual DIFFERENTIAL (REAR 244mm) 4A2B–33 3. After measuring dimensions of each of the above sections, proceed with the adjustment in the following manner: Adjust the clearance to satisfy the equatio
