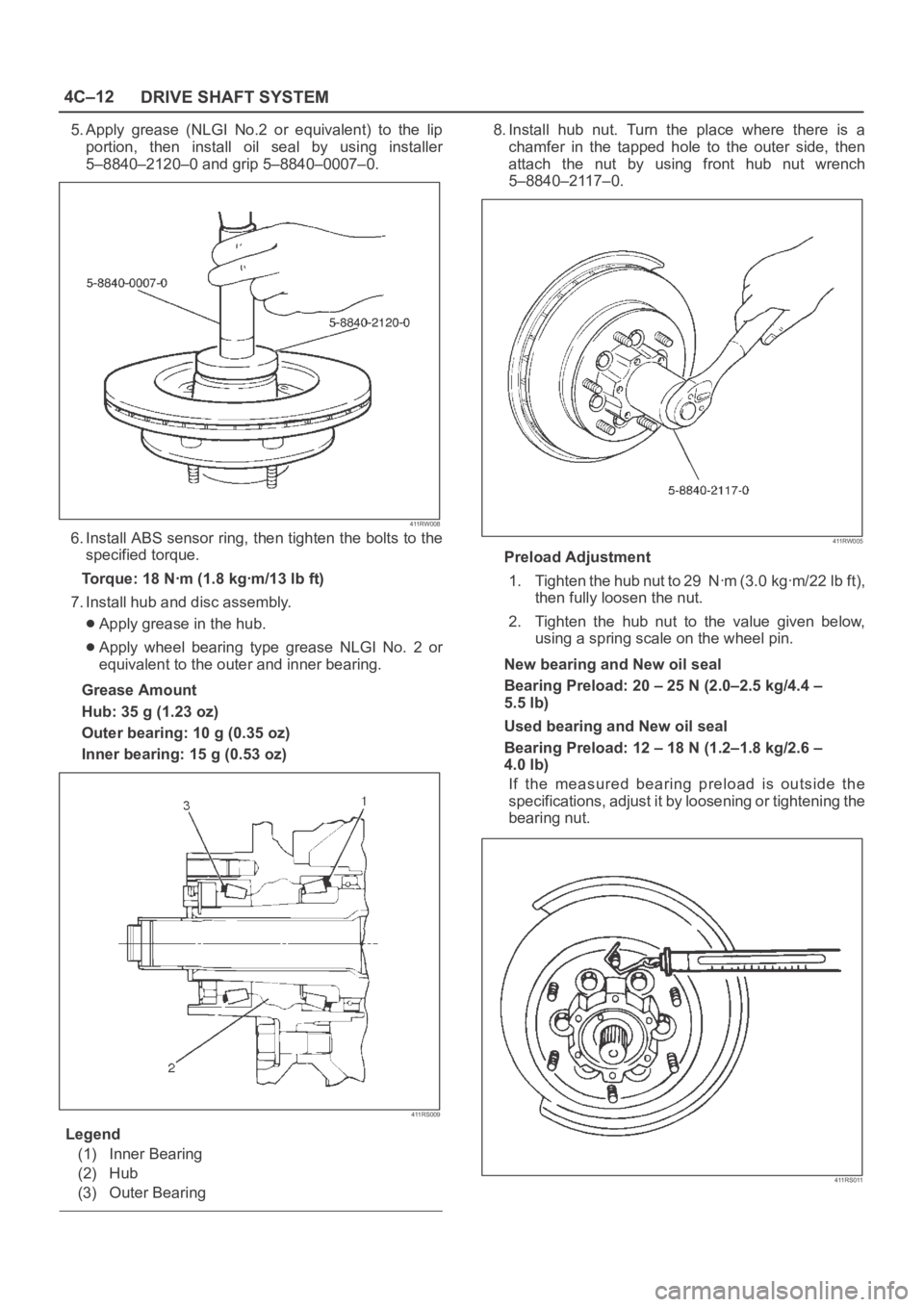

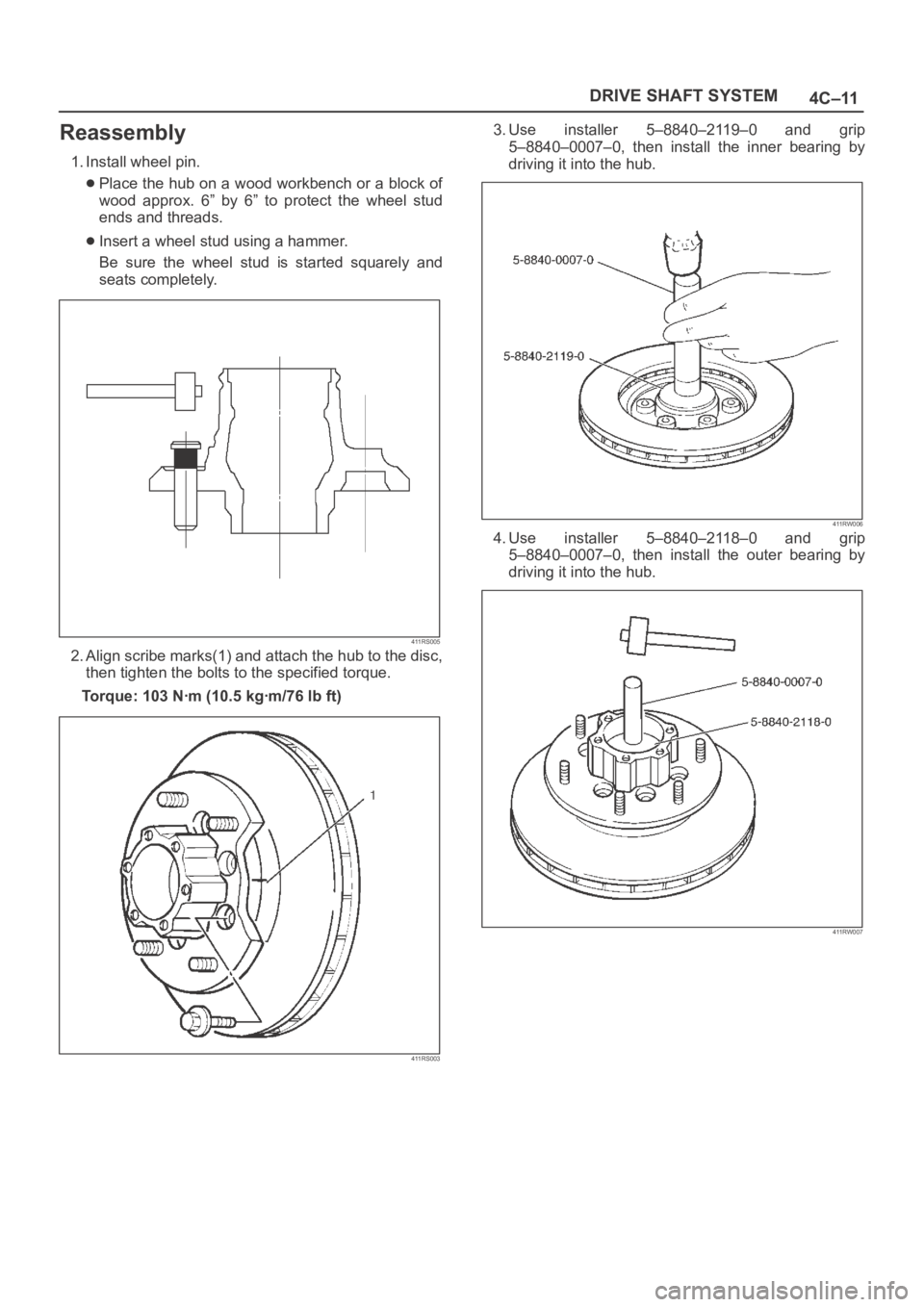

OPEL FRONTERA 1998 Workshop Manual 4C–11 DRIVE SHAFT SYSTEM Reassembly 1. Install wheel pin. Place the hub on a wood workbench or a block of wood approx. 6” by 6” to protect the wheel stud ends and threads. Insert a whee

Page 4218 of 6000

OPEL FRONTERA 1998 Workshop Manual 4C–12 DRIVE SHAFT SYSTEM 5. Apply grease (NLGI No.2 or equivalent) to the lip portion, then install oil seal by using installer 5–8840–2120–0 and grip 5–8840–0007–0. 411RW0

Page 4219 of 6000

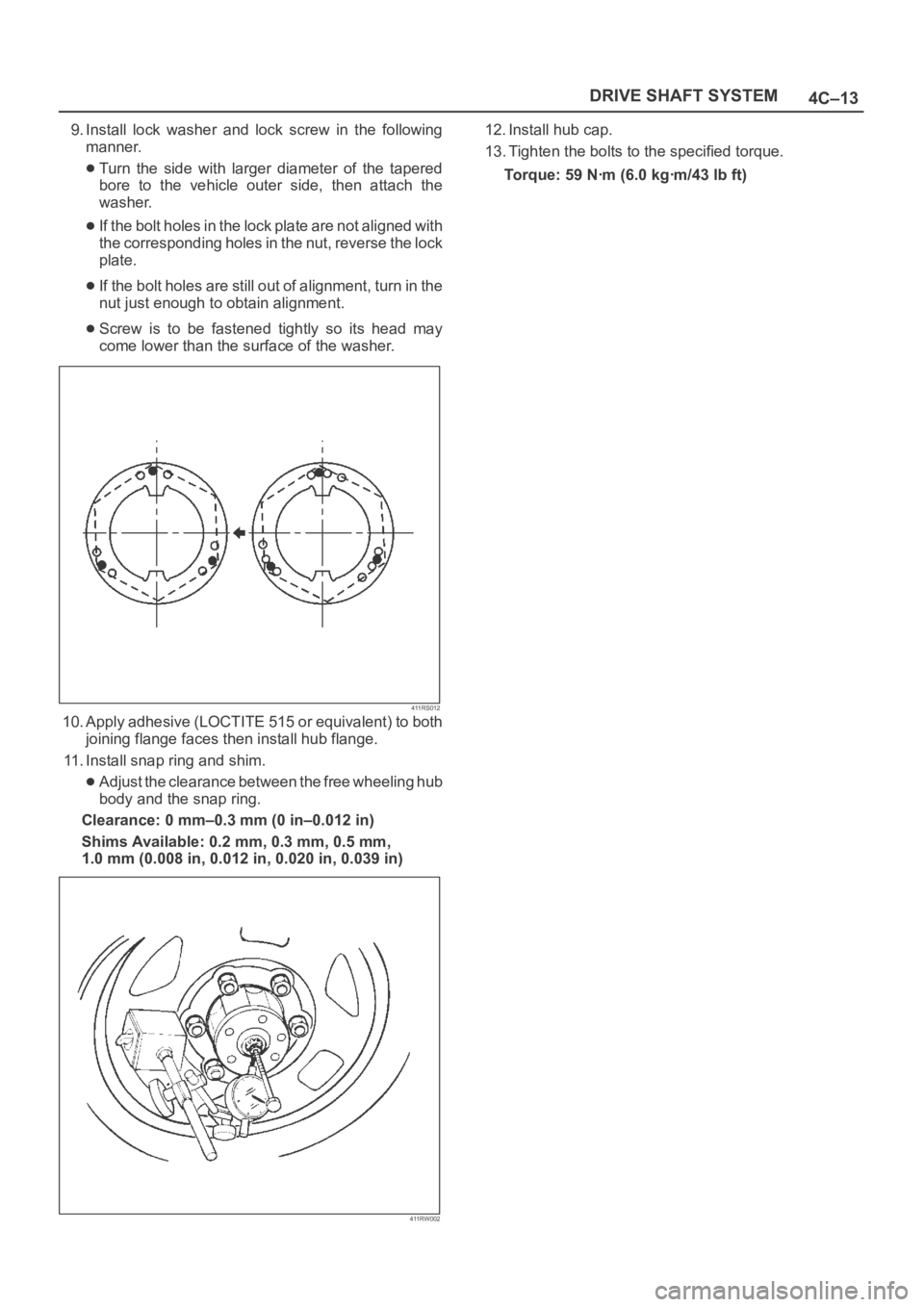

OPEL FRONTERA 1998 Workshop Manual 4C–13 DRIVE SHAFT SYSTEM 9. Install lock washer and lock screw in the following manner. Turn the side with larger diameter of the tapered bore to the vehicle outer side, then

Page 4220 of 6000

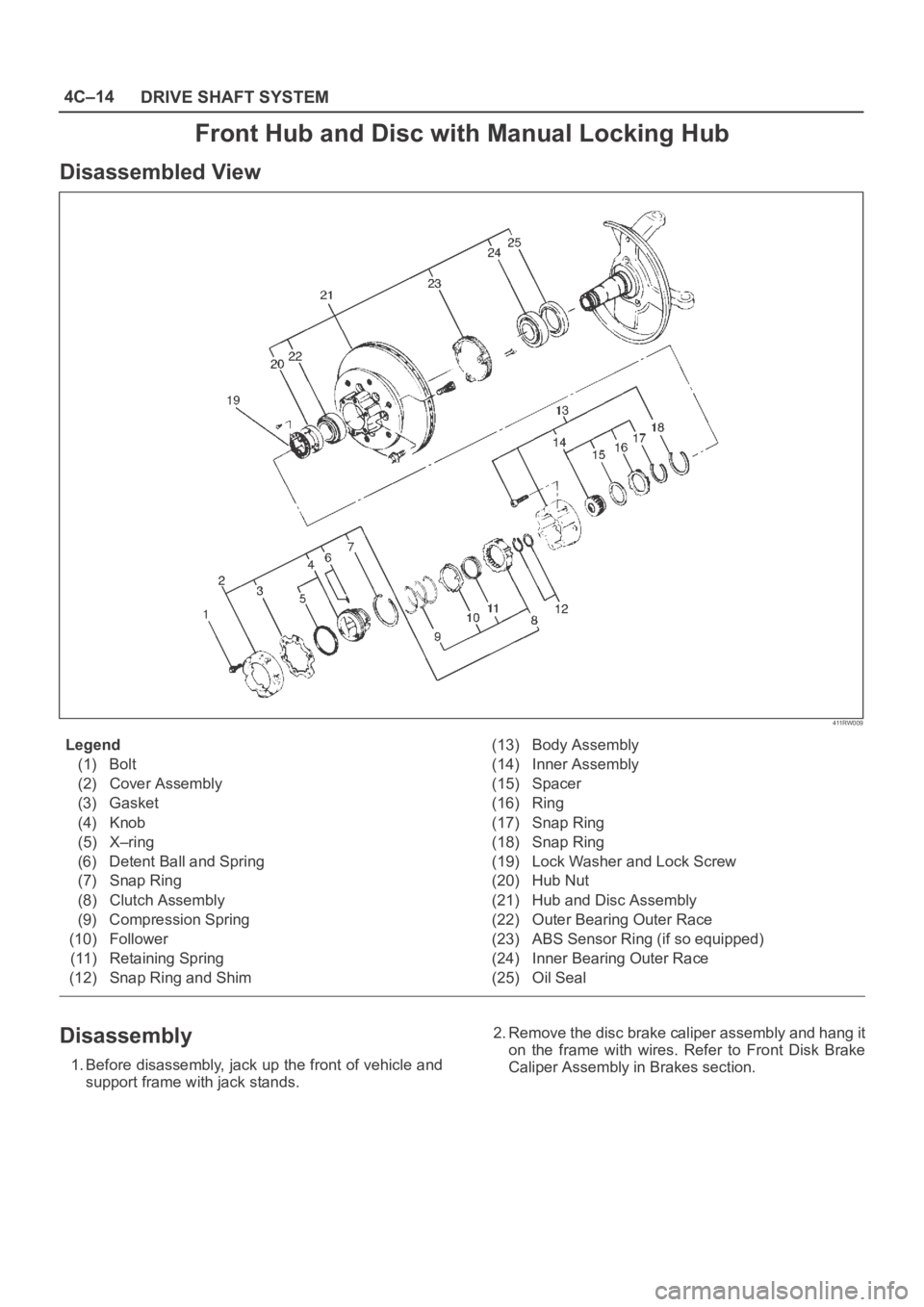

OPEL FRONTERA 1998 Workshop Manual 4C–14 DRIVE SHAFT SYSTEM Front Hub and Disc with Manual Locking Hub Disassembled View 411RW009 Legend (1) Bolt (2) Cover Assembly (3) Gasket (4) Knob (5) X–ring (6) Detent Ball and Spring (7) Snap

Page 4221 of 6000

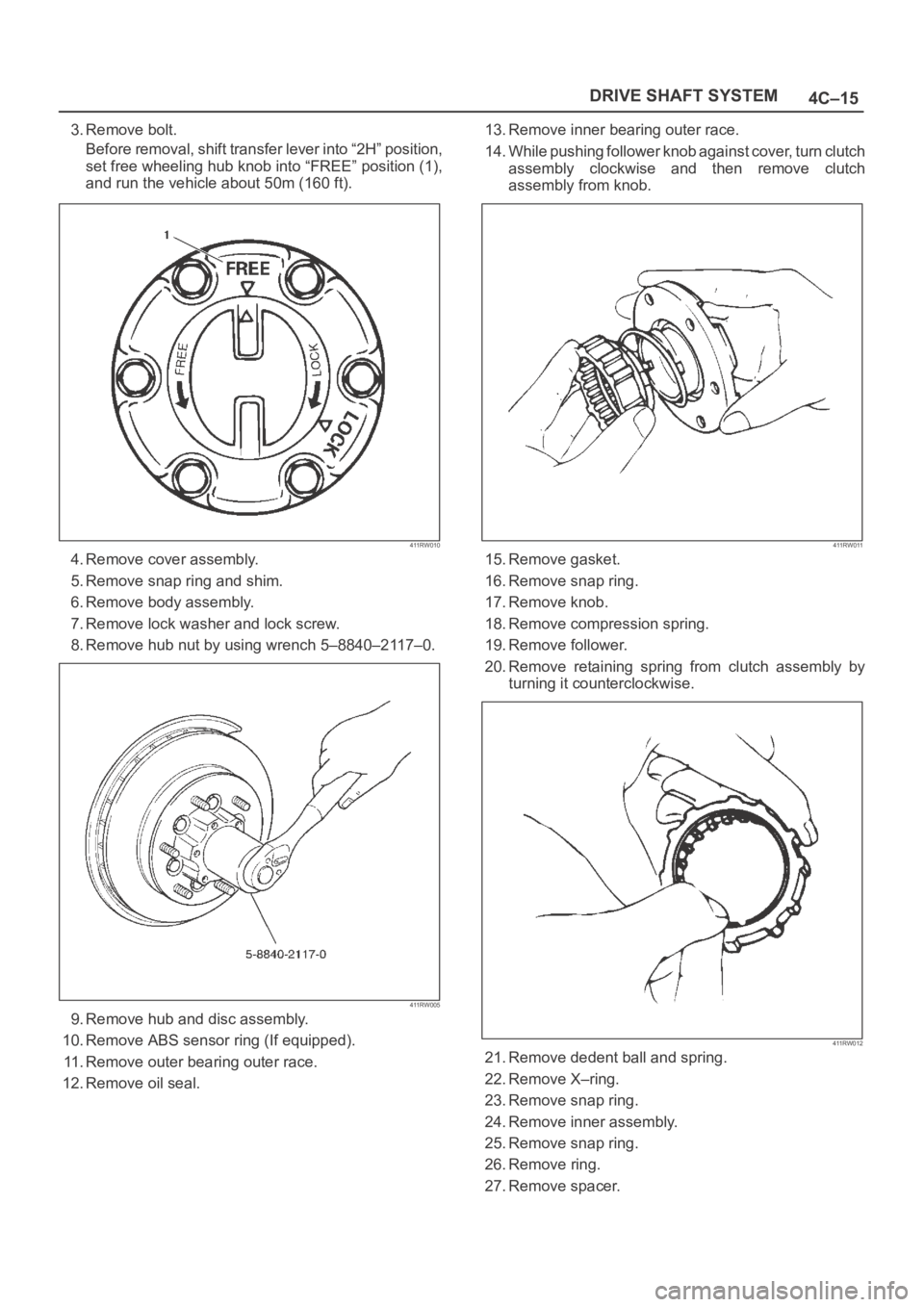

OPEL FRONTERA 1998 Workshop Manual 4C–15 DRIVE SHAFT SYSTEM 3. Remove bolt. Before removal, shift transfer lever into “2H” position, set free wheeling hub knob into “FREE” position (1), and run the vehicle about 50m (160 ft).

Page 4222 of 6000

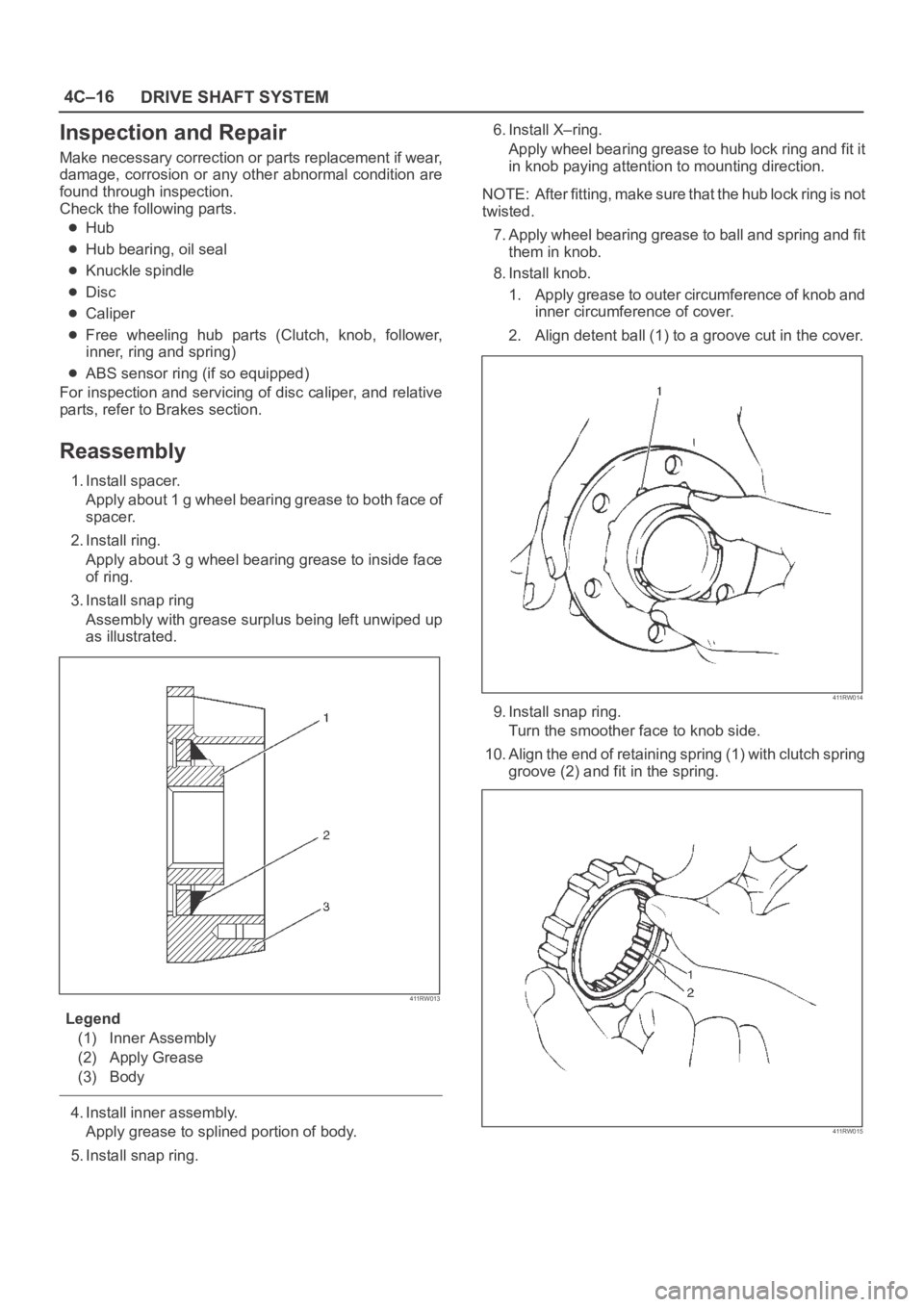

OPEL FRONTERA 1998 Workshop Manual 4C–16 DRIVE SHAFT SYSTEM Inspection and Repair Make necessary correction or parts replacement if wear, damage, corrosion or any other abnormal condition are found through inspection. Check the foll

Page 4223 of 6000

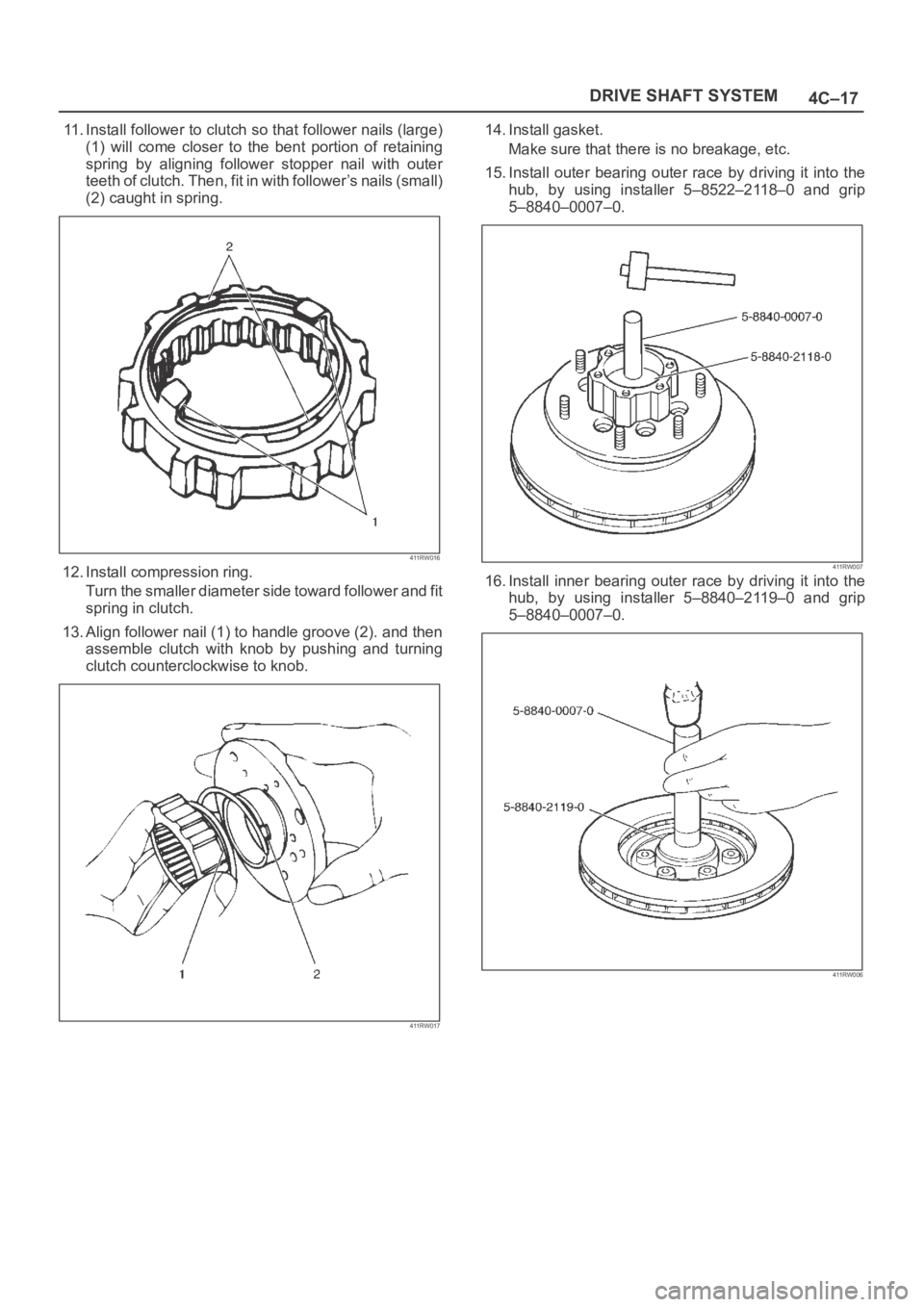

OPEL FRONTERA 1998 Workshop Manual 4C–17 DRIVE SHAFT SYSTEM 11. Install follower to clutch so that follower nails (large) (1) will come closer to the bent portion of retaining spring by aligning follower stopper nail wi

Page 4224 of 6000

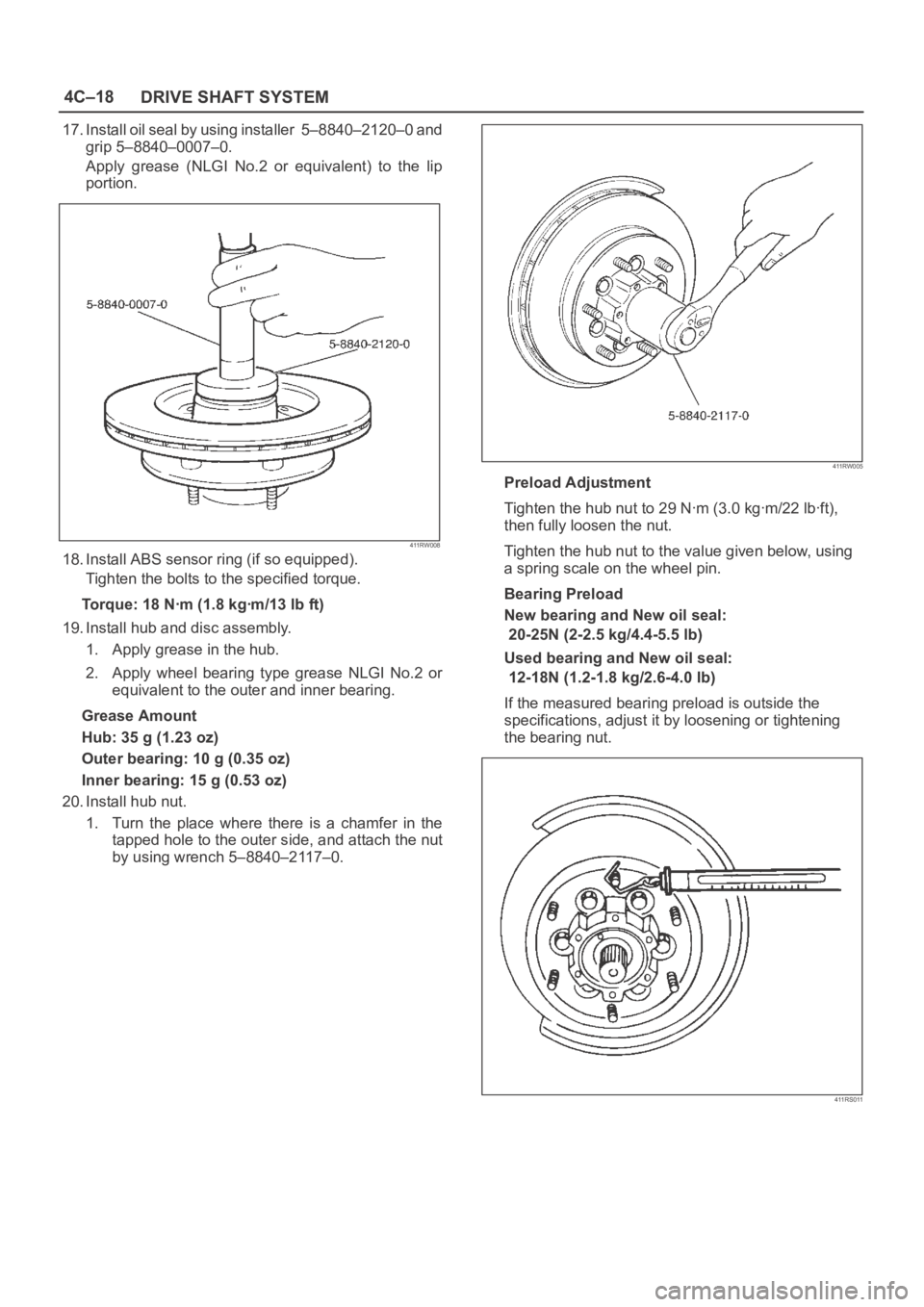

OPEL FRONTERA 1998 Workshop Manual 4C–18 DRIVE SHAFT SYSTEM 17. Install oil seal by using installer 5–8840–2120–0 and grip 5–8840–0007–0. Apply grease (NLGI No.2 or equivalent) to the lip portion. 411RW008 18. In
