Page 5793 of 6000

OPEL FRONTERA 1998 Workshop Manual 7A–12 AUTOMATIC TRANSMISSION (AW30-40LE) OVERDRIVE AND LOCK-UP OPERATING CONDITIONS The overdrive and lock-up clutch operate if the following conditions are satisfied. (1*): If transmission oil t

Page 5794 of 6000

OPEL FRONTERA 1998 Workshop Manual AUTOMATIC TRANSMISSION (AW30-40LE) 7A–13 DIAGNOSIS BASIC TROUBLESHOOTING AW30-40LE transmission, called Electronic Controlled Transmission (ECT), differs from oil pressure control type t

Page 5795 of 6000

OPEL FRONTERA 1998 Workshop Manual 7A–14 AUTOMATIC TRANSMISSION (AW30-40LE) 821RY00012 F07LV002 740RY00013 740RY00014 SELF-DIAGNOSIS Warning to the driver • When trouble has occurred to throttle position sensor, output revolution

Page 5796 of 6000

OPEL FRONTERA 1998 Workshop Manual AUTOMATIC TRANSMISSION (AW30-40LE) 7A–15 F07LV001 Indication Method: 1.Terminals No. 11 are No. 4 or 5 (ground) of data link connector are short circuited. 2. Turn the ignition key to the ON positio

Page 5797 of 6000

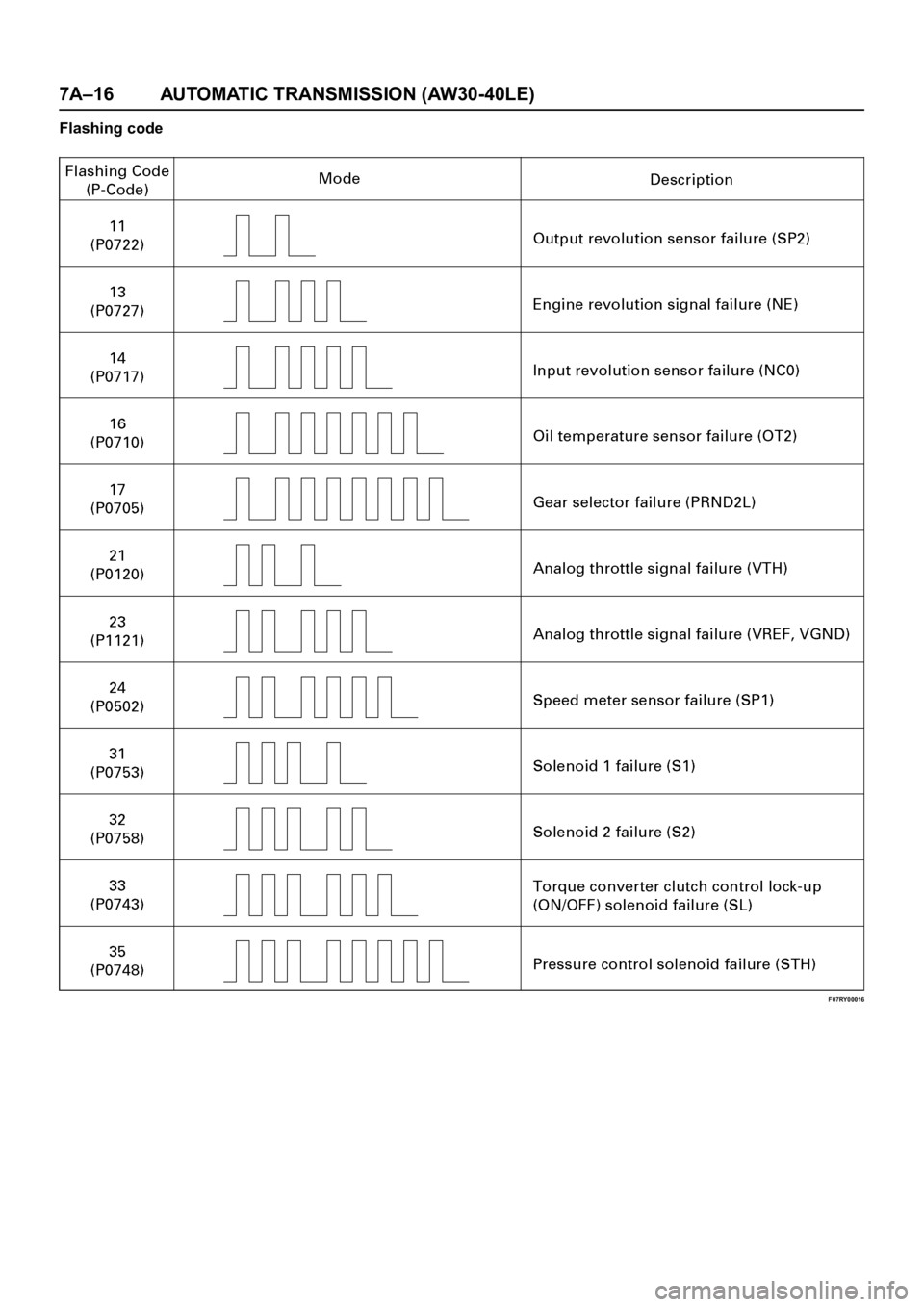

OPEL FRONTERA 1998 Workshop Manual 7A–16 AUTOMATIC TRANSMISSION (AW30-40LE) Flashing code F07RY00016

Page 5798 of 6000

OPEL FRONTERA 1998 Workshop Manual AUTOMATIC TRANSMISSION (AW30-40LE) 7A–17 DIAGNOSIS WITH TECH2 In this AW30-40LE transmission, troubleshooting can be performed for electrical faults using the Tech2 scan tool. If the CHECK TRA

Page 5799 of 6000

OPEL FRONTERA 1998 Workshop Manual 7A–18 AUTOMATIC TRANSMISSION (AW30-40LE) 901RW176 F07RW033 740RY00013 740RY00014 901RY00014 TECH2 CONNECTION The Tech2 scan tool is used to electrically diagnose the automatic transmission

Page 5800 of 6000

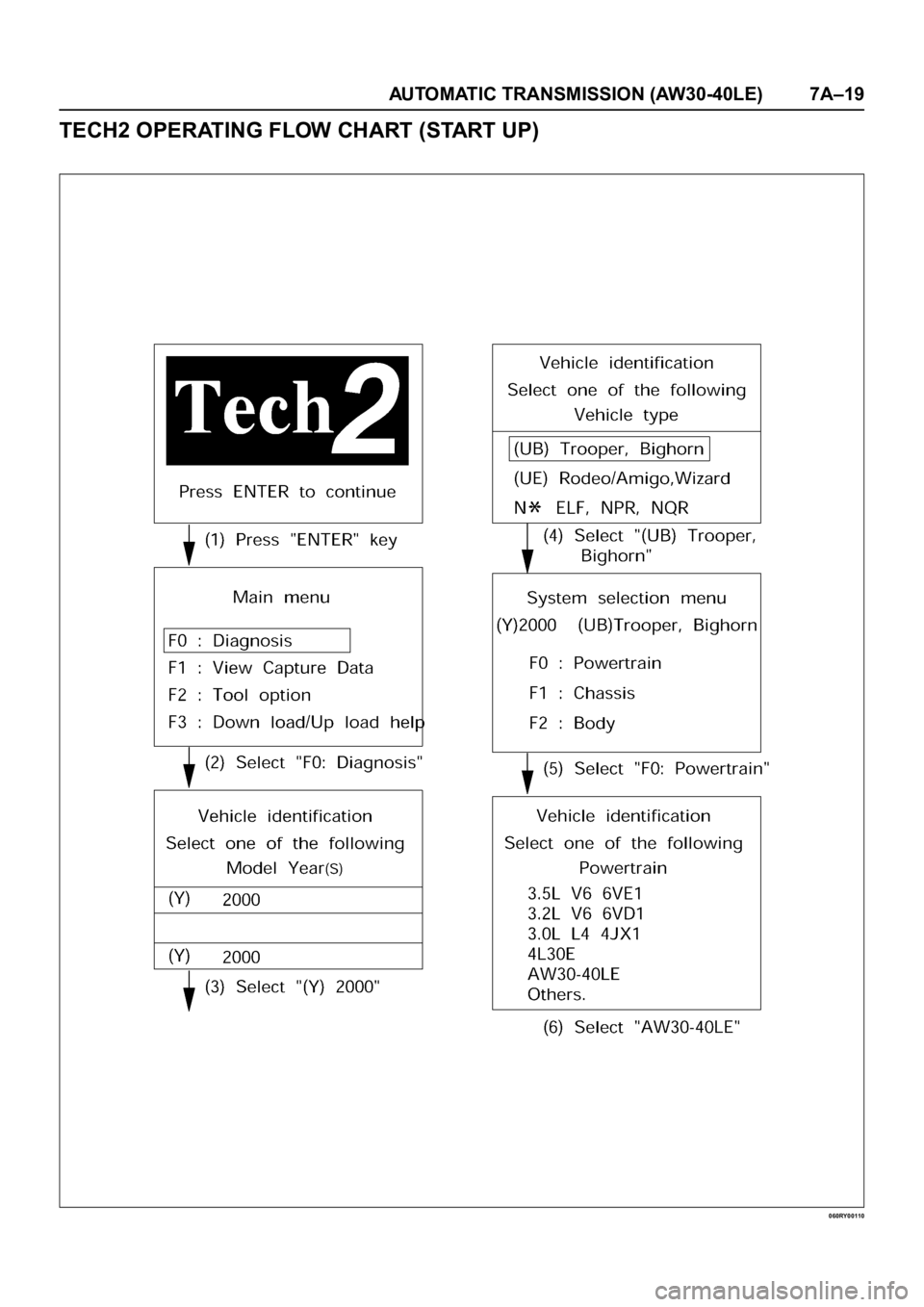

OPEL FRONTERA 1998 Workshop Manual AUTOMATIC TRANSMISSION (AW30-40LE) 7A–19 TECH2 OPERATING FLOW CHART (START UP) 060RY00110
