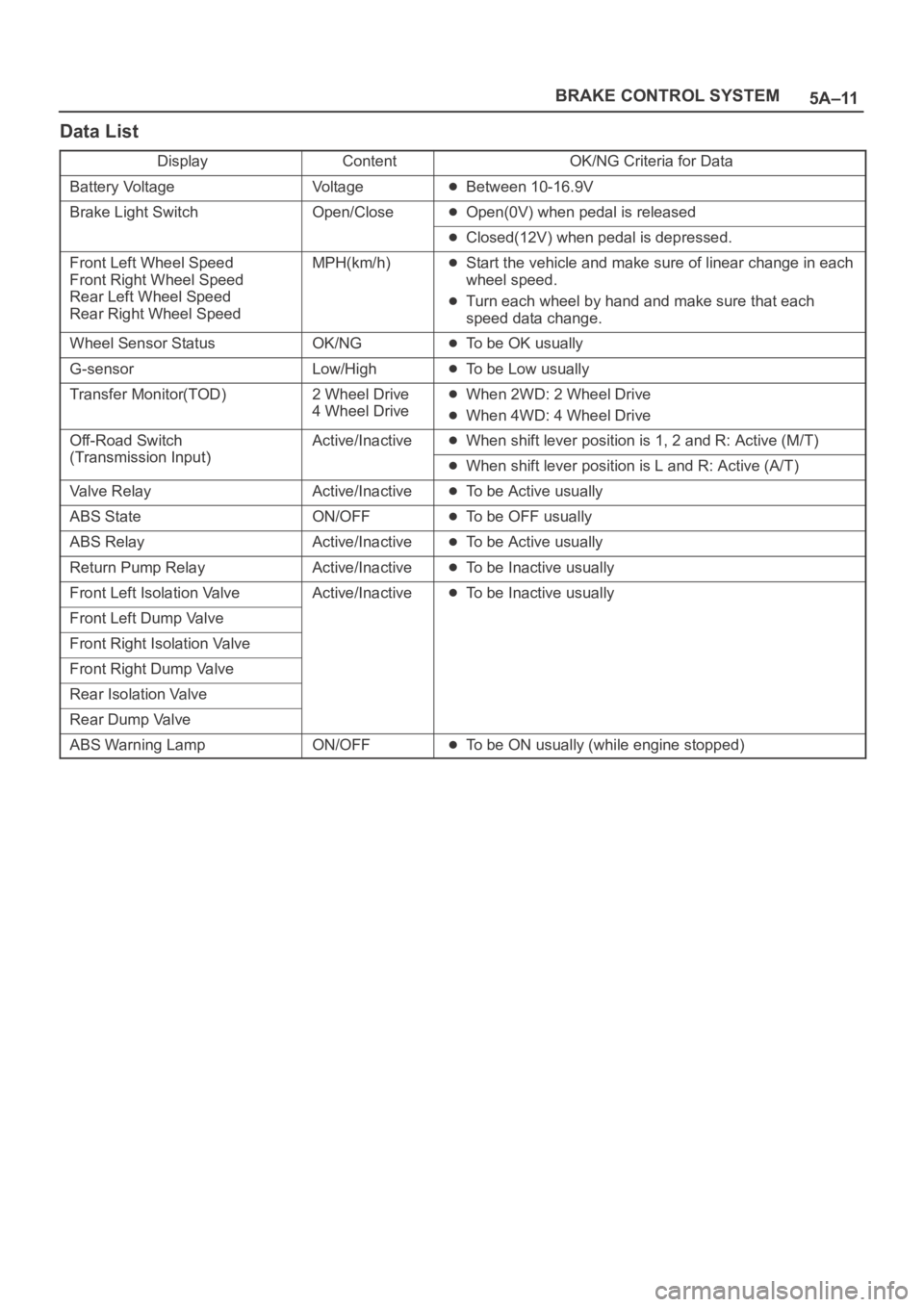

OPEL FRONTERA 1998 Workshop Manual 5A–11 BRAKE CONTROL SYSTEM Data List DisplayContentOK/NG Criteria for Data Battery VoltageVo l t a g eBetween 10-16.9V Brake Light SwitchOpen/CloseOpen(0V) when pedal is released Closed(12V) when pe

Page 4362 of 6000

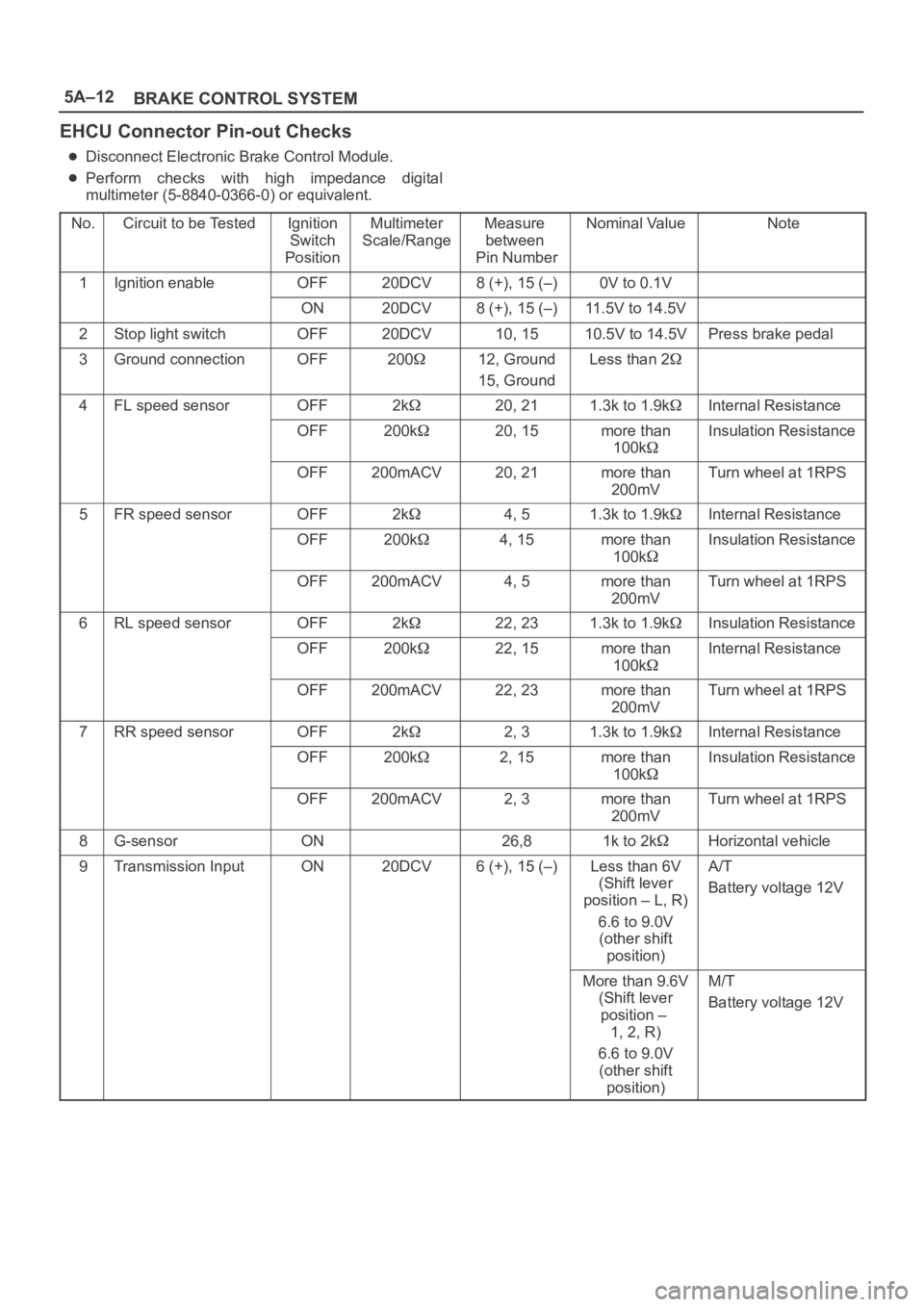

OPEL FRONTERA 1998 Workshop Manual 5A–12 BRAKE CONTROL SYSTEM EHCU Connector Pin-out Checks Disconnect Electronic Brake Control Module. Perform checks with high impedance digital multimeter (5-8840-0366-0) or equivalent. No. Cir

Page 4363 of 6000

OPEL FRONTERA 1998 Workshop Manual 5A–13 BRAKE CONTROL SYSTEM Circuit Diagram (LHD model / 6VD1 and 4JG2) D08RW793

Page 4364 of 6000

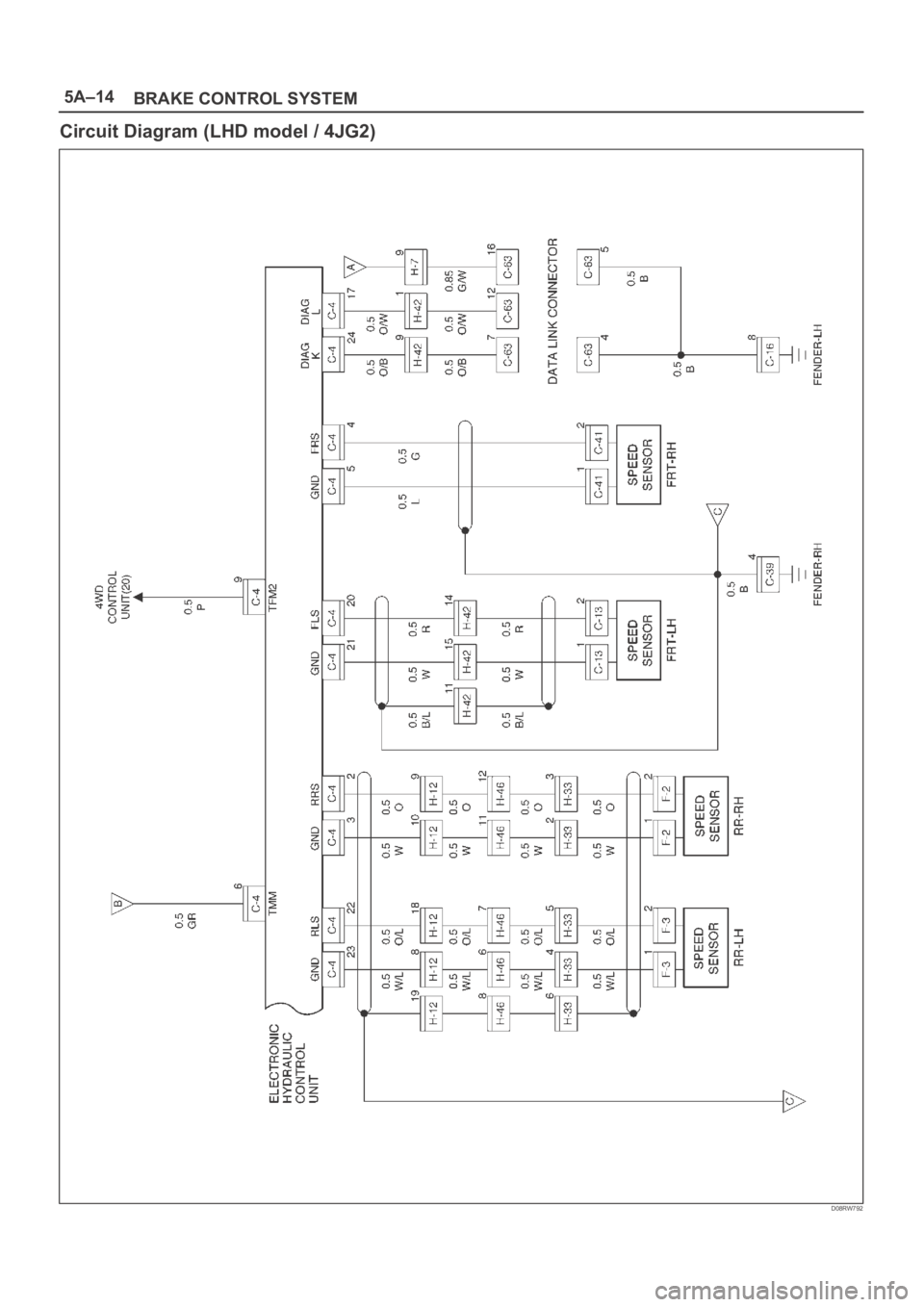

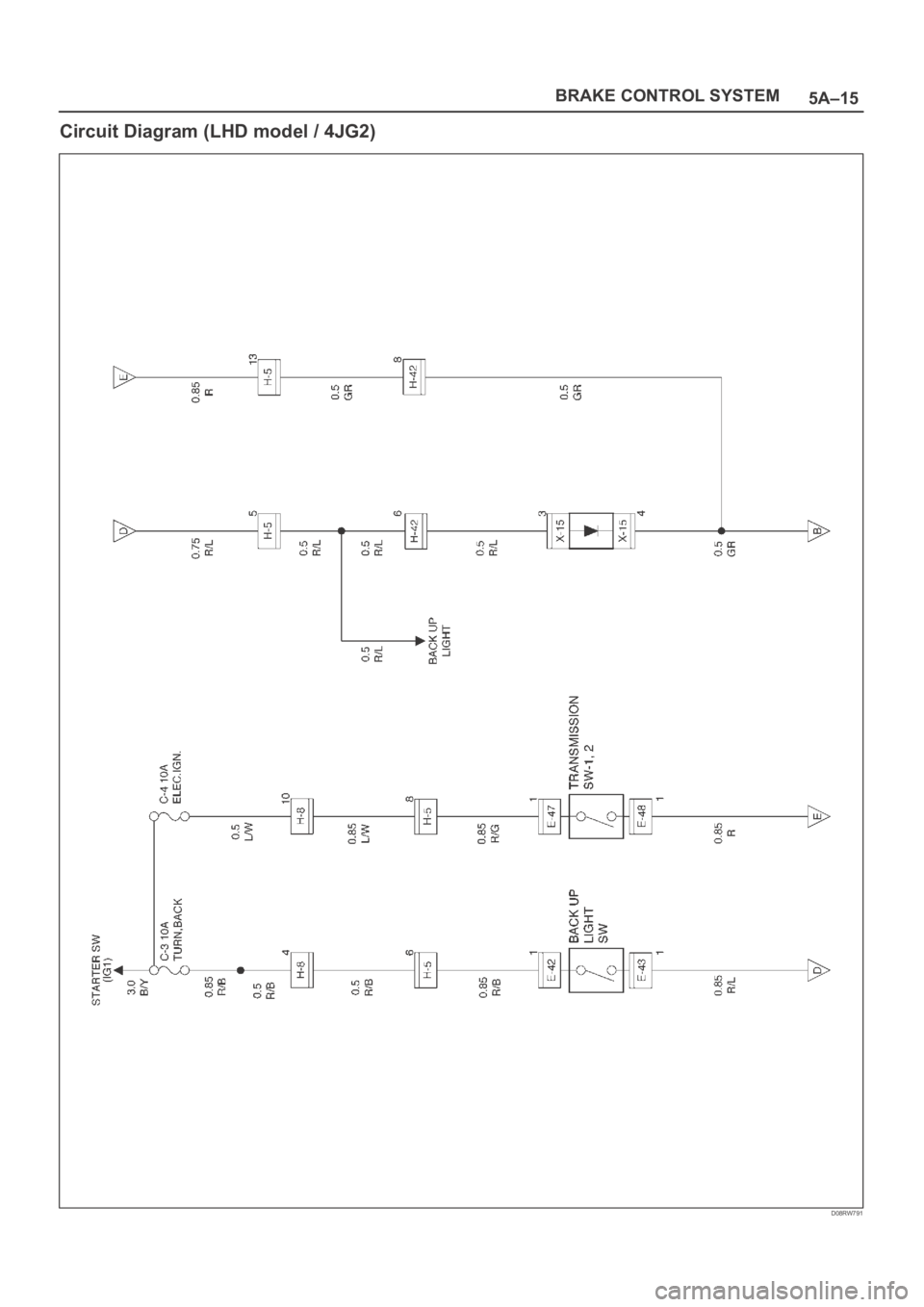

OPEL FRONTERA 1998 Workshop Manual 5A–14 BRAKE CONTROL SYSTEM Circuit Diagram (LHD model / 4JG2) D08RW792

Page 4365 of 6000

OPEL FRONTERA 1998 Workshop Manual 5A–15 BRAKE CONTROL SYSTEM Circuit Diagram (LHD model / 4JG2) D08RW791

Page 4366 of 6000

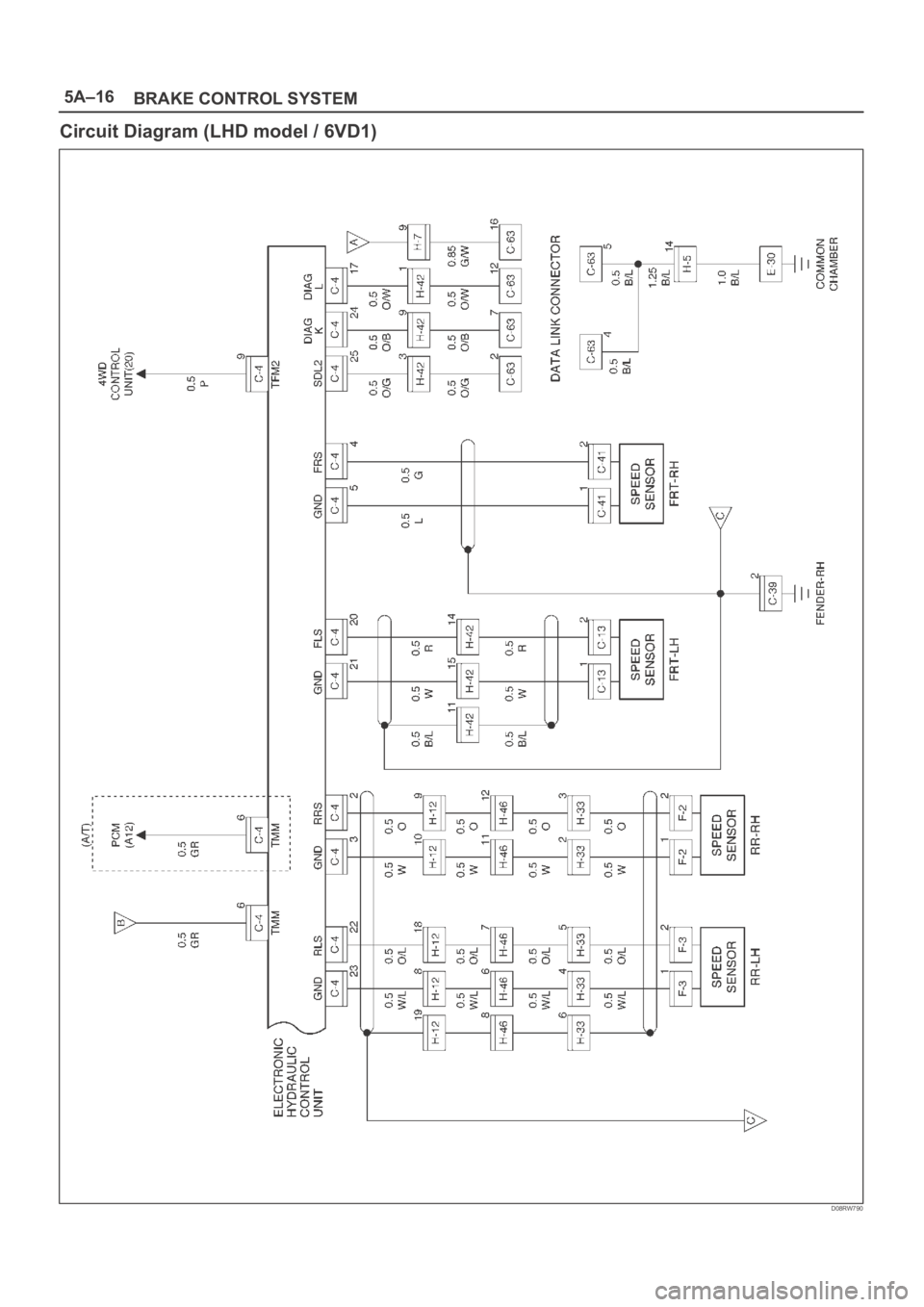

OPEL FRONTERA 1998 Workshop Manual 5A–16 BRAKE CONTROL SYSTEM Circuit Diagram (LHD model / 6VD1) D08RW790

Page 4367 of 6000

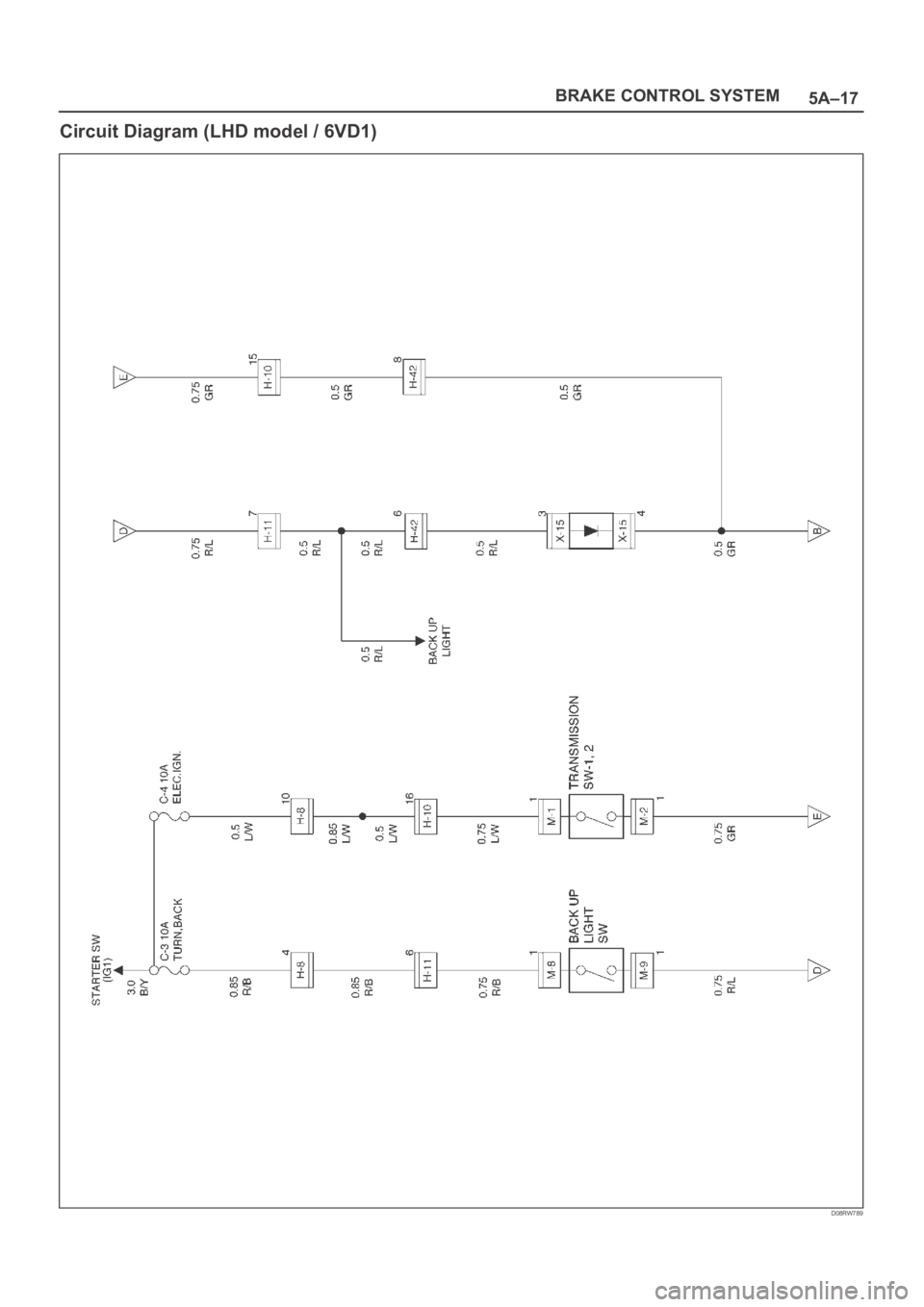

OPEL FRONTERA 1998 Workshop Manual 5A–17 BRAKE CONTROL SYSTEM Circuit Diagram (LHD model / 6VD1) D08RW789

Page 4368 of 6000

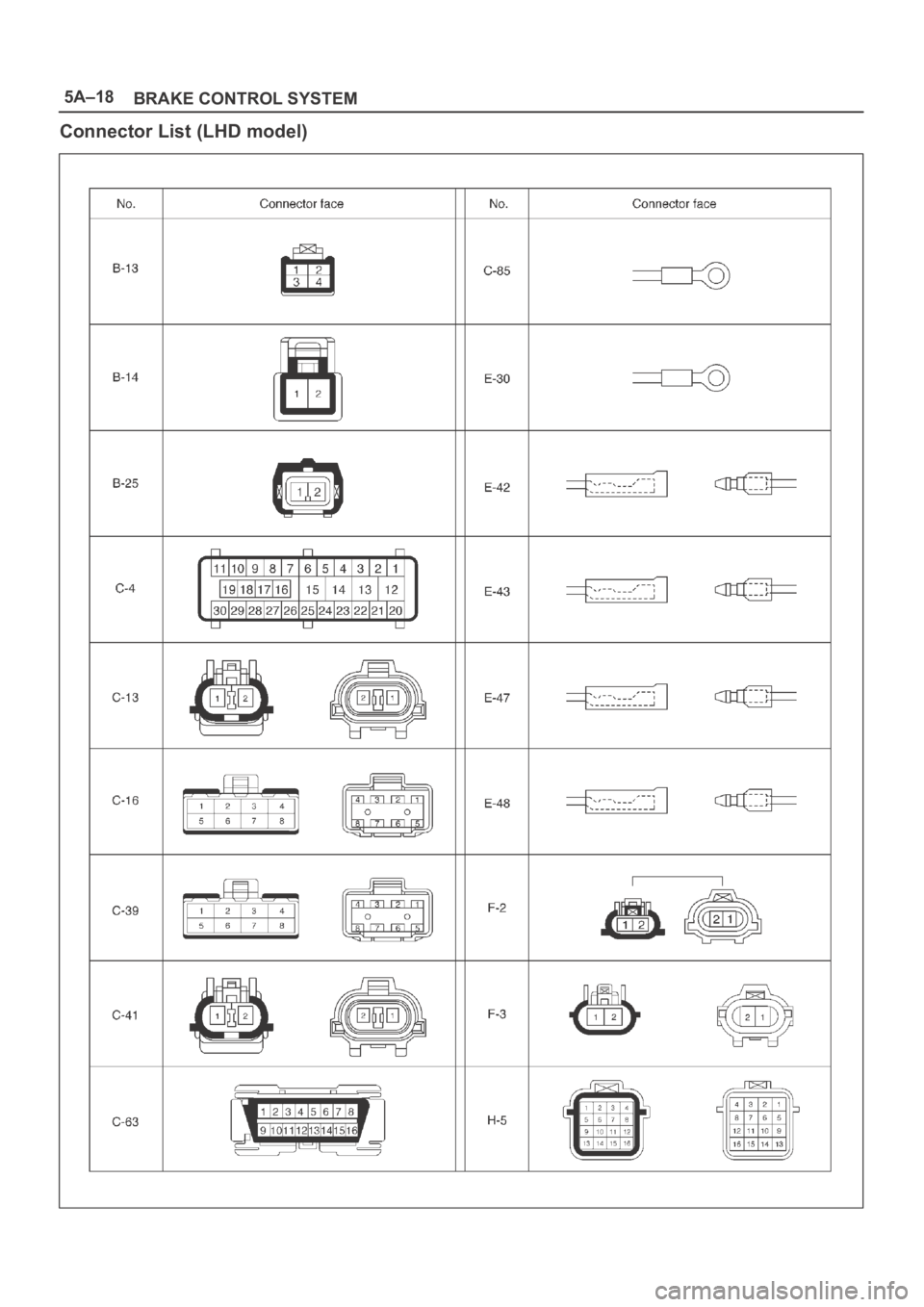

OPEL FRONTERA 1998 Workshop Manual 5A–18 BRAKE CONTROL SYSTEM Connector List (LHD model)
