Page 3329 of 6000

SEATS8G–17
Disassembly (Split Type)
1. Remove the back board.
Remove the clips and the back board.
2. Remove the device cover.
3. Remove the release knob.
Turn the knob counterclockwise to remove it.
4. Remove the release rod.
Disconnect the rod from the linkage bush.
5. Remove the reclining device.
755RS004
6. Remove the connecting shaft.
7. Remove the seat back assembly.
8. Remove the pillow assembly.
Turn up the seat back trim cover and slit the pad
from the back around to the place where the lock
spring(2) of the guide bush(1) is.
Then insert a finger through the slit and pull out the
pillow while you are pressing down on the lock spring.
755RS017
9. Remove the band hook cover.
10. Remove the armrest assembly.
Turn up the seat back trim cover and remove the
fixing nuts.
11. Remove the armrest set bracket.
12. Remove the armrest board.
13. Remove the trim cover.
Remove the trim cover fixing hog rings from the
backside of the seat back.
With close attention paid to the hog rings and the
wire which connect the trim cover and the pad and
frame assembly, remove the trim cover while
turning it up.
14. Remove the pad & frame assembly.
15. Remove the seat cushion assembly.
16. Remove the seat lock cover.
17. Remove the rear seat belt buckle and lock assembly.
18. Remove the mounting bracket.
19. Remove the return spring.
20. Remove the spring collar.
21. Remove the trim cover.
Remove the hog rings and pull the trim cover out
from the frame assembly groove.
With close attention paid to the hog rings and the
wire which connect the trim cover and the pad &
frame assembly, remove the trim cover while
turning it up.
22. Remove the frame assembly.
23. Remove the pad assembly.
24. Remove the stopper rubber.
Page 3330 of 6000
8G–18SEATS

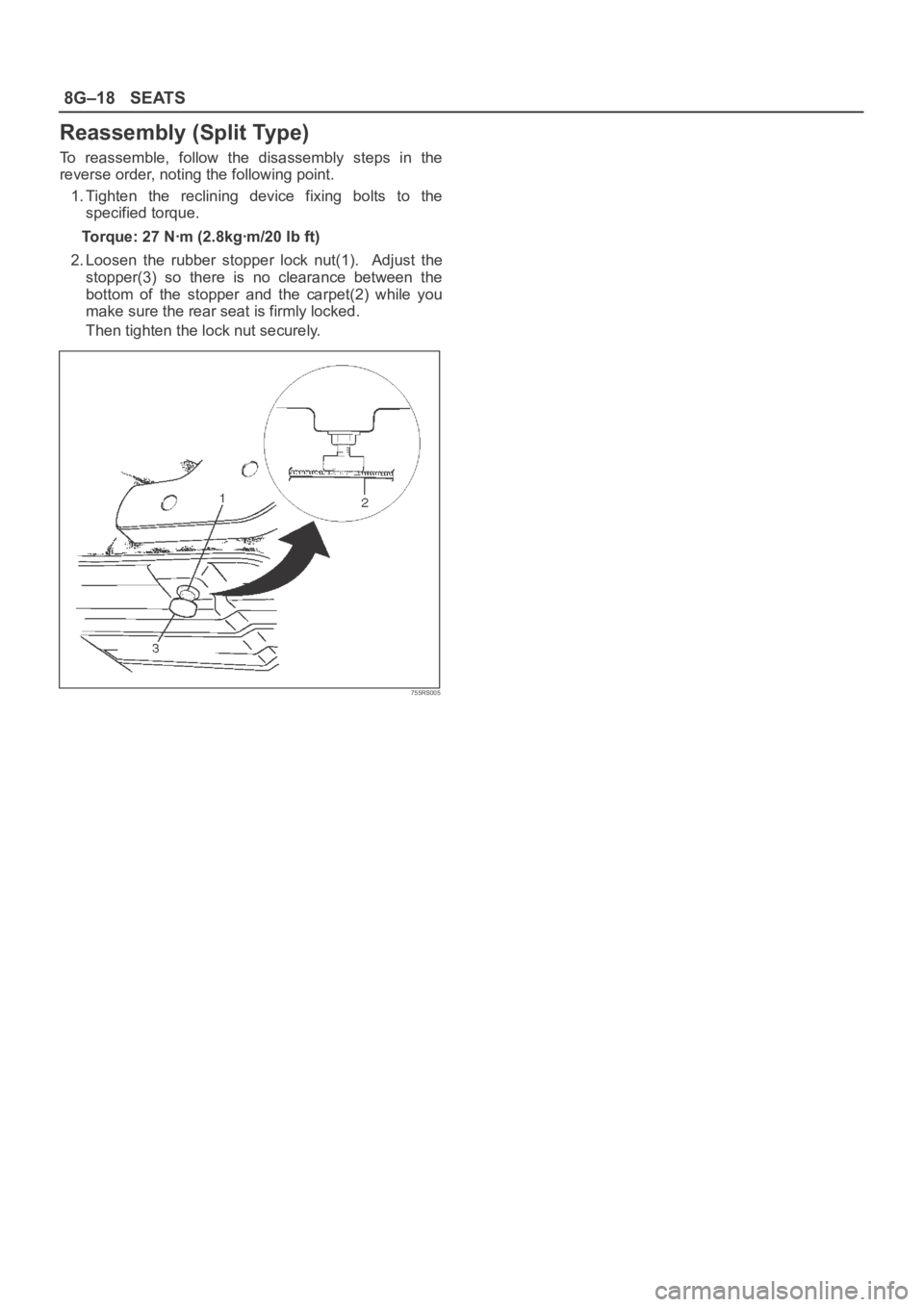

Reassembly (Split Type)
To reassemble, follow the disassembly steps in the
reverse order, noting the following point.
1. Tighten the reclining device fixing bolts to the
specified torque.
Torque: 27 Nꞏm (2.8kgꞏm/20 lb ft)
2. Loosen the rubber stopper lock nut(1). Adjust the
stopper(3) so there is no clearance between the
bottom of the stopper and the carpet(2) while you
make sure the rear seat is firmly locked.
Then tighten the lock nut securely.
755RS005
Page 3331 of 6000
SEATS8G–19
Disassembled View (Short Wheel Base)
755RW036
Legend
(1) Back Board
(2) Release Knob
(3) Release Rod
(4) Device Cover
(5) Reclining Device
(6) Linkage Bush
(7) Pillow Assembly
(8) Pad & Frame Assembly
(9) Armrest Board
(10) Clip
(11) Band Hook Cover
(12) Trim Cover(13) Armrest Set Bracket
(14) Bush
(15) Armrest Assembly
(16) Trim Cover
(17) Mounting Bracket
(18) Frame Assembly
(19) Stopper Rubber
(20) Pad Assembly
(21) Seat Lock Cover
(22) Rear seat Belt Bukle and Lock Assembly
(23) Seat Cushion Assembly
(24) Free Hinge Cover
(25) Seat Back Assembly
Disassembly
1. Remove the back board.
Remove the clips and the back board.2. Remove the device cover.
3. Remove the release knob.Turn the knob counterclockwise to remove it.
Page 3332 of 6000

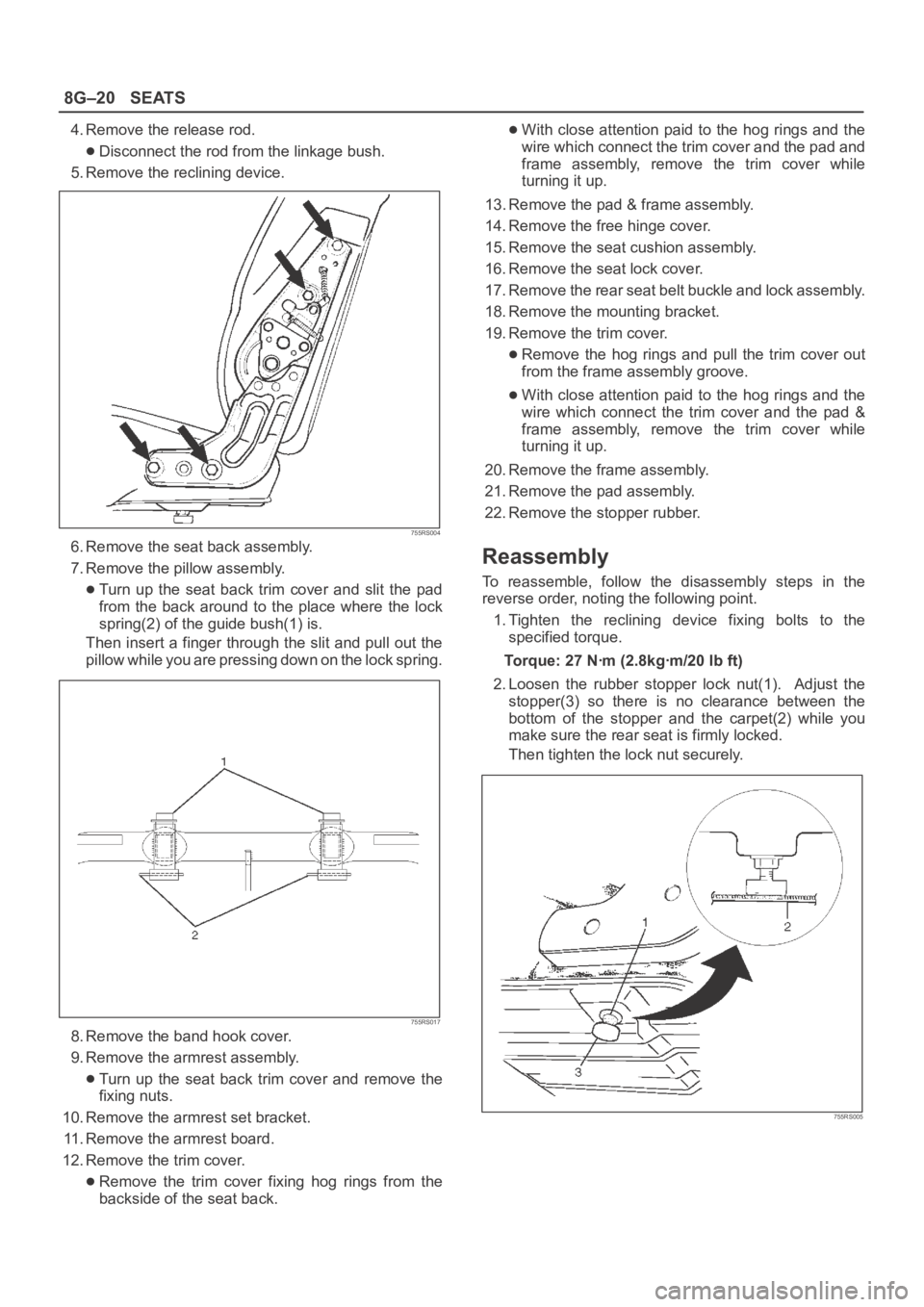

8G–20SEATS
4. Remove the release rod.
Disconnect the rod from the linkage bush.
5. Remove the reclining device.
755RS004
6. Remove the seat back assembly.
7. Remove the pillow assembly.
Turn up the seat back trim cover and slit the pad
from the back around to the place where the lock
spring(2) of the guide bush(1) is.
Then insert a finger through the slit and pull out the
pillow while you are pressing down on the lock spring.
755RS017
8. Remove the band hook cover.
9. Remove the armrest assembly.
Turn up the seat back trim cover and remove the
fixing nuts.
10. Remove the armrest set bracket.
11. Remove the armrest board.
12. Remove the trim cover.
Remove the trim cover fixing hog rings from the
backside of the seat back.
With close attention paid to the hog rings and the
wire which connect the trim cover and the pad and
frame assembly, remove the trim cover while
turning it up.
13. Remove the pad & frame assembly.
14. Remove the free hinge cover.
15. Remove the seat cushion assembly.
16. Remove the seat lock cover.
17. Remove the rear seat belt buckle and lock assembly.
18. Remove the mounting bracket.
19. Remove the trim cover.
Remove the hog rings and pull the trim cover out
from the frame assembly groove.
With close attention paid to the hog rings and the
wire which connect the trim cover and the pad &
frame assembly, remove the trim cover while
turning it up.
20. Remove the frame assembly.
21. Remove the pad assembly.
22. Remove the stopper rubber.
Reassembly
To reassemble, follow the disassembly steps in the
reverse order, noting the following point.
1. Tighten the reclining device fixing bolts to the
specified torque.
Torque: 27 Nꞏm (2.8kgꞏm/20 lb ft)
2. Loosen the rubber stopper lock nut(1). Adjust the
stopper(3) so there is no clearance between the
bottom of the stopper and the carpet(2) while you
make sure the rear seat is firmly locked.
Then tighten the lock nut securely.
755RS005
Page 3333 of 6000
SEATS8G–21

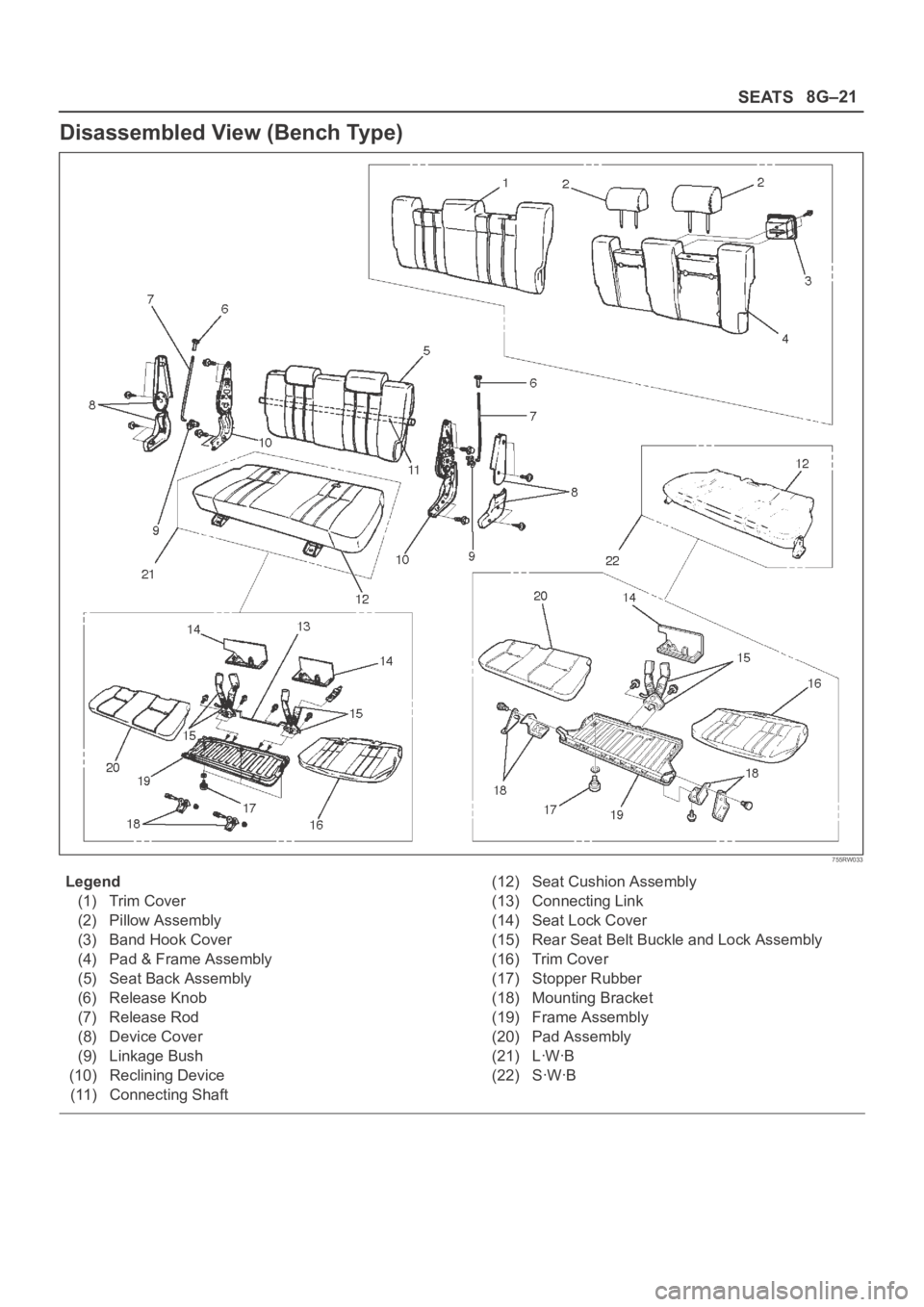

Disassembled View (Bench Type)
755RW033
Legend
(1) Trim Cover
(2) Pillow Assembly
(3) Band Hook Cover
(4) Pad & Frame Assembly
(5) Seat Back Assembly
(6) Release Knob
(7) Release Rod
(8) Device Cover
(9) Linkage Bush
(10) Reclining Device
(11) Connecting Shaft(12) Seat Cushion Assembly
(13) Connecting Link
(14) Seat Lock Cover
(15) Rear Seat Belt Buckle and Lock Assembly
(16) Trim Cover
(17) Stopper Rubber
(18) Mounting Bracket
(19) Frame Assembly
(20) Pad Assembly
(21) LꞏWꞏB
(22) SꞏWꞏB
Page 3334 of 6000

8G–22SEATS
Disassembly (Bench Type)
1. Remove the device cover.
2. Remove the release knob.
Turn the knob to the counterclockwise to remove it.
3. Remove the release rod.
Disconnect the rod from the linkage bush.
4. Remove the reclining device.
755RS004
5. Remove the connecting shaft.
6. Remove the seat back assembly.
7. Remove the band hook cover.
8. Remove the pillow assembly.
Refer to the Disassembly (Split Type) in this
section.
755RS017
9. Remove the trim cover.
Open the fastener(3), and with close attention paid
to the hog rings and wire which connect the trim
cover and the pad and frame assembly, remove the
trim cover as you turn it up.
750RW011
10. Remove the pad & frame assembly.
11. Remove the seat cushion assembly.
12. Remove the seat lock cover.
13. Remove the rear seat belt buckle and lock assembly.
14. Remove the mounting bracket.
15. Remove the trim cover.
Remove the hog rings and pull the trim cover out
from the frame assembly groove.
With close attention paid to the hog rings and the
wire which connect the trim cover and the pad and
frame assembly, remove the trim cover while
turning it up.
16. Remove the frame assembly.
17. Remove the pad assembly.
18. Remove the stopper rubber.
Page 3335 of 6000
SEATS8G–23

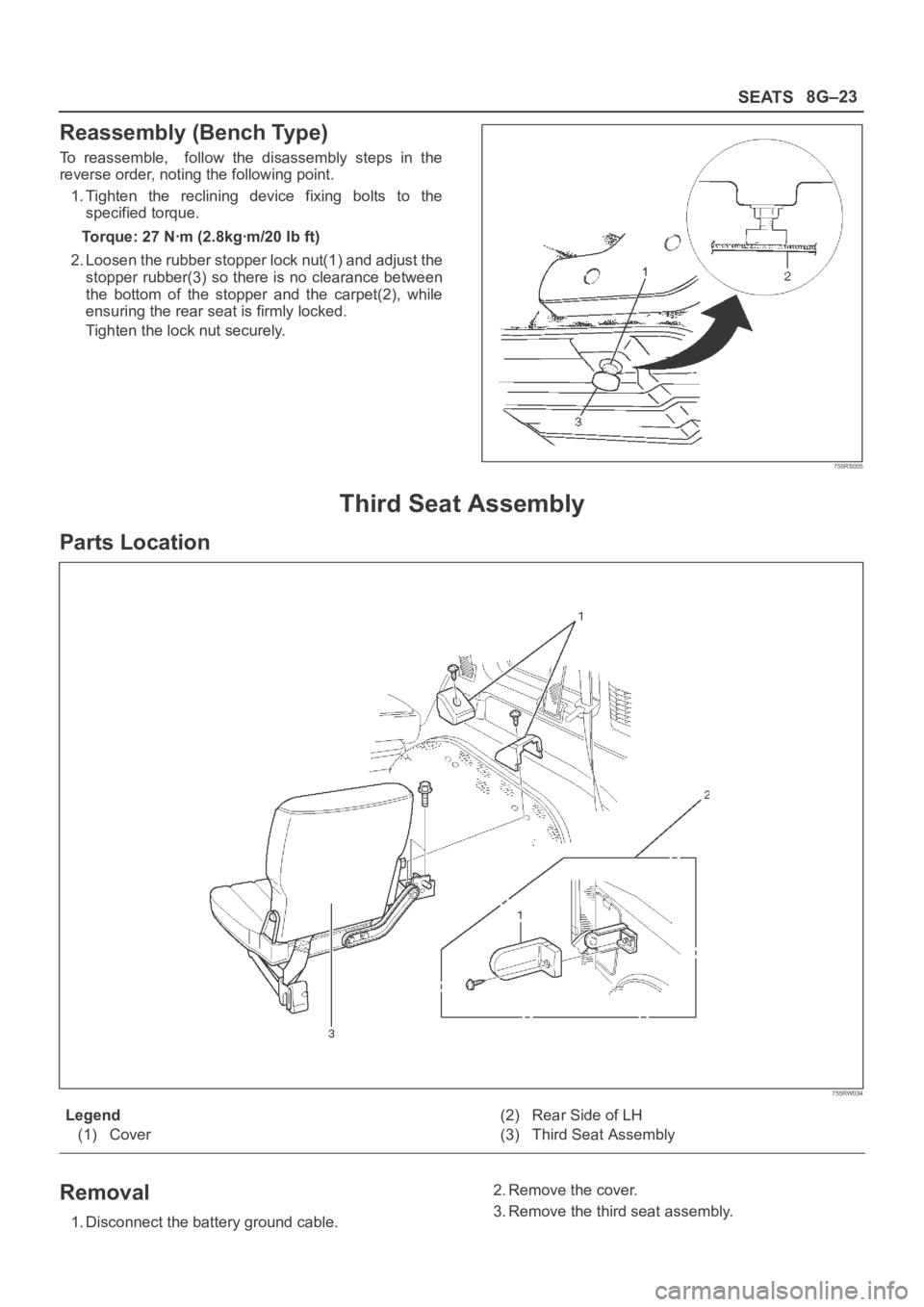

Reassembly (Bench Type)
To reassemble, follow the disassembly steps in the
reverse order, noting the following point.
1. Tighten the reclining device fixing bolts to the
specified torque.
Torque: 27 Nꞏm (2.8kgꞏm/20 lb ft)
2. Loosen the rubber stopper lock nut(1) and adjust the
stopper rubber(3) so there is no clearance between
the bottom of the stopper and the carpet(2), while
ensuring the rear seat is firmly locked.
Tighten the lock nut securely.
755RS005
Third Seat Assembly
Parts Location
755RW034
Legend
(1) Cover(2) Rear Side of LH
(3) Third Seat Assembly
Removal
1. Disconnect the battery ground cable.2. Remove the cover.
3. Remove the third seat assembly.
Page 3336 of 6000
8G–24SEATS

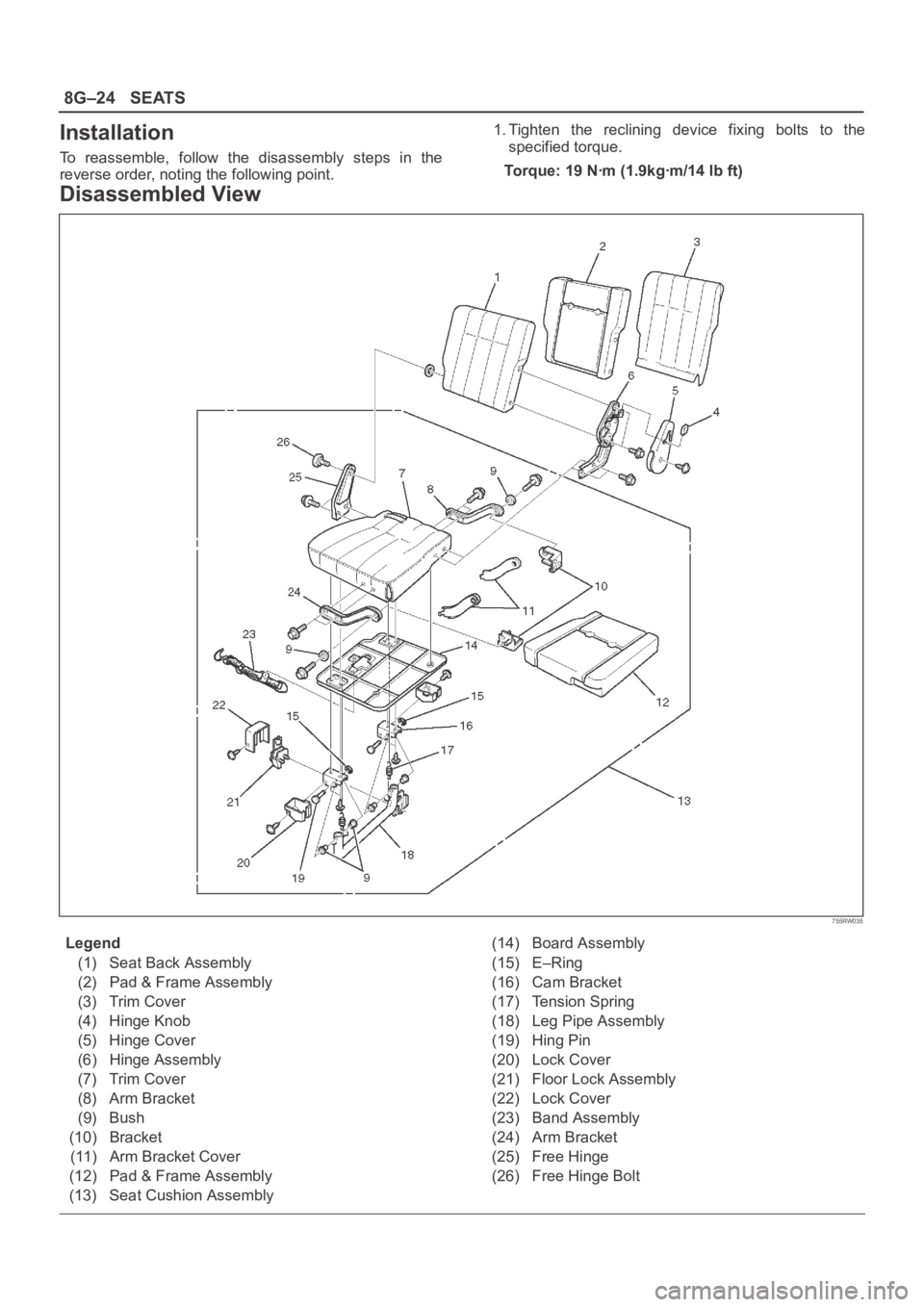

Installation
To reassemble, follow the disassembly steps in the
reverse order, noting the following point.1. Tighten the reclining device fixing bolts to the
specified torque.
Torque: 19 Nꞏm (1.9kgꞏm/14 lb ft)
Disassembled View
755RW035
Legend
(1) Seat Back Assembly
(2) Pad & Frame Assembly
(3) Trim Cover
(4) Hinge Knob
(5) Hinge Cover
(6) Hinge Assembly
(7) Trim Cover
(8) Arm Bracket
(9) Bush
(10) Bracket
(11) Arm Bracket Cover
(12) Pad & Frame Assembly
(13) Seat Cushion Assembly(14) Board Assembly
(15) E–Ring
(16) Cam Bracket
(17) Tension Spring
(18) Leg Pipe Assembly
(19) Hing Pin
(20) Lock Cover
(21) Floor Lock Assembly
(22) Lock Cover
(23) Band Assembly
(24) Arm Bracket
(25) Free Hinge
(26) Free Hinge Bolt
