Page 3401 of 6000

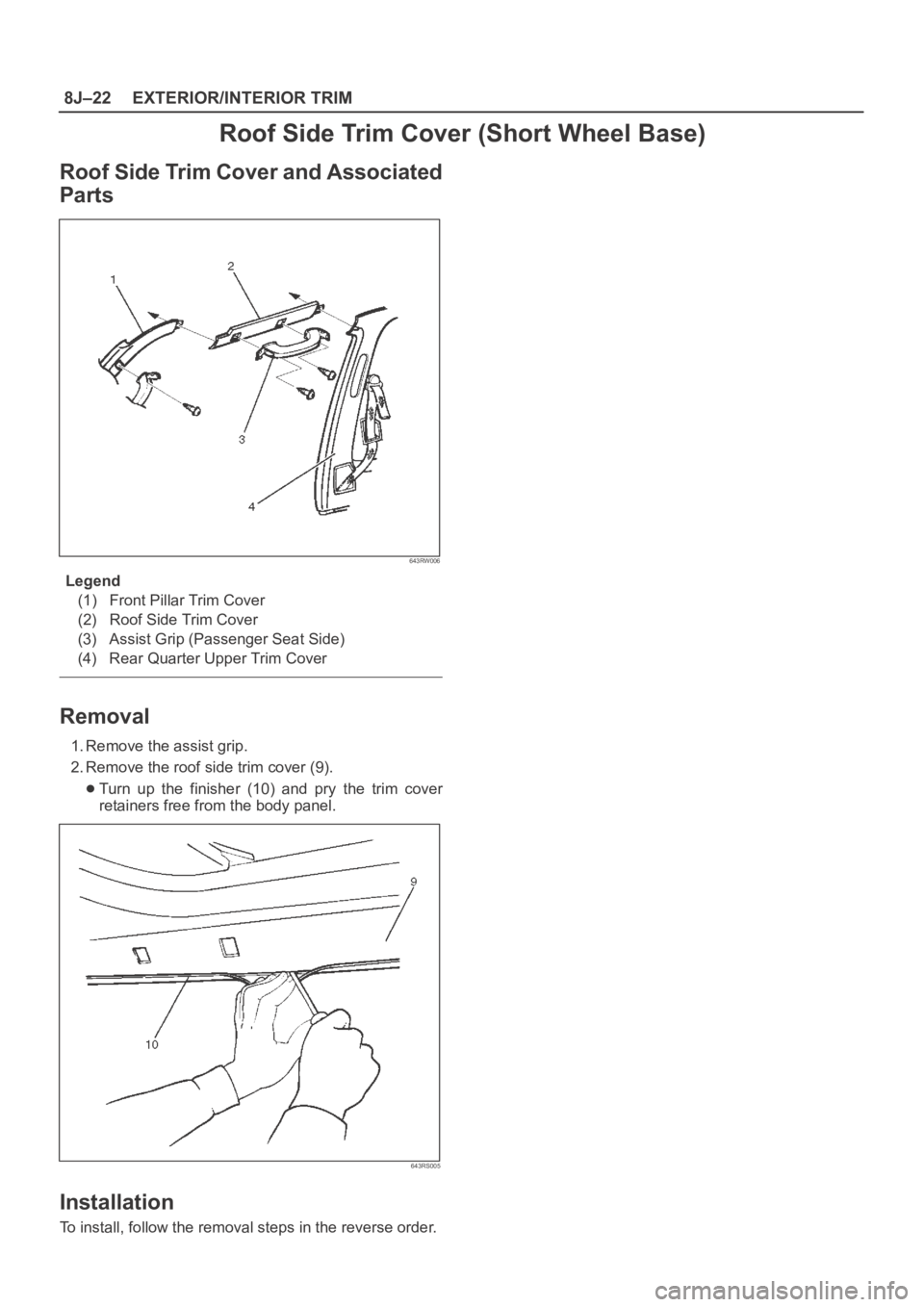

OPEL FRONTERA 1998 Workshop Manual 8J–22EXTERIOR/INTERIOR TRIM Roof Side Trim Cover (Short Wheel Base) Roof Side Trim Cover and Associated Parts 643RW006 Legend (1) Front Pillar Trim Cover (2) Roof Side Trim Cover (3) Assist Grip (Pa

Page 3402 of 6000

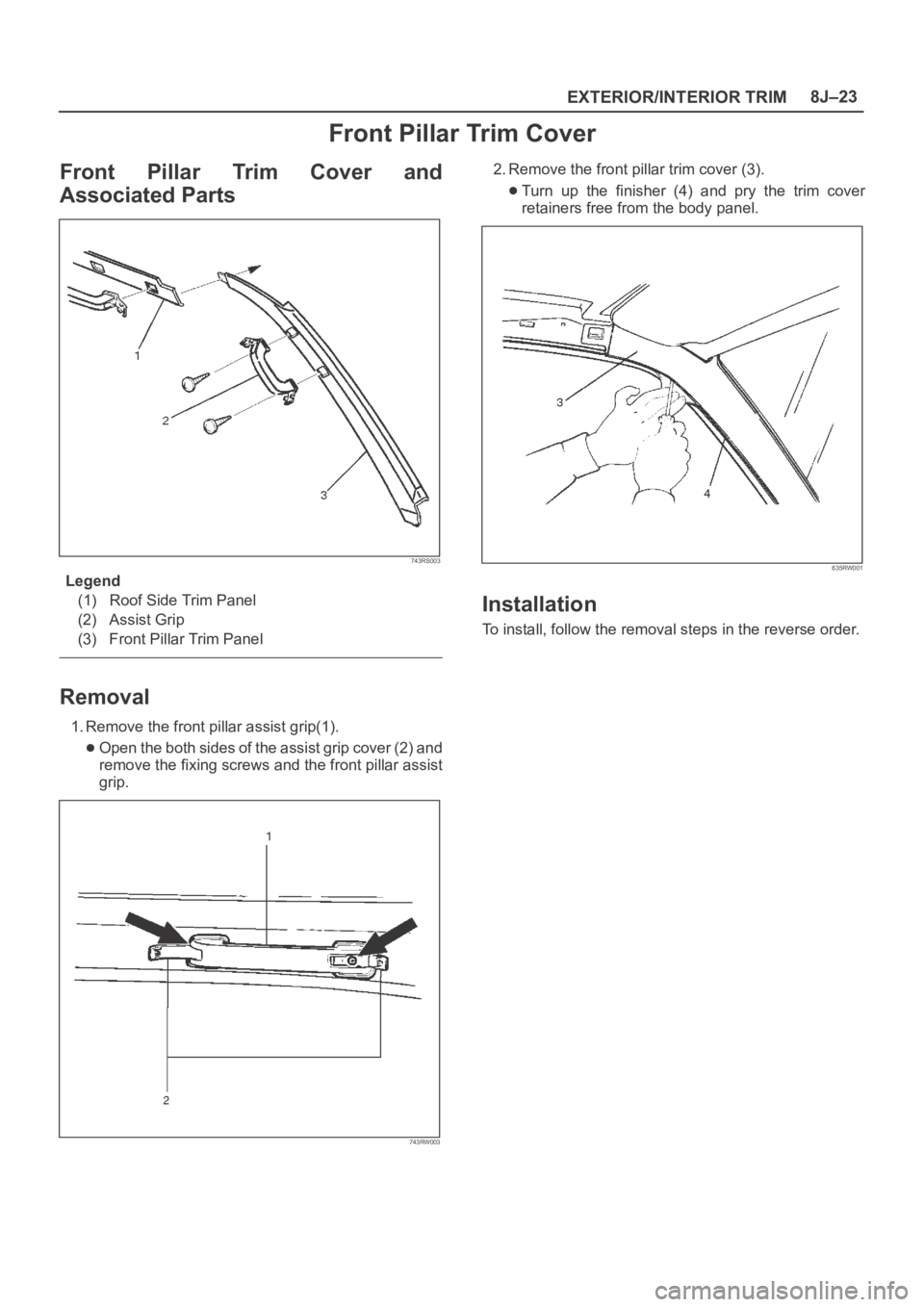

OPEL FRONTERA 1998 Workshop Manual EXTERIOR/INTERIOR TRIM8J–23 Front Pillar Trim Cover Front Pillar Trim Cover and Associated Parts 743RS003 Legend (1) Roof Side Trim Panel (2) Assist Grip (3) Front Pillar Trim Panel Removal 1. R

Page 3403 of 6000

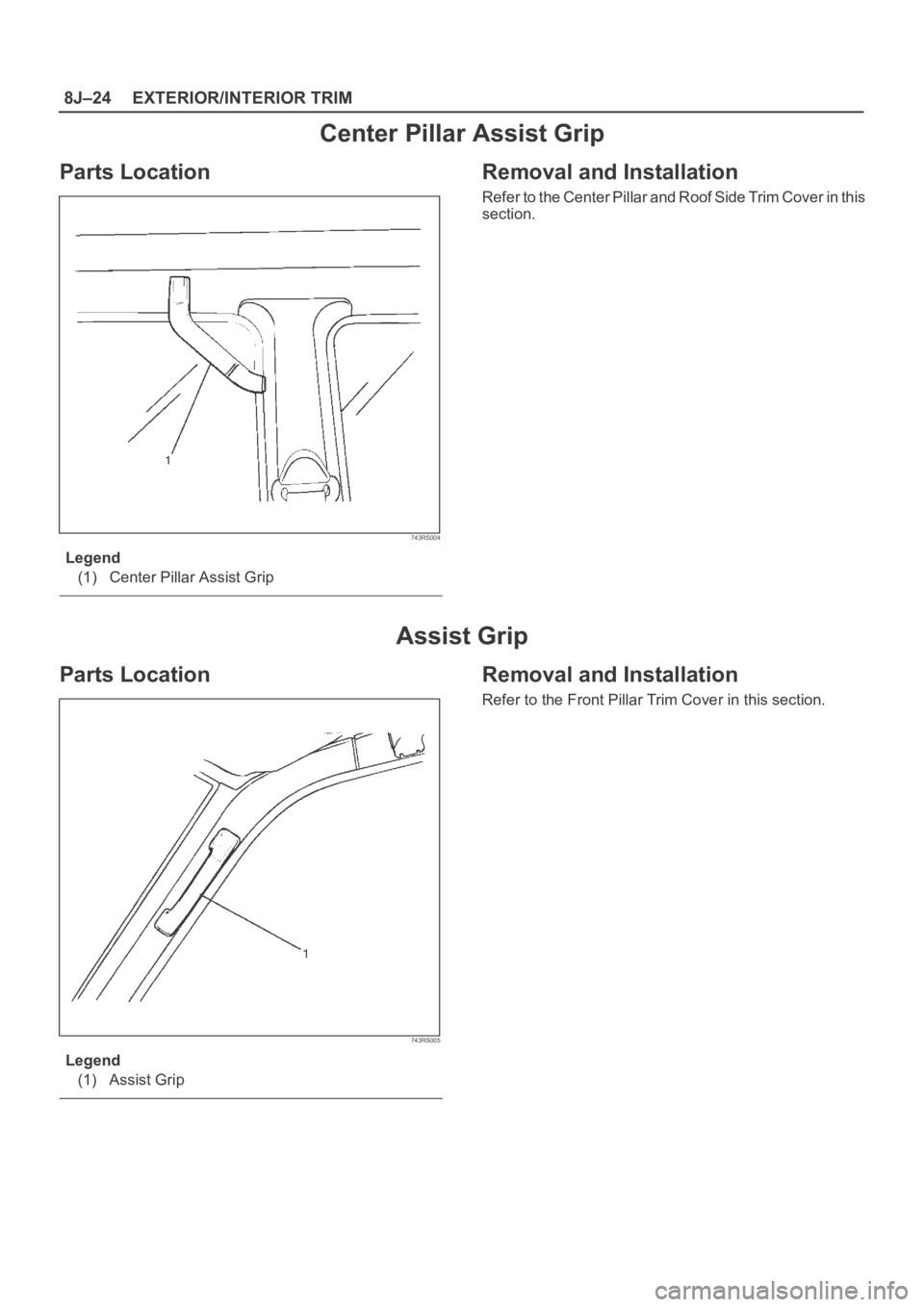

OPEL FRONTERA 1998 Workshop Manual 8J–24EXTERIOR/INTERIOR TRIM Center Pillar Assist Grip Parts Location 743RS004 Legend (1) Center Pillar Assist Grip Removal and Installation Refer to the Center Pillar and Roof Side Trim Cover in thi

Page 3404 of 6000

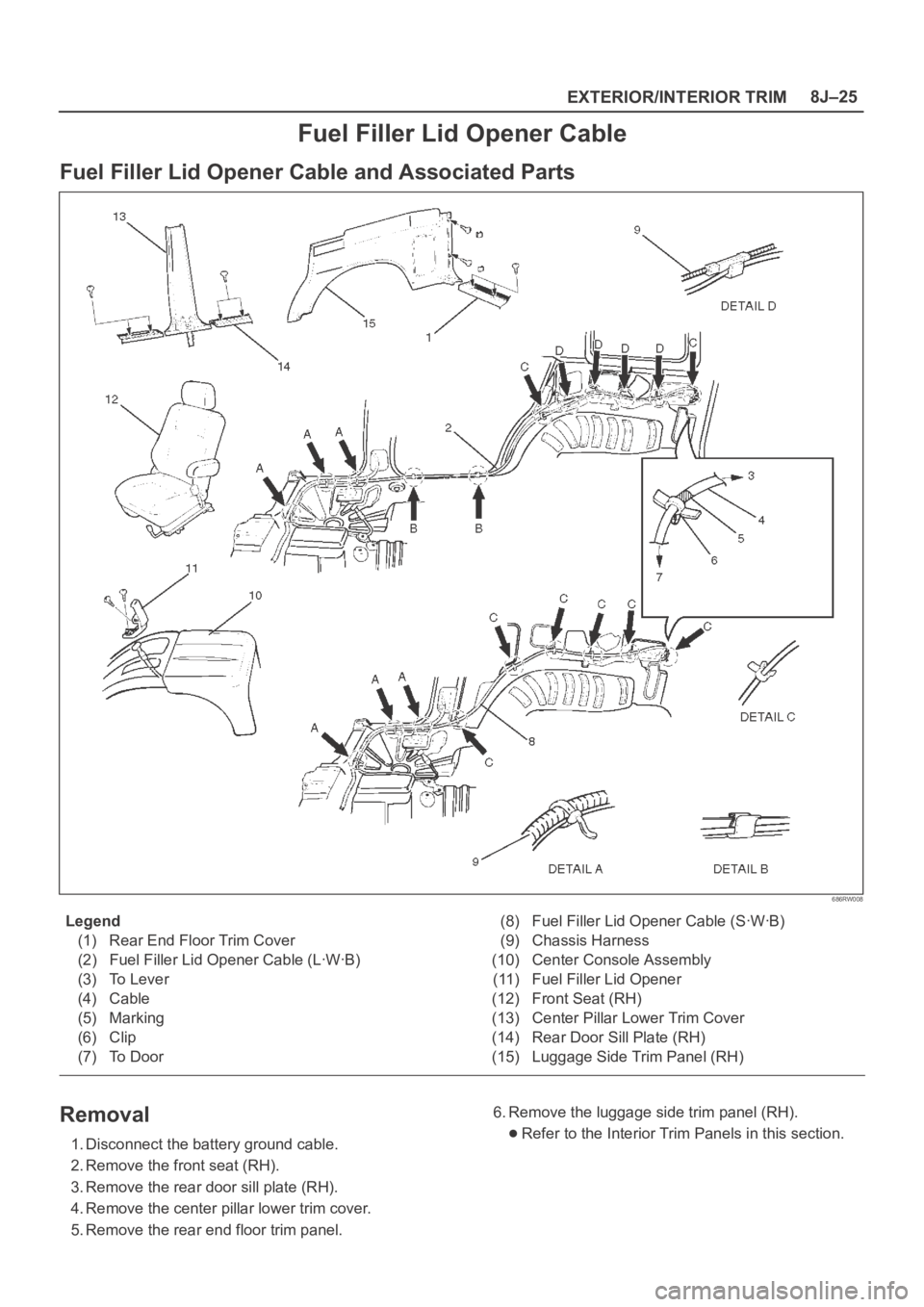

OPEL FRONTERA 1998 Workshop Manual EXTERIOR/INTERIOR TRIM8J–25 Fuel Filler Lid Opener Cable Fuel Filler Lid Opener Cable and Associated Parts 686RW008 Legend (1) Rear End Floor Trim Cover (2) Fuel Filler Lid Opener Cable (LꞏWꞏB)

Page 3405 of 6000

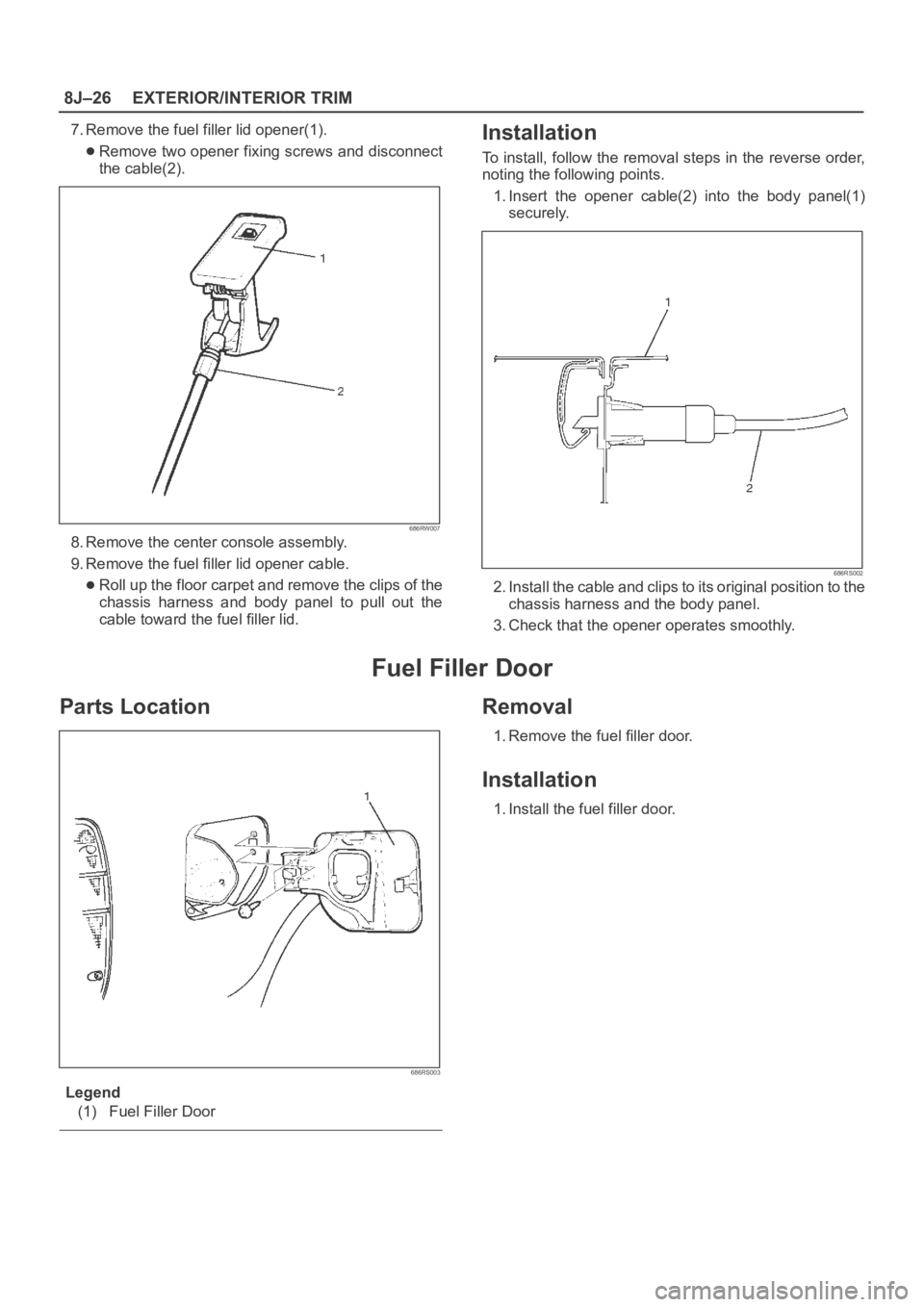

OPEL FRONTERA 1998 Workshop Manual 8J–26EXTERIOR/INTERIOR TRIM 7. Remove the fuel filler lid opener(1). Remove two opener fixing screws and disconnect the cable(2). 686RW007 8. Remove the center console assembly. 9. Remove the fuel f

Page 3406 of 6000

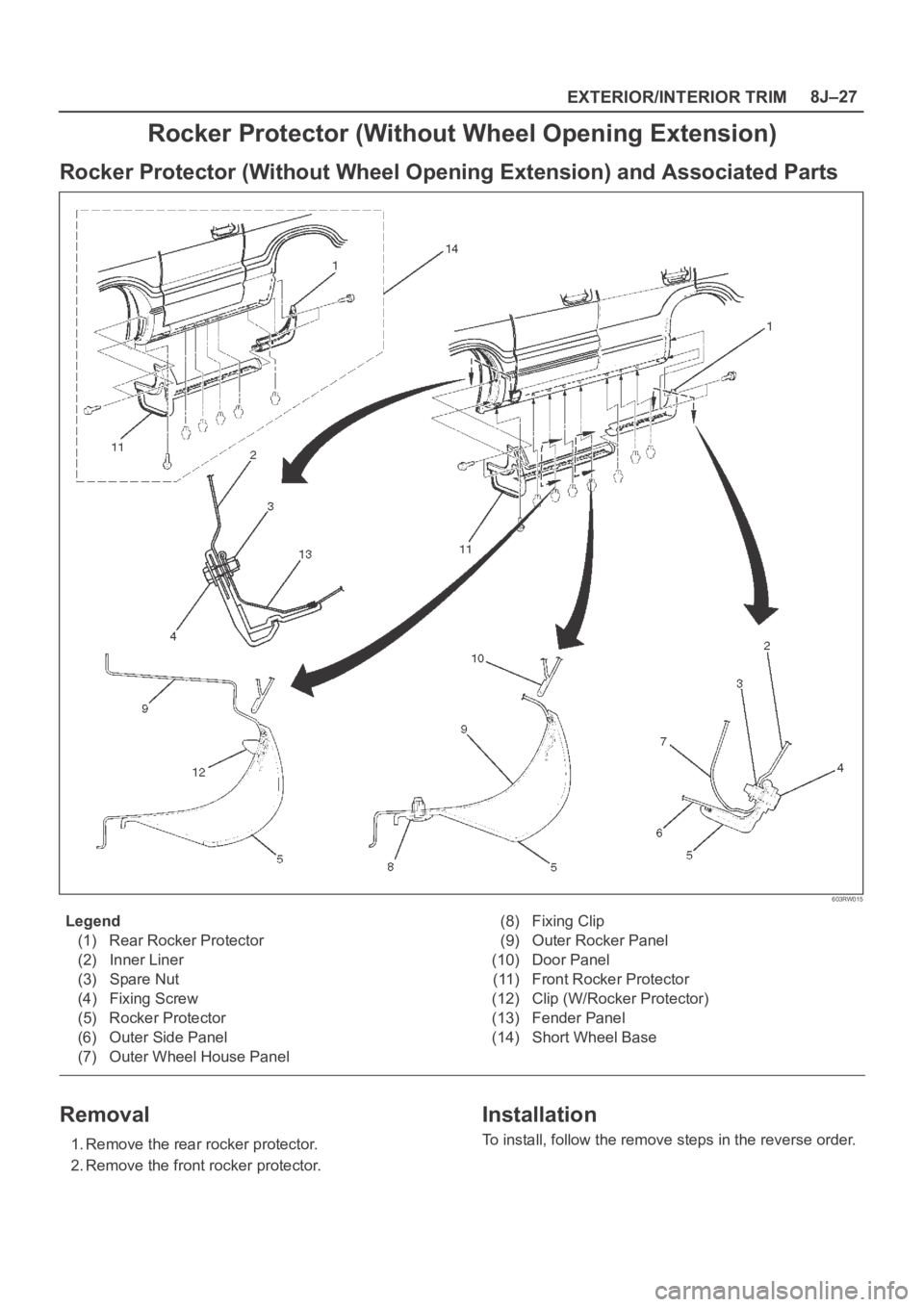

OPEL FRONTERA 1998 Workshop Manual EXTERIOR/INTERIOR TRIM8J–27 Rocker Protector (Without Wheel Opening Extension) Rocker Protector (Without Wheel Opening Extension) and Associated Parts 603RW015 Legend (1) Rear Rocker Protector (2) I

Page 3407 of 6000

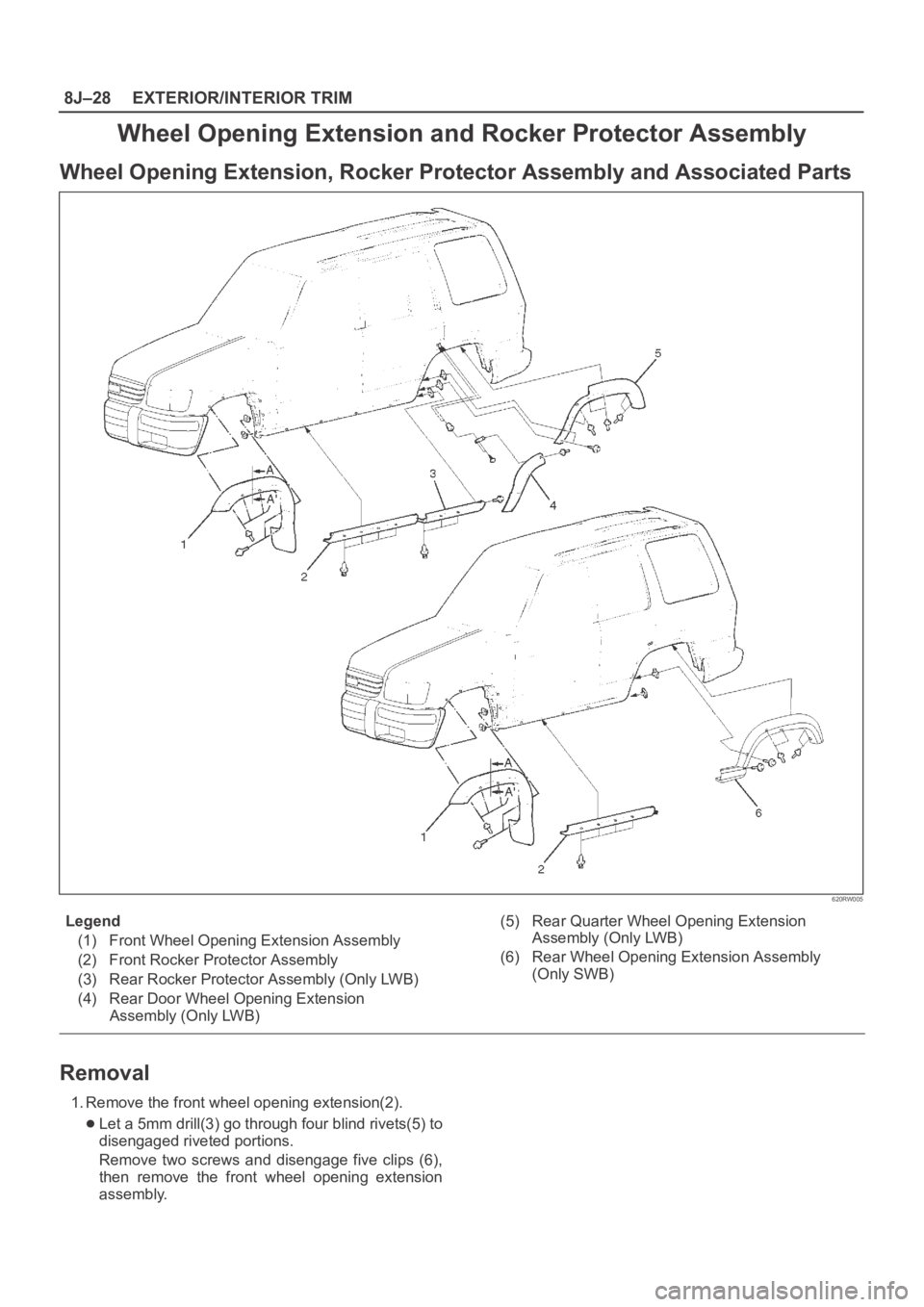

OPEL FRONTERA 1998 Workshop Manual 8J–28EXTERIOR/INTERIOR TRIM Wheel Opening Extension and Rocker Protector Assembly Wheel Opening Extension, Rocker Protector Assembly and Associated Parts 620RW005 Legend (1) Front Wheel Opening Exte

Page 3408 of 6000

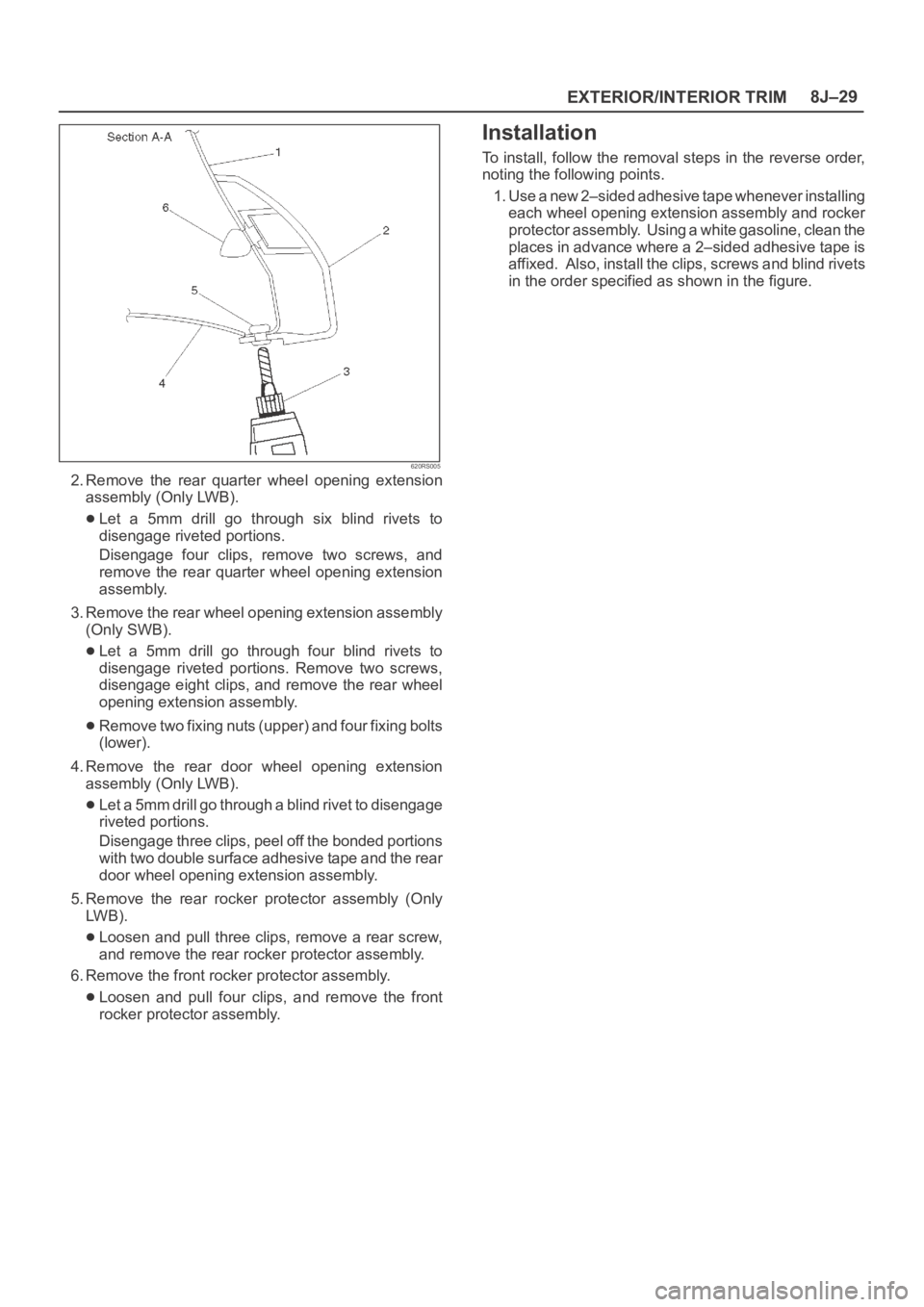

OPEL FRONTERA 1998 Workshop Manual EXTERIOR/INTERIOR TRIM8J–29 620RS005 2. Remove the rear quarter wheel opening extension assembly (Only LWB). Let a 5mm drill go through six blind rivets to disengage riveted portions.
