Page 4681 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–24 ENGINE DRIVEABILITY AND EMISSIONS PCM Pinout Table, 32-Way Blue Connector – Row “E” (For except EXPORT and SOUTH AFRICA) TS23346 PINPIN FunctionWire ColorIGN ONENG RUNRefer To E1Transmi

Page 4682 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–25 ENGINE DRIVEABILITY AND EMISSIONS PINRefer To ENG RUN IGN ON Wire Color PIN Function E15A/C RequestGRN/ORN0.0 V0.0 VElectric Cooling Fans E16Ignition Feed (1 of 2 F16)RED/BLUB+B+—

Page 4683 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–26 ENGINE DRIVEABILITY AND EMISSIONS PCM Pinout Table, 32-Way Blue Connector – Row “E” (For EXPORT and SOUTH AFRICA) TS23346 PINPIN FunctionWire ColorIGN ONENG RUNRefer To E1Transmission O

Page 4684 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–27 ENGINE DRIVEABILITY AND EMISSIONS PCM Pinout Table, 32-Way Blue Connector – Row “F” TS23346 PINPIN FunctionWire ColorIGN ONENG RUNRefer To F1Not Used———— F2Transmission Range Sig

Page 4685 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–28 ENGINE DRIVEABILITY AND EMISSIONS Component Locators Engine Component Locator (This illustration is based on RHD model.) 060RW210

Page 4686 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–29 ENGINE DRIVEABILITY AND EMISSIONS Engine Component Locator Table Number NameLocation 1Linear Exhaust Gas Recirculation (EGR) ValveRear right side of the engine 2Throttle Position (TP) SensorOn

Page 4687 of 6000

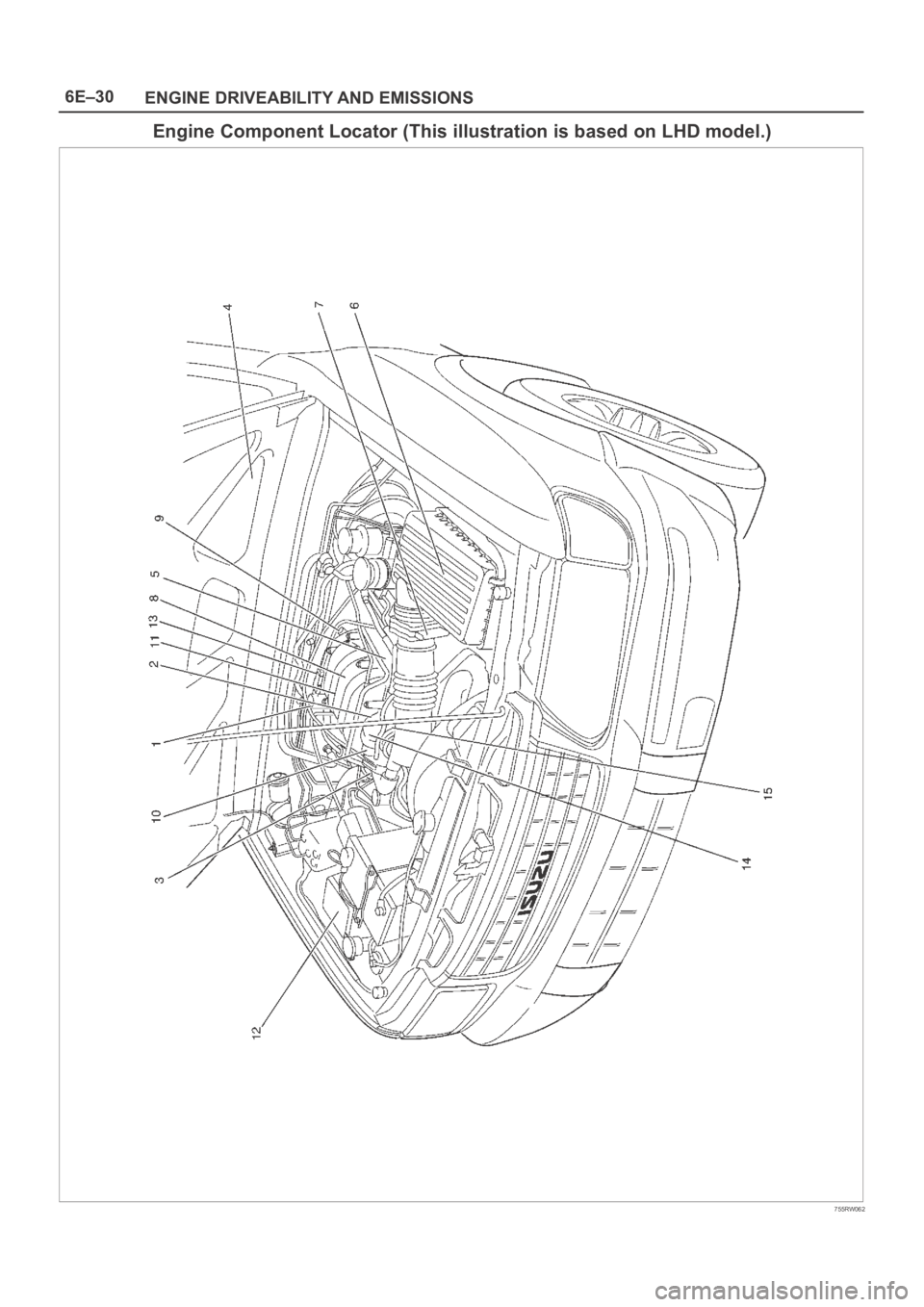

OPEL FRONTERA 1998 Workshop Manual 6E–30 ENGINE DRIVEABILITY AND EMISSIONS Engine Component Locator (This illustration is based on LHD model.) 755RW062

Page 4688 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–31 ENGINE DRIVEABILITY AND EMISSIONS Engine Component Locator Table Number NameLocation 1Linear Exhaust Gas Recirculation (EGR) ValveRear right side of the engine 2Throttle Position (TP) SensorOn
