Page 4585 of 6000

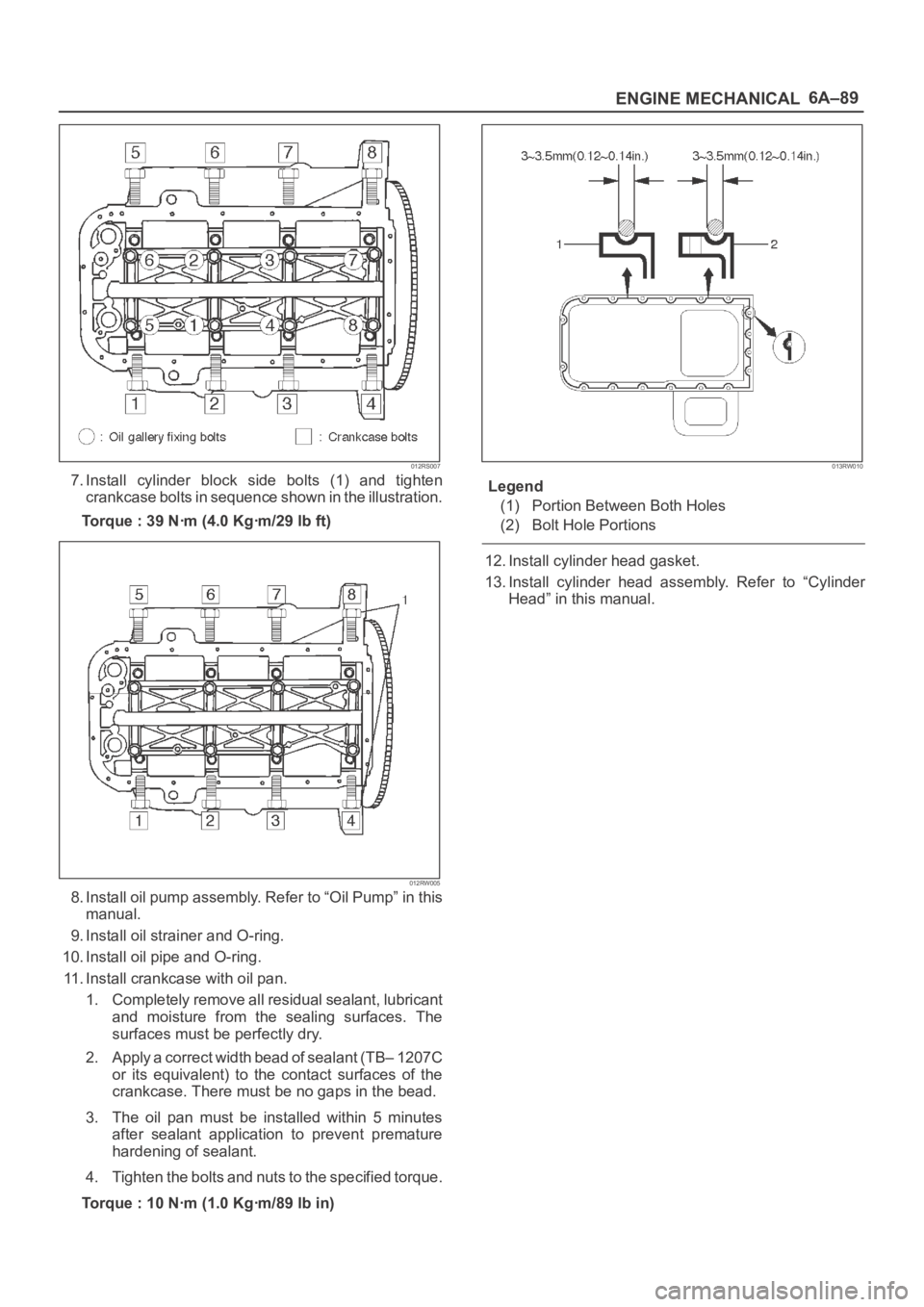

OPEL FRONTERA 1998 Workshop Manual 6A–89 ENGINE MECHANICAL 012RS007 7. Install cylinder block side bolts (1) and tighten crankcase bolts in sequence shown in the illustration. Torque : 39 Nꞏm (4.0 Kgꞏm/29 lb ft) 012RW005 8

Page 4586 of 6000

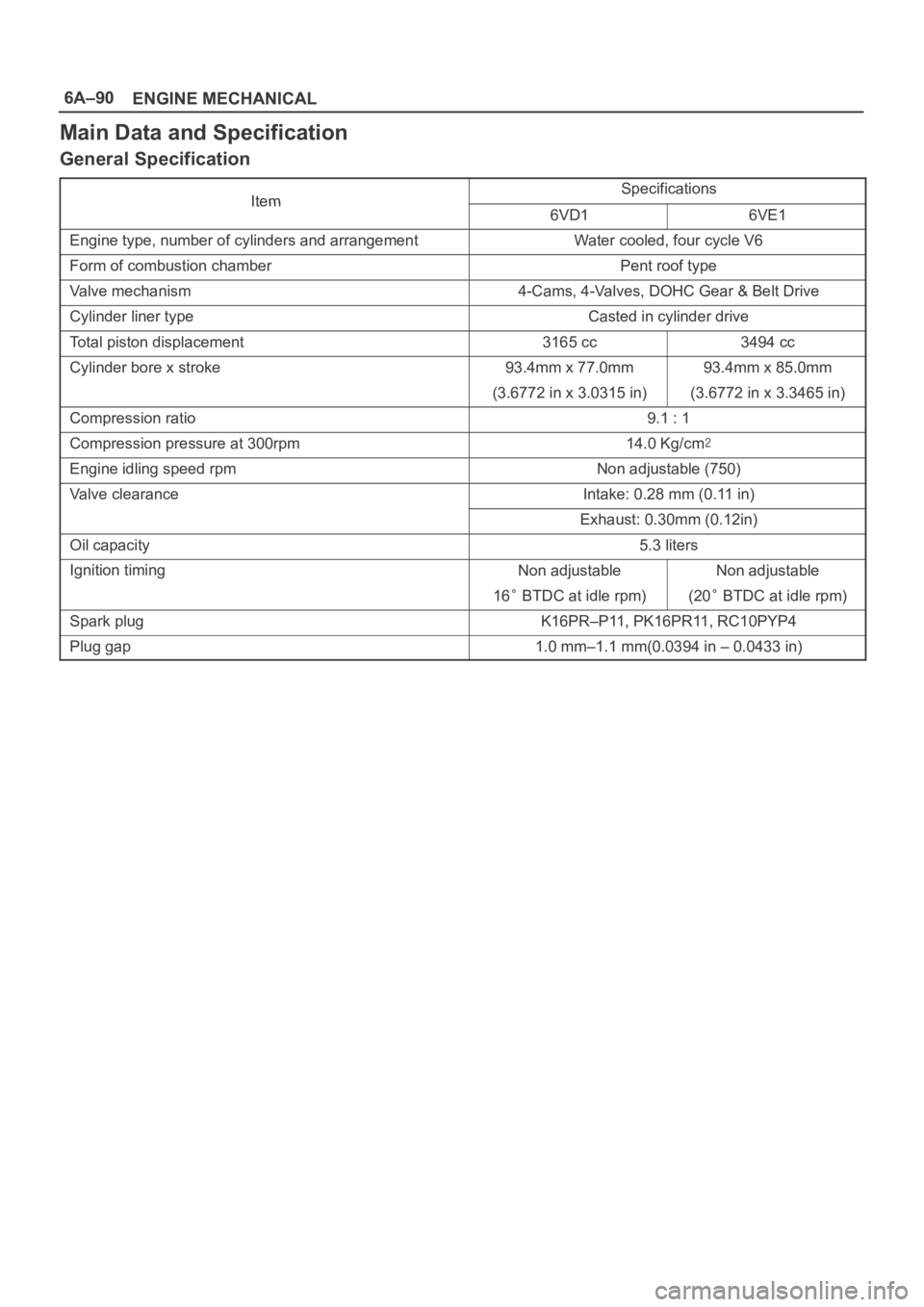

OPEL FRONTERA 1998 Workshop Manual 6A–90 ENGINE MECHANICAL Main Data and Specification General Specification ItemSpecificationsItem6VD16VE1 Engine type, number of cylinders and arrangementWater cooled, four cycle V6 Form of combustio

Page 4587 of 6000

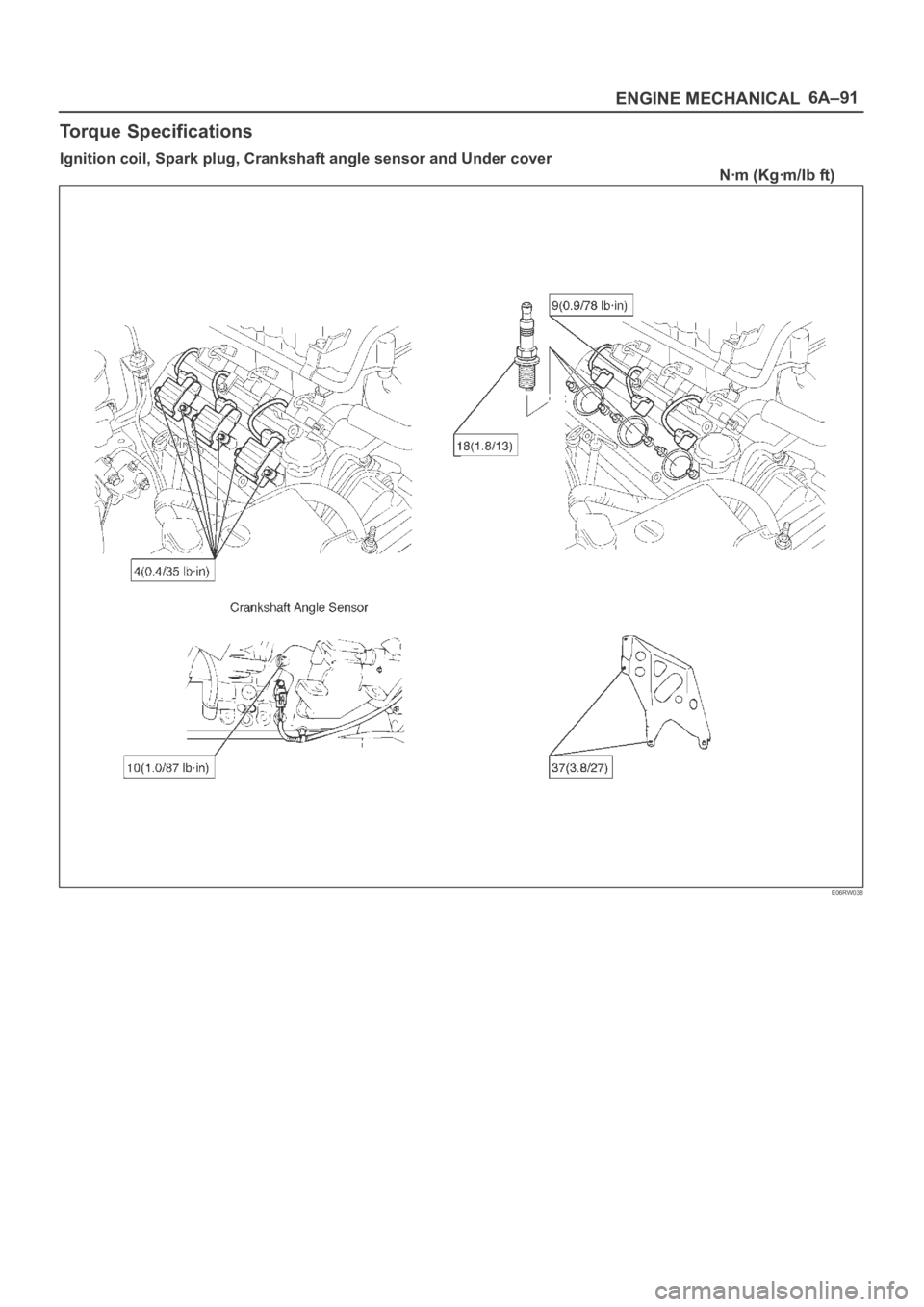

OPEL FRONTERA 1998 Workshop Manual 6A–91 ENGINE MECHANICAL Torque Specifications Ignition coil, Spark plug, Crankshaft angle sensor and Under cover

Page 4588 of 6000

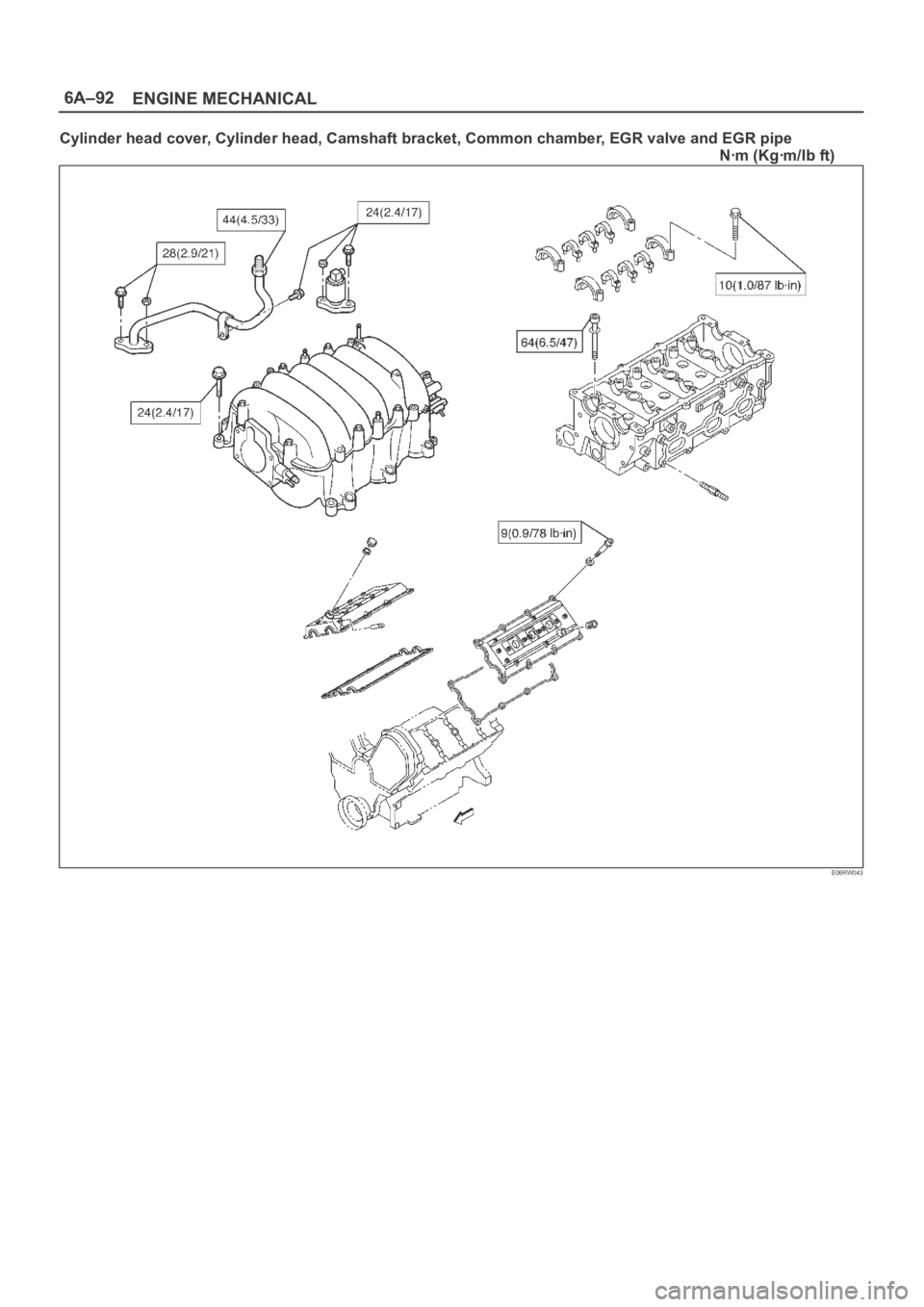

OPEL FRONTERA 1998 Workshop Manual 6A–92 ENGINE MECHANICAL Cylinder head cover, Cylinder head, Camshaft bracket, Common chamber, EGR valve and EGR pipe

Page 4589 of 6000

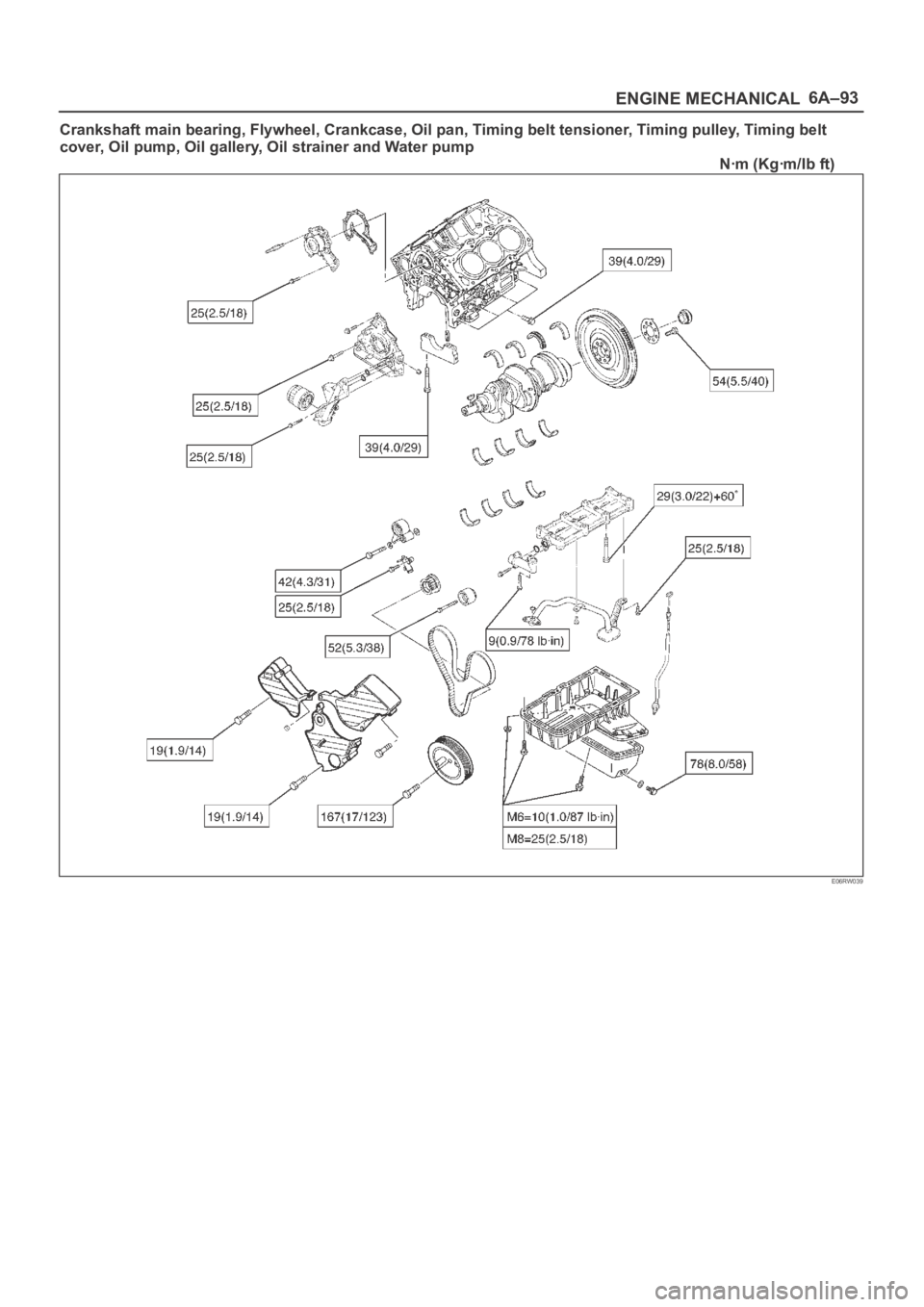

OPEL FRONTERA 1998 Workshop Manual 6A–93 ENGINE MECHANICAL Crankshaft main bearing, Flywheel, Crankcase, Oil pan, Timing belt tensioner, Timing pulley, Timing belt cover, Oil pump, Oil gallery, Oil strainer and Water pump

Page 4590 of 6000

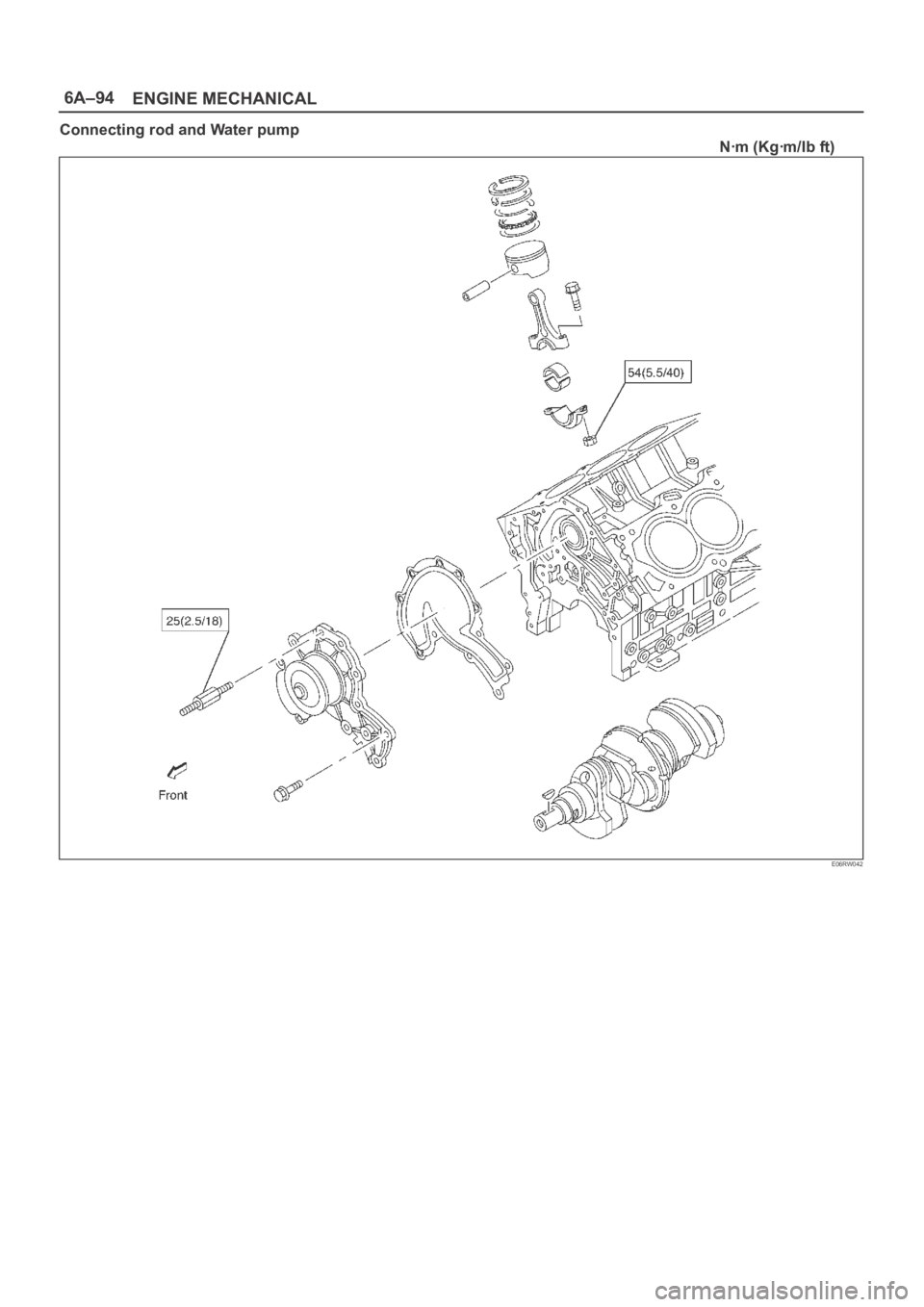

OPEL FRONTERA 1998 Workshop Manual 6A–94 ENGINE MECHANICAL Connecting rod and Water pump

Page 4591 of 6000

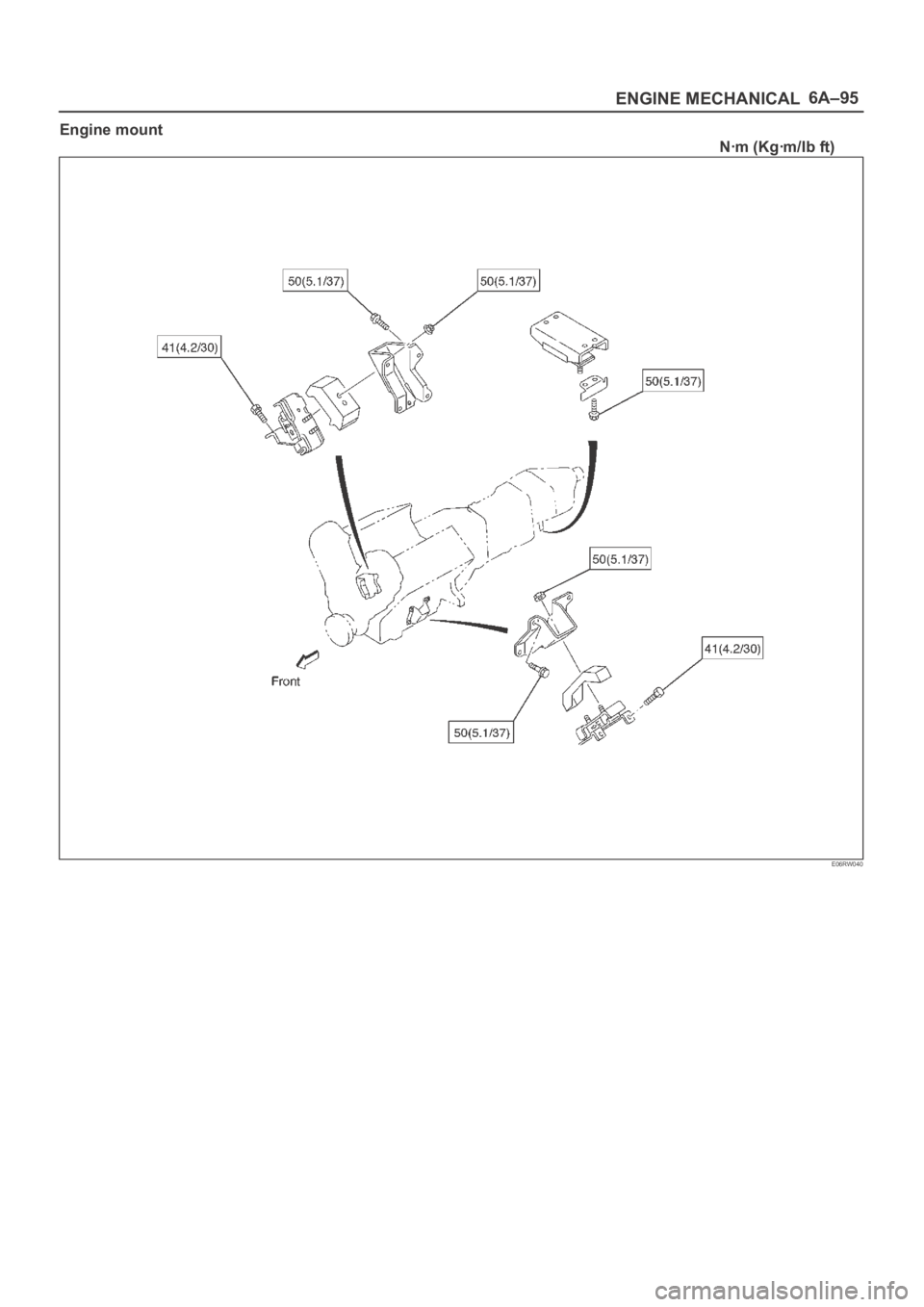

OPEL FRONTERA 1998 Workshop Manual 6A–95 ENGINE MECHANICAL Engine mount Nꞏm

Page 4592 of 6000

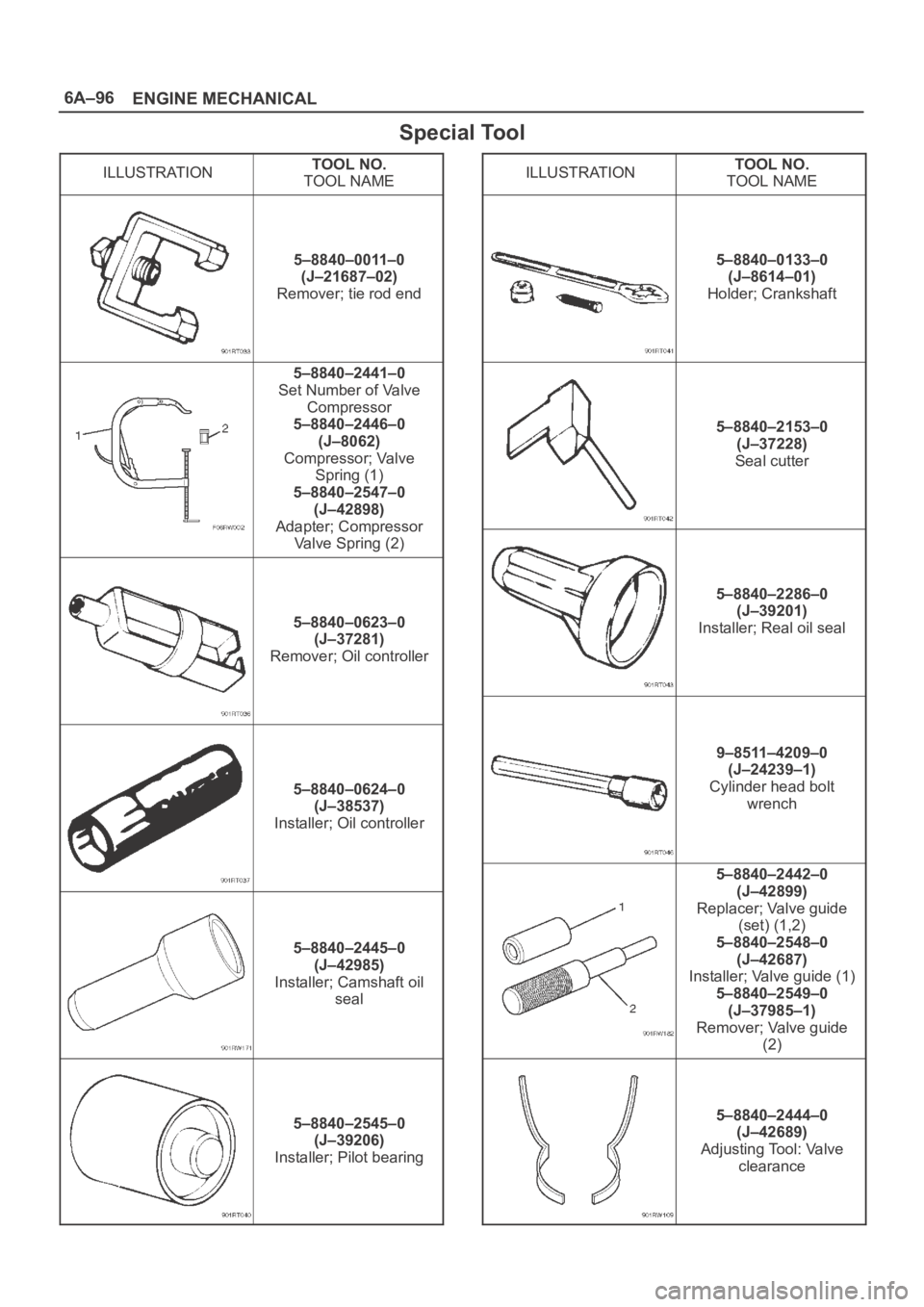

OPEL FRONTERA 1998 Workshop Manual 6A–96 ENGINE MECHANICAL Special Tool ILLUSTRATIONTOOL NO. TOOL NAME 5–8840–0011–0 (J–21687–02) Remover; tie rod end 5–8840–2441–0 Set Number of Valve Compressor 5–8840–2446–0 (
