DRIVE LINE CONTROL SYSTEM (TOD) 4B2–62

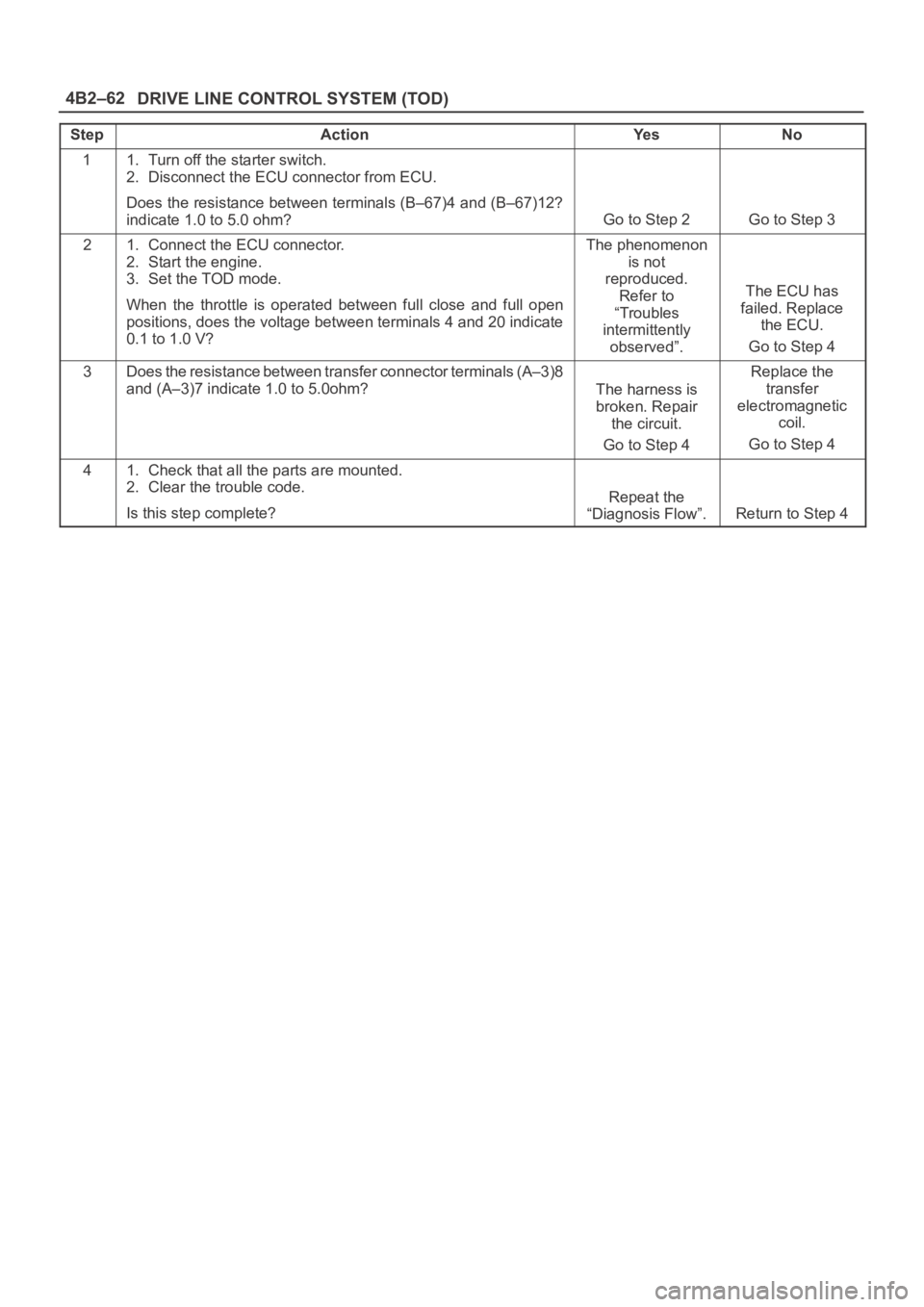

StepActionYe sNo
11. Turn off the starter switch.
2. Disconnect the ECU connector from ECU.
Does the resistance between terminals (B–67)4 and (B–67)12?
indicate 1.0 to 5.0 ohm?
Go to Step 2Go to Step 3
21. Connect the ECU connector.
2. Start the engine.
3. Set the TOD mode.
When the throttle is operated between full close and full open
positions, does the voltage between terminals 4 and 20 indicate
0.1 to 1.0 V?The phenomenon
is not
reproduced.
Refer to
“Troubles
intermittently
observed”.
The ECU has
failed. Replace
the ECU.
Go to Step 4
3Does the resistance between transfer connector terminals (A–3)8
and (A–3)7 indicate 1.0 to 5.0ohm?
The harness is
broken. Repair
the circuit.
Go to Step 4
Replace the
transfer
electromagnetic
coil.
Go to Step 4
41. Check that all the parts are mounted.
2. Clear the trouble code.
Is this step complete?
Repeat the
“Diagnosis Flow”.
Return to Step 4
Page 4146 of 6000
4B2–63 DRIVE LINE CONTROL SYSTEM (TOD)
Check flowTrouble codePhenomenonStandard
1128
(P1760)The shift on the fly system (front
axle disconnect) works incorrectly.—

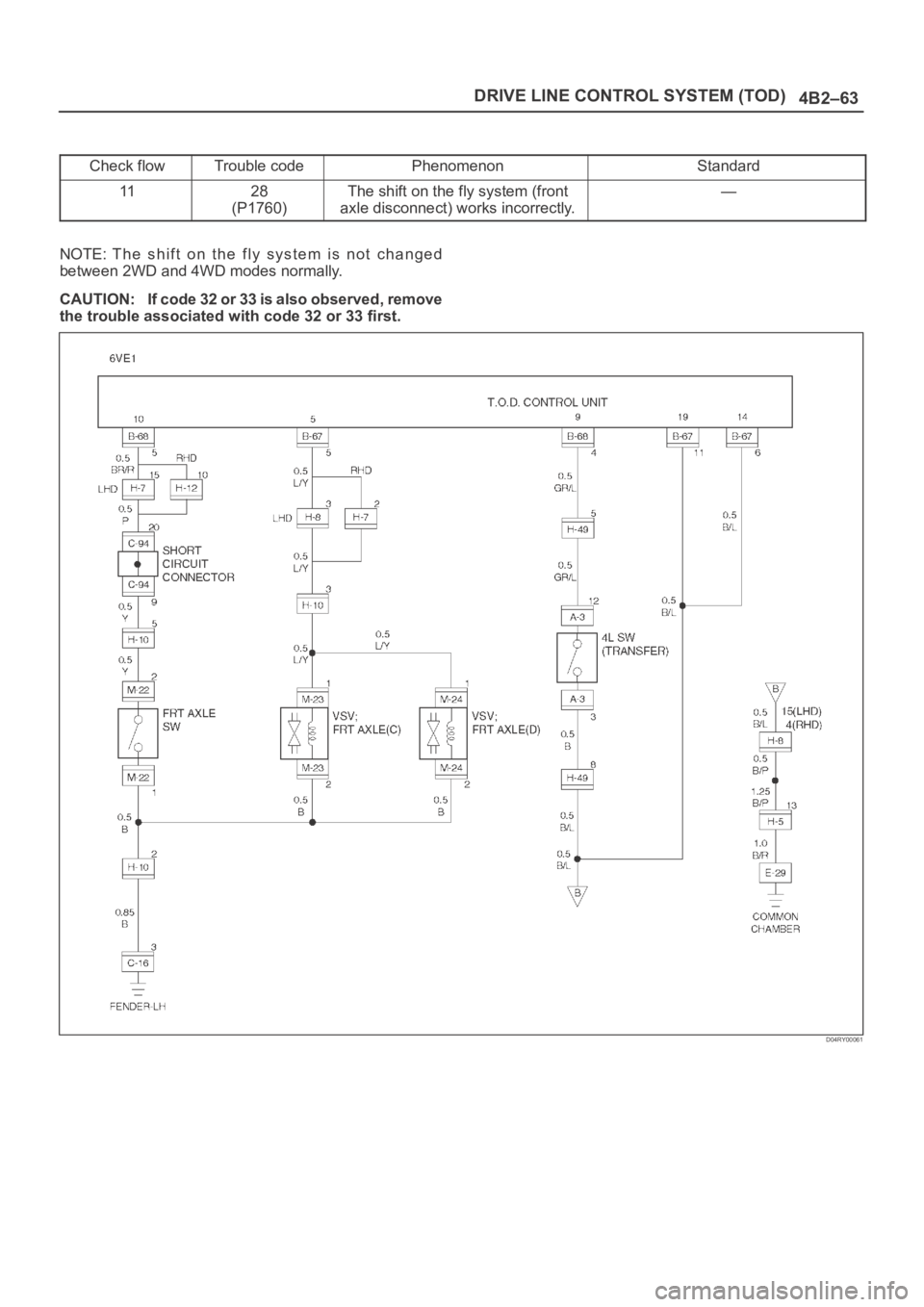

NOTE: The shift on the fly system is not changed
between 2WD and 4WD modes normally.
CAUTION: If code 32 or 33 is also observed, remove
the trouble associated with code 32 or 33 first.

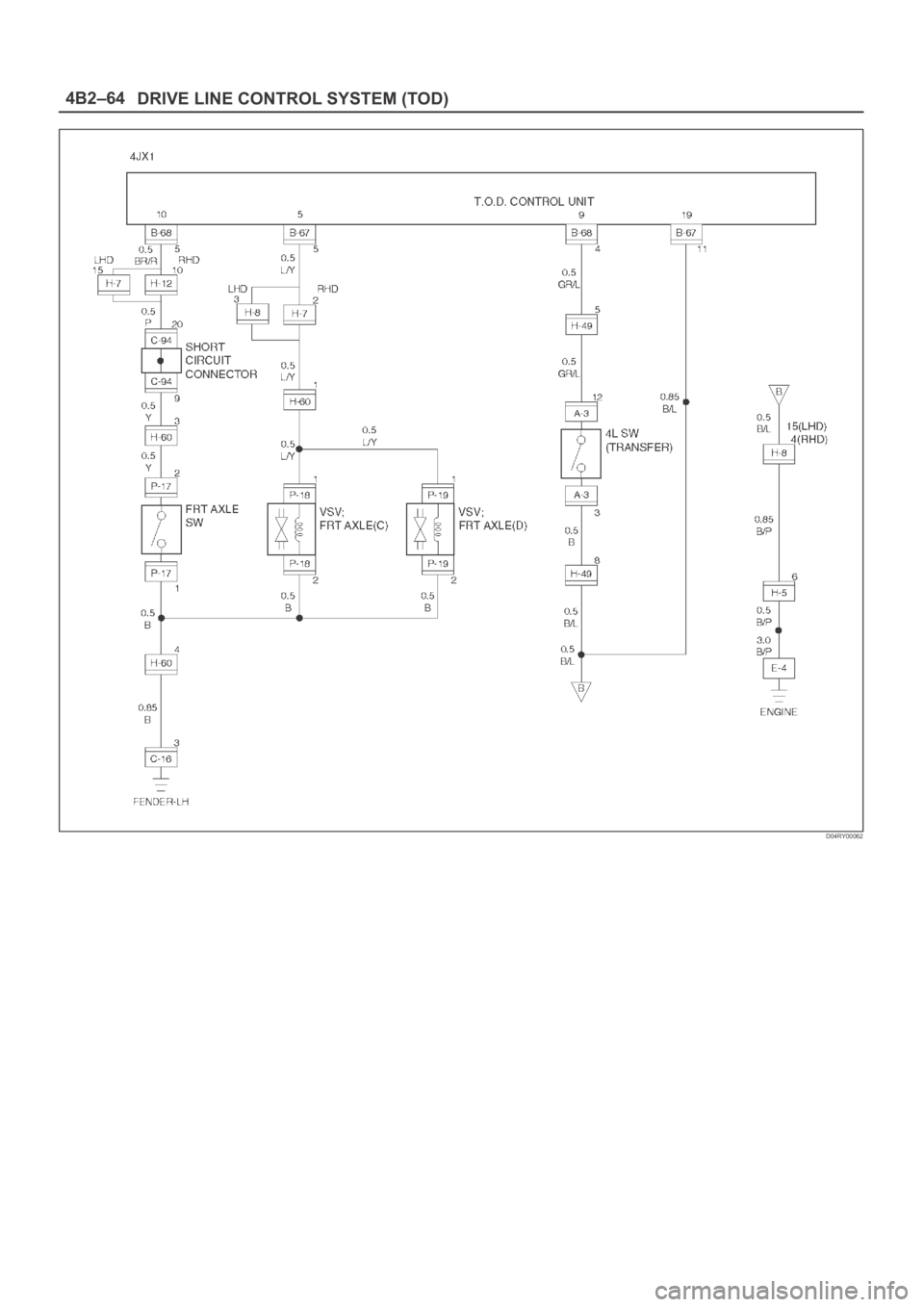

D04RY00061
Page 4147 of 6000
DRIVE LINE CONTROL SYSTEM (TOD) 4B2–64
D04RY00062
Page 4148 of 6000

4B2–65 DRIVE LINE CONTROL SYSTEM (TOD)

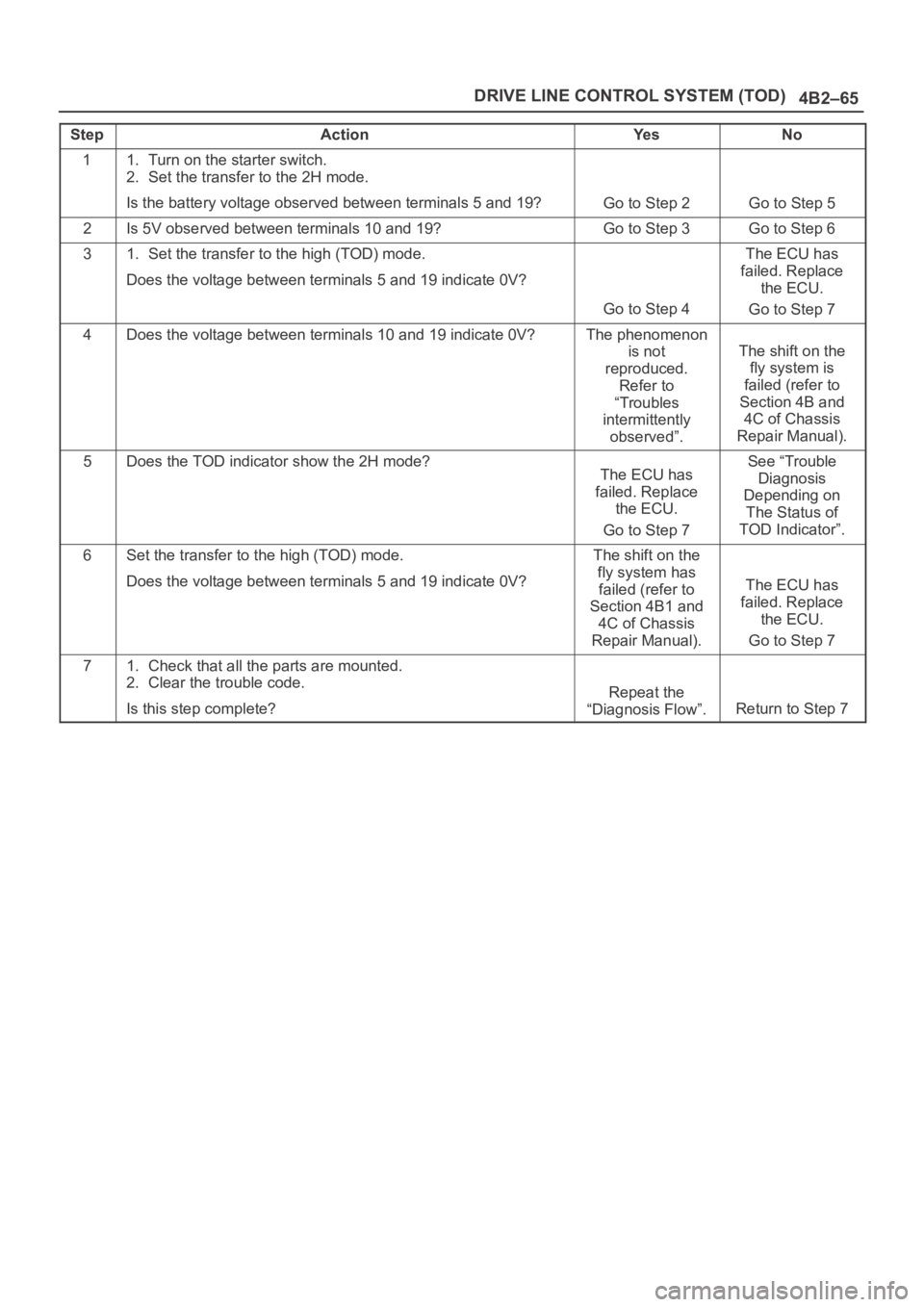

StepActionYe sNo
11. Turn on the starter switch.
2. Set the transfer to the 2H mode.
Is the battery voltage observed between terminals 5 and 19?
Go to Step 2Go to Step 5
2Is 5V observed between terminals 10 and 19?Go to Step 3Go to Step 6
31. Set the transfer to the high (TOD) mode.
Does the voltage between terminals 5 and 19 indicate 0V?
Go to Step 4
The ECU has
failed. Replace
the ECU.
Go to Step 7
4Does the voltage between terminals 10 and 19 indicate 0V?The phenomenon
is not
reproduced.
Refer to
“Troubles
intermittently
observed”.
The shift on the
fly system is
failed (refer to
Section 4B and
4C of Chassis
Repair Manual).
5Does the TOD indicator show the 2H mode?The ECU has
failed. Replace
the ECU.
Go to Step 7See “Trouble
Diagnosis
Depending on
The Status of
TOD Indicator”.
6Set the transfer to the high (TOD) mode.
Does the voltage between terminals 5 and 19 indicate 0V?The shift on the
fly system has
failed (refer to
Section 4B1 and
4C of Chassis
Repair Manual).
The ECU has
failed. Replace
the ECU.
Go to Step 7
71. Check that all the parts are mounted.
2. Clear the trouble code.
Is this step complete?
Repeat the
“Diagnosis Flow”.
Return to Step 7
Page 4149 of 6000
DRIVE LINE CONTROL SYSTEM (TOD) 4B2–66
Check flowTrouble codePhenomenonStandard
1232
(P1761)The on/off signal (ADC) line of the
shift on the fly system (front axle
disconnect) is broken, or the line is
short-circuited to the battery.
—

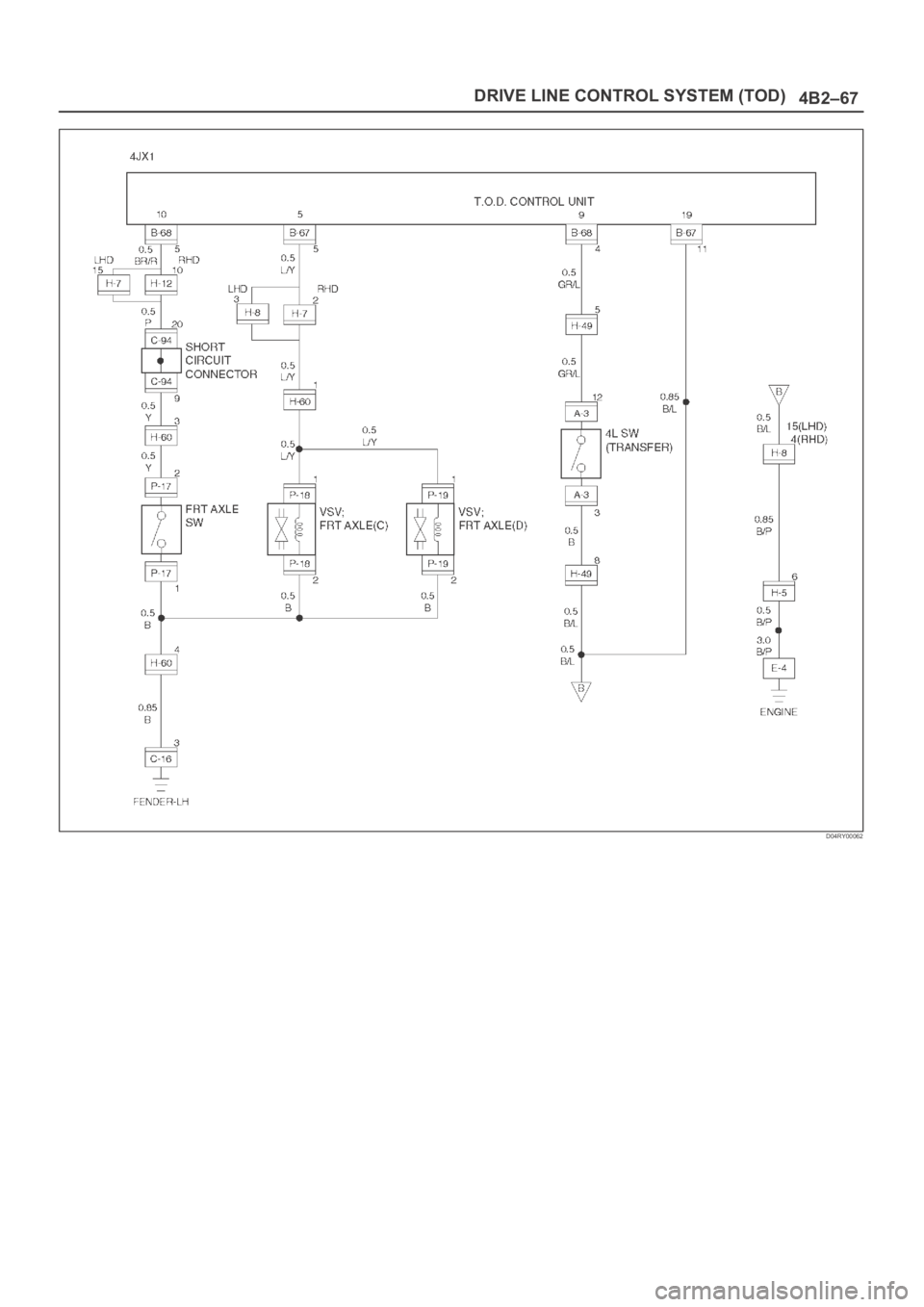

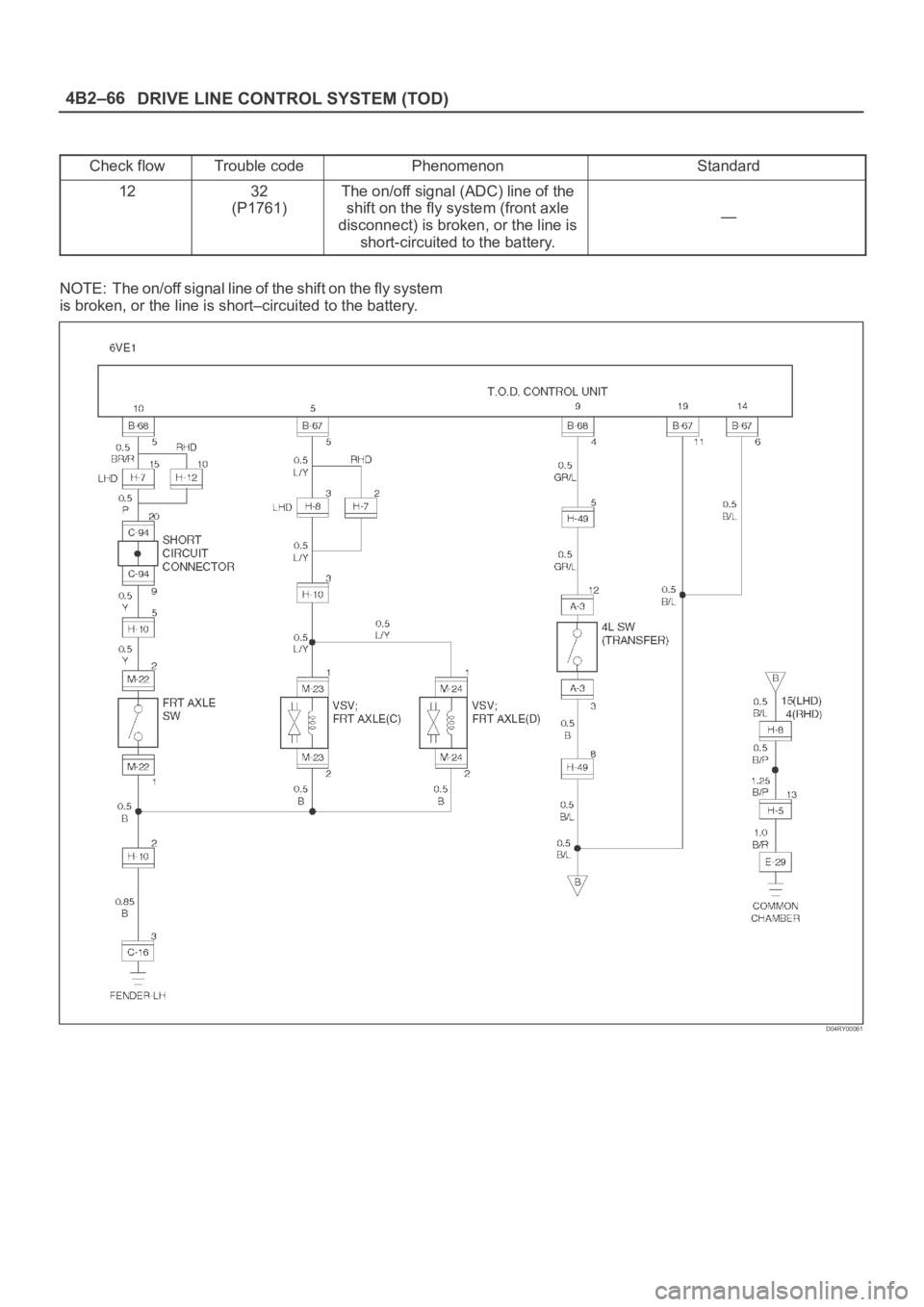

NOTE: The on/off signal line of the shift on the fly system
is broken, or the line is short–circuited to the battery.
D04RY00061
Page 4150 of 6000
4B2–67 DRIVE LINE CONTROL SYSTEM (TOD)
D04RY00062
Page 4151 of 6000
DRIVE LINE CONTROL SYSTEM (TOD) 4B2–68

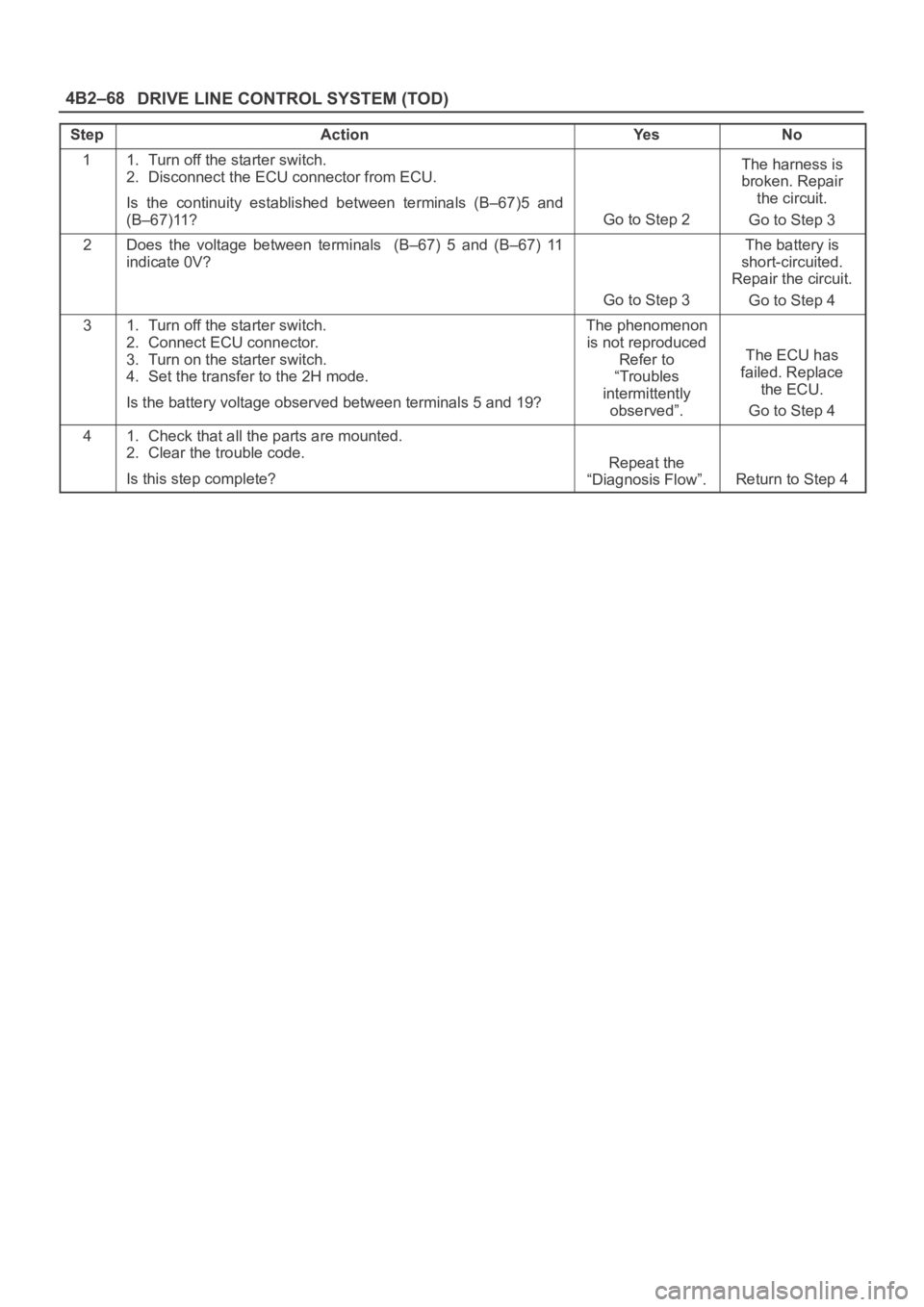

StepActionYe sNo
11. Turn off the starter switch.
2. Disconnect the ECU connector from ECU.
Is the continuity established between terminals (B–67)5 and
(B–67)11?
Go to Step 2
The harness is
broken. Repair
the circuit.
Go to Step 3
2Does the voltage between terminals (B–67) 5 and (B–67) 11
indicate 0V?
Go to Step 3
The battery is
short-circuited.
Repair the circuit.
Go to Step 4
31. Turn off the starter switch.
2. Connect ECU connector.
3. Turn on the starter switch.
4. Set the transfer to the 2H mode.
Is the battery voltage observed between terminals 5 and 19?The phenomenon
is not reproduced
Refer to
“Troubles
intermittently
observed”.
The ECU has
failed. Replace
the ECU.
Go to Step 4
41. Check that all the parts are mounted.
2. Clear the trouble code.
Is this step complete?
Repeat the
“Diagnosis Flow”.
Return to Step 4
Page 4152 of 6000
4B2–69 DRIVE LINE CONTROL SYSTEM (TOD)
Check flowTrouble codePhenomenonStandard
1333
(P1762)The ADC line is short-circuited to
GND.—

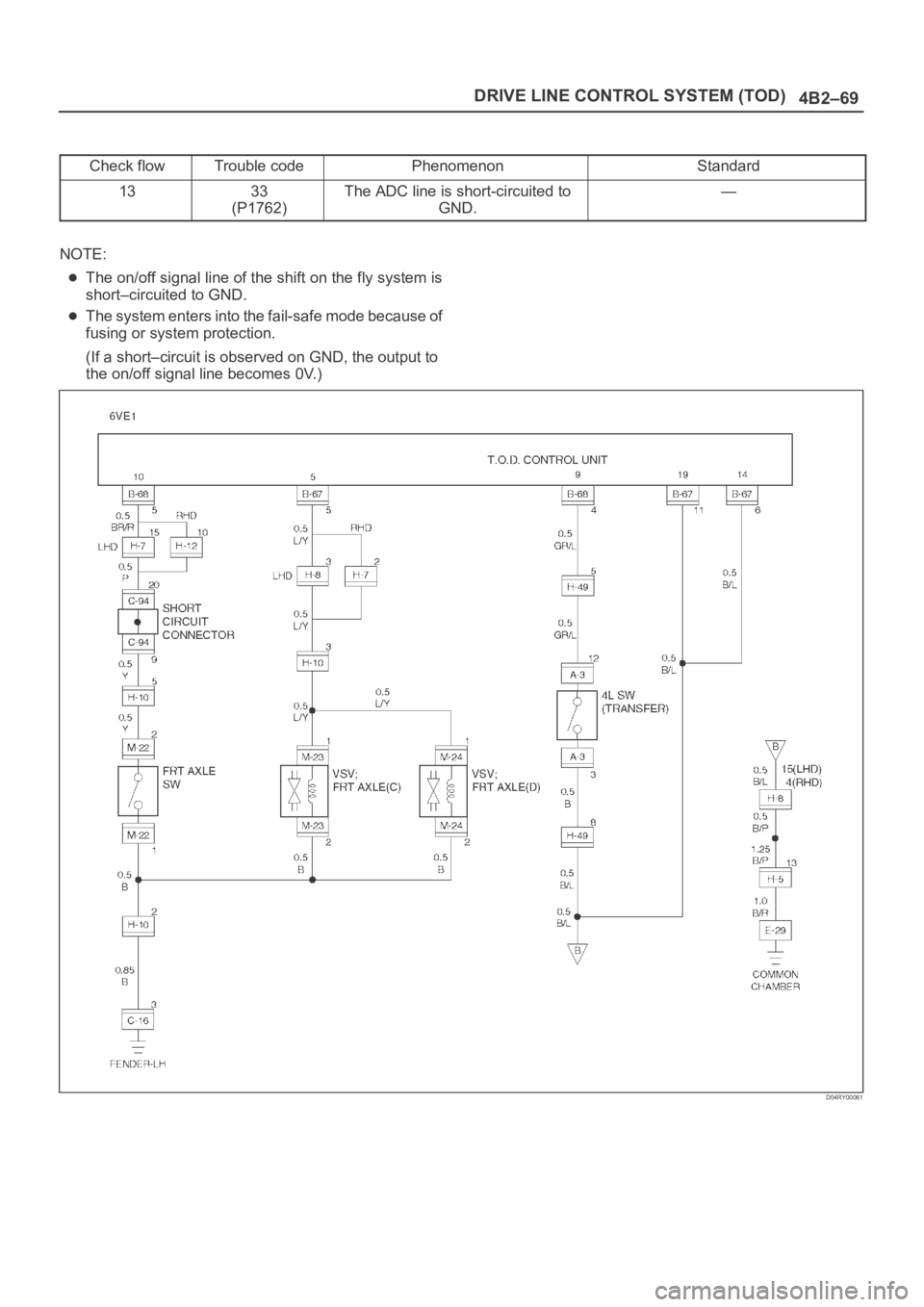

NOTE:
The on/off signal line of the shift on the fly system is
short–circuited to GND.
The system enters into the fail-safe mode because of
fusing or system protection.
(If a short–circuit is observed on GND, the output to
the on/off signal line becomes 0V.)
D04RY00061
