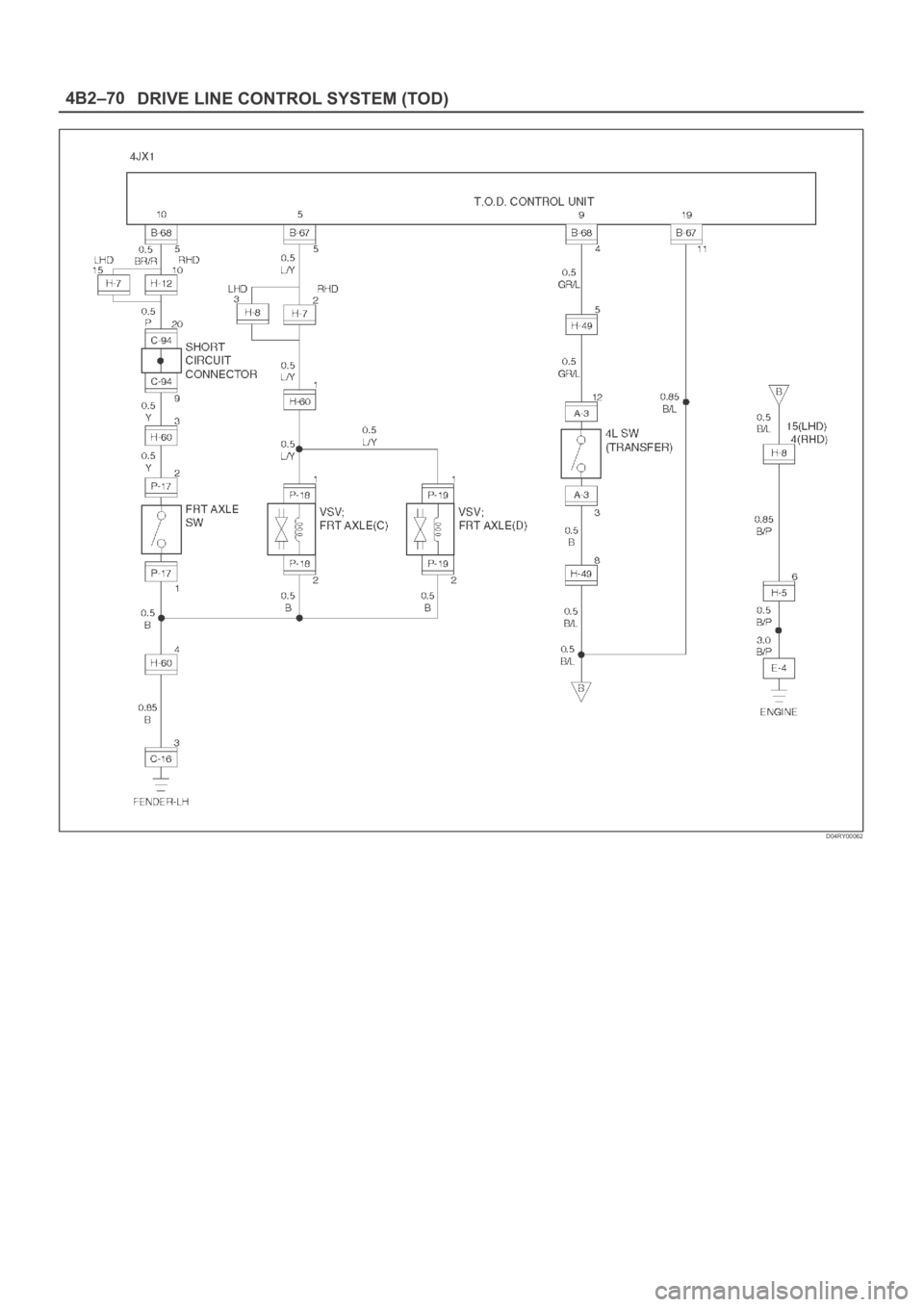

OPEL FRONTERA 1998 Workshop Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2–70 D04RY00062

Page 4154 of 6000

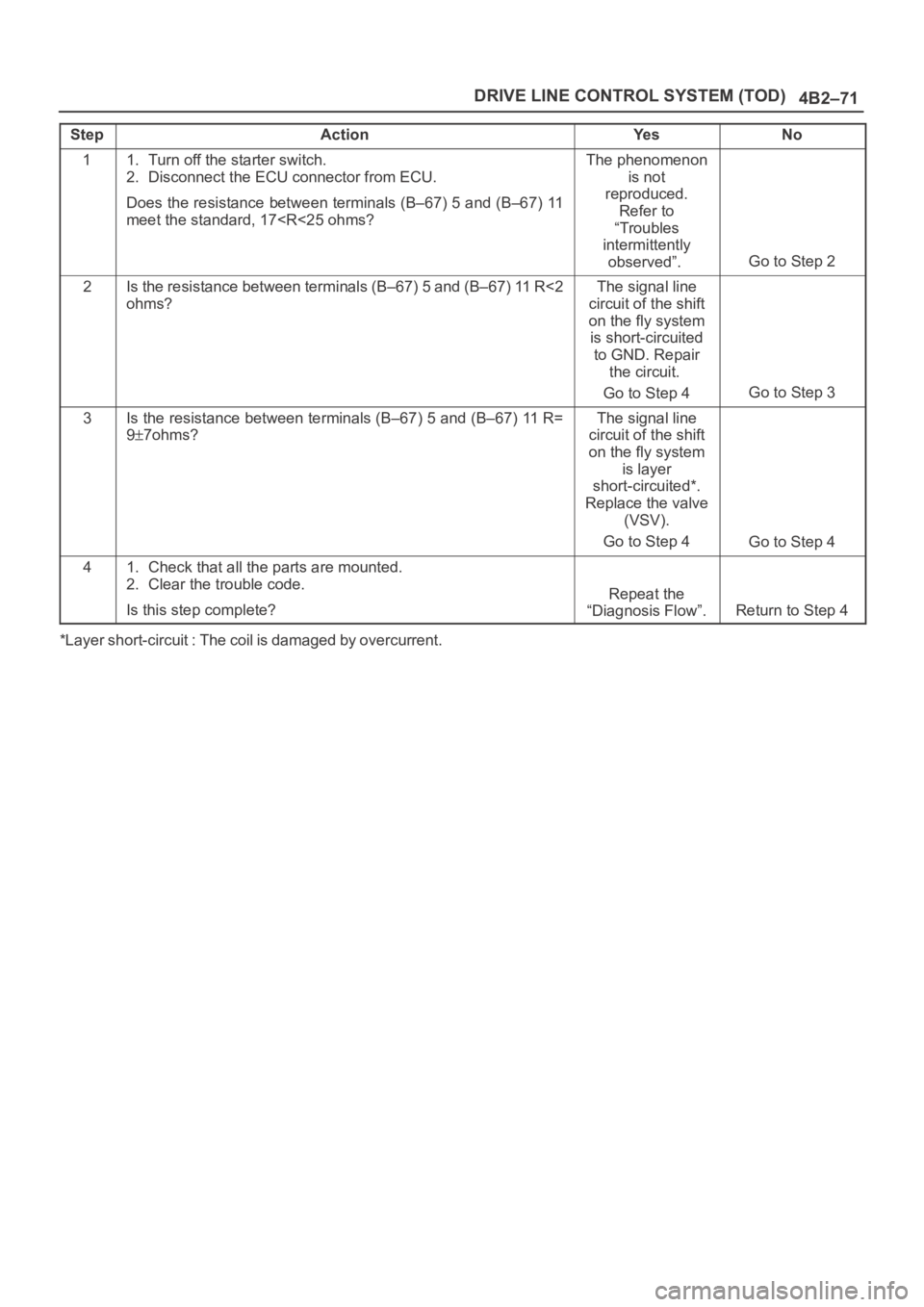

OPEL FRONTERA 1998 Workshop Manual 4B2–71 DRIVE LINE CONTROL SYSTEM (TOD) StepActionYe sNo 11. Turn off the starter switch. 2. Disconnect the ECU connector from ECU. Does the resistance between terminals (B–67) 5 and (B–67) 11 me

Page 4155 of 6000

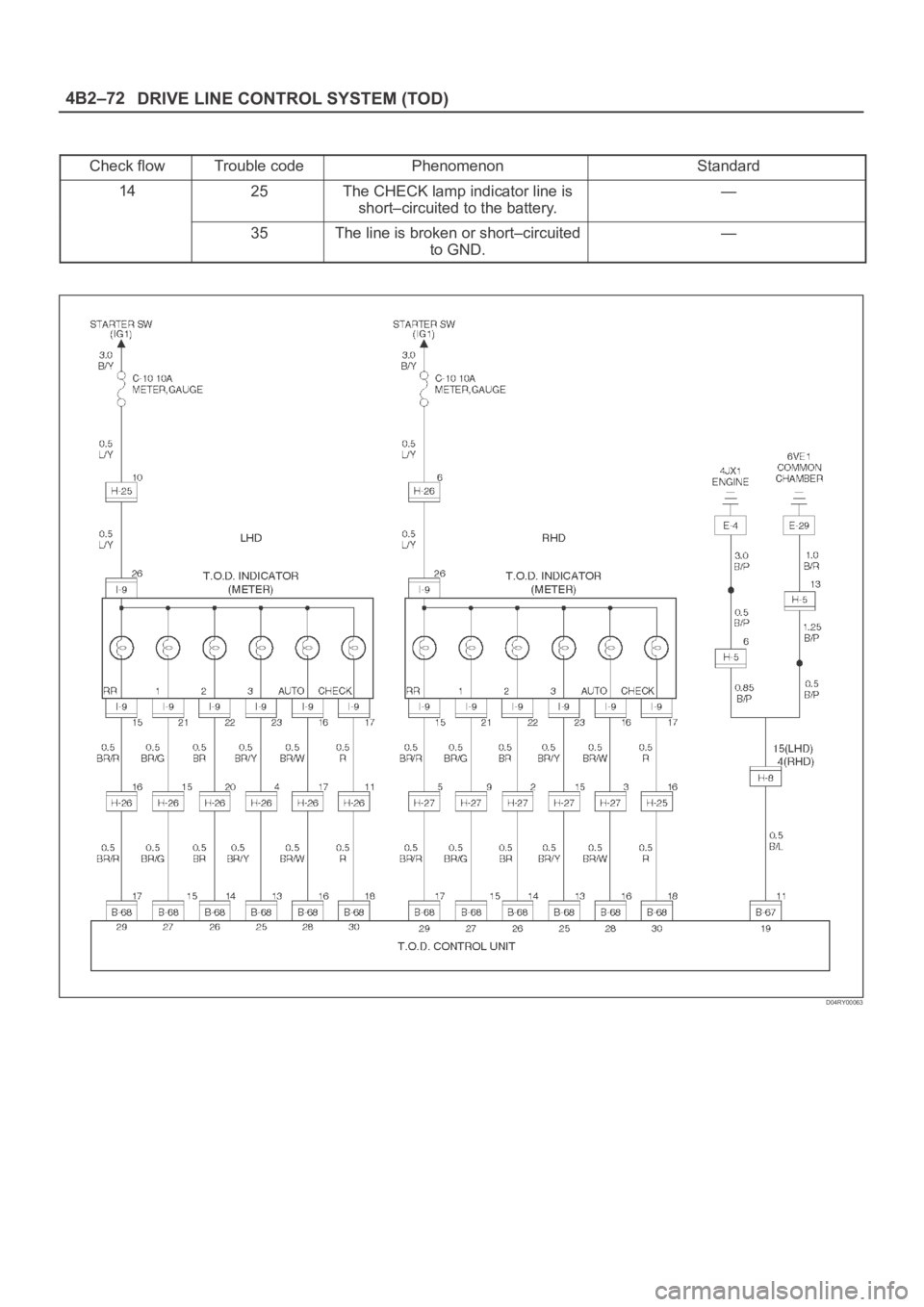

OPEL FRONTERA 1998 Workshop Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2–72 Check flowTrouble codePhenomenonStandard 1425The CHECK lamp indicator line is short–circuited to the battery.— 35The line is broken or short–circuited to

Page 4156 of 6000

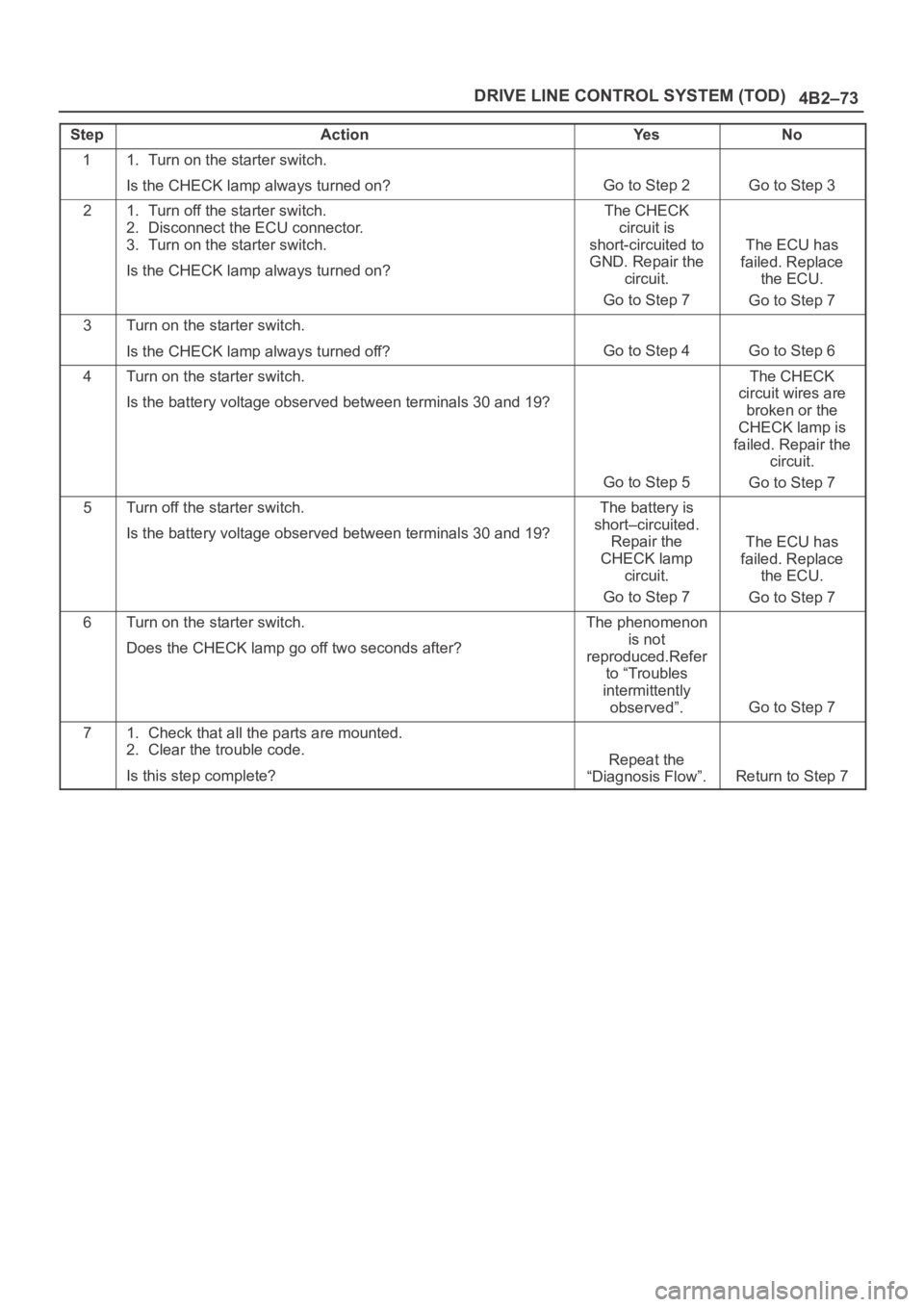

OPEL FRONTERA 1998 Workshop Manual 4B2–73 DRIVE LINE CONTROL SYSTEM (TOD) StepActionYe sNo 11. Turn on the starter switch. Is the CHECK lamp always turned on? Go to Step 2Go to Step 3 21. Turn off the starter switch. 2. Disconnect th

Page 4157 of 6000

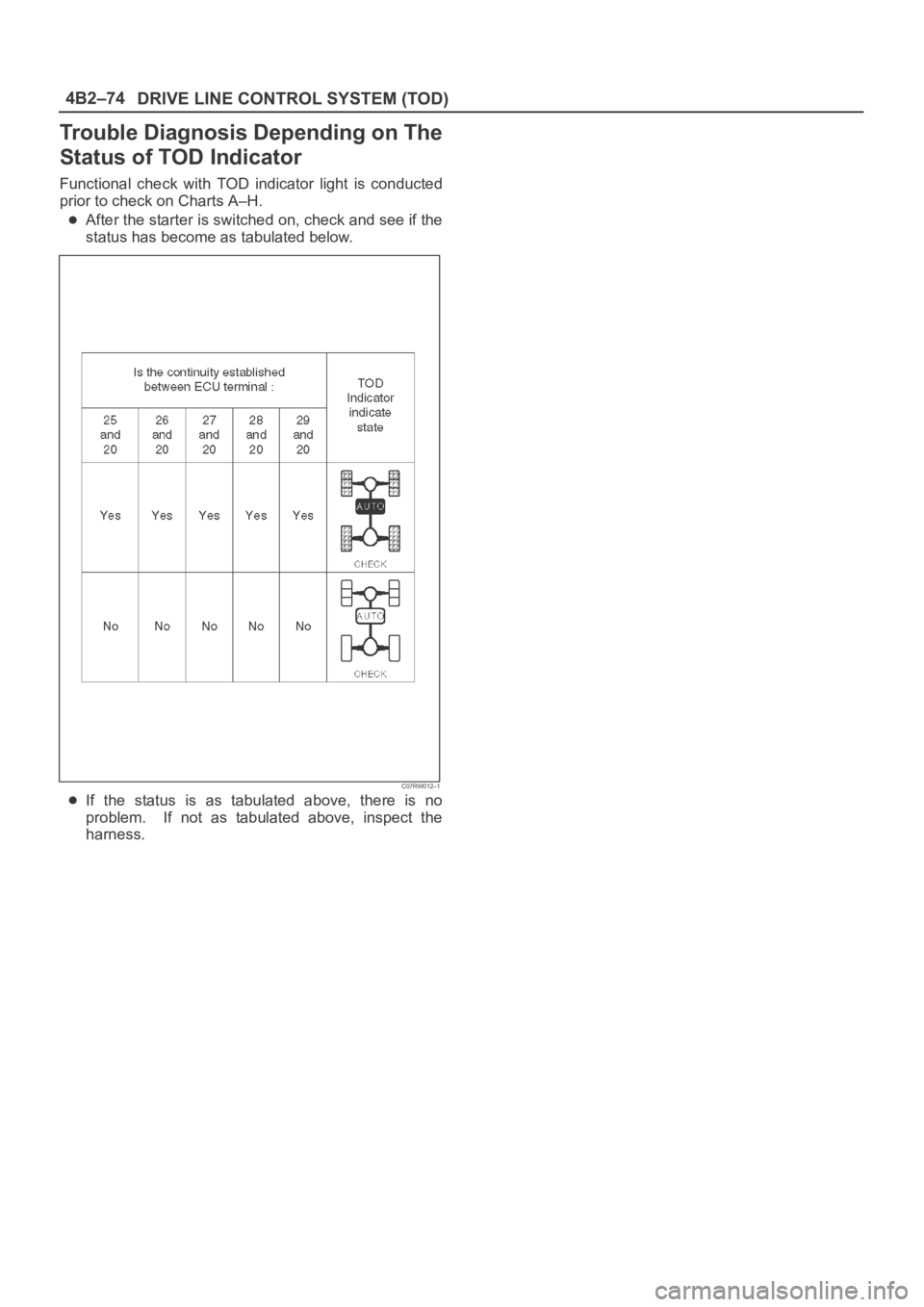

OPEL FRONTERA 1998 Workshop Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2–74 Trouble Diagnosis Depending on The Status of TOD Indicator Functional check with TOD indicator light is conducted prior to check on Charts A–H. After

Page 4158 of 6000

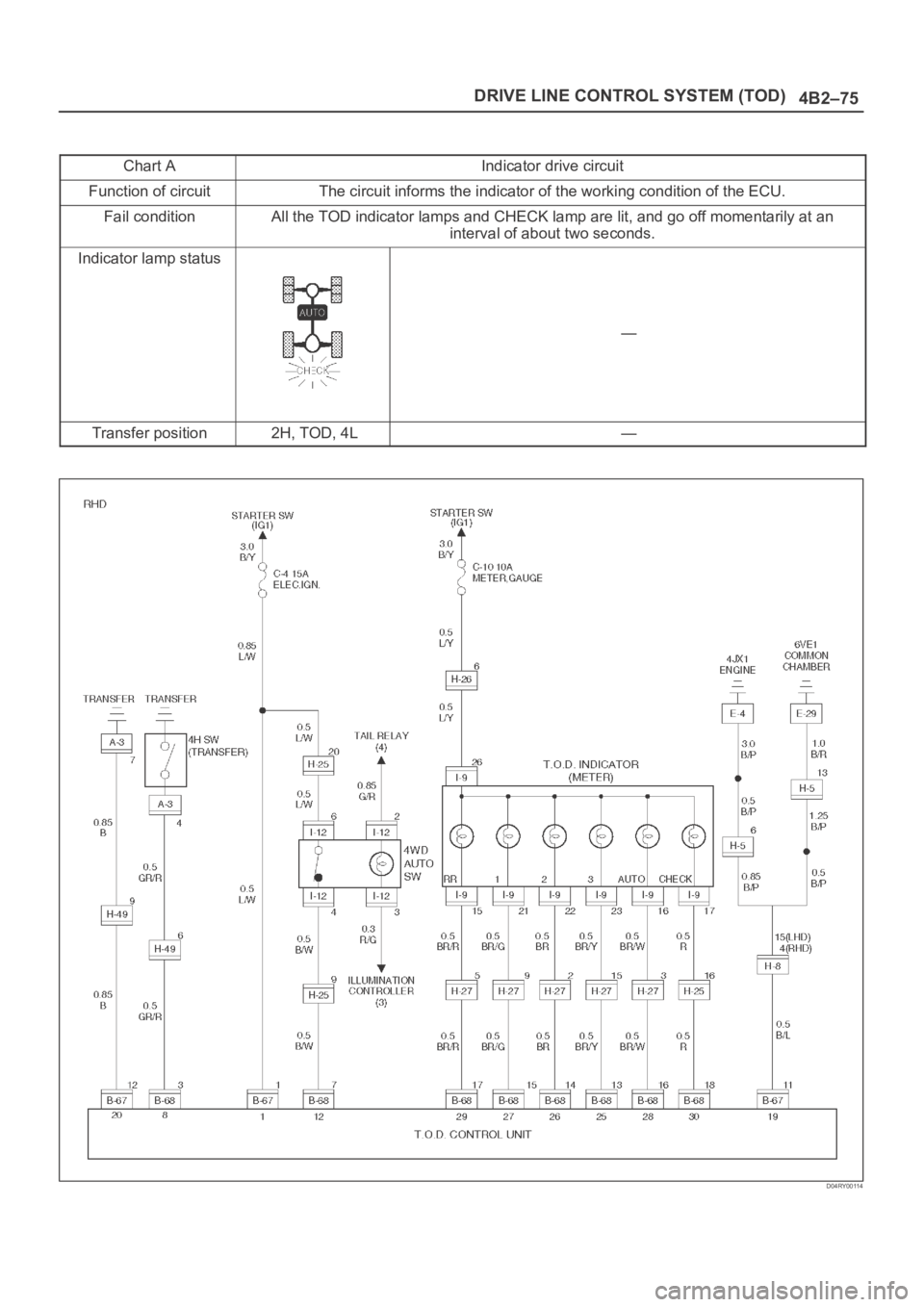

OPEL FRONTERA 1998 Workshop Manual 4B2–75 DRIVE LINE CONTROL SYSTEM (TOD) Chart AIndicator drive circuit Function of circuitThe circuit informs the indicator of the working condition of the ECU. Fail conditionAll the TOD indicator la

Page 4159 of 6000

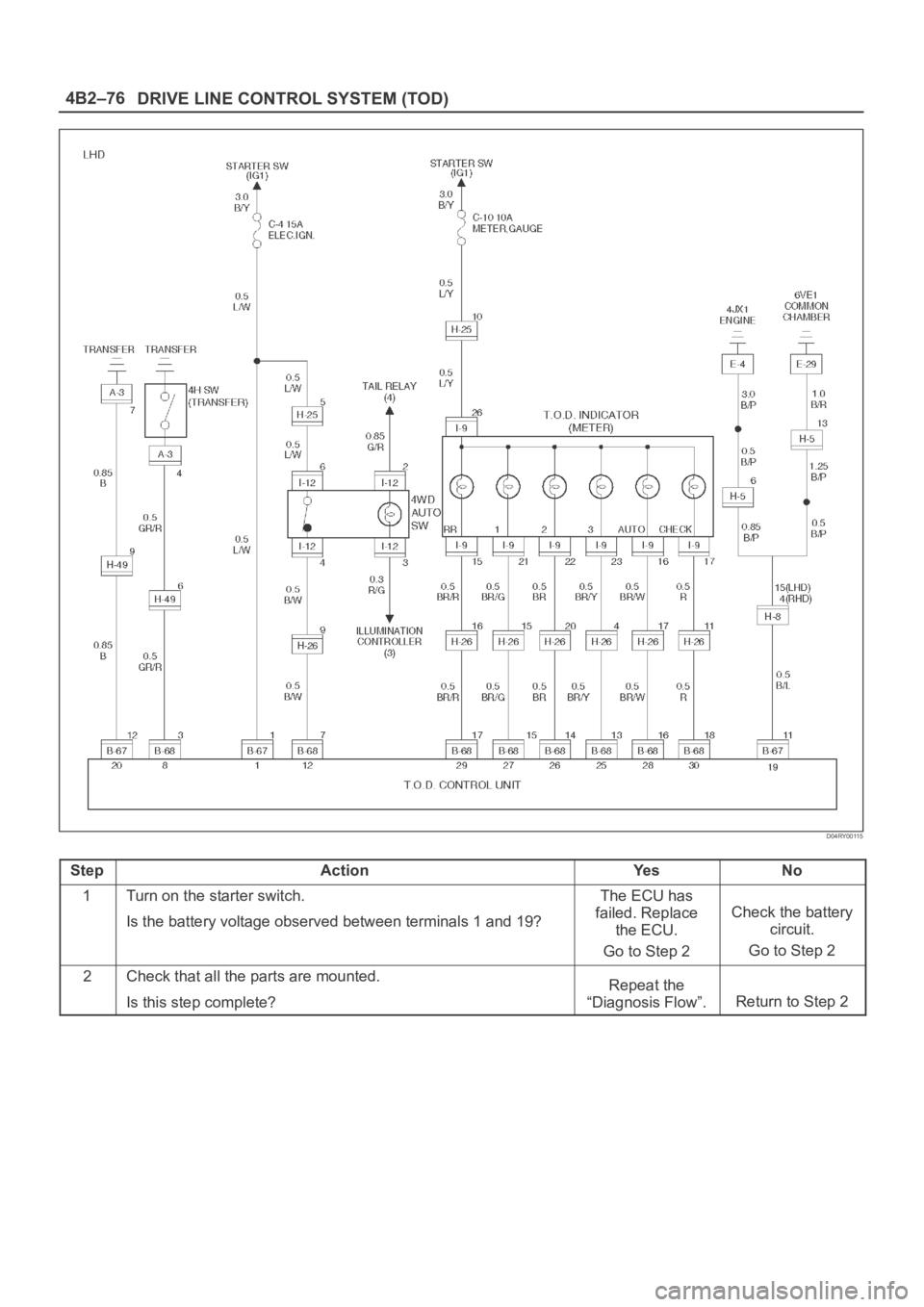

OPEL FRONTERA 1998 Workshop Manual DRIVE LINE CONTROL SYSTEM (TOD) 4B2–76 D04RY00115 StepActionYe sNo 1Turn on the starter switch. Is the battery voltage observed between terminals 1 and 19?The ECU has failed. Replace the ECU. Go to

Page 4160 of 6000

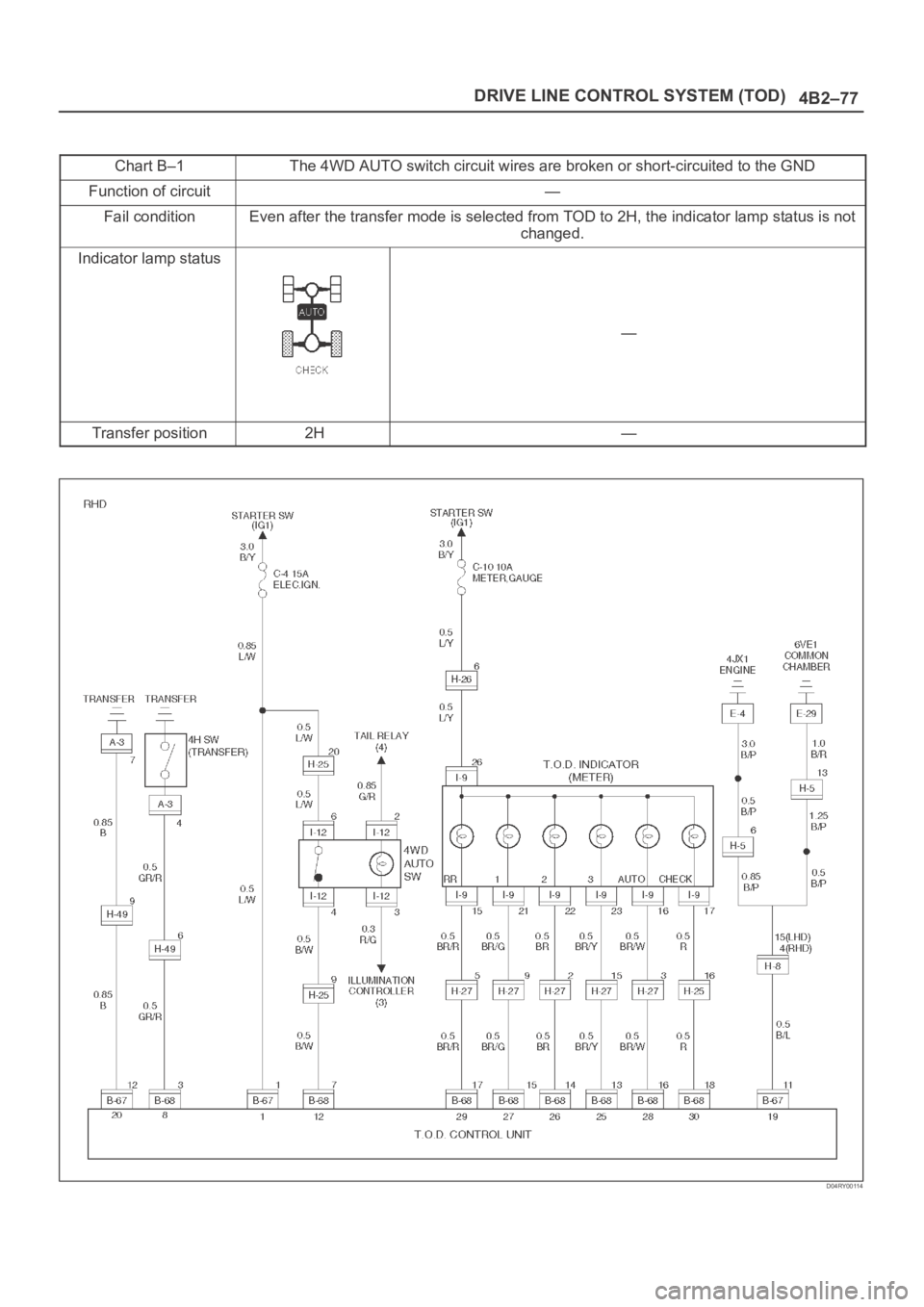

OPEL FRONTERA 1998 Workshop Manual 4B2–77 DRIVE LINE CONTROL SYSTEM (TOD) Chart B–1The 4WD AUTO switch circuit wires are broken or short-circuited to the GND Function of circuit— Fail conditionEven after the transfer mode is sele
