Page 5769 of 6000

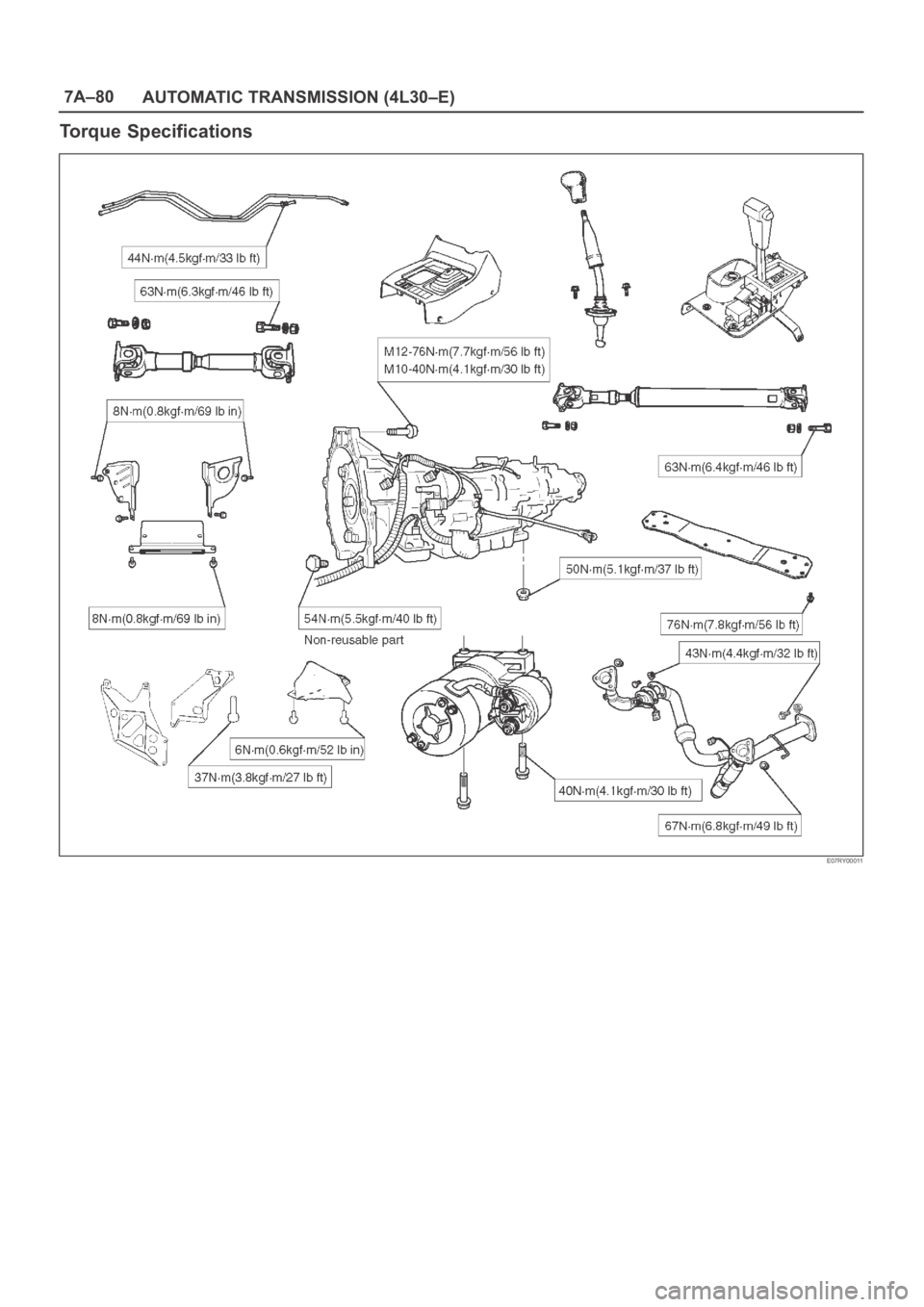

OPEL FRONTERA 1998 Workshop Manual 7A–80
AUTOMATIC TRANSMISSION (4L30–E)
Torque Specifications
E07RY00011

Page 5770 of 6000

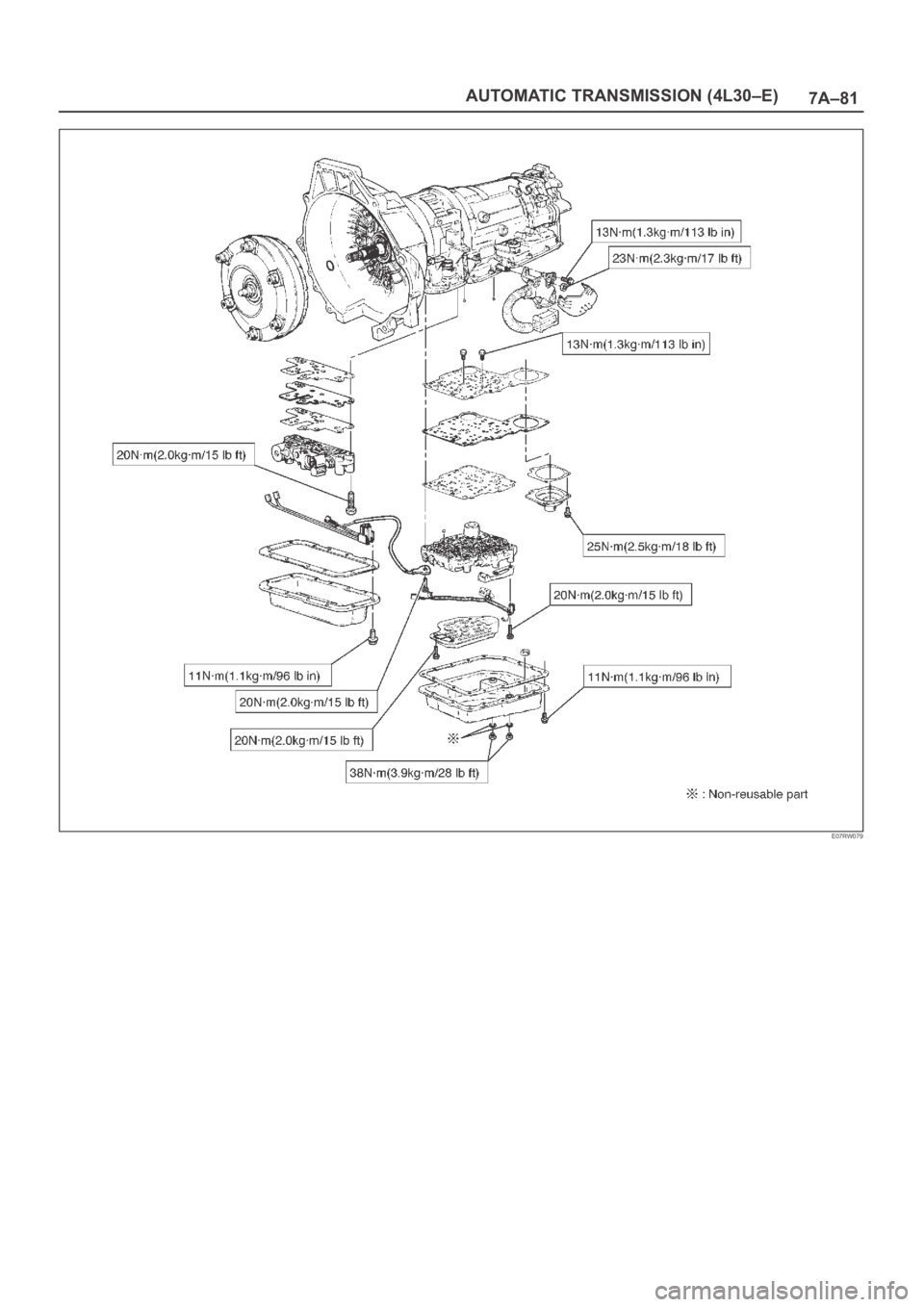

OPEL FRONTERA 1998 Workshop Manual 7A–81 AUTOMATIC TRANSMISSION (4L30–E)
E07RW079

Page 5771 of 6000

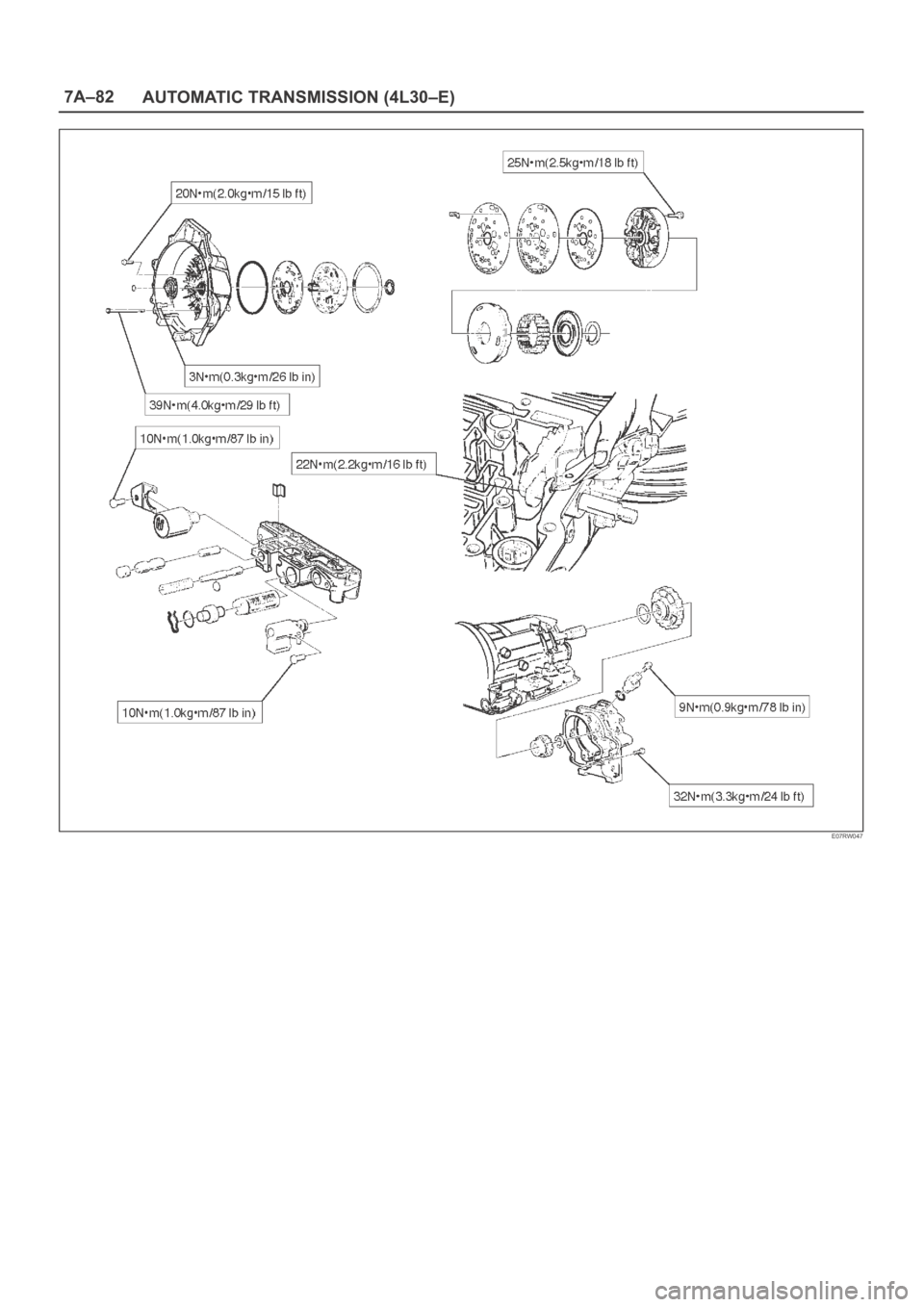

OPEL FRONTERA 1998 Workshop Manual 7A–82
AUTOMATIC TRANSMISSION (4L30–E)
E07RW047

Page 5772 of 6000

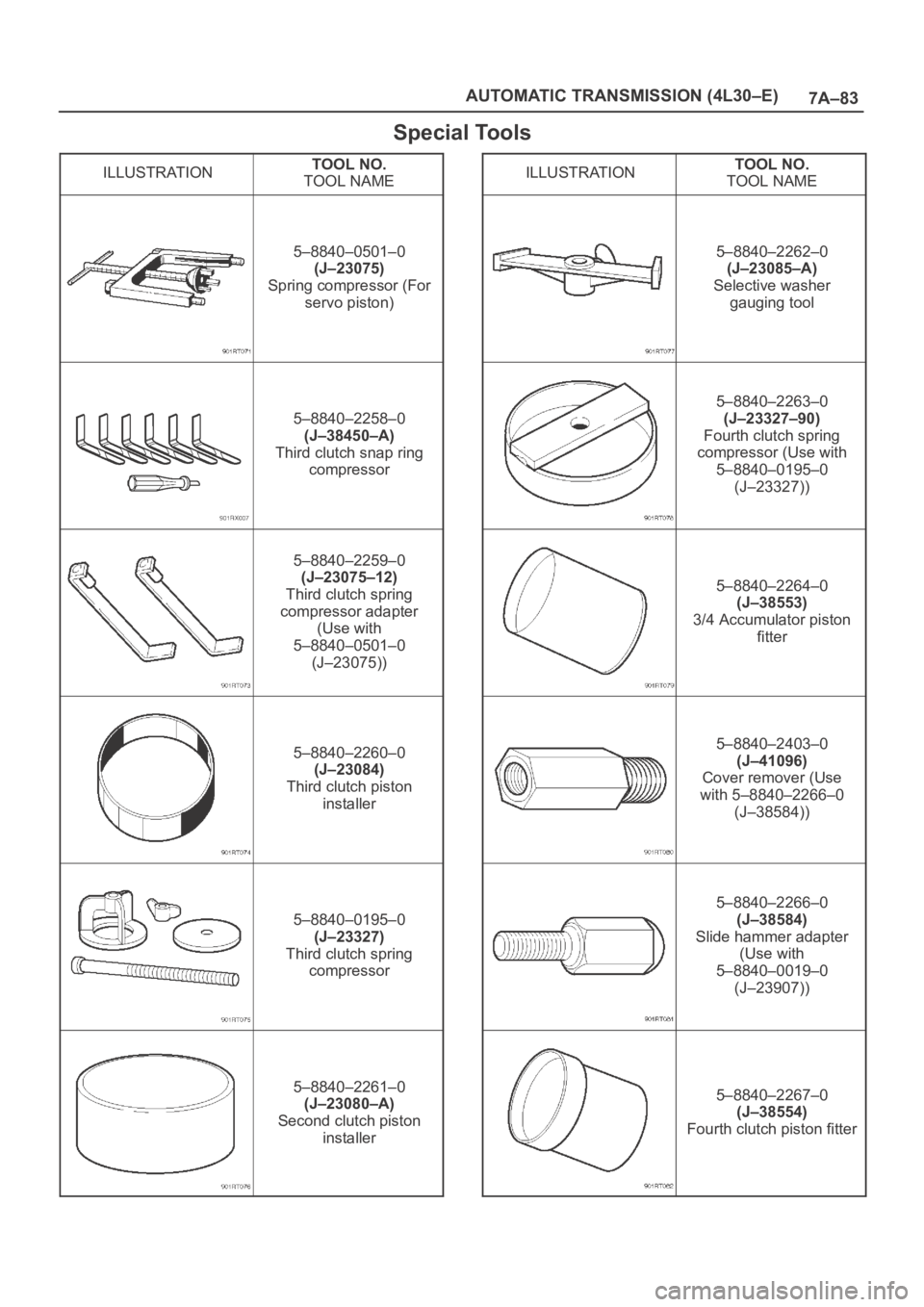

OPEL FRONTERA 1998 Workshop Manual 7A–83 AUTOMATIC TRANSMISSION (4L30–E)
Special Tools
ILLUSTRATIONTOOL NO.
TOOL NAME
5–8840–0501–0
(J–23075)
Spring compressor (For
servo piston)
5–8840–2258–0
(J–38450–A)
Third cl

Page 5773 of 6000

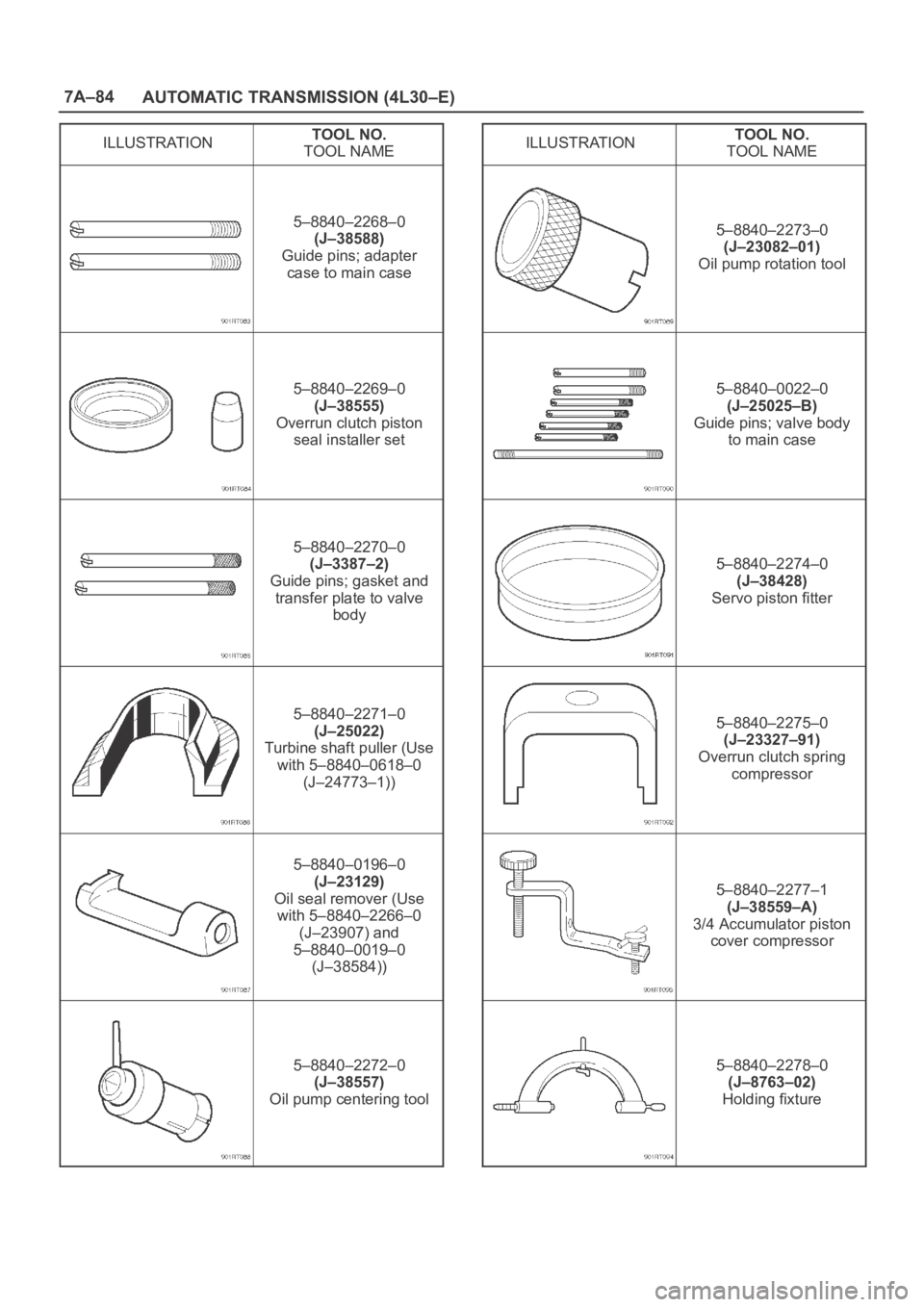

OPEL FRONTERA 1998 Workshop Manual 7A–84
AUTOMATIC TRANSMISSION (4L30–E)
ILLUSTRATIONTOOL NO.
TOOL NAME
5–8840–2268–0
(J–38588)
Guide pins; adapter
case to main case
5–8840–2269–0
(J–38555)
Overrun clutch piston
sea

Page 5774 of 6000

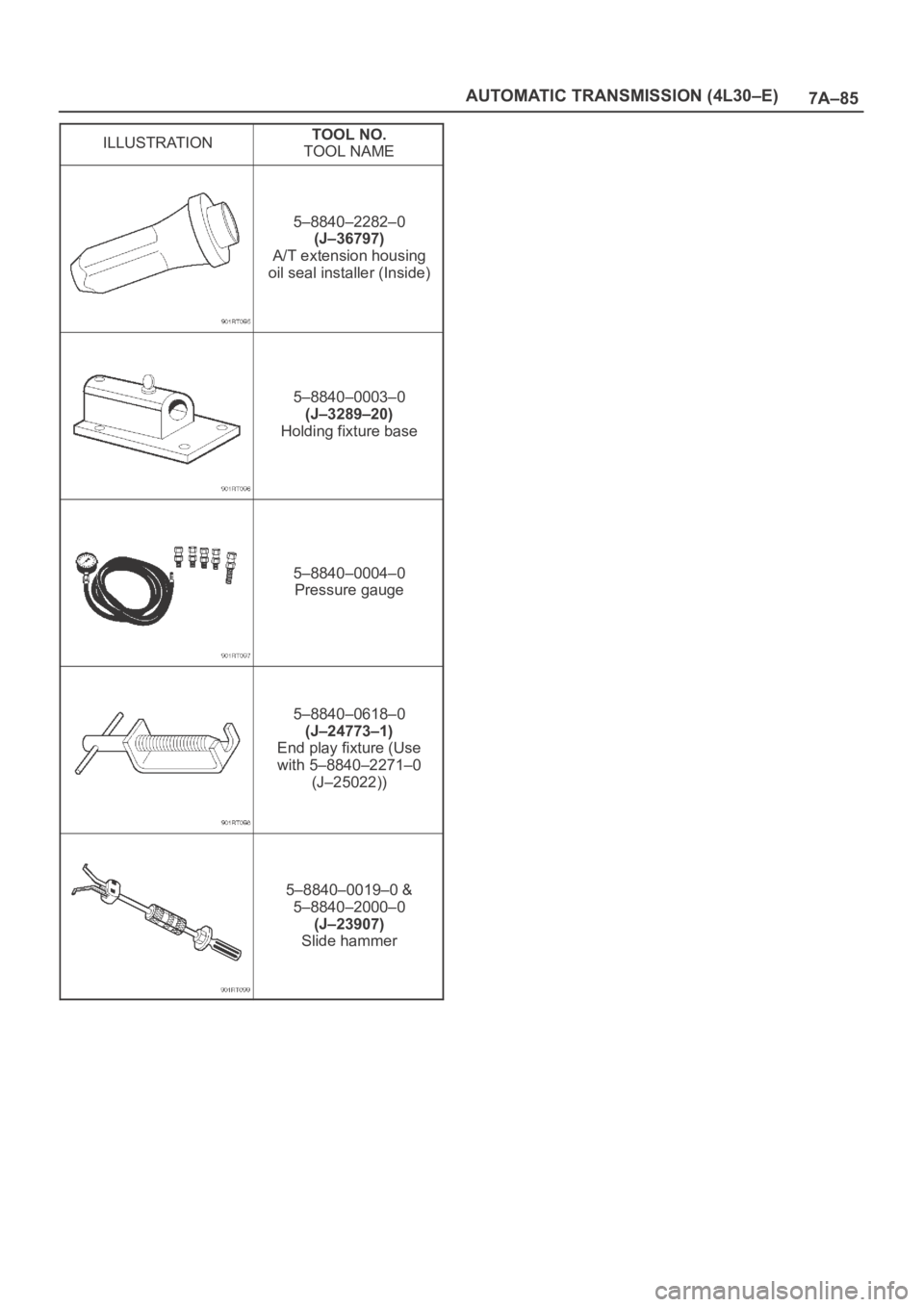

OPEL FRONTERA 1998 Workshop Manual 7A–85 AUTOMATIC TRANSMISSION (4L30–E)
ILLUSTRATIONTOOL NO.
TOOL NAME
5–8840–2282–0
(J–36797)
A/T extension housing
oil seal installer (Inside)
5–8840–0003–0
(J–3289–20)
Holding f

Page 5775 of 6000

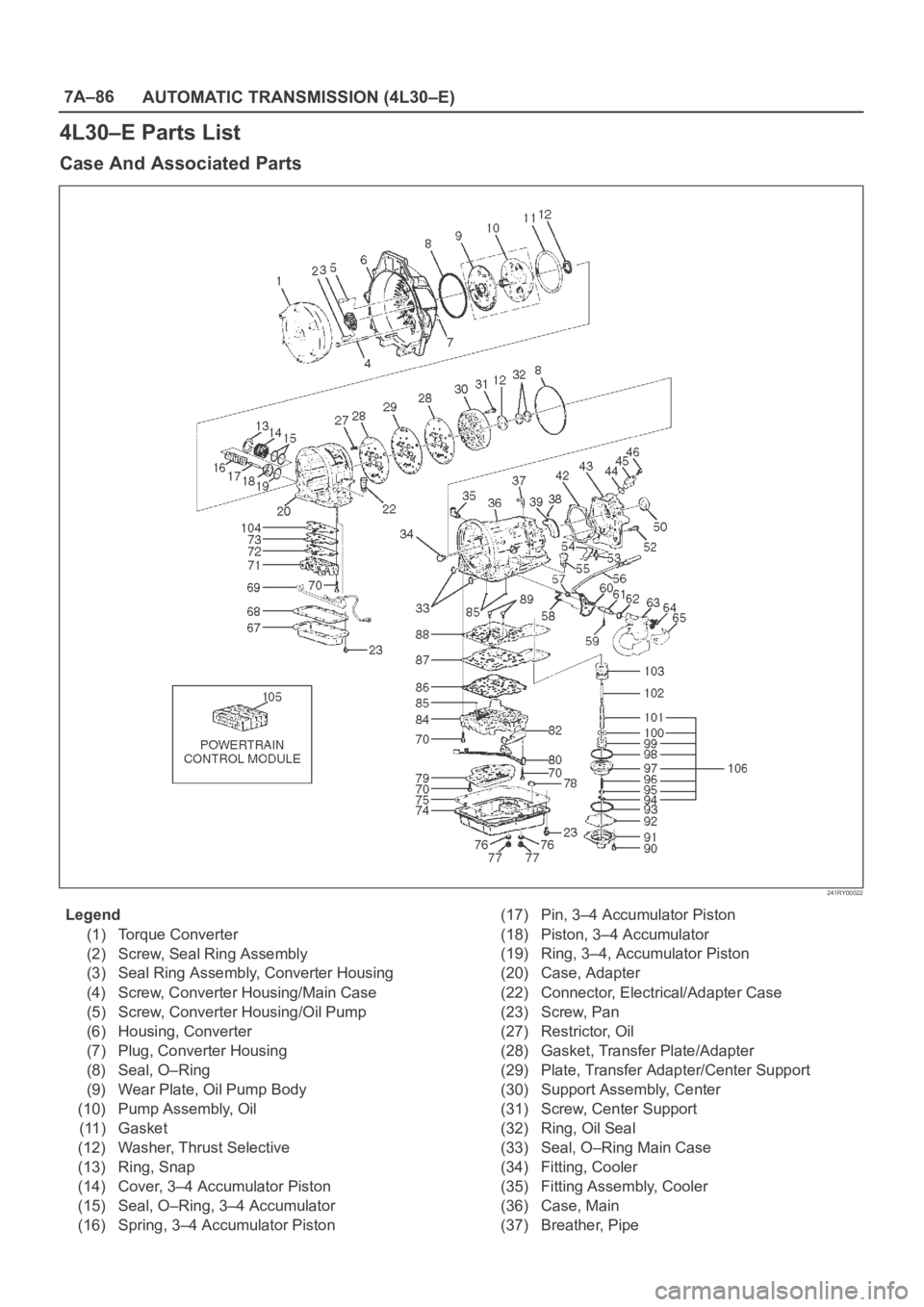

OPEL FRONTERA 1998 Workshop Manual 7A–86
AUTOMATIC TRANSMISSION (4L30–E)
4L30–E Parts List
Case And Associated Parts
241RY00022
Legend
(1) Torque Converter
(2) Screw, Seal Ring Assembly
(3) Seal Ring Assembly, Converter Housing
(

Page 5776 of 6000

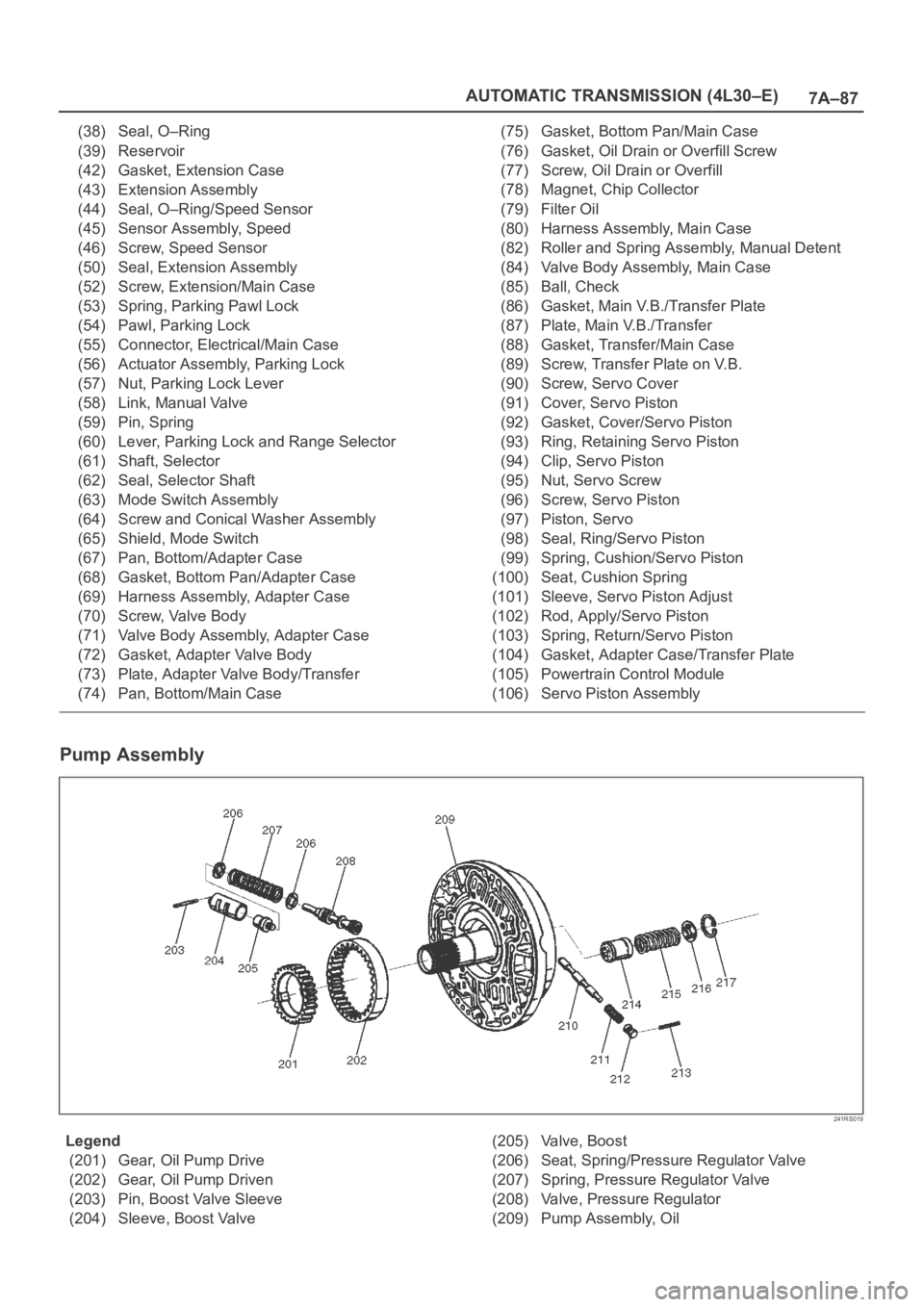

OPEL FRONTERA 1998 Workshop Manual 7A–87 AUTOMATIC TRANSMISSION (4L30–E)
(38) Seal, O–Ring
(39) Reservoir
(42) Gasket, Extension Case
(43) Extension Assembly
(44) Seal, O–Ring/Speed Sensor
(45) Sensor Assembly, Speed
(46) Screw

7A–87 AUTOMATIC TRANSMISSION (4L30–E)
(38) Seal, O–Ring
(39) Reservoir
(42) Gasket, Extension Case
(43) Extension Assembly
(44) Seal, O–Ring/Speed Sensor
(45) Sensor Assembly, Speed
(46) Screw, Speed Sensor
(50) Seal, Extension Assembly
(52) Screw, Extension/Main Case
(53) Spring, Parking Pawl Lock
(54) Pawl, Parking Lock
(55) Connector, Electrical/Main Case
(56) Actuator Assembly, Parking Lock
(57) Nut, Parking Lock Lever
(58) Link, Manual Valve
(59) Pin, Spring
(60) Lever, Parking Lock and Range Selector
(61) Shaft, Selector
(62) Seal, Selector Shaft
(63) Mode Switch Assembly
(64) Screw and Conical Washer Assembly
(65) Shield, Mode Switch
(67) Pan, Bottom/Adapter Case
(68) Gasket, Bottom Pan/Adapter Case
(69) Harness Assembly, Adapter Case
(70) Screw, Valve Body
(71) Valve Body Assembly, Adapter Case
(72) Gasket, Adapter Valve Body
(73) Plate, Adapter Valve Body/Transfer
(74) Pan, Bottom/Main Case(75) Gasket, Bottom Pan/Main Case
(76) Gasket, Oil Drain or Overfill Screw
(77) Screw, Oil Drain or Overfill
(78) Magnet, Chip Collector
(79) Filter Oil
(80) Harness Assembly, Main Case
(82) Roller and Spring Assembly, Manual Detent
(84) Valve Body Assembly, Main Case
(85) Ball, Check
(86) Gasket, Main V.B./Transfer Plate
(87) Plate, Main V.B./Transfer
(88) Gasket, Transfer/Main Case
(89) Screw, Transfer Plate on V.B.
(90) Screw, Servo Cover
(91) Cover, Servo Piston
(92) Gasket, Cover/Servo Piston
(93) Ring, Retaining Servo Piston
(94) Clip, Servo Piston
(95) Nut, Servo Screw
(96) Screw, Servo Piston
(97) Piston, Servo
(98) Seal, Ring/Servo Piston
(99) Spring, Cushion/Servo Piston
(100) Seat, Cushion Spring
(101) Sleeve, Servo Piston Adjust
(102) Rod, Apply/Servo Piston
(103) Spring, Return/Servo Piston
(104) Gasket, Adapter Case/Transfer Plate
(105) Powertrain Control Module
(106) Servo Piston Assembly
Pump Assembly
241RS019
Legend
(201) Gear, Oil Pump Drive
(202) Gear, Oil Pump Driven
(203) Pin, Boost Valve Sleeve
(204) Sleeve, Boost Valve(205) Valve, Boost
(206) Seat, Spring/Pressure Regulator Valve
(207) Spring, Pressure Regulator Valve
(208) Valve, Pressure Regulator
(209) Pump Assembly, Oil
