Page 2321 of 6000

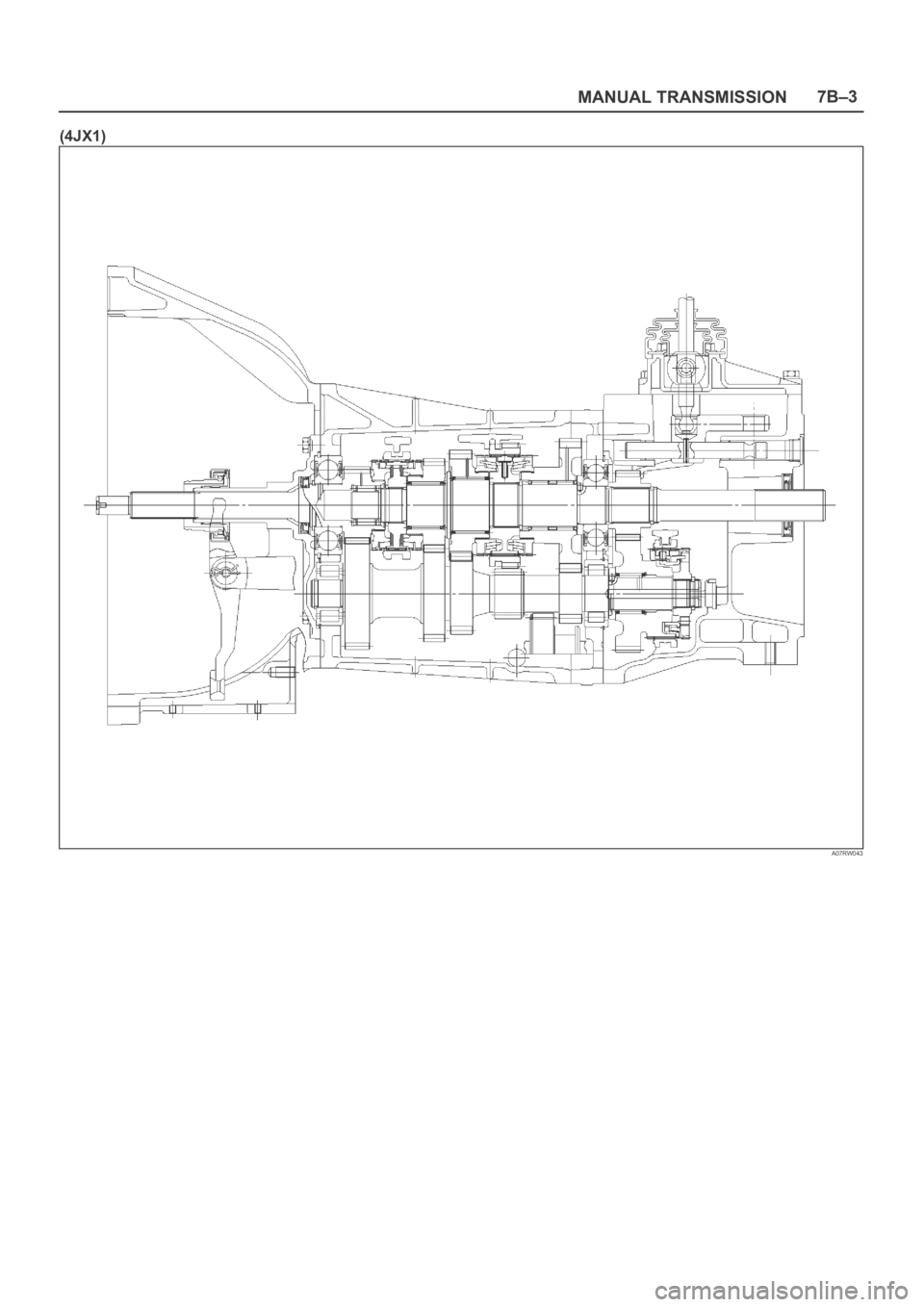

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–3 (4JX1) A07RW043

Page 2322 of 6000

OPEL FRONTERA 1998 Workshop Manual 7B–4MANUAL TRANSMISSION Diagnosis ConditionPossible causeCorrection Abnormal noiseFlywheel pilot bearing wornReplace Bearings worn or broken (Mainshaft, counter shaft, and transfer shaft)Replace Gea

Page 2323 of 6000

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–5 Manual Transmission Assembly Transmission and Associated Parts 220RW108 Legend (1) Gear Control Lever and Knob (2) Transfer Control Lever and Knob (3) Front Console Assembly

Page 2324 of 6000

OPEL FRONTERA 1998 Workshop Manual 7B–6MANUAL TRANSMISSION Removal NOTE: Before remove the transmission and transfer assembly from the vehicle, change the transfer mode to 2WD using push button on dash panel. 1. Remove engine ho

Page 2325 of 6000

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–7 13. Disconnect the backup lamp switch, 4WD indicator switch and 1–2 indicator switch harness connectors. 826RW023 14. Disconnect the speedometer sensor and 2WD-4WD ac

Page 2326 of 6000

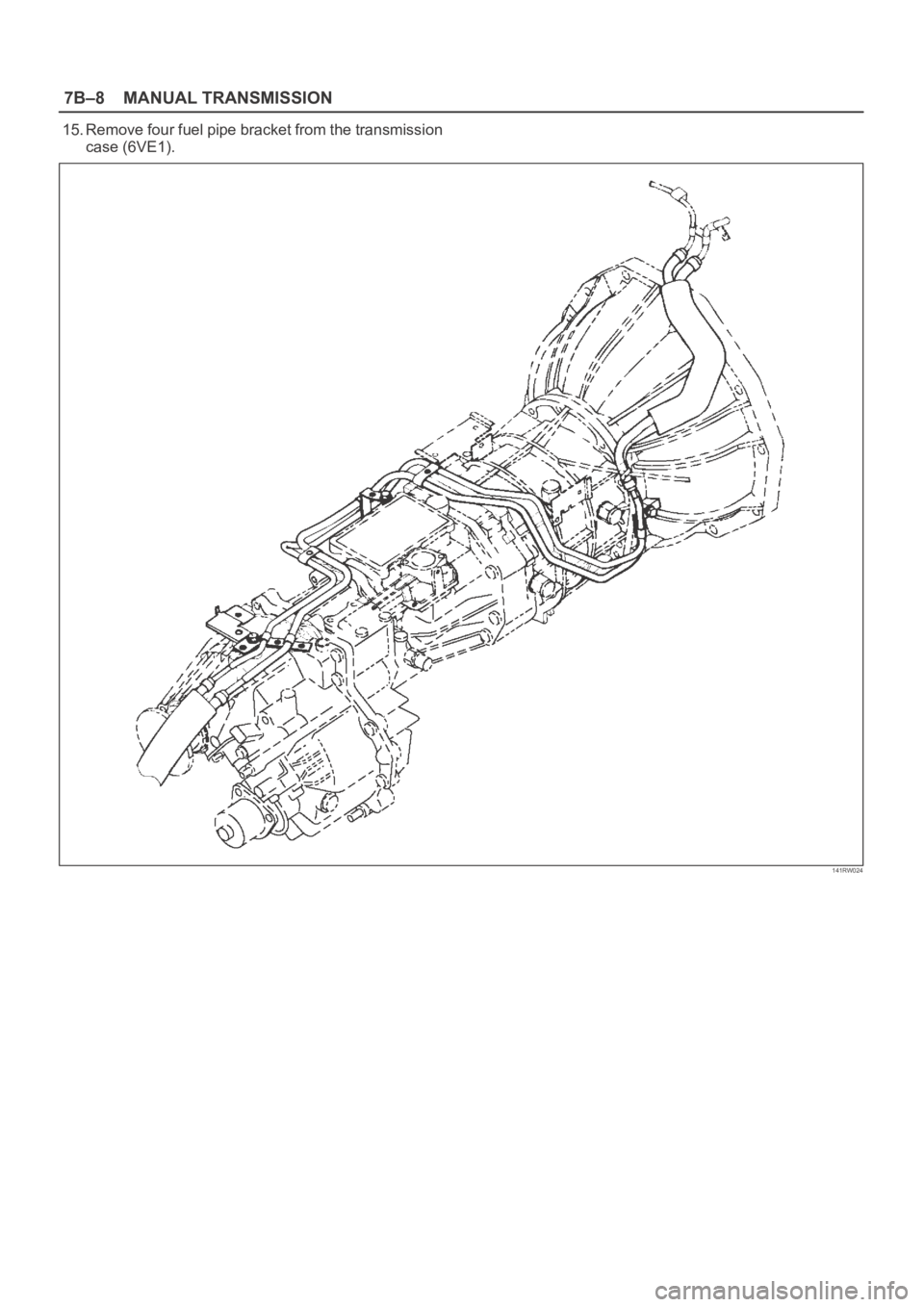

OPEL FRONTERA 1998 Workshop Manual 7B–8MANUAL TRANSMISSION 15. Remove four fuel pipe bracket from the transmission case (6VE1). 141RW024

Page 2327 of 6000

OPEL FRONTERA 1998 Workshop Manual MANUAL TRANSMISSION7B–9 16. Remove the slave cylinder heat protector. 17. Remove the harness heat protector (6VE1). (6VE1) 225RW006 18. Remove two transmission harness clamps and bracket (6VE1)

Page 2328 of 6000

OPEL FRONTERA 1998 Workshop Manual 7B–10MANUAL TRANSMISSION 28. Support the transmission with a transmission jack and then remove jack from the transfer case side. 220RS001 29. Use the clutch release bearing remover 5–88
