Page 5561 of 6000

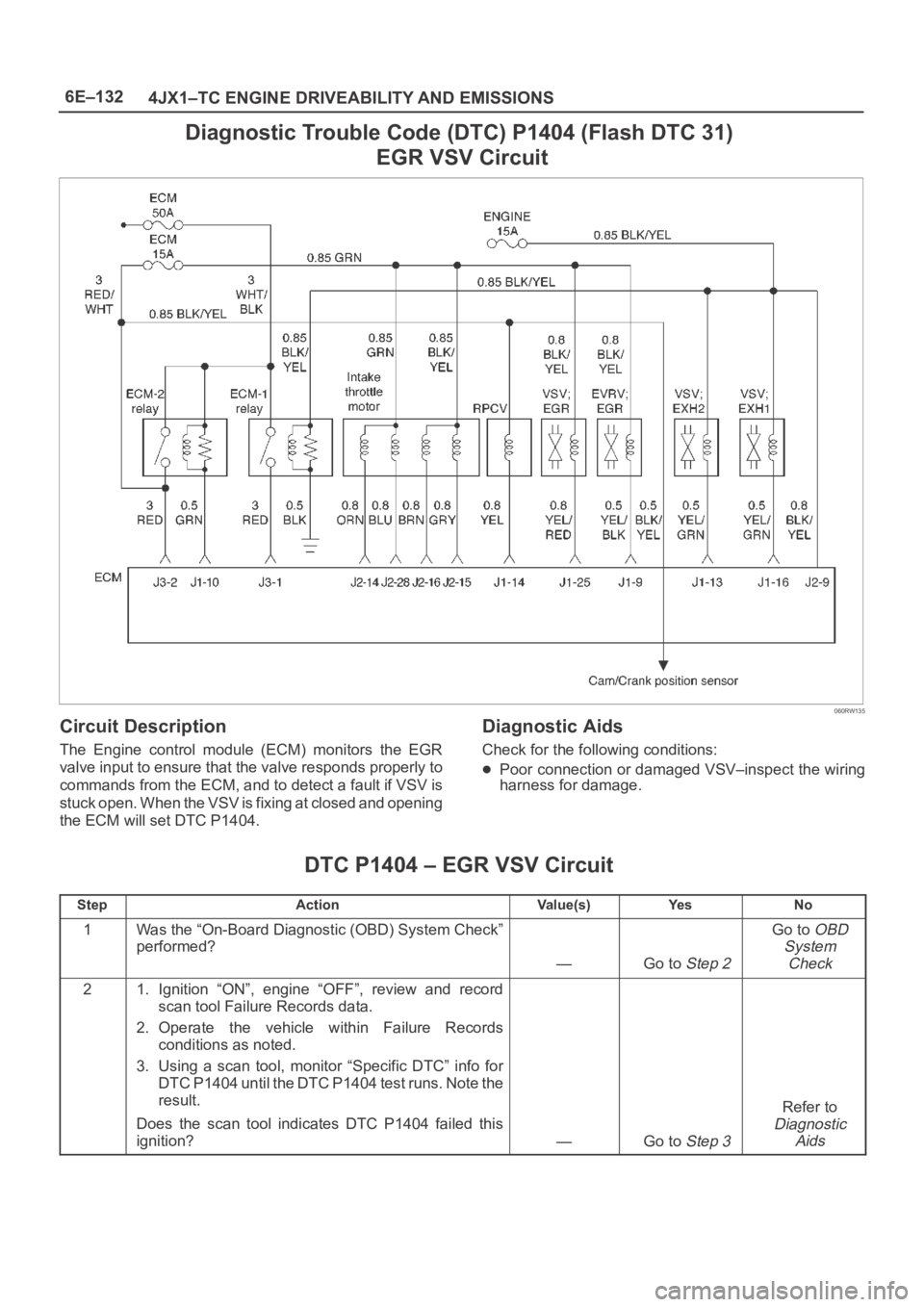

OPEL FRONTERA 1998 Workshop Manual 6E–132 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P1404 (Flash DTC 31) EGR VSV Circuit 060RW135 Circuit Description The Engine control module (ECM) monitors the

Page 5562 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–133 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS DTC P1404 – EGR VSV Circuit StepNo Ye s Va l u e ( s ) Action 3Check the VSV circuit. Was the VSV circuit open or darmage? —Go to Step 4Go to S

Page 5563 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–134 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P0405 (Flash DTC 26) EGR Pressure Sensor Low Voltage 060RW134 Action Taken When the DTC Sets The ECM will illuminate

Page 5564 of 6000

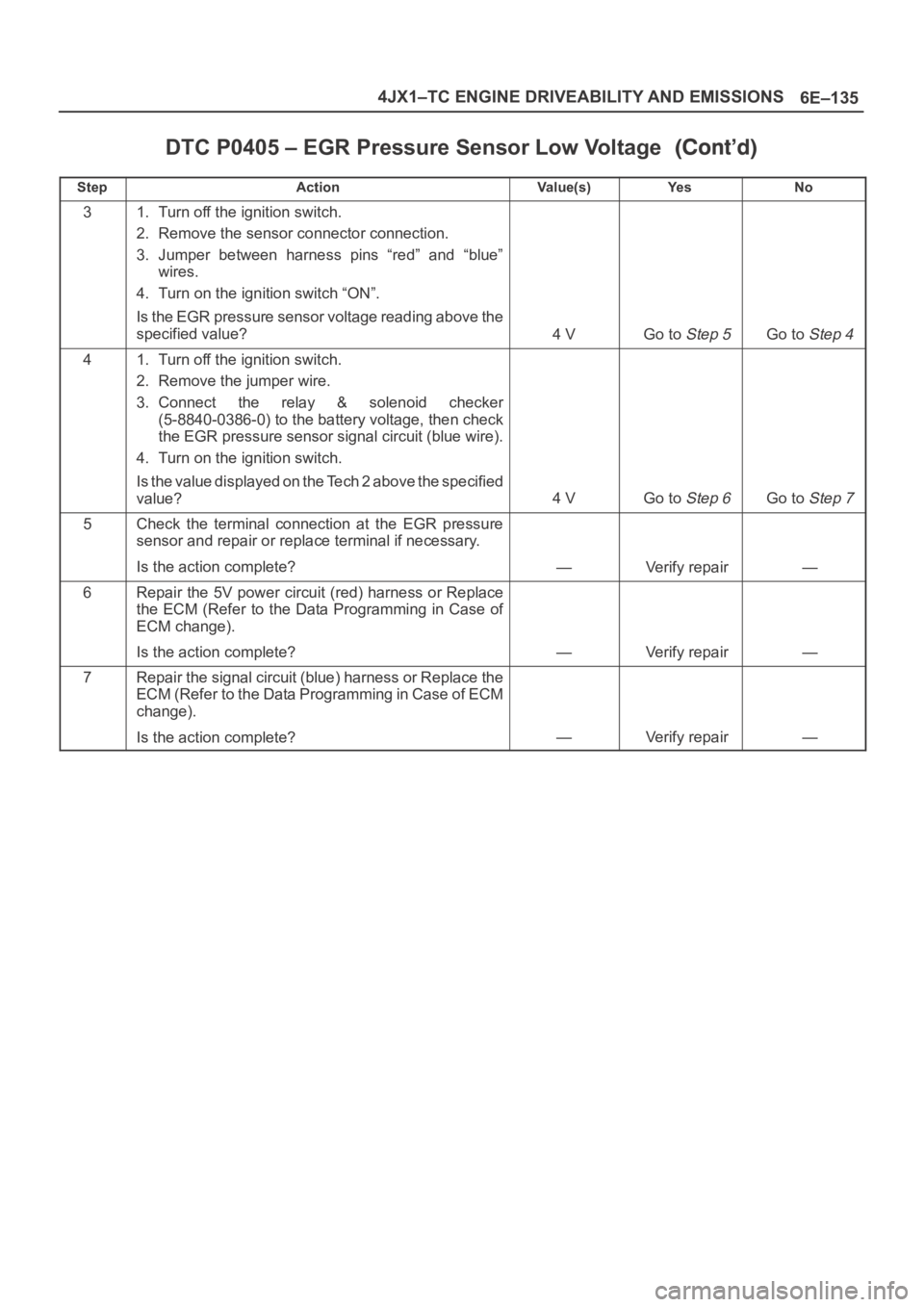

OPEL FRONTERA 1998 Workshop Manual 6E–135 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS DTC P0405 – EGR Pressure Sensor Low Voltage StepNo Ye s Va l u e ( s ) Action 31. Turn off the ignition switch. 2. Remove the sensor connector co

Page 5565 of 6000

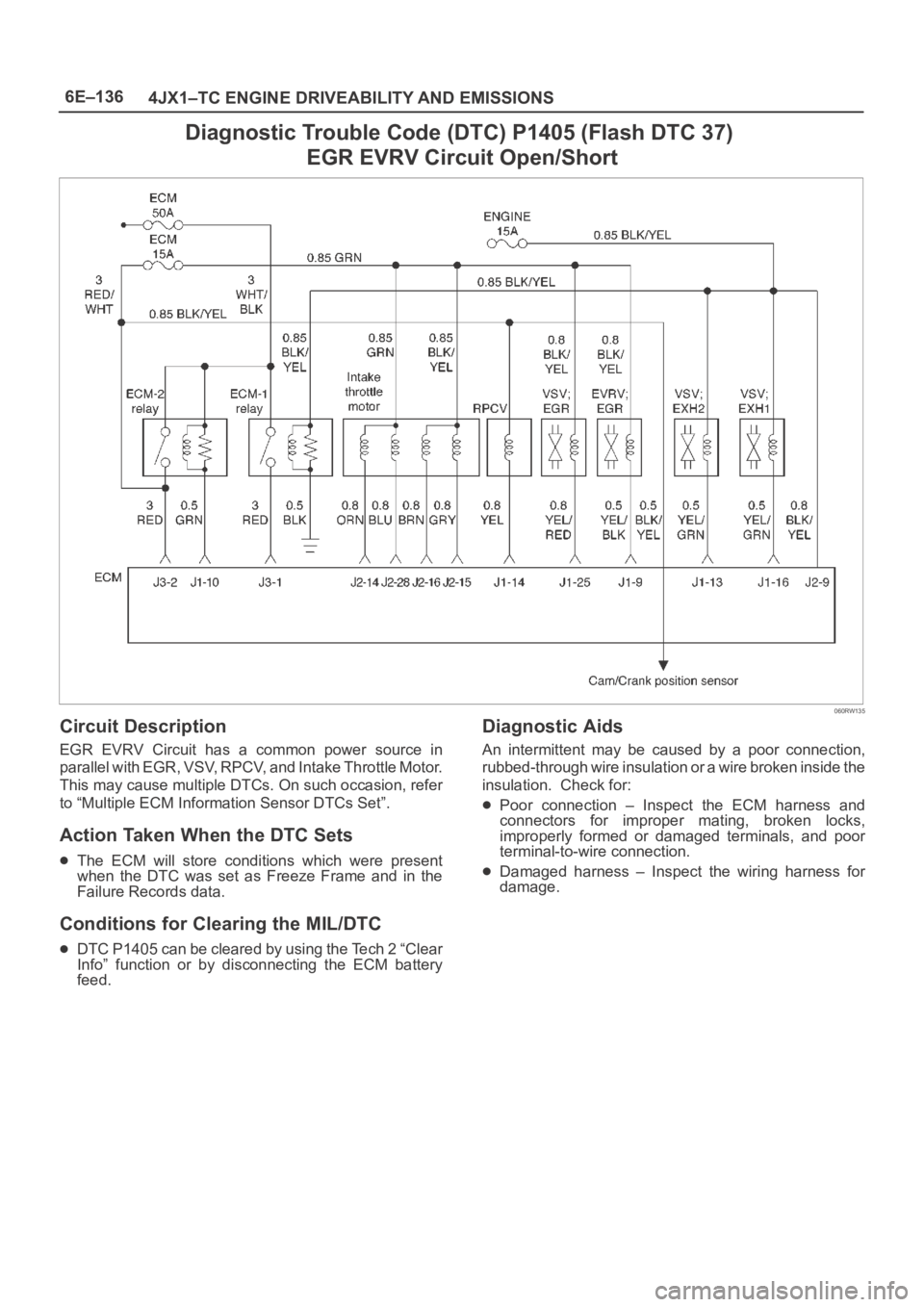

OPEL FRONTERA 1998 Workshop Manual 6E–136 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P1405 (Flash DTC 37) EGR EVRV Circuit Open/Short 060RW135 Circuit Description EGR EVRV Circuit has a common po

Page 5566 of 6000

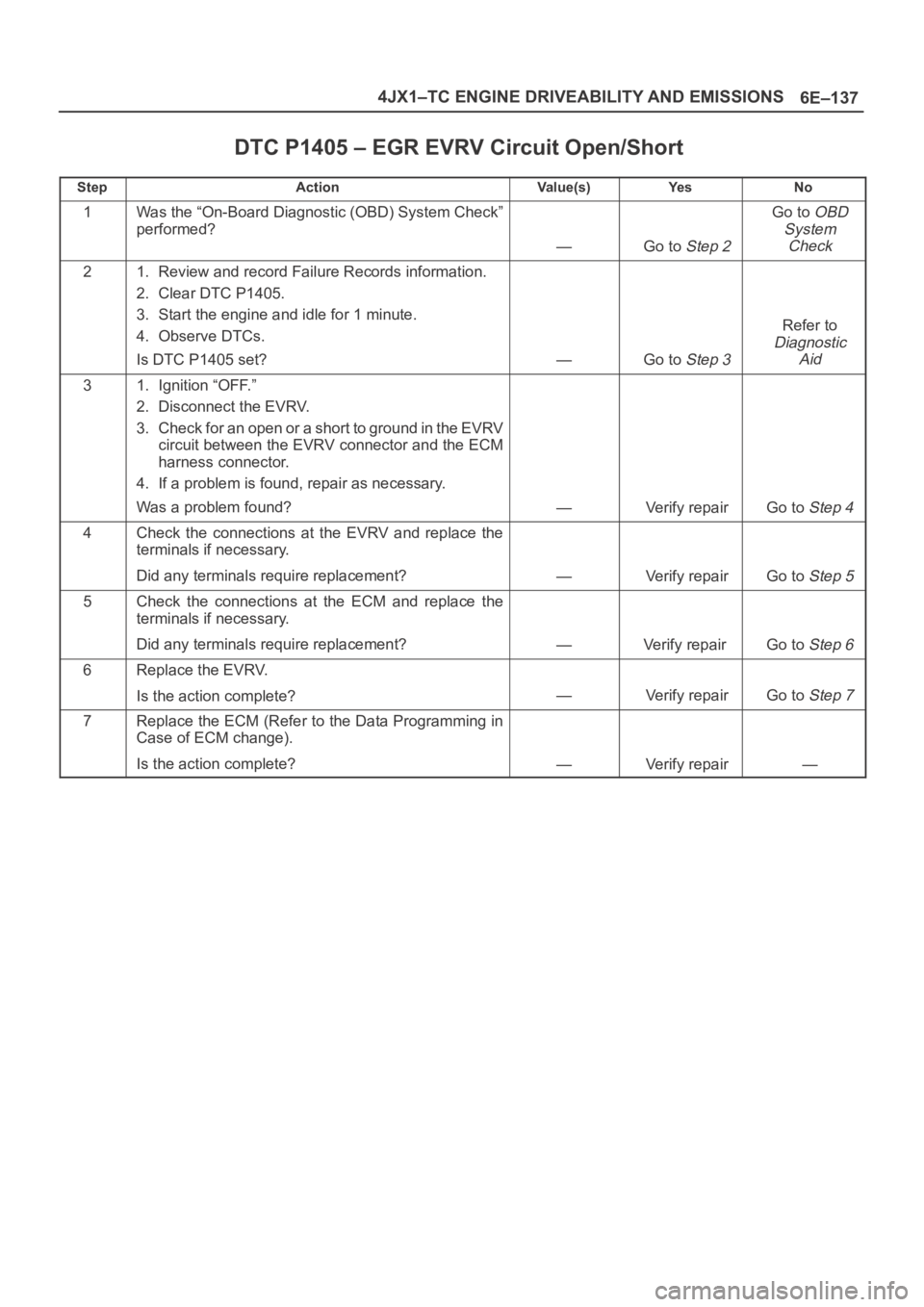

OPEL FRONTERA 1998 Workshop Manual 6E–137 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS DTC P1405 – EGR EVRV Circuit Open/Short StepActionVa l u e ( s )Ye sNo 1Was the “On-Board Diagnostic (OBD) System Check” performed? —Go to

Page 5567 of 6000

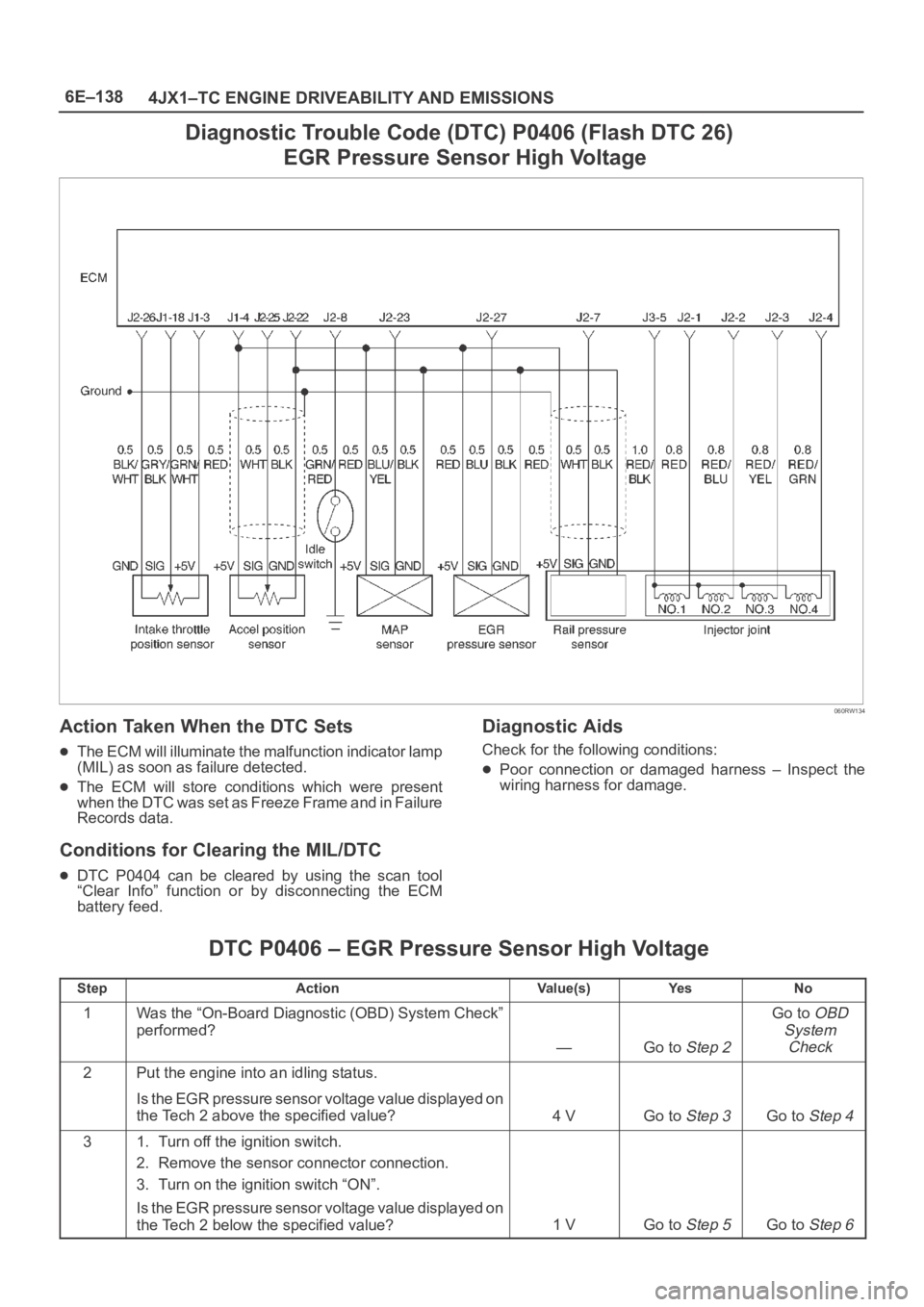

OPEL FRONTERA 1998 Workshop Manual 6E–138 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS Diagnostic Trouble Code (DTC) P0406 (Flash DTC 26) EGR Pressure Sensor High Voltage 060RW134 Action Taken When the DTC Sets The ECM will illumin

Page 5568 of 6000

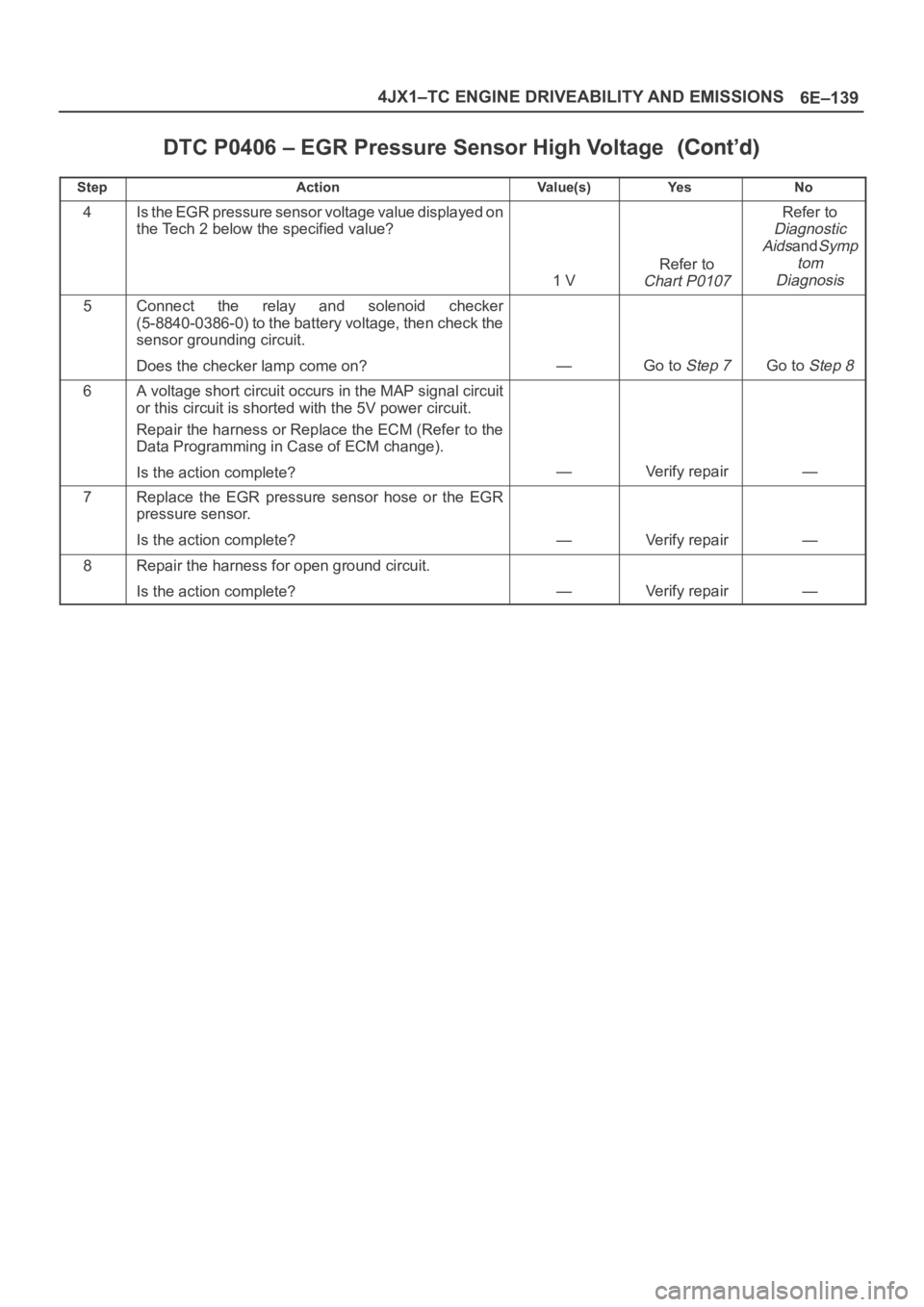

OPEL FRONTERA 1998 Workshop Manual 6E–139 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS DTC P0406 – EGR Pressure Sensor High Voltage StepNo Ye s Va l u e ( s ) Action 4Is the EGR pressure sensor voltage value displayed on the Tech 2
