Page 3385 of 6000

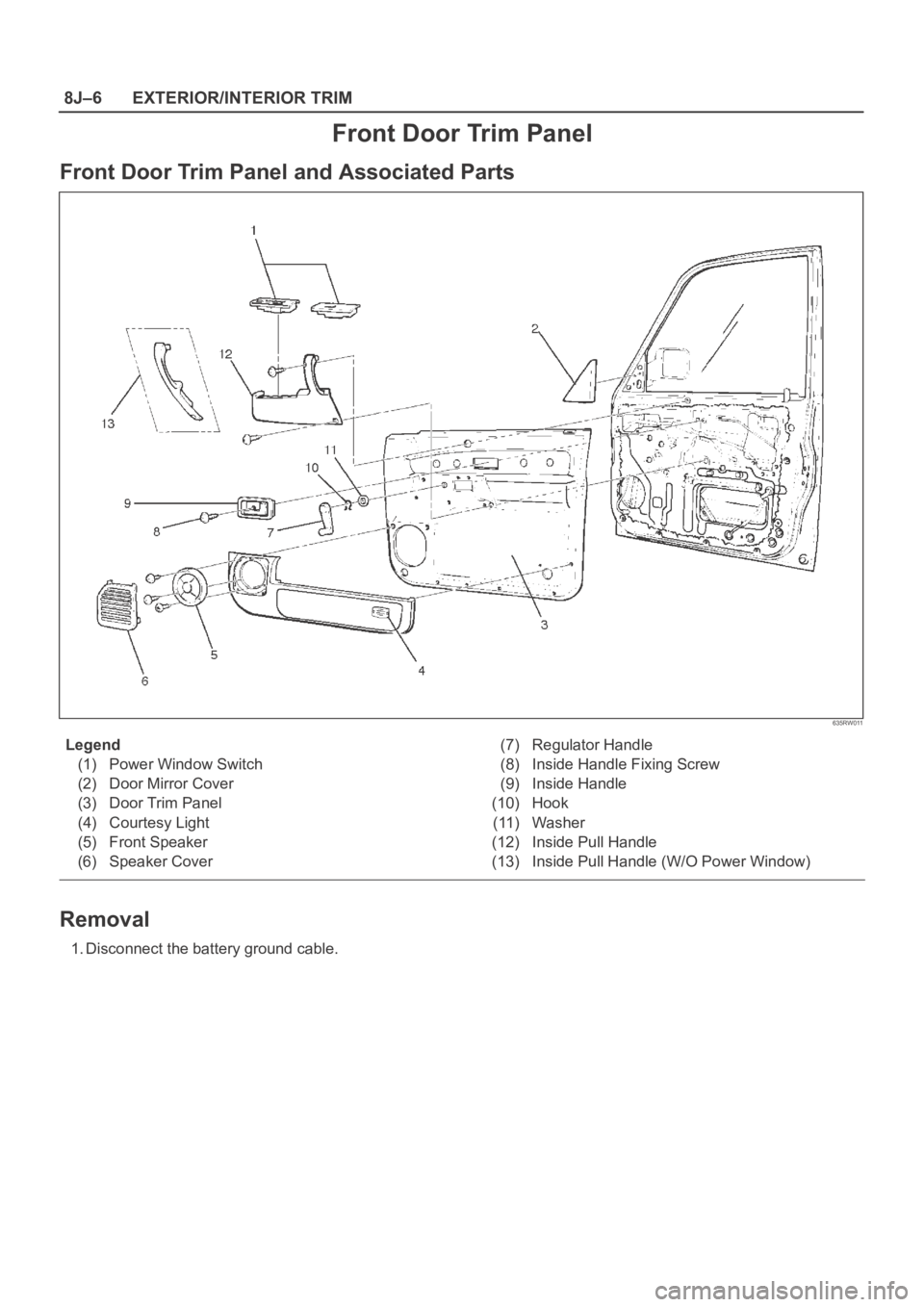

OPEL FRONTERA 1998 Workshop Manual 8J–6EXTERIOR/INTERIOR TRIM Front Door Trim Panel Front Door Trim Panel and Associated Parts 635RW011 Legend (1) Power Window Switch (2) Door Mirror Cover (3) Door Trim Panel (4) Courtesy Light (5) F

Page 3386 of 6000

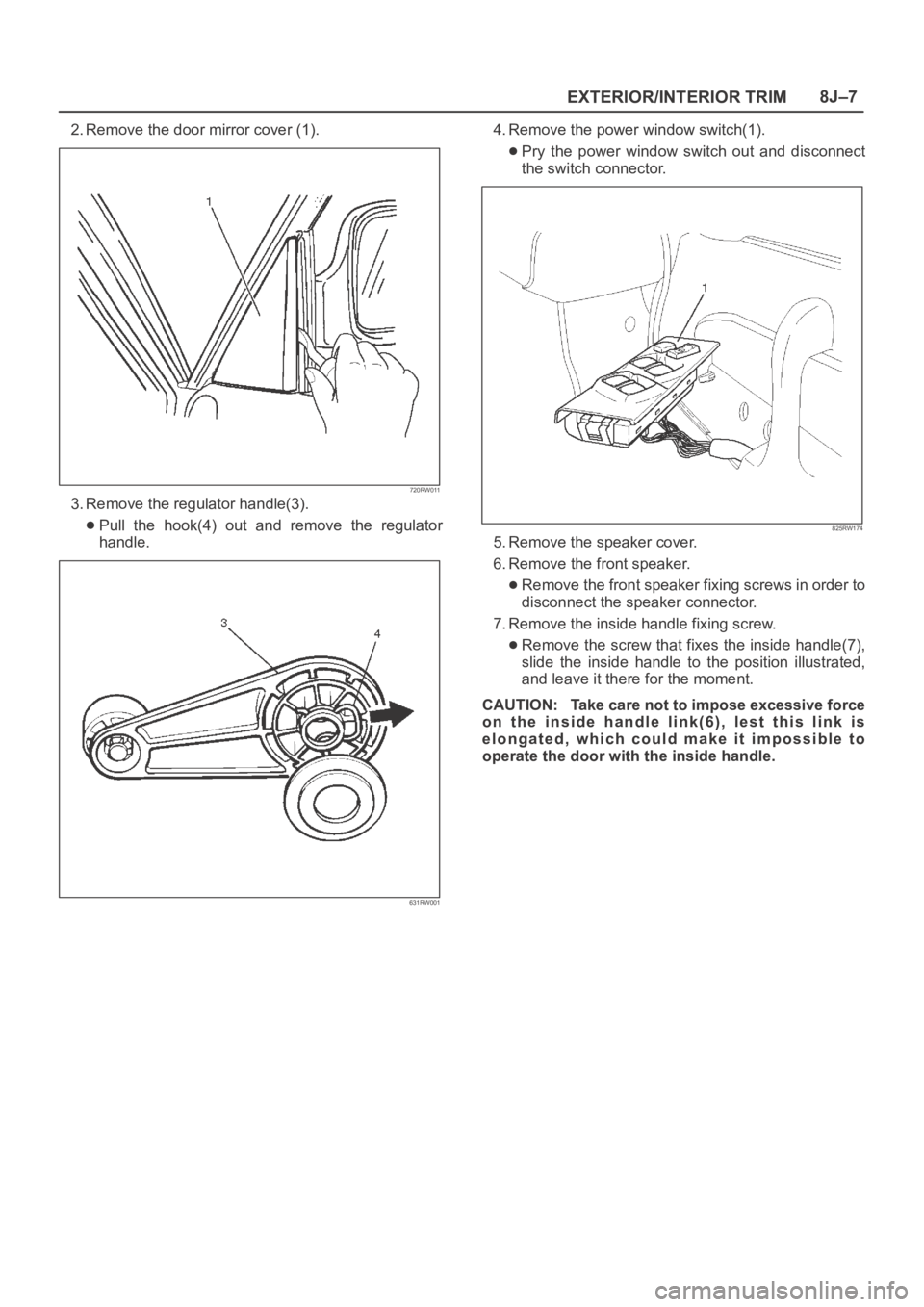

OPEL FRONTERA 1998 Workshop Manual EXTERIOR/INTERIOR TRIM8J–7 2. Remove the door mirror cover (1). 720RW011 3. Remove the regulator handle(3). Pull the hook(4) out and remove the regulator handle. 631RW001 4. Remove the power

Page 3387 of 6000

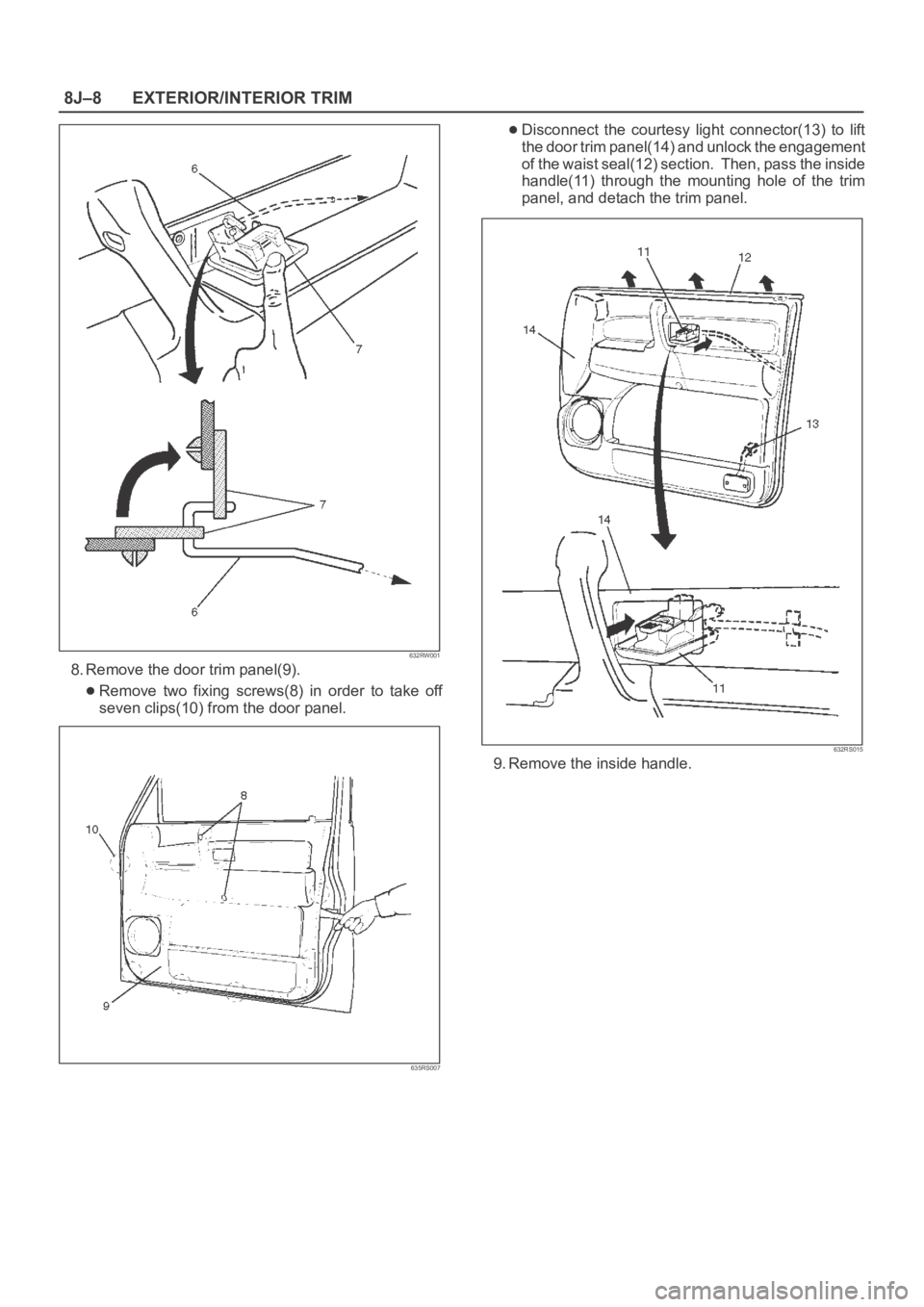

OPEL FRONTERA 1998 Workshop Manual 8J–8EXTERIOR/INTERIOR TRIM 632RW001 8. Remove the door trim panel(9). Remove two fixing screws(8) in order to take off seven clips(10) from the door panel. 635RS007 Disconnect the courtesy light

Page 3388 of 6000

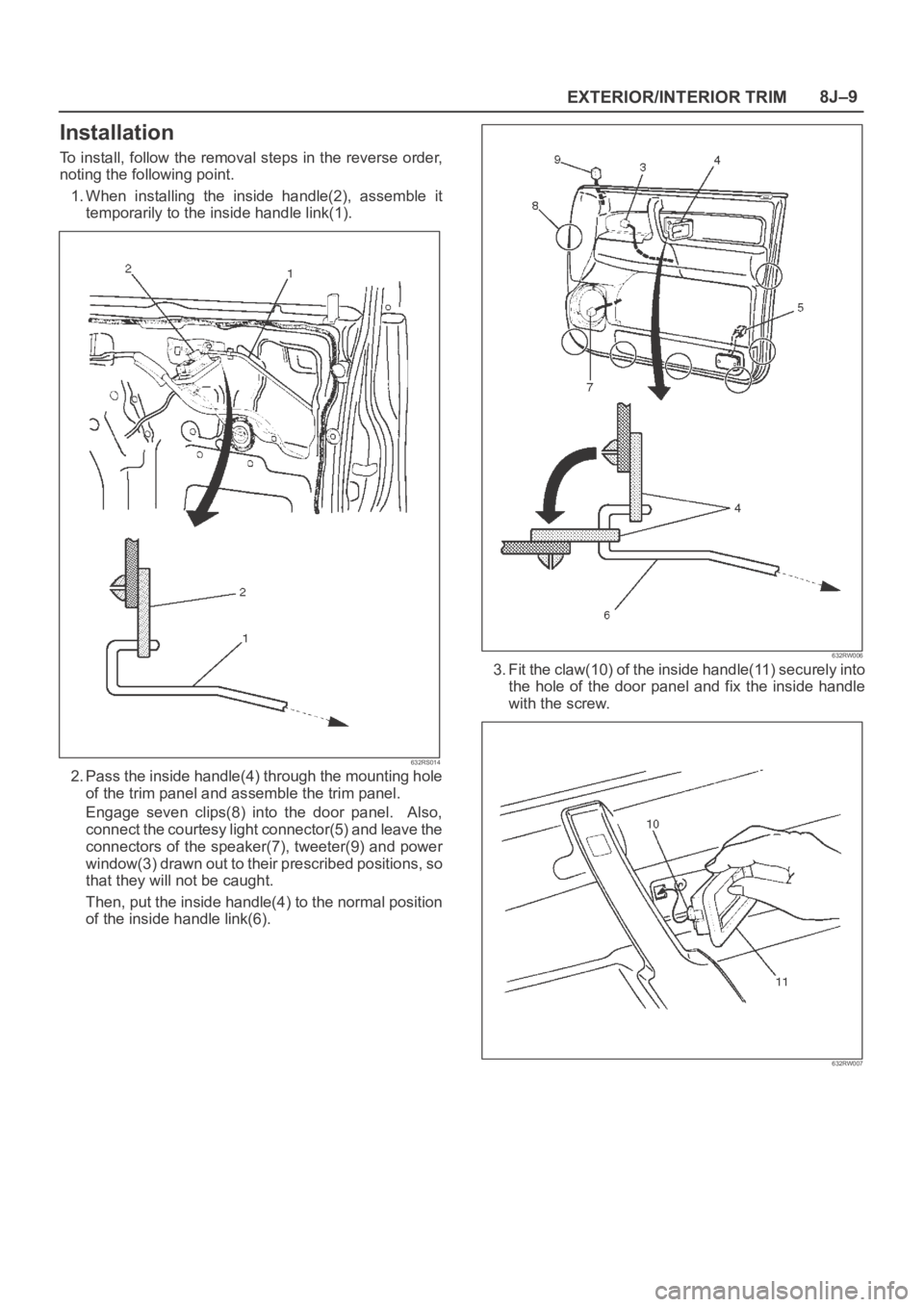

OPEL FRONTERA 1998 Workshop Manual EXTERIOR/INTERIOR TRIM8J–9 Installation To install, follow the removal steps in the reverse order, noting the following point. 1. When installing the inside handle(2), assemble it temporarily

Page 3389 of 6000

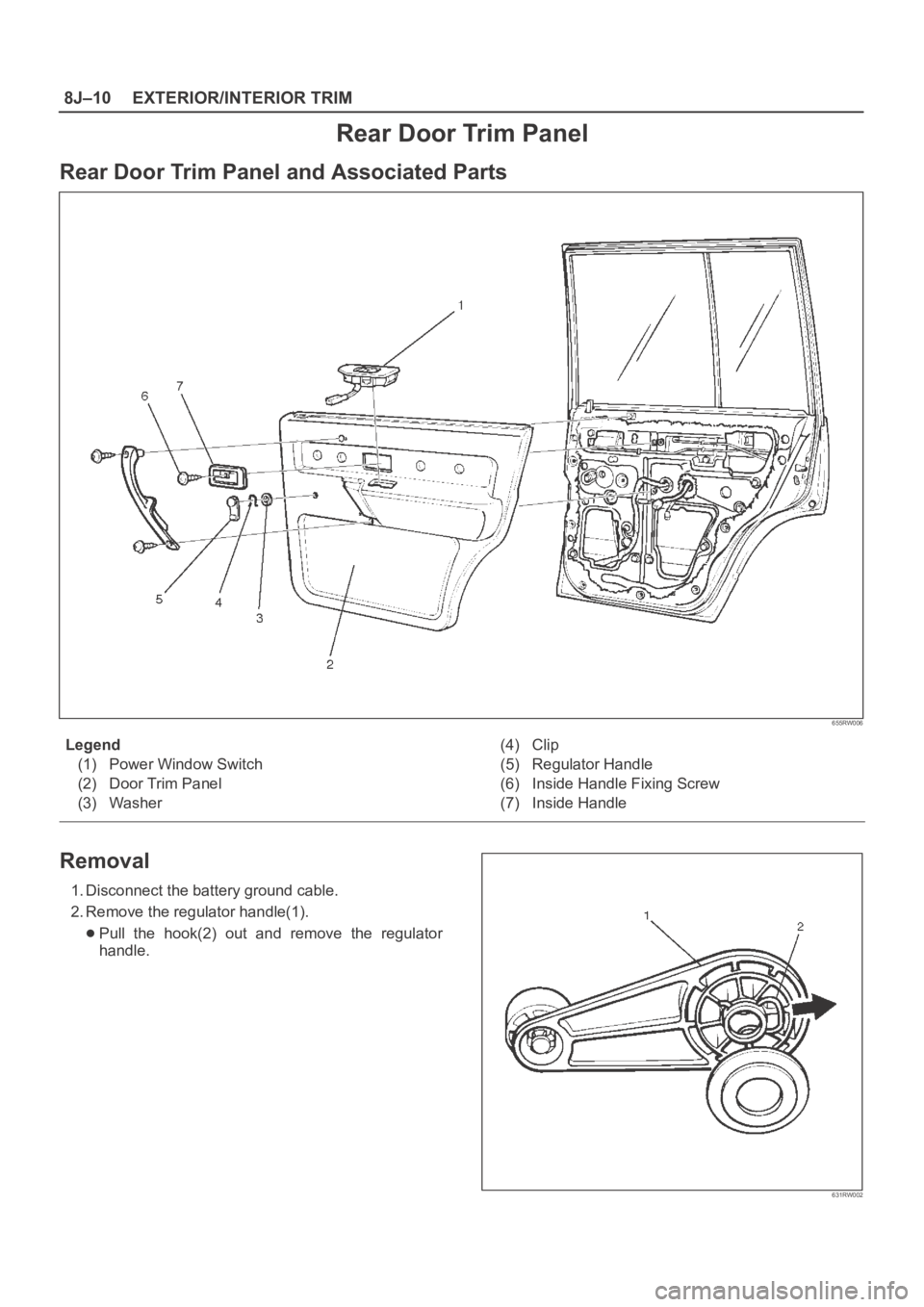

OPEL FRONTERA 1998 Workshop Manual 8J–10EXTERIOR/INTERIOR TRIM Rear Door Trim Panel Rear Door Trim Panel and Associated Parts 655RW006 Legend (1) Power Window Switch (2) Door Trim Panel (3) Washer(4) Clip (5) Regulator Handle (6) Ins

Page 3390 of 6000

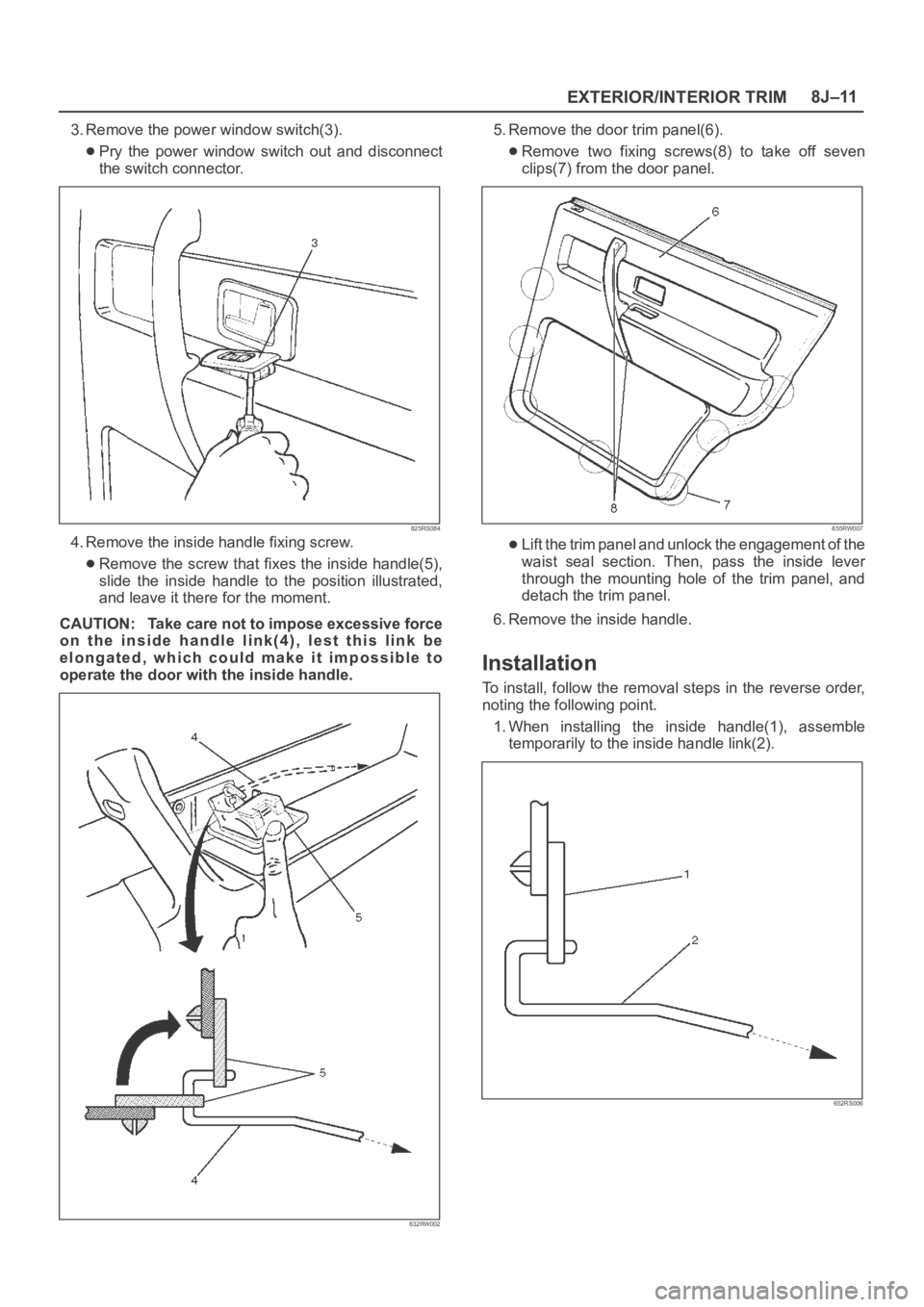

OPEL FRONTERA 1998 Workshop Manual EXTERIOR/INTERIOR TRIM8J–11 3. Remove the power window switch(3). Pry the power window switch out and disconnect the switch connector. 825RS084 4. Remove the inside handle fixing screw. Remov

Page 3391 of 6000

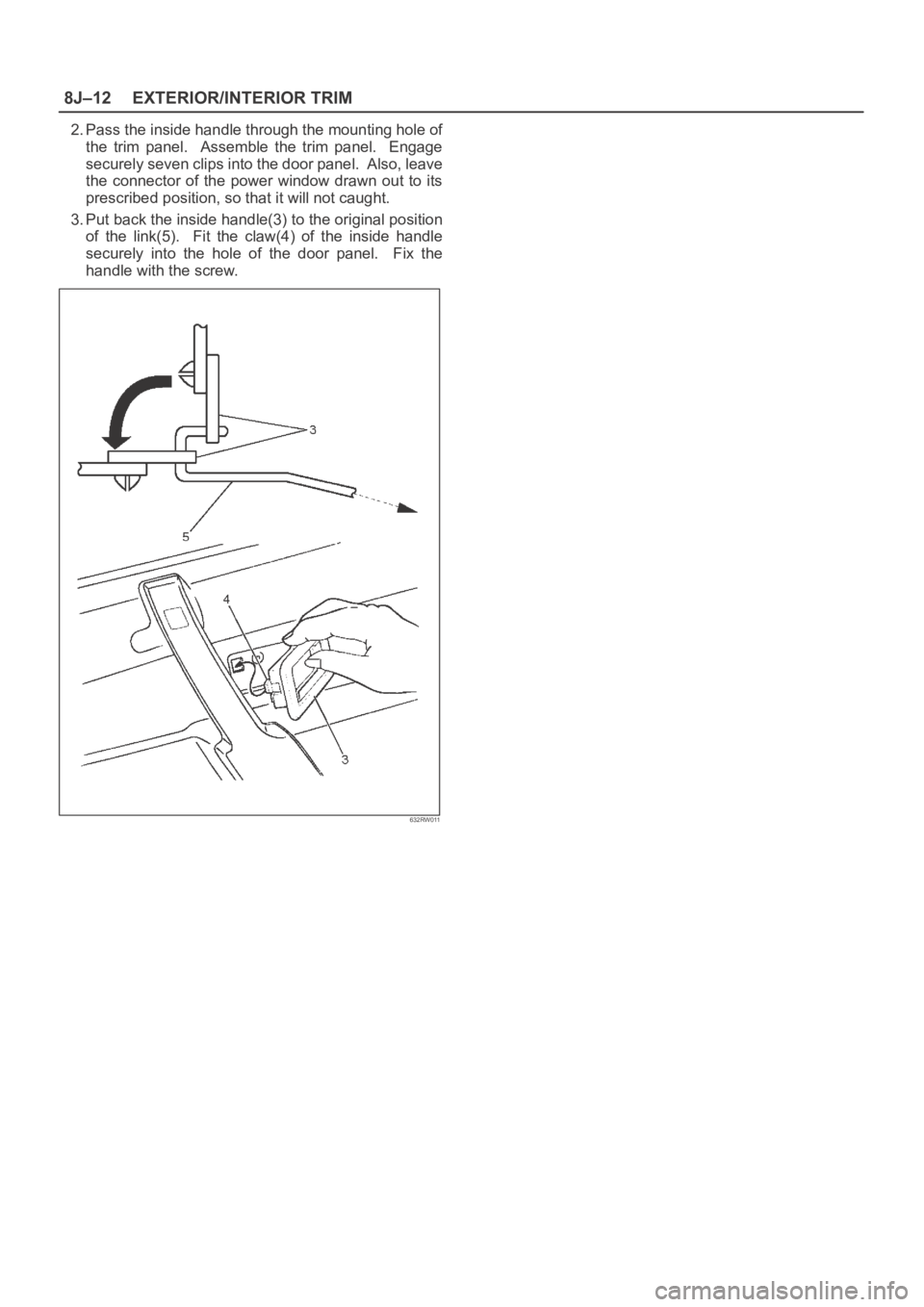

OPEL FRONTERA 1998 Workshop Manual 8J–12EXTERIOR/INTERIOR TRIM 2. Pass the inside handle through the mounting hole of the trim panel. Assemble the trim panel. Engage securely seven clips into the door panel. Also, leave t

Page 3392 of 6000

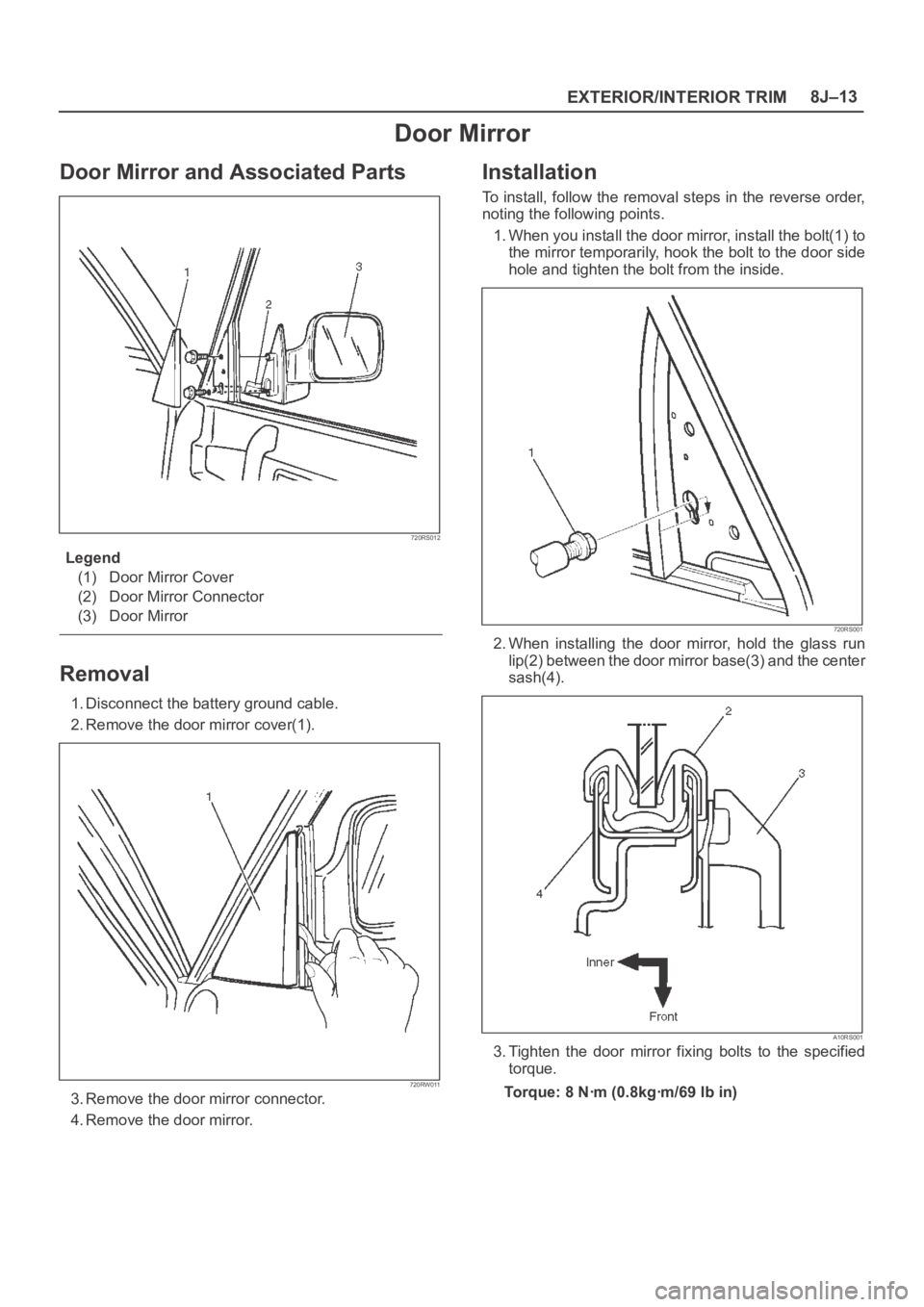

OPEL FRONTERA 1998 Workshop Manual EXTERIOR/INTERIOR TRIM8J–13 Door Mirror Door Mirror and Associated Parts 720RS012 Legend (1) Door Mirror Cover (2) Door Mirror Connector (3) Door Mirror Removal 1. Disconnect the battery ground cabl
