OPEL FRONTERA 1998 Workshop Manual 6E–188
4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

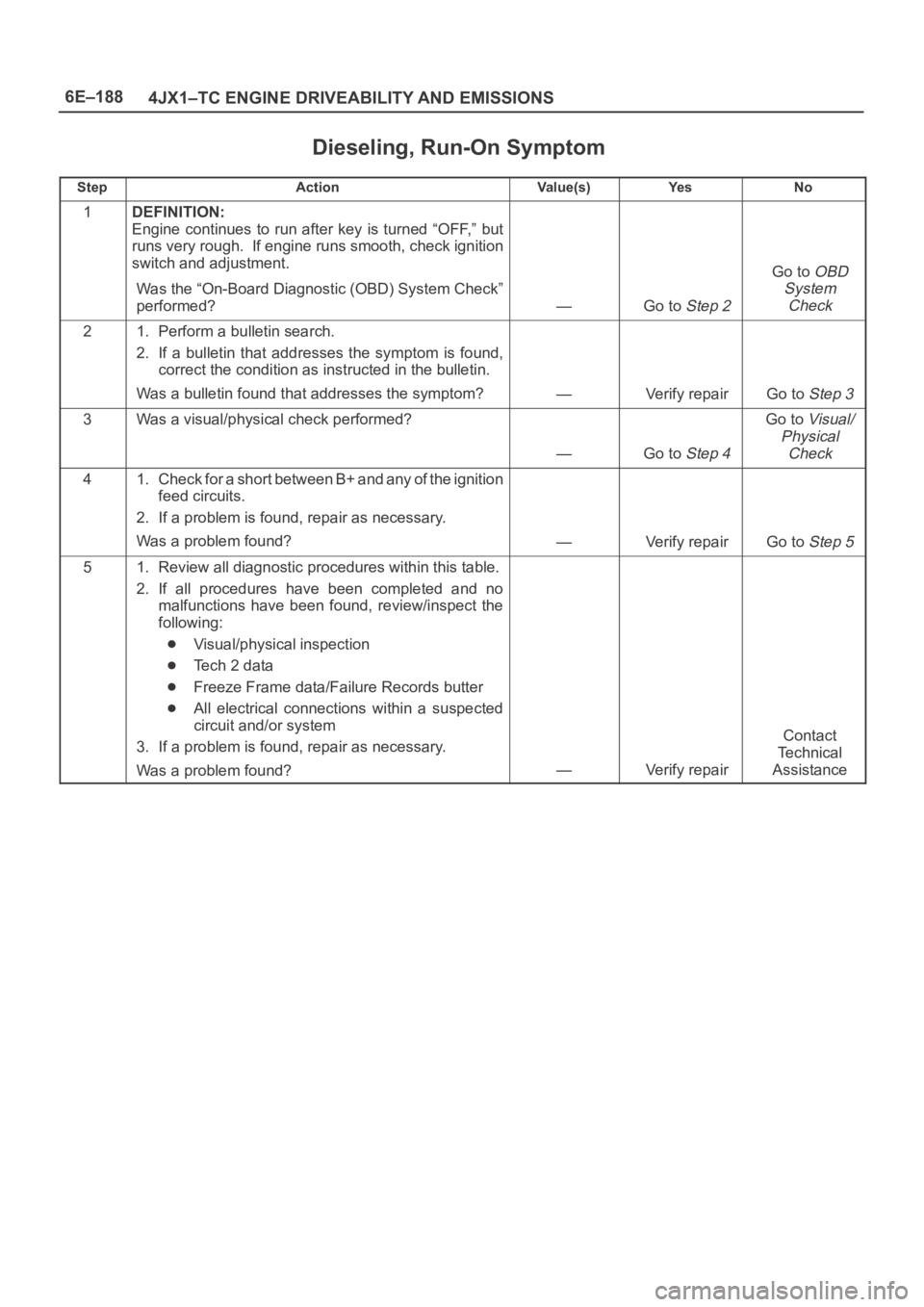

Dieseling, Run-On Symptom
StepActionVa l u e ( s )Ye sNo
1DEFINITION:
Engine continues to run after key is turned “OFF,” but
runs very rough.

Page 2082 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–189 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

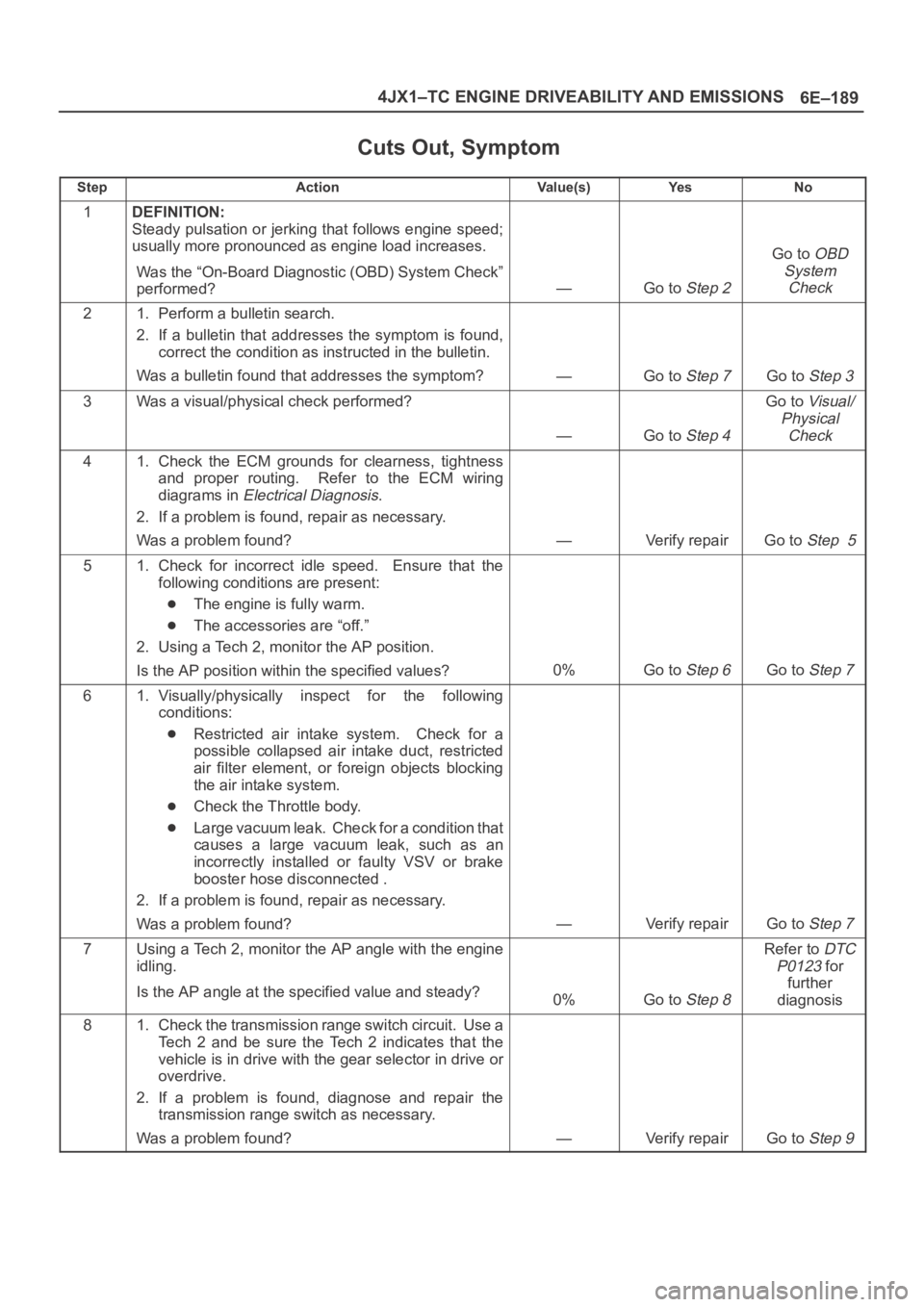

Cuts Out, Symptom
StepActionVa l u e ( s )Ye sNo
1DEFINITION:
Steady pulsation or jerking that follows engine speed;
usually more pronounced as eng

6E–189 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS
Cuts Out, Symptom
StepActionVa l u e ( s )Ye sNo
1DEFINITION:
Steady pulsation or jerking that follows engine speed;
usually more pronounced as engine load increases.
Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2
Go to OBD
System
Check
21. Perform a bulletin search.
2. If a bulletin that addresses the symptom is found,
correct the condition as instructed in the bulletin.
Was a bulletin found that addresses the symptom?
—Go to Step 7Go to Step 3
3Was a visual/physical check performed?
—Go to Step 4
Go to Visual/
Physical
Check
41. Check the ECM grounds for clearness, tightness
and proper routing. Refer to the ECM wiring
diagrams in
Electrical Diagnosis.
2. If a problem is found, repair as necessary.
Was a problem found?
—Verify repairGo to Step 5
51. Check for incorrect idle speed. Ensure that the
following conditions are present:
The engine is fully warm.
The accessories are “off.”
2. Using a Tech 2, monitor the AP position.
Is the AP position within the specified values?
0%Go to Step 6Go to Step 7
61. Visually/physically inspect for the following
conditions:
Restricted air intake system. Check for a
possible collapsed air intake duct, restricted
air filter element, or foreign objects blocking
the air intake system.
Check the Throttle body.
Large vacuum leak. Check for a condition that
causes a large vacuum leak, such as an
incorrectly installed or faulty VSV or brake
booster hose disconnected .
2. If a problem is found, repair as necessary.
Was a problem found?
—Verify repairGo to Step 7
7Using a Tech 2, monitor the AP angle with the engine
idling.
Is the AP angle at the specified value and steady?
0%Go to Step 8
Refer to DTC
P0123
for
further
diagnosis
81. Check the transmission range switch circuit. Use a
Tech 2 and be sure the Tech 2 indicates that the
vehicle is in drive with the gear selector in drive or
overdrive.
2. If a problem is found, diagnose and repair the
transmission range switch as necessary.
Was a problem found?
—Verify repairGo to Step 9

Page 2083 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–190
4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS
Cuts Out, Symptom
StepNo Ye s Va l u e ( s ) Action
91. Injector Test
Operate the each injector by Tech 2 with the
ignition “ON” and

Page 2084 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–191 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

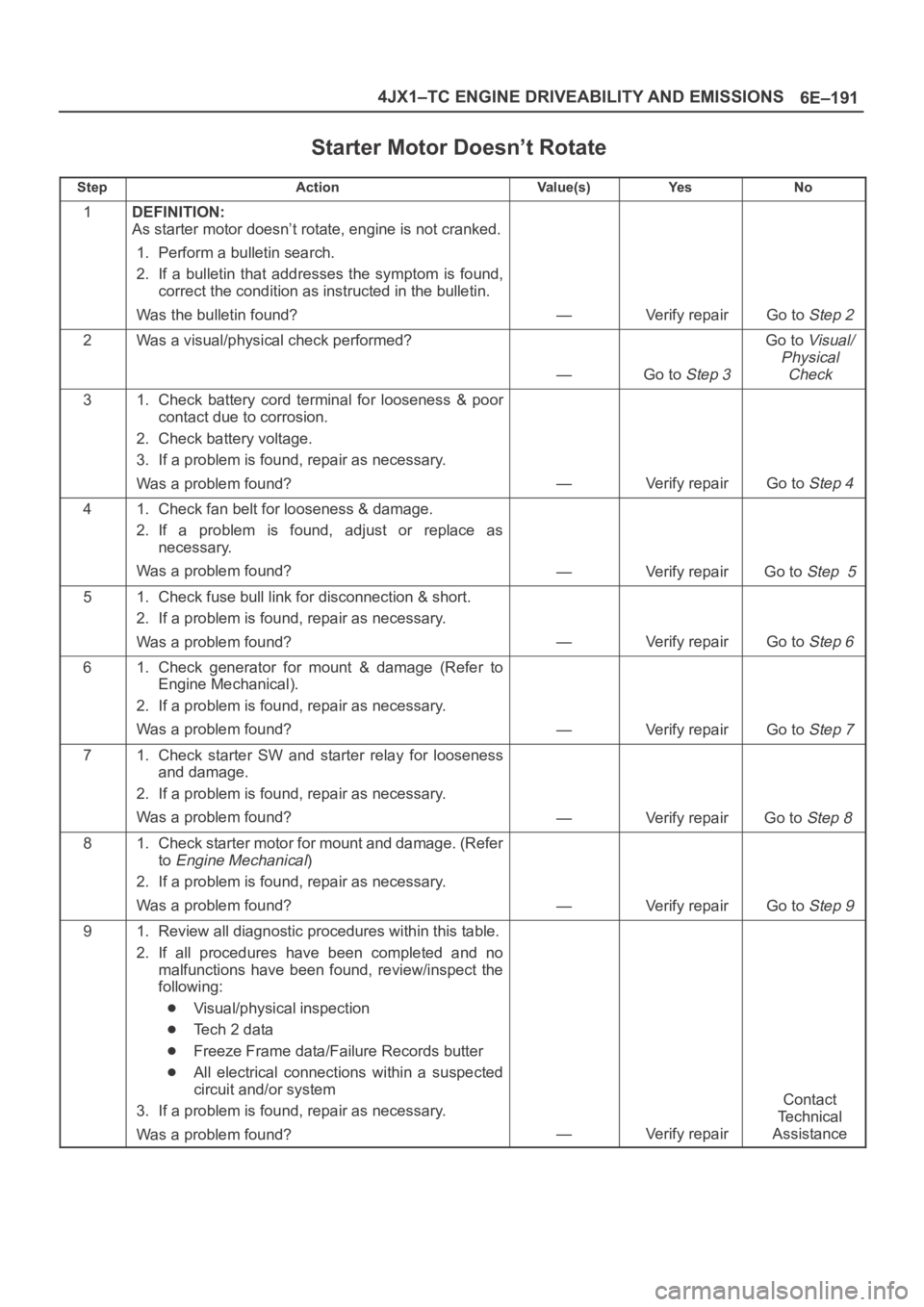

Starter Motor Doesn’t Rotate
StepActionVa l u e ( s )Ye sNo
1DEFINITION:
As starter motor doesn’t rotate, engine is not cranked.
1. Perform a b

Page 2085 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–192
4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

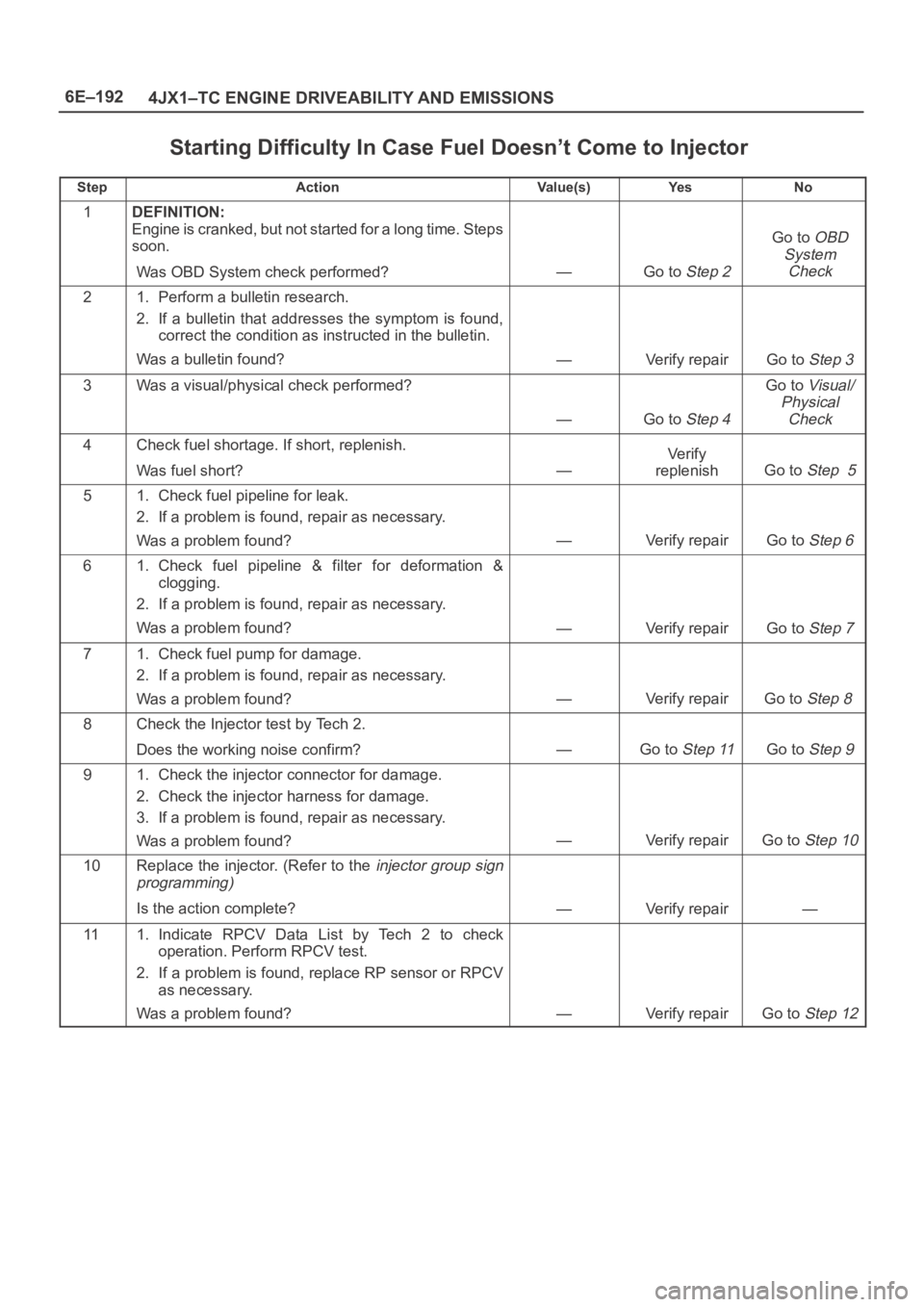

Starting Difficulty In Case Fuel Doesn’t Come to Injector
StepActionVa l u e ( s )Ye sNo
1DEFINITION:
Engine is cranked, but not started for a lo

Page 2086 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–193 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

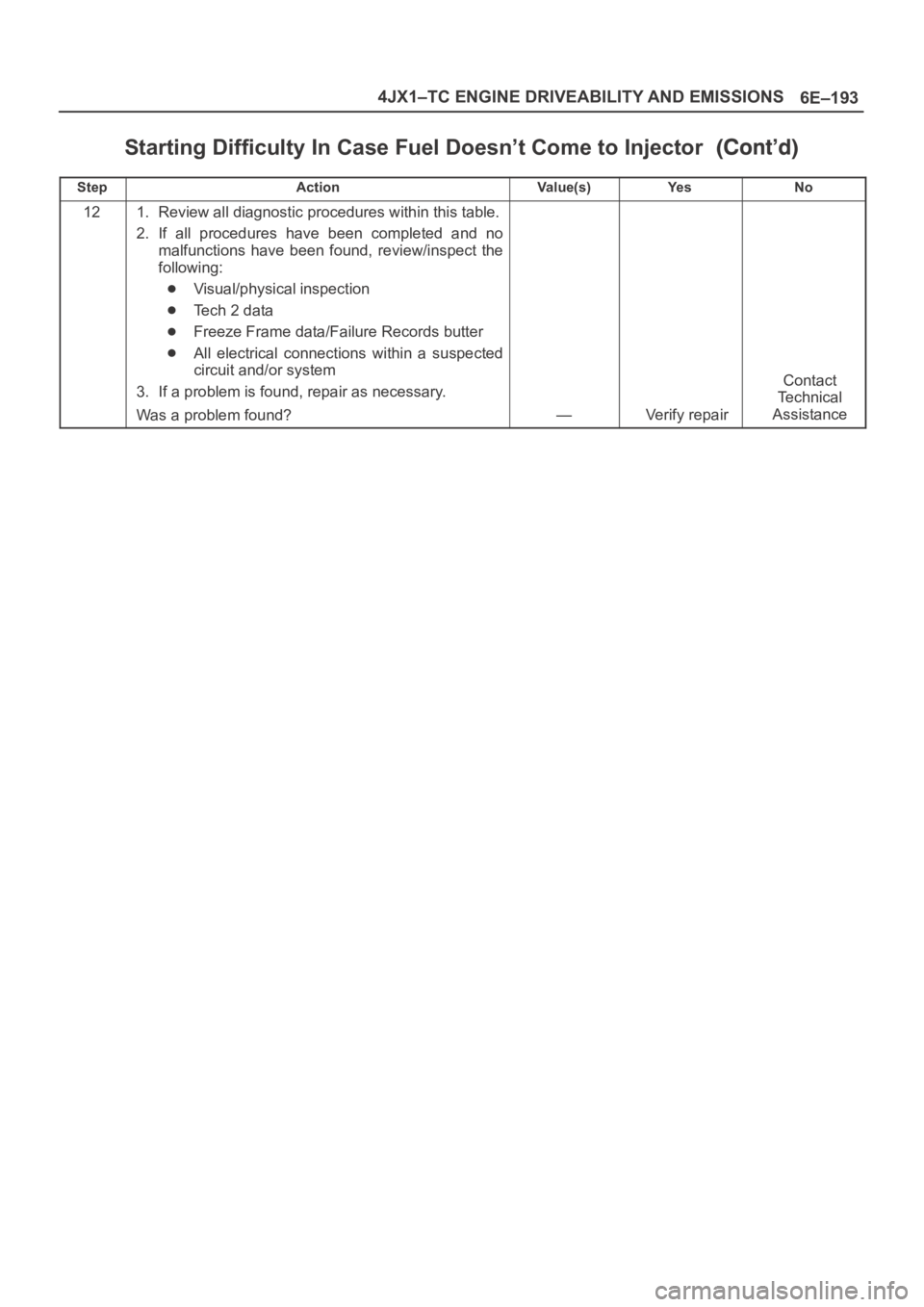

Starting Difficulty In Case Fuel Doesn’t Come to Injector
StepNo Ye s Va l u e ( s ) Action
121. Review all diagnostic procedures within this tab

Page 2087 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–194
4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS
Lubrication System Trouble
StepActionVa l u e ( s )Ye sNo
1DEFINITION:
In road tests oil pressure doesn’t rise, or oil is foul to
exce

Page 2088 of 6000

OPEL FRONTERA 1998 Workshop Manual 6E–195 4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

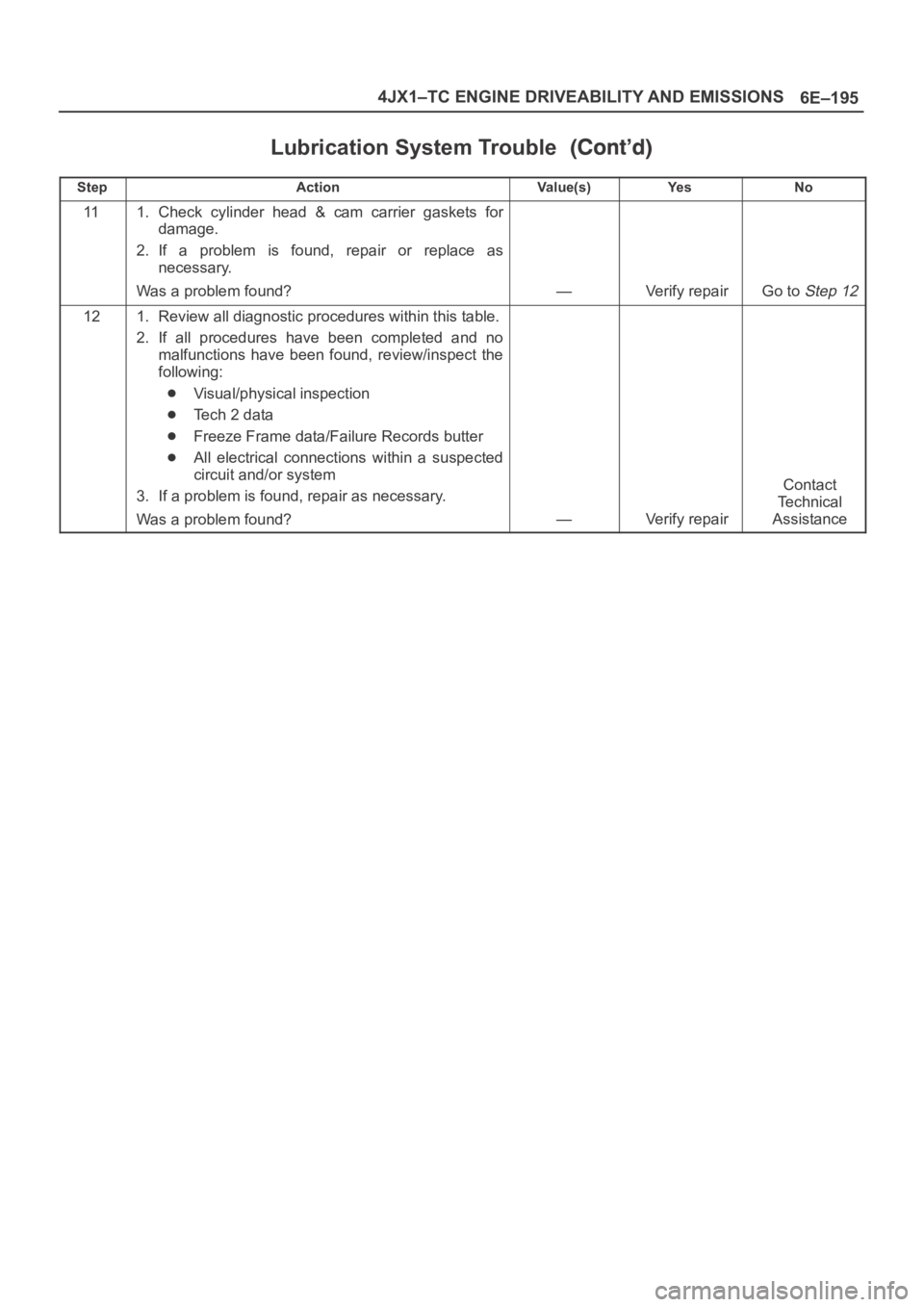

Lubrication System Trouble
StepNo Ye s Va l u e ( s ) Action
111. Check cylinder head & cam carrier gaskets for
damage.
2. If a problem i
