OPEL FRONTERA 1998 Workshop Manual 7A–72 AUTOMATIC TRANSMISSION (4L30–E) 3–4 Accumulator Piston Disassembled View 244RS005 Legend (1) Snap Ring (2) Cover(3) Spring (4) Piston Assembly Disassembly 1. Install the 5–8840–2277

Page 5762 of 6000

OPEL FRONTERA 1998 Workshop Manual 7A–73 AUTOMATIC TRANSMISSION (4L30–E) Inspection And Repair Visual Check: If any damage, deformation or wear is found, replace the damaged part. Reassembly 1. Place the 5–8840–2264–0 (J–38

Page 5763 of 6000

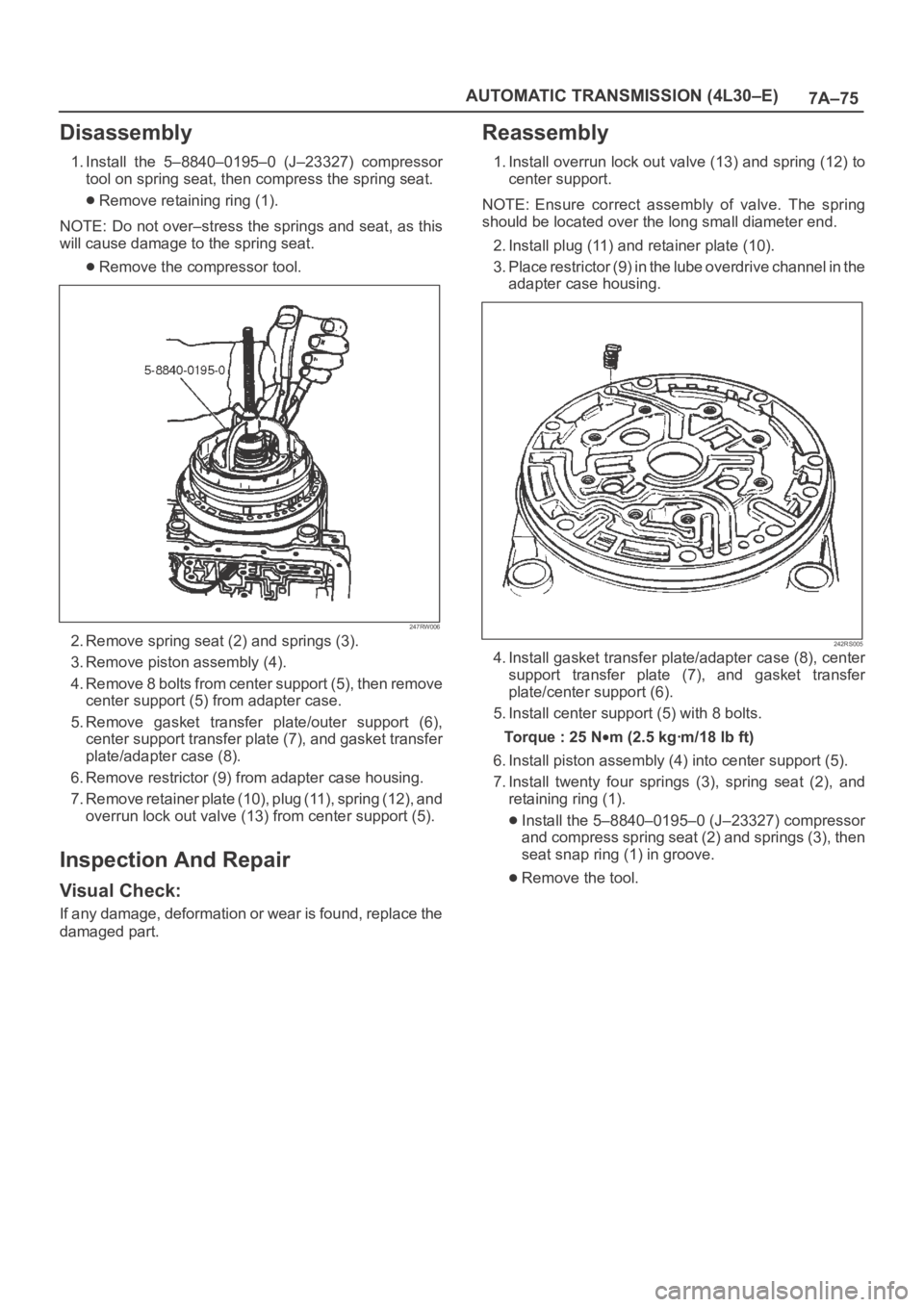

OPEL FRONTERA 1998 Workshop Manual 7A–74 AUTOMATIC TRANSMISSION (4L30–E) Reverse Clutch Piston And Center Support Disassembled View 242RS006 Legend (1) Retaining Ring (2) Spring Seat (3) Springs (4) Piston Assembly (5) Center Suppo

Page 5764 of 6000

OPEL FRONTERA 1998 Workshop Manual 7A–75 AUTOMATIC TRANSMISSION (4L30–E) Disassembly 1. Install the 5–8840–0195–0 (J–23327) compressor tool on spring seat, then compress the spring seat. Remove retaining ring (1). NOTE:

Page 5765 of 6000

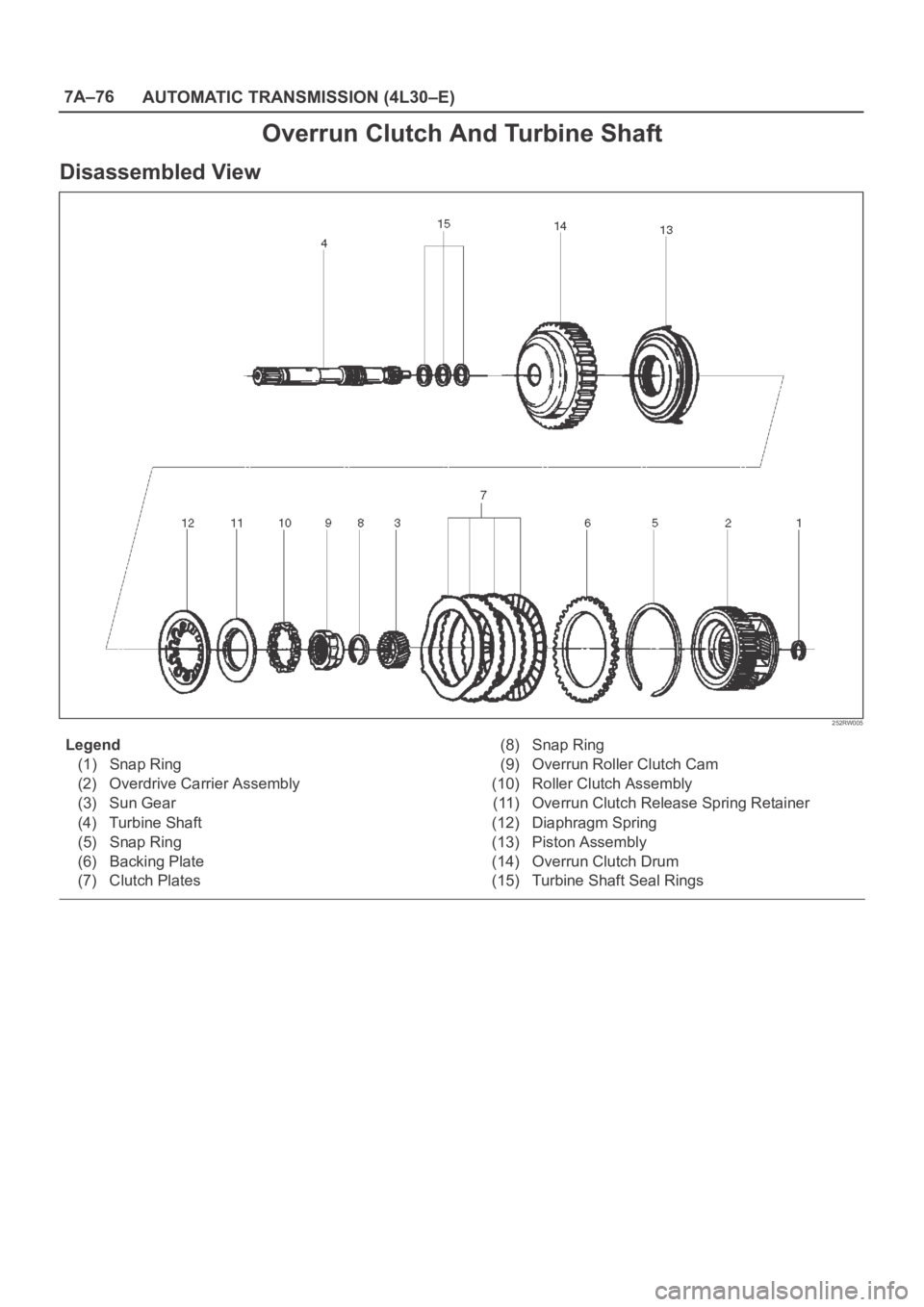

OPEL FRONTERA 1998 Workshop Manual 7A–76 AUTOMATIC TRANSMISSION (4L30–E) Overrun Clutch And Turbine Shaft Disassembled View 252RW005 Legend (1) Snap Ring (2) Overdrive Carrier Assembly (3) Sun Gear (4) Turbine Shaft (5) Snap Ring (

Page 5766 of 6000

OPEL FRONTERA 1998 Workshop Manual 7A–77 AUTOMATIC TRANSMISSION (4L30–E) Disassembly 1. Position overrun clutch assembly upright, using the overdrive internal gear as a support. Remove snap ring (1). 252RS009 2. Remove overdr

Page 5767 of 6000

OPEL FRONTERA 1998 Workshop Manual 7A–78 AUTOMATIC TRANSMISSION (4L30–E) Install overrun clutch piston assembly (13). Use the outer installer while pushing piston into drum (14). Remove the installer. 252RW012 252RW013 3. Install

Page 5768 of 6000

OPEL FRONTERA 1998 Workshop Manual 7A–79 AUTOMATIC TRANSMISSION (4L30–E) Main Data And Specification General Specifications Remarks ModelTHM 4L30–E EngineV6 3.2L 6VD1 or V6 3.5L 6VE1DOHC Ty p eAutomatic four speed overdrive in 4t
