Page 3217 of 6000

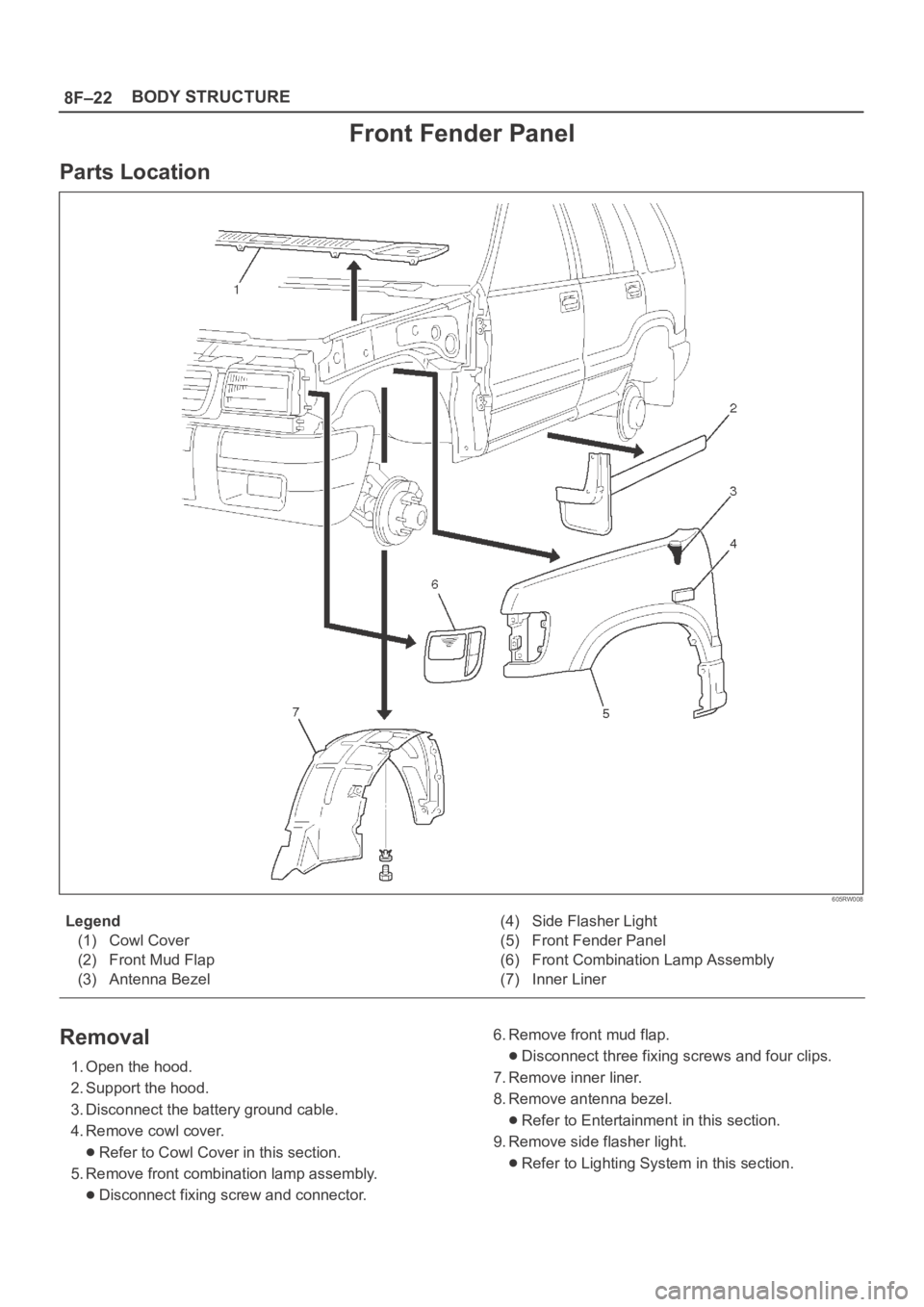

8F–22BODY STRUCTURE
Front Fender Panel
Parts Location
605RW008
Legend
(1) Cowl Cover
(2) Front Mud Flap
(3) Antenna Bezel(4) Side Flasher Light
(5) Front Fender Panel
(6) Front Combination Lamp Assembly
(7) Inner Liner
Removal
1. Open the hood.
2. Support the hood.
3. Disconnect the battery ground cable.
4. Remove cowl cover.
Refer to Cowl Cover in this section.
5. Remove front combination lamp assembly.
Disconnect fixing screw and connector.6. Remove front mud flap.
Disconnect three fixing screws and four clips.
7. Remove inner liner.
8. Remove antenna bezel.
Refer to Entertainment in this section.
9. Remove side flasher light.
Refer to Lighting System in this section.
Page 3218 of 6000

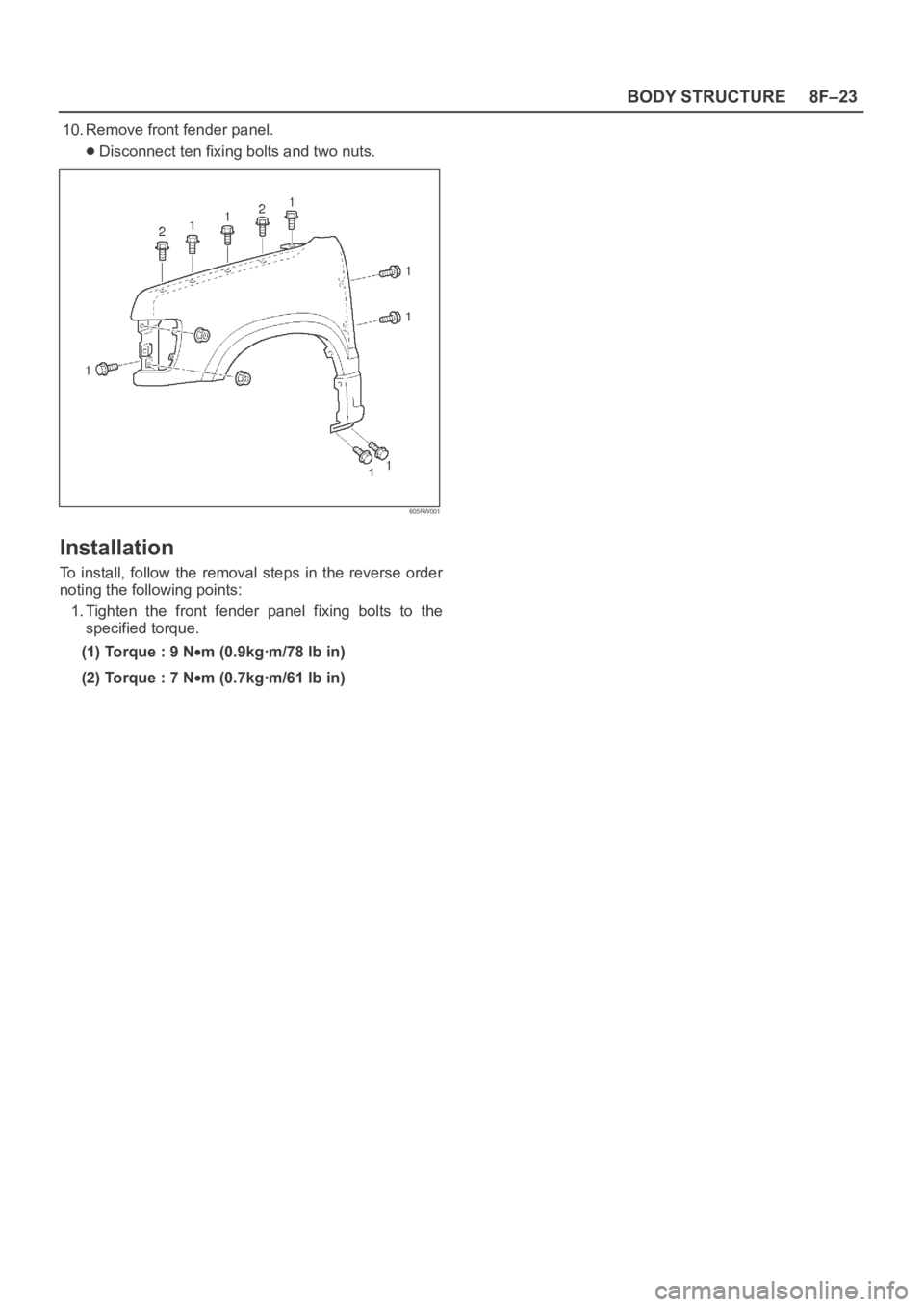

8F–23 BODY STRUCTURE
10. Remove front fender panel.
Disconnect ten fixing bolts and two nuts.
605RW001
Installation
To install, follow the removal steps in the reverse order
noting the following points:
1. Tighten the front fender panel fixing bolts to the
specified torque.
(1) Torque : 9 N
m (0.9kgꞏm/78 lb in)
(2) Torque : 7 N
m (0.7kgꞏm/61 lb in)
Page 3219 of 6000

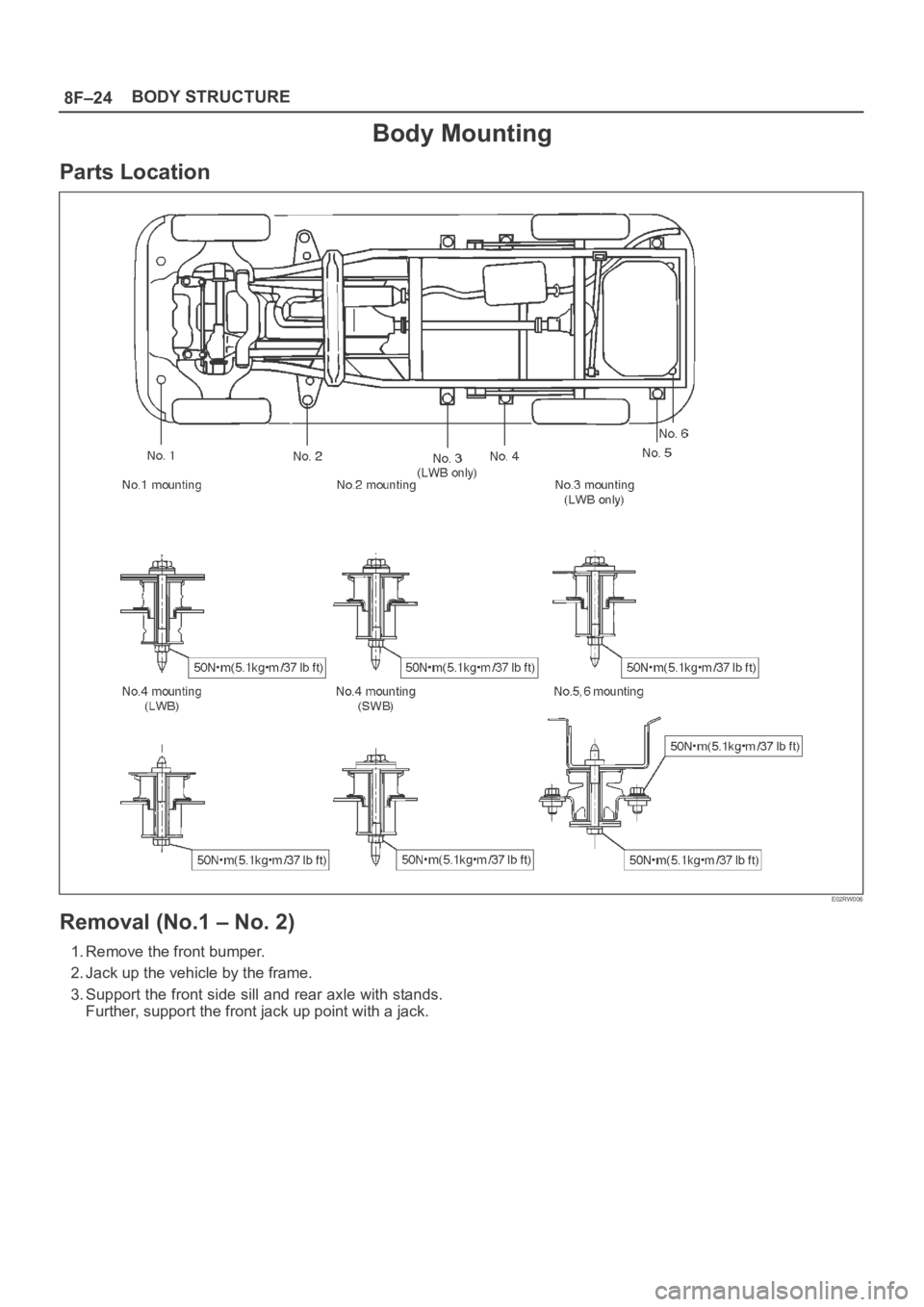

8F–24BODY STRUCTURE
Body Mounting
Parts Location
E02RW006
Removal (No.1 – No. 2)
1. Remove the front bumper.
2. Jack up the vehicle by the frame.
3. Support the front side sill and rear axle with stands.
Further, support the front jack up point with a jack.
Page 3220 of 6000

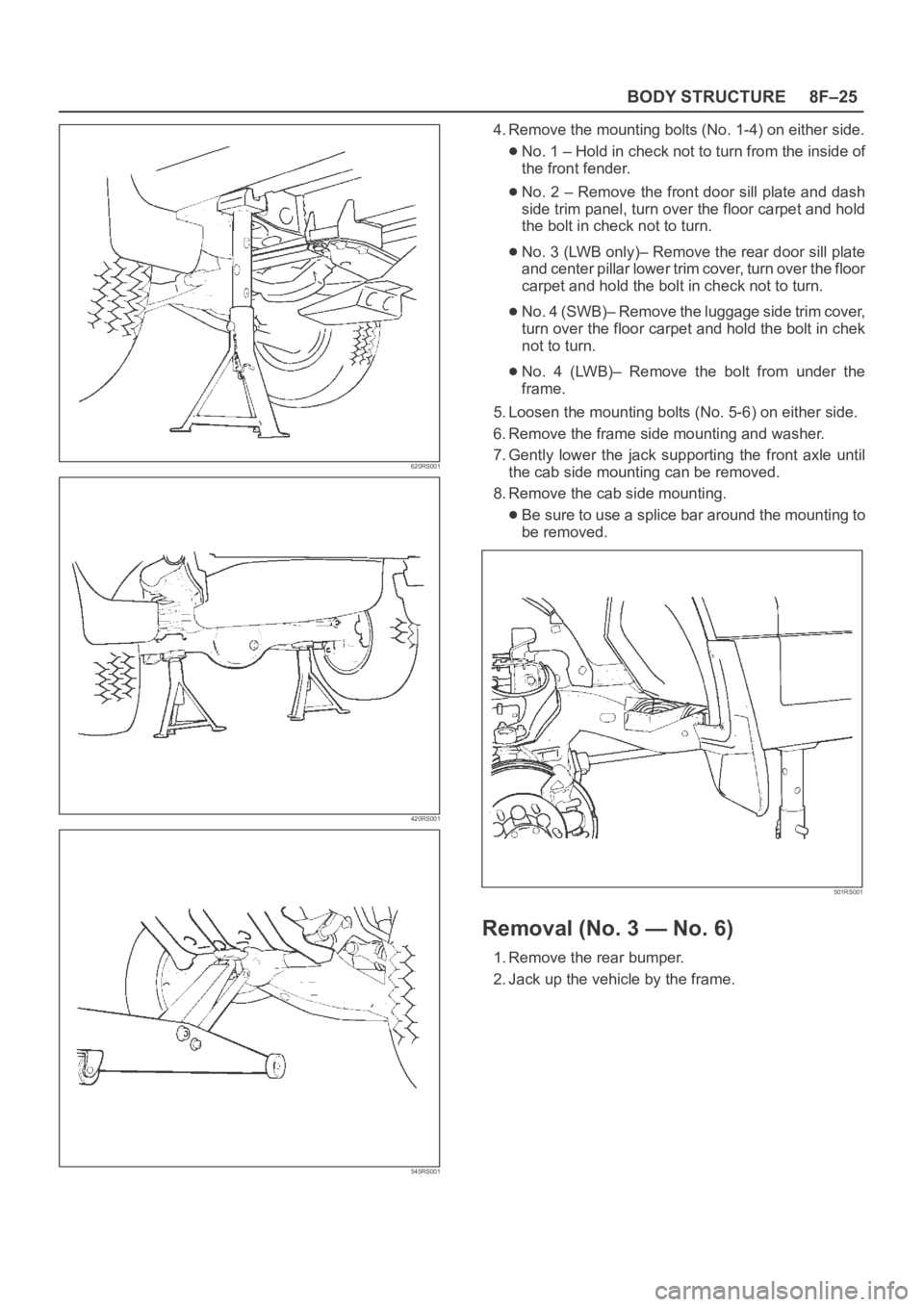

8F–25 BODY STRUCTURE
620RS001
420RS001
545RS001
4. Remove the mounting bolts (No. 1-4) on either side.
No. 1 – Hold in check not to turn from the inside of
the front fender.
No. 2 – Remove the front door sill plate and dash
side trim panel, turn over the floor carpet and hold
the bolt in check not to turn.
No. 3 (LWB only)– Remove the rear door sill plate
and center pillar lower trim cover, turn over the floor
carpet and hold the bolt in check not to turn.
No. 4 (SWB)– Remove the luggage side trim cover,
turn over the floor carpet and hold the bolt in chek
not to turn.
No. 4 (LWB)– Remove the bolt from under the
frame.
5. Loosen the mounting bolts (No. 5-6) on either side.
6. Remove the frame side mounting and washer.
7. Gently lower the jack supporting the front axle until
the cab side mounting can be removed.
8. Remove the cab side mounting.
Be sure to use a splice bar around the mounting to
be removed.
501RS001
Removal (No. 3 — No. 6)
1. Remove the rear bumper.
2. Jack up the vehicle by the frame.
Page 3221 of 6000

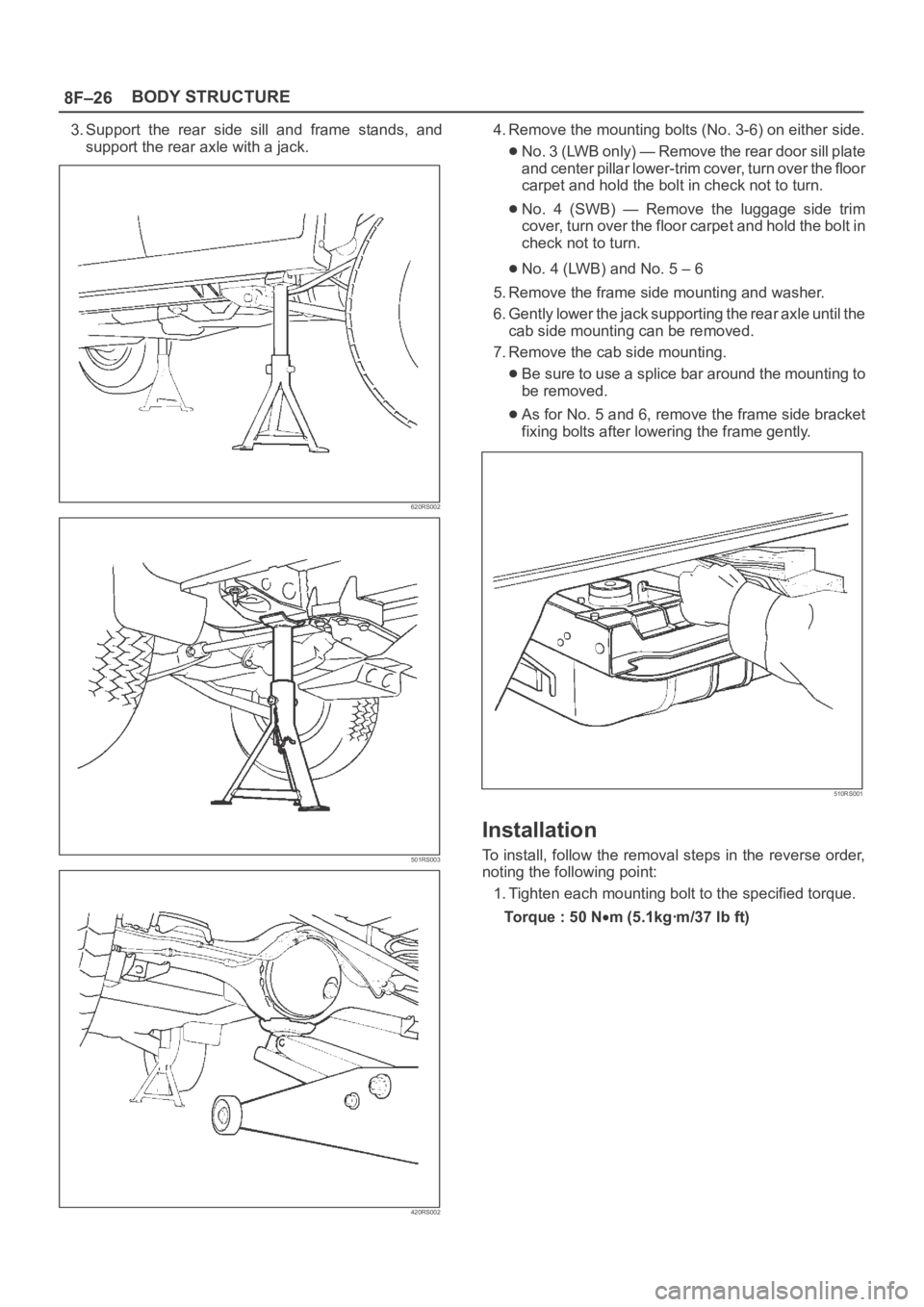

8F–26BODY STRUCTURE
3. Support the rear side sill and frame stands, and
support the rear axle with a jack.
620RS002
501RS003
420RS002
4. Remove the mounting bolts (No. 3-6) on either side.
No. 3 (LWB only) — Remove the rear door sill plate
and center pillar lower-trim cover, turn over the floor
carpet and hold the bolt in check not to turn.
No. 4 (SWB) — Remove the luggage side trim
cover, turn over the floor carpet and hold the bolt in
check not to turn.
No. 4 (LWB) and No. 5 – 6
5. Remove the frame side mounting and washer.
6. Gently lower the jack supporting the rear axle until the
cab side mounting can be removed.
7. Remove the cab side mounting.
Be sure to use a splice bar around the mounting to
be removed.
As for No. 5 and 6, remove the frame side bracket
fixing bolts after lowering the frame gently.
510RS001
Installation
To install, follow the removal steps in the reverse order,
noting the following point:
1. Tighten each mounting bolt to the specified torque.
To r q u e : 5 0 N
m (5.1kgꞏm/37 lb ft)
Page 3222 of 6000

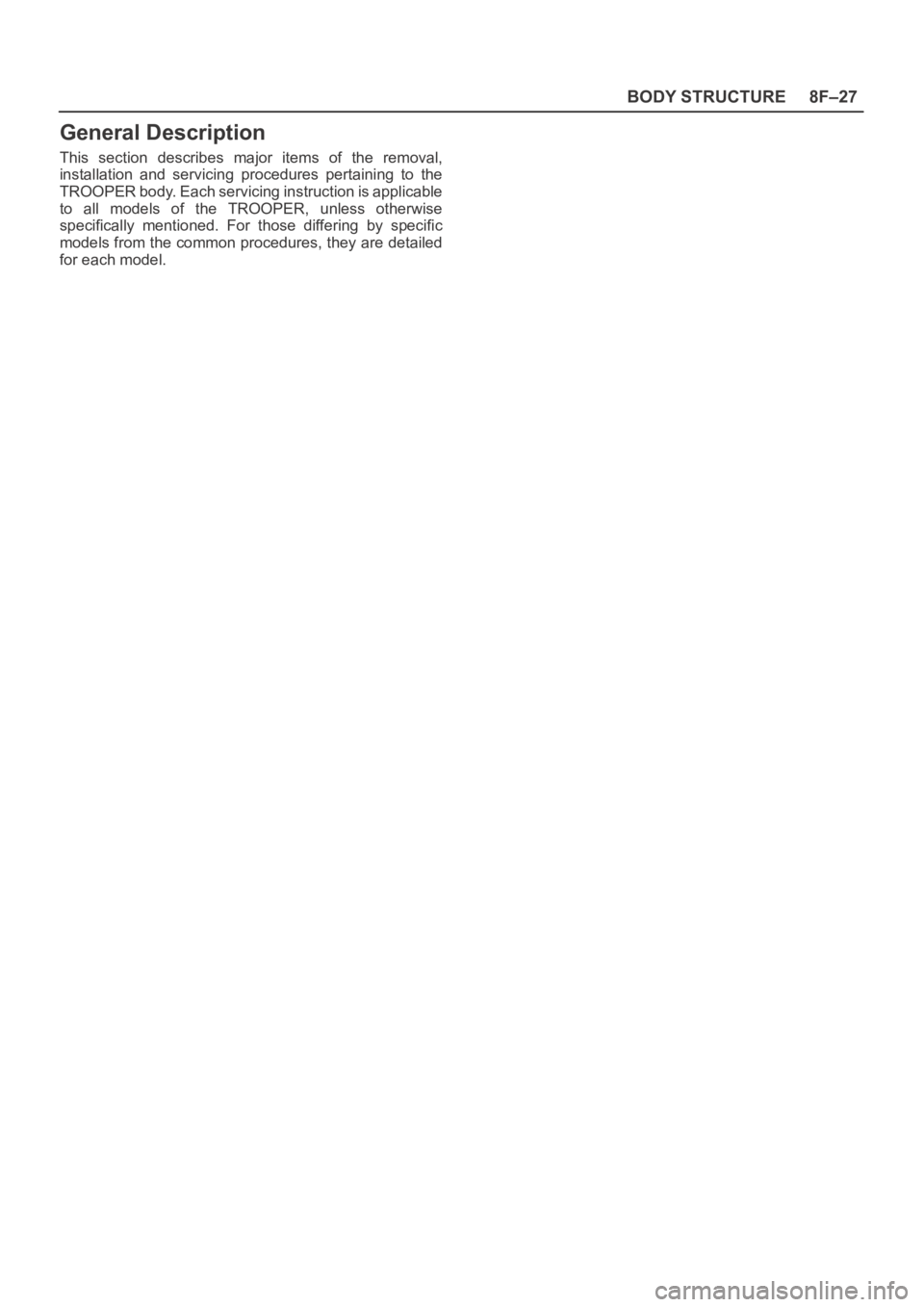

8F–27 BODY STRUCTURE
General Description
This section describes major items of the removal,
installation and servicing procedures pertaining to the
TROOPER body. Each servicing instruction is applicable
to all models of the TROOPER, unless otherwise
specifically mentioned. For those differing by specific
models from the common procedures, they are detailed
for each model.
Page 3223 of 6000

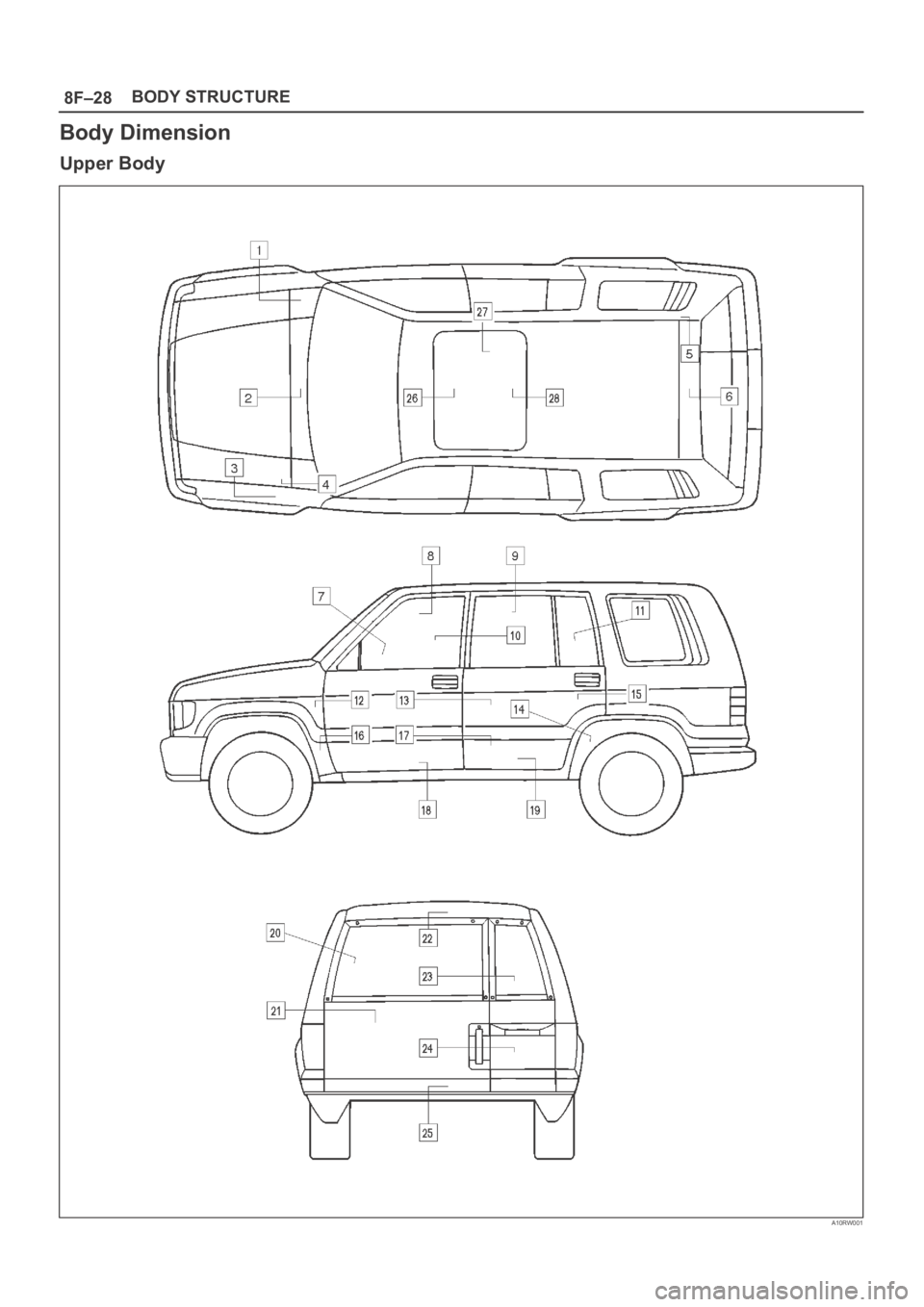

8F–28BODY STRUCTURE
Body Dimension
Upper Body
A10RW001
Page 3224 of 6000
8F–29 BODY STRUCTURE
A10RW002
