7A–63 AUTOMATIC TRANSMISSION (4L30–E)
Third Clutch And Sprag Unit
Disassembled View
248RW001
Legend
(1) Retaining Ring
(2) Input Sun Gear and Sprag Unit Assembly
(3) Retaining Washer
(4) Bearing(5) Thrust Washer
(6) Clutch Plates
(7) Third Clutch Spring Cushion Plate
(8) Third Clutch Drum Assembly
Disassembly
1. Place the third clutch drum and intermediate shaft
assembly upright, using the overdrive internal gear as
a support.
2. Locate the ends of the retaining ring. Depress one
end of the ring using a small screwdriver instead of
the depressor handle provided with the tool
5-8840-2258-0 (J-38450-A). Slide one blade down
between the third clutch drum and the retaining ring.
3. Remove a screwdriver and repeat this step for the
other end of retaining ring.
4. Install the remaining four blades approximately (five)
notches apart using a screwdriver to depress the
retaining ring.
5. Pull up on input sun gear and sprag unit assembly (1
and 2) to release the retaining ring from third clutch
drum assembly (8).
6. Remove the tool blades.
248RW006
7. Remove retaining washer (3), bearing (4), thrust
washer (5), and clutch plates (6 and 7) form the third
clutch drum assembly (8).
Page 2218 of 6000

7A–64
AUTOMATIC TRANSMISSION (4L30–E)
Inspection And Repair
Visual Check:
If any damage, deformation or wear is found, replace the
damaged part.
Reassembly
1. Place third clutch drum and intermediate shaft
assembly upright, using the overdrive internal gear as
a support.
2. Install third clutch spring cushion plate (7), bevel face
down.
3. Install third clutch plates (6) into third clutch drum
assembly (8). Start with the steel clutch plate and
alternate with lined plates.
4. Install thrust washer (5), bearing (4), and retaining
washer (3).
5. Fully engage the hub splines of the input sun gear and
sprag unit assembly (2) into the third clutch inner
tangs.
Simultaneously rotate the outer sprag race to
engage into the third clutch drum assembly (8).
6. Place 5-8840-2258-0 (J-38450-A) blades between
the retaining ring and the third clutch drum
approximately (five) notches apart, and one blade at
each end of the retaining ring (1). Push down on sprag
assembly until the assembly is seated into the third
clutch drum assembly (8).
7. Remove the tool blades and engage retaining ring
into groove of third clutch drum.
248RW007
Page 2219 of 6000

7A–65 AUTOMATIC TRANSMISSION (4L30–E)
Third Clutch
Disassembled View
248RS006
Legend
(1) Retaining Ring
(2) Spring Seat(3) Springs
(4) Piston Assembly
(5) Third Clutch Drum
Disassemble
1. Compress spring seat using the 5–8840–0501–0
(J–23075) spring compressor and 5–8840–2259–0
(J–23075–12) adapter tool.
NOTE: Do not over–stress the springs and seat. This will
cause damage to the spring seat.
Remove the tool.
Remove retaining ring (1).
248RW004
2. Release the spring seat (2).
NOTE: Do not let the spring seat catch in the ring groove.
Remove spring seat (2) and springs (3).
3. Remove piston assembly (4) from third clutch drum
(5).
Inspection And Repair
Visual check:
If any damage, deformation or wear is found, replace the
damaged part.
Operation check:
Shake the piston and listen for check ball movement
indicates proper check ball operation. Replace the piston
if the check ball is missing or falls out.
Reassembly
1. The lip of the piston seal must point toward the front of
the transmission. Lubricate the seal lip with
transmission fluid.
Install piston assembly (4) into the third clutch drum
(5). Use the 5–8840–2260–0 (J–23084) third clutch
piston installer to protect the outer seal during
installation.
Remove the seal installer.
Page 2220 of 6000

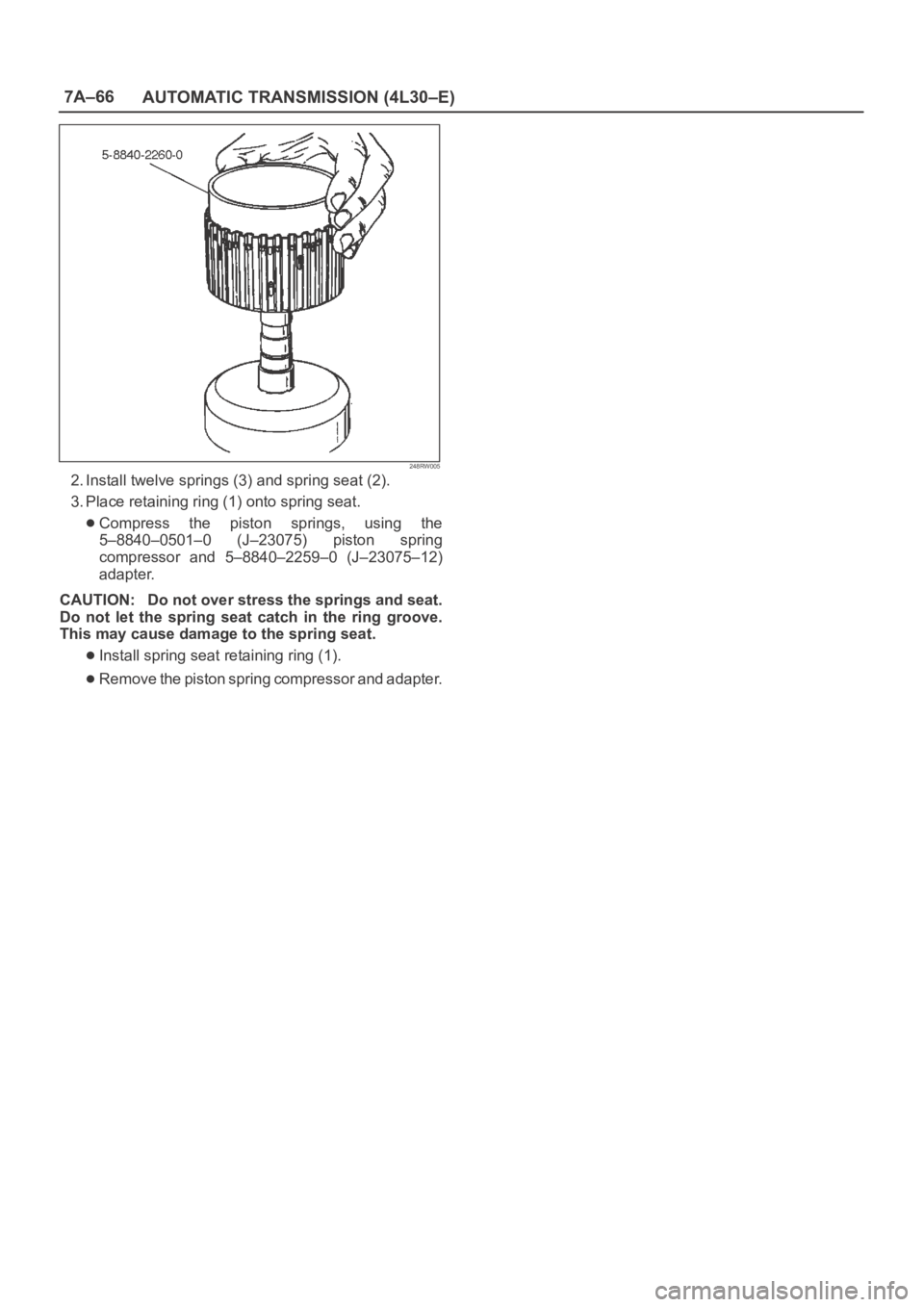

7A–66
AUTOMATIC TRANSMISSION (4L30–E)
248RW005
2. Install twelve springs (3) and spring seat (2).
3. Place retaining ring (1) onto spring seat.
Compress the piston springs, using the
5–8840–0501–0 (J–23075) piston spring
compressor and 5–8840–2259–0 (J–23075–12)
adapter.
CAUTION: Do not over stress the springs and seat.
Do not let the spring seat catch in the ring groove.
This may cause damage to the spring seat.
Install spring seat retaining ring (1).
Remove the piston spring compressor and adapter.
Page 2221 of 6000

7A–67 AUTOMATIC TRANSMISSION (4L30–E)
Sprag Unit
Disassembled View
248RS009
Legend
(1) Retaining Ring
(2) Sprag Outer Race
(3) Ring(4) Sprag Assembly
(5) Ring
(6) Third Clutch Hub and Sun Gear Assembly
Disassembly
1. Remove the sprag outer race, retaining ring, and
sprag assembly from the third clutch hub and sun
gear assembly.
2. Remove the rings and sprag assembly from the sprag
outer race.
Inspection And Repair
Visual Check:
If any damage, deformation or wear is found, replace the
damaged part.
Reassembly
NOTE: Flared shoulder of the sprag cage faces the sun
gear. This procedure must be followed exactly to be sure
that the sprag assembly is installed properly.
1. Install rings and sprag assembly onto the third clutch
hub and sun gear.
2. Install sprag outer race and retaining ring assembly
over the sprag cage assembly.
Place third clutch hub and sun gear assembly on a
flat surface, sun gear facing up. Place sprag outer
race and sprag assembly over the sun gear
assembly, push down and turn the input sun
counterclockwise at the same time. NOTE: Check correct rotation by holding the sun gear in
your left hand and turning the outer race. The outer sprag
race should turn freely towards you and should lock
turning away from you.
248RS010
Page 2222 of 6000
7A–68
AUTOMATIC TRANSMISSION (4L30–E)
Second Clutch
Disassembled View
247RW001
Legend
(1) Retaining Ring
(2) Ring Gear
(3) Retaining Ring
(4) Spacer
(5) Clutch Plates(6) Waved Washer
(7) Retaining Ring
(8) Spring Seat
(9) Springs
(10) Piston Assembly
(11) Second Clutch Drum
Disassembly
1. Remove retaining ring (1) from second clutch drum
(11).
2. Remove ring gear (2), retaining ring (3), and spacer
(4).
3. Remove clutch plates (5) and waved washer (6).
4. Remove retaining ring (7) using 5–8840–0195–0
(J–23327) compressor to compress the spring seat
(8).
5. Remove spring seat (8), springs (9) and piston
assembly (10) from second clutch drum (11).
247RW005
Page 2223 of 6000

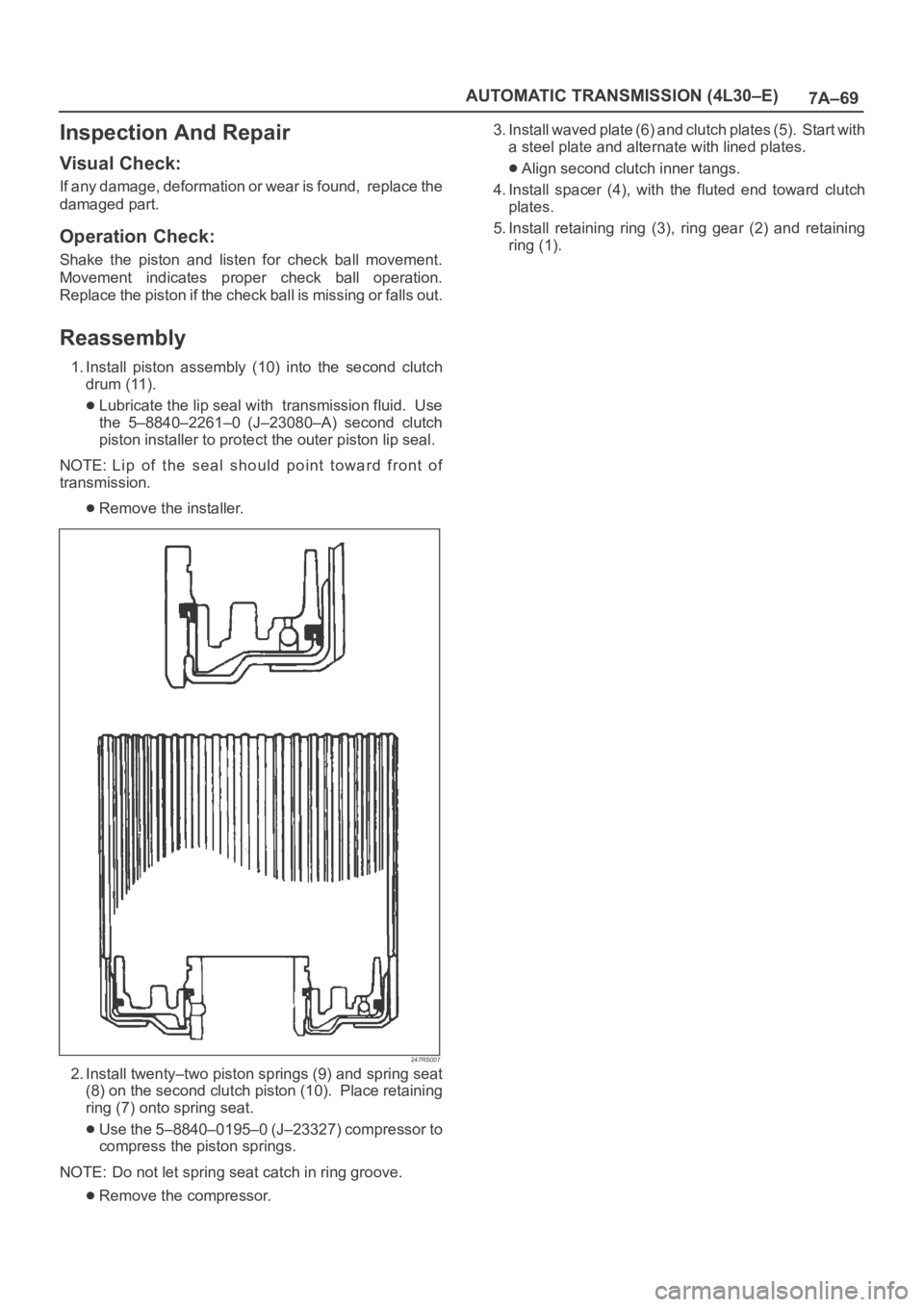

7A–69 AUTOMATIC TRANSMISSION (4L30–E)
Inspection And Repair
Visual Check:
If any damage, deformation or wear is found, replace the
damaged part.
Operation Check:
Shake the piston and listen for check ball movement.
Movement indicates proper check ball operation.
Replace the piston if the check ball is missing or falls out.
Reassembly
1. Install piston assembly (10) into the second clutch
drum (11).
Lubricate the lip seal with transmission fluid. Use
the 5–8840–2261–0 (J–23080–A) second clutch
piston installer to protect the outer piston lip seal.
NOTE: Lip of the seal should point toward front of
transmission.
Remove the installer.
247RS007
2. Install twenty–two piston springs (9) and spring seat
(8) on the second clutch piston (10). Place retaining
ring (7) onto spring seat.
Use the 5–8840–0195–0 (J–23327) compressor to
compress the piston springs.
NOTE: Do not let spring seat catch in ring groove.
Remove the compressor.3. Install waved plate (6) and clutch plates (5). Start with
a steel plate and alternate with lined plates.
Align second clutch inner tangs.
4. Install spacer (4), with the fluted end toward clutch
plates.
5. Install retaining ring (3), ring gear (2) and retaining
ring (1).
Page 2224 of 6000
7A–70
AUTOMATIC TRANSMISSION (4L30–E)
3–4 Accumulator Piston
Disassembled View
244RS005
Legend
(1) Snap Ring
(2) Cover(3) Spring
(4) Piston Assembly
Disassembly
1. Install the 5–8840–2277–1 (J–38559–A) cover
compressor on adapter case.
Compress piston cover then remove snap ring.
242RW009
2. Install the 5–8840–2403–0 (J–41096) cover remover
and 5–8840–2266–0 (J–38584) adapter to center
hole of cover.
Use the 5–8840–0019–0 and 5–8840–2000–0
(J–23907) slide hammer to remove cover.
3. Remove spring and piston assembly.
242RW010
Inspection And Repair
Visual Check:
If any damage, deformation or wear is found, replace the
damaged part.
