Page 4641 of 6000

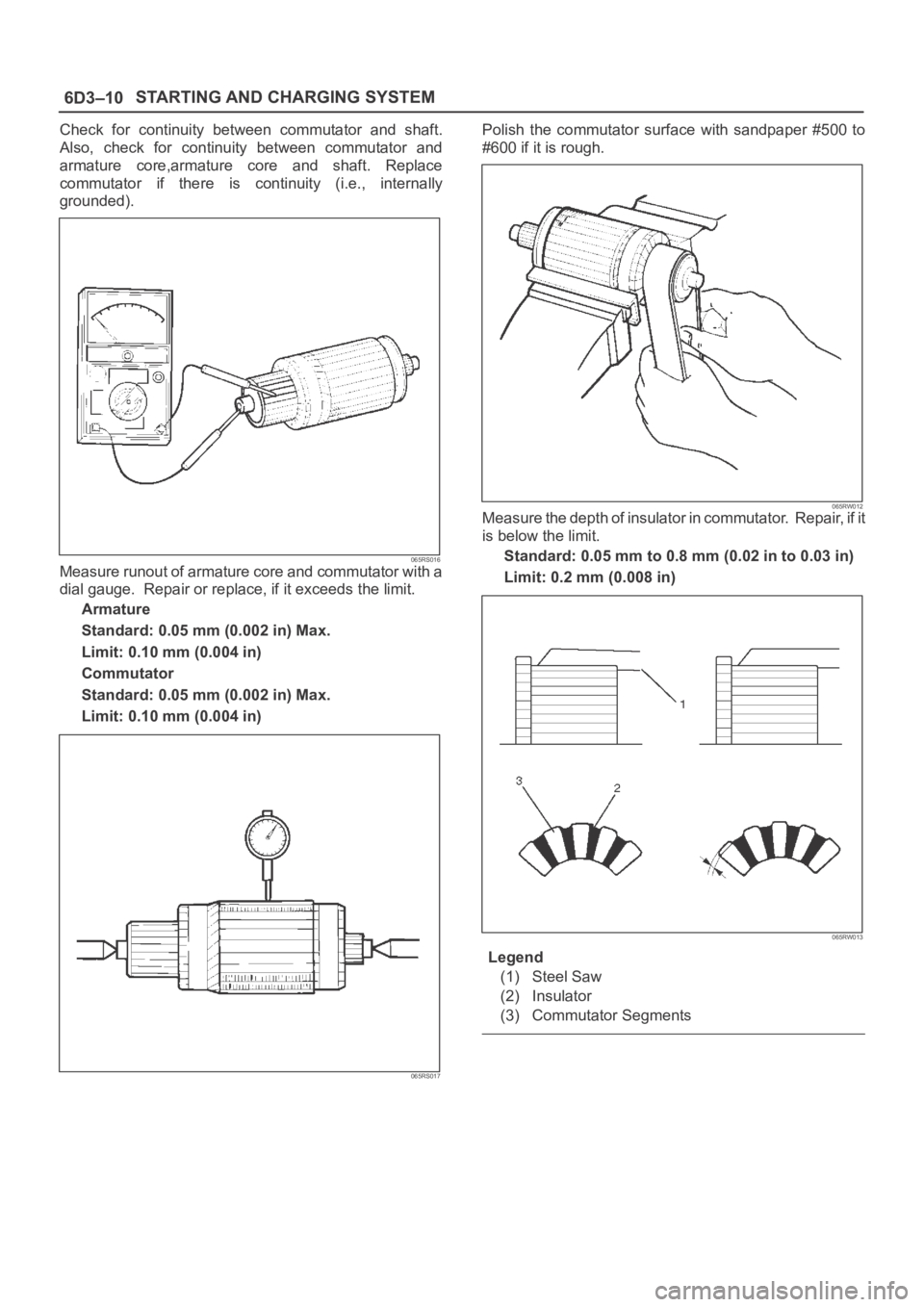

OPEL FRONTERA 1998 Workshop Manual 6D3–10STARTING AND CHARGING SYSTEM Check for continuity between commutator and shaft. Also, check for continuity between commutator and armature core,armature core and shaft. Replac

Page 4642 of 6000

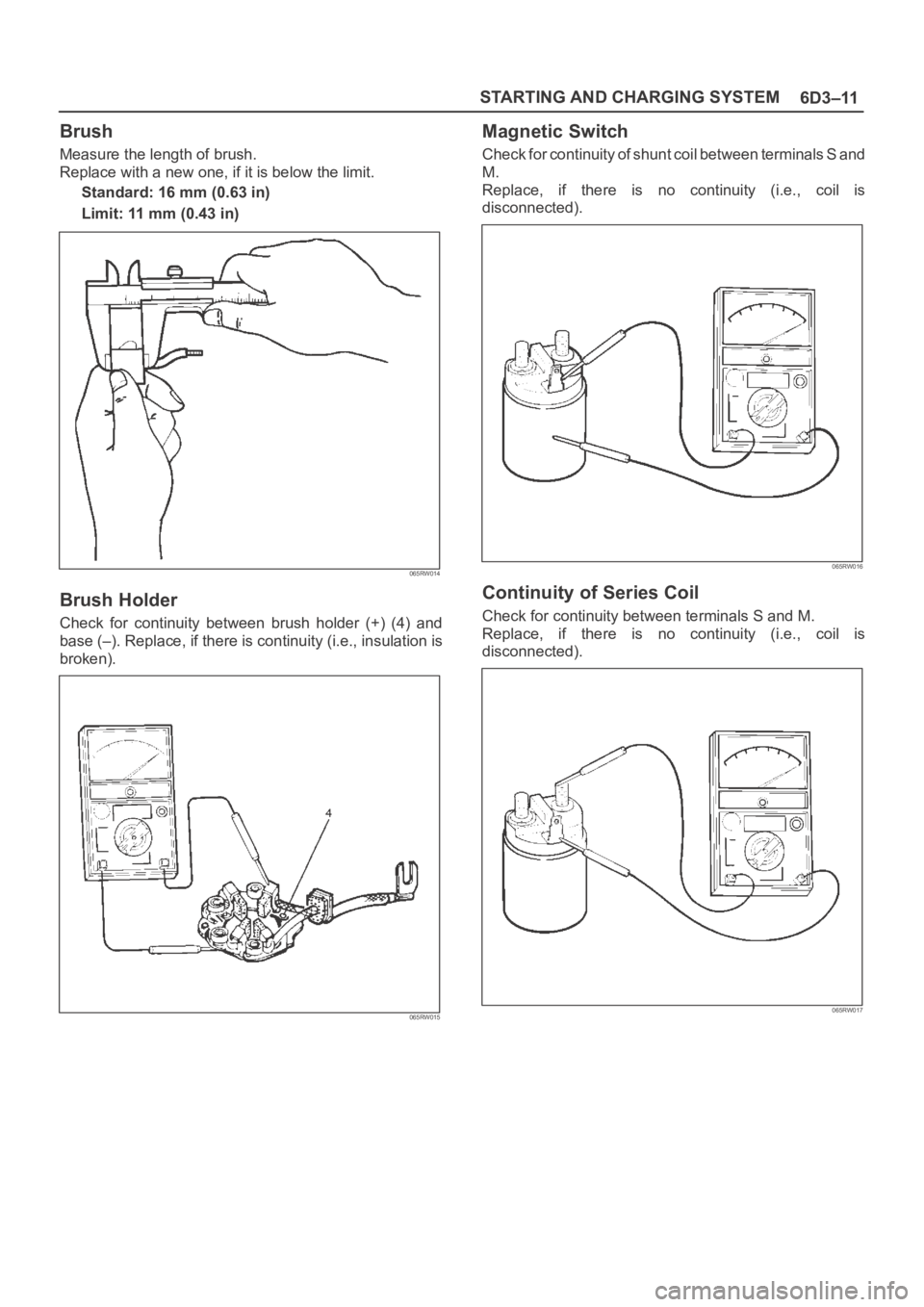

OPEL FRONTERA 1998 Workshop Manual 6D3–11 STARTING AND CHARGING SYSTEM Brush Measure the length of brush. Replace with a new one, if it is below the limit. Standard: 16 mm (0.63 in) Limit: 11 mm (0.43 in) 065RW014 Brush Holder Check

Page 4643 of 6000

OPEL FRONTERA 1998 Workshop Manual 6D3–12STARTING AND CHARGING SYSTEM Continuity of Contacts With the plunger faced downward, push down the magnetic switch. In this state, check for continuity between terminals B and

Page 4644 of 6000

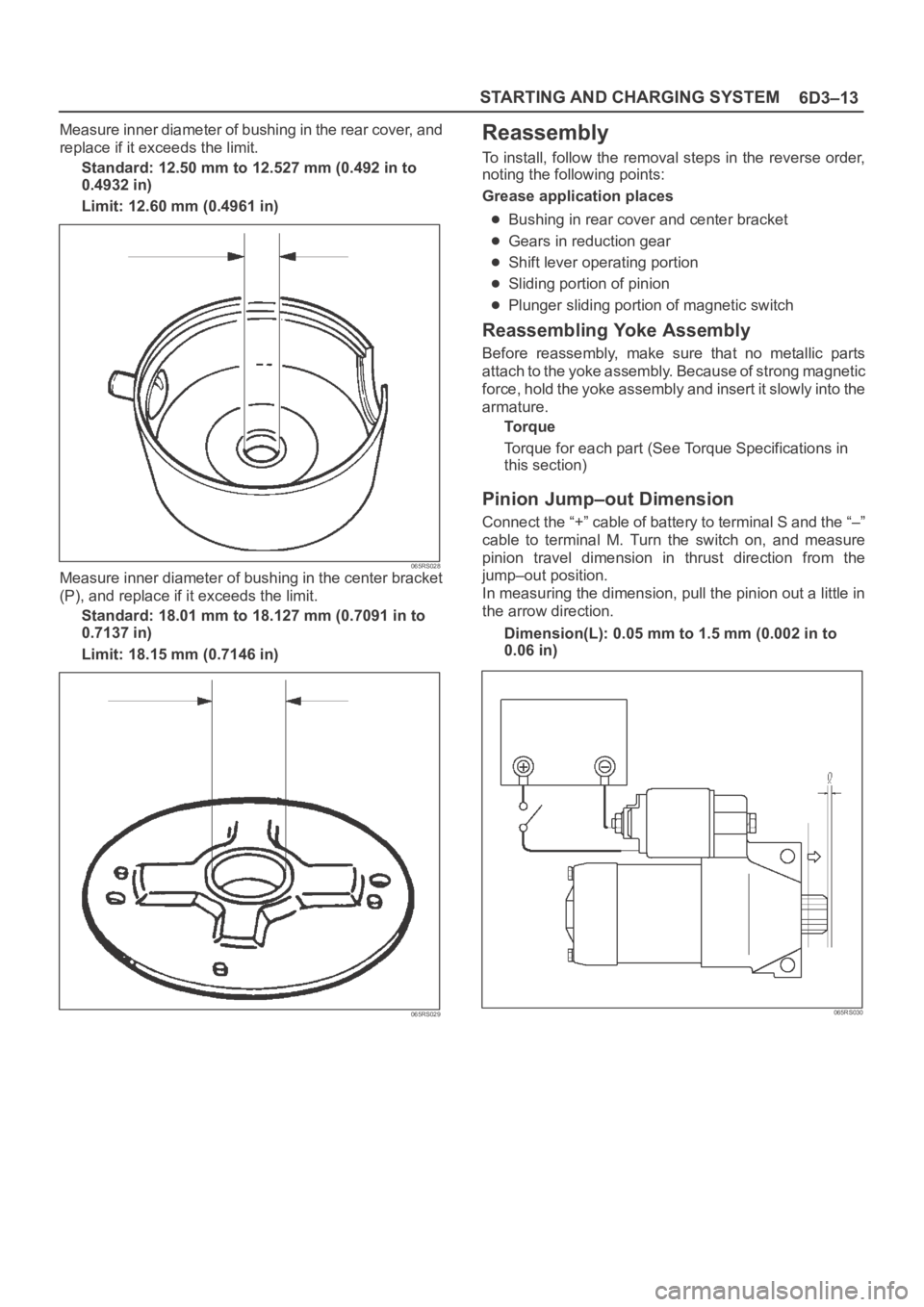

OPEL FRONTERA 1998 Workshop Manual 6D3–13 STARTING AND CHARGING SYSTEM Measure inner diameter of bushing in the rear cover, and replace if it exceeds the limit. Standard: 12.50 mm to 12.527 mm (0.492 in to 0.4932 in) Limit: 12.60 mm

Page 4645 of 6000

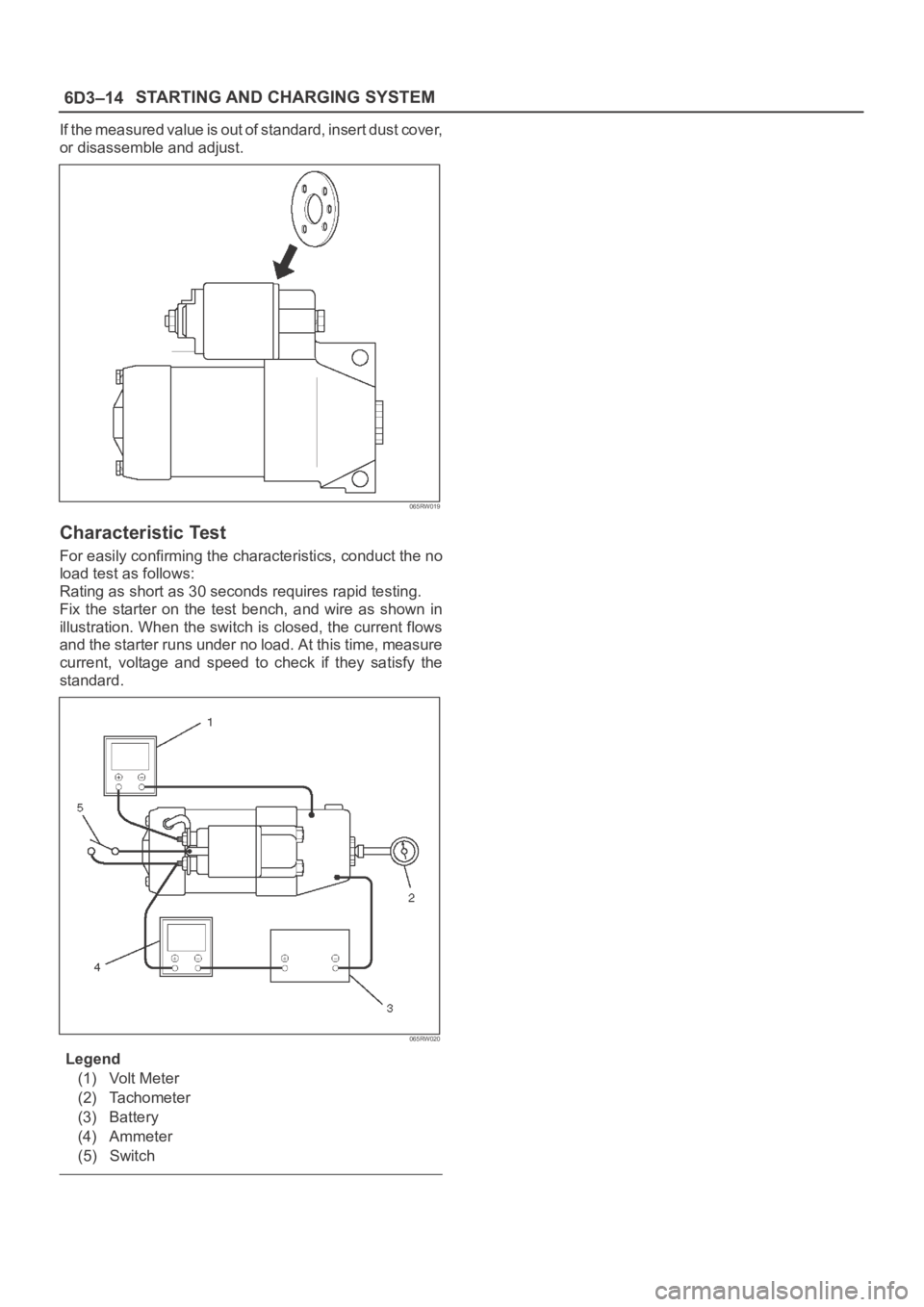

OPEL FRONTERA 1998 Workshop Manual 6D3–14STARTING AND CHARGING SYSTEM If the measured value is out of standard, insert dust cover, or disassemble and adjust. 065RW019 Characteristic Test For easily confirming the characteristics, con

Page 4646 of 6000

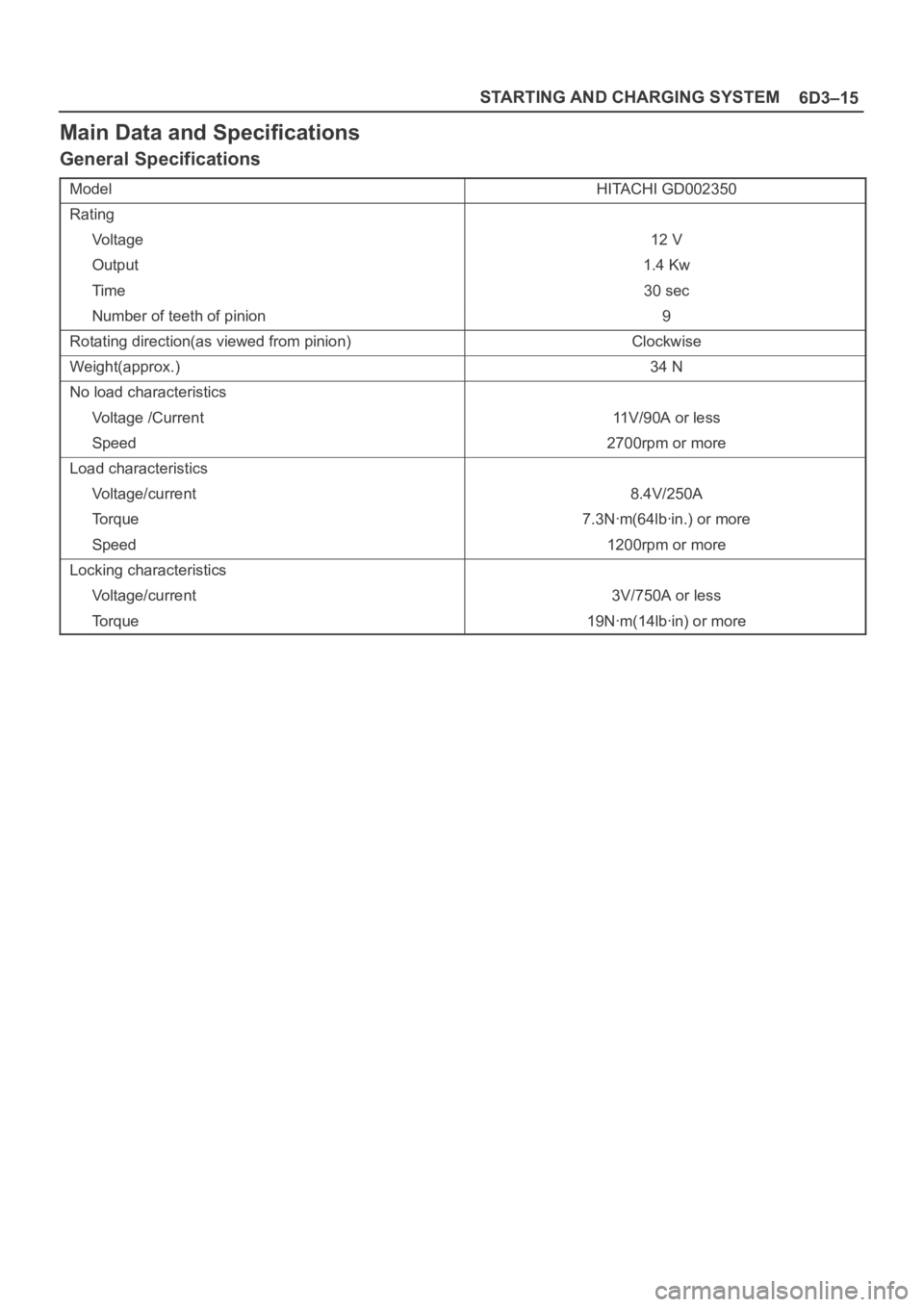

OPEL FRONTERA 1998 Workshop Manual 6D3–15 STARTING AND CHARGING SYSTEM Main Data and Specifications General Specifications ModelHITACHI GD002350 Rating Voltage12 V Output1.4 Kw Time30 sec Number of teeth of pinion 9 Rotating directio

Page 4647 of 6000

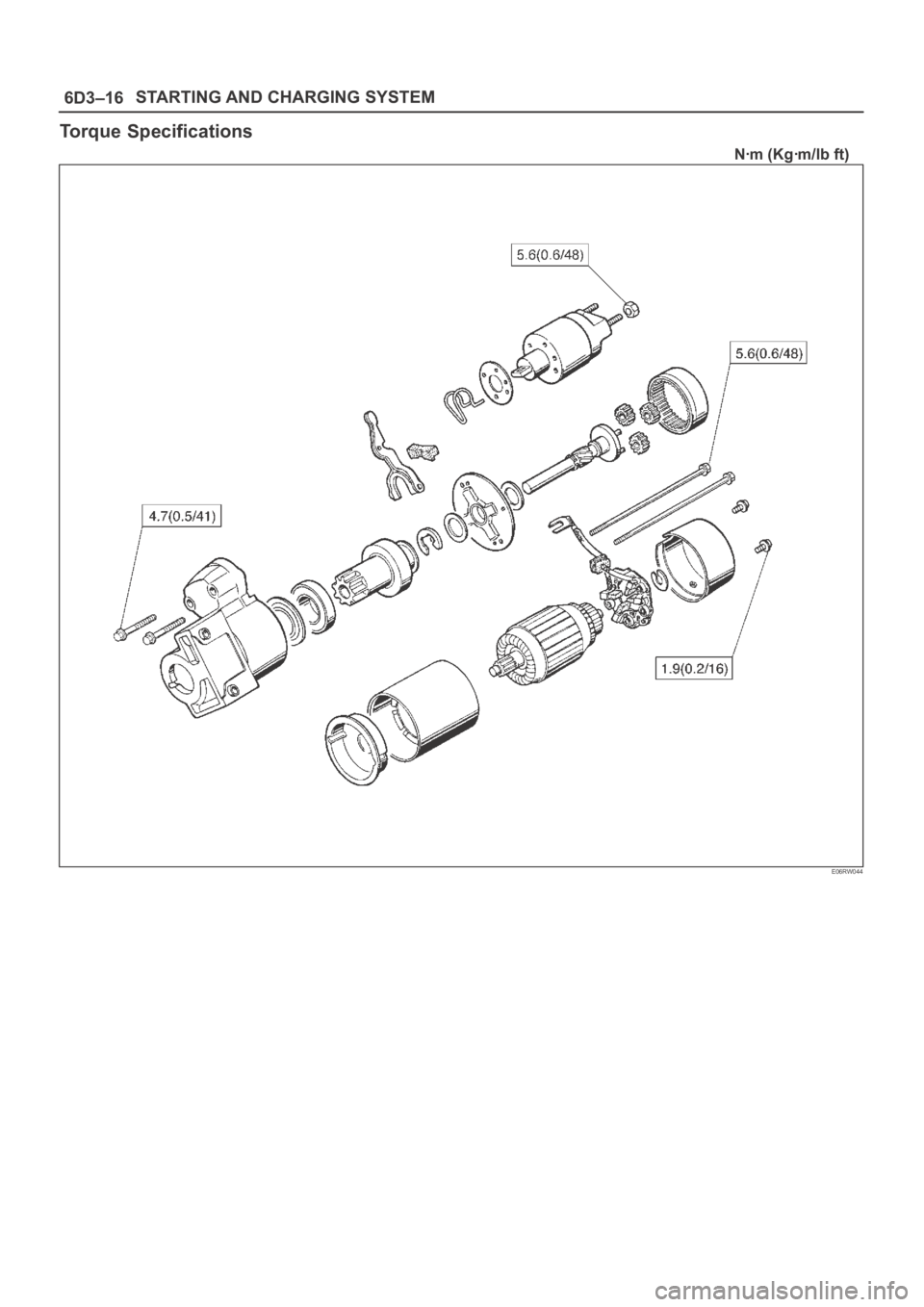

OPEL FRONTERA 1998 Workshop Manual 6D3–16STARTING AND CHARGING SYSTEM Torque Specifications Nꞏm (Kgꞏm/lb ft) E06RW044

Page 4648 of 6000

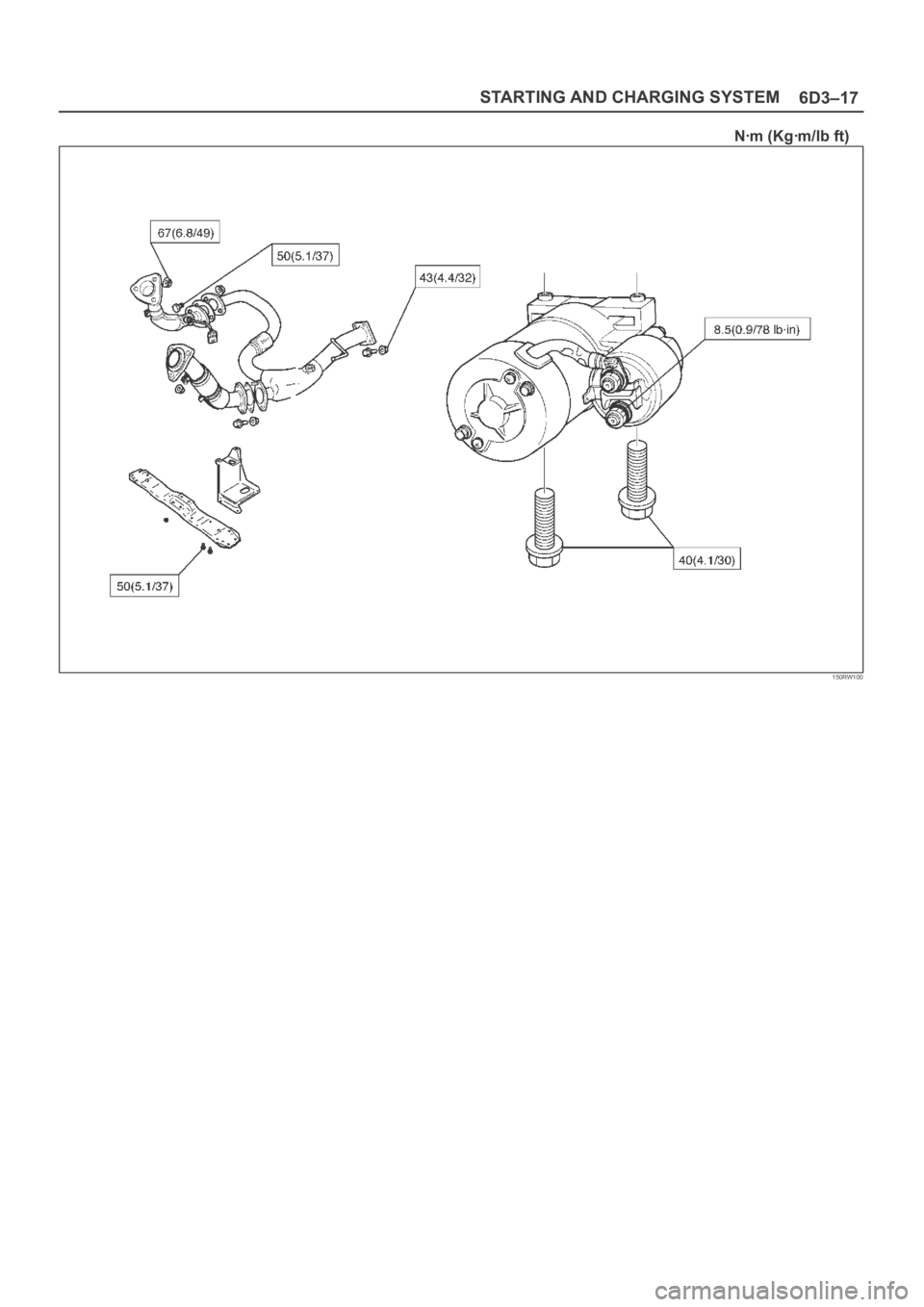

OPEL FRONTERA 1998 Workshop Manual 6D3–17 STARTING AND CHARGING SYSTEM Nꞏm (Kgꞏm/lb ft) 150RW100
