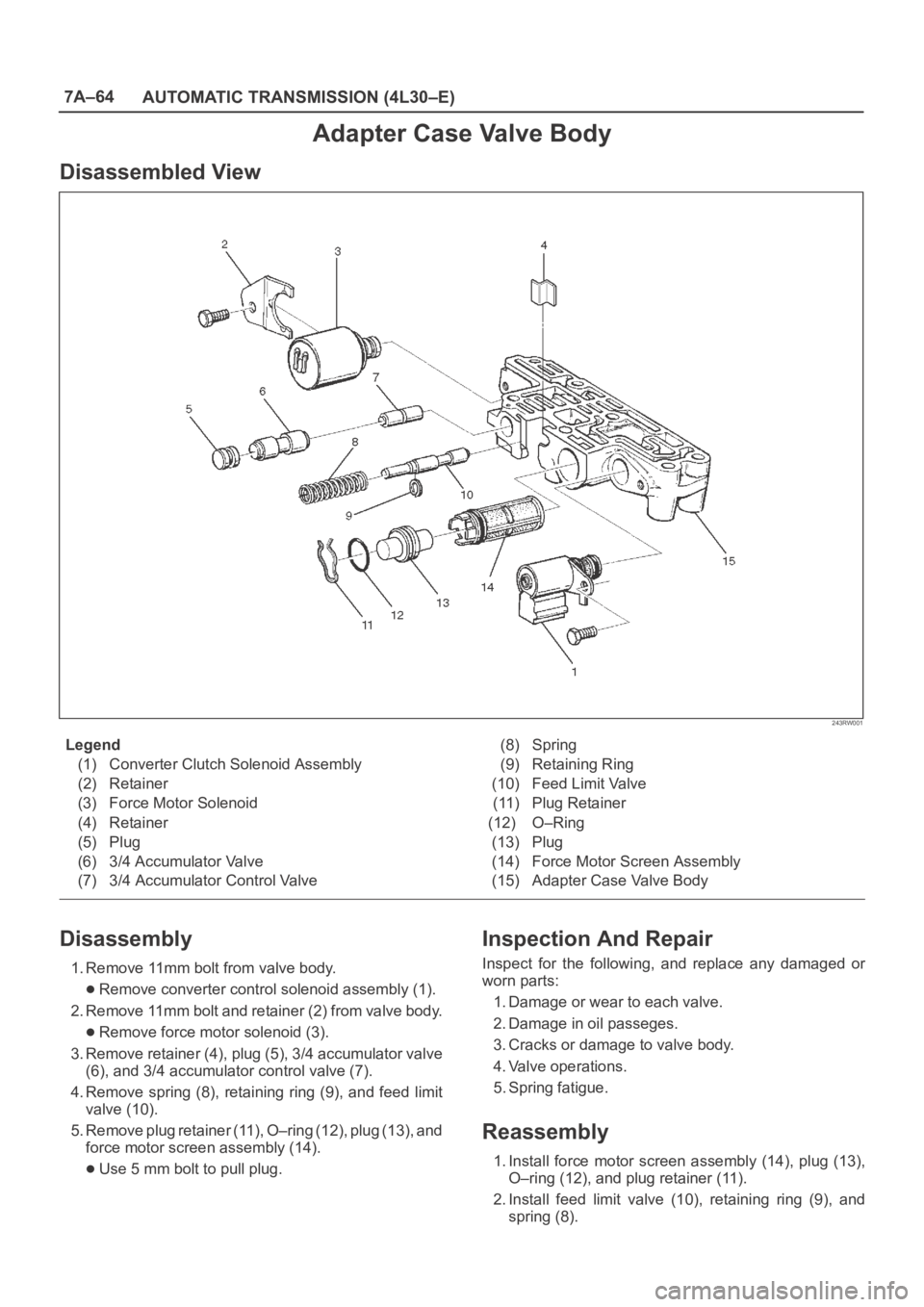

OPEL FRONTERA 1998 Workshop Manual 7A–64 AUTOMATIC TRANSMISSION (4L30–E) Adapter Case Valve Body Disassembled View 243RW001 Legend (1) Converter Clutch Solenoid Assembly (2) Retainer (3) Force Motor Solenoid (4) Retainer (5) Plug (

Page 5754 of 6000

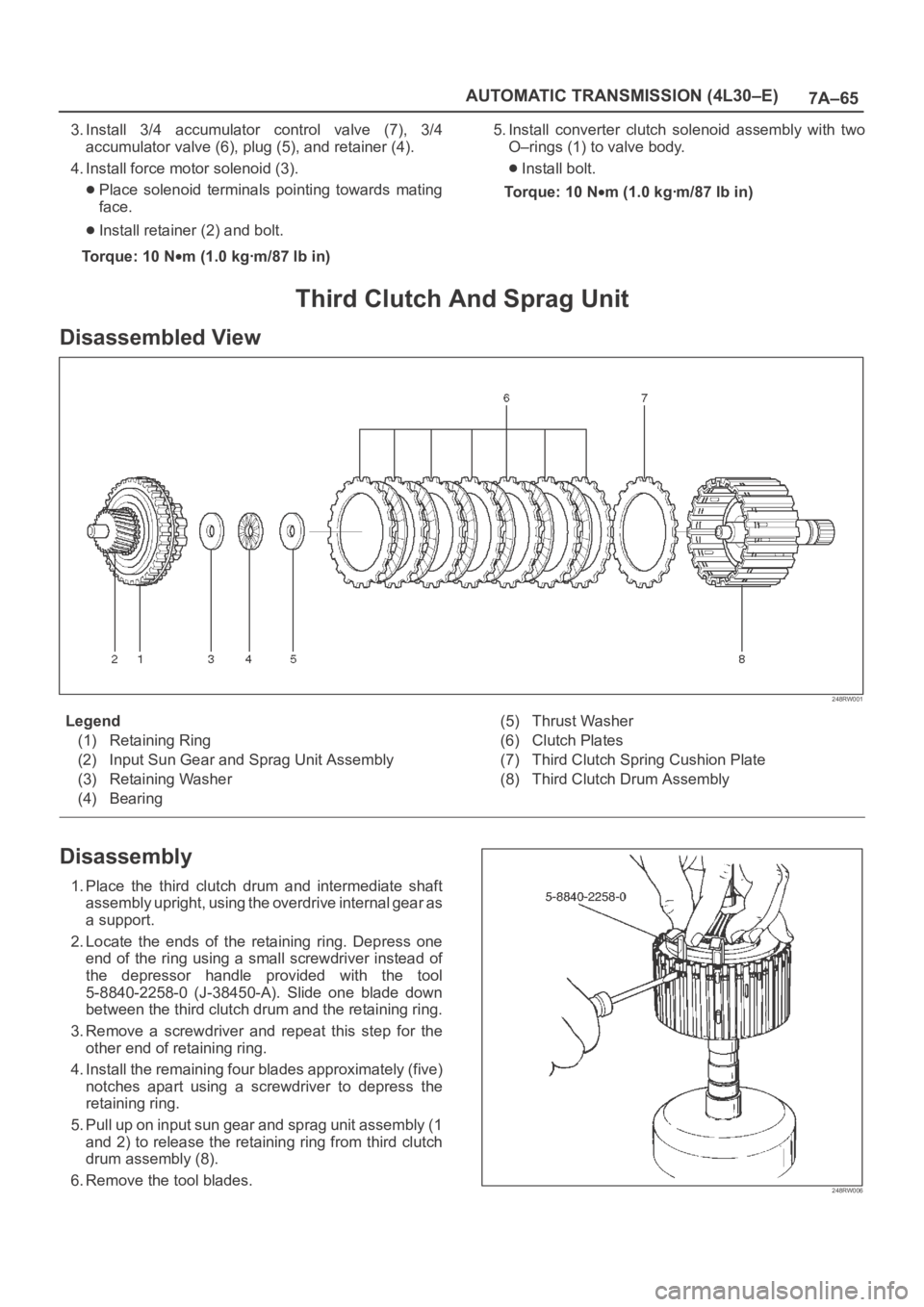

OPEL FRONTERA 1998 Workshop Manual 7A–65 AUTOMATIC TRANSMISSION (4L30–E) 3. Install 3/4 accumulator control valve (7), 3/4 accumulator valve (6), plug (5), and retainer (4). 4. Install force motor solenoid (3). Place solenoi

Page 5755 of 6000

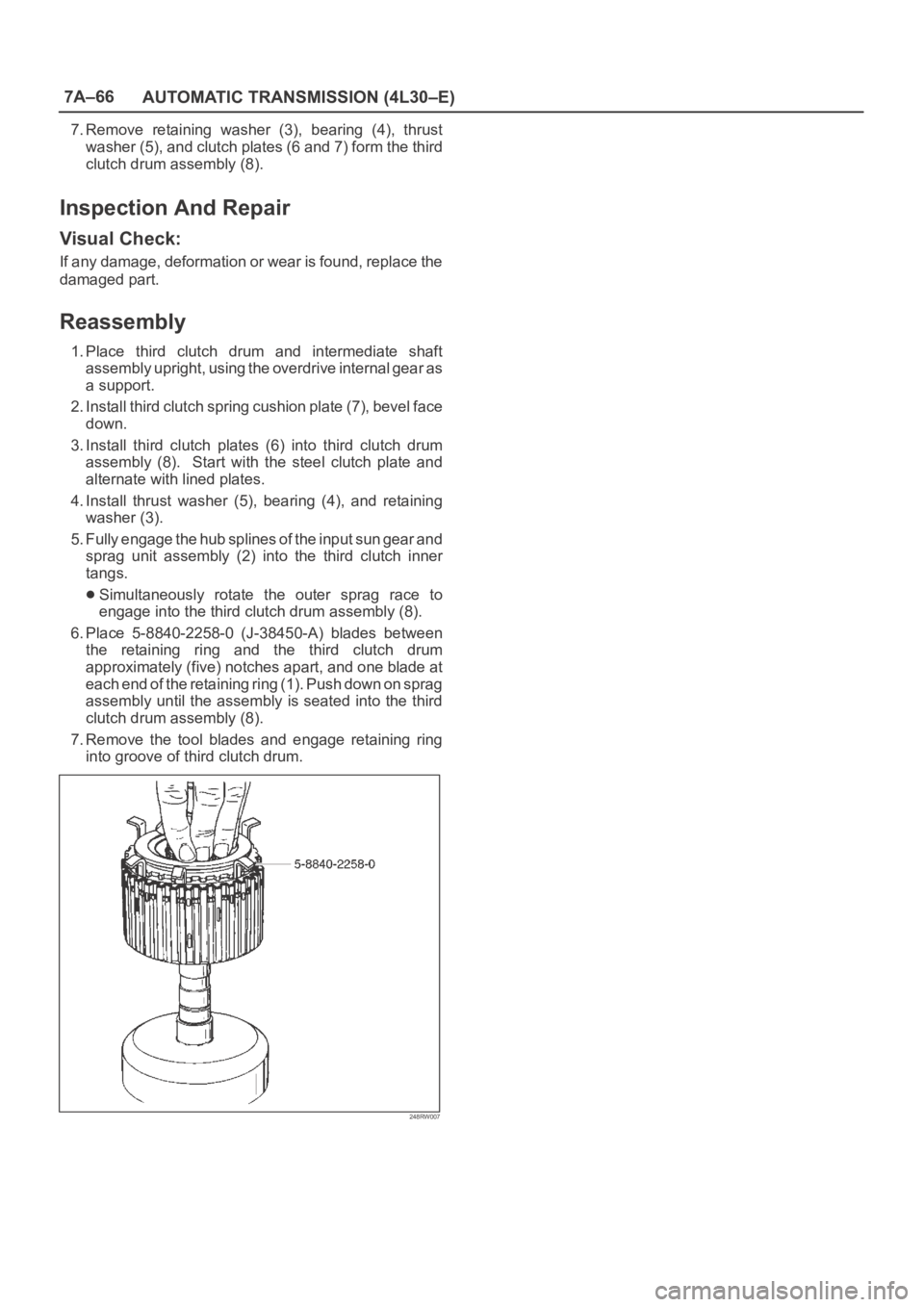

OPEL FRONTERA 1998 Workshop Manual 7A–66 AUTOMATIC TRANSMISSION (4L30–E) 7. Remove retaining washer (3), bearing (4), thrust washer (5), and clutch plates (6 and 7) form the third clutch drum assembly (8). Inspection And Repa

Page 5756 of 6000

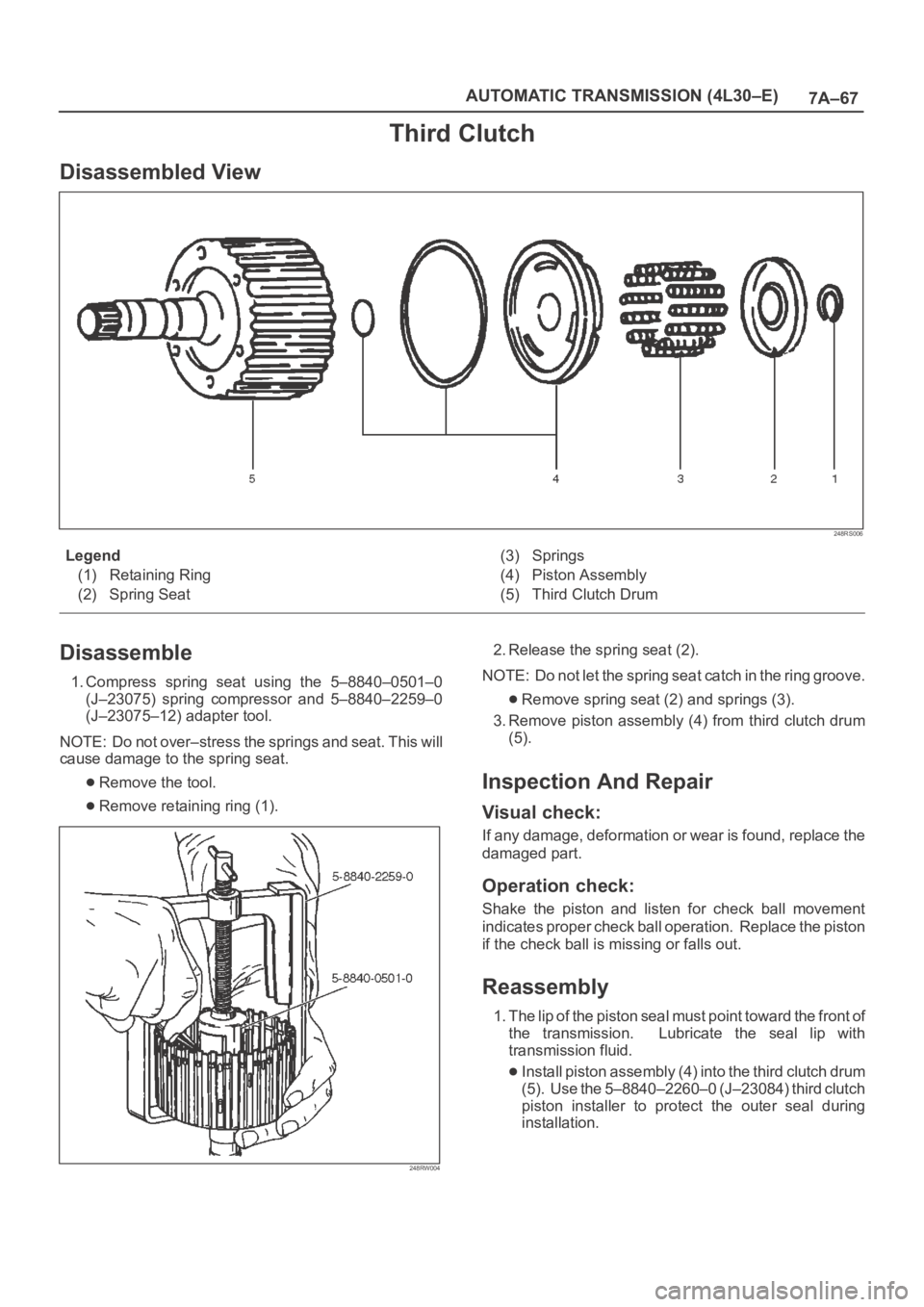

OPEL FRONTERA 1998 Workshop Manual 7A–67 AUTOMATIC TRANSMISSION (4L30–E) Third Clutch Disassembled View 248RS006 Legend (1) Retaining Ring (2) Spring Seat(3) Springs (4) Piston Assembly (5) Third Clutch Drum Disassemble 1. Compress

Page 5757 of 6000

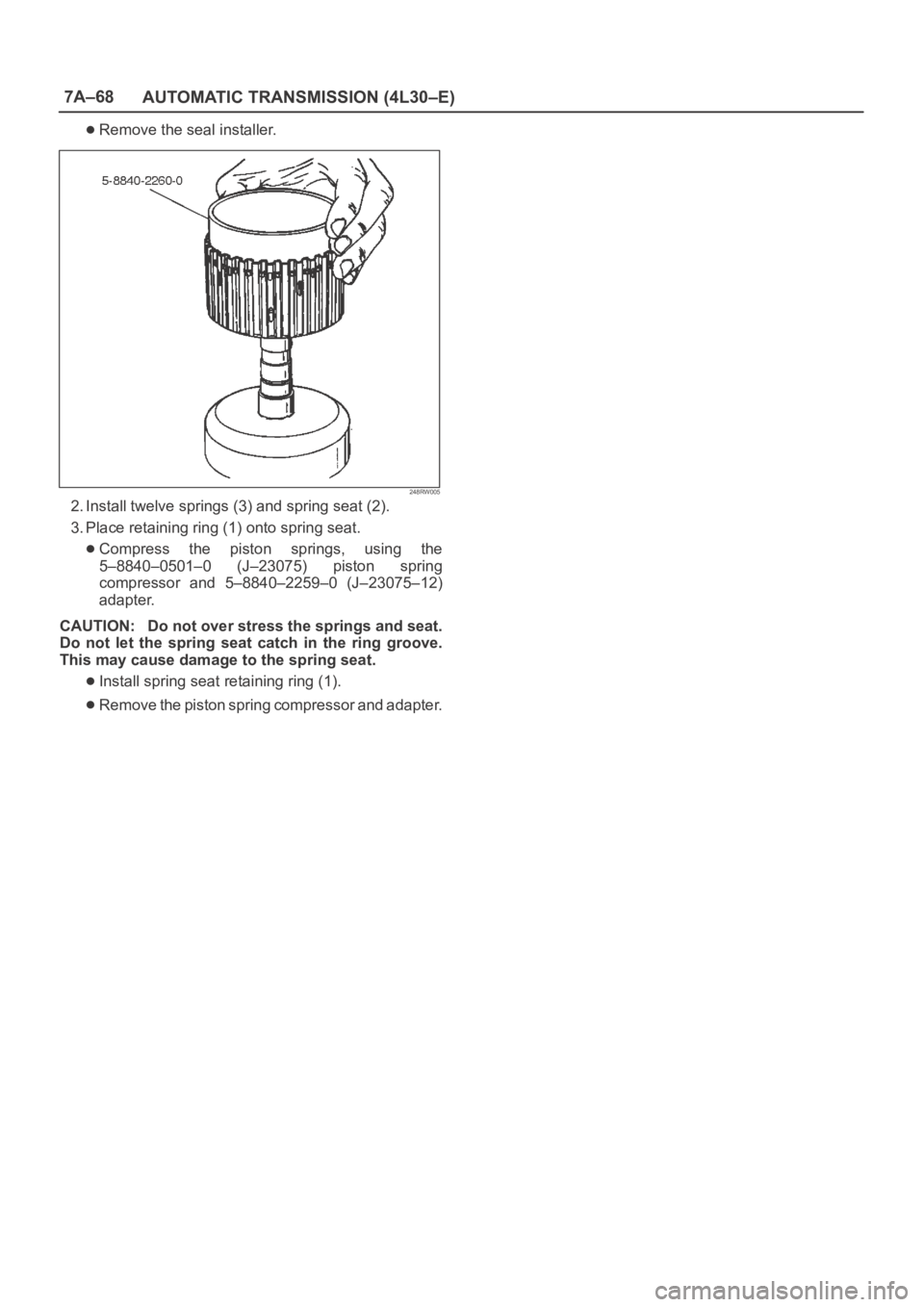

OPEL FRONTERA 1998 Workshop Manual 7A–68 AUTOMATIC TRANSMISSION (4L30–E) Remove the seal installer. 248RW005 2. Install twelve springs (3) and spring seat (2). 3. Place retaining ring (1) onto spring seat. Compress the piston s

Page 5758 of 6000

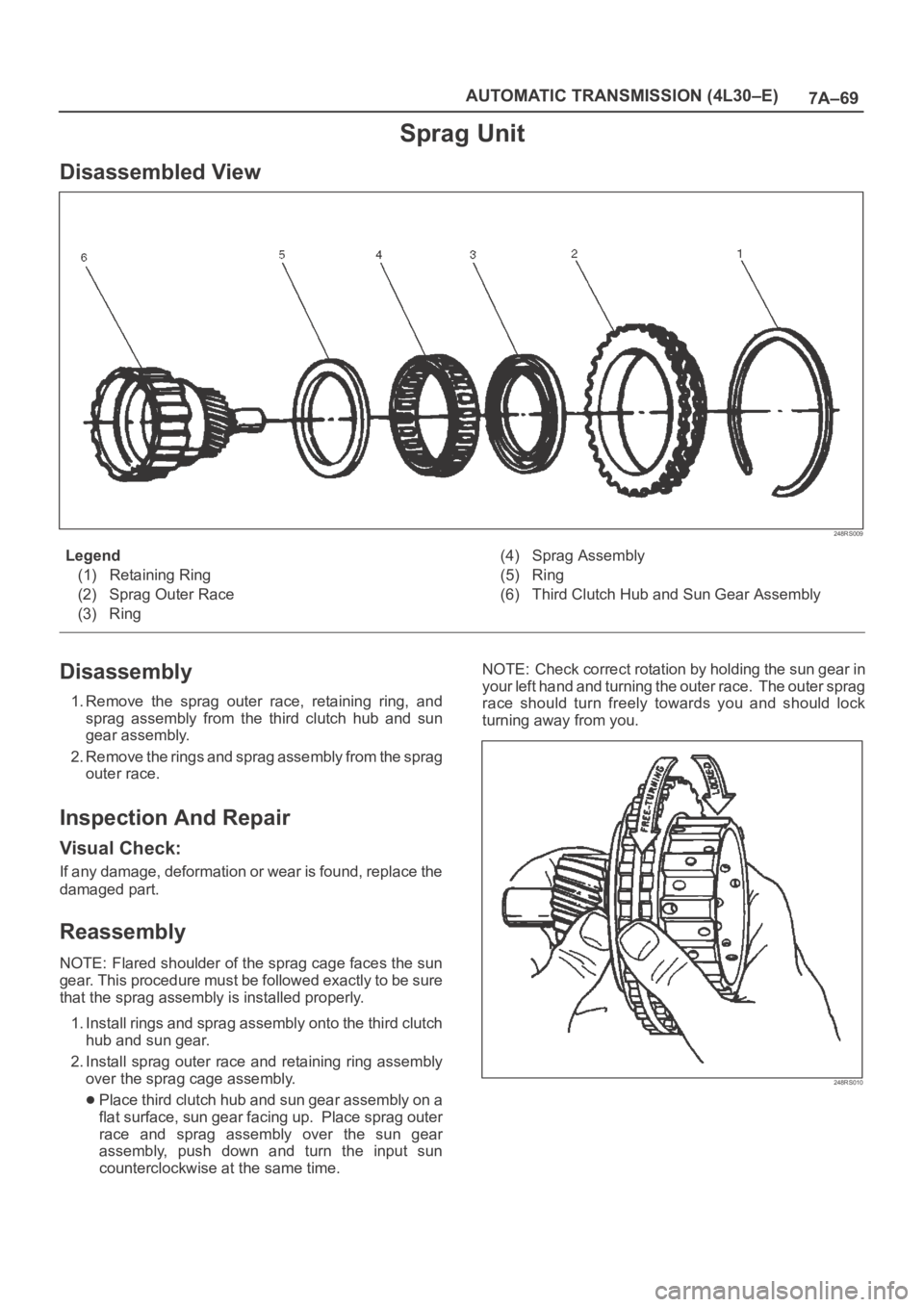

OPEL FRONTERA 1998 Workshop Manual 7A–69 AUTOMATIC TRANSMISSION (4L30–E) Sprag Unit Disassembled View 248RS009 Legend (1) Retaining Ring (2) Sprag Outer Race (3) Ring(4) Sprag Assembly (5) Ring (6) Third Clutch Hub and Sun Gear Ass

Page 5759 of 6000

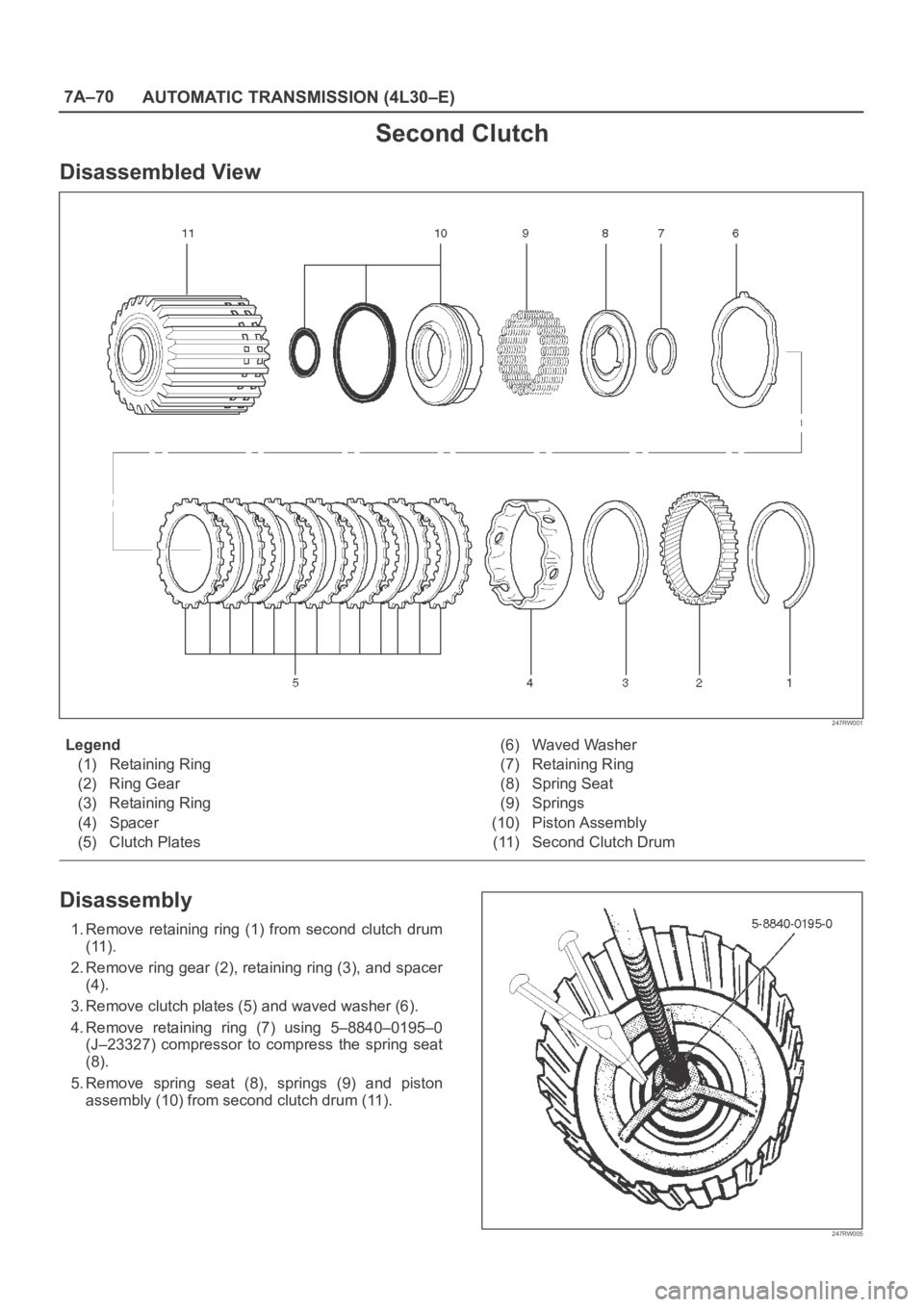

OPEL FRONTERA 1998 Workshop Manual 7A–70 AUTOMATIC TRANSMISSION (4L30–E) Second Clutch Disassembled View 247RW001 Legend (1) Retaining Ring (2) Ring Gear (3) Retaining Ring (4) Spacer (5) Clutch Plates(6) Waved Washer (7) Retaining

Page 5760 of 6000

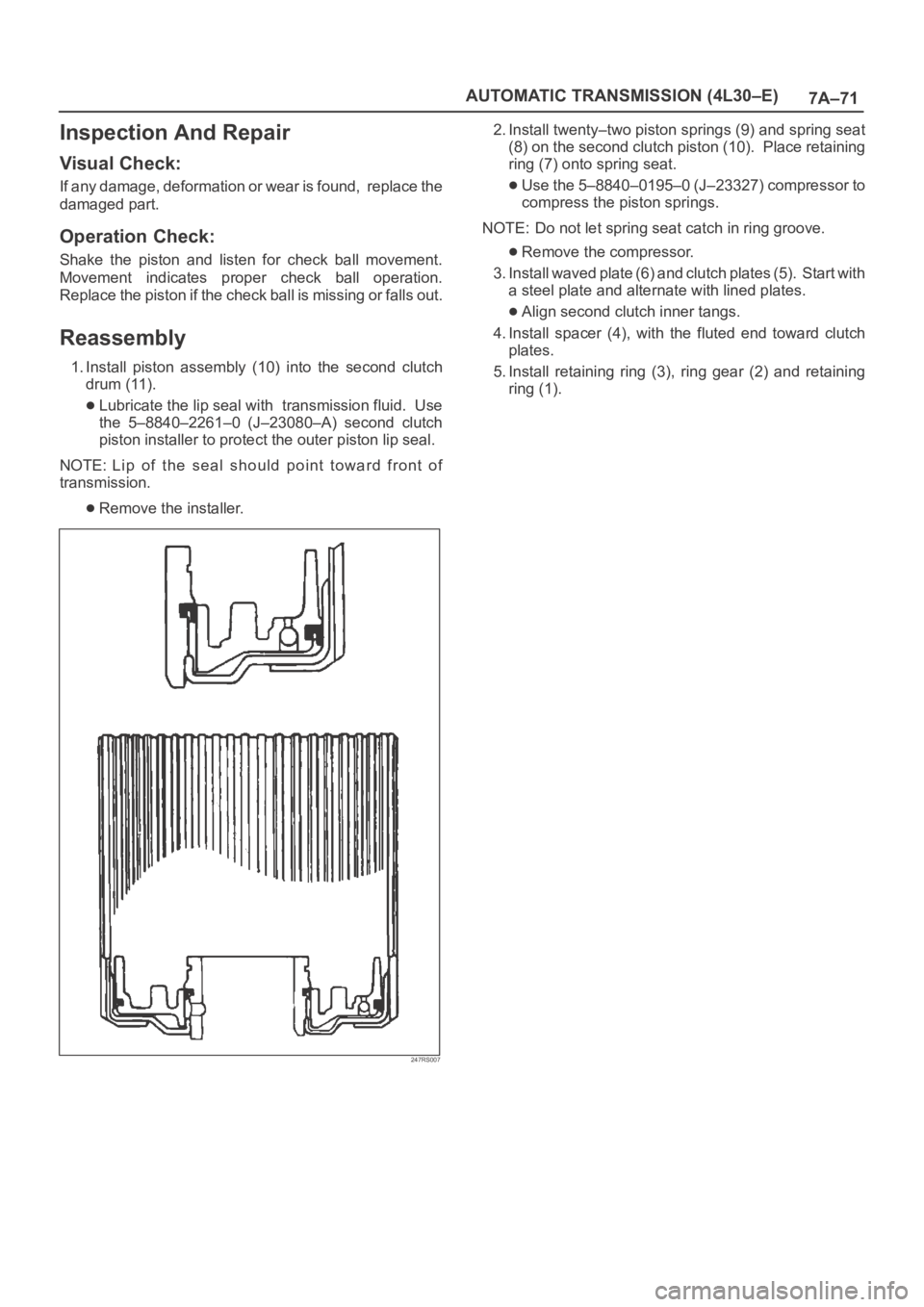

OPEL FRONTERA 1998 Workshop Manual 7A–71 AUTOMATIC TRANSMISSION (4L30–E) Inspection And Repair Visual Check: If any damage, deformation or wear is found, replace the damaged part. Operation Check: Shake the piston and listen
