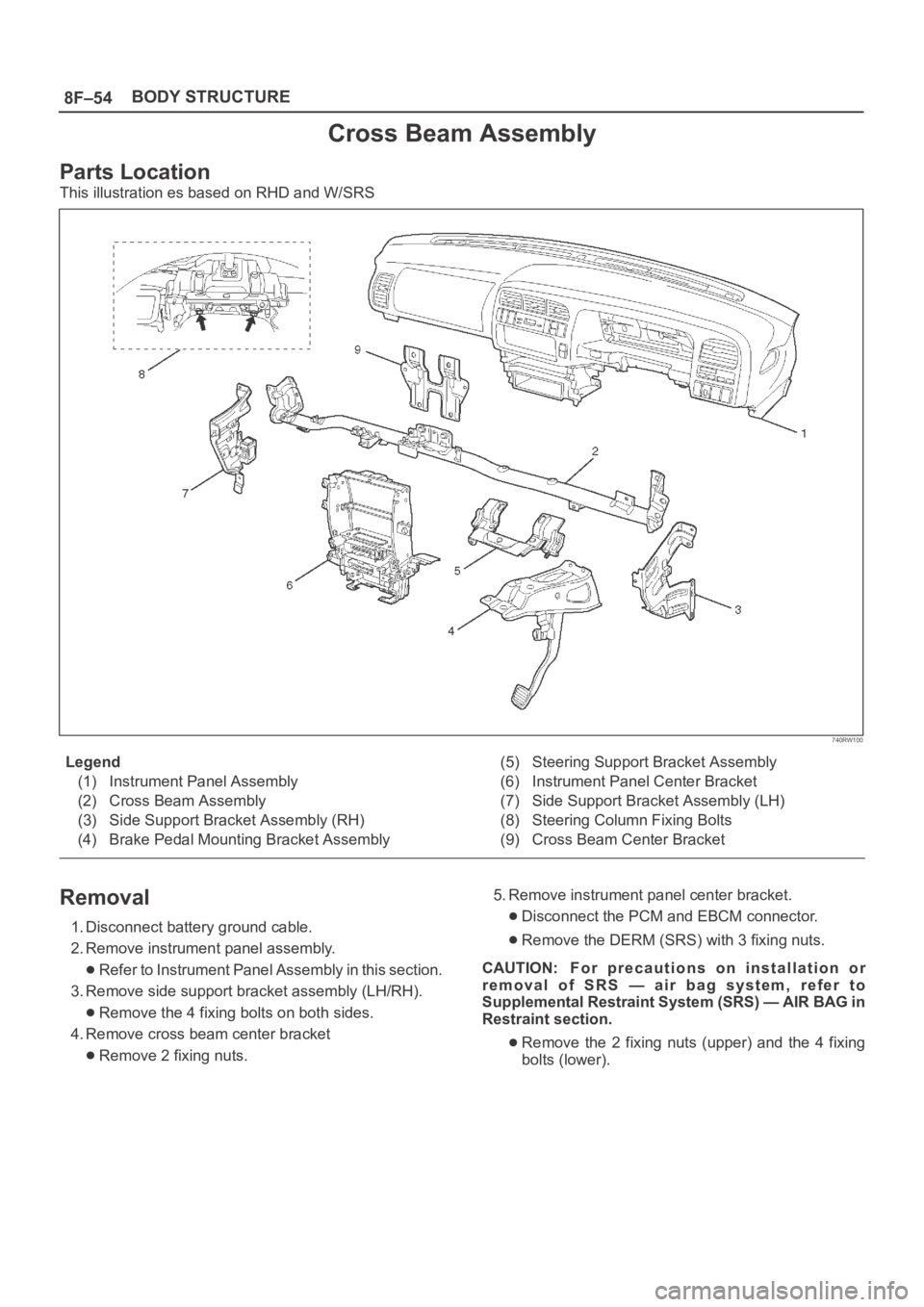

OPEL FRONTERA 1998 Workshop Manual 8F–54BODY STRUCTURE Cross Beam Assembly Parts Location This illustration es based on RHD and W/SRS 740RW100 Legend (1) Instrument Panel Assembly (2) Cross Beam Assembly (3) Side Support Bracket Asse

Page 3250 of 6000

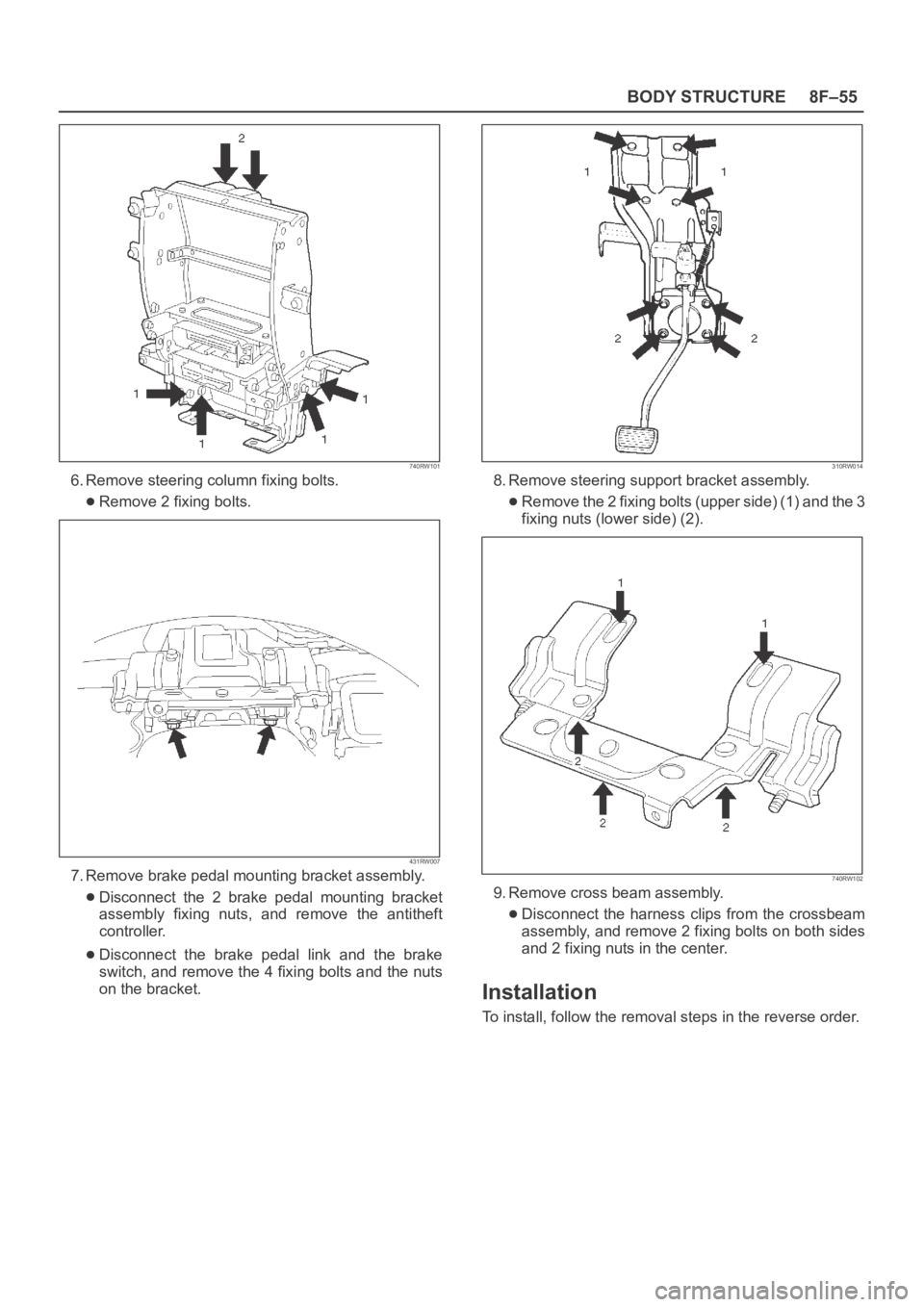

OPEL FRONTERA 1998 Workshop Manual 8F–55 BODY STRUCTURE 740RW101 6. Remove steering column fixing bolts. Remove 2 fixing bolts. 431RW007 7. Remove brake pedal mounting bracket assembly. Disconnect the 2 brake pedal mounting bra

Page 3251 of 6000

OPEL FRONTERA 1998 Workshop Manual 8F–56BODY STRUCTURE Front Door Assembly Parts Location 630RS001 Legend (1) Door Check Arm Pin (2) Front Door Assembly(3) Door Hinge Assembly (4) Hinge Bolt (5) Door Harness Connection Removal 1. Dis

Page 3252 of 6000

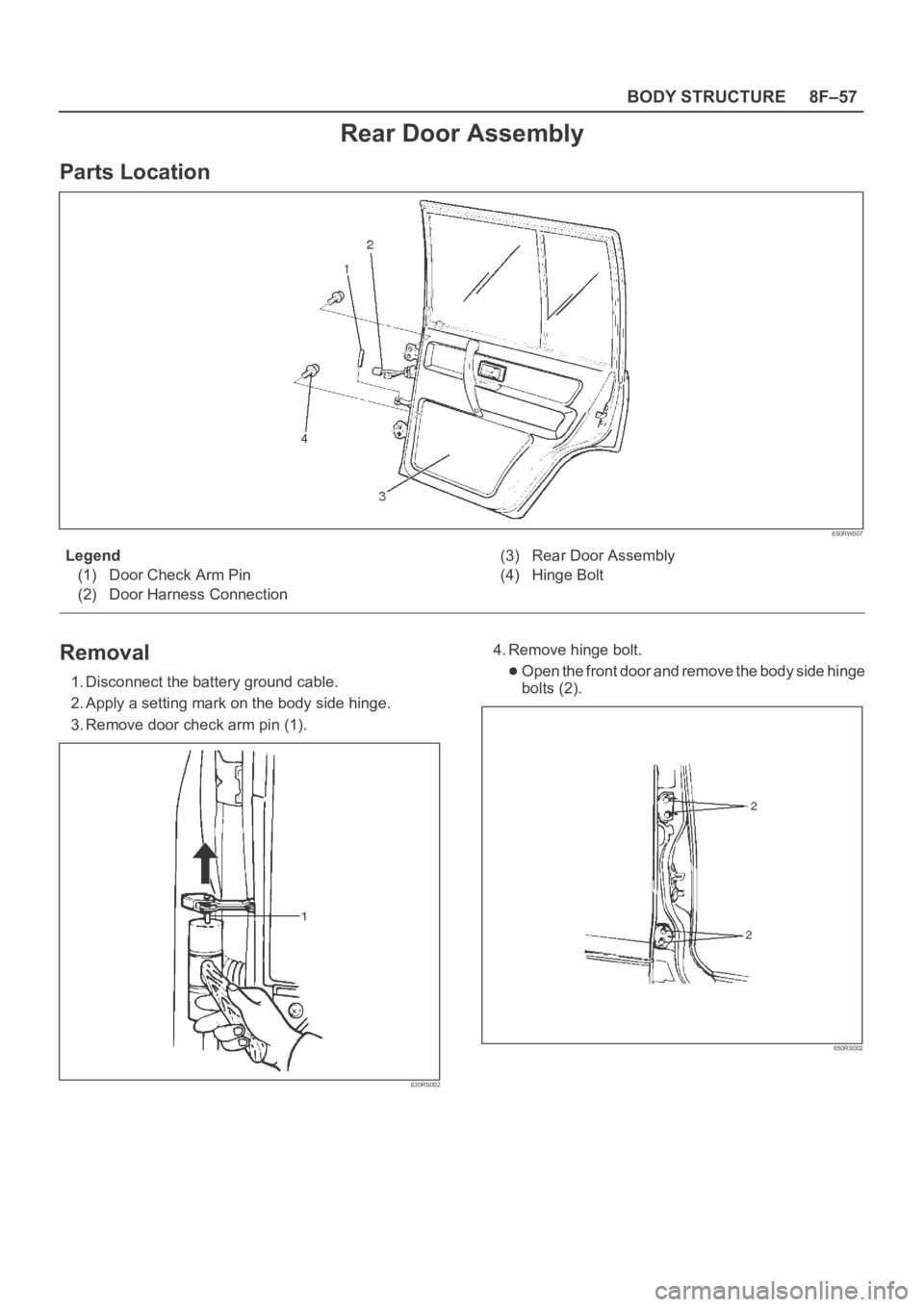

OPEL FRONTERA 1998 Workshop Manual 8F–57 BODY STRUCTURE Rear Door Assembly Parts Location 650RW007 Legend (1) Door Check Arm Pin (2) Door Harness Connection(3) Rear Door Assembly (4) Hinge Bolt Removal 1. Disconnect the battery groun

Page 3253 of 6000

OPEL FRONTERA 1998 Workshop Manual 8F–58BODY STRUCTURE 5. Remove door harness connection (3). Pull the door harness grommet out in order to disconnect the door harness connection. 810RS002 6. Remove door assembly Installation

Page 3254 of 6000

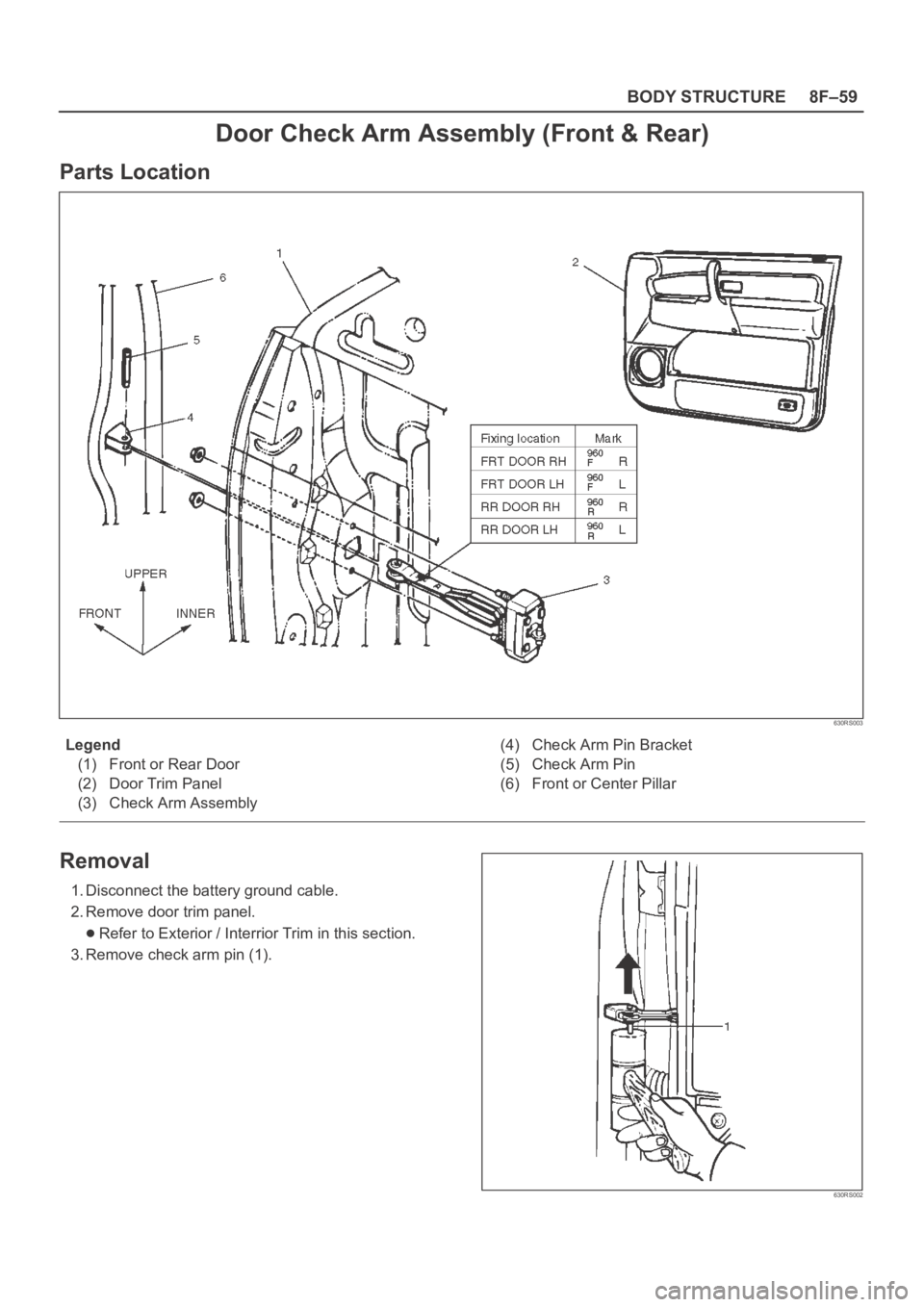

OPEL FRONTERA 1998 Workshop Manual 8F–59 BODY STRUCTURE Door Check Arm Assembly (Front & Rear) Parts Location 630RS003 Legend (1) Front or Rear Door (2) Door Trim Panel (3) Check Arm Assembly(4) Check Arm Pin Bracket (5) Check Arm Pi

Page 3255 of 6000

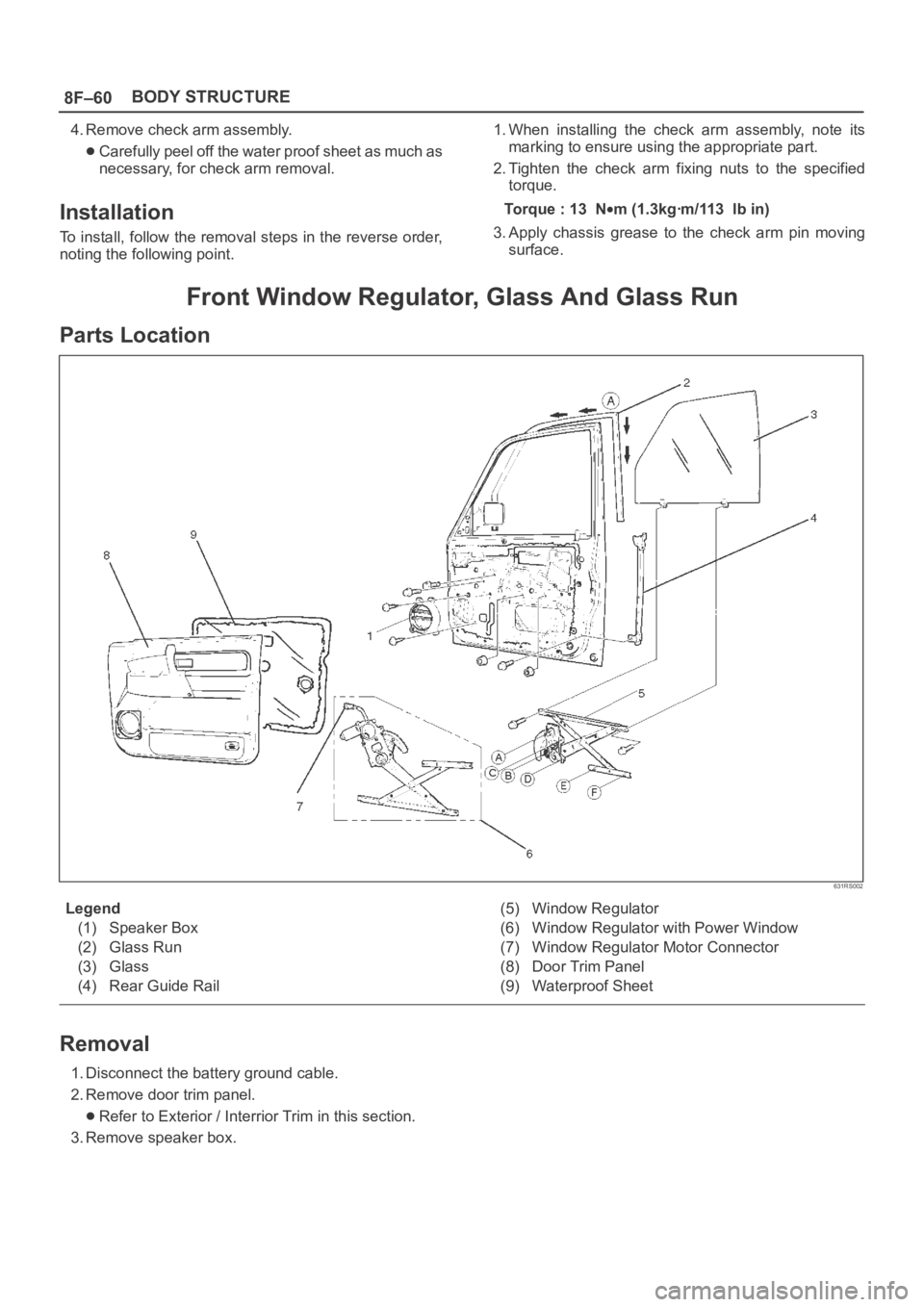

OPEL FRONTERA 1998 Workshop Manual 8F–60BODY STRUCTURE 4. Remove check arm assembly. Carefully peel off the water proof sheet as much as necessary, for check arm removal. Installation To install, follow the removal steps in the rever

Page 3256 of 6000

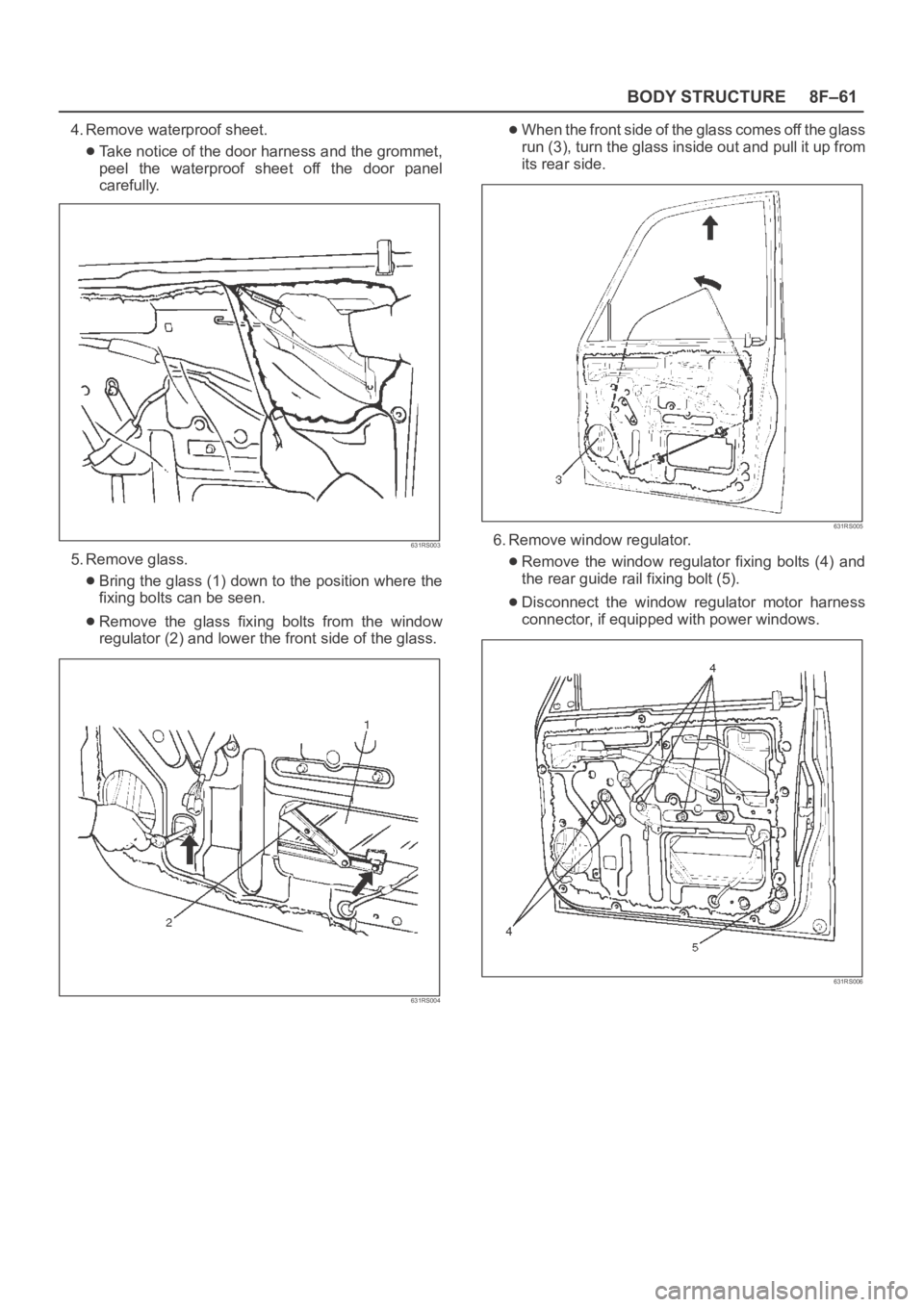

OPEL FRONTERA 1998 Workshop Manual 8F–61 BODY STRUCTURE 4. Remove waterproof sheet. Take notice of the door harness and the grommet, peel the waterproof sheet off the door panel carefully. 631RS003 5. Remove glass. Bring the g
