Page 5665 of 6000

OPEL FRONTERA 1998 Workshop Manual 6F – 6 ENGINE EXHAUST EXHAUST SILENCER REMOVAL 1. Battery negative cable. 2. Raise the vehicle and support with suitable safety stands. 3. Remove mounting rubber from silencer. 4. Remove sile

Page 5666 of 6000

OPEL FRONTERA 1998 Workshop Manual ENGINE EXHAUST 6F – 7 REAR EXHAUST PIPE REMOVAL 1. Battery negative cable. 2. Raise the vehicle and support with suitable safety stands. 3. Remove mounting rubber from post silencer. 4. Remo

Page 5667 of 6000

OPEL FRONTERA 1998 Workshop Manual

Page 5668 of 6000

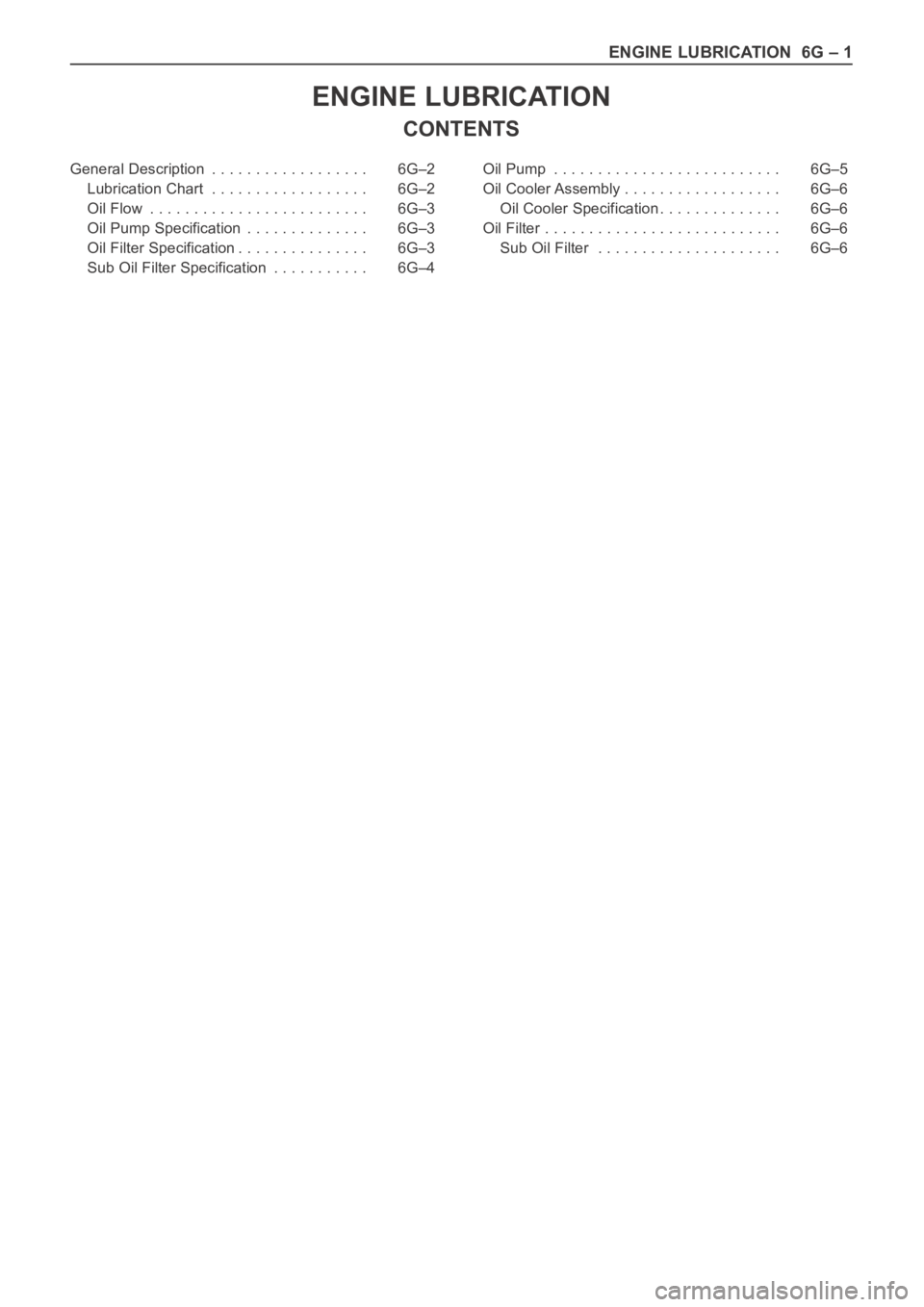

OPEL FRONTERA 1998 Workshop Manual ENGINE LUBRICATION 6G – 1 ENGINE LUBRICATION CONTENTS General Description . . . . . . . . . . . . . . . . . . 6G–2 Lubrication Chart . . . . . . . . . . . . . . . . . . 6G–2 Oil Flow . . . .

Page 5669 of 6000

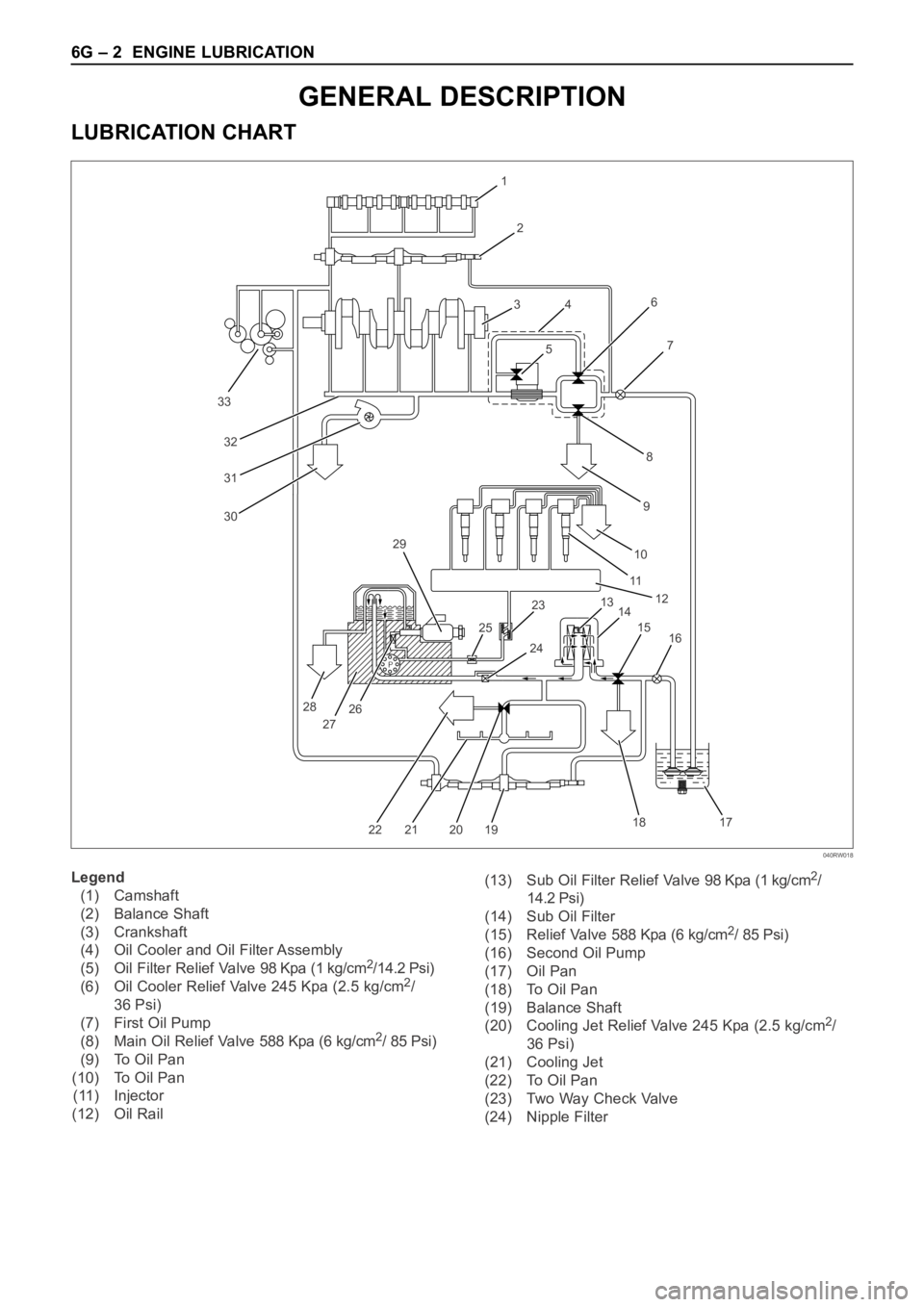

OPEL FRONTERA 1998 Workshop Manual 6G – 2 ENGINE LUBRICATION GENERAL DESCRIPTION LUBRICATION CHART P 33 32 31 30 1 2 3 4 56 8 97 10 11 12 13 14 23 29 25 28 27262415 16 17 18 19 20 21 22 Legend (1) Camshaft (2) Balance Shaft (3) Crank

Page 5670 of 6000

OPEL FRONTERA 1998 Workshop Manual ENGINE LUBRICATION 6G – 3 To meet a newly adopted electronically controlled fuel injection system using engine oil two oil pumps have been provided to increase circulating oil capaci

Page 5671 of 6000

OPEL FRONTERA 1998 Workshop Manual 6G – 4 ENGINE LUBRICATION SUB OIL FILTER SPECIFICATIONS The sub oil filter requires no servicing until the replacement interval is reached. The element is designed to provide special

Page 5672 of 6000

OPEL FRONTERA 1998 Workshop Manual ENGINE LUBRICATION 6G – 5 OIL PUMP REMOVAL 1. Remove battery ground cable. 2 Raise the vehicle and support with suitable safety stand. 3. Drain engine oil. 4. Remove flywheel assembly. 5. Re
