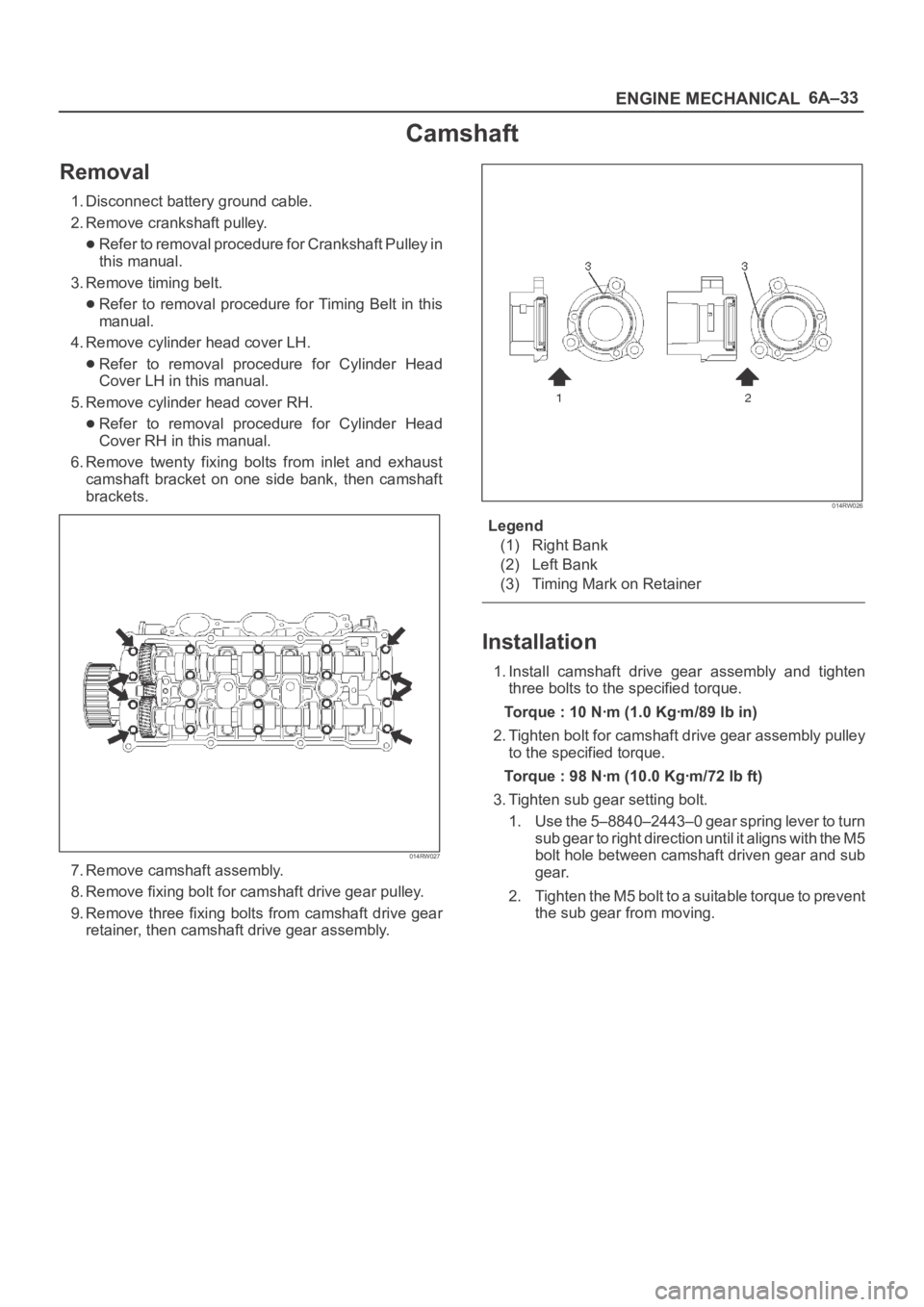

Page 4529 of 6000

OPEL FRONTERA 1998 Workshop Manual 6A–33 ENGINE MECHANICAL Camshaft Removal 1. Disconnect battery ground cable. 2. Remove crankshaft pulley. Refer to removal procedure for Crankshaft Pulley in this manual. 3. Remove timing belt. Refe

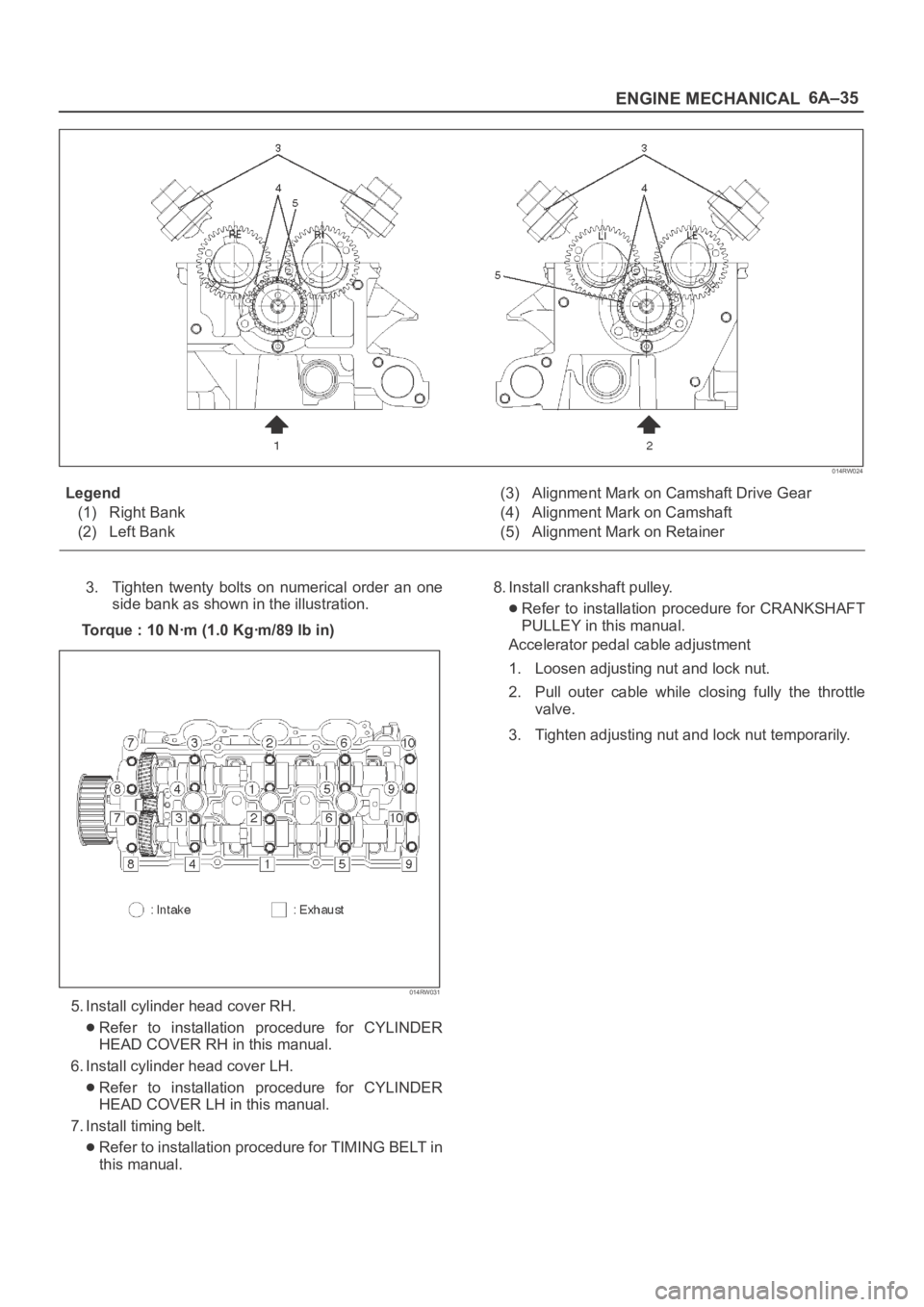

Page 4530 of 6000

OPEL FRONTERA 1998 Workshop Manual 6A–34 ENGINE MECHANICAL 014RW041 4. Install camshaft assembly and camshaft brackets, tighten twenty bolts on one side bank to the specified torque. 1. Apply engine oil to camshaft journal and b

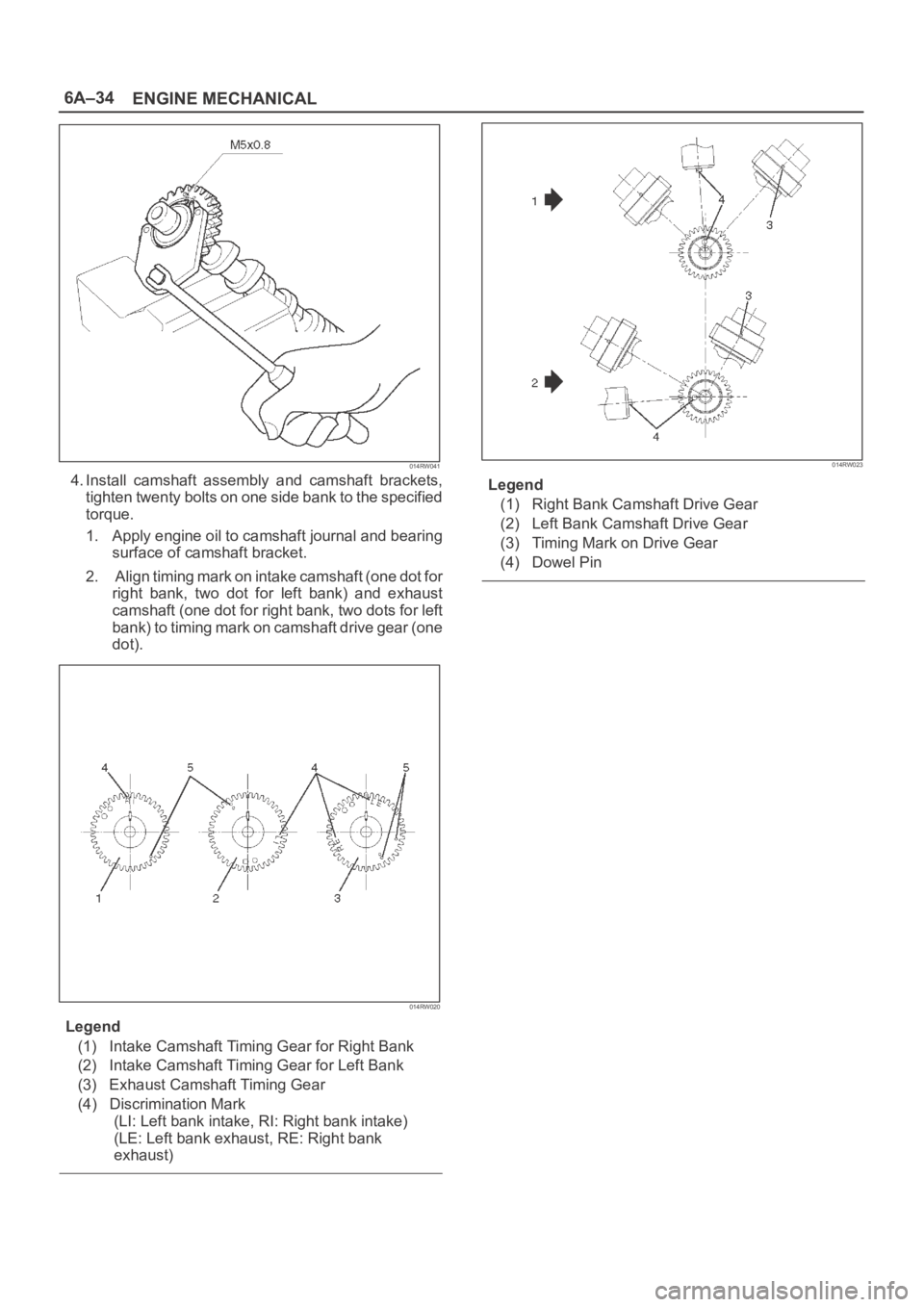

Page 4531 of 6000

OPEL FRONTERA 1998 Workshop Manual 6A–35 ENGINE MECHANICAL 014RW024 Legend (1) Right Bank (2) Left Bank(3) Alignment Mark on Camshaft Drive Gear (4) Alignment Mark on Camshaft (5) Alignment Mark on Retainer 3. Tighten twenty bolts

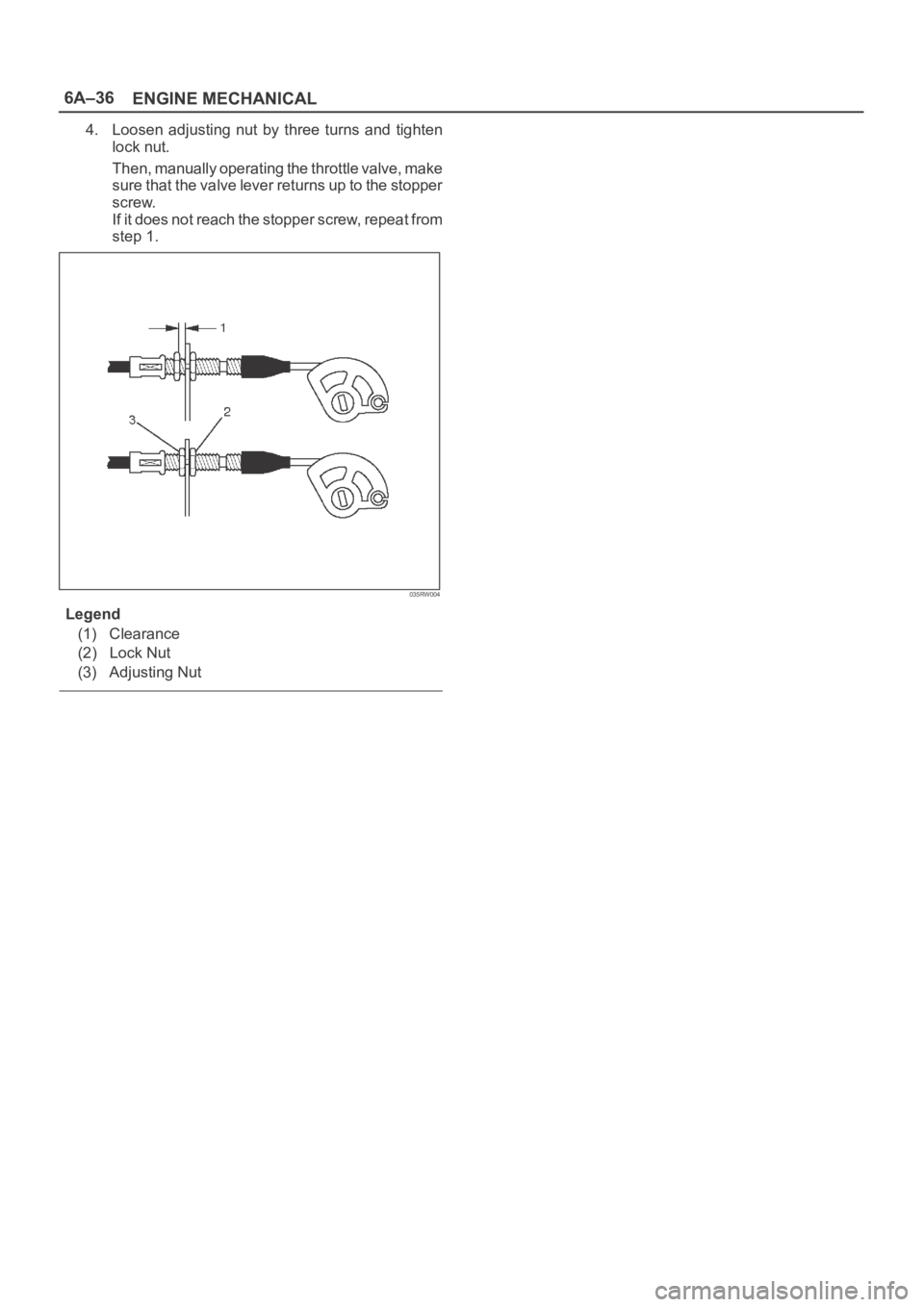

Page 4532 of 6000

OPEL FRONTERA 1998 Workshop Manual 6A–36 ENGINE MECHANICAL 4. Loosen adjusting nut by three turns and tighten lock nut. Then, manually operating the throttle valve, make sure that the valve lever returns up to the stopper scre

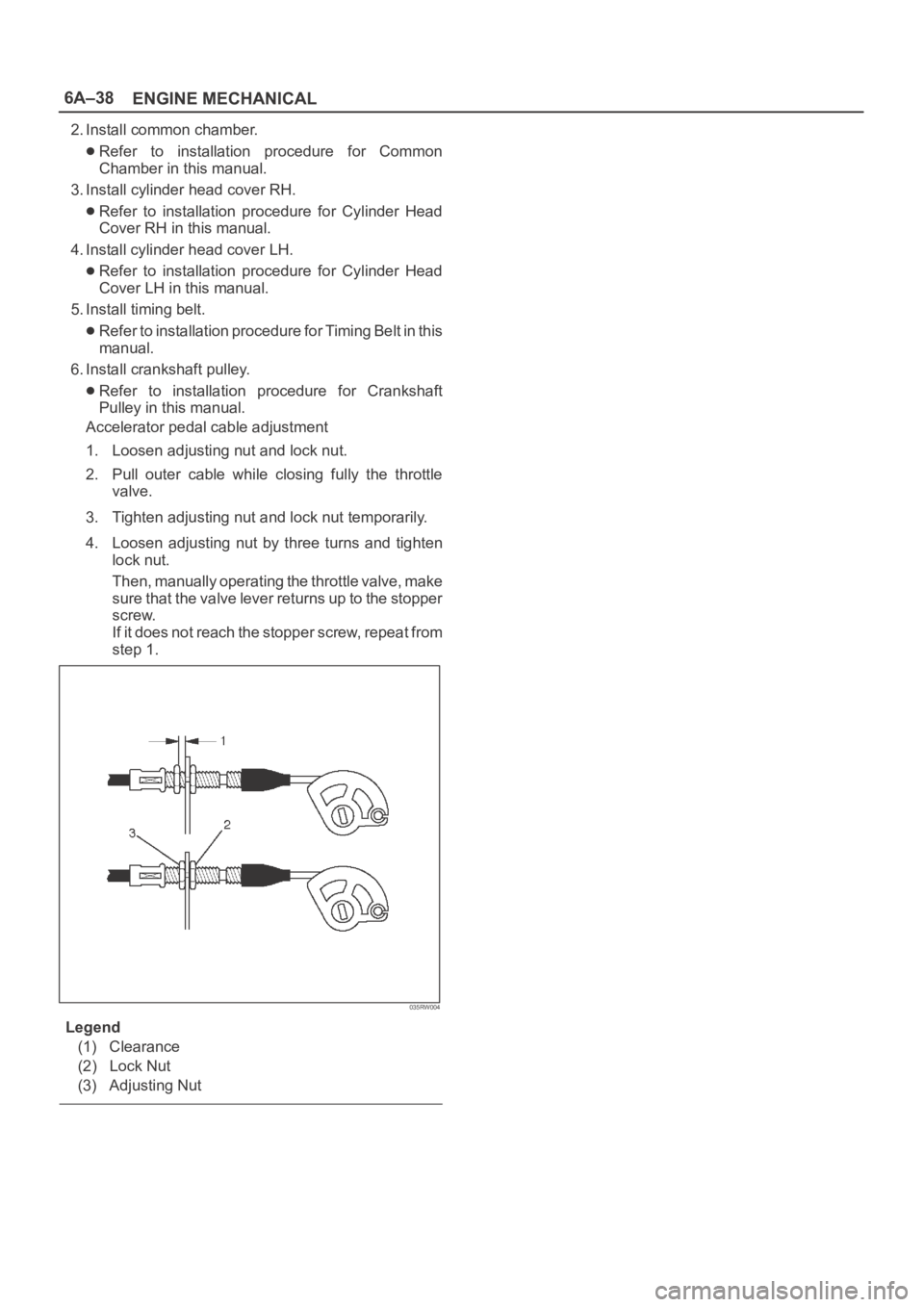

Page 4533 of 6000

OPEL FRONTERA 1998 Workshop Manual 6A–37 ENGINE MECHANICAL Cylinder Head Removal 1. Remove engine hood. 2. Disconnect battery ground cable. 3. Drain radiator coolant. 4. Drain engine oil. 5. Remove crankshaft pulley. Refer to removal

Page 4534 of 6000

OPEL FRONTERA 1998 Workshop Manual 6A–38 ENGINE MECHANICAL 2. Install common chamber. Refer to installation procedure for Common Chamber in this manual. 3. Install cylinder head cover RH. Refer to installation procedure for

Page 4535 of 6000

OPEL FRONTERA 1998 Workshop Manual 6A–39 ENGINE MECHANICAL Valve Stem Oil Controller , Valve Spring and Valve Guide Removal 1. Disconnect battery ground cable. 2. Drain engine oil. Drain engine coolant. 3. Remove cylinder head assemb

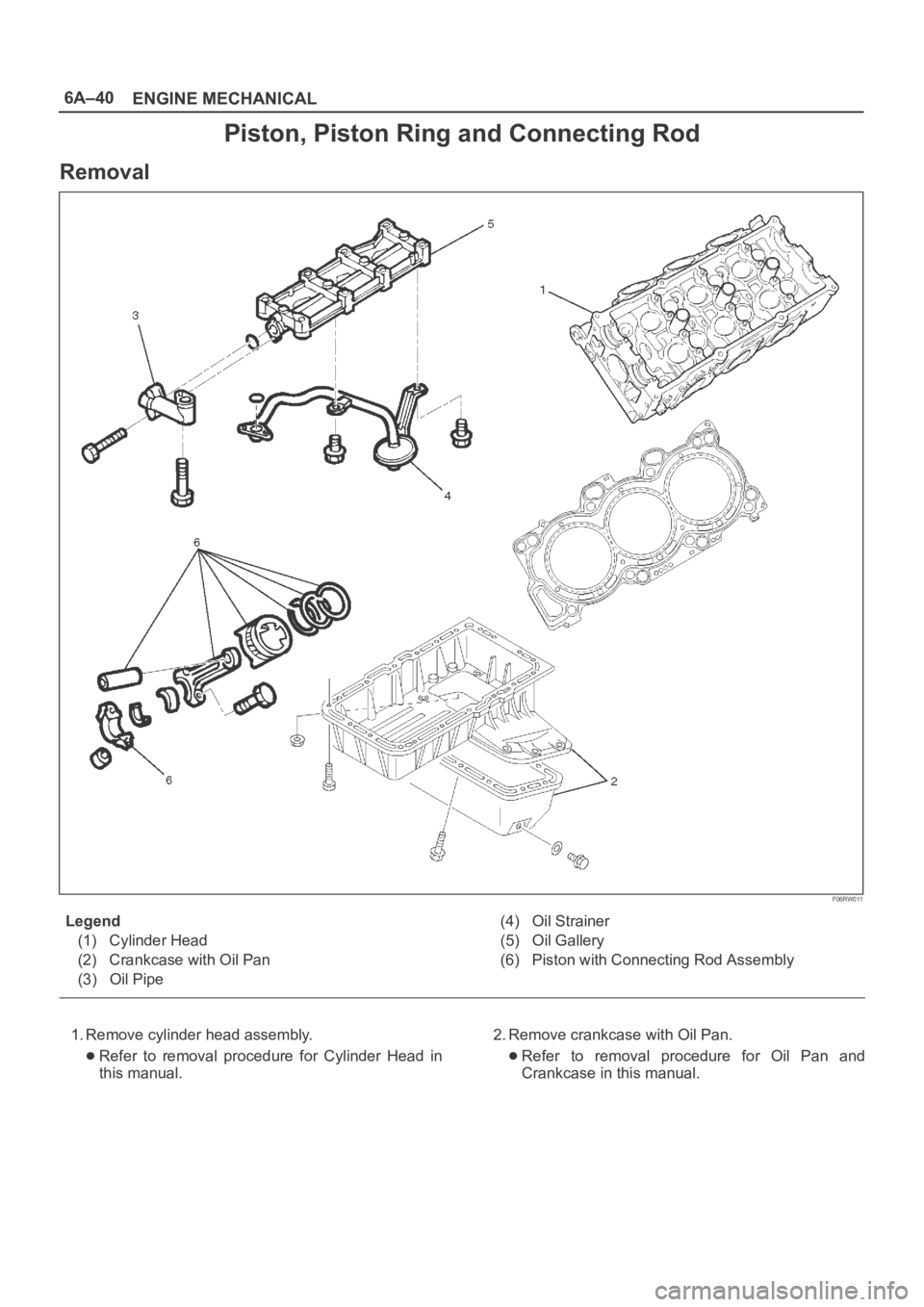

Page 4536 of 6000

OPEL FRONTERA 1998 Workshop Manual 6A–40 ENGINE MECHANICAL Piston, Piston Ring and Connecting Rod Removal F06RW011 Legend (1) Cylinder Head (2) Crankcase with Oil Pan (3) Oil Pipe(4) Oil Strainer (5) Oil Gallery (6) Piston with Conne
