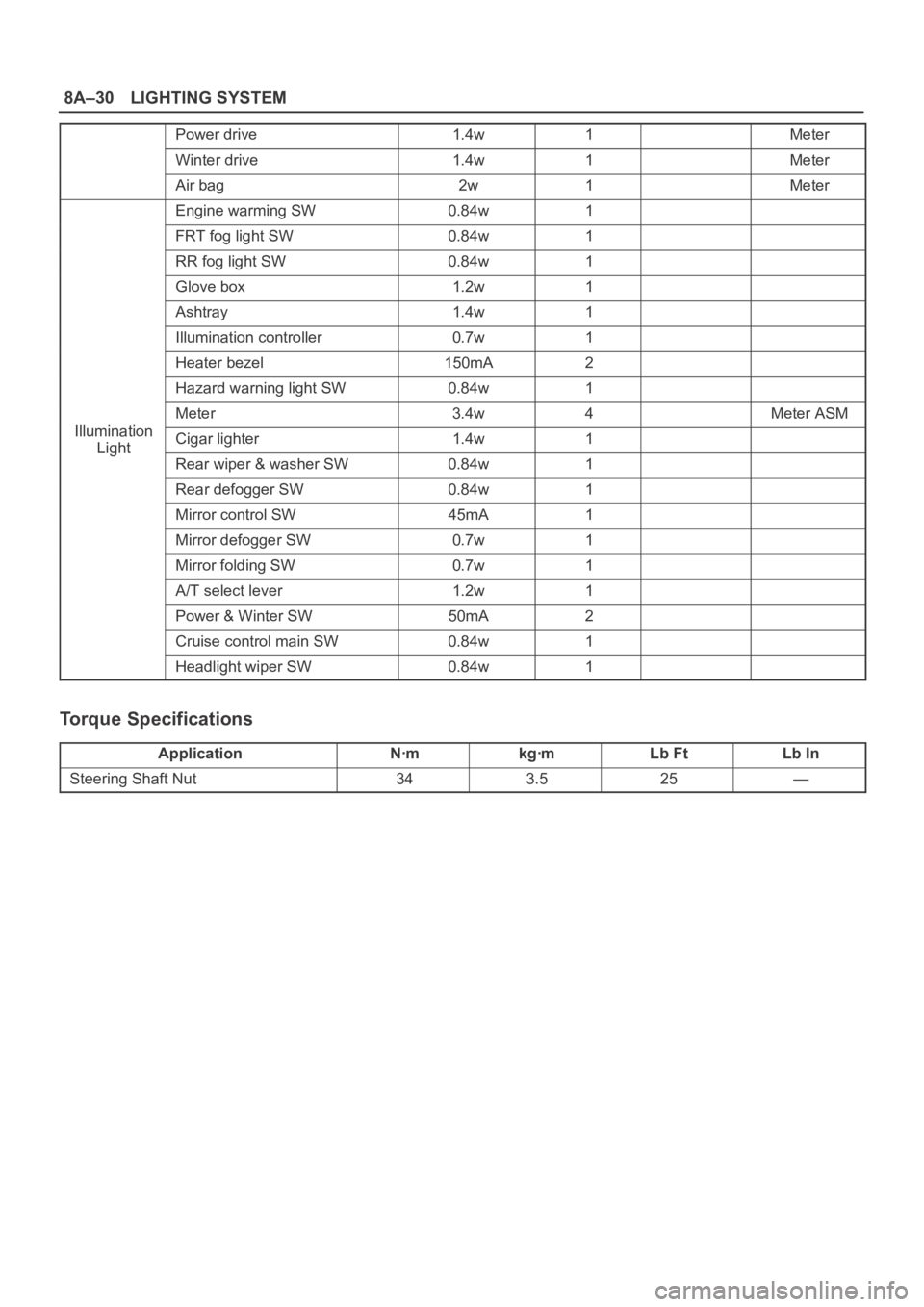

OPEL FRONTERA 1998 Workshop Manual 8A–30LIGHTING SYSTEM
Power drive1.4w1Meter
Winter drive1.4w1Meter
Air bag2w1Meter
Engine warming SW0.84w1
FRT fog light SW0.84w1
RR fog light SW0.84w1
Glove box1.2w1
Ashtray1.4w1
Illumination contro

Page 2570 of 6000

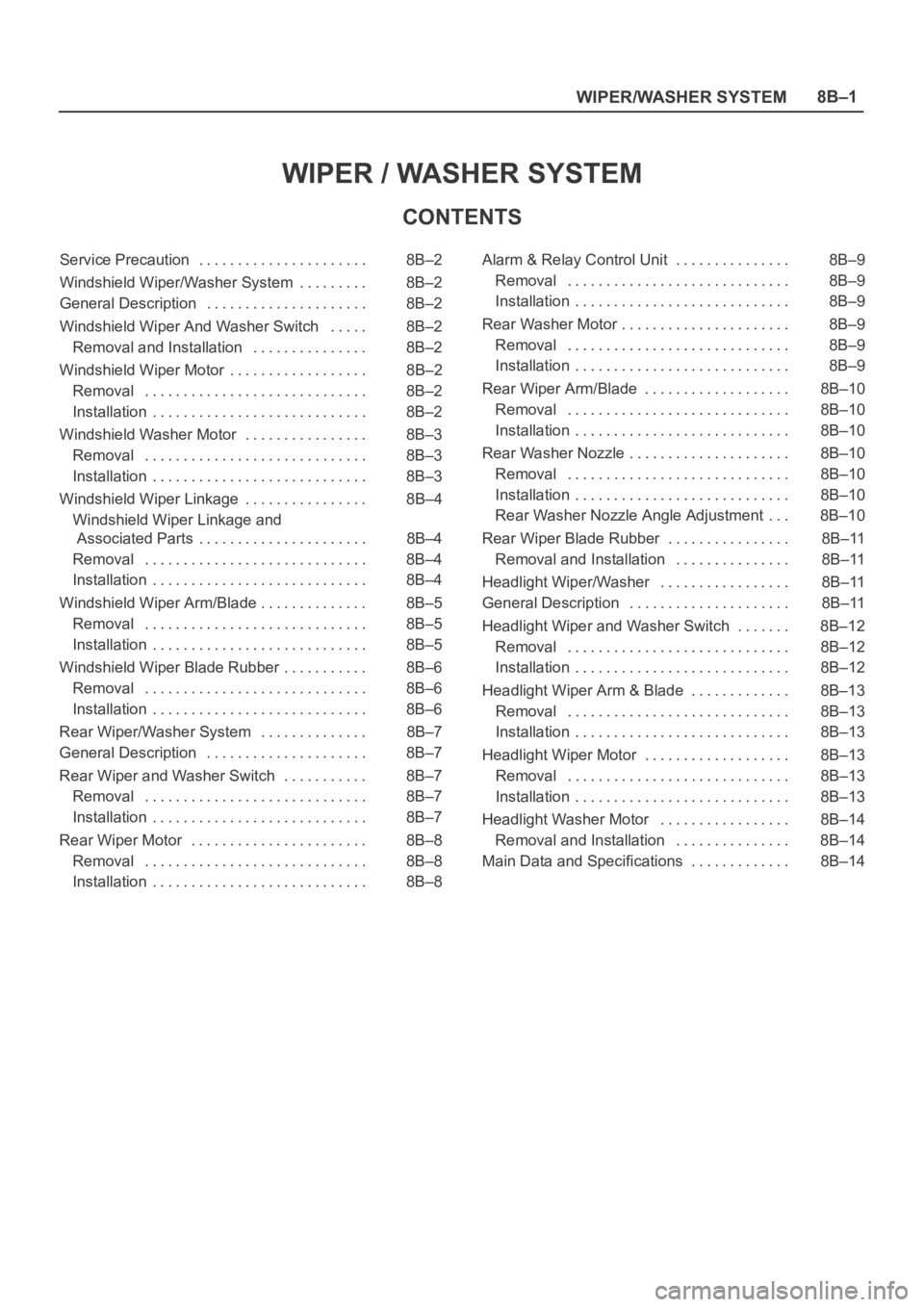

OPEL FRONTERA 1998 Workshop Manual WIPER/WASHER SYSTEM8B–1
WIPER / WASHER SYSTEM
CONTENTS
Service Precaution 8B–2. . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper/Washer System 8B–2. . . . . . . . .
General Descripti

WIPER/WASHER SYSTEM8B–1
WIPER / WASHER SYSTEM
CONTENTS
Service Precaution 8B–2. . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper/Washer System 8B–2. . . . . . . . .
General Description 8B–2. . . . . . . . . . . . . . . . . . . . .
Windshield Wiper And Washer Switch 8B–2. . . . .
Removal and Installation 8B–2. . . . . . . . . . . . . . .
Windshield Wiper Motor 8B–2. . . . . . . . . . . . . . . . . .
Removal 8B–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Washer Motor 8B–3. . . . . . . . . . . . . . . .
Removal 8B–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper Linkage 8B–4. . . . . . . . . . . . . . . .
Windshield Wiper Linkage and
Associated Parts 8B–4. . . . . . . . . . . . . . . . . . . . . .
Removal 8B–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper Arm/Blade 8B–5. . . . . . . . . . . . . .
Removal 8B–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper Blade Rubber 8B–6. . . . . . . . . . .
Removal 8B–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Wiper/Washer System 8B–7. . . . . . . . . . . . . .
General Description 8B–7. . . . . . . . . . . . . . . . . . . . .
Rear Wiper and Washer Switch 8B–7. . . . . . . . . . .
Removal 8B–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Wiper Motor 8B–8. . . . . . . . . . . . . . . . . . . . . . .
Removal 8B–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . Alarm & Relay Control Unit 8B–9. . . . . . . . . . . . . . .
Removal 8B–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Washer Motor 8B–9. . . . . . . . . . . . . . . . . . . . . .
Removal 8B–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Wiper Arm/Blade 8B–10. . . . . . . . . . . . . . . . . . .
Removal 8B–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Washer Nozzle 8B–10. . . . . . . . . . . . . . . . . . . . .
Removal 8B–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Washer Nozzle Angle Adjustment 8B–10. . .
Rear Wiper Blade Rubber 8B–11. . . . . . . . . . . . . . . .
Removal and Installation 8B–11. . . . . . . . . . . . . . .
Headlight Wiper/Washer 8B–11. . . . . . . . . . . . . . . . .
General Description 8B–11. . . . . . . . . . . . . . . . . . . . .
Headlight Wiper and Washer Switch 8B–12. . . . . . .
Removal 8B–12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight Wiper Arm & Blade 8B–13. . . . . . . . . . . . .
Removal 8B–13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight Wiper Motor 8B–13. . . . . . . . . . . . . . . . . . .
Removal 8B–13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8B–13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight Washer Motor 8B–14. . . . . . . . . . . . . . . . .
Removal and Installation 8B–14. . . . . . . . . . . . . . .
Main Data and Specifications 8B–14. . . . . . . . . . . . .

Page 2571 of 6000

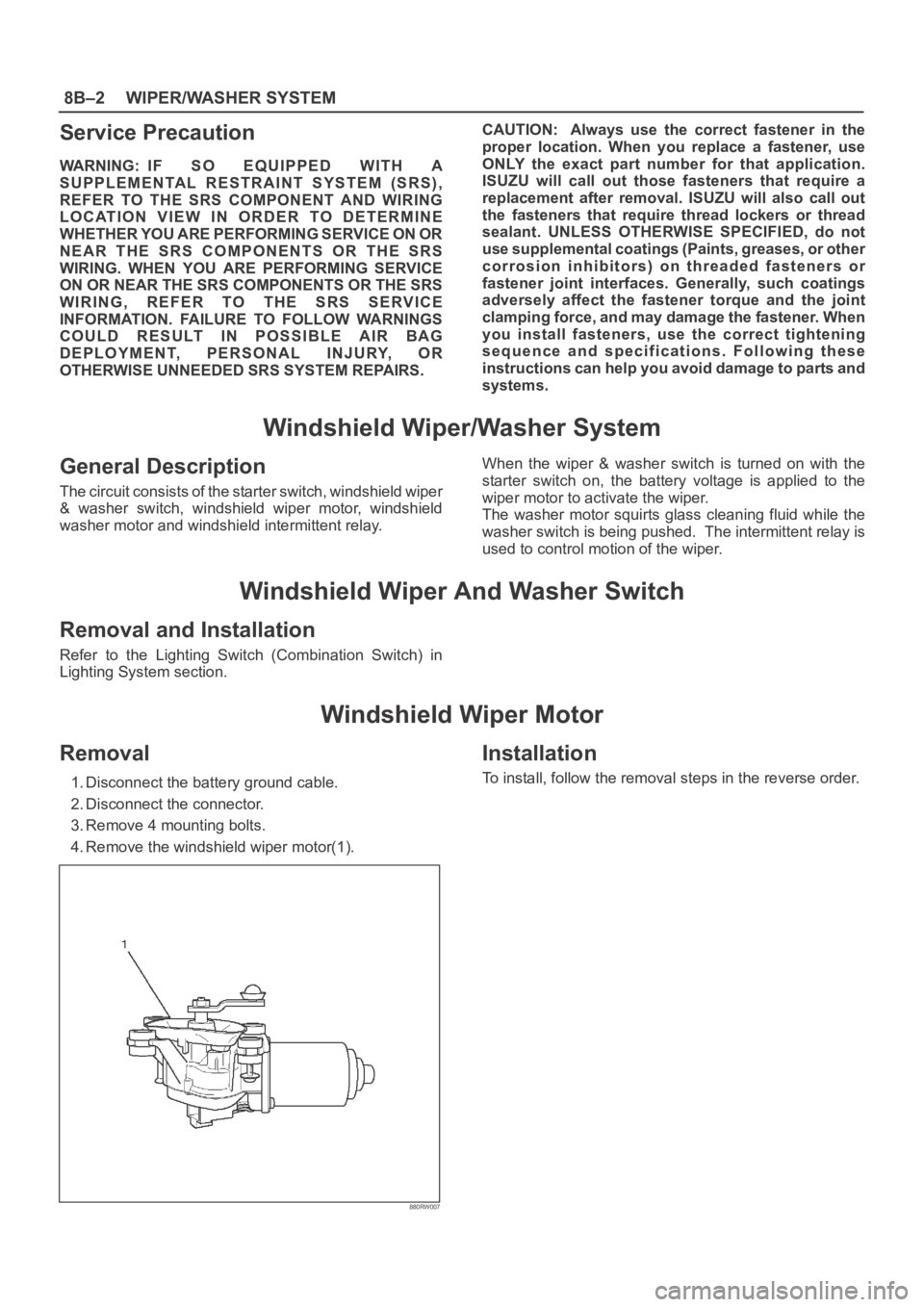

OPEL FRONTERA 1998 Workshop Manual 8B–2WIPER/WASHER SYSTEM
Service Precaution
WARNING: IF SO EQUIPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETER

8B–2WIPER/WASHER SYSTEM
Service Precaution
WARNING: IF SO EQUIPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
Windshield Wiper/Washer System
General Description
The circuit consists of the starter switch, windshield wiper
& washer switch, windshield wiper motor, windshield
washer motor and windshield intermittent relay.When the wiper & washer switch is turned on with the
starter switch on, the battery voltage is applied to the
wiper motor to activate the wiper.
The washer motor squirts glass cleaning fluid while the
washer switch is being pushed. The intermittent relay is
used to control motion of the wiper.
Windshield Wiper And Washer Switch
Removal and Installation
Refer to the Lighting Switch (Combination Switch) in
Lighting System section.
Windshield Wiper Motor
Removal
1. Disconnect the battery ground cable.
2. Disconnect the connector.
3. Remove 4 mounting bolts.
4. Remove the windshield wiper motor(1).
880RW007
Installation
To install, follow the removal steps in the reverse order.

Page 2572 of 6000

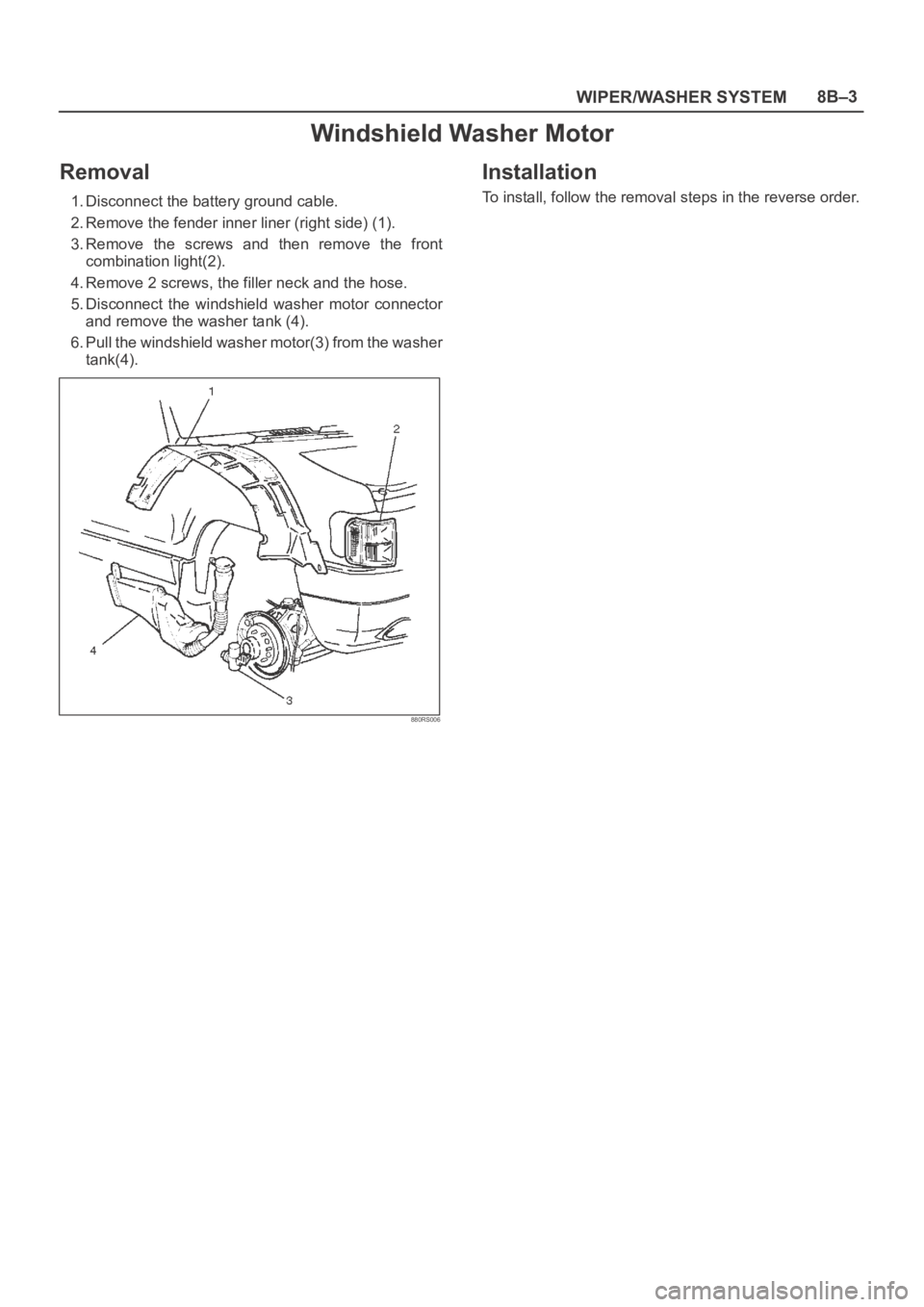

OPEL FRONTERA 1998 Workshop Manual WIPER/WASHER SYSTEM8B–3
Windshield Washer Motor
Removal
1. Disconnect the battery ground cable.
2. Remove the fender inner liner (right side) (1).
3. Remove the screws and then remove the fro

Page 2573 of 6000

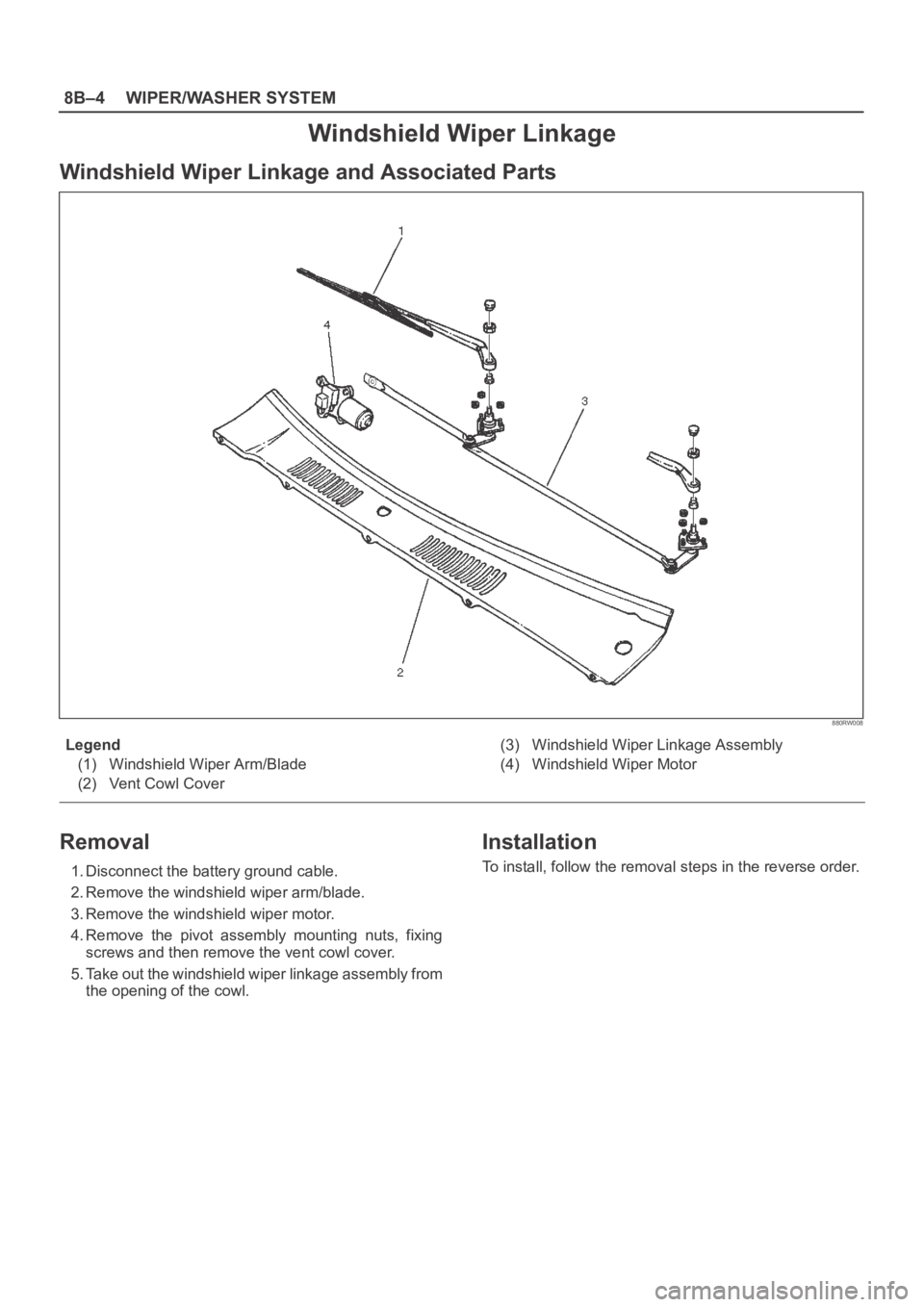

OPEL FRONTERA 1998 Workshop Manual 8B–4WIPER/WASHER SYSTEM
Windshield Wiper Linkage
Windshield Wiper Linkage and Associated Parts
880RW008
Legend
(1) Windshield Wiper Arm/Blade
(2) Vent Cowl Cover(3) Windshield Wiper Linkage Assembly

Page 2574 of 6000

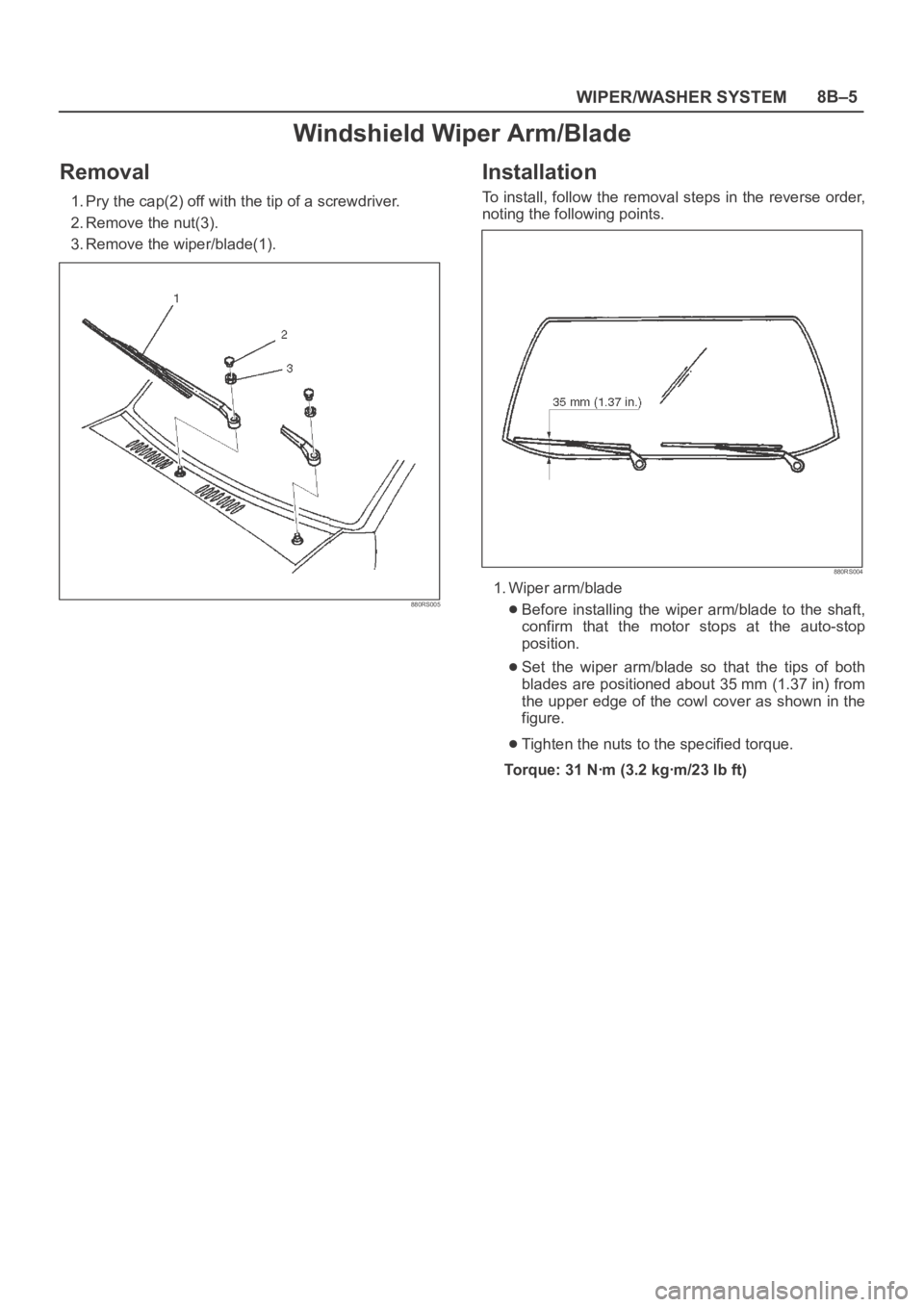

OPEL FRONTERA 1998 Workshop Manual WIPER/WASHER SYSTEM8B–5
Windshield Wiper Arm/Blade
Removal
1. Pry the cap(2) off with the tip of a screwdriver.
2. Remove the nut(3).
3. Remove the wiper/blade(1).
880RS005
Installation
To install,

Page 2575 of 6000

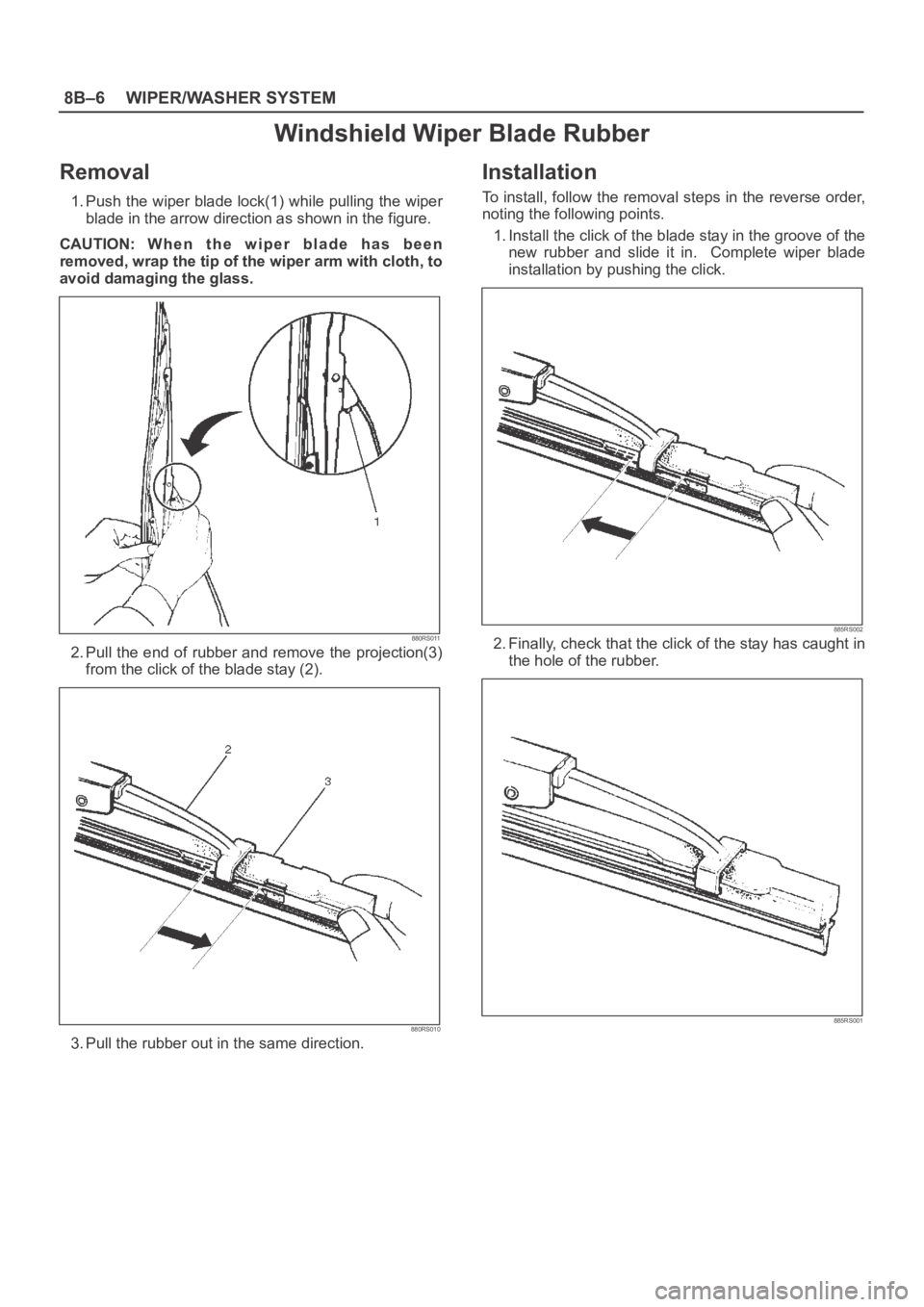

OPEL FRONTERA 1998 Workshop Manual 8B–6WIPER/WASHER SYSTEM
Windshield Wiper Blade Rubber
Removal
1. Push the wiper blade lock(1) while pulling the wiper
blade in the arrow direction as shown in the figure.
CAUTION: W h e n t h e w

Page 2576 of 6000

OPEL FRONTERA 1998 Workshop Manual WIPER/WASHER SYSTEM8B–7
Rear Wiper/Washer System
General Description
The circuit consists of the starter switch, rear wiper &
washer switch, rear wiper motor, rear washer motor and
rear inte
