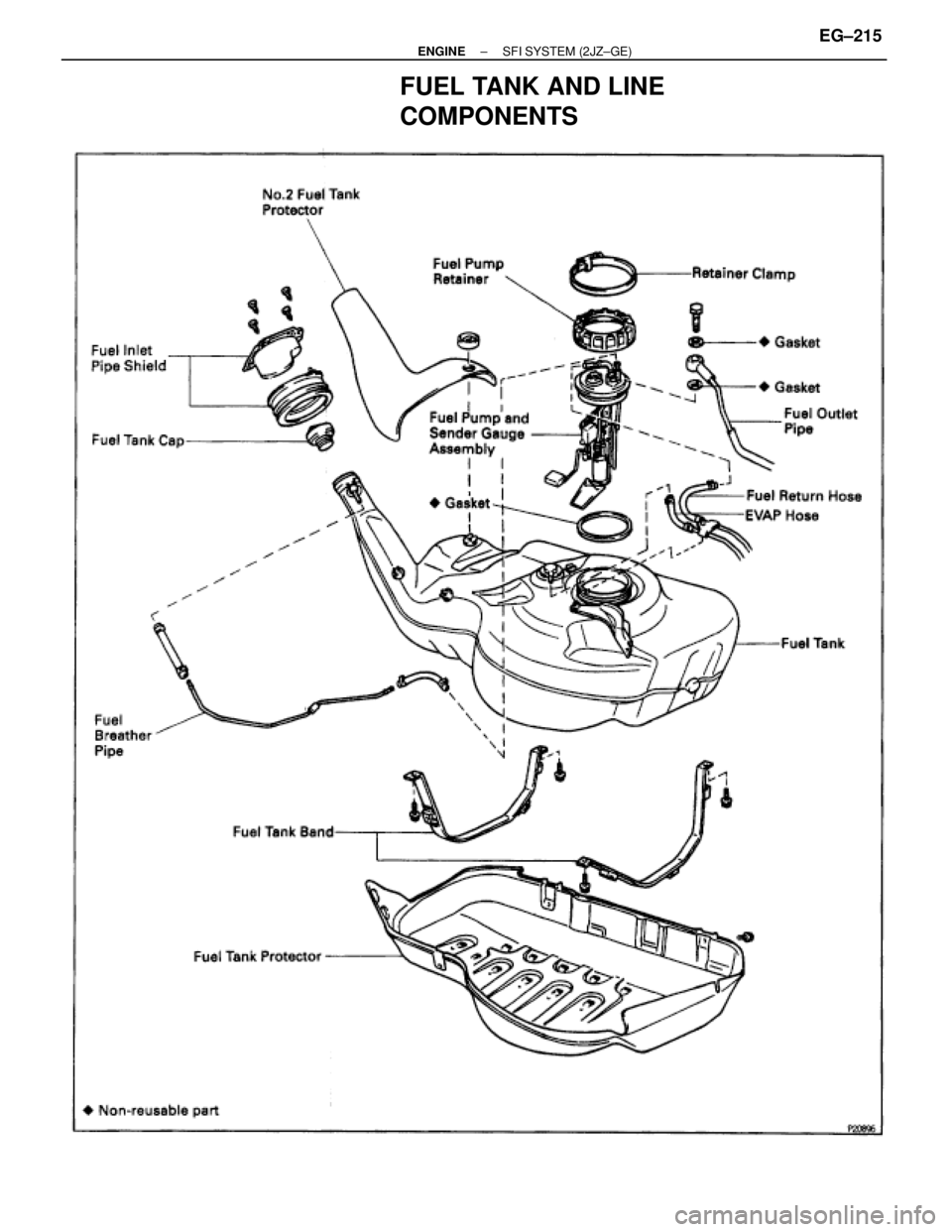

FUEL TANK AND LINE
COMPONENTS
± ENGINESFI SYSTEM (2JZ±GE)EG±215
Page 1506 of 2543
PRECAUTIONS
1. Always use new gaskets when replacing the fuel tank or
component parts.
2. Apply the proper torque to all parts tightened.
FUEL LINES AND CONNECTIONS
INSPECTION
(a) Check the fuel lines for cracks or leakage, and all
connections for deformation.
(b) C h e c k t h e f u e l t a n k vapor vent system hoses and
connections for looseness, sharp bends or damage.
(c) Check the fuel tank for deformation, cracks, fuel leakage or
tank band looseness.
(d) Check the filler neck for damage or fuel leakage.
(e) Hose and tube connections are as shown in the illustration.
If a problem is found, repair or replace the part as necessary. EG±216
± ENGINESFI SYSTEM (2JZ±GE)
Page 1507 of 2543
VOLUME AIR FLOW (VAF) METER
ON±VEHICLE INSPECTION
INSPECT VAF METER RESISTANCE

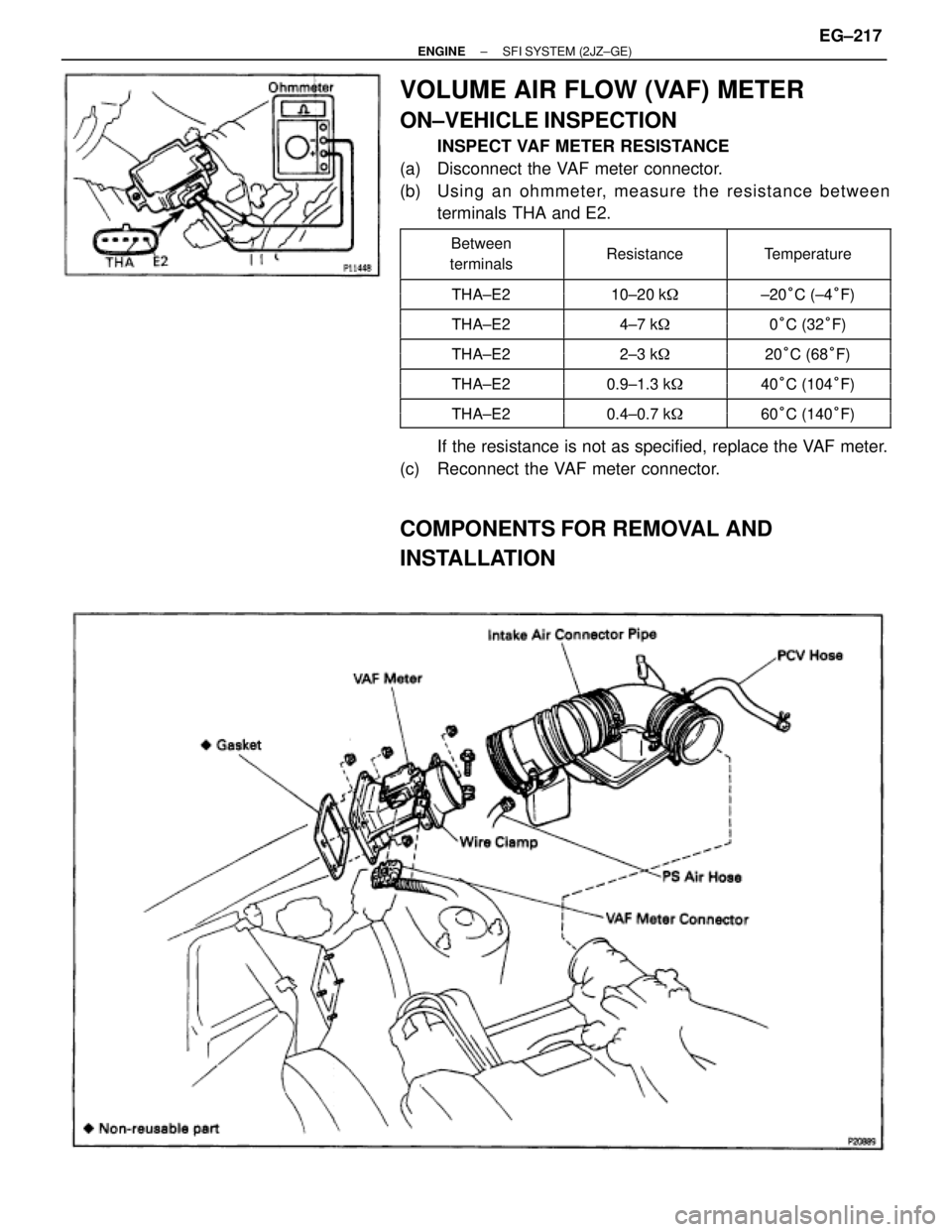

(a) Disconnect the VAF meter connector.
(b) Usin g an oh mme te r, me a su re th e re sista n ce be twe e n
terminals THA and E2.
Between
terminals
Resistance
Temperature
THA E210 20 k20°C( 4°F)THA±E210±20 k±20°C (±4°F)
THA E247k0°C (32°F) THA±E24±7 k0°C (32°F)
THA E223k20°C (68°F) THA±E22±3 k20°C (68°F)
THA E209 13k40°C (104°F)
THA±E20.9±1.3 k40°C (104°F)
THA E204 07k60°C (140°F)THA±E20.4±0.7 k60°C (140°F)
If the resistance is not as specified, replace the VAF meter.
(c) Reconnect the VAF meter connector.
COMPONENTS FOR REMOVAL AND
INSTALLATION
± ENGINESFI SYSTEM (2JZ±GE)EG±217
Page 1508 of 2543
VAF METER REMOVAL
Installation is in the reverse order of removal.
1. REMOVE INTAKE AIR CONNECTOR PIPE
(a) Disconnect these hoses:
(1) PS air hose from air connector pipe
(2) PCV hose from No.2 cylinder head cover
(b) Loosen the 2 hose clamps, and remove the air connector
pipe together with the hoses.
2. REMOVE VAF METER
(a) Disconnect the VAF meter connector.
(b) Disconnect the VAF meter wire from the wire clamp on the
bracket.
(c) Remove the 4 nuts, bolt, VAF meter and gasket.
Torque: 10 NVm (100 kgfVcm, 7 ftVlbf)
VAF METER INSPECTION
INSPECT VAF METER
Check that the honeycomb is neither deformed nor dam-
aged.
If necessary, replace the VAF meter. EG±218
± ENGINESFI SYSTEM (2JZ±GE)
Page 1509 of 2543

THROTTLE BODY
ON±VEHICLE INSPECTION
Throttle Body

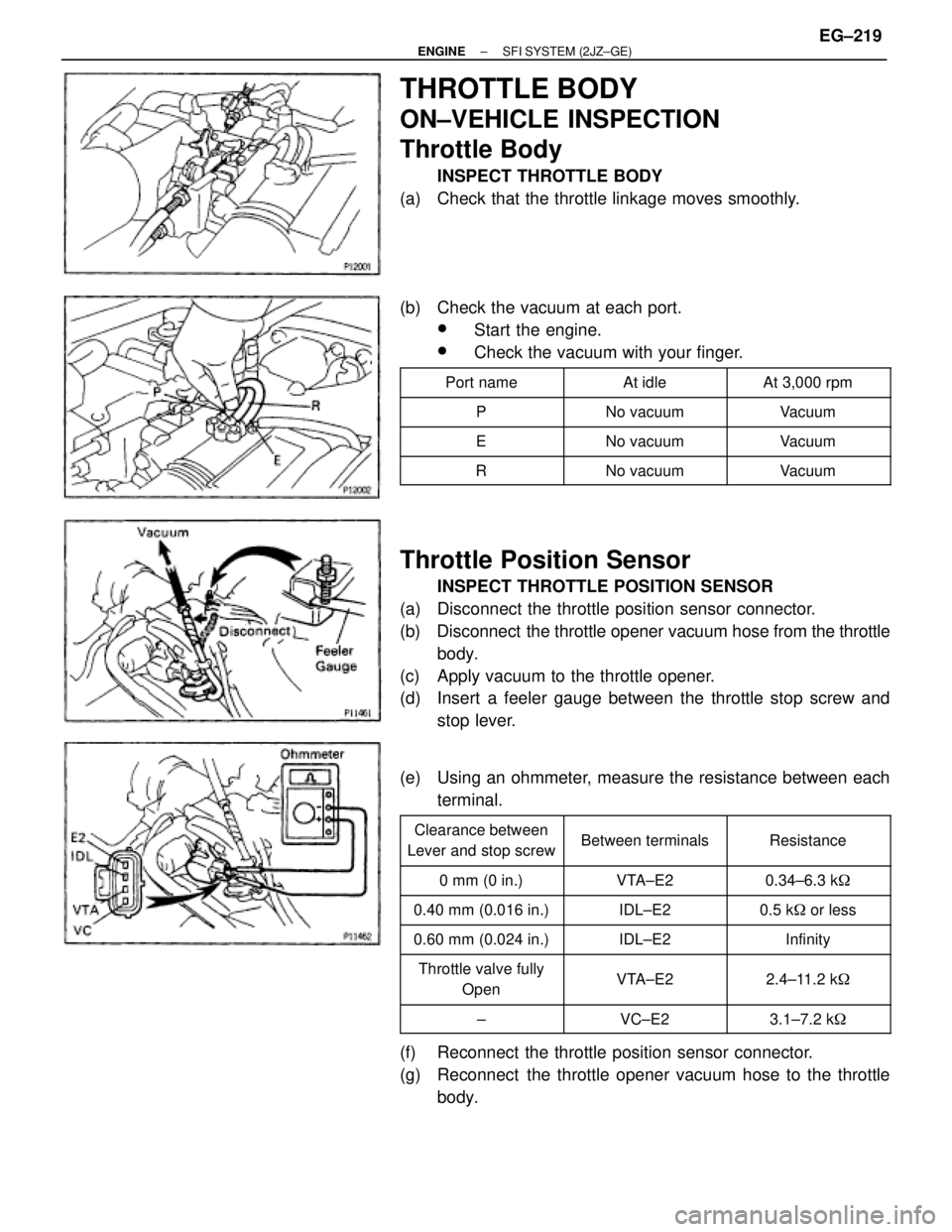

INSPECT THROTTLE BODY
(a) Check that the throttle linkage moves smoothly.
(b) Check the vacuum at each port.
wStart the engine.
wCheck the vacuum with your finger.
Port name At idle At 3,000 rpm
P No vacuum Vacuum
E
No vacuum
Vacuum
R No vacuum Vacuum
Throttle Position Sensor
INSPECT THROTTLE POSITION SENSOR
(a) Disconnect the throttle position sensor connector.
(b) Disconnect the throttle opener vacuum hose from the throttle
body.
(c) Apply vacuum to the throttle opener.
(d) Insert a feeler gauge between the throttle stop screw and
stop lever.
(e) Using an ohmmeter, measure the resistance between each
terminal.
Clearance between
Lever and stop screw
Between terminals
Resistance
0 mm (0 in.) VTA±E2 0.34±6.3 k
0.40 mm (0.016 in.) IDL±E2 0.5 k or less
0.60 mm (0.024 in.) IDL±E2 Infinity
Throttle valve fully
Open
VTA±E2
2.4±11.2 k
± VC±E2 3.1±7.2 k
(f) Reconnect the throttle position sensor connector.
(g) Reconnect the throttle opener vacuum hose to the throttle
body.
± ENGINESFI SYSTEM (2JZ±GE)EG±219
Page 1510 of 2543

Dashpot
1. WARM UP ENGINE
Allow the engine to warm up to normal operating tempera-
ture.
2. CHECK IDLE SPEED
Idle speed (Transmission in neutral position):
700 + 50 rpm
3. CHECK AND ADJUST DASHPOT SETTING SPEED
(a) Disconnect the control cables from the throttle body.
(b) Push the dashpot push rod all the way with a screwdriver.
(c) Check that the dashpot is set.
Dashpot setting speed:
M/T
2,600 + 400
A/T
1,800 + 400 rpm
(d) Adjust the dashpot setting speed by turning the dashpot
adjusting screw.
(e) Reconnect the control cables to the throttle body.
4. CHECK VTV OPERATION
(a) Maintain the engine speed at 3,500 rpm.
(b) Release the throttle valve, and check that the engine returns
to idle in a few seconds.
Throttle Opener
1. WARM UP ENGINE
Allow the engine to warm up to normal operating tempera-
ture.
2. CHECK IDLE SPEED
Idle speed (Transmission in neutral position):
700 + 50 rpm
3. CHECK THROTTLE OPENER SETTING SPEED
(a) Disconnect the throttle opener vacuum hose from the throttle
body, and plug the throttle body port.
(b) Maintain the engine speed at 2,500 rpm.
(c) Release the throttle valve.
(d) Check that the throttle opener is set.
Throttle opener setting speed:
1,500 + 400 rpm
If the throttle opener setting speed is not as specified, replace
the throttle body.
(e) Reconnect the throttle opener vacuum hose to the throttle
body. EG±220
± ENGINESFI SYSTEM (2JZ±GE)
Page 1511 of 2543

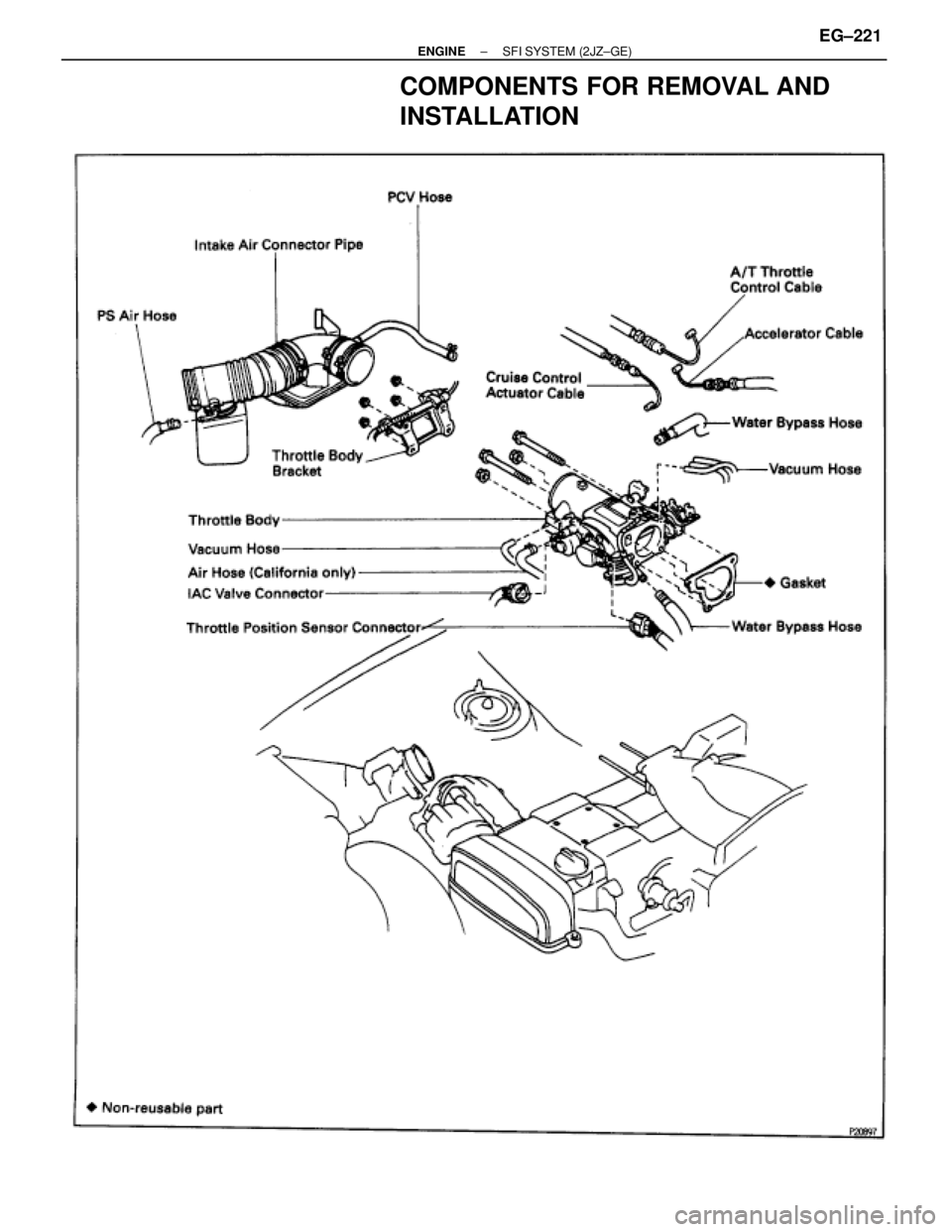

COMPONENTS FOR REMOVAL AND
INSTALLATION
± ENGINESFI SYSTEM (2JZ±GE)EG±221
Page 1512 of 2543

THROTTLE BODY REMOVAL
Installation is in the reverse order of removal.
1. DRAIN ENGINE COOLANT
2. DISCONNECT CONTROL CABLES FROM THROTTLE
BODY
3. REMOVE INTAKE AIR CONNECTOR PIPE
(a) Disconnect these hoses:
(1) PS air hose from air connector pipe
(2) PCV hose from No.2 cylinder head cover
(b) Loosen the 2 hose clamps, and remove the air connector
pipe together with the hoses.
4. DISCONNECT THROTTLE BODY BRACKET FROM
THROTTLE BODY AND CYLINDER HEAD
Remove the 4 nuts, and disconnect the throttle body bracket
from the throttle body and cylinder head.
Torque: 21 NVm (210 kgfVcm, 15 ftVlbf)
5. REMOVE THROTTLE BODY
(a) Disconnect these connectors and hoses from the throttle
body:
(1) Throttle position sensor connector
(2) IAC valve connector
(3) 4 vacuum hoses
(4) California only:
Air hose (from intake manifold)
(5) Water bypass hose (from No.2 water bypass pipe)
(b) Remove the 2 bolts and 2 nuts.
Torque: 21 NVm (210 kgfVcm, 15 ftVlbf)
(c) Slightly slide the throttle body away from the intake air
connector. EG±222
