Page 625 of 2543

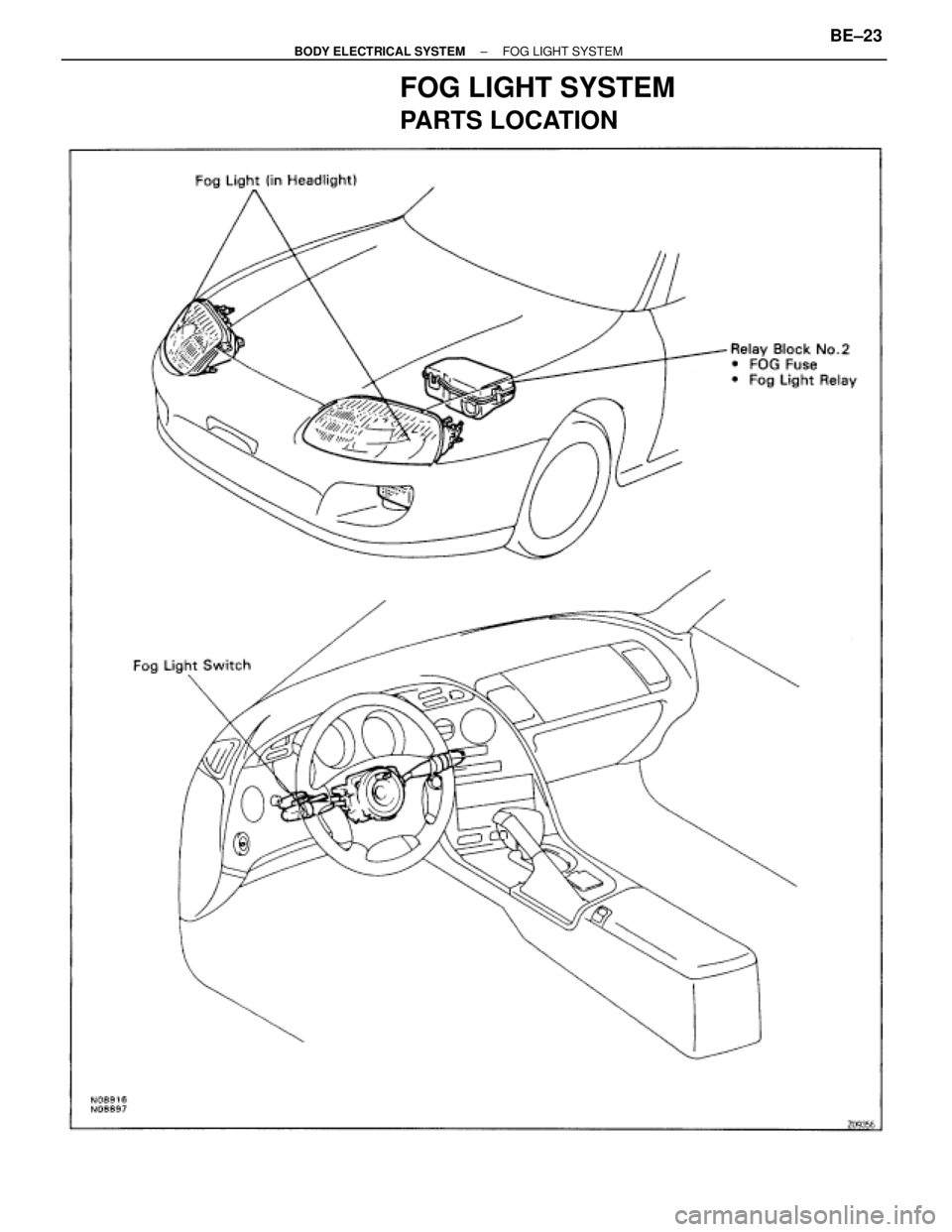

FOG LIGHT SYSTEM
PARTS LOCATION
± BODY ELECTRICAL SYSTEMFOG LIGHT SYSTEMBE±23
Page 626 of 2543

TROUBLESHOOTING
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes
of the malfunction are shown in the order of their probability. Inspect each part in the order shown, and
replace the part when it is found to be faulty.
Trouble Parts name (See page)
Fog light does not light with light control SW HEAD
(Headlight is normal).
1. HEAD Fuse (BE±5)
2. Fog Light Relay (BE±25)
3. Fog Light Switch (BE±24)
4. Wire Harness
Fog light does not light with light control SW HEAD
(Headlight does not light).
1. Inspect Headlight system (BE±10)
2. Wire Harness
Only one light does not light. 1. Bulb
2. Wire Harness
FOG LIGHT AIM ADJUSTMENT
Adjust Screw: Vertical Direction
FOG LIGHT SWITCH INSPECTION
INSPECT SWITCH CONTINUITY
Switch position
Tester connection to
terminal number
Specified condition
OFF ± No continuity
ON A6±A7 Continuity
If continuity is not as specified, replace the switch. BE±24
± BODY ELECTRICAL SYSTEMFOG LIGHT SYSTEM
Page 627 of 2543
FOG LIGHT RELAY INSPECTION
INSPECT RELAY CONTINUITY
Condition
Tester connection to
terminal number
Specified condition
Constant 1±2 Continuity
Apply B+ between
terminals 1 and 2.
3±5
Continuity
If continuity is not as specified, replace the relay.
± BODY ELECTRICAL SYSTEMFOG LIGHT SYSTEMBE±25
Page 628 of 2543

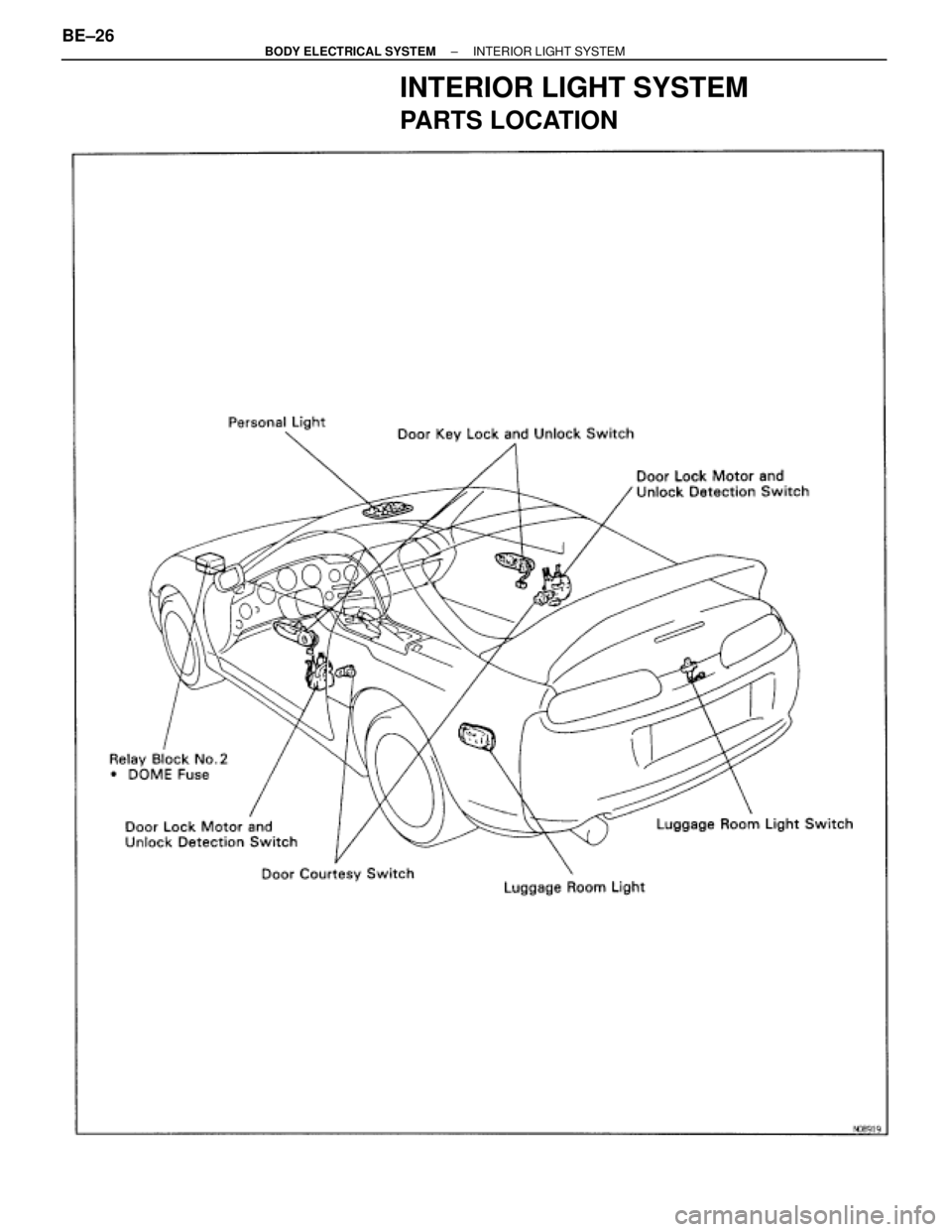

INTERIOR LIGHT SYSTEM
PARTS LOCATION
BE±26± BODY ELECTRICAL SYSTEMINTERIOR LIGHT SYSTEM
Page 629 of 2543

TROUBLESHOOTING
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes
of the malfunction are shown in the order of their probability. Inspect each part in the order shown, and
replace the part when it is found to be faulty.
Trouble Parts name (See page)
Only one light does not light up.
1. Bulb
2. Wire Harness
Interior light does not light up (All).
1. DOME Fuse (BE±5)
2. Integration Relay (BE±29)
3. Wire Harness
ºIlluminated Entry Systemº does not operate.
1. Integration Relay (BE±29)
2. Door Courtesy Switch (BE±28)
3. Door Key Lock and Unlock Switch (BE±158)
4. Door Unlock Detection Switch (BE±145)
5. Wire Harness
Front personal light does not light up.
1. Bulb
2. Front Personal Light (BE±27)
3. Wire Harness
Luggage room light does not light up.
1. Bulb
2. Luggage Room Light Switch (BE±28)
PERSONAL LIGHT SWITCH INSPECTION
1. INSPECT INTERIOR LIGHT CONTINUITY
Switch position
Tester connection to
terminal number
Specified condition
DOOR
1±3
Continuity
OFF ± No continuity
2. INSPECT PERSONAL LIGHT CONTINUITY
Switch position
Tester connection to
terminal number
Specified condition
OFF
±
No continuity
*ON
1±2
Continuity
* Set the interior light switch to OFF or DOOR.
If continuity is not as specified, replace the light assembly or
bulb.
± BODY ELECTRICAL SYSTEMINTERIOR LIGHT SYSTEMBE±27
Page 630 of 2543

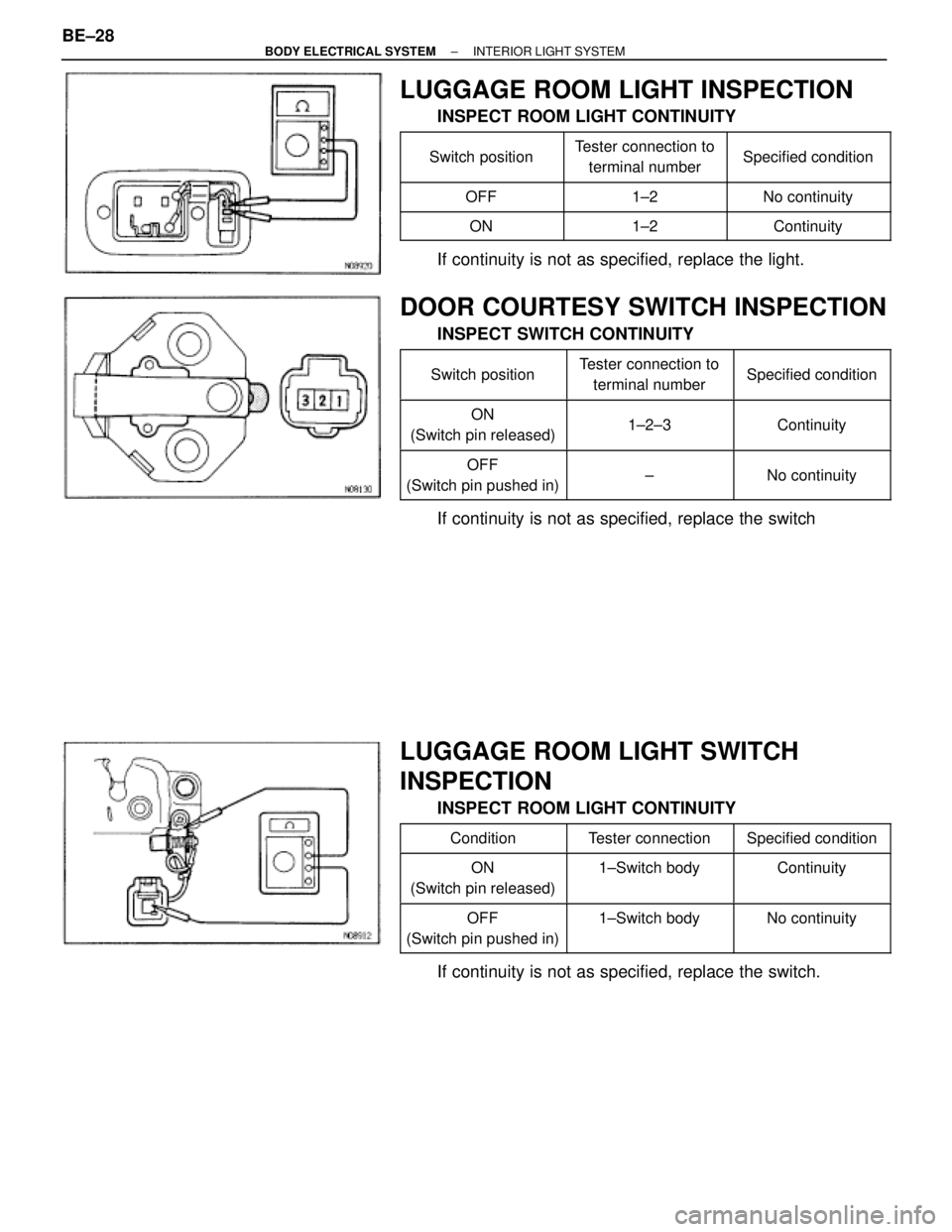

LUGGAGE ROOM LIGHT INSPECTION
INSPECT ROOM LIGHT CONTINUITY
Switch position
Tester connection to
terminal number
Specified condition
OFF 1±2 No continuity
ON
1±2
Continuity
If continuity is not as specified, replace the light.
DOOR COURTESY SWITCH INSPECTION
INSPECT SWITCH CONTINUITY
Switch position
Tester connection to
terminal number
Specified condition
ON
(Switch pin released)
1±2±3
Continuity
OFF
(Switch pin pushed in)
±
No continuity
If continuity is not as specified, replace the switch
LUGGAGE ROOM LIGHT SWITCH
INSPECTION
INSPECT ROOM LIGHT CONTINUITY
Condition Tester connection Specified condition
ON
(Switch pin released)
1±Switch body
Continuity
OFF
(Switch pin pushed in)
1±Switch body
No continuity
If continuity is not as specified, replace the switch. BE±28
± BODY ELECTRICAL SYSTEMINTERIOR LIGHT SYSTEM
Page 631 of 2543
INTEGRATION RELAY INSPECTION
INSPECT RELAY CIRCUIT
Remove the relay from junction block and inspect the con-
nector on the junction block side, as shown in the chart.
Tester connection to
terminal number
Condition
Specified condition
4±Ground Courtesy Switch Position OFF (Door closed) No continuity
4±Ground
Courtesy Switch Position ON (Door opened)
Continuity
10±Ground Constant Continuity
1±Ground Constant Battery positive voltage
7±Ground Ignition switch position / LOCK or ACC No voltage
7±Ground
Ignition switch position / ON
Battery positive voltage
If circuit is as specified, trying replacing the relay with a new
one.
If the circuit is not as specified, inspect the circuits connected
to other parts.
DOOR KEY LOCK AND UNLOCK
SWITCH INSPECTION
See page BE±158
DOOR UNLOCK DETECTION SWITCH
INSPECTION
See page BE±145
± BODY ELECTRICAL SYSTEMINTERIOR LIGHT SYSTEMBE±29
Page 632 of 2543

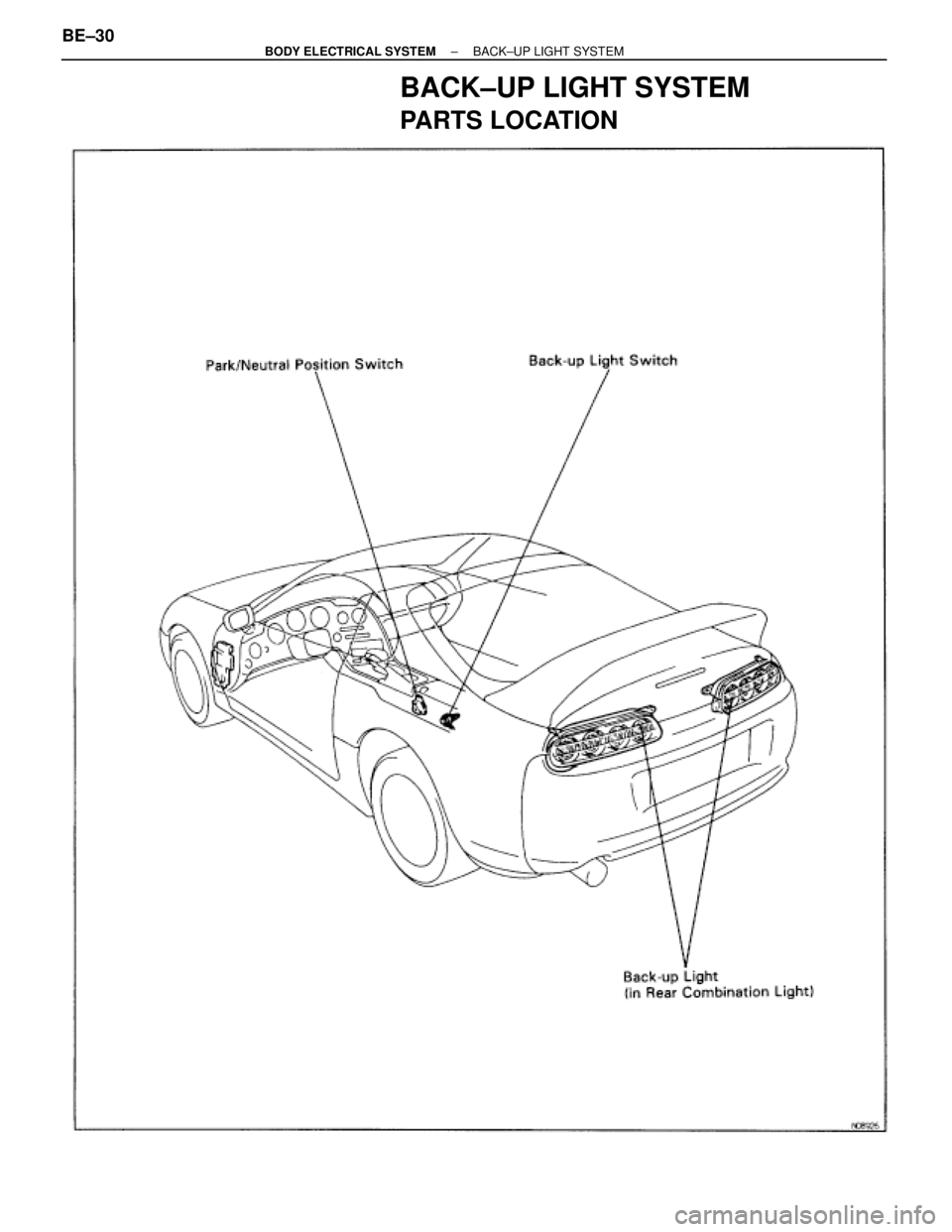

BACK±UP LIGHT SYSTEM
PARTS LOCATION
BE±30± BODY ELECTRICAL SYSTEMBACK±UP LIGHT SYSTEM
