TOYOTA SUPRA 1995 Service Repair Manual 2JZ±GE ENGINE TROUBLESHOOTING
EG±381

Page 1890 of 2543

TOYOTA SUPRA 1995 Service Repair Manual P. EG±783
P. EG±785, P. EG±387
P. EG±386
P. IN±24
P. EG±386
P. EG±400P. EG±388
P. EG±408
P. EG±409
P. EG±399

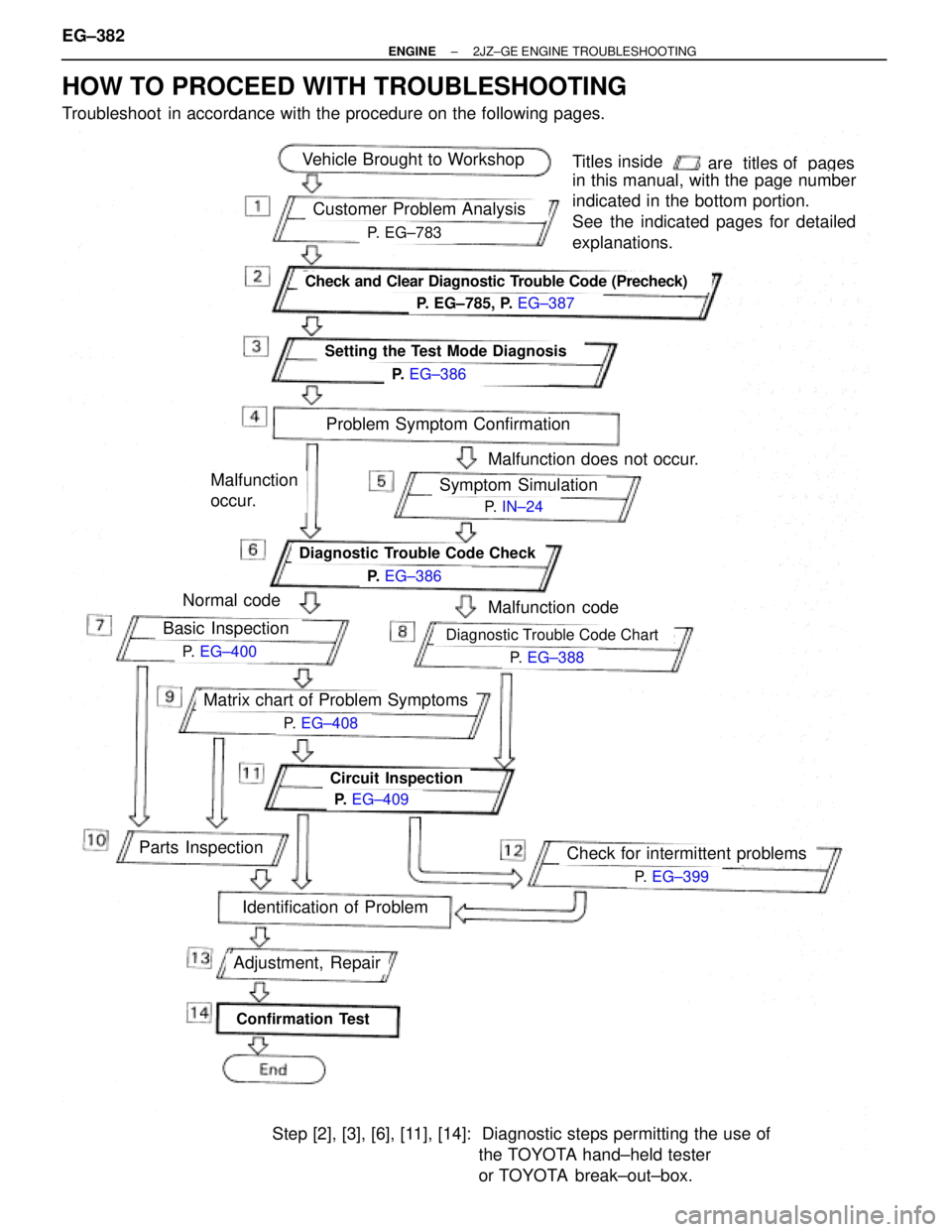

Vehicle Brought to Workshop
Customer Problem Analysis
Check and Clear Di

Page 1891 of 2543

TOYOTA SUPRA 1995 Service Repair Manual CUSTOMER PROBLEM ANALYSIS CHECK SHEET
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±383

Page 1892 of 2543

TOYOTA SUPRA 1995 Service Repair Manual DIAGNOSIS SYSTEM
DESCRIPTION
The ECM contains a built±in self±diagnosis system by which
troubles with the engine signal network are detected and a Mal-
function Indicator Lamp on the instrument pane

DIAGNOSIS SYSTEM
DESCRIPTION
The ECM contains a built±in self±diagnosis system by which
troubles with the engine signal network are detected and a Mal-
function Indicator Lamp on the instrument panel lights up.
By analyzing various signals as shown in a later table (See page
EG±388) the Engine Control Module (ECM) detects system mal-
functions relating to the sensors or actuators.
In the normal mode, the self±diagnosis system monitors 18
(California specification vehicles) or 17 (except for California and
Canadian specification) items, indicated by code No. as shown in
EG±388. A malfunction indicator lamp informs the driver that a
malfunction has been detected. The lamp goes off automatically
when the malfunction has been repaired, but the diagnostic
trouble code(s) remains stored in the ECM memory (except for
code Nos. 16 and 53). The ECM stores the code(s) until it is
cleared by removing the EFI No. 1 fuse with the ignition switch
OFF.
The diagnostic trouble code can be read by the number of blinks
of the malfunction indicator lamp when TE1 and E1 terminals on
the data link connector 1 or 2 are connected. When 2 or more
codes are indicated, the lowest number (code) will appear first.
In the test mode, 12 (California specification vehicles) or 11 (ex-
cept for California and Canadian specification vehicles) items, in-
dicated by code No. as shown in EG±388 are monitored. If a mal-
function is detected in any one of the systems indicated by code
Nos. 13, 21, 22, 24, 25, 26, 27, 28, 35, 41, 71 and 78 (California
specification vehicles) or 13, 21, 22, 24, 25, 28, 35, 41, 71 and 78
(except for California and Canadian specification vehicles) the
ECM lights the malfunction indicator lamp to warn the technician
that a malfunction has been detected. In this case, TE2 and E1
terminals on the data link connector 2 should be connected as
shown later. (See page EG±386).
In the test mode, even if the malfunction is corrected, the malfunc-
tion code is stored in the ECM memory even when the ignition
switch OFF (except code Nos. 43 and 51). This also applies in the
normal mode. The diagnostic trouble mode (normal or test) and
the output of the malfunction indicator lamp can be selected by
connecting the TE1, TE2 and E1 terminals on the data link con-
nector 2, as shown later.
A test mode function has been added to the functions of the self±
diagnosis system of the normal mode for the purpose of detecting
malfunctions such as poor contact, which are difficult to detect in
the normal mode. This function fills up the self±diagnosis system.
The test mode can be implemented by the technician following the
appropriate procedures of check terminal connection and opera-
tion described later. (See page EG±386) EG±384
± ENGINE2JZ±GE ENGINE TROUBLESHOOTING

Page 1893 of 2543

TOYOTA SUPRA 1995 Service Repair Manual Diagnosis Inspection (Normal Mode)
MALFUNCTION INDICATOR LAMP
CHECK
1. The Malfunction Indicator Lamp will come on when the
ignition switch is turned ON and the engine is not running.
HINT: If the ma

Page 1894 of 2543

TOYOTA SUPRA 1995 Service Repair Manual Diagnosis Inspection (Test Mode)
Compared to the normal mode, the test mode has an in-
creased sensing ability to detect malfunctions.
It can also detect malfunctions in the starter signal circuit, th

Page 1895 of 2543

TOYOTA SUPRA 1995 Service Repair Manual DIAGNOSTIC TROUBLE CODE CHECK
USING TOYOTA HAND±HELD TESTER
1. Hook up the TOYOTA hand±held tester to the DLC2.
2. Read the diagnostic trouble codes by following the prompts
on the tester screen.

DIAGNOSTIC TROUBLE CODE CHECK
USING TOYOTA HAND±HELD TESTER
1. Hook up the TOYOTA hand±held tester to the DLC2.
2. Read the diagnostic trouble codes by following the prompts
on the tester screen.
Please refer to the TOYOTA hand±held tester operation's
manual for further details.
DIAGNOSTIC TROUBLE CODE CLEARANCE
1. After repair of the trouble areas, the diagnostic trouble code
retained in the ECM memory must be cleared out by
removing the EFI No.1 fuse (30A) from R/B No.2 for 10
seconds or more, with the ignition switch OFF.
HINT:
wCancellation can also be done by removing the negative
(±) terminal cable from the battery, but in this case, other
memory systems (clock, etc.) will also be cancelled out.
wIf it is necessary to work on engine components
requiring removal of the negative (±) terminal cable from
the battery, a check must first be made to see if a
diagnostic trouble code has been recorded.
2. After cancellation, road test the vehicle to check that a normal
code is now read on the malfunction indicator lamp.
If the same diagnostic trouble code appears, it indicates that
the trouble area has not been repaired thoroughly.
ECM DATA MONITOR USING TOYOTA
HAND±HELD TESTER
1. Hook up the TOYOTA hand±held tester to the DLC2.
2. Monitor the ECM data by following the prompts on the tester
screen.
HINT: TOYOTA hand±held tester has a ºSnapshotº function which
records the monitored data.
Please refer to TOYOTA hand±held tester operator's manual for
further details.
ECM TERMINAL VALUES MEASUREMENT
USING TOYOTA BREAK±OUT±BOX AND
TOYOTA HAND±HELD TESTER
1. Hook up the TOYOTA break±out±box and TOYOTA
handheld tester to the vehicle.
2. Read the ECM input/output values by following the prompts
on the tester screen.
HINT: TOYOTA hand±held tester has a ºSnapshotº function. This
records the measured values and is effective in the diagnosis of
intermittent problems.
Please refer to TOYOTA hand±held tester/TOYOTA break±out
box operator's manual for further details.
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±387

Page 1896 of 2543

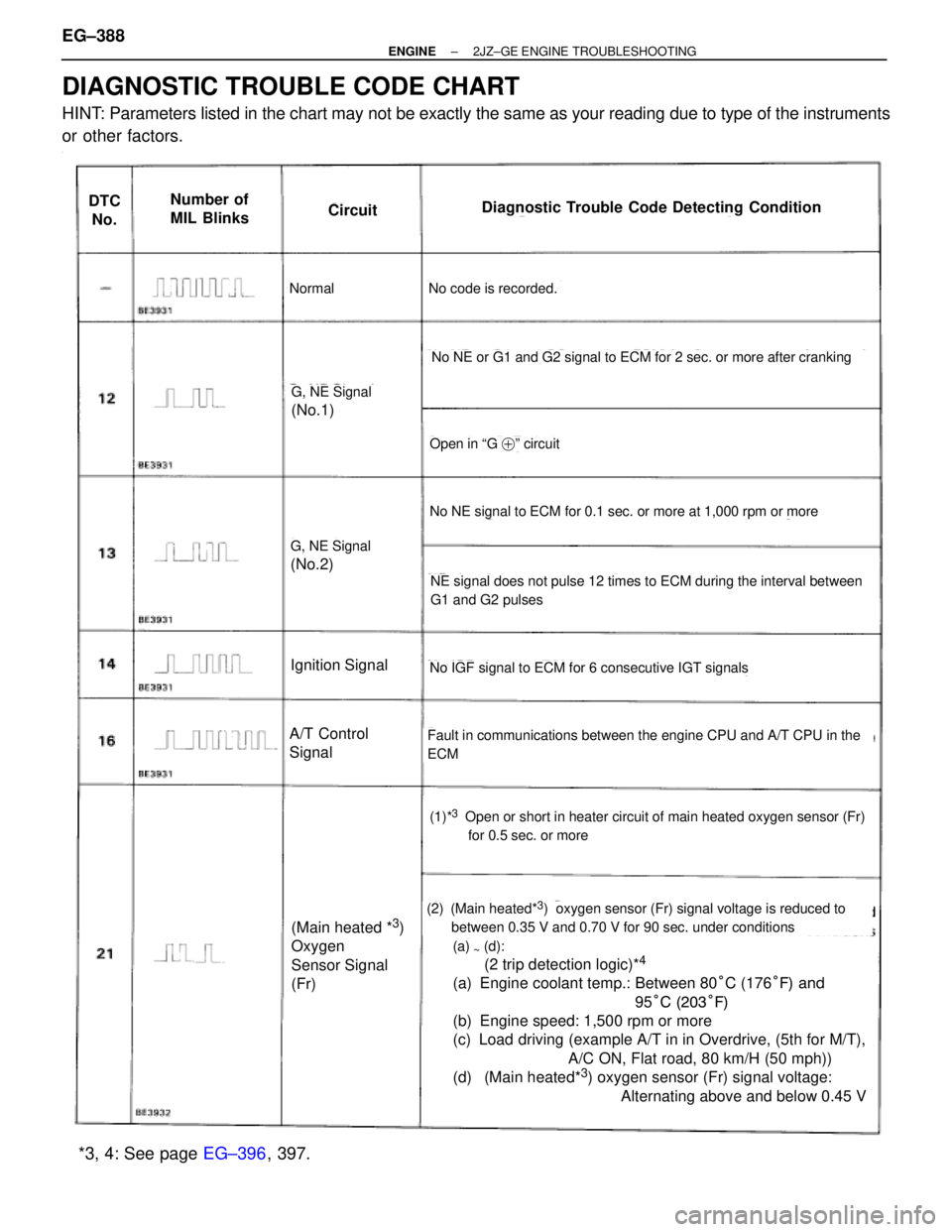

TOYOTA SUPRA 1995 Service Repair Manual DIAGNOSTIC TROUBLE CODE CHART
HINT: Parameters listed in the chart may not be exactly the same as your reading due to type of the instruments
or other factors.
~
DTC
No.Number of
MIL BlinksCircuitDiag
