RECOMMENDED TOOLS
09924±12361 Deep socket Wrench 36.
09025±00010 Torque Wrench (30 kgfcm)
09031±00030 Pin Punch.
(2JZ±GTE M/T)
Drive pinion nut removal
and installation
Differential preload
(Conventional differential only)
Pinion shaft removal
EQUIPMENT
Dial indicator with magnetic base
Micrometer
Torque wrench
Vernier calipers
SSM (SPECIAL SERVICE MATERIALS)
08826±00090 Seal Packing 1281,
THREE BOND 1281 or equivalent
(FIPG)
Differential carrier X Cover
08833±00100 THREE BOND 1360K or equivalent
Differential case X Ring gear
LUBRICANT
Item
Capacity
Classification
Differential oil
1.35 liters (1.43 US qts, 1.19 lmp.qts)
API GL±5 Hypoid gear oil
[Above ± 18°C (0°F)]
SAE 90
[Below ± 18°C (0°F)]
SAE 80W or 80W±90
SA±56± SUSPENSION AND AXLEREAR DIFFERENTIAL
Page 1842 of 2543
ON±VEHICLE REPAIR
COMPONENTS
± SUSPENSION AND AXLEREAR DIFFERENTIALSA±57
Page 1843 of 2543
SIDE GEAR SHAFT OIL SEAL
REPLACEMENT
1. DRAIN DIFFERENTIAL OIL
2. REMOVE REAR DRIVE SHAFT
(See page SA±46)
3. REMOVE SIDE GEAR SHAFT
(a) 2JZ±GTE M/T only:
Equally tighten both bolts at the same time and pull out the
side gear shaft.
NOTICE: Pull out the side gear shaft until a nut can fit be-
hind the shaft. Pulling the shaft out too far will damage
the dust cover.
(b) Using SST and 2 bolts, nuts, remove the side gear shaft.
SST 09520±24010
4. REMOVE SNAP RING
Remove the snap ring from the side gear shaft.
5. REMOVE SIDE GEAR SHAFT OIL SEAL
Using SST, remove the oil seal.
SST 09308±00010
6. INSTALL SIDE GEAR SHAFT OIL SEAL
(a) Using SST and a hammer, drive in a new oil seal.
2JZ±GTE M/T:
SST 09223±15030, 09608±35014 (09608±06020)
Except 2JZ±GTE M/T:
SST 09608±32010, 09608±35014 (09608±06020)
(b) Apply MP grease to the oil seal lip. SA±58
± SUSPENSION AND AXLEREAR DIFFERENTIAL
Page 1844 of 2543
7. INSTALL SIDE GEAR SHAFT
(a) Install a new snap ring to the side gear shaft.
(b) Coat MP grease onto the snap ring.
(c) Using a hammer and brass bar, tap in the side gear shaft to
the differential.
NOTICE: Be careful not damage the side gear shaft and
oil seal.
HINT: Whether or not the side gear shaft is making contact
with the pinion shaft can be determined by the sound or feel-
ing when driving it in.
8. CHECK INSTALLATION OF SIDE GEAR SHAFT
Check that the side gear shaft will not come out by trying to
pull it out by hand.
9. INSTALL REAR DRIVE SHAFT
(See page SA±46)
10. FILL DIFFERENTIAL WITH OIL
Oil grade:
API GL±5 Hypoid gear oil
Viscosity:
Above ± 18°C (0°F) SAE 90
Below ± 18°C (0°F) SAE 80W±90 or 80W
Capacity:
1.35 liters (1.43 US qts, 1.19 lmp. qts)
± SUSPENSION AND AXLEREAR DIFFERENTIALSA±59
Page 1845 of 2543
ASSEMBLY REMOVAL AND
INSTALLATION
COMPONENTS
SA±60± SUSPENSION AND AXLEREAR DIFFERENTIAL
Page 1846 of 2543

DIFFERENTIAL REMOVAL
Installation is in the reverse order of removal.
1. DRAIN DIFFERENTIAL OIL
2. REMOVE PROPELLER SHAFT
(See page PR±5)

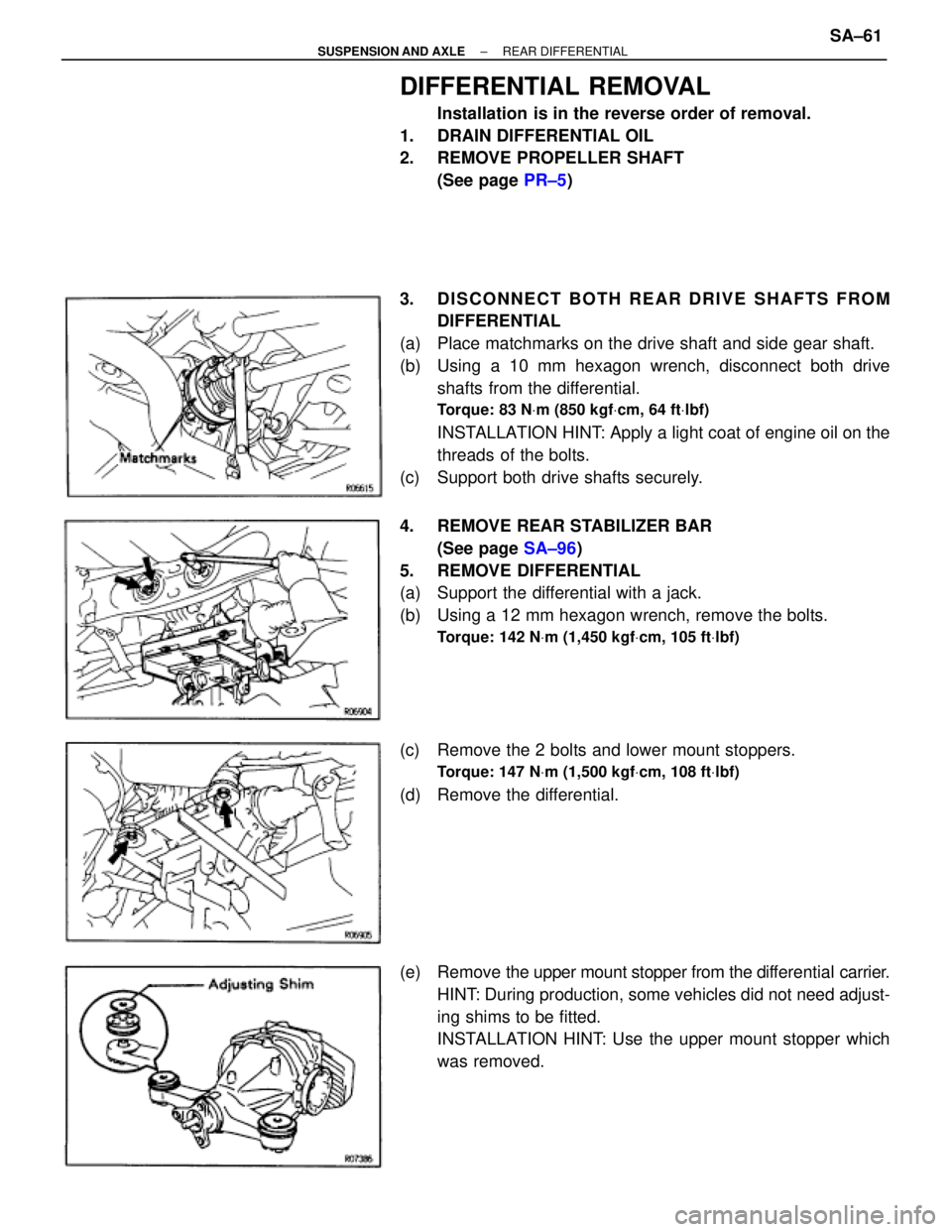

3. DISCONNECT BOTH REAR DRIVE SHAFTS FROM
DIFFERENTIAL
(a) Place matchmarks on the drive shaft and side gear shaft.
(b) Using a 10 mm hexagon wrench, disconnect both drive
shafts from the differential.
Torque: 83 NVm (850 kgfVcm, 64 ftVlbf)
INSTALLATION HINT: Apply a light coat of engine oil on the
threads of the bolts.
(c) Support both drive shafts securely.
4. REMOVE REAR STABILIZER BAR
(See page SA±96)
5. REMOVE DIFFERENTIAL
(a) Support the differential with a jack.
(b) Using a 12 mm hexagon wrench, remove the bolts.
Torque: 142 NVm (1,450 kgfVcm, 105 ftVlbf)
(c) Remove the 2 bolts and lower mount stoppers.
Torque: 147 NVm (1,500 kgfVcm, 108 ftVlbf)
(d) Remove the differential.
(e) Remove the upper mount stopper from the differential carrier.
HINT: During production, some vehicles did not need adjust-
ing shims to be fitted.
INSTALLATION HINT: Use the upper mount stopper which
was removed.
± SUSPENSION AND AXLEREAR DIFFERENTIALSA±61
Page 1847 of 2543

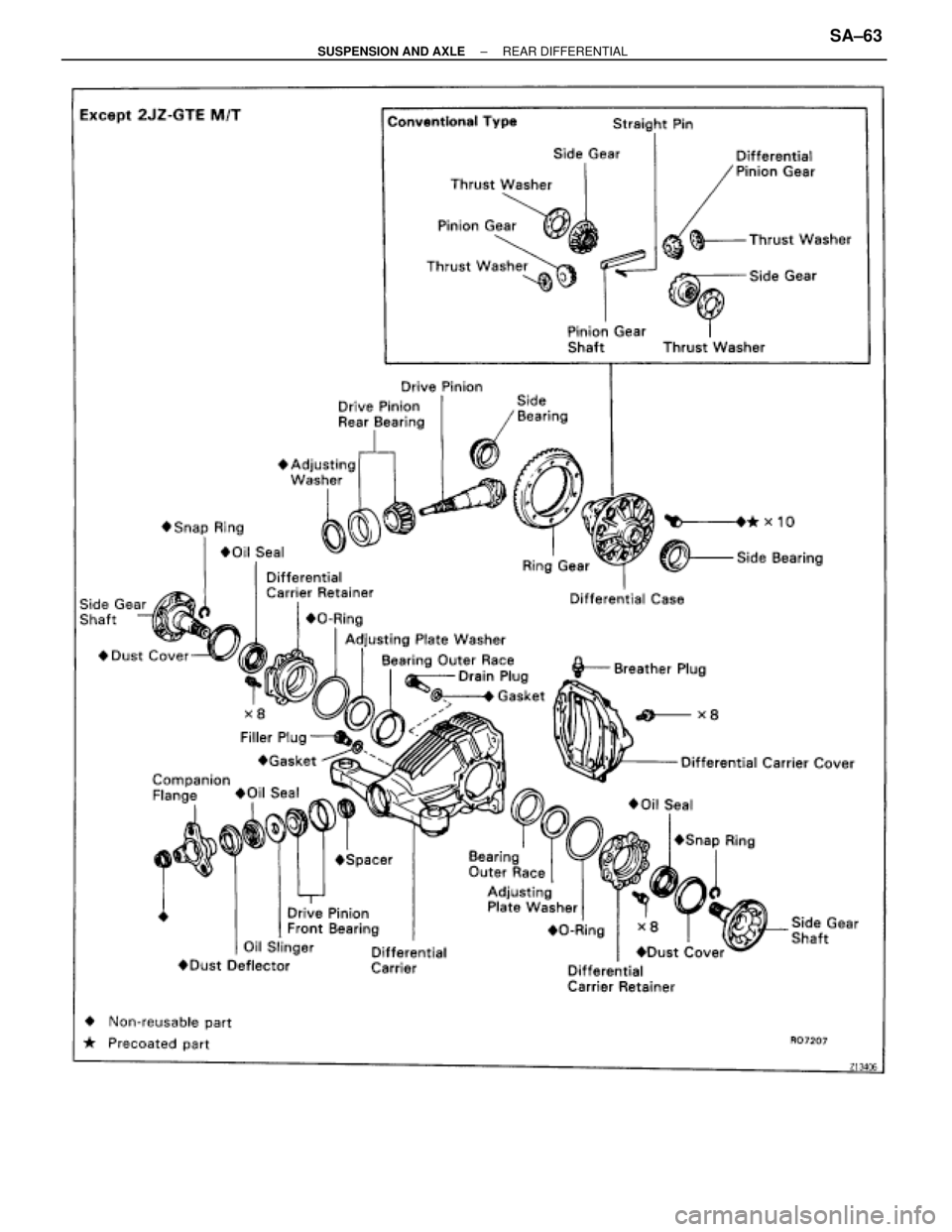

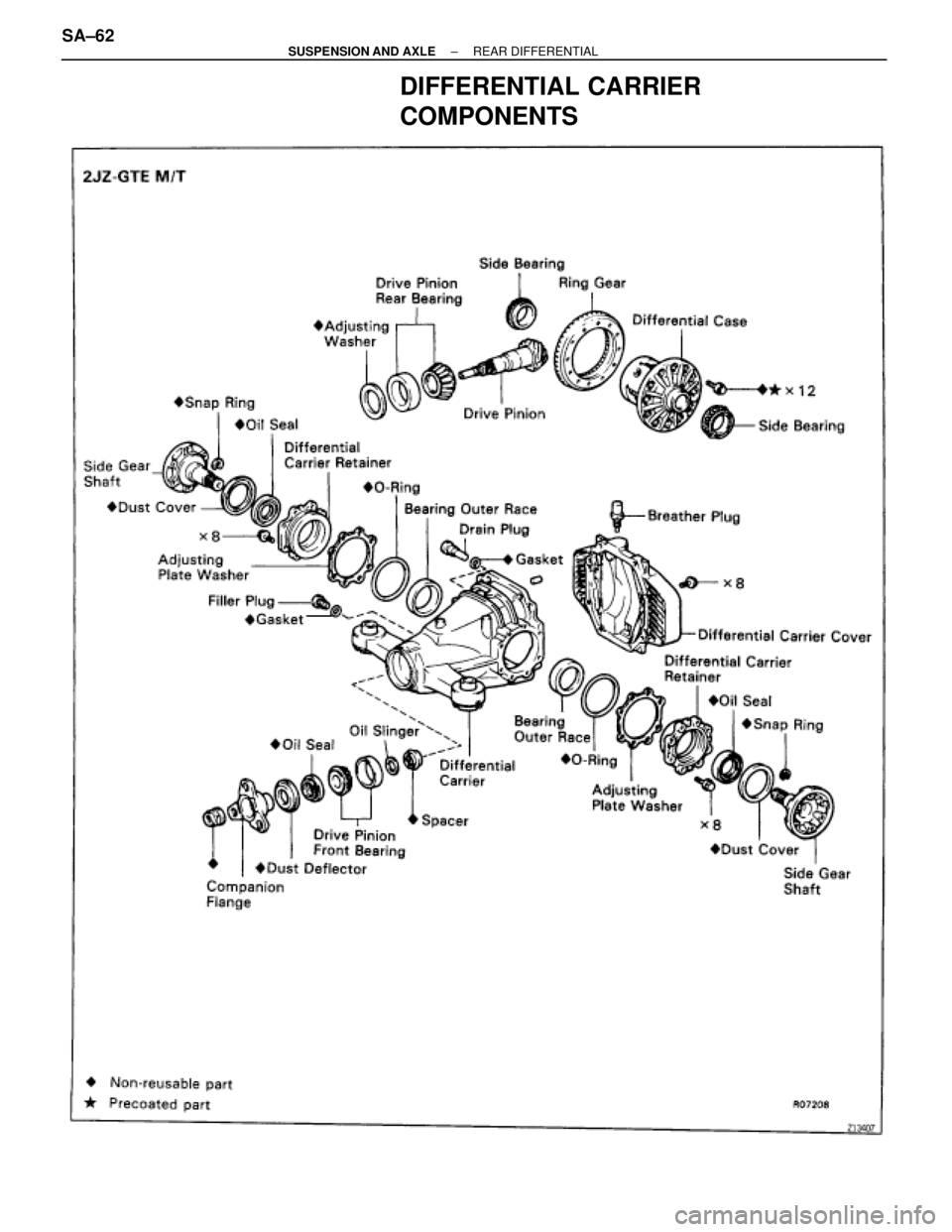

DIFFERENTIAL CARRIER
COMPONENTS
SA±62± SUSPENSION AND AXLEREAR DIFFERENTIAL
Page 1848 of 2543
± SUSPENSION AND AXLEREAR DIFFERENTIALSA±63
