Page 777 of 2543

TOYOTA SUPRA 1995 Service Repair Manual DTC 13 14 Actuator Position Sensor Circuit CIRCUIT DESCRIPTION This circuit detects the rotation position of the actuator control plate and sends a signal to the ECU.    Code No.

Page 778 of 2543

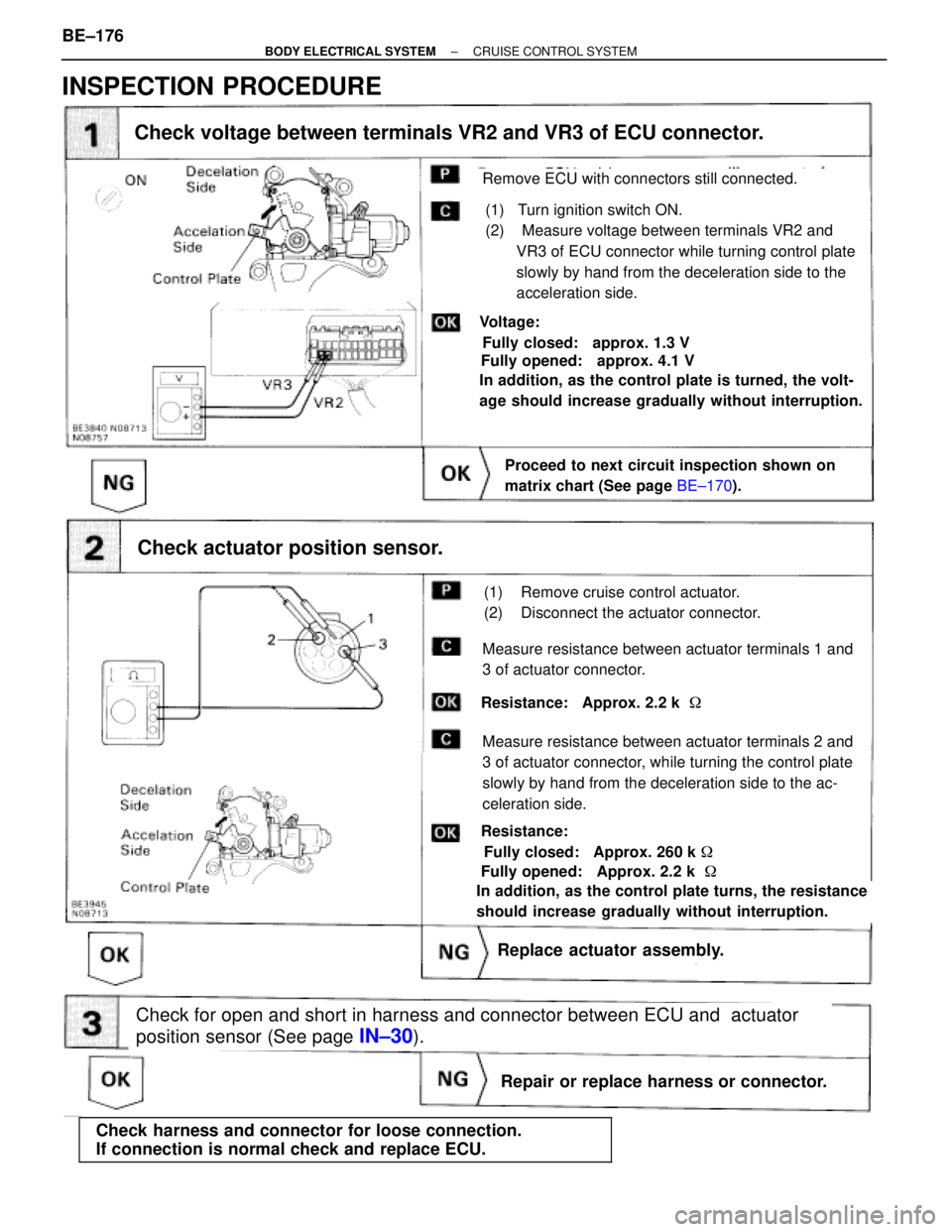

TOYOTA SUPRA 1995 Service Repair Manual Repair or replace harness or connector. Check for open and short in harness and connector between ECU and actuator position sensor (See page IN±30). (1) Turn ignition switch ON. (2) Measure vo

Page 779 of 2543

TOYOTA SUPRA 1995 Service Repair Manual DTC 21 23 Speed Sensor Circuit The speed sensor signal is sent to cruise control ECU as ve- hicle speed signal. The rotor shaft is driven by the gear of the transmission. For each rotation of the shaf

Page 780 of 2543

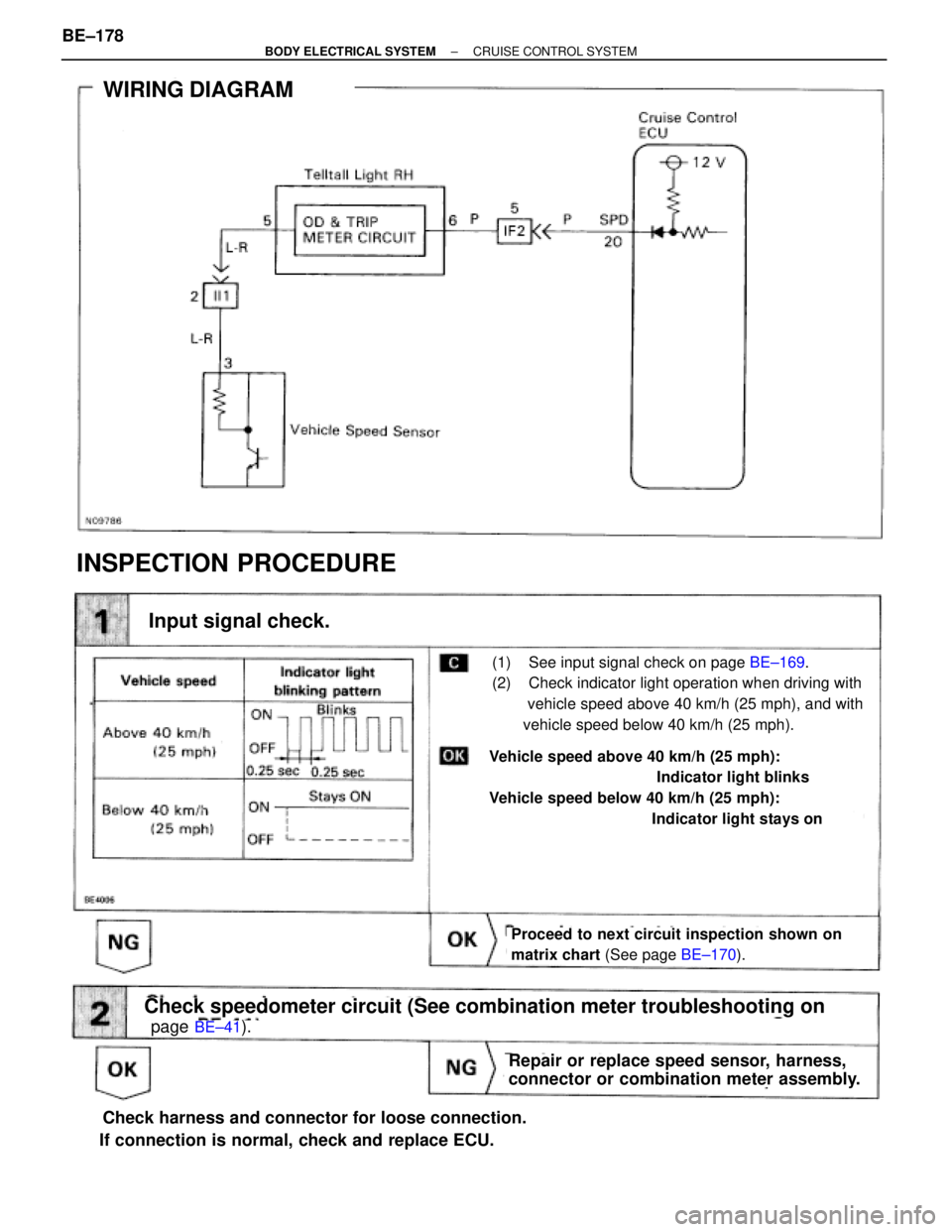

TOYOTA SUPRA 1995 Service Repair Manual WIRING DIAGRAM INSPECTION PROCEDURE page BE±41). Repair or replace speed sensor, harness, connector or combination meter assembly. Proceed to next circuit inspection shown on matrix chart (See page B

Page 781 of 2543

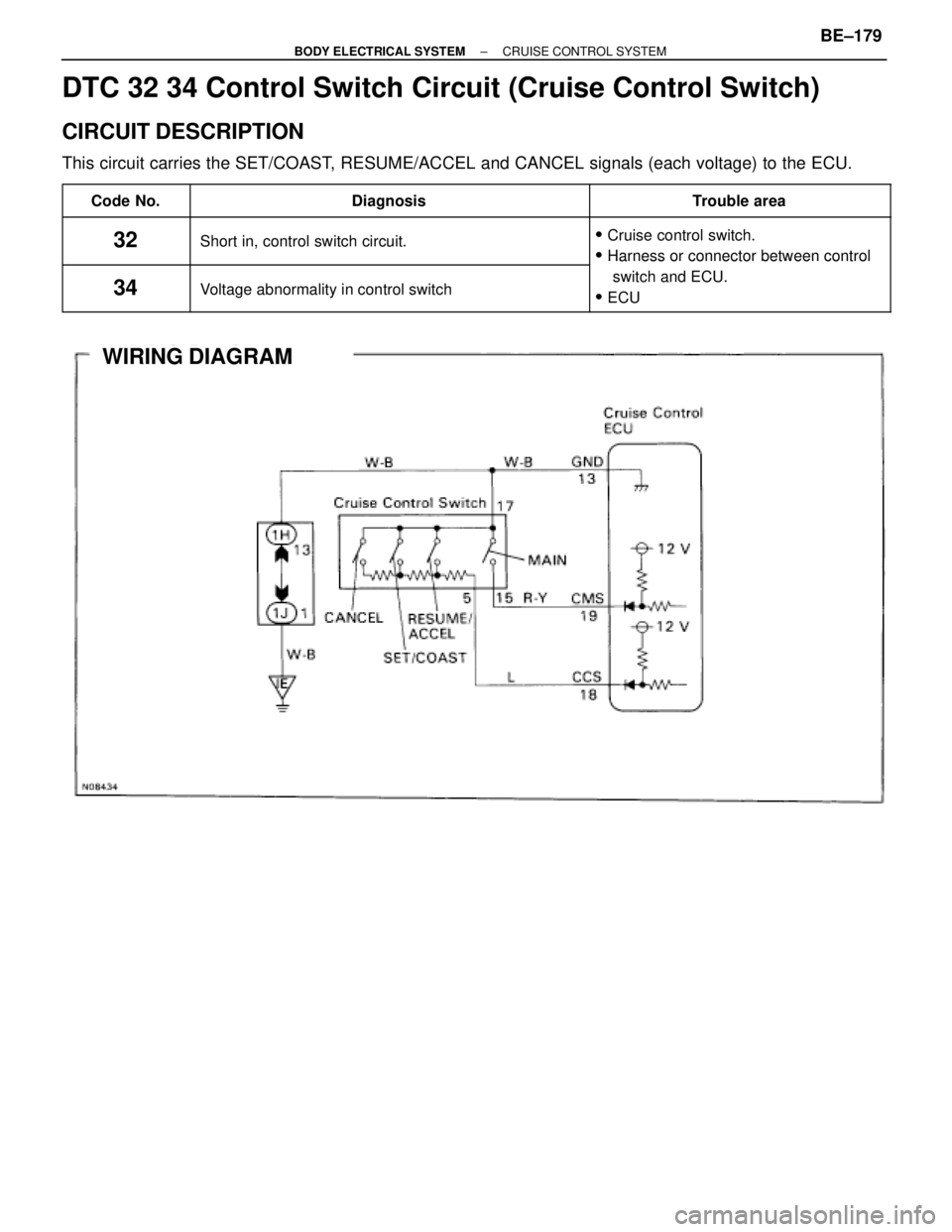

TOYOTA SUPRA 1995 Service Repair Manual DTC 32 34 Control Switch Circuit (Cruise Control Switch) CIRCUIT DESCRIPTION This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.    Code No

Page 782 of 2543

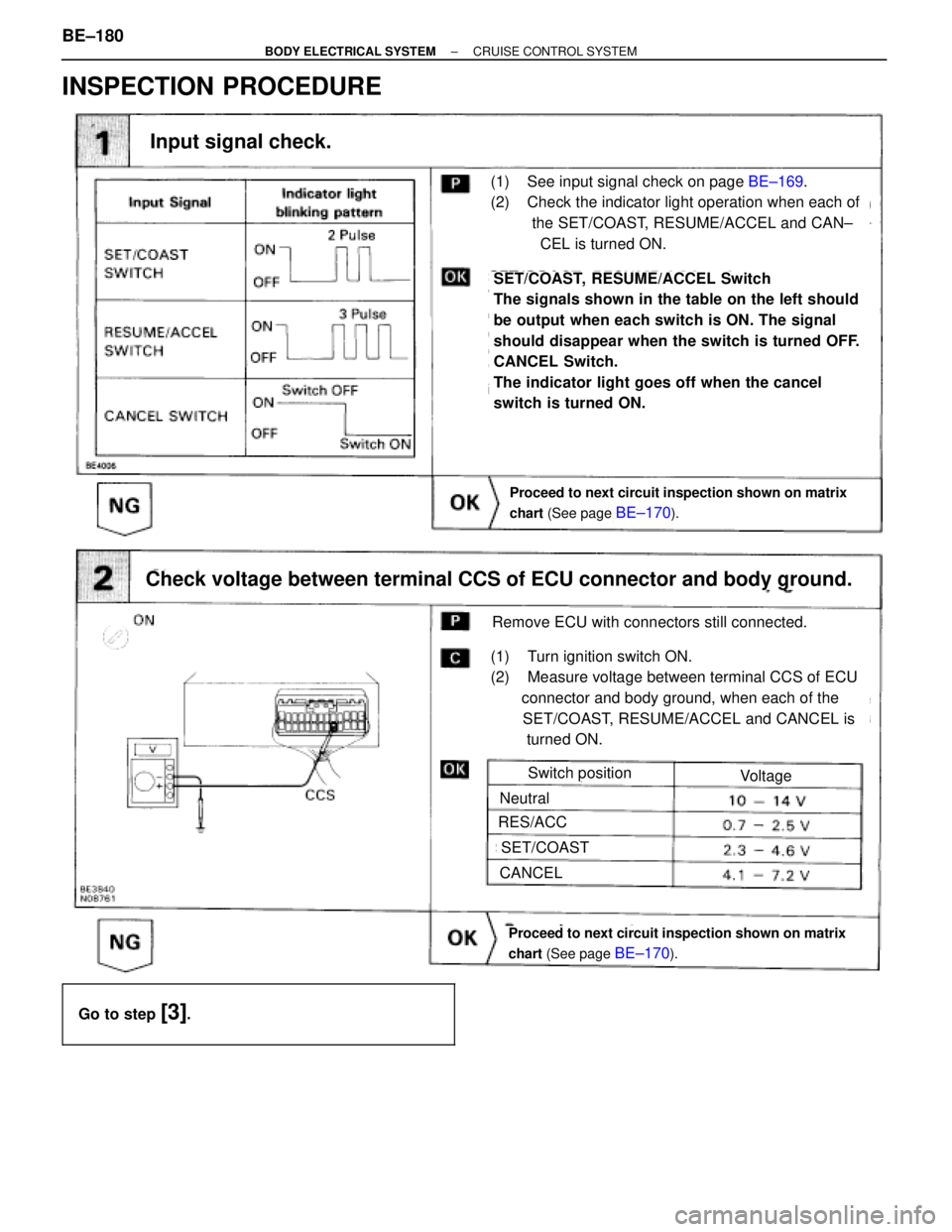

TOYOTA SUPRA 1995 Service Repair Manual INSPECTION PROCEDURE Proceed to next circuit inspection shown on matrix chart (See page BE±170). (1) See input signal check on page BE±169. (2) Check the indicator light operation when each o

Page 783 of 2543

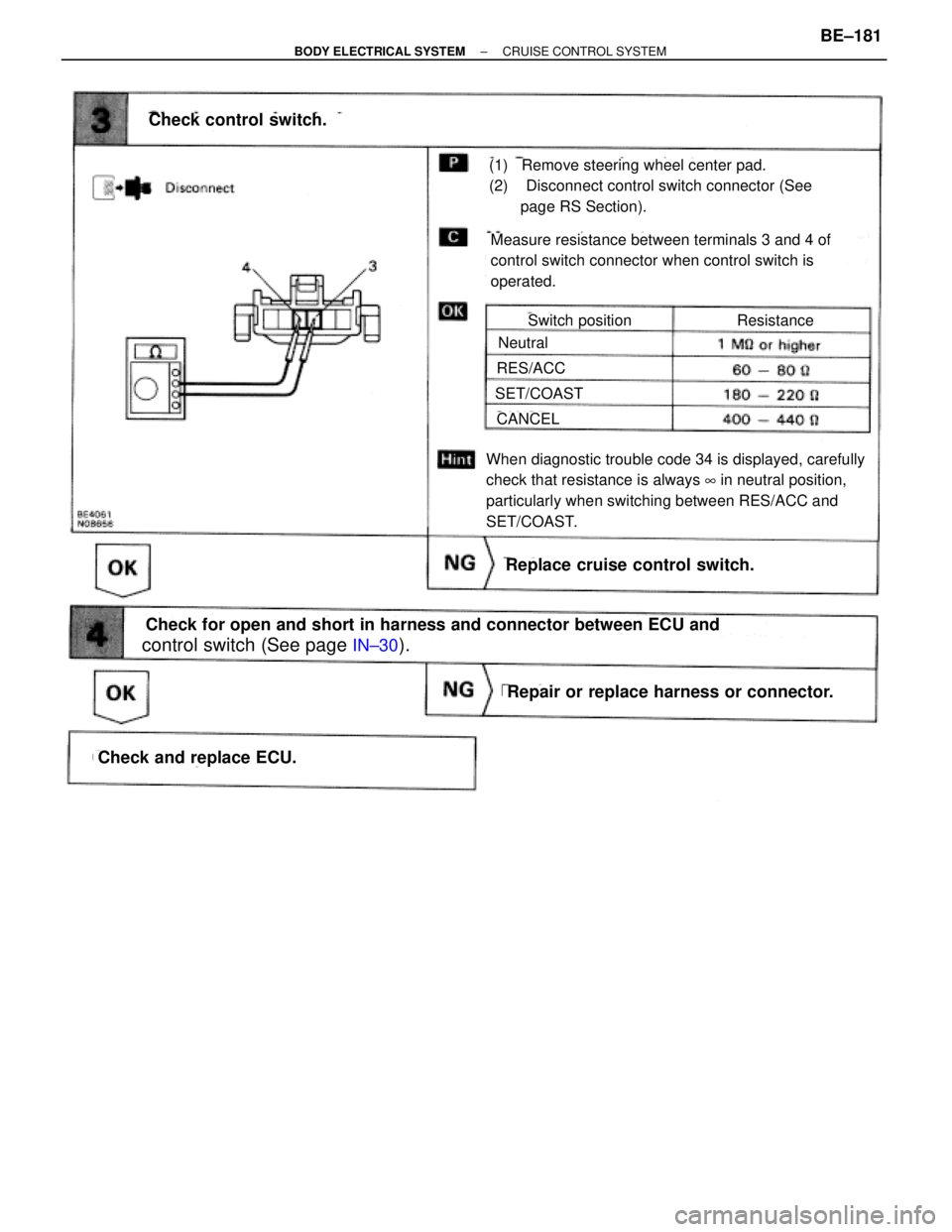

TOYOTA SUPRA 1995 Service Repair Manual control switch (See page IN±30). Switch position Neutral RES/ACC SET/COAST CANCEL Replace cruise control switch. Measure resistance between terminals 3 and 4 of control switch connector when control

Page 784 of 2543

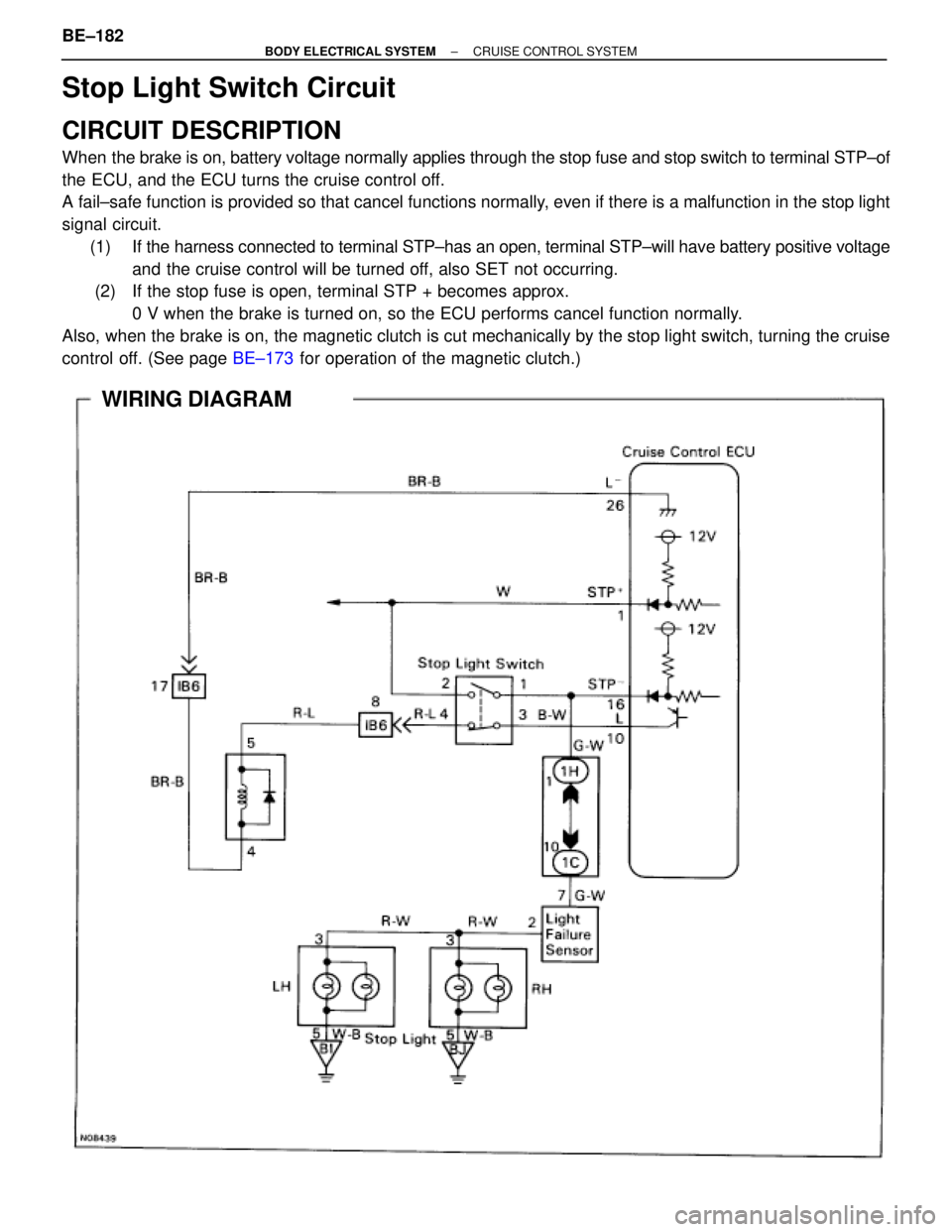

TOYOTA SUPRA 1995 Service Repair Manual Stop Light Switch Circuit CIRCUIT DESCRIPTION When the brake is on, battery voltage normally applies through the stop fuse and stop switch to terminal STP±of the ECU, and the ECU turns the cruise con
