TROUBLESHOOTING
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes
of the malfunction are shown in the order of their probability. Inspect each part in the order shown, and
replace the part when it is found to be faulty.
Trouble
Parts name (See page)
Mirror does not operate
1. RAD No.2 Fuse (BE±6)
2. Mirror Switch (BE±79)
3. Mirror Motor (BE±80)
4. Wire Harness
Mirror operates abnormally
1. Mirror Switch (BE±79)
2. Mirror Motor (BE±80)
3. Wire Harness
MIRROR SWITCH INSPECTION
INSPECT SWITCH CONTINUITY
Left Side
Switch position
Tester connection to
terminal number
Specified condition
OFF ± No continuity
UP
2±5
6±8
Continuity
DOWN
2±6
5±8
Continuity
LEFT
1±8
2±5
Continuity
RIGHT
1±2
5±8
Continuity
Right Side
Switch position
Tester connection to
terminal number
Specified condition
OFF ± No continuity
UP
2±5
3±8
Continuity
DOWN
2±3
5±8
Continuity
LEFT
2±5
7±8
Continuity
RIGHT
2±7
5±8
Continuity
If continuity is not as specified, replace the switch.
± BODY ELECTRICAL SYSTEMPOWER MIRROR CONTROL SYSTEMBE±79
Page 682 of 2543
MIRROR MOTOR INSPECTION
INSPECT MOTOR OPERATION

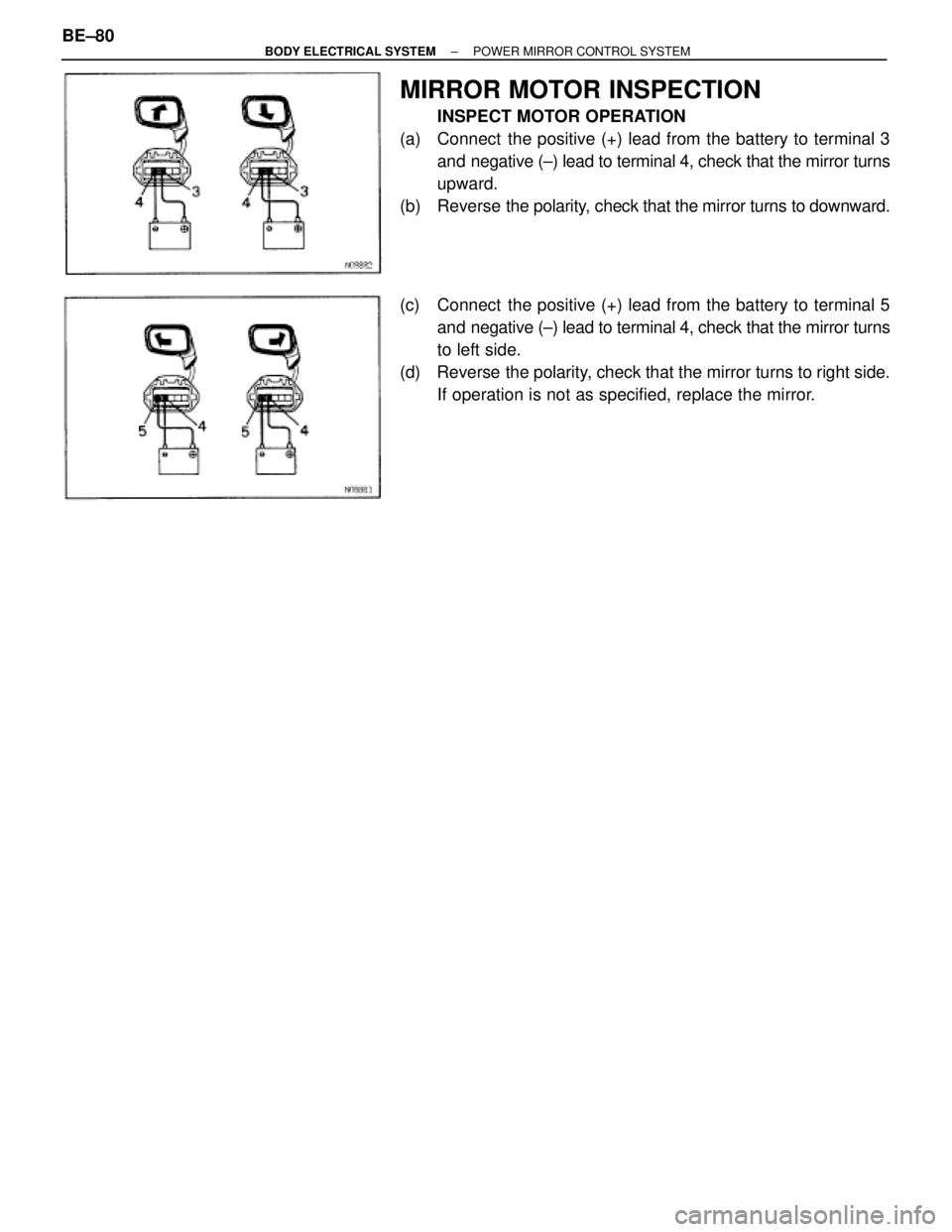

(a) Connect the positive (+) lead from the battery to terminal 3
and negative (±) lead to terminal 4, check that the mirror turns
upward.
(b) Reverse the polarity, check that the mirror turns to downward.
(c) Connect the positive (+) lead from the battery to terminal 5
and negative (±) lead to terminal 4, check that the mirror turns
to left side.
(d) Reverse the polarity, check that the mirror turns to right side.
If operation is not as specified, replace the mirror. BE±80
± BODY ELECTRICAL SYSTEMPOWER MIRROR CONTROL SYSTEM
Page 683 of 2543
Frequency 30 kHz 300kHz 3 MHz 30 MHz300 MHz
Designation
Modulation method
Radio wave
LF
AMFM
VHF
Amplitude modulation
HFMF
Frequency modulation
AUDIO SYSTEM
SYSTEM DESCRIPTION

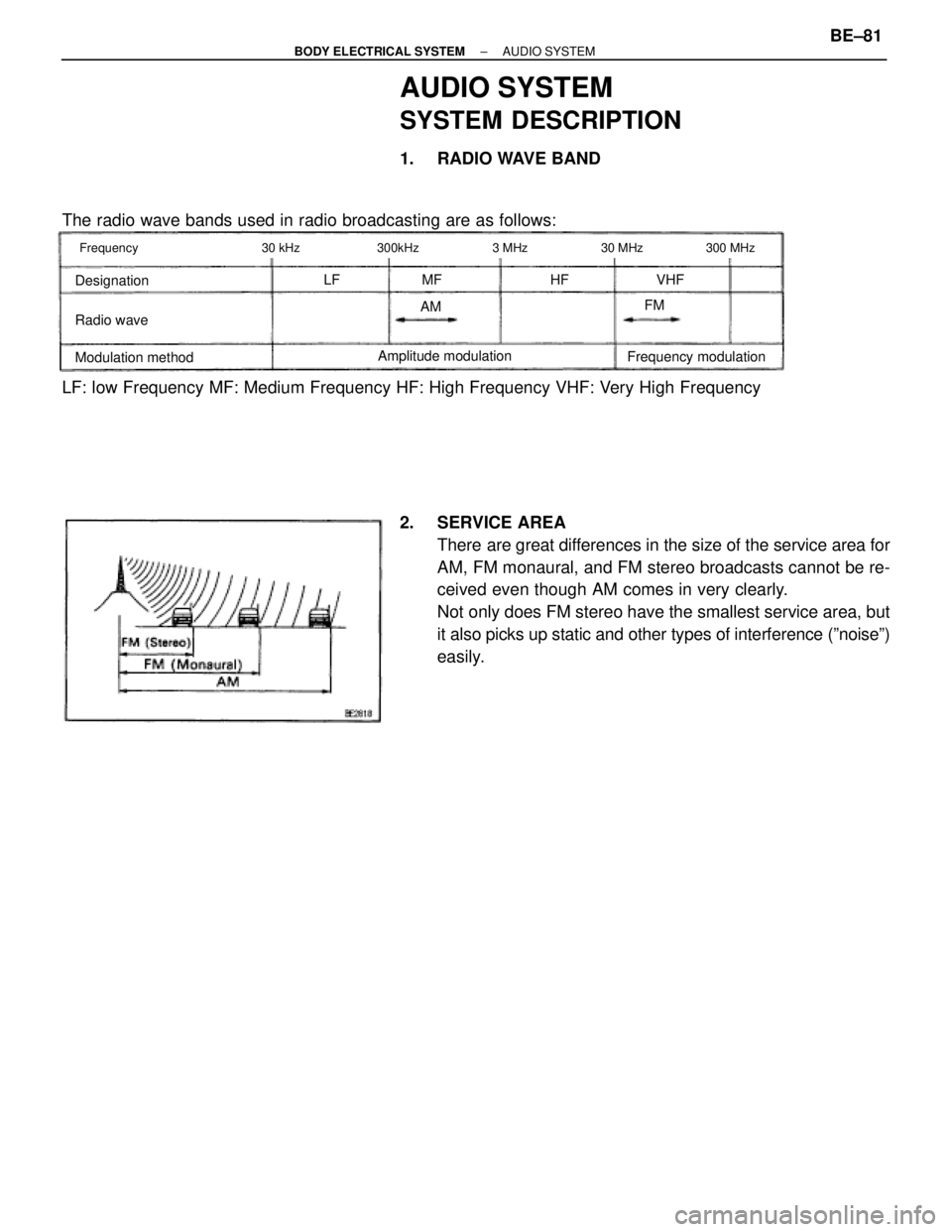

1. RADIO WAVE BAND
The radio wave bands used in radio broadcasting are as follows:
LF: low Frequency MF: Medium Frequency HF: High Frequency VHF: Very High Frequency
2. SERVICE AREA
There are great differences in the size of the service area for
AM, FM monaural, and FM stereo broadcasts cannot be re-
ceived even though AM comes in very clearly.
Not only does FM stereo have the smallest service area, but
it also picks up static and other types of interference (ºnoiseº)
easily.
± BODY ELECTRICAL SYSTEMAUDIO SYSTEMBE±81
Page 684 of 2543

3. RECEPTION PROBLEMS

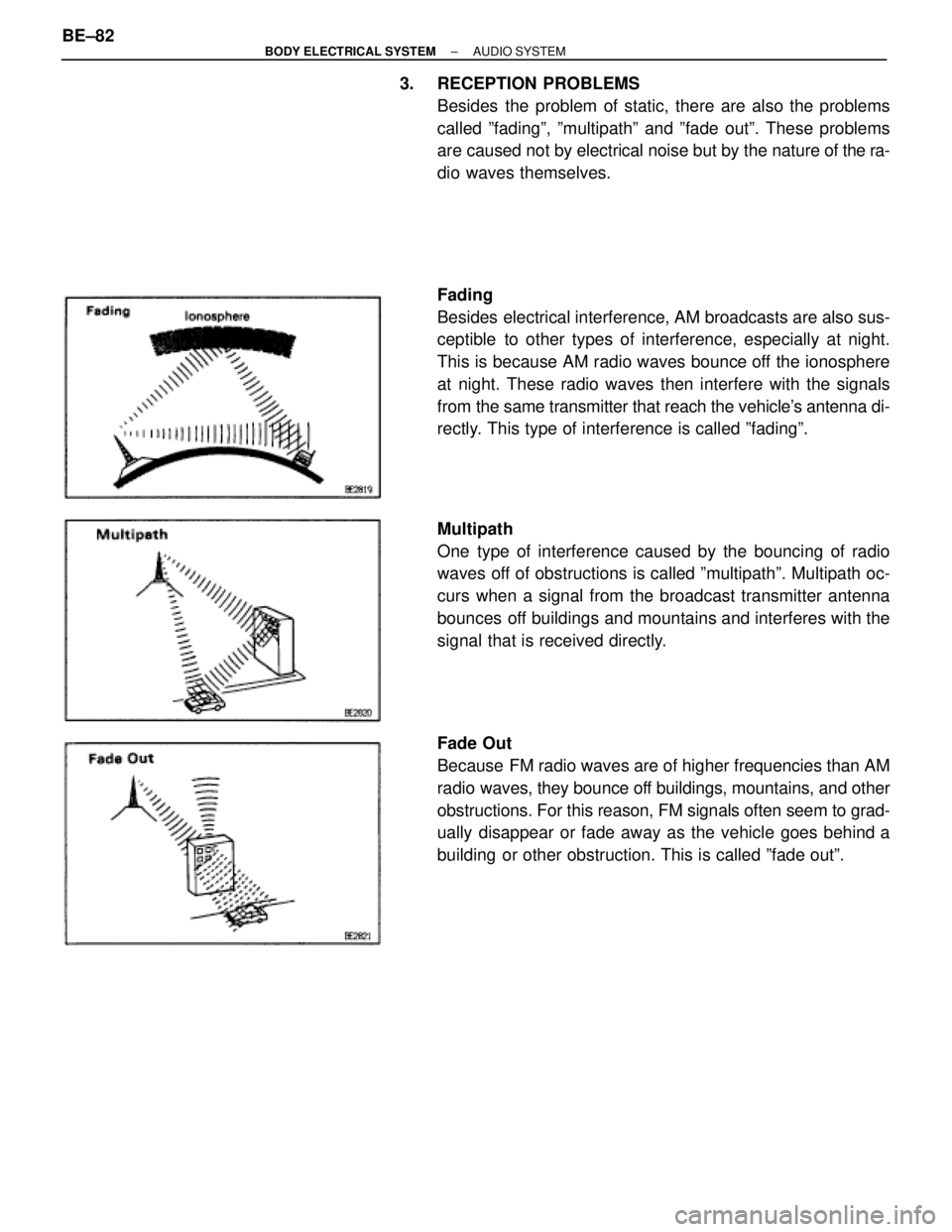

Besides the problem of static, there are also the problems
called ºfadingº, ºmultipathº and ºfade outº. These problems
are caused not by electrical noise but by the nature of the ra-
dio waves themselves.
Fading
Besides electrical interference, AM broadcasts are also sus-
ceptible to other types of interference, especially at night.
This is because AM radio waves bounce off the ionosphere
at night. These radio waves then interfere with the signals
from the same transmitter that reach the vehicle's antenna di-
rectly. This type of interference is called ºfadingº.
Multipath
One type of interference caused by the bouncing of radio
waves off of obstructions is called ºmultipathº. Multipath oc-
curs when a signal from the broadcast transmitter antenna
bounces off buildings and mountains and interferes with the
signal that is received directly.
Fade Out
Because FM radio waves are of higher frequencies than AM
radio waves, they bounce off buildings, mountains, and other
obstructions. For this reason, FM signals often seem to grad-
ually disappear or fade away as the vehicle goes behind a
building or other obstruction. This is called ºfade outº. BE±82
± BODY ELECTRICAL SYSTEMAUDIO SYSTEM
Page 685 of 2543

4. COMPACT DISC PLAYER
Compact Disc (hereafter called ºCDº) Players use a laser
beam pick±up to read the digital signals recorded on the CD
and reproduce analog signals of the music, etc. There are 4.7
in. (12 cm) and 3.2 in. (8 cm) discs in the CD player.
HINT: Never attempt to disassemble or oil any part of the
player unit. Do not insert any object other than a disc into the
magazine.
NOTICE: CD players use an invisible laser beam which
could cause hazardous radiation exposure. Be sure to
operate the player correctly as instructed.
MAINTENANCE

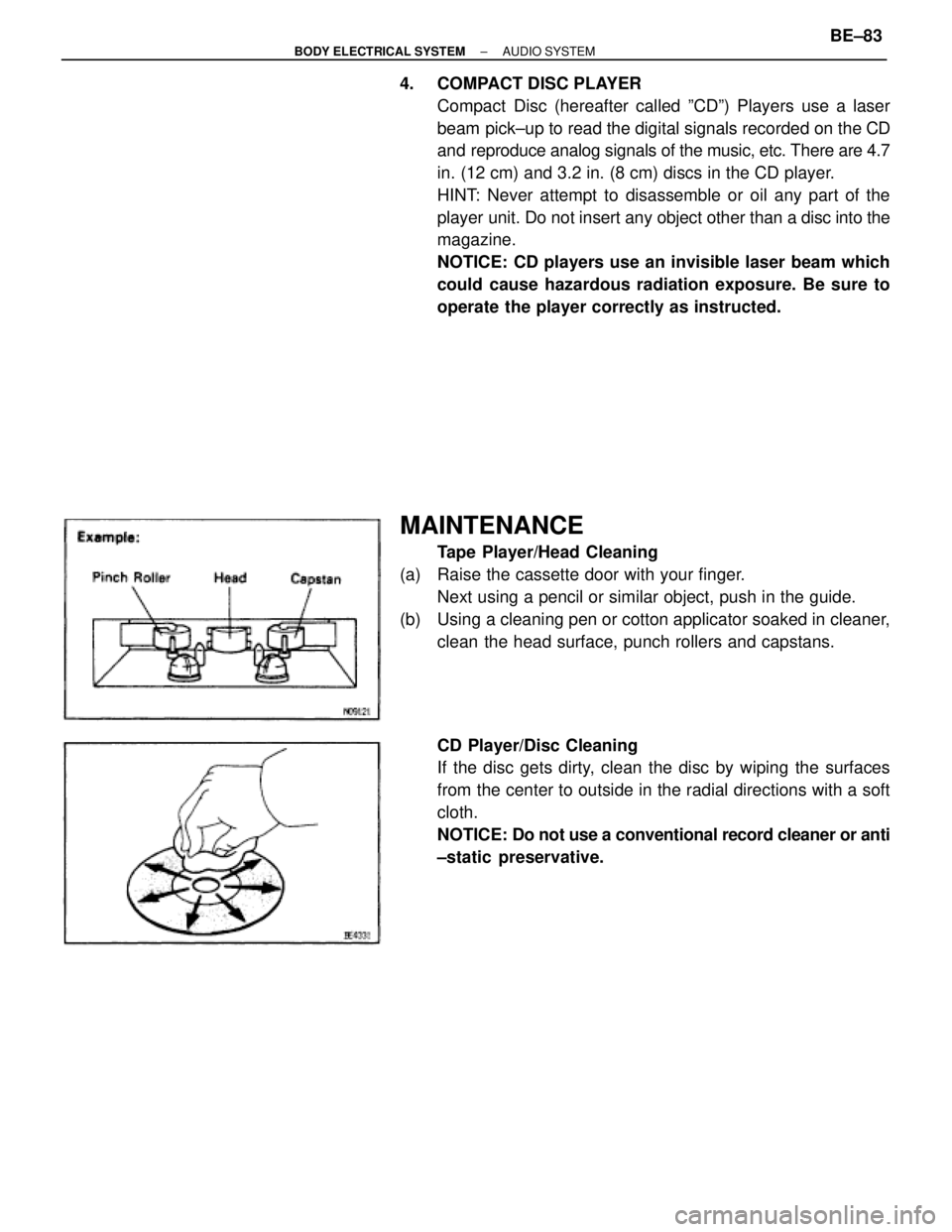

Tape Player/Head Cleaning
(a) Raise the cassette door with your finger.
Next using a pencil or similar object, push in the guide.
(b) Using a cleaning pen or cotton applicator soaked in cleaner,
clean the head surface, punch rollers and capstans.
CD Player/Disc Cleaning
If the disc gets dirty, clean the disc by wiping the surfaces
from the center to outside in the radial directions with a soft
cloth.
NOTICE: Do not use a conventional record cleaner or anti
±static preservative.
± BODY ELECTRICAL SYSTEMAUDIO SYSTEMBE±83
Page 686 of 2543

ANTI±THEFT SYSTEM

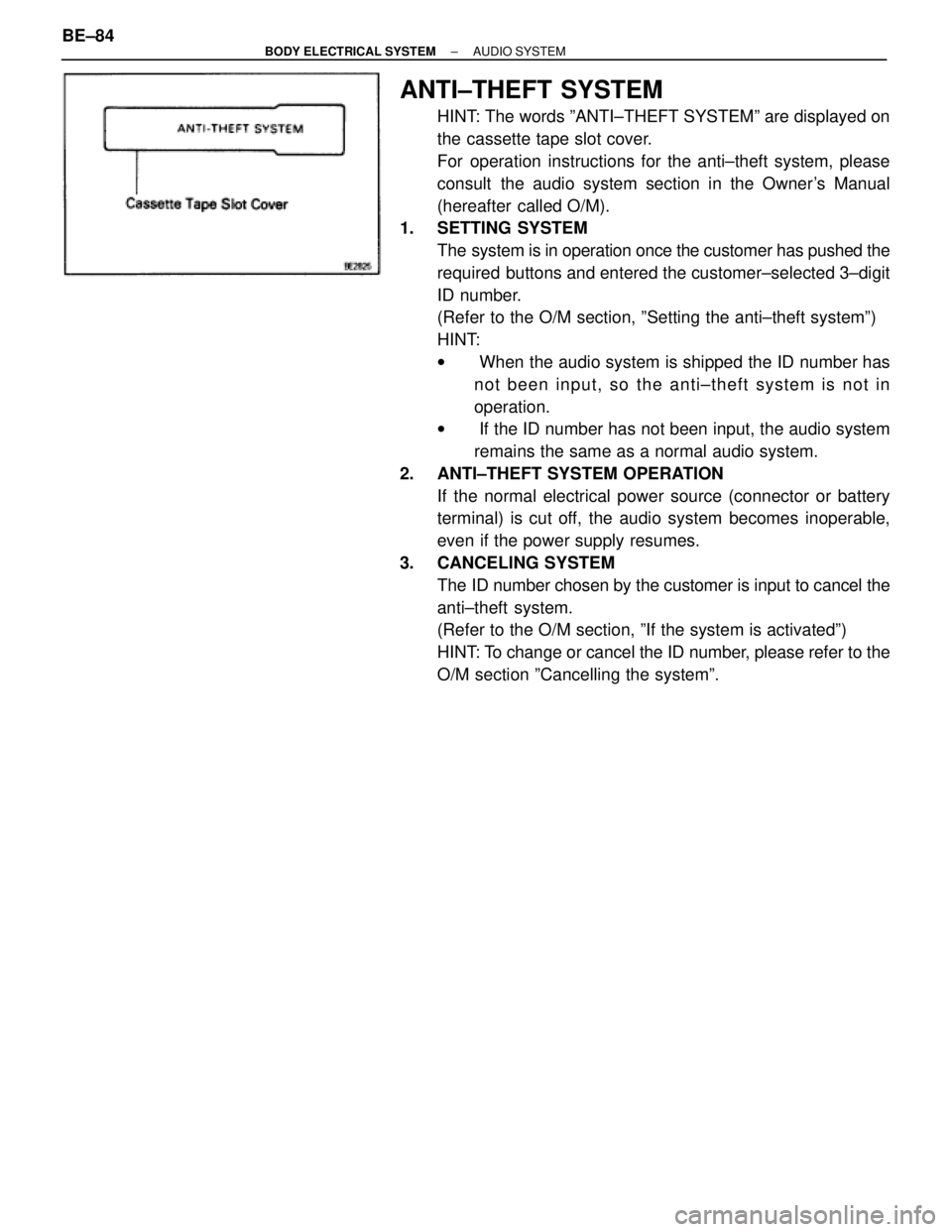

HINT: The words ºANTI±THEFT SYSTEMº are displayed on
the cassette tape slot cover.
For operation instructions for the anti±theft system, please
consult the audio system section in the Owner's Manual
(hereafter called O/M).
1. SETTING SYSTEM
The system is in operation once the customer has pushed the
required buttons and entered the customer±selected 3±digit
ID number.
(Refer to the O/M section, ºSetting the anti±theft systemº)
HINT:
w When the audio system is shipped the ID number has
not been input, so the anti±theft system is not in
operation.
w If the ID number has not been input, the audio system
remains the same as a normal audio system.
2. ANTI±THEFT SYSTEM OPERATION
If the normal electrical power source (connector or battery
terminal) is cut off, the audio system becomes inoperable,
even if the power supply resumes.
3. CANCELING SYSTEM
The ID number chosen by the customer is input to cancel the
anti±theft system.
(Refer to the O/M section, ºIf the system is activatedº)
HINT: To change or cancel the ID number, please refer to the
O/M section ºCancelling the systemº. BE±84
± BODY ELECTRICAL SYSTEMAUDIO SYSTEM
Page 687 of 2543

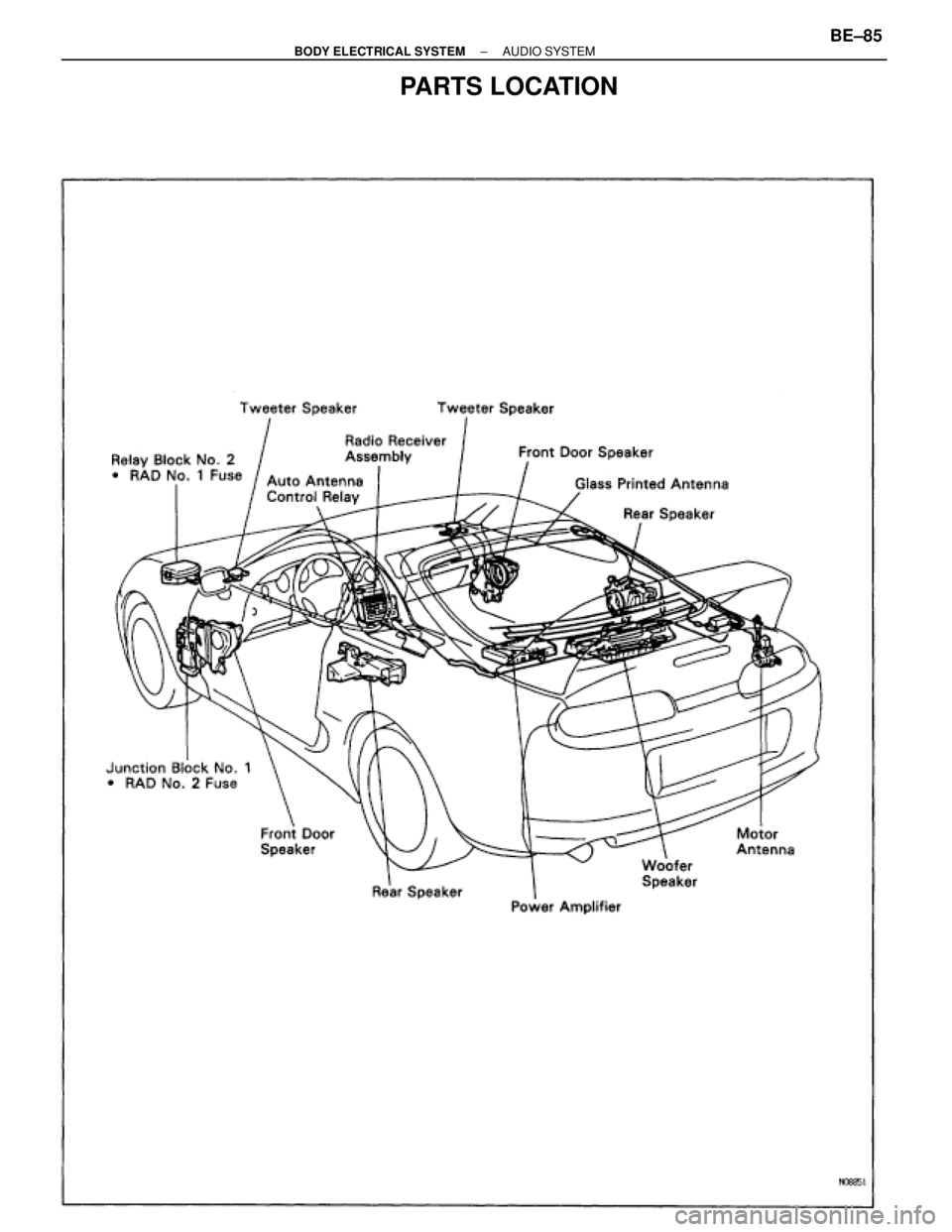

PARTS LOCATION
± BODY ELECTRICAL SYSTEMAUDIO SYSTEMBE±85
Page 688 of 2543

TROUBLESHOOTING
NOTICE: When replacing the internal mechanism (computer part) of the audio system, be careful
that no part of your body or clothing comes in contact with the terminals of the leads from the IC,
etc. of the replacement part (spare part).
HINT: This inspection procedure is a simple troubleshooting which should be carried out on the vehicle
during system operation and is based on the assumption that the cause of trouble lies with the system com-
ponents (except for the wires and connectors, etc.).
Always inspect the trouble taking the following items into consideration.
w Open or short circuit of the wire harness
w Connector or terminal connection fault
w Troubleshooting items marked *indicate that ºTroubleshooting for ANTI±THEFT SYSTEMº should be
carried out first.

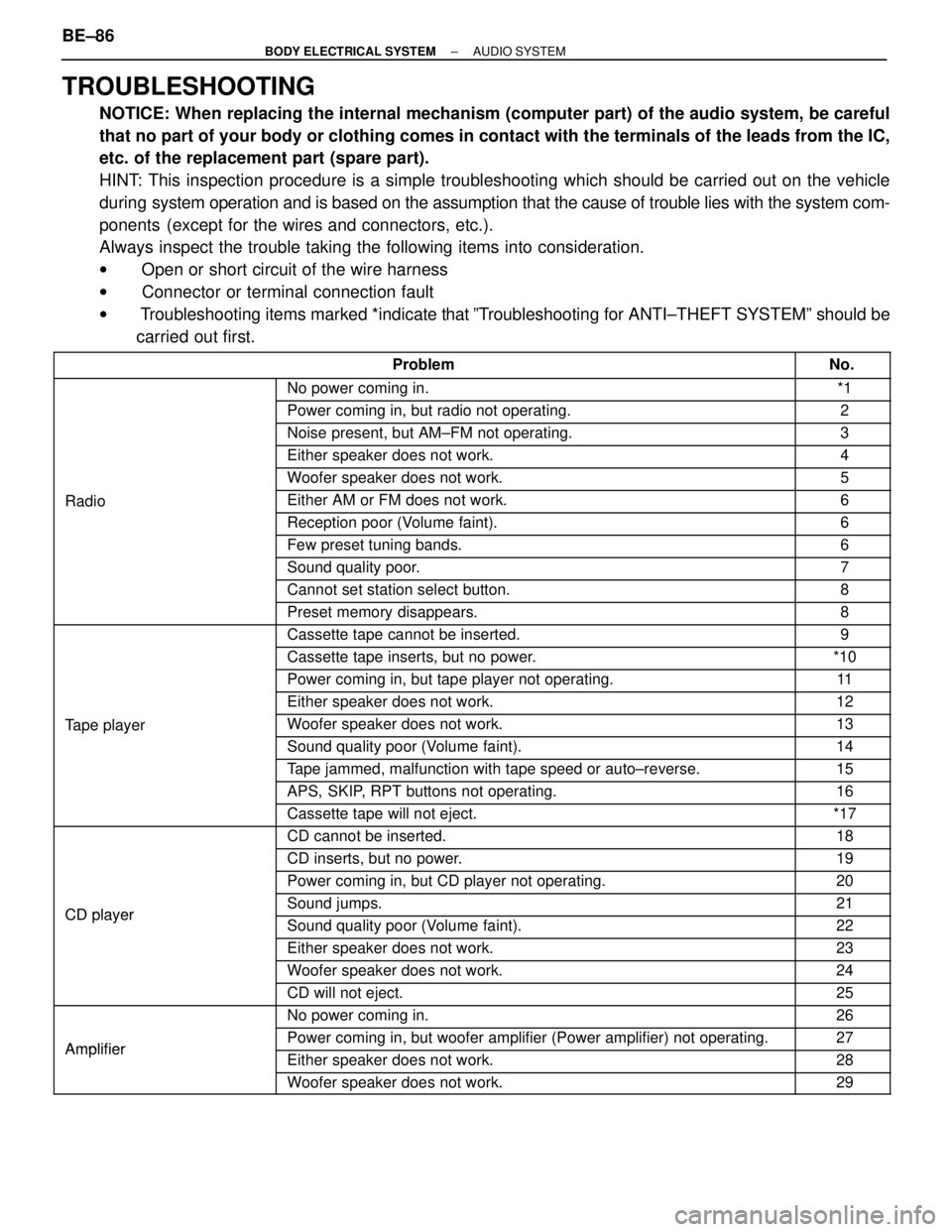

Problem No. No power coming in. *1 Power coming in, but radio not operating. 2 Noise present, but AM±FM not operating. 3
Either speaker does not work. 4
Woofer speaker does not work. 5
Radio Either AM or FM does not work. 6
Reception poor (Volume faint). 6
Few preset tuning bands. 6
Sound quality poor. 7
Cannot set station select button. 8
Preset memory disappears. 8
Cassette tape cannot be inserted. 9
Cassette tape inserts, but no power.*10 Power coming in, but tape player not operating. 11 Either speaker does not work. 12 Tape player Woofer speaker does not work. 13 y Sound quality poor (Volume faint). 14 Tape jammed, malfunction with tape speed or auto±reverse. 15 APS, SKIP, RPT buttons not operating. 16
Cassette tape will not eject. *17
CD cannot be inserted. 18
CD inserts, but no power. 19
Power coming in, but CD player not operating. 20
CDplayer Sound jumps. 21
CD player Sound quality poor (Volume faint). 22
Either speaker does not work. 23
Woofer speaker does not work. 24
CD will not eject. 25
No power coming in.26
Amplifier
Power coming in, but woofer amplifier (Power amplifier) not operating. 27 Amplifier Either speaker does not work. 28 Woofer speaker does not work. 29
